Waterway OASIS User manual

INSTRUCTION MANUAL
POOL & SPA CONTROL
2200 E. Sturgis Road, Oxnard, CA 93030 • Phone [phone] • Fax [phone]
[email protected] • www.waterwayplastics.com
Designed,
Engineered &
Manufactured
in the USA.

Section 1. Important Safety Instructions
READ AND FOLLOW ALL INSTRUCTIONS
All electrical work must be performed by a licensed electrician and conform to all national, state, and local codes. When installing and using
this electrical equipment, basic safety precautions should always be followed, including the following:
DANGER
To reduce the risk of severe injury or death, do not remove the suction fittings of your spa or hot tub. Never operate a spa or hot tub if the
suction fittings are broken or missing. Never replace a suction fitting with one rated less than the flow rate marked on the equipment assembly.
WARNING
Prolonged immersion in hot water may induce hyperthermia. Hyperthermia occurs when the internal temperature of the body reaches a level
several degrees above the normal body temperature of 98.6°F (37°C). The symptoms of hyperthermia include dizziness, fainting, drowsiness,
lethargy, and an increase in the internal temperature of the body. The effects of hyperthermia include: 1) unawareness of impending danger; 2)
failure to perceive heat; 3) failure to recognize the need to exit spa; 4) physical inability to exit spa; 5) fetal damage in pregnant women;
6) unconsciousness resulting in a danger of drowning.
WARNING
To Reduce the Risk of Injury:
a) The water in a spa should never exceed 104°F (40°C). Water temperatures between 100°F (38°C) and 104°F (40°C) are considered
safe for a healthy adult. Lower water temperatures are recommended for young children and when spa use exceeds 10 minutes.
b) Since excessive water temperatures have a high potential for causing fetal damage during the early months of pregnancy, pregnant or
possibly pregnant women should consult a physician before using a spa or hot tub, and should limit spa water temperatures to 100°F
(38°C). Water temperature in excess of 38° C (100° F) may be injurious to your health.
c) Before entering a spa or hot tub, the user should measure the water temperature with an accurate thermometer since the tolerance of
water temperature-regulating devices varies.
d) The use of alcohol, drugs, or medication before or during spa or hot tub use may lead to unconsciousness with the possibility of drowning.
e) Obese persons and persons with a history of heart disease, low or high blood pressure, circulatory system problems, or diabetes should
consult a physician before using a spa.
f) Persons using medication should consult a physician before using a spa or hot tub since some medication may induce drowsiness while
other medication may affect heart rate, blood pressure, and circulation.
OASIS POOL & SPA CONTROL
2
WARNING! Qualified Technician Required for Service and Installation
FOR YOUR SAFETY
This product must be installed and serviced by a contractor who is licensed and qualified in pool equipment by the jurisdiction in which
the product will be installed, where such state or local requirements exist. In the event no such state or local requirement exists, the
maintainer must be a professional with sufficient experience in pool equipment installation and maintenance, so that all of the instructions
in this manual can be followed exactly. Before installing this product, read and follow all warning notices and instructions that accompany
this product. Failure to follow warning notices and instructions may result in property damage, personal injury, or death. Improper
installation and/or operation will void the warranty.
Improper installation and/or operation can create unwanted electrical hazard which can cause serious injury, property damage, or death.

DANGER
Risk of electric shock:
Install the controller at least five (5) feet (1.52m) from the inside wall of the pool and/or spa/hot tub using non-metallic plumbing. Canadian
installations must be at least three (3) meters from the water. Children should not use spas or hot tubs without adult supervision. Do not use
spas or hot tubs unless all suction guards are installed to prevent body and hair entrapment. People using medications and/or having an
adverse medical history should consult a physician before using a spa or hot tub.
WARNING
To avoid injury ensure that you use this control system to control only packaged pool/spa heaters which have built-in operating and high
limit controls to limit water temperature for pool/spa applications. This device should not be relied upon as a safety limit control.
WARNING
• People with infectious diseases should not use a spa or hot tub.
• To avoid injury, exercise care when entering or exiting the spa or hot tub.
• Do not use drugs or alcohol before or during the use of a spa or hot tub to avoid unconsciousness and possible drowning.
• Before entering a spa or hot tub, measure the water temperature with an accurate thermometer.
• Do not use a spa or hot tub immediately following strenuous exercise.
• Prolonged immersion in a spa or hot tub may be injurious to your health.
• Do not permit any electric appliance (such as a light, telephone, radio, or television) within five (5) feet (1.52m) of a spa or hot tub.
• The use of alcohol, drugs or medication can greatly increase the risk of fatal hyperthermia in hot tubs and spas.
• Water temperature in excess of 100°F (38°C) may be hazardous to your health.
WARNING
A terminal bar marked “GROUND” is provided within the controller. To reduce the risk of electrical shock which can cause serious injury or
death, connect this terminal bar to the grounding terminal of your electric service or supply panel with a continuous copper conductor
having green insulation and one that is equivalent in size to the circuit conductors supplying this equipment, but no smaller than no. 12 AWG
(3.3mm2). In addition, a second wire connector should be bonded with a no. 8 AWG (8.4mm2) copper wire to any metal ladders, water pipes,
or other metal within five (5) feet (1.52m) of the pool/spa. In Canada the bonding wire must be minimum 6 AWG (13.3mm2).
CAUTION
A ground-fault circuit-interrupter must be provided if this device is used to control underwater lighting fixtures. The conductors on the load
side of the ground-fault circuit-interrupter shall not occupy conduit, boxes, or enclosures containing other conductors unless the additional
conductors are also protected by a ground-fault circuit interrupter. Refer to local codes for complete details.
Attention Installer:
Installer to provide drainage of compartment for electrical components.
SAVE THESE INSTRUCTIONS
3
WARRANTY
For product registration visit: www.waterwayplastics.com.
For Warranty questions or claims please contact point of purchase.

4
Section 2. System Overview
2.1 Package Contents
Package contents will vary depending on which OASIS configuration you are installing.
2.2 Electrical Specifications
Power Supply 120 VAC or 240 VAC;
60 Hz; 1.67 A
Contact Rating High voltage - 25 A;
3HP @ 240 VAC
1½ HP @120 VAC
1500 Watts Incandescent
Low Voltage - Class 2,
1 A @ 24 VAC
OASIS - 770-1006-PSW2 OASIS - 770-1002-PS2
• Six Function Controller with removable User Interface (UI) • Six Function Controller with removable User Interface (UI)
• OASIS WIFI • Waterway Valve Actuators (2)
• Waterway Valve Actuators (2) • Water Temperature Sensor Kit
• Water Temperature Sensor Kit • Mounting Hardware
• Mounting Hardware • Mounting bracket
• Mounting Bracket • Mounting Bracket for remotely installing UI
• Mounting Bracket for remotely installing UI • Cover plate for UI housing
• Cover plate for UI housing • Instruction Manual
• Instruction Manual
OASIS - 770-1004-PSW OASIS - 770-1000-PS
• Six Function Controller with removable User Interface (UI) • Six Function Controller with removable User Interface (UI)
• OASIS WIFI • Water Temperature Sensor Kit
• Water Temperature Sensor Kit • Mounting Hardware
• Mounting Hardware • Mounting bracket
• Mounting bracket • Mounting Bracket for remotely installing UI
• Mounting Bracket for remotely installing UI • Cover plate for UI housing
• Cover plate for UI housing • Instruction Manual
• Instruction Manual
NEUTRAL
TRANSFORMER
BREAKER BOX
WIRE NUT
120 V
BREAKER BOX
240 V
TRANSFORMER
NEUTRAL
WIRE NUT

Section 3. Install Controller Box
When mounting the controller box in the equipment pad, instructions
must be followed exactly. Read through the Important Safety
Information section completely before beginning installation and
before operating the equipment.
Before you begin installation, make sure you have the necessary tools
and a suitable location to install the OASIS.
NOTE: The controller should be located at or near the equipment pad.
Locate the controller at least five (5) feet or more away from pool/spa
and five (5) feet off the ground. All national, state, and local codes are
applicable.
NOTE: For Canadian installations, the controller must be at
least three (3) meters (9.8 feet) away from the pool/spa.
3.1 Mount the Controller Enclosure
1. Using a flat screwdriver, rotate door latch to unlock the front
cover of the controller.
2. Open the front cover door and remove the mounting
hardware kit.
3. Using the holes in the bracket as a guide, mark four (4) dots
on the surface where the controller will be mounted. The
four (4) mounting holes are 3-15/16” (10 cm) apart center
to center.
NOTE: Make sure to mark out the four (4) holes as accurately
as possible.
4. Drill four (4) holes in the mounting surface.
5. Press the four (4) plastic anchors firmly into holes.
6. Screw the mounting bracket onto the mounting surface with
the four (4) screws provided.
continued next page
5
2.3 Materials and Tools
Package contents will vary depending on which OASIS configuration you are installing.
Installation Materials Furnished
• Screw Set (includes Plastic Anchors)
• Metal Mounting Bracket
Tools Needed for Installation
• Power Drill
• 3/16” Drill Bit - Hammer Drill Bit (only necessary to drill into brick or concrete)
• Conduit Fittings
• Wire Nuts
• Wire Crimping Pliers
• Pencil or Marking Pen
• Flat Head Screwdriver
• Phillips Head Screwdriver
• Small Flathead or Slotted Screwdriver
WARNING
FOR YOUR SAFETY: This product must be serviced by a
professional pool/spa service technician as described on the front
cover of this manual. The procedures in this manual must be
followed exactly. Failure to follow warning notices and instructions
may result in property damage, serious injury, or death. Improper
installation and/or operation will void the warranty.

6
7. Open the front cover of the controller and
locate the fastening hole under the
ground bar. Drill a 3/16” hole through
the plastic enclosure.
8. Line up the slot in the controller enclosure
with the guide in the mounting bracket and
hook on to mount.
9. Secure the controller enclosure to the
mounting bracket with the single fine thread
Phillips screw provided.
1. Using the holes in the plastic bracket as a guide, drill two (2)
holes on the surface where the UI will be mounted.
2. Screw the bracket to the surface using two (2) screws.
3. Remove the UI from the front of the controller enclosure and
attach to the mounting plastic bracket. Secure with set
screws on the sides.
4. Use the blank plastic face plate provided to cover the UI
housing when UI is removed. Attach face plate to enclosure
door with the two screws originally used to fasten the UI to
the door.
3.2 Mount the User Interface for
Remote Access
The user interface (UI) may be installed in a more convenient
location away from the equipment pad.
To set up the UI remotely, you will need to purchase a CAT 5
cable the length of the remote distance to connect the UI to the
controller unit.
NOTE: The UI MUST be mounted OUTDOORS where a pool
service technician may conveniently access it.
All high voltage wiring must be done by a licensed electrical
contractor.
NOTE: See Figure 10.4 OASIS Electrical Wiring Diagram on page
10 for specific wire locations and connections.
Section 4. High Voltage Wiring

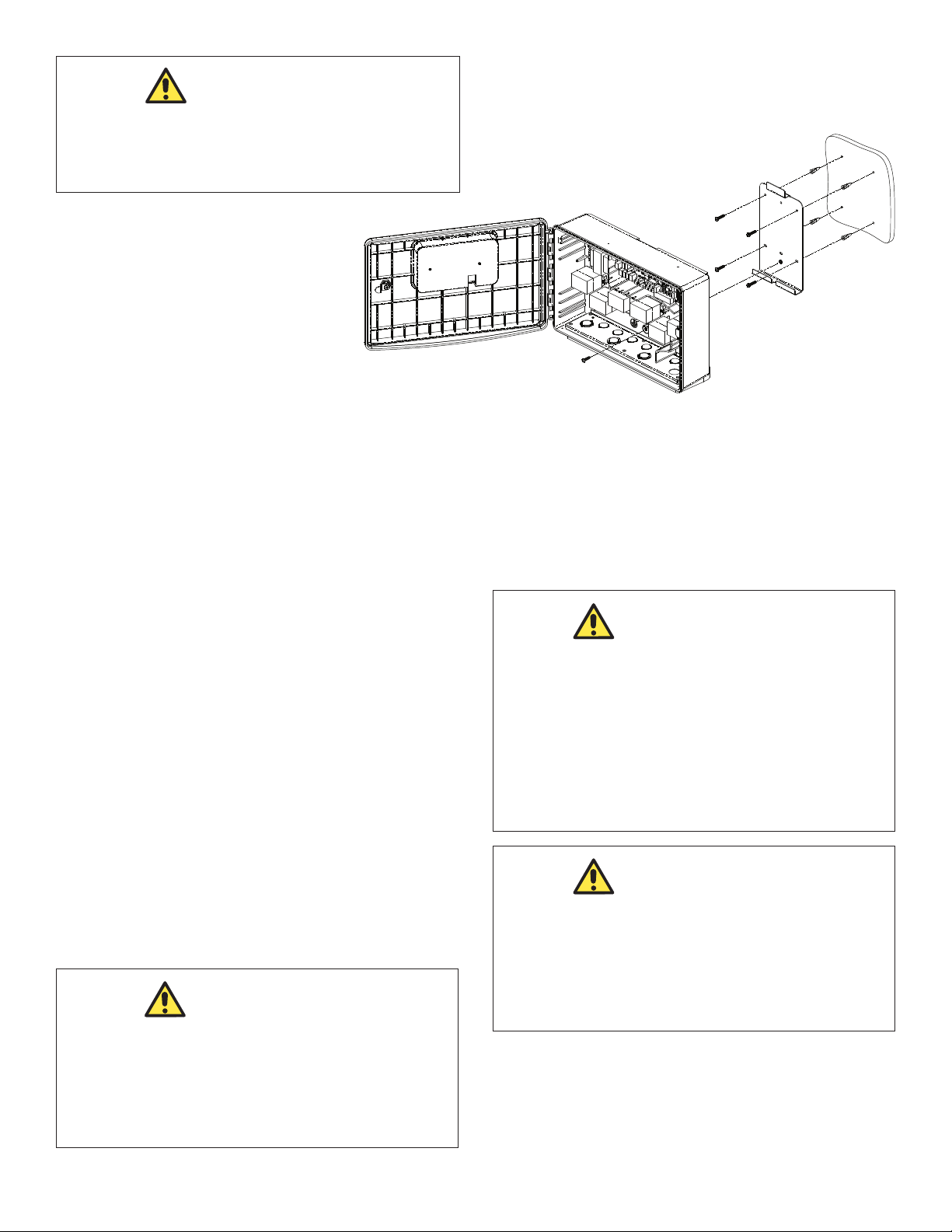

Figure 1. Mounting the Controller Enclosure
CAUTION
Make sure to perform the following step BEFORE mounting the
enclosure onto the mounting bracket, otherwise, damage to the
threaded hole of the mounting bracket may occur.
WARNING
The controller is not to be considered as suitable for use as service
equipment. Therefore it is required to have the appropriate
means of disconnection, circuit isolation, and/or branch circuit
protection installed upstream of the power/control center.
WARNING
Potentially high voltages in the OASIS controller can create
dangerous electrical hazards, possibly causing death, serious
injury or property damage. Turn off power at the main circuit
feeding the OASIS controller to disconnect the power center
from the system.
WARNING
Waterway Plastics recommends that any procedure requir-
ing potential contact with live electrical wiring and/or parts
other than cords and plugs connected to electrical outlets,
be completed by a contractor who is licensed and qualified
in pool equipment as described on the front cover of this
manual. Failure to follow warning notices and instructions
may result in property damage, serious injury, or death.

7
4.1 Ground Fault Circuit Interrupter
4.2 Connect Grounding Wires and
Transformer Wires
The National Electrical Code® (NEC®) requires pool equipment
to be bonded to each other. Check your local codes to determine
if the NEC and/or other local installation codes are enforced by the
Authority Having Jurisdiction (AHJ).
A solid, copper wire minimum 8 AWG (8.37 mm2 ) wire is
recommended, per the NEC, for bonding the controller to a perma-
nent bonding connection that is acceptable to the local AHJ. Refer to
your locally enforced codes for the acceptable bonding wire gauge.
Each piece of non-related pool equipment requiring a ground should
also be bonded to the common, approved bonding point. There
should be one bonding connection to the controller. In Canada,
the Canadian Electrical Code (CEC®) dictates that the bonding
conductor be a minimum of 6 AWG (13.3 mm2 ).
4.3 Connect Line Power and Load
Filter Pump to Relay
As marked in the controller enclosure, Relay 1 is the dedicated Filter
Pump relay.
4.4 Connect Additional Equipment
to AUX Relays
Use the five (5) additional AUX relays to wire additional high
voltage equipment, such as Pool Light, Spa Light, Booster Pump,
etc. Connect only one device per relay.
For each device:
1. Connect ground wire to ground bar.
2. Connect line power to Line 1 and Line 2.
3. Connect equipment power to Load 1 and Load 2.
Figure 3. Filter Pump Relay
WARNING
When using electrical products, basic precautions should always
be followed, including the following:
• DANGER: RISK OF ELECTRIC SHOCK WHICH CAN RESULT
IN SERIOUS INJURY OR DEATH. Before attempting
installation or service, ensure that all power to the device is
disconnected/turned off at the circuit breaker. Connect only to
a circuit protected by a ground fault circuit-interrupter (GFCI).
• Grounding is required. The unit should be installed by a
qualified service representative and should be properly
grounded and bonded.
• Install to permit access for servicing.
• Please read all cautions and safety instructions in the
Important Safety Instructions section.
Before attempting any electrical wiring, be sure to read
and follow safety instructions. Wiring should only be
attempted by a qualified professional.
LINE 1
LOAD 1
LINE 2
LOAD 2
NEUTRAL
TRANSFORMER
BREAKER BOX
WIRE NUT
120 V
BREAKER BOX
240 V
TRANSFORMER
NEUTRAL
WIRE NUT
1. Connect main power wires to Line 1 and Line 2.
2. If applicable, connect chlorinator ground wire to the ground bar.
3. Connect filter pump and chlorinator wires to Load 1 and Load 2.

8
Section 5. Low Voltage Wiring
All low voltage wiring should be run through the knockouts in the low
voltage compartment (right side of controller enclosure). See Figure 4.
IMPORTANT
Never run high voltage and low voltage in the same conduit.
3. Feed the sensor wire through the black low voltage wiring
knockout.
4. Strip 1/4” of insulation and separate the wires.
5. Connect sensor wires to pins #5 and #6 of the 10-pin blue
connector.
5.1.1 Install the Water Temperature
Sensor
1. Drill a hole for mounting the water temperature sensor line
in the pipe between the pump and the filter (before the
heater).
2. Install the O-ring on the sensor and insert the sensor into
the hole. Wrap and tighten metal clamp around the pipe to
secure sensor.
5.1 Wire the Temperature Sensors
Wire the temperature sensors on the 10-pin blue connector (see
Figure 10.4 Wiring Diagram). The air temperature sensor is factory-
installed on the 10-pin blue connector (#7 & #8). The water
temperature sensor and necessary installation hardware is included.

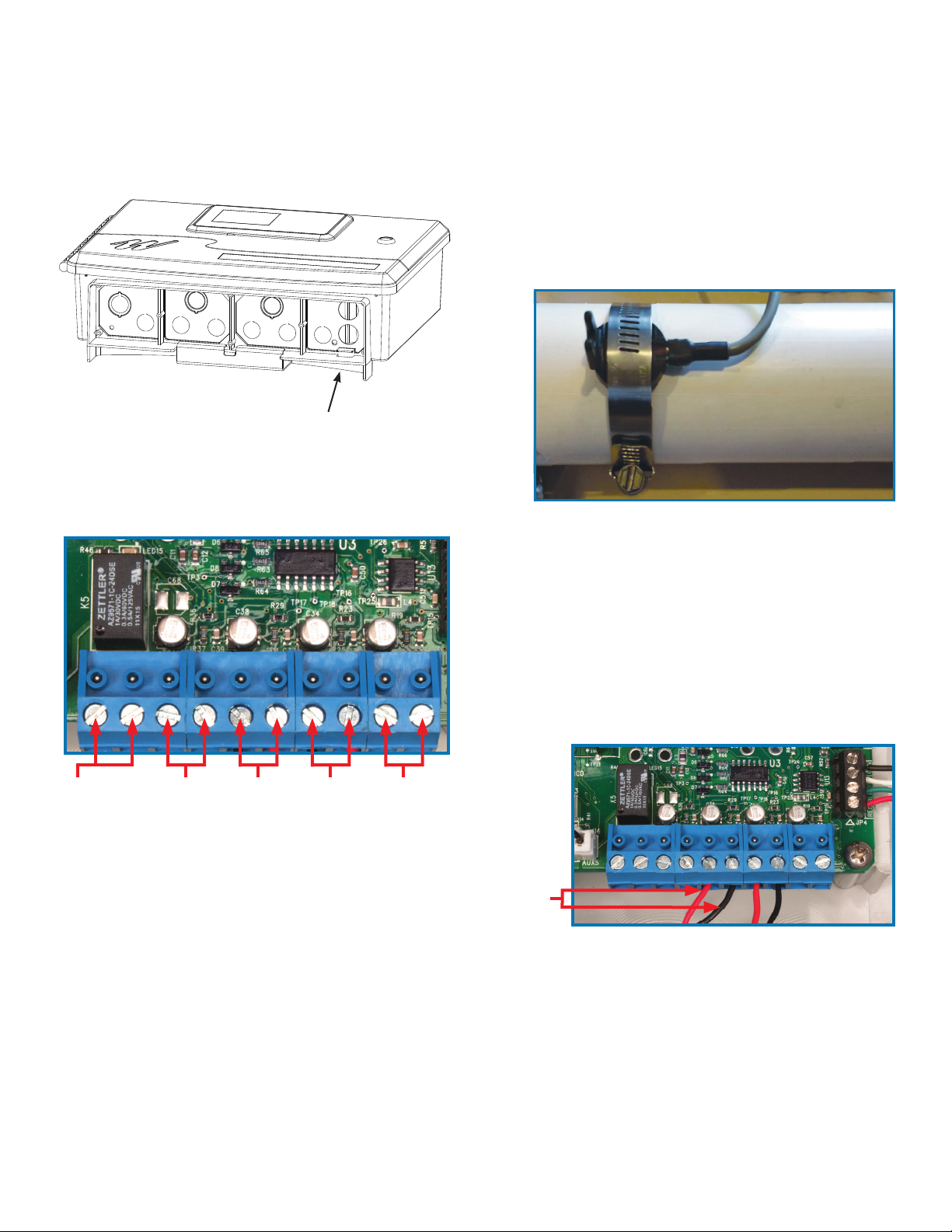

Figure 4. Knockouts for low voltage wiring
Figure 5. Sensor Connection
Figure 5.1. Sensor Connection
Figure 5.1.1. Sensor Connection
LOW VOLTAGE
KNOCKOUT FITTINGS
(Bottom of unit case.)
SENSOR CONNECTION
LOW VOLT HEATER SOLAR TEMP WATER TEMP AIR TEMP SPARE
SENSOR CONNECTION
WATER TEMP
SENSOR
RED # 5
BLACK # 6
WATER TEMP SENSOR

9
Figure 8. OASIS Wifi Wiring
Figure 8.1. OASIS Wifi Connector
NOTE: Wire only one Wifi to
to ‘JP4’.
Make sure the wires are connected
in the right order. Wires should be
connected black, white, green, red
from the top down.
WIFI CONNECTION
Left to Right Wiring
RED GREEN WHITE BLACK
5.1.3 Install a Solar Sensor
(if applicable)
If there is solar, wire the solar panel temperature sensor to the 10-
pin blue connector.
The solar sensor should be installed adjacent to the solar panel
so it will read the same temperature as the solar panels. Do not
install in the pipe.
1. Feed the sensor wire through the black low voltage wiring
knockout.
2. Strip 1/4” of insulation and separate the wires.
3. Connect Solar sensor wires to pins #3 and #4. (see Figure 5.
Sensor Connection).
5.2.1 Mount the OASIS WiFi
Mount the OASIS WiFi at least 6 feet off the ground and at least
8 feet from motors, such as pumps or blowers, and other electrical
equipment.
5.2.2 Wire the OASIS WIFI
Connect the OASIS Wifi to the ‘JP4’ RS-485 connector
(see Figure 10.4 Wiring Diagram).
1. Feed wire through the black low voltage wiring knockout.
2. Connect the Black, White, Green, and Red wires as shown
in (Figure 8).
5.2 Install OASIS WiFi (if applicable)
NOTE: For complete OASIS Pool Control App instructions and
information, refer to the OASIS WiFi instruction manual.
5.1.2 Replacing Air Sensor
The Air Sensor comes pre-installed in the OASIS Controller.
To replace the Air Sensor;
1. Remove nut located on the air sensor probe, remove probe.
2. On the 10 pin sensor connector loosen the screws & remove
wires on pin #7 & #8.
3. Install new air sensor and reattach red wire to pin #7 and
black wire to pin #8.
Figure 7. Sensor Connection
Figure 6. Air Temp Sensor
AIR TEMP SENSOR
AIR TEMP
SENSOR
PROBE
SENSOR CONNECTION
AIR TEMP
SENSOR
RED # 7
BLACK # 8
5.1.4 Install Additional Low Voltage
Equipment (i.e., Heater
Connection)
If there is additional low voltage equipment installed, such as low
voltage heating.
1. Feed the sensor wire through the black low voltage wiring
knockout.
2. Strip 1/4” of insulation and separate the wires.
3. Connect sensor wires to pins #1 and #2.
(see Figure 5. Sensor Connection).

10
Figure 10.4 OASIS Controller Electrical Wiring Diagram
J3 SOLAR J4 OPTION
FILTER PUMP
AUX 1
AUX 2
AUX 3
AUX 4
AUX 5
GROUNDING
BAR
WATERWAY OASIS TOPSIDE PANEL
BREAKER BOX
GROUND
NEUTRAL
OASIS WI-FI KIT
BLOWER
FILTER PUMP
J1 INTAKE
J2 RETURN
SOLAR TEMP SENSOR
AIR TEMP SENSOR
WATER TEMP SENSOR
Variable
Speed
Connector

J3 SOLAR J4 OPTION
J1 INTAKE
FILTER PUMP
AUX 1
AUX 2
AUX 3
AUX 4
AUX 5
GROUNDING
BAR
WATERWAY OASIS TOPSIDE PANEL
BREAKER BOX
GROUND
NEUTRAL
OASIS WI-FI KIT
Variable
Speed
Connector
Filter Pump-High
Filter Pump-Low
BLOWER
FILTER PUMP
J2 RETURN
SOLAR TEMP SENSOR
AIR TEMP SENSOR
WATER TEMP SENSOR
Figure 10.1. OASIS Controller Electrical Wiring Diagram for 2-Speed Pump
11
WiFi

Installing Jumpers for a 2-Speed Pump
To install a 2 speed pump you must use the left two relays. Three
jumpers need to be installed:
Jumper 1 – Line 1 from Relay 1 to Line 1 of Relay 2.
Jumper 2 – Line 2 from Relay 1 to Line 2 of Relay 2.
Jumper 3 – Load 2 from Relay 1 to Load 2 of Relay 2.
5.3.3 Installing Variable Speed
Filter Pump
Connect power to the “Filter Pump” relay 1 (see Figure 10.2)
NOTE: Variable Speed Pumps not manufactured by Waterway
Plastics should be connected directly to the breaker.
12
5.3 Install Filter Pump
5.3.1 Installing a 1-Speed Filter Pump
Install Single Speed Pump – relay 1 plug into the connector labeled
“Filter Pump” (see Figure 9)
- For 240V from power source
connect “Lines” to Relay 1 Line 1
and Relay 1 Line 2.
- Connect “Load” to Relay 1 Load 1
and Relay 1 Load 2 (see Figure 3).
For wiring diagram refer to Figure 10)
Figure 10. Relay Sequence & Plug-In
Figure 9. Relay Connections
5.3.3.1 Installing Communication Cable
for Variable Speed Pump
Select the correct pump manufacturer and model from Installer
Setup. Connect the Communication cable to the OASIS variable
speed connection terminal as shown below. (Figure 10.3)
When using Installer Setup to configure the OASIS Pool Controller
for a Variable Speed pump it is important to select the correct pump.
WWVSP = Power Defender 165 & Power Defender 270
WWVSP2 = Power Defender 300
Intel VSP = Pentair IntelliFlo pumps
Hayward VSP = select Hayward EcoStar VS pumps
Jandy VSP = select Jandy Pro Series VS pumps
Refer to Figure 11- Figure 13 for specific wiring information
The color code and order of connections varies based on the pump
manufacturer and model as shown in the following pictures.
RELAY PLUG-IN
FILTER PUMP AUX 1 AUX 2 AUX 3 AUX 4 AUX 5
RELAY SEQUENCE AND PLUG-IN
RELAY 1
FILTER RELAY 2 RELAY 3 RELAY 4 RELAY 5 RELAY 6
PUMP AUX 1 AUX 2 AUX 3 AUX 4 AUX 5
Filter Pump
Breaker Box
VARIABLE SPEED CONNECTION
Left to Right Wiring
1 2 3 4
Figure 10.3
Figure 10.2. Relay Sequence & Plug-In
RELAY SEQUENCE AND PLUG-IN
RELAY 1
FILTER RELAY 2 RELAY 3 RELAY 4 RELAY 5 RELAY 6
PUMP AUX 1 AUX 2 AUX 3 AUX 4 AUX 5
Filter Pump
Breaker Box
LINE 1
LOAD 1
LINE 2
LOAD 2
5.3.2 Installing a 2-Speed Filter Pump
Install Two Speed pump – Pump High needs to plug into relay
connector label “Filter Pump” and Low needs to plug relay into
connector labeled “Aux 1”
- For 240V from power source connect “Lines” to Relay 1, Line 1
and Relay 1, Line 2 on. Aux 1 relay connect power source to line 1
(see Figure 3 and Figure 10.1 – page 11)
RELAY SEQUENCE AND PLUG-IN
NOTE: Waterway does not assume responsibility for software changes by other pump manufacturers.

NOTE: Waterway does not assume responsibility for software changes by other pump manufacturers.
5.3.3.3 *Installing Communication Port
for Pentair IntelliFlo®& Hayward EcoStar®
- Be sure to turn off or disable all pump priming and timer schedules
before connecting the pump to Waterway OASIS.
* Other pump models with the same name may be connected in the same way.
5.4 Install Waterway Valve Actuators
(WVAs) (if applicable)
You may wire up to four WVAs on the OASIS. Two (2) WVAs are
included in optional PS2 and PSW2 Pool/Spa kits. Additional WVAs
may be required on a pool/spa configuration to control a water
feature or solar panel.
NOTE: Read and follow complete installation instructions and
safety information in the Waterway Valve Actuator owner’s
manual (included in the WVA packaging).
1. Install intake WVA and return WVA on equipment lines
according to installation instructions in the owner’s manual.
2. Feed intake WVA wire through the black low voltage wiring knockout.
3. Connect Intake WVA to ‘J1 Intake’ as shown in Figure 10.4 above.
4. Feed return WVA wire through the black low voltage wiring knockout.
5. Connect Return WVA to ‘J2 Return’ as shown in Figure 10.4 above.
13
5.3.3.2 *Installing Communication Port
for Jandy Pro Series VS pump
WATERWAY VSP CONNECTION TO
POWER DEFENDER 165 PUMP
WATERWAY VSP
CONNECTION TO PUMP
•BLACK - COM
•WHITE - B
•GREEN - A
WATERWAY VSP CONNECTION TO
POWER DEFENDER 270 PUMP
Figure 12. Jandy Pro Series VSP Connection to Pump
JANDY PRO SERIES VSP CONNECTION
JANDY VSP CONNECTION
LEFT TO RIGHT WIRING
•BLACK - NUMBER 2
•YELLOW - NUMBER 3
•GREEN - NUMBER 4
Figure 13. Pentair IntelliFlo/Hayward EcoStar Connection to Pump
HAYWARD PUMP
SIDE CONNECTION
PENTAIR INTELLIFLO®& HAYWARD
ECOSTAR®VSP CONNECTION
PENTAIR & HAYWARD
CONNECTION
LEFT TO RIGHT
•YELLOW - NUMBER 2
•GREEN - NUMBER 3
WATERWAY VARIABLE SPEED CONNECTION TO OASIS
WATERWAY VSP
CONNECTION TO OASIS
•GREEN - NUMBER 2
•WHITE - NUMBER 3
•BLACK - NUMBER 4
Figure 11
Figure 11.1
Figure 11.2
VSP CONNECTION
TO PUMP
LEFT TO RIGHT WIRING
•GREEN - NUMBER 2
•WHITE - NUMBER 3
•BLACK - NUMBER 4
WATERWAY VSP2 CONNECTION TO
POWER DEFENDER 300 PUMP
Figure 11.3 Note: Switch 3 must be moved to UP position
before connection to Power Defender 300
WATERWAY VSP2 CONNECTION TO PUMP •BLACK - COM •GREEN - A •WHITE - B
DOWN UP
NOTE: All DIP switches should be in off position
NOTE: For Jandy Pro Variable Speed pumps - Please
connect High Voltage from pump directly to the breaker.
NOTE: For Pentair & Hayward Variable Speed pumps - Please
connect High Voltage from pump directly to the breaker.

Section 6. System Setup, Programming
and Testing
All system programming and installation setup is performed through
the OASIS user interface.
Main Screen:
The main screen displays the current mode of the system, time,
water temperature, air temperature, and the status of accessories
(Pool Light, Blower, Booster Pump, etc).
Operation:
• Buttons 1 to 6: Turn accessories ON and OFF by pushing buttons
1 - 6 around the LCD display. The accessories are shown above
buttons 1 - 4, and on the right of buttons 5 and 6. If there are
more than 6 accessories, Button 6 will show “More>>” and when
pushed, will display a new list of accessories for buttons 1 to 5.
• P/S mode will cycle system between “POOL – OFF” and “POOL”
for a pool only system. For a Pool/Spa combo, it will cycle system
between “POOL – OFF”; “POOL”; “SPILLOVER”; “SPA”; and then
return to “POOL – OFF”. The valves will turn and a message
“Please wait 40s” will display on the panel. This message is
updated every 5 seconds and it will clear when the valves
completely stop in the correct position. Then the Filter pump will
turn ON if the OASIS is not in “POOL – OFF” mode.
• POOL HEAT will cycle system between “POOL – OFF” and
“POOL” with heater enabled. Heater will turn ON one minute after
Filter pump ON and if the water temperature is less than Pool Set
temperature.
• SPA HEAT will cycle system between “POOL – OFF” and “SPA”
with heater enabled. Heater will turn ON one minute after Filter
pump ON and if the water temperature is less than Spa Set
temperature.
• Up and DOWN buttons are used to set water temperature in
POOL mode. The screen will display “Pool Set Temp” with the
current pool set temp. In “SPA” mode, it will display “Spa Set Temp”
with the current spa set temp. After 5 seconds without any change
to the set temperature, the screen will reverse back to the Main
screen with current water temperature displayed.
• SERV button will cycle the system between “Service Timeout”,
“Service Mode”, and normal mode. “Service Timeout” immediately
turns off all equipment, disables all Timers, and lasts for 3 hours.
“Service Mode” turns off all equipment, disables all Timers, and
lasts for 24 hours. Press a fourth time to cancel “Service Mode”.
• HOME button return to Main screen from any other screen.
• MENU button used to enter the Menu setting screen and navigate
between fields.
• LEFT/RIGHT button used to navigate under Menu screens.
Panel Timeout:
• If the user is in a menu and no button is pushed within 60
seconds, the screen will timeout, current screen settings will be
lost and panel reverts back to MAIN screen.
• In MAIN screen, if no buttons are pushed within 30 minutes, the
display will switch to display the Waterway Logo screen. Any
button pushed during this time will reverse to MAIN screen. In Logo
screen, if no buttons are pushed within 60 minutes, all LCD lights
will turn off and the panel goes to sleep. Any button pushed during
this time will wake the panel up and LCD lights will turn back on.
Menu Navigation:
• MENU button: used to enter settings menu and sub-menu
screens. For screens with several settable fields, MENU can be
used to navigate between different fields within the screen. For
screens with the choice to enable or disable devices like the
PARTY Mode device selection screen, MENU will be used to select
or deselect the device.
14
Figure 6. User Interface
12:55 pm / 80°F
12:55 pm / 80°F

15
• RIGHT button: most of the time this will function like the MENU
button, used to enter the settings menu and sub-menu screens.
For screens with several settable fields, RIGHT can be used to
navigate between different fields within the screen.
• LEFT button: used to go BACK to the previous screen most of
the time. For screens with several fields, LEFT can be used to
navigate to the previous fields within the screen or BACK to the
previous screen if it is at the first field of the screen.
• UP or DOWN button: used to navigate between different options or
change the values of a field.
• HOME button: used to go BACK to MAIN screen in any settings
screens. All settings are saved when this button is pushed.
Enter Settings screens:
Pressing “MENU” will display: User Control, Timers, and Installer Set-
up. A new system will default to the Pool only with a 1-speed pump
and no accessories. Users can change these settings by entering
Installer Setup.
• Installer Setup: used for the system installer to configure the
OASIS. Use UP or DOWN buttons to highlight “Installer Setup”
option. After highlighting “Installer Setup”, press the MENU button,
then UP button, then DOWN button, to show the “Installer Setup”
screen with the following options:
> Assign Output: use MENU or RIGHT buttons to enter the
“Assign Output” screen. This screen will display two columns of
information. The left column shows the physical connection label
in the hardware board. The right column is the name of the
accessory in the system.
– Filter Pump can be set to: 1-Speed, 2-Speed, WWVSP,
Jandy VSP, Intel VSP, Hayward VSP, or WW VSP2.
– For a system with Pool/Spa, the intake and return valves
must use the “J1 INTAKE” and “J2 RETURN” connector in the
main board. ‘J1 Intake’ should be set to ‘Intake’ and ‘J2 Return’
should be set to ‘Return’. For a Pool only system, these two
valves can be assigned to any option.
– If the system has Solar, the solar valve must use “J3 SOLAR”
and be configured for ‘Solar’, otherwise this valve can be
assigned to any option.
– Move between items in the left column with UP and DOWN.
– Use the MENU or RIGHT button to navigate between columns.
– By default the right column shows ‘Not Used’. To change this
setting, use MENU or RIGHT to select the field and UP or DOWN
to change the value. Example: to assign “AUX2” to “BBQ Light”,
navigate to “AUX2” and press RIGHT to ‘Not Used’. Use UP to
scroll to “BBQ Light” and then MENU or RIGHT to move to the
next setting. Now “BBQ Light” will show in the Main screen and
Timers menu.
– Some devices will show a secondary screen for the type of
device (i.e. Pool Light or Spa Light) or the mode for that device
(Pool, Spa, Spillover). Use the UP/DOWN buttons to highlight
and select the option. Use the LEFT/RIGHT/MENU buttons to
exit the screen.
– If any changes are made in the “Assign Output” screen, when
the user exits this screen, the system will reset after 2 seconds
and apply the new settings.
> Freeze Protection: this screen will allow the user to enable or
disable Freeze Protection and set the temperature for Freeze
Protection. With “Freeze Protection” highlighted, press the MENU
or RIGHT button to enter the “Freeze Protection” screen. In this
screen, use the LEFT/RIGHT/MENU buttons to navigate between
the fields and the UP/DOWN buttons to change the values.
> Clear All Settings: this will clear all settings to factory default.
With “Clear All Settings” highlighted, press MENU or RIGHT buttons
to select the choice, then press LEFT or HOME buttons to execute.
If user selects YES, the system will reset after 2 seconds to restore
factory defaults.
> Board Test: used at Factory only. Do not execute with devices
connected to the board
• User Control: settings that the user can change. Highlight “User
Control” and press the MENU/RIGHT button to enter. In this screen,
use the UP/DOWN buttons to highlight the desired option, then press
the MENU or RIGHT button to enter. LEFT button goes back to the
previous screen. There are several options under this screen:
NOTE: ‘Installer Setup’ is necessary to configure the OASIS Pool Controller for each specific
installation. Please pay special attention to the instructions above.
User Control
Timers
Installer Setup
User Control
Timers
Installer Setup

> Vspeed Setting: this option is selectable if the system is setup
for variable speed pump. These are the speeds if the user
manually presses the button. Use the MENU/LEFT/RIGHT buttons
to navigate to the appropriate field, then use the UP/DOWN
buttons to change the value. In this screen, “Prime” is for the start
up speed of the pump from OFF stage. Set the Prime duration to
zero minutes if prime is not needed.
> Party Mode: this is used to set up one button push that will turn
on multiple devices. In this screen use the UP/DOWN buttons to
select the pool mode, then press the MENU/RIGHT button to enter
the accessories selection menu. In the accessories selection menu
use the UP/DOWN buttons to navigate to an accessory then use
the MENU/RIGHT button to select or deselect the accessory. LEFT
button will go back to the previous screen.
> Date-Time: set up the date and time for the pool. With Date-Time
highlighted, press MENU/RIGHT to enter the Date-Time setting. In
this screen, pressing MENU/RIGHT will move and highlight fields
that the user can change; UP/DOWN to change the values and LEFT
to go back to the previous field or screen.
> General Information: displays general information of the pool.
With General Information highlighted, press MENU/RIGHT to enter
the General Information menu. Use LEFT to go back to the
previous screen.
> Degree F/C: Select to display the pool temperature in Celsius or
Fahrenheit. With Degree F/C highlighted, press MENU/RIGHT to
toggle the selection between Celsius or Fahrenheit.
> Time Display: display pool time in am/pm or 24-hour mode.
With Time Display highlighted, press MENU/RIGHT to toggle the
selection between am/pm or 24-hour selection.
> Heat Source: this option can only be changed if a Solar valve or
Heat Pump is selected in ‘Assign Output’, as shown below:
Then Heat Source can be configured for Gas, Solar, or Heat Pump
depending on which devices are configured in ‘User Control’.
With Heat Source highlighted, press MENU/RIGHT to choose the heat
source.
> Languages: to select the language for the pool display.
With Languages highlighted, press MENU/RIGHT to select a
specific language.
> Reset Network: this option clears the OASIS Wifi setting.
With “Reset Network” highlighted, press MENU or RIGHT buttons
to select the choice, then press LEFT or HOME buttons to execute.
• Timers: set up schedules to turn devices ON/OFF. The number
of functions shown in this screen is dependent on the number of
accessories that are used in the system. Highlight the “Timers”
selection and press the MENU/RIGHT button to enter the setting.
In this screen, use the UP/DOWN buttons to highlight the desired
function, then press the MENU/RIGHT button to enter. LEFT button
will go back to the previous screen.
There are four schedules for each function that the user can set,
MENU/RIGHT will move to the next field, LEFT will move to
previous field or previous screen, and UP/DOWN will change the
value of a highlighted field.
All schedules are defaulted to OFF and changed to ON if the
schedule duration is set to a non-zero time and with a date
selected. Any function that requires the main pump to turn on will
show the Speed setting for the pump in the schedule.
810-2110.0219 ©2019 Waterway Plastics
2200 East Sturgis Road, Oxnard CA 93030 • Phone [phone] • Fax [phone]
[e-mail] • www.waterwayplastics.com
Designed,
Engineered &
Manufactured
in the USA.
User Control
Timers
Installer Setup
