Waterworks PowerUP HD User manual

PowerUP HD
The world’s first electric
window cleaning reel

Table of Contents
2www.waterworkswindowcleaning.co.uk
PowerUP HD
PowerUP HD delivery system ‘700L’
PowerUP HD Installation Guide
PowerUP HD Accessories
Contact Details & Location
Finance By Kennet
3
4-5
6-9
10
11
12

PowerUP HD is the World’s first
electric window cleaning reel. “I’ll
never go back to winding in again’’.
Designed and built in the UK
specifically for the micro-bore and
mini-bore hoses used in the window
cleaning industry. ‘’Its more than
just saving time, at the end of the
day I feel much better’’.
We’ve worked hard over recent
years to minimise the time and
effort required to set up or pack
up equipment between stops. If
you are still using external ports,
trollies or fixed manual reels, then
PowerUP HD is for you!
When used alongside our other
World first accessories such as HD
Hose Guides and Security Pulleys,
we believe it is by far the most
efficient WFP method ever to have
been developed.
3

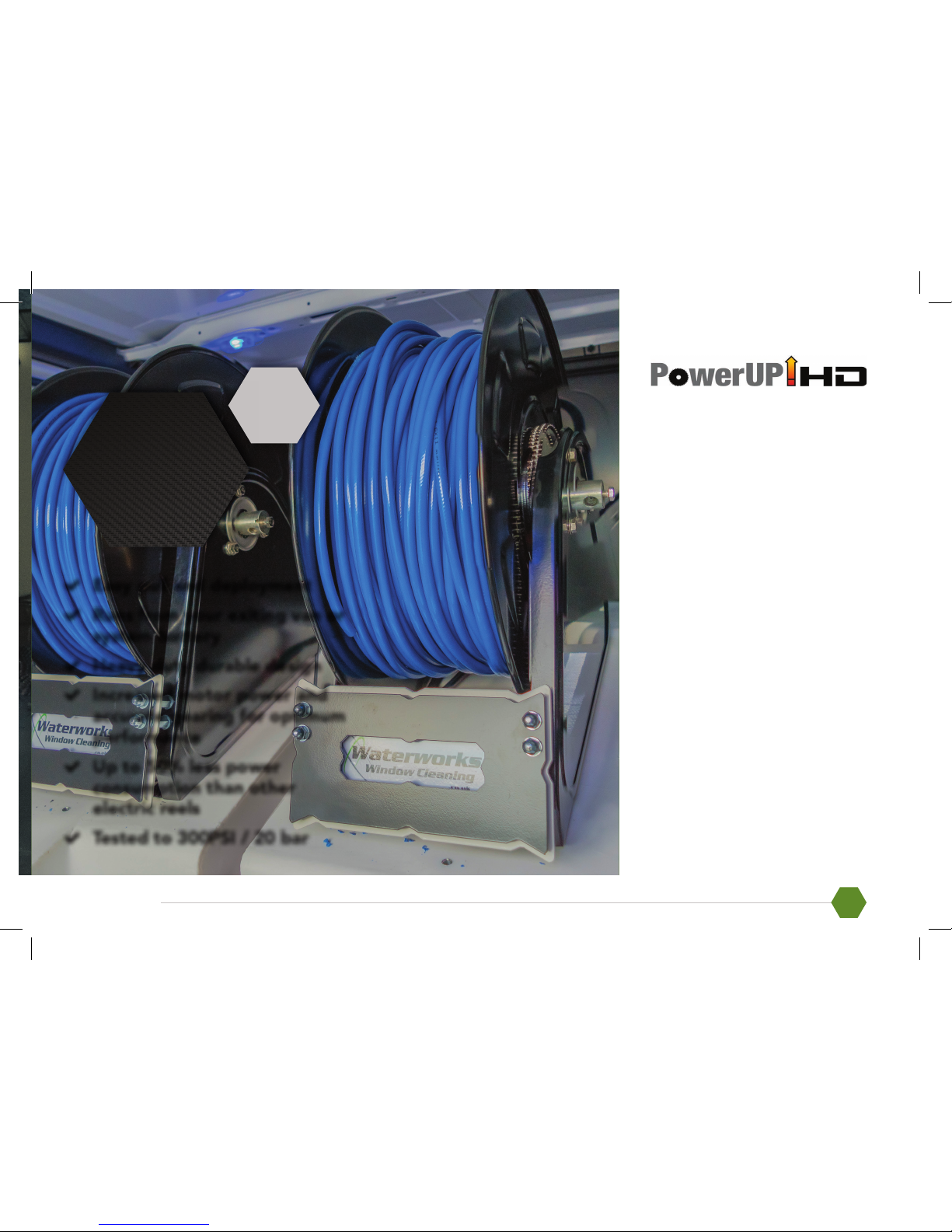

PowerUp-HD
Easy pull and deployment
Runs from your exiting van or
system battery
Heavy duty durable design
Increased motor power and
accurate gearing for optimum
performance
Up to 50% less power
consumption than other
electric reels
Tested to 300PSI / 20 bar
Original

4www.waterworkswindowcleaning.co.uk
1
3
4
5
6
10
2

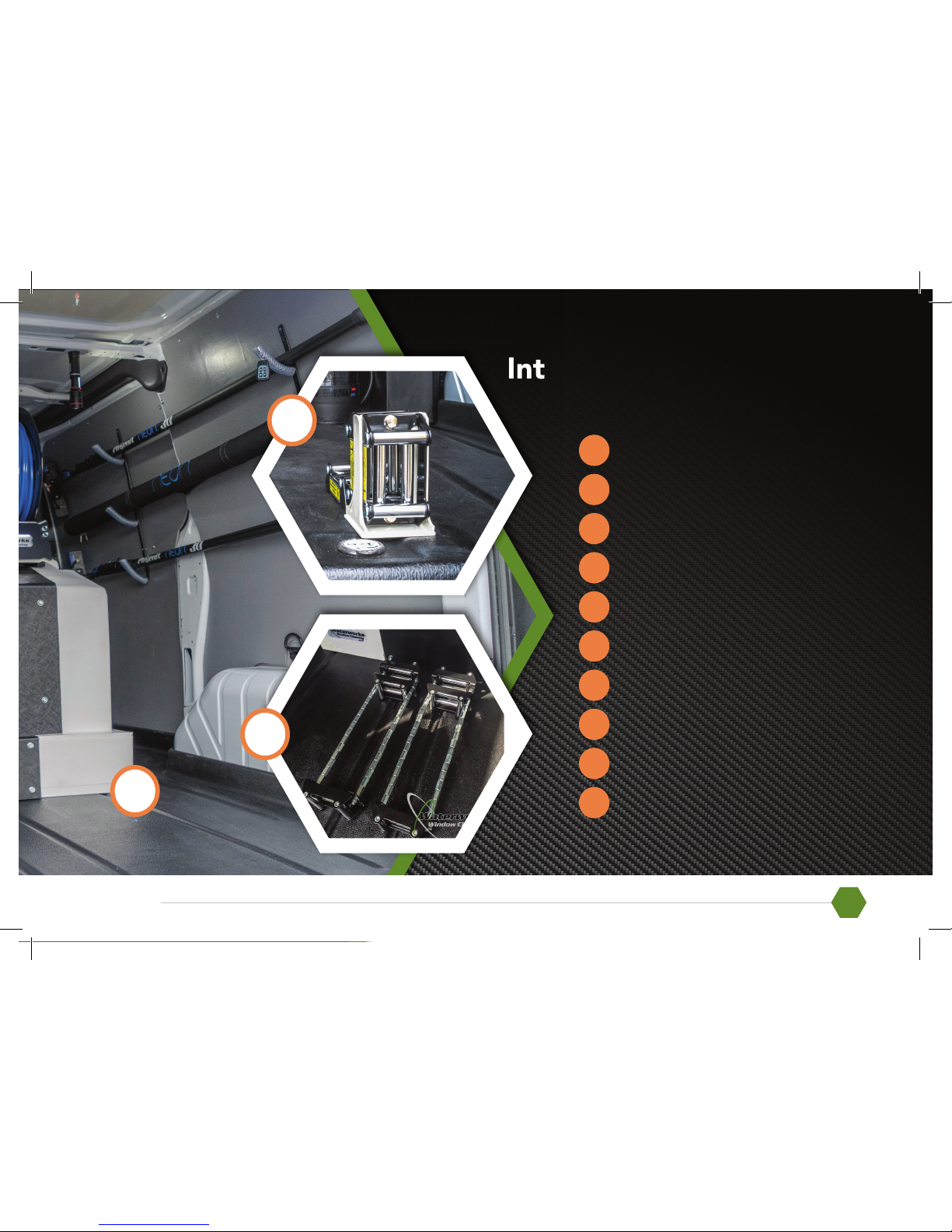

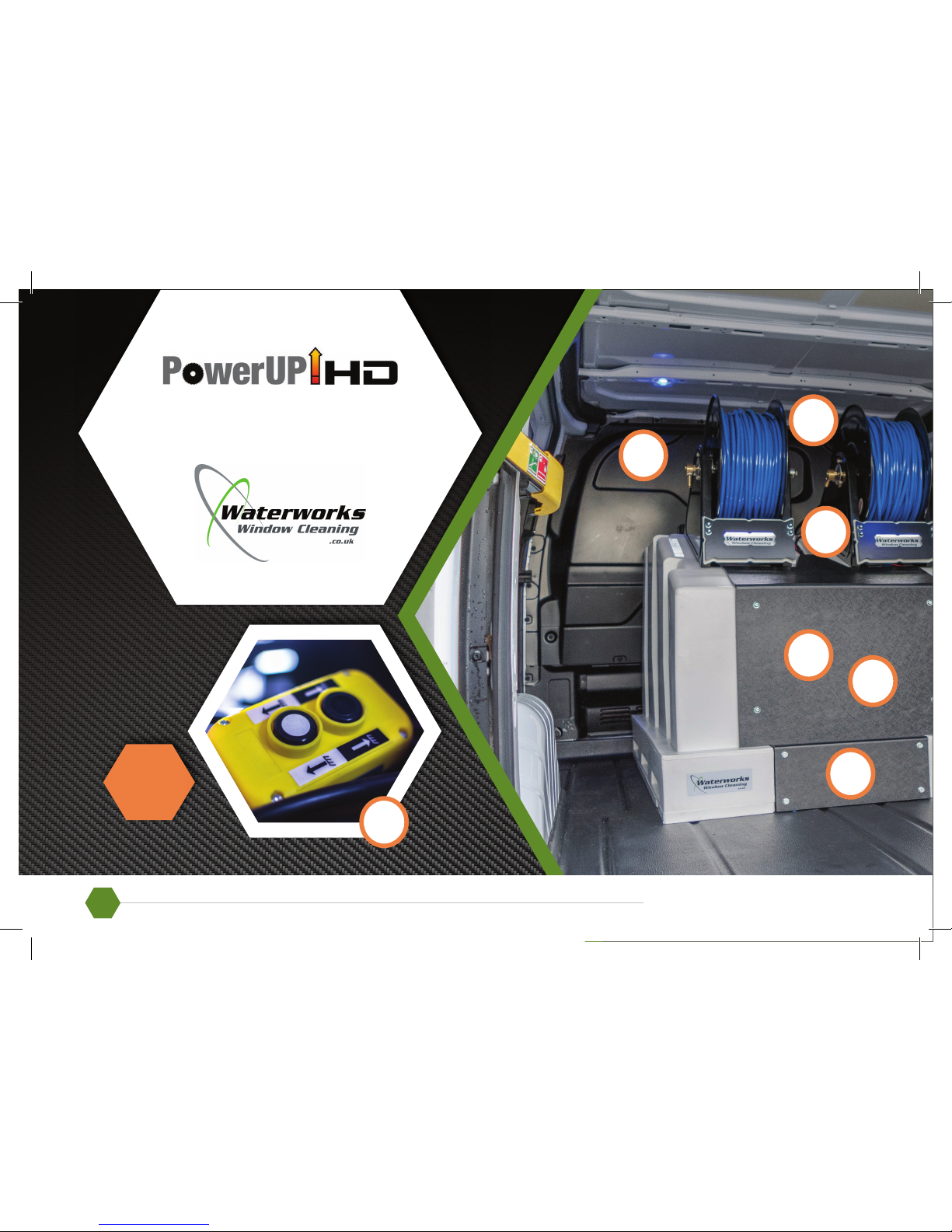

‘700L’ Delivery System

5
PowerUp-HD
Introducing PowerUP HD
‘700L’ System
1PowerUP HD
Spring Digital Pump Flow Controller
Waterworks 6mm HD Hose
Robust 700 Litre Tank
115amp 12v Leisure Battery
Quick Release Rectus fittings
100PSI Shurflo Pump and Strainer
HD Hose Guide
8
7
9
Security Pulley
2
3
4
5
6
7
8
9
10 Momentary Push Button Switch
Available from £1595+VAT

6www.waterworkswindowcleaning.co.uk
Installation Guide

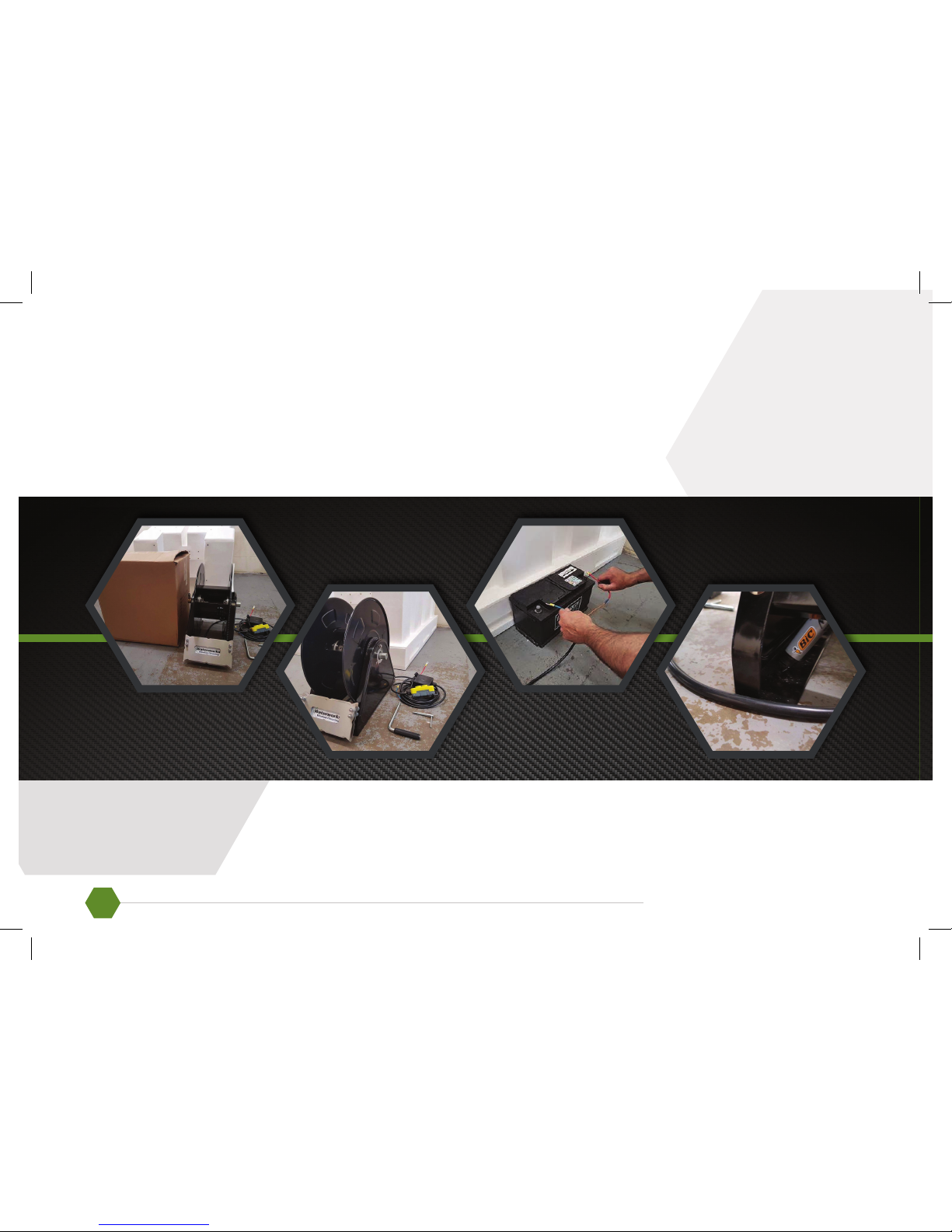

Remove PowerUPHD from its
protective packaging and place on
a flat surface. Set this packaging
aside as returns by post are only
accepted in original packaging.
Choose a safe position in the van,
away from any doors and free from
any obstructions. PowerUPHD
dimensions are 500mm x 300mm x
500mm high.
Make sure the position you’ve
chosen will allow connection to
your battery and fixing of the
momentary push button switch.
Cabling can be extended by others
if necessary 2.5mm, 2 core flex.
Offer the PowerUPHD into your
chosen area and mark up the x 4
fixing holes on the bottom of the
reel. If access is difficult around the
motor, x 3 fixings will be sufficient
in most cases.

7
PowerUp-HD

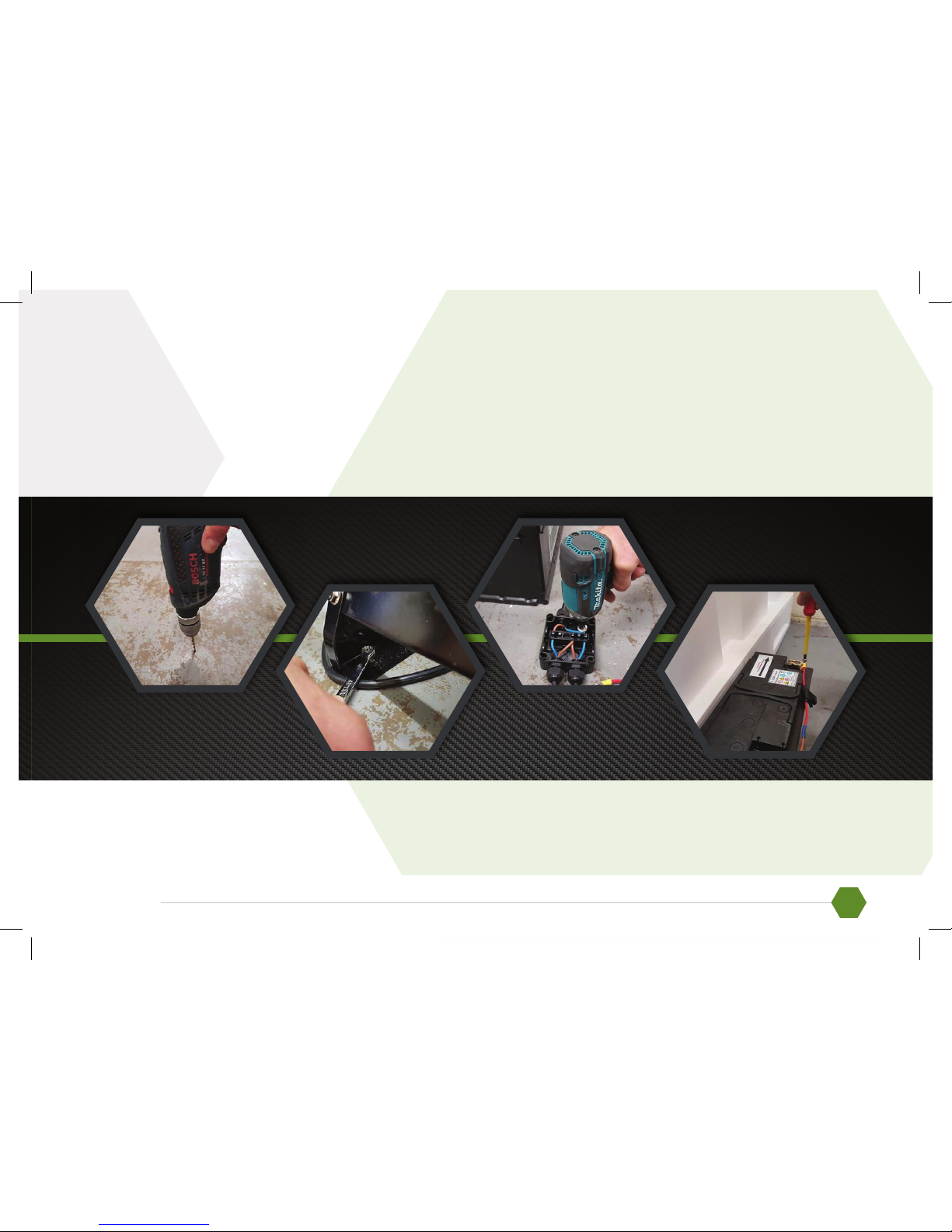

Drill your marked hole positioned
to suit your chosen fixing method.
We have provided x 4 self tapping
screws for this purpose which are
suitable for fixing into both sheet
steel and wood.
Tighten the PowerUPHD into position,
taking care to ensure that the
PowerUPHD is level, square and is not
being distorted by over tightening or
fixing to uneven surfaces.
Fix the junction box in place by
ensuring power to the reel is
isolated, opening the junction
box lid and fixing through the rear
using the x 2 self tapping screws
provided.
Check once again that the
PowerUPHD is free from any
obstruction and fix the Positive
and Negative power cables to
your battery.

8www.waterworkswindowcleaning.co.uk
Installation Guide

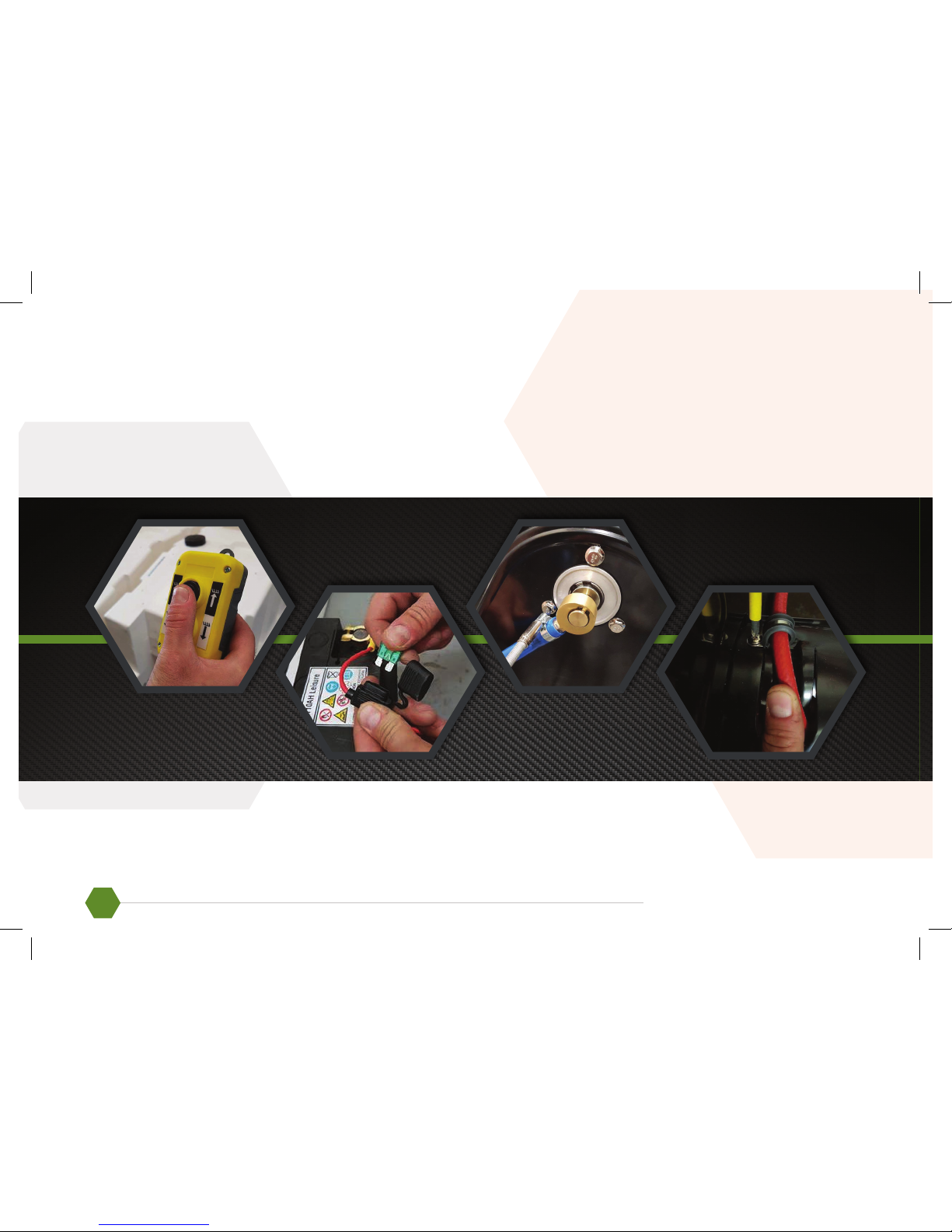

Stand clear and push the button to
check the operation.
Now remove the 30amp fuse from
the fuse holder to ensure the reel
remains isolated while you carry
out the remaining steps.

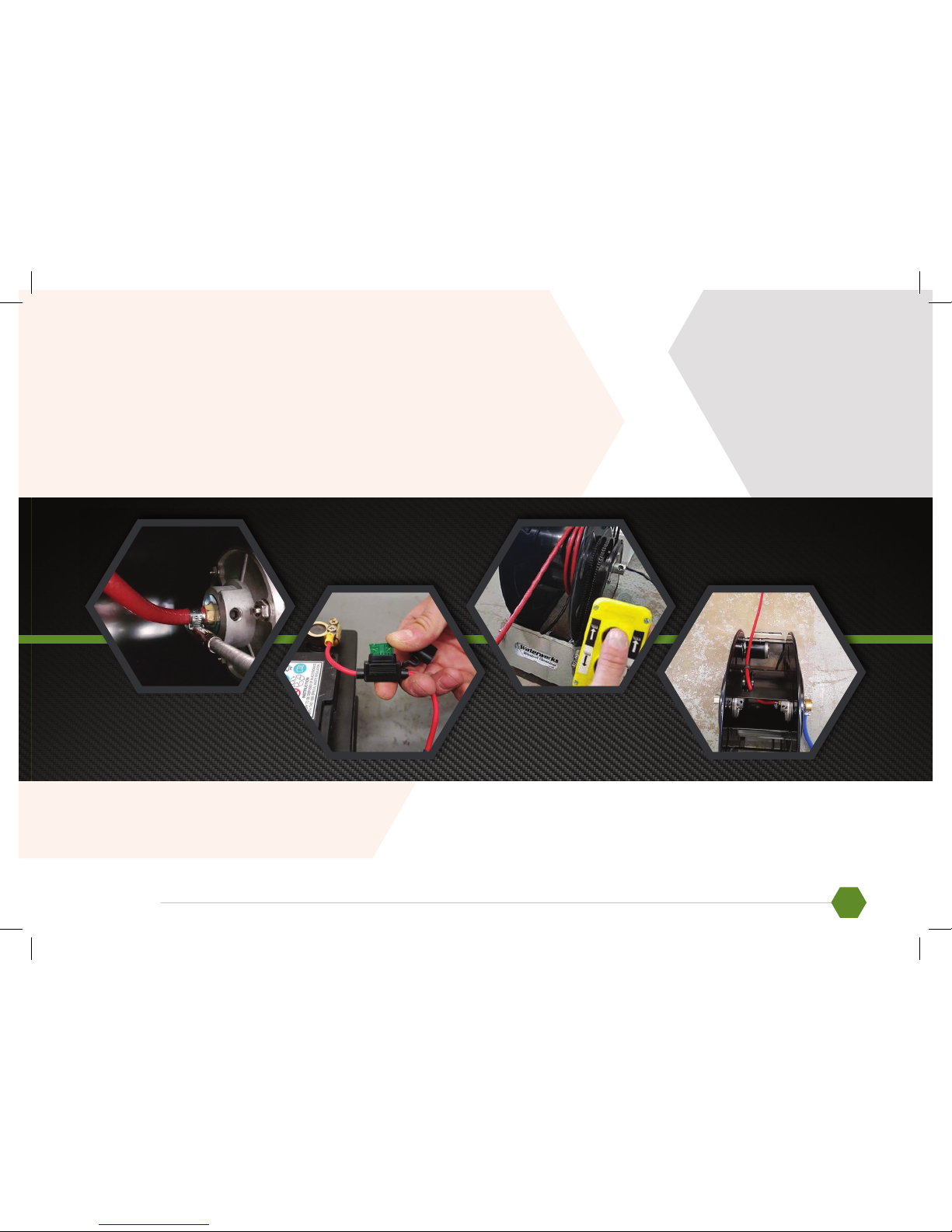

Fix your hose onto the brass
inlet hose tail at the side of the
reel using the size 16 jubilee clip
provided. The hose tail us suitable
for regular 1/2 inch hose but can
be changed as required.
Feed your micro-bore hose through
the rubber coated clip on the reel
drum and tighten the clip firmly
to the drum by holding the nut to
the rear while tightening the screw
head with a Phillips screw driver

9
PowerUp-HD
Fix the delivery hose onto the
internal hose tail using the size 12
Jubilee clip provided. If the hose
does not go on easily, it can be
warmed or dipped into a cup of
hot water prior to fitting.
The 30amp fuse can now be
placed back into the fuse holder
and a final check carried out to
ensure that the reel is free from
any obstruction and is securely
fixed in place.
Ensure that all of the hose is
straight and free from kinks before
slowly winding on under power,
pushing the button intermittently
to maintain a controlled speed
while evenly spooling the hose
onto the drum.
PowerUPHD is now ready for use. You
may require our HD Hose Guide to
allow pulling out hoses at an angle
or our HD Security Guide which allow
van doors to be locked. Both of which
can be purchased from your supplier.

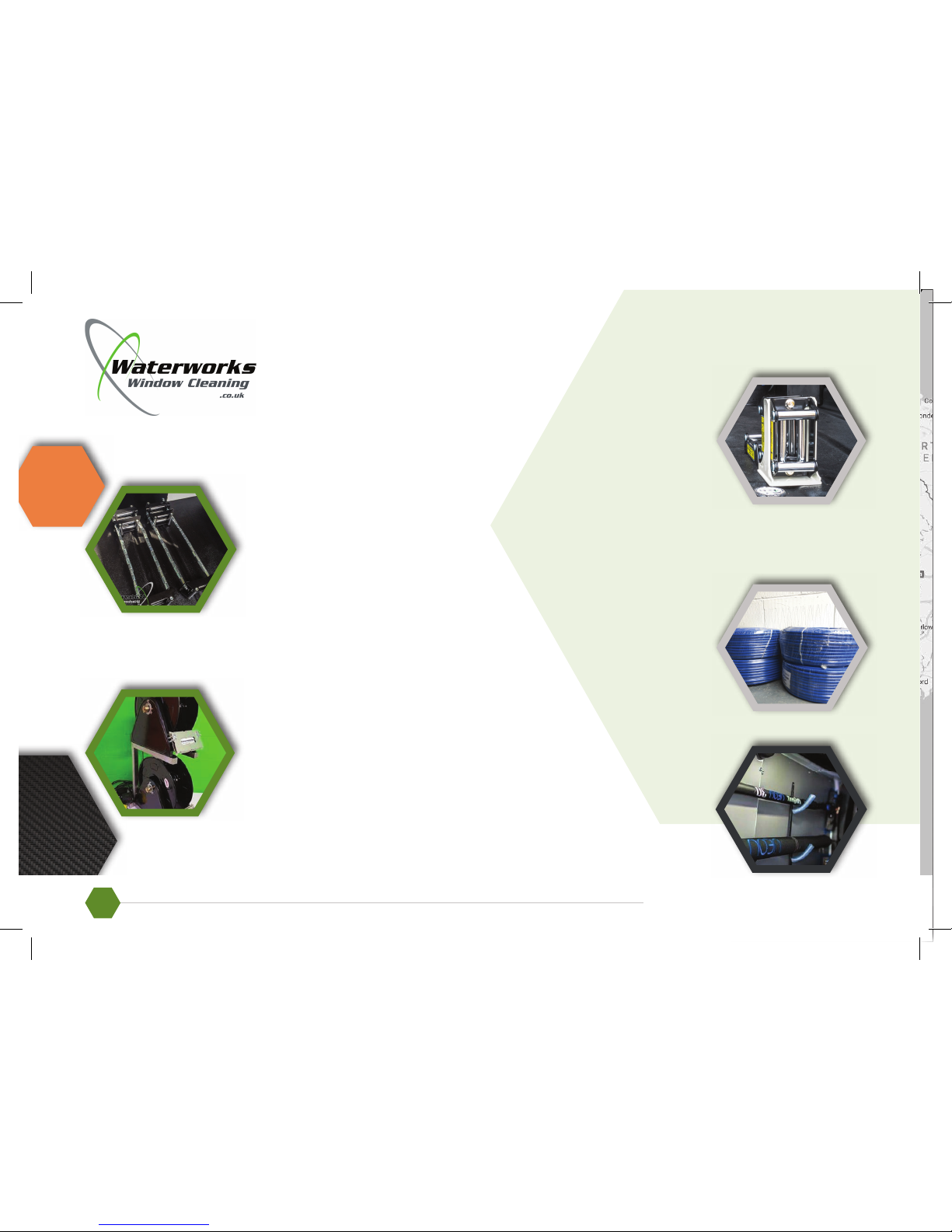

Accessories
10 www.waterworkswindowcleaning.co.uk
HD Double Stack
Save time and space with our bespoke stainless steel double stacked frame.
Perfect for businesses which offer a range of services and carry additional
equipment on the vehicle.
Side Mount Pole Holder
The Side Mounted Rack is easy to fix into most vans and offers a safe and tidy
solution for pole storage.
HD Hose Guide
Designed and built with the professional window cleaner in mind this rugged
hose guide will help prevent snags and kinks in your hose. The heavy duty hose
guide will allow you to easily bring your hose out of the van and help prevent
wear and chaffing – reducing the risk of a catastrophic hose failure.
HD Security Guide
Mounted through your van’s floor pan, these guides allow you to divert your hose
out of the vehicle with the doors closed and through a low level hose guide giving
you the same flexibility you normal have with your van doors open.
Waterworks 6mm HD Hose
Waterworks 6mm HD Hose 100M strong, durable, tested up to 60 degrees for use
with hot water systems. Recommended for PowerUP HD.


