Watson-Marlow Quantum 600 Universal User manual

Quantum 600 Universal User Manual
m-Quantum 600-gb-01 1
Contents
1 Declaration of conformity 4
2 Declaration of incorporation 5
3 Safety notes 6
4 Peristaltic pumps - an overview 10
5 When you unpack your pump 11
5.1 Unpacking your pump 11
5.2 Packaging disposal 11
5.3 Inspection 11
5.4 Components supplied 11
5.5 Storage 11
6 Main Parts Description 12
7 Start-up check list 13
8 Bolt Down Bracket Installation 14
9 Switching the pump on for the first time 15
9.1 Selecting the display language 15
9.2 First-time start-up defaults 16
10 Switching the pump on in subsequent power cycles 18
11 Pump operation 19

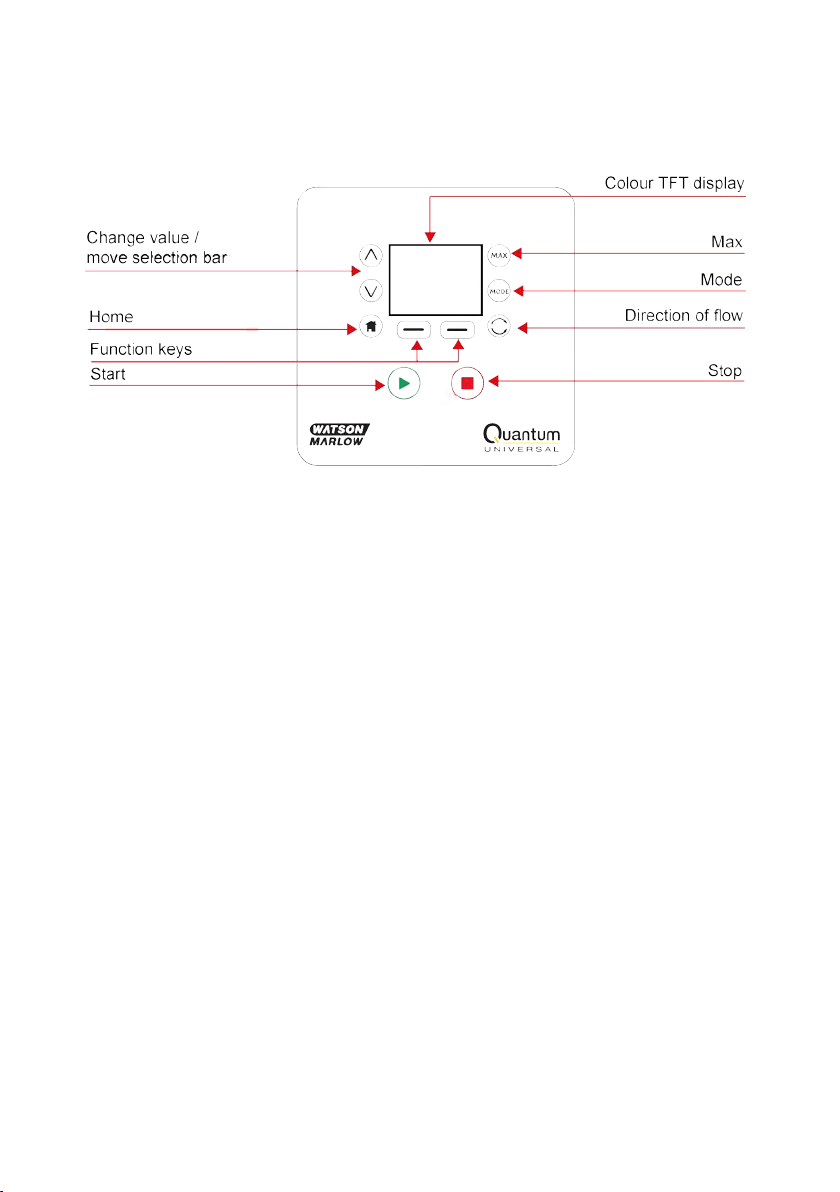

11.1 Keypad Layout and Key IDs 19
11.2 Starting and stopping 20
11.3 Using up and down keys 20
11.4 Maximum speed 20
11.5 Change rotation direction 21
12 Main menu 22
12.1 Security settings 23
12.2 General settings 33
12.3 Control settings 40
12.4 Configure outputs 42
12.5 Configure inputs 44
12.6 Help 45

2 m-Quantum 600-gb-01
13 Mode menu 46
14 Manual 48
14.1 START 48
14.2 STOP 49
14.3 INCREASING AND DECREASING FLOW RATE 49
14.4 MAX FUNCTION (Manual mode only) 50
15 Flow calibration 51
15.1 Setting the flow calibration 51
16 Analog mode 54
16.1 Analog calibration 55
16.2 Calibrate Input 1 56
16.3 Setting a high signal 57
16.4 Setting high flow calibration 59
16.5 Setting a low signal 59
16.6 Setting low flow calibration 61
17 MemoDose mode 62
17.1 To configure MemoDose 62
17.2 Set flow rate 63
17.3 Resume interrupted doses 64
17.4 Master dose 65
17.5 Manual dosing 69
18 Cartridge replacement 70
19 Tube Replacement - Sanitary Connectors 72
20 Good pump installation practice 73
20.1 General recommendations 73
20.2 Dos and don'ts 73
21 Connecting to a power supply 75
21.1 Harting connector 76
22 Control wiring 77
22.1 Quantum M12 interface power supply limits 77
22.2 Quantum universal interface 77
22.3 Wiring the inputs and outputs 78
23 Pump specifications 82
23.1 Specification ratings 82
23.2 Dimensions 83
24 Performance data 84
24.1 Performance curves 84

25 Troubleshooting 85
25.1 Error codes 85
25.2 Technical support 86
26 Drive maintenance 87
27 Drive spares 88
28 Ordering information 89
28.1 Pump part numbers 89
28.2 Cartridge part numbers 89
29 Warranty 90
30 Information for returning pumps 92
31 Name and address of manufacturer 92
32 Trademarks 93
33 Publication history 94
34 Disclaimers 95
m-Quantum 600-gb-01 3

4 m-Quantum 600-gb-01

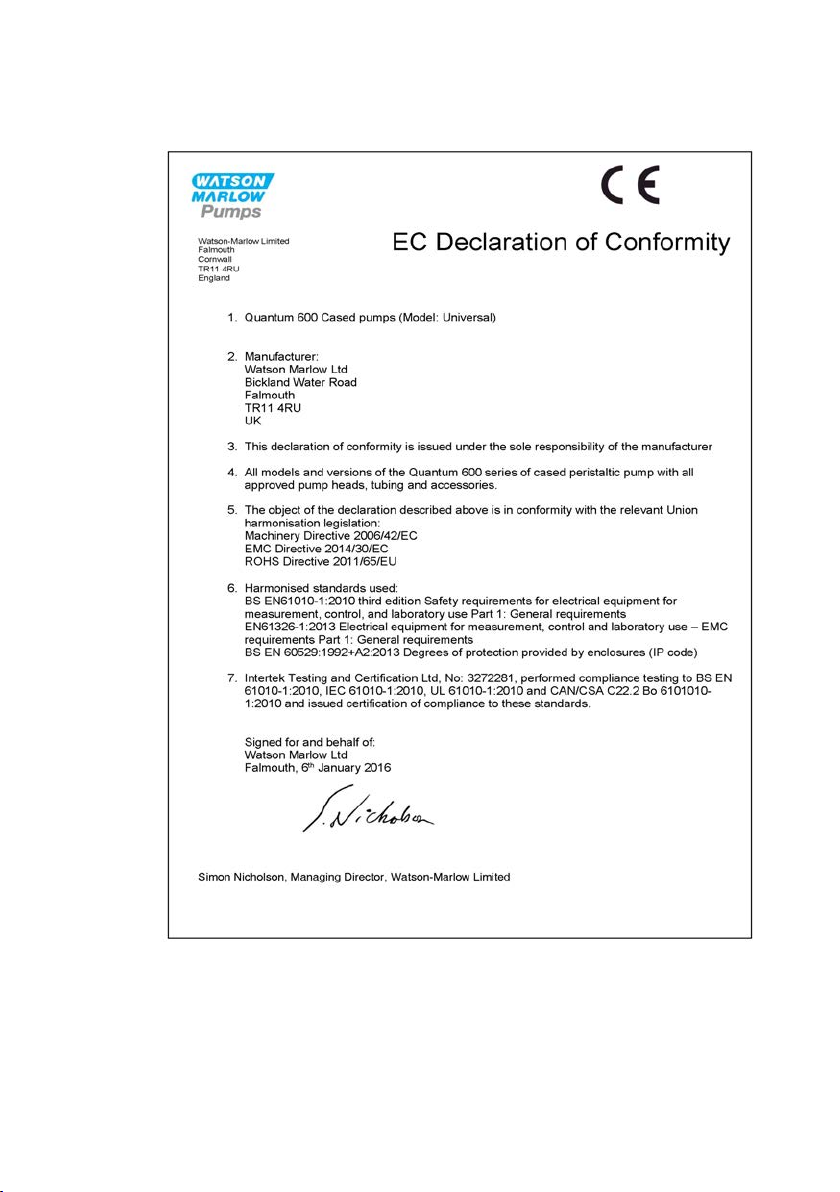

1 Declaration of conformity

2 Declaration of incorporation
m-Quantum 600-gb-01 5

6 m-Quantum 600-gb-01
3 Safety notes
This safety information should be used in conjunction with the rest of this operating
manual.
In the interests of safety, this pump and pumphead should only be used by competent,
suitably trained personnel after they have read and understood the manual and considered
any hazard involved. If the pump is used in a manner not specified by Watson-Marlow Ltd,
the protection provided by the pump may be impaired. Any person who is involved in the
installation or maintenance of this equipment should be fully competent to carry out the
work. In the UK this person should also be familiar with the Health and Safety at Work Act
1974.
This symbol, used on the pump and in the manual, means: Caution,
refer to accompanying documents.
These symbols, used on the pump and in the manual, mean: Caution,
rotating crush hazard, do not allow hands to contact moving parts.
This symbol, used on the pump and in the manual, means: Caution,
hot surface.
This symbol, used on the pump and in the manual, means: Caution,
risk of electric shock.
This symbol, used on the pump and in the manual, means: Personal
Protective Equipment (PPE) must be worn.
This symbol, used on the pump and in the manual, means: Recycle
this product under the terms of the EU Waste Electrical and Electronic
Equipment (WEEE) Directive.
The supplied "Bolt Down Bracket"must be fitted to this pump in
situations where the pumphead would be unsupported.
An unsupported pumphead is likely to cause the pump unit to tip up
and fall from its mounting location, which may cause damage or
injury.

Fundamental work with regard to lifting, transportation, installation,
starting-up, maintenance and repair should be performed by qualified
personnel only. The unit must be isolated from mains power while
work is being carried out. The motor must be secured against
accidental start-up.
Removal of the track and cartridge replacement should only be carried
out by suitably trained personnel using the appropriate service tool.
Always isolate the pump from the mains power supply using the
switch on the front of the unit (or other external means) before
opening any track, or performing any positioning, removal or
maintenance operation.
Only restore power after all parts are correctly refitted in place and
locked.
Any operators or users who have not been suitably trained should not
perform this task or have access to the tool.
This pump weighs more than 38kg (the exact weight depends on the
model and pumphead - see on the pump). Lifting should be performed
according to standard Health and Safety guidelines.
There is a user-replaceable type fuse in the fuse holder positioned to
the left of the power input connector at the back of the pump. In some
countries, the mains power plug contains an additional replaceable
fuse.
m-Quantum 600-gb-01 7

8 m-Quantum 600-gb-01
There are no user-serviceable fuses or parts inside this pump.
Connect power using the supplied Harting PushPull Power®cable.
The mains plug at the opposite end of the cable is NOT IP66 rated. It
is your responsibility to ensure that the connection to the mains
supply is IP66 rated.
The Harting connector used to provide power to the pump, must be
correctly installed/sealed to IP66 by firmly pushing until latched and
then be fixed with the supplied clip, power must not be
connected/disconnected under load.
This pump must be used only for its intended purpose.
The pump must be accessible at all times to facilitate operation and maintenance. Access
points must not be obstructed or blocked. Do not fit any devices to the drive unit other
than those tested and approved by Watson- Marlow. Doing so could lead to injury to
persons or damage to property for which no liability can be accepted.
The pump’s front main switch and mains power plug are the
disconnecting devices (for isolating the motor drive from the mains
supply in an emergency). Ensure the pump is positioned to allow easy
access to disconnect the unit.
If hazardous fluids are to be pumped, safety procedures specific to
the particular fluid and application must be put in place to protect
against injury to persons.
This product does not comply with the ATEX directive and must not be
used in explosive atmospheres.

Ensure the chemicals to be pumped are compatible with the
pumphead, tubing, pipework and fittings to be used with the pump.
Please refer to the chemical compatibility guide which can be found at:
www.wmftg.com/chemical. If you need to use the pump with any
other chemical please contact Watson-Marlow to confirm compatibility.
Pump will start as soon as power is applied if Auto restart is on and
pump was running when power was disconnected.
There are moving parts inside the pumphead. Before opening the tool-
unlockable track, ensure that the following safety directions are
followed:
1. Ensure the pump is isolated from the mains power using the
power switch on the front of the unit (or other external means).
2. Ensure that there is no pressure in the pipeline.
3. If a tube failure has occurred, ensure that any fluid in the
pumphead has been allowed to drain to a suitable vessel,
container or drain.
4. Ensure that appropriate Personal Protective Equipment (PPE) is
worn.
Exterior surfaces of the pump may become hot during operation. The
unit should be allowed to cool prior to conducting any repositioning or
maintenance operations.
m-Quantum 600-gb-01 9

4 Peristaltic pumps - an overview
Peristaltic pumps are the simplest possible pump, with no valves, seals or glands to clog or
corrode. The fluid contacts only the bore of a tube, eliminating the risk of the pump
contaminating the fluid, or the fluid contaminating the pump.
How they work
A compressible tube is squeezed between a roller and a track on an arc of a circle, creating
a seal at the point of contact. As the roller advances along the tube, the seal also
advances. After the roller has passed, the tube returns to its original shape, creating a
partial vacuum which is filled by fluid drawn from the inlet port.
Before the roller reaches the end of the track, a second roller compresses the tube at the
start of the track, isolating a packet of fluid between the compression points. As the first
roller leaves the track, the second continues to advance, expelling the packet of fluid
through the pump’s discharge port. At the same time, a new partial vacuum is created
behind the second roller into which more fluid is drawn from the inlet port.
Backflow and siphoning do not occur, and the pump effectively seals the tube when it is
inactive. No valves are needed.
The principle may be demonstrated by squeezing a soft tube between thumb and finger
and sliding it along: fluid is expelled from one end of the tube while more is drawn in at the
other.
Animal digestive tracts function in a similar way.
Suitable applications
Peristaltic pumping is ideal for most fluids, including viscous, shear-sensitive, corrosive
and abrasive fluids, and those containing suspended solids. They are especially useful for
pumping operations where hygiene is important.
Peristaltic pumps operate on the positive displacement principle. They are particularly
suitable for metering, dosing and dispensing applications. Pumps are easy to install, simple
to operate and inexpensive to maintain.
m-Quantum 600-gb-01 10

11 m-Quantum 600-gb-01
5 When you unpack your pump
5.1 Unpacking your pump
Unpack all parts carefully, retaining the packaging until you are sure all components are
present and in good order. Check against the components supplied list, below.
5.2 Packaging disposal
Dispose of packaging materials safely, and in accordance with regulations in your area.
The outer carton is made of wood and can be recycled.
5.3 Inspection
Check that all components are present. Inspect components for damage in transit. If
anything is missing or damaged, contact your distributor immediately.
5.4 Components supplied
•Quantum 600 pump drive unit
•The designated power cable
•14AF combination spanner
•Bolt Down Bracket
•2xM6 Hex bolts
•2xM6 Anti-Vibration Washers
•Product safety information booklet incorporating quick start manual
5.5 Storage
This product has an extended shelf life. However, care should be taken after storage to
ensure that all parts function correctly. Please observe the storage recommendations and
use-by dates which apply to tubing you may wish to bring into service after storage.

6 Main Parts Description
Pump Drive Unit
Handles
Pumphead Power Isolation
Switch
Rotor
ReNu Single Use
Cartridge
Track
m-Quantum 600-gb-01 12

7 Start-up check list
Note: See also "Cartridge replacement" on page 70.
oEnsure that a single use cartridge is installed in the pumphead BEFORE the pump power
is first turned on, (otherwise it is more difficult to set the operating language).
oEnsure that proper connections are achieved between the pump and suction and
discharge piping.
oEnsure proper connection has been made to a suitable power supply.
oEnsure that the recommendations in the section "Good pump installation practice" on
page 73 are followed.
m-Quantum 600-gb-01 13

14 m-Quantum 600-gb-01

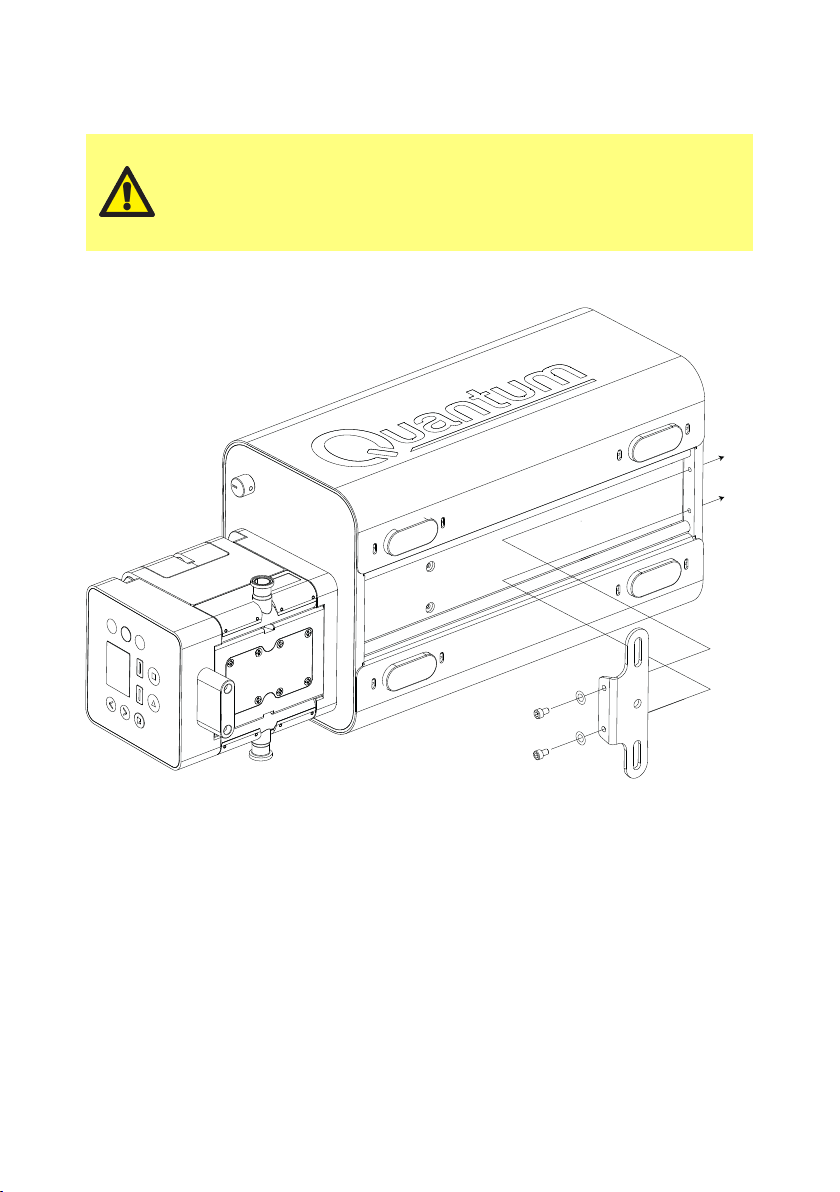

8 Bolt Down Bracket Installation
The supplied "Bolt Down Bracket"must be fitted to this pump in
situations where the pumphead would be unsupported.
An unsupported pumphead is likely to cause the pump unit to tip up
and fall from its mounting location, which may cause damage or
injury.
Mount the supplied Bolt Down Bracket to the pump body using the supplied 2xM6 bolts and
2xM6 anti-vibartion washers.
Secure the bolt down bracket to the pump body's mounting surface using 2xM10 bolts and
M10 anti-vibration washers. M10 bolts and M10 washers are not supplied.

9 Switching the pump on for the first time
Power up the pump. The pump displays
the start-up screen with the Watson-
Marlow Pumps logo for three seconds.

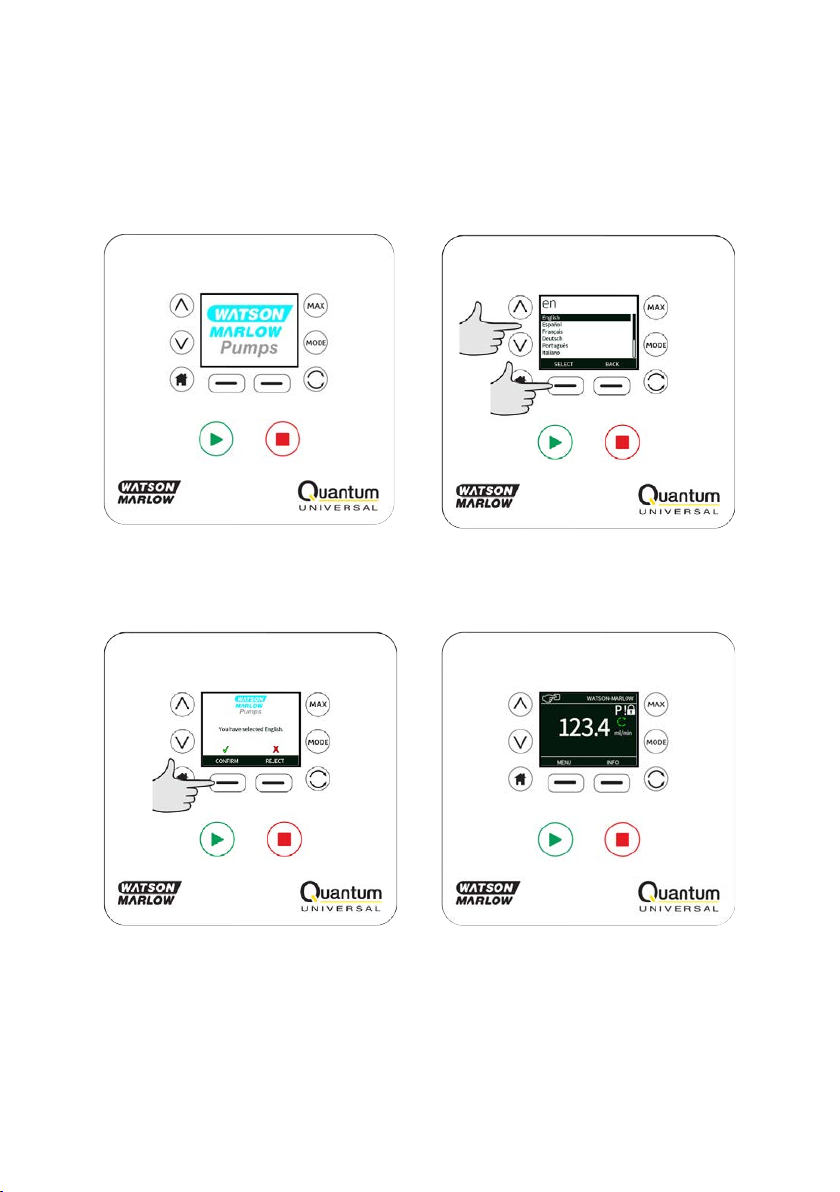

9.1 Selecting the display
language
1. Use the ∧/∨keys to select your chosen
language, and press SELECT.
2. Your selected language will now be
displayed on screen. Choose CONFIRM
to continue or choose REJECT to return
to the language choice screen.
3. After confirming your language choice,
all text will now appear in that language.
m-Quantum 600-gb-01 15

16 m-Quantum 600-gb-01
9.2 First-time start-up defaults
The pump is preset with operational parameters as shown in table below.
Parameter Default setting
Language Not set
Default mode Manual
Default manual speed 375rpm
Pump status Stopped
Max speed 400rpm
Direction CW
Cartridge ReNu SU 20/3P
Tube material TPU
Flow calibration 53.33 ml/rev
Flow units rpm
SG value 1
Keypad lock Disabled
Auto-restart OFF
Analog signal type mA
Analog scaling type mA
Analog min current 5mA
Analog max current 19mA
Analog min flow rate/rpm 0rpm
Analog max flow rate/rpm 400rpm
Beeper ON
Security code Not set
MemoDose flow rate Mid flow rate of chosen pumphead
MemoDose volume 10 litres
Remote start/stop input High = stop
Leak detector input High = leak
Input 4 Disabled
Input 5 Disabled
Output 1 Run/stop
Output 1 - status High = run
Output 2 Direction
Output 2 - status High = CW
Output 3 Auto/man
Output 3 - status High = auto
Output 4 General alarm
Output 4 - status High = alarm

The pump is now ready to operate according to the defaults listed above.
Note: The display background colour changes according to running state as follows:
lWhite background indicates pump stopped
lGrey background indicates pump running
lRed background indicates error or alarm
All operating parameters may be changed by means of key-presses (see section "Pump
operation" on page 19).
m-Quantum 600-gb-01 17

18 m-Quantum 600-gb-01
10 Switching the pump on in subsequent power cycles
Subsequent power-up sequences will jump from the start-up screen to the home screen.
lThe pump runs a power-on test to confirm proper functioning of the memory and
hardware. If a fault is found, an error code is displayed.
lThe pump displays the start-up screen with the Watson-Marlow Pumps logo for three
seconds followed by the home screen
lStart-up defaults are those in place when the pump was last switched off
Check that the pump is set to operate as you require it. The pump is now ready to operate.
All operating parameters may be changed by means of key-presses (see "Pump operation"
on page 19).
Power interruption
This pump has an auto restart feature which, when active, will restore the pump to the
operating state it was in when power was lost.
Stop/start power cycles
Do not power up/power down the pump more than 20 times in an hour, whether manually
or by means of the auto-restart facility. We recommend remote control where a high
frequency of stop/start cycles is required.
Pump will start as soon as power is applied if Auto restart is on and
pump was running when power was disconnected.

11 Pump operation
11.1 Keypad Layout and Key IDs
HOME key
When the HOME key is pressed it will return the user to the last known operating mode. If
modifying pump settings when the HOME key is pressed, it will disregard any setting
changes and return you to the last known operating mode.
FUNCTION keys
FUNCTION keys, when pressed, will perform the function displayed on the screen directly
above the relevant function key.
∧and ∨keys
These keys are used to change the programmable values within the pump. These keys are
also used to move the selection bar up and down in the menus.
MODE key
To change modes or mode settings, press the MODE key. The MODE key can be pressed at
any time to enter the mode menu. If modifying pump settings when the MODE key is
pressed, it will disregard any setting changes and return you to the MODE menu.
m-Quantum 600-gb-01 19

20 m-Quantum 600-gb-01
11.2 Starting and stopping
Press key to start the pump.
Press key to stop the pump.
11.3 Using up and down keys
11.4 Maximum speed
Press key to start pump at maximum speed.
