Innovation Series & ReCon Water Heater GF-5050
Venting and Combustion Air Guide TAG-0043_0Q
12/01/2016 AERCO International, Inc. •100 Oritani Dr. •Blauvelt, New York 10913 •Phone: [phone] Page 1of 39
VENTING & COMBUSTION AIR
Natural Gas Modulating,
Condensing Water
Heater Models:
•INN600
•INN800
•INN1060
•INN1350
•INN1400
•ReCon 1000
Technical Support:
(Mon–Fri, 8am-5pm EST)
1-800-526-0288
www.aerco.com
Revised: 12/01/2016
DISCLAIMER
The information contained in this manual is subject to change without notice from
AERCO International, Inc. AERCO makes no warranty of any kind with respect to this
material, including, but not limited to, implied warranties of merchantability and fitness
for a particular application. AERCO International is not liable for errors appearing in
this manual, nor for incidental or consequential damages occurring in connection with
the furnishing, performance, or use of these materials.
INNOVATION
Gas-Fired Water
Heaters
RECON
Gas-Fired Water
Heaters

GF-5050 Innovation Series & ReCon Water Heater
TAG-0043_0Q Venting and Combustion Air Guide
Page 2of 39 AERCO International, Inc. •100 Oritani Dr. •Blauvelt, New York 10913 •Phone: [phone]/2016
Table of Contents
1. CODES, SAFETY & VENTING SYSTEMS...................................................3
1.1. Introduction...................................................................................................................3
1.2. Applicable Federal Codes.............................................................................................3
1.3. Gas Vent Categories....................................................................................................4
1.4. Certified Venting Materials for Flue Pipe Systems........................................................5
1.5. Exhaust Vent Connection Components........................................................................7
1.6. PRESSURE RANGE....................................................................................................7
1.7. EXHAUST MUFFLER GUIDELINES ............................................................................8
1.8. EXHAUST FANS..........................................................................................................8
1.9. Elbow Quantity and Separation ....................................................................................8
2. COMBUSTION AIR SYSTEM .....................................................................9
2.1. Combustion Air Requirements......................................................................................9
2.2. Combustion Air from WITHIN the Building..................................................................10
2.3. Combustion Air from OUTSIDE the Building...............................................................11
2.3.1. Two-Permanent-Openings Method (USA Only) ...............................................11
2.3.2. One Permanent Opening Method ....................................................................13
2.4. Combustion Air Pipe Sizing........................................................................................15
2.5. Common Combustion Air Systems.............................................................................16
3. VENT SYSTEM........................................................................................19
3.1. Vent Installation..........................................................................................................20
3.2. Installation Procedure for Venting System Through a Wall.........................................22
3.3. Installation Procedure for Vertical Venting..................................................................24
3.4. Vent Pipe Sizing *.......................................................................................................25
3.5. Common Vent Pipe Sizing..........................................................................................25
3.6. Common Vent CONDENSATE DRAINAGE................................................................27
3.7. Combustion Air Duct Pressure Drop Tables ...............................................................28
3.8. Flue Vent Pressure Drop Tables.................................................................................36

Innovation Series & ReCon Water Heater GF-5050
Venting and Combustion Air Guide TAG-0043_0Q
12/01/2016 AERCO International, Inc. •100 Oritani Dr. •Blauvelt, New York 10913 •Phone: [phone] Page 3of 39
1. CODES, SAFETY & VENTING SYSTEMS
1.1. INTRODUCTION
The AERCO gas-fired water heater is a high efficiency, forced draft, domestic hot water heating unit
with unique venting capabilities. All venting options (which include horizontal and vertical discharges,
direct vent, and manifolded vent breeching), typically exceed the capabilities of competing combustion
equipment. These and other features enable AERCO water heaters to provide extremely high thermal
efficiencies and optimum temperature control under widely varying conditions. It is therefore critical
that the flue gas vent and combustion air system be designed to maintain these objectives.
The high efficiency is achieved through air/fuel modulation and the release of heat energy from the
moisture condensing in the combustion products. Because condensation can occur in the exhaust
vent system, a means must be provided to remove the moisture accumulation. Each model should be
fitted with the supplied condensate removal trap.
The design guidelines in this bulletin provide broad latitude while meeting the objectives of safety,
longevity and optimum performance.
1.2. APPLICABLE FEDERAL CODES
UNITED STATES:
NFPA 54/ANSI Z223.1……….. National Fuel Gas Code
NFPA/ANSI 211………………. Chimneys, Fireplaces, Vents and Solid Fuel Burning
Appliances
CANADA:
CSA B149.1…………………… Installation Codes for Gas-Burning Equipment
CSA B149.2…………………… Installation Codes for Gas-Burning Equipment
The above listed codes contain information for gas vented appliances requiring Category II,
III and IV, vent sizing, location, air space clearances to combustibles and safe installation
practices. The gas vent installer must be in compliance with the above codes, as well as
Local Codes and Regulations.
ALL INSTALLATIONS OF WATER HEATERS AND VENTING SHOULD
BE DONE ONLY BY QUALIFIED VENTING SYSTEMS PERSONNEL
AND IN ACCORDANCE WITH THE MANUFACTURER’S
RECOMMENDATIONS. INSTALLING OR VENTING A HEATER OR
ANY OTHER GAS APPLIANCE WITH IMPROPER METHODS OR
MATERIALS MAY RESULT IN SERIOUS INJURY OR DEATH DUE TO
FIRE OR TO ASPHYXIATION FROM POISONOUS GASES (CARBON
MONOXIDE IS ODORLESS AND INVISIBLE).
WARNING

GF-5050 Innovation Series & ReCon Water Heater
TAG-0043_0Q Venting and Combustion Air Guide
Page 4of 39 AERCO International, Inc. •100 Oritani Dr. •Blauvelt, New York 10913 •Phone: [phone]/2016
•FOR CORRECT INSTALLATION OF VENT SYSTEM, READ ALL
OF THESE INSTRUCTIONS AND REFER TO THE VENT PIPE
MANUFACTURER’S INSTRUCTIONS.
•FAILURE TO USE THE VENTING SYSTEM DESCRIBED IN THIS
DOCUMENT WILL VOID THE MANUFACTURER’S WARRANTY
AND MAY RESULT IN RAPID DETERIORATION OF THE
VENTING SYSTEM, CREATING A POTENTIAL HEALTH HAZARD.
•FAULTY VENT INSTALLATION CAN ALLOW TOXIC FUMES TO
BE RELEASED INTO LIVING AREAS. THIS MAY CAUSE
SERIOUS BODILY INJURY OR PROPERTY DAMAGE. IMPROPER
ASSEMBLY MAY ALSO AFFECT VENT PERFORMANCE.
•INSTALL SEPARATE VENTS FOR FORCED EXHAUST
APPLIANCES AND NATURAL DRAFT APPLIANCES. A COMMON
VENT BETWEEN NATURAL DRAFT AND FORCED EXHAUST
APPLIANCES MAY CAUSE TOXIC GASES TO EXHAUST
THROUGH THE NATURAL DRAFT APPLIANCE RATHER THAN
TO OUTSIDE AIR. BREATHING EXHAUST GASES WILL CAUSE
SERIOUS PERSONAL INJURY OR DEATH.
1.3. GAS VENT CATEGORIES
Innovation and ReCon water heaters are approved for a Category II and Category IV vent
configuration as well as for ducted combustion air installations.
Provisions for combustion and ventilation air in accordance with
Section 5.3, (Air for Combustion and Ventilation) of the National Fuel
Gas Code - ANSI Z223.1, or Sections 7.2, 7.3, or 7.4 of CAN/CSA
B149.1, Installation Codes, or applicable provisions of the local
building codes.
Federal Codes have categorized gas appliances by the vented flue gas pressure and temperature as
follows:
•Category I, being a gas appliance that operates with a non-positive vent (or natural drafted
vent) connector with a flue gas pressure and temperature at least 140°F (60°C) above its dew
point.
•Category II, being a gas appliance that operates with a non-positive vent (or natural drafted
vent) connector with a flue gas pressure and temperature less than 140°F (60°C) above its dew
point.
•Category III, being a gas appliance that operates with a positive vent (fan forced vent)
connector with a flue gas pressure and temperature at least 140°F (60°C) above its dew point.
WARNINGS
CAUTION

Innovation Series & ReCon Water Heater GF-5050
Venting and Combustion Air Guide TAG-0043_0Q
12/01/2016 AERCO International, Inc. •100 Oritani Dr. •Blauvelt, New York 10913 •Phone: [phone] Page 5of 39
•Category IV, being a gas appliance that operates with a positive vent (fan forced vent)
connector with a flue gas pressure and temperature less than 140°F (60°C) above its dew
point.
•Direct Vent, a gas appliance is constructed and installed so that all air for combustion is
derived directly from the outdoors and all flue gases are discharged to the outdoors.
1.4. CERTIFIED VENTING MATERIALS FOR FLUE PIPE SYSTEMS
Acceptable materials and manufacturers for flue vent pipe systems are listed below in Options 1
through 4. Consult local codes and authorities prior to installation.
The Vent Pipe Systems below are used for venting gas burning
Category II and IV appliances. Do not use these vent pipe systems for
venting appliances burning fuels such as wood, coal, oil or kerosene.
Maintain clearances from combustible construction for heater, vent
connector, and steam and hot-water pipes.
Do not use these vent pipe systems for incinerators of any kind.
OPTION 1: AL29-4C Stainless Steel
•Security Chimneys International, Secure Seal, SS, SSD, 8 SSID (available through
AERCO)
•Flex-L International Inc., StaR 34 Vent
•Heat-Fab Inc., Saf-T Vent
•Protech System Inc., Fas N Seal Vent
•Metal-Fab Inc., Corr/Guard Vent (except 10” and 12”)
•Z-Flex Z-Vent
Table 1: Flue System Requirements – Minimum Thickness for AL29-4C in Inches (mm)
Diameter
Wall Thickness
Diameter
Wall Thickness
Diameter
Wall Thickness
3" (51)
0.015" (0.38)
9" (229)
0.020" (0.51)
20" (508)
0.024" (0.61)
4" (102)
0.015" (0.38)
10" (254)
0.020" (0.51)
22" (559)
0.024" (0.61)
5" (127) 0.015" (0.38) 12" (305) 0.020" (0.51) 24" (610) 0.024" (0.61)
6" (152)
0.015" (0.38)
14" (356)
0.020" (0.51)
26" (660)
0.034" (0.86)
7" (178)
0.015" (0.38)
16" (406)
0.020" (0.51)
28" (711)
0.034" (0.86)
8" (203)
0.015" (0.38)
18" (457)
0.024" (0.51)
30" (762)
0.034" (0.86)
CAUTION
CAUTION
CAUTION

GF-5050 Innovation Series & ReCon Water Heater
TAG-0043_0Q Venting and Combustion Air Guide
Page 6of 39 AERCO International, Inc. •100 Oritani Dr. •Blauvelt, New York 10913 •Phone: [phone]/2016
OPTION 2: VP1738A
•Van-Packer Company, Inc., Model CS Special Gas Vent
OPTION 3: Polypropylene
•DuraVent, PolyPro Commercial. NOTE: Centrotherm provides the adapter when ordering
through them directly. However, when ordering through DuraVent, the customer must
purchase the required adapter separately. Refer to section 1.5 for adapter information
•Centrotherm ECO Systems, InnoFlue Single Walk Commercial
OPTION 4: PVC/cPVC *
If needed, a PVC Vent Adapter is provided in the Spares Kit included with each
Innovation water heater.
* NOTE
PVC and cPVC venting are not allowed for ReCon water heaters.
Because Innovation and ReCon water heaters are Category II and IV appliances, they require special
attention to exhaust venting and combustion air details. The exhaust vent MUST be UL listed for use
with Category II and IV appliances.
Proper clearances to combustibles must be maintained per UL and vent manufacturer requirements.
The UL, National Fuel Gas Code (ANSI Z223.1/ NFPA54)1and CSA B149.1-10 guidelines are often
the basis for state and local codes. AERCO's recommendations follow the guidelines of these
agencies, unless more stringent codes govern the installation site. The venting and combustion air
systems must meet all applicable code requirements.
All Canada installations must comply with CSA B149.1 installation code.

Innovation Series & ReCon Water Heater GF-5050
Venting and Combustion Air Guide TAG-0043_0Q
12/01/2016 AERCO International, Inc. •100 Oritani Dr. •Blauvelt, New York 10913 •Phone: [phone] Page 7of 39
1.5. EXHAUST VENT CONNECTION COMPONENTS
Figure 1 shows the components and part numbers for connecting the exhaust vents for Innovation
and ReCon models.
Exhaust Vent Adapters
INN600 INN600, INN800, INN1060, INN1350, INN1400
4” (102 mm) (PVC) Kit # 24287 6” (152 mm) (PVC) Kit # 24286
INN600 INN600, INN800, INN1060, INN1350,
INN1400, ReCon 1000
6” to 4”
(152 to 102 mm) PolyPro Adapter P/N 39006-1 6” (152 mm) PolyPro Adapter P/N 39006-2
Figure 1: Exhaust Vent Connection Components
1.6. PRESSURE RANGE
•For individually vented units, the exhaust system must be designed so that pressure measured
at every point is in the range from -0.10” W.C. to +0.81” W.C. (-25 Pa to 202 Pa).
•For common vented units, the exhaust system must be designed so that pressure measured
at every point is in the range of -0.10” W.C. to +0.25” W.C. (-25 Pa to 62 Pa).
•Pressures below -0.10” W.C. (-25 Pa) (more negative) may cause flame instability.
•Pressures above +0.25” W.C. (62 Pa) for common vented units, or +0.81 W.C. (202 Pa) for
individually vented units (more positive), will prevent flue gases from exiting.

GF-5050 Innovation Series & ReCon Water Heater
TAG-0043_0Q Venting and Combustion Air Guide
Page 8of 39 AERCO International, Inc. •100 Oritani Dr. •Blauvelt, New York 10913 •Phone: [phone]/2016
1.7. EXHAUST MUFFLER GUIDELINES
Both Innovation and ReCon units require an exhaust muffler when they are installed in a noise-
sensitive application and when the exhaust vent ducting is relatively short in length. The following
criteria should be used to determine when to include a field-installed muffler in an Innovation and
ReCon installations:
•The total linear length from exhaust to termination is less than 25 linear feet (7.5 linear m) in
length and the vent terminates in close proximity to residences, offices, hotel/hospital rooms,
classrooms etc.
For manifolded exhaust systems, the total vertical section includes only the common vertical;
individual unit vertical connectors are not included in the determination.
EXAMPLE: If the installation has a 20 foot (6.1 m) common vertical, and each unit has a
10-foot vertical connector, the total vertical section is only 20 feet (6.1 m). Because this length
is less than 25 linear feet (7.5 m), a muffler is required.
If the muffler must be mounted horizontally, add a condensate drain and trap with the drain port
oriented downward.
Contact your local AERCO sales representative for more information on the AERCO exhaust
muffler.
1.8. EXHAUST FANS
If the Innovation or ReCon water heater’s exhaust system incorporates an exhaust fan, the system
designer must size the vent pipe diameters, select the fan and determine the location of the fan
sensor to maintain a -0.1” to +0.25” W.C. (-25 Pa to 62 Pa) pressure range at the outlet of each boiler.
Also, the designer must ensure that the exhaust fan material is acceptable for use with Category IV
appliances.
1.9. ELBOW QUANTITY AND SEPARATION
The quantity and angle of elbows and the distances between them can influence the system’s exhaust
and combustion air pressures, as well as its acoustical behavior. Designers should consider
minimizing the quantity of elbows in the design and the use of angles less than 90°, whenever
possible. Five or fewer elbows are recommended for individual venting/connections; five or fewer are
recommended for common sections. The minimum distance required between two elbows is 5
feet (1.52 m).

Innovation Series & ReCon Water Heater GF-5050
Venting and Combustion Air Guide TAG-0043_0Q
12/01/2016 AERCO International, Inc. •100 Oritani Dr. •Blauvelt, New York 10913 •Phone: [phone] Page 9of 39
2. COMBUSTION AIR SYSTEM
AIR OPENINGS TO COMBUSTION AREA MUST NOT BE
OBSTRUCTED. USE THE INFORMATION BELOW TO ENSURE THAT
ADEQUATE COMBUSTION AIR IS MAINTAINED.
2.1. COMBUSTION AIR REQUIREMENTS
Innovation and ReCon water heaters require the following combustion air volumes when operated at
full capacity:
INNOVATION RECON
INN600 – 130 SCFM (2.8 m3/min) ReCon 1000– 215 SCFM (6.1 m3/min)
INN800 – 170 SCFM (4.8 m3/min)
INN1060 – 225 SCFM (6.4 m3/min)
INN1350 – 285 SCFM (8.1 m3/min)
INN1400 – 285 SCFM (8.1 m3/min)
These flows MUST be accommodated. Air supply is a direct requirement of NFPA, CSA B149.1-10
(Canada) and local codes that should be consulted for correct design implementation.
NOTES:
1. The combustion air must be free of chlorine, halogenated hydrocarbons or other chemicals that
can become hazardous when used in gas-fired equipment. Common sources of these
compounds are swimming pools, degreasing compounds, plastic processing, and refrigerants.
Whenever the environment contains these types of chemicals, combustion air MUST be
supplied from a clean area outdoors for the protection and longevity of the equipment and
warranty validation.
2. When calculating free area using louvers and grilles, the required size of the openings for
combustion, ventilation, and dilution air shall be based on the total free area of each opening.
•If the free area through a designed louver or grille is known, it shall be used in calculating the
size of opening required to provide the free area specified.
•If the louver and grille design free areas are not known, the following will be assumed: For
wooden louvers a 25 percent free area; for metal louvers and grilles a 75 percent free area
opening.
3. When terminating the combustion air through the roof:
•The combustion air inlet must be 3 ft. (0.9 m) below any vent outlet within 10 ft. (3 m) (see
Figure 10).
•The combustion air inlet must also face away from the vent outlet (see Figure 10).
4. All inlet air ducts must be sealed air tight.
5. The boiler/heater room must not be under negative pressure under any circumstances (even when
the combustion air is direct ducted). If necessary, ventilate the room to prevent this condition from
occurring.
WARNING

GF-5050 Innovation Series & ReCon Water Heater
TAG-0043_0Q Venting and Combustion Air Guide
Page 10 of 39 AERCO International, Inc. •100 Oritani Dr. •Blauvelt, New York 10913 •Phone: [phone]/2016
•Non-motorized louvers and grilles must be fixed in an open
position.
•Minimum screens mesh size shall not be smaller than ¼
inch (6.4 mm) mesh.
6. Air intakes must not be located in the proximity of garages, industrial and medical hood venting,
loading docks or refrigerant vent lines. Boilers must not be installed in the proximity of activities
that generate dust if that dust can enter the boiler intake. Boilers must be located to prevent
moisture and precipitation from entering combustion air inlets.
7. If a water heater is used, temporarily, to provide heat during ongoing building construction or
renovation, accumulated drywall dust, sawdust and similar particles can:
•Accumulate in the unit’s combustion air intake and block combustion air flow
•Accumulate over the burner surface and restrict flow of air/fuel mixture
In these situations, AERCO requires that a disposable air intake filter be installed, temporarily,
above the combustion air inlet. Air filters may be required year-round in instances in which dust or
debris can enter the combustion air tube. Consult the Operations and Maintenance Manual for
details.
8. Combustion air temperatures as low as -30°F (-34°C ) can be used without affecting the integrity
of the equipment; however, the combustion settings may require adjustment to compensate for
site conditions.
2.2. COMBUSTION AIR FROM WITHIN THE BUILDING
Wherever combustion air originates from in the building, it must be provided to the equipment room
from two permanent openings to an interior room (or rooms). Openings connecting indoor spaces
shall be sized and located in accordance with the following:
•Each opening shall have a minimum free area of 1 inch2per 1,000 BTU/hr (654 mm2/0.29 kW)
of total input rating of all appliances in the space, but not less than 100 inch2(0.06 m2).
•One opening shall commence within 12 inches (305 mm) of the top of the enclosure, and one
opening shall commence within 12 inches (305 mm) of the bottom. (See Figure 2).
WARNING

Innovation Series & ReCon Water Heater GF-5050
Venting and Combustion Air Guide TAG-0043_0Q
12/01/2016 AERCO International, Inc. •100 Oritani Dr. •Blauvelt, New York 10913 •Phone: [phone] Page 11 of 39

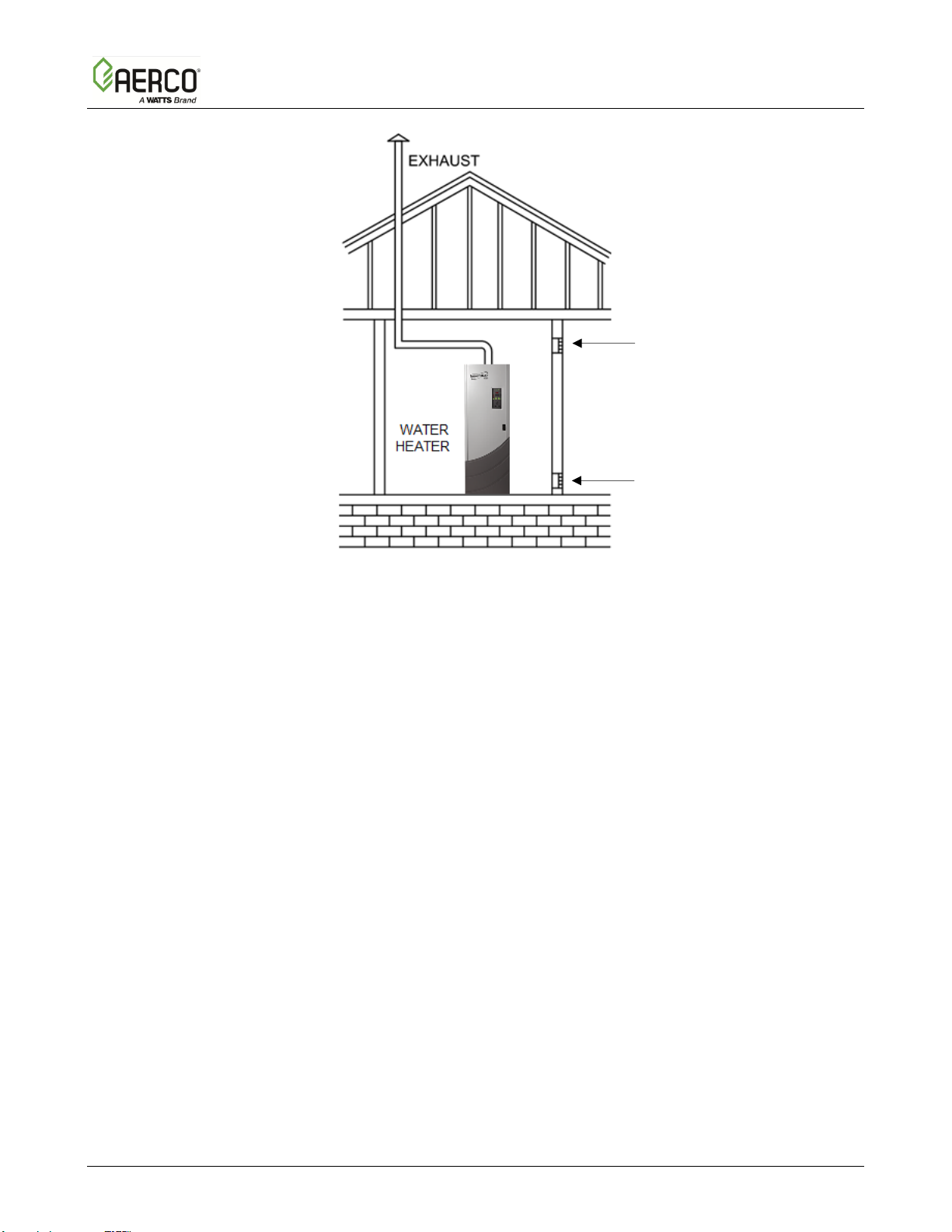

Figure 2: All Combustion Air from Adjacent Indoor Spaces through Indoor Openings
2.3. COMBUSTION AIR FROM OUTSIDE THE BUILDING
Outdoor combustion air shall be provided through opening(s) to the outdoors in accordance with the
methods described below. The minimum dimension of air openings shall not be less than 3 inches
(80 mm). The required size of the openings for combustion air shall be based upon the net free area
of each opening. When the free area through a louver, grille, or screen is known, it shall be used to
calculate the opening size required to provide the free area specified. For additional details, consult
NFPA 54, or in Canada, CSA B149.1-10, paragraphs 8.4.1 and 8.4.3.
2.3.1. Two-Permanent-Openings Method (USA Only)
Two permanent openings shall be provided; one commencing within 12 inches (305 mm) of the top of
the enclosure and one commencing within 12 inches (305 mm) of the bottom. The openings shall
communicate directly ― or by ducts ― with the outdoors, or spaces that freely communicate with the
outdoors, as show on the following pages:
1. When communicating directly with the outdoors, or when communicating to the outdoors
through vertical ducts, each opening shall have a minimum free area of 1 inch2per
4,000 BTU/hr (654 mm2/1.17 kW) of total input rating of all appliances in the space (see
Figures 4 and 5).
OPENING
OPENING

GF-5050 Innovation Series & ReCon Water Heater
TAG-0043_0Q Venting and Combustion Air Guide
Page 12 of 39 AERCO International, Inc. •100 Oritani Dr. •Blauvelt, New York 10913 •Phone: [phone]/2016
Figure 3: All Combustion Air From Outdoors - Inlet Air From Ventilated Crawl Space
and Outlet Air to Ventilated Attic
Figure 4: All Combustion Air from Outdoors – Through Ventilated Attic
TOP OPENING

Innovation Series & ReCon Water Heater GF-5050
Venting and Combustion Air Guide TAG-0043_0Q
12/01/2016 AERCO International, Inc. •100 Oritani Dr. •Blauvelt, New York 10913 •Phone: [phone] Page 13 of 39
2. When communicating with the outdoors through horizontal ducts, each opening shall have a
minimum free area of 1 inch2per 2,000 BTU/hr. (654 mm2/0.59 kW) of total input rating of all
appliances in the space (see Figure 5).
Figure 5: All Combustion Air from Outdoors – Through Horizontal Ducts
2.3.2. One Permanent Opening Method
One permanent opening shall be provided, commencing within 12 inches (305 mm) of the top of the
enclosure. The appliance shall have clearances of at least 1 inch (25 mm) from the sides and back of
the appliance, and a clearance of 6 inches (152 mm) from the front. The opening shall communicate
with the outdoors directly or through a vertical or horizontal duct to the outdoors or spaces that freely
communicate with the outdoors (as shown in Figure 6) and shall have a minimum free area as follows:
•1 inch2per 3,000 BTU/hr (654 mm2/0.88 kW) of the total input rating of all appliances located
in the space.

GF-5050 Innovation Series & ReCon Water Heater
TAG-0043_0Q Venting and Combustion Air Guide
Page 14 of 39 AERCO International, Inc. •100 Oritani Dr. •Blauvelt, New York 10913 •Phone: [phone]/2016
Figure 6: All Combustion Air from Outdoors Through Single Combustion Air Opening
The following table lists the minimum required air openings in square inches (square centimeters)
freely communicating with the outdoors for boiler/heater room combustion and ventilation air for each
unit. For multiple unit installations, sum the openings for the specific heater sizes.
OPENING

Innovation Series & ReCon Water Heater GF-5050
Venting and Combustion Air Guide TAG-0043_0Q
12/01/2016 AERCO International, Inc. •100 Oritani Dr. •Blauvelt, New York 10913 •Phone: [phone] Page 15 of 39
Table 2: Summary of Minimum Required Air Openings
For Boiler/Heater Room Combustion & Ventilation Air
Model Two Openings
from within the
Building, Each
having an
opening, in2(cm2)
Two Direct or
Vertical Duct
Openings, Each
having an
opening, in2(cm2)
Two Horizontal
Ducts, Each
having an
opening, in2 (cm2)
Single Permanent
Opening, in2
(cm2)
INN600 600 in
2
(0.39 m
2
) 150 in
2
(0.97 m
2
) 300 in
2
(0.19 m
2
) 200 in
2
(0.13 m
2
)
INN800
800 in
2
(0.52 m
2
) 200 in
2
(0.13 m
2
) 400 in
2
(0.26 m
2
) 270 in
2
(0.17 m
2
)
ReCon 1000
1000 in
2
(0.65 m
2
) 250 in
2
(0.16 m
2
) 500 in
2
(0.32 m
2
) 335 in
2
(0.22 m
2
)
INN1060
1060 in2(0.68 m2)
265 in2(0.17 m2)
530 in2(0.34 m2)
355 in2(0.23 m2)
INN1350,
INN1400
1360 in2(0.87 m2) 340 in2 (0.22 m2) 680 in2(0.44 m2) 455 in2(0.29 m2)
2.4. COMBUSTION AIR PIPE SIZING
In computing the pressure loading effect of the combustion piping system an equivalent straight-
length of piping is used. This equivalent length of piping is the combined sum of all equivalent lengths
of piping and piping components used in construction, including:
1. All straight horizontal and vertical pipe sections.
2. All equivalent lengths of fittings, bends and end terminations.
3. All equivalent lengths associated with extrance or transition effects, for example a sudden
expansion or contraction.
Table 3 provides the required combustion pipe size for both Innovation and ReCon water heaters
along with some rule-of-thumb guidelines for estimating the equivalent lengths of common piping
components.
Table 3: Rule-of-Thumb Maximum Combustion Air Run Lengths
Model No. Minimum Pipe
Diameter
Maximum
Length
Equivalent
Ft. (m)
Equivalent Pipe Lengths
Examples
Sharp 90° Elbow
Equiv. Ft (m) 45° Elbow Equiv. Ft (m)
INN 600, INN800,
INN1060, INN1350,
INN1400, ReCon 1000
6”
(152 mm) *140 ft. (42.7 m) 10 ft. (3.05 m) 5 ft. (1.5 m)
* Note: The maximum combined pressure drop of the exhaust and intake-air vents is 140
equivalent-feet (42.7 m) for 6” (152 mm) pipe (all models). For the INN600 using 4” (102
mm) pipe the maximum combined pressure drop of exhaust and intake-air vents is 80 (24.4
m) equivalent-feet. See Section 3.4.

GF-5050 Innovation Series & ReCon Water Heater
TAG-0043_0Q Venting and Combustion Air Guide
Page 16 of 39 AERCO International, Inc. •100 Oritani Dr. •Blauvelt, New York 10913 •Phone: [phone]/2016
Rule-of-Thumb Examples – Standard North American units of measure:
1. A 40 foot length of combustion air pipe and 1 sharp 90° elbow plus two termination 90° elbows
add up to 40 ft. + 10 ft. + (2 x 10 ft.) = 70 equivalent ft.
2. A 30 foot (9.1 m) length of combustion air pipe and 2 sharp 90° elbows plus two termination
90° elbows add up to 30 ft. + (2 x 10 ft.) + (2 x 10 ft.) = 70 equivalent ft. (21.3 m).
Rule-of-Thumb Examples – Metric units of measure:
1. A 12 m length of combustion air pipe and 1 sharp 90° elbow plus two termination 90° elbows
add up to 12 m + 3 m + (2 x 3 m) = 21 equivalent m
2. A 9 m length of combustion air pipe and 2 sharp 90° elbows plus two termination 90° elbows
add up to 9 m + (2 x 3 m) + (2 x 3 m) = 21 m
For more detailed analysis see sections 3.6 and 3.7 and Example.
2.5. COMMON COMBUSTION AIR SYSTEMS
In many installations, the combustion air duct can be manifolded for multiple unit applications.
The length and restriction of the ducted combustion duct directly impact the size, length and restriction
of the discharge venting. The direct vent air intake should be located at least 3 feet (1 m) below any
vent termination within 10 feet (3.1 m).
A screen with mesh size not smaller than 1” x 1” (25 mm x 25 mm) must be installed at the inlet of the
ducted combustion air duct.
For systems using manifolded ducted combustion, use the longest length of common duct and the
individual branch to the furthest boiler to calculate the pressure drop. Figures 7a and 7b illustrate
preferred and acceptable designs.

Innovation Series & ReCon Water Heater GF-5050
Venting and Combustion Air Guide TAG-0043_0Q
12/01/2016 AERCO International, Inc. •100 Oritani Dr. •Blauvelt, New York 10913 •Phone: [phone] Page 17 of 39

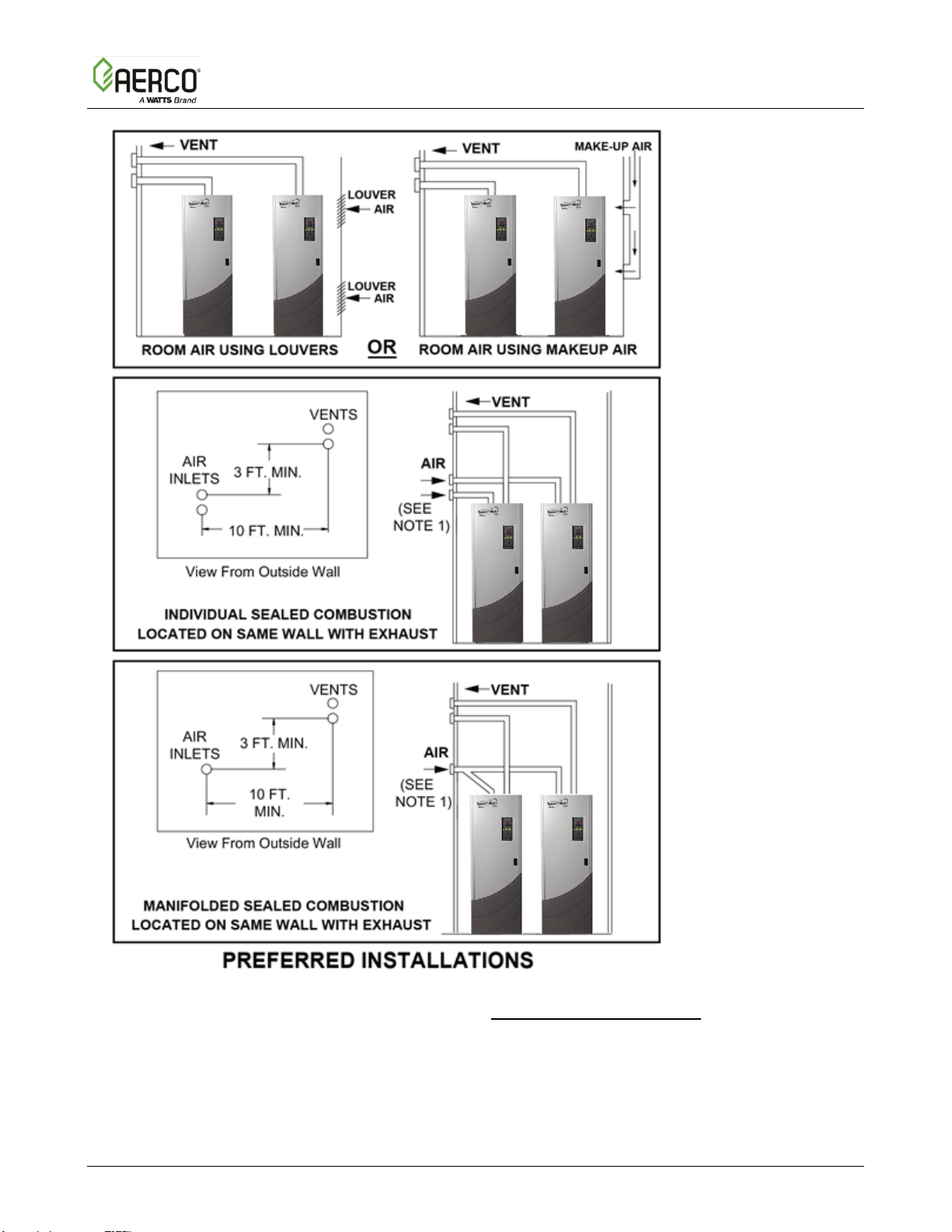

Figure 7a: Individual Vents – PREFERRED Installations
NOTE 1:
For high wind, wind
blocked sites, a tee
may be installed at
the fresh air inlet. The
leg of the tee
connects to the
combustion air intake.
The branches of the
tee can be in the
horizontal or vertical
direction, as
determined by the
system designer and
site conditions.

GF-5050 Innovation Series & ReCon Water Heater
TAG-0043_0Q Venting and Combustion Air Guide
Page 18 of 39 AERCO International, Inc. •100 Oritani Dr. •Blauvelt, New York 10913 •Phone: [phone]/2016
Individually Sealed Combustion Manifolded Sealed Combustion
Located on Different Wall From Exhaust Located on Different Wall From Exhaust
Manifolded Sealed Combustion Individual Sealed Combustion Manifolded Sealed Combustion
NOTE 2
For high wind, wind blocked sites, a tee may be installed at the fresh air inlet. The leg
of the tee connects to the combustion air intake. The branches of the tee can be in the
horizontal or vertical direction, as determined by the system designer and site
conditions.
Figure 7b: Individual Vents – ACCEPTABLE Installations
IMPORTANT NOTES:
1. Please consult the AERCO factory for all applications utilizing common
ducted combustion air with common breeching of exhausts.
2. AERCO boilers and AERCO water heaters may share common combustion
air and exhaust breeching. Other configurations, not depicted in this guide,
are possible. If you intend to implement any of these options, please
contact your local AERCO representative or the AERCO factory for project
specific venting and combustion air configurations.
VENT
VENT
AIR
AIR
SEE
NOTE 2
SEE
NOTE 2
AIR
AIR
AIR
VENT
VENT
VENT

Innovation Series & ReCon Water Heater GF-5050
Venting and Combustion Air Guide TAG-0043_0Q
12/01/2016 AERCO International, Inc. •100 Oritani Dr. •Blauvelt, New York 10913 •Phone: [phone] Page 19 of 39
3. VENT SYSTEM
The heater vent is fundamental for correct operation. Being a condensing heater, combustion gases
are discharged at a very low temperature. It is therefore necessary for the venting system to be
perfectly impermeable to combustion products condensate and to be made of corrosion resistant
materials. Typical Category IV venting and ducted combustion air illustrations are shown in Figures 3
through 7. The various funnel joints shall be well sealed and/or equipped with suitable gaskets, in
order to avoid any condensate drain and/or air intake. Ensure that the heater’s vent section and height
conform to national and local regulations (see Section 1.2 APPLICABLE FEDERAL CODES of this
guide).
The exhaust vent system must be pitched back toward the water heater unit by a minimum of 1/4 inch
per foot (21 mm/m) of duct length to enable condensate to drain back to the unit for disposal. Low
spots in the vent must be avoided to prevent the condensate from collecting.
The condensate trap assembly is located directly below the exhaust manifold. Plastic hose should be
connected to the trap assembly and run to drain. Care should be taken to avoid hose kinks and to
avoid raising the hose above the trap assembly. Condensate should flow freely to drain. The
condensate-to-drain run must not be hard-piped so the trap can be removed periodically for
maintenance purposes.
If the condensate must be lifted above the trap assembly to a drain, it should be drained into a sump.
From there, a pump can lift the condensate away.
Innovation and ReCon units will produce the following maximum condensate quantities in the full
condensing mode:
INNOVATION RECON
INN600
4.5 gallons per hour ReCon 1000 8 gallons per hour
0.28 L/min 0.50 L/min
INN800 6 gallons per hour
0.38 L/min
INN1060 8 gallons per hour
0.50 L/min
INN1350
INN1400 11 gallons per hour
0.69 L/min
Condensate drain systems must be sized for full condensing mode.
In multiple water heater applications, it is common to manifold these drains together in a plastic pipe
manifold to a floor drain. Condensate manifolds must be large enough to handle the anticipated flow
and must be properly secured and protected. Manifolds are generally located behind the units so that
short runs of plastic tubing into the manifold can be used for the condensate drain. A base drain must
be installed at the bottom of vertical common flue piping.
The pH level of the condensate produced by AERCO water heaters ranges between 3.0 and 3.2. The
installation should be designed in accordance with local codes that specify acceptable pH limits. If
required, any type of commercially available neutralizer may be used. For water heaters designed for
connection to gas vents or chimneys, vent installations shall be in accordance with Part 7, Venting
of Equipment, of the National Fuel Gas Code, ANSI Z223.1, or Section 7, Venting Systems and Air
Supply for Appliances, of the CAN/CSA B149, Installation Codes, or applicable provisions of the
local building codes.

GF-5050 Innovation Series & ReCon Water Heater
TAG-0043_0Q Venting and Combustion Air Guide
Page 20 of 39 AERCO International, Inc. •100 Oritani Dr. •Blauvelt, New York 10913 •Phone: [phone]/2016
The vent system for Innovation and ReCon heaters must be installed in accordance with AERCO’s
installation instructions described in this guide.
For Category IV and II Heaters, the vents must be installed to prevent
accumulation of condensate, and have means provided for drainage of
condensate.
3.1. VENT INSTALLATION
NOTE
Figure 8 shows how the vent system is assembled to Innovation water
heaters; installation on ReCon water heaters is comparable.
1. The heaters covered in this section are design-certified as Category II and IV for venting, only
when they are installed with manufacturer specified vent system components and installation
practices.
2. Install vent pipe beginning at the water heater exhaust manifold and work toward the vent cap.
Start by cleaning the top surface of the exhaust manifold and the mating flange section of the duct
starter piece with an alcohol swab and then apply a bead of high temperature red silicon sealant
(such as Permatex Hi-Temp Red RTV or Loctite Superflex Red High Temp RTV) to that surface
(see Figure 8, below).
3. Attach the exhaust connector to the exhaust manifold using the screws supplied with the kit. Use a
cross-tip (Phillips) screwdriver at least 12 inches (305 mm) long. See Figure 1 (page 7) for the list
of available exhaust vent connectors.
4. Vent connectors serving appliances vented by natural draft shall not be connected into any portion
of mechanical draft systems operating under positive pressure
5. For Innovation and ReCon water heaters, horizontal runs shall be sloping upwards not less than
1/4 inch per foot (21 mm/m) from the heater to the vent termination.
6. The instructions for the installation of the venting system shall specify that the horizontal portions
of the venting system shall be supported to prevent dips or sags where condensate could collect.
7. Rigidly support vent pipe every 5 feet (1.5 m) and at each elbow. Plumber straps may be used.
8. In a multiple unit common venting setup, to prevent internal exhaust gas recirculation when a unit
is disabled/off, allow for at least 10 feet (3.1 m) of common vertical as a rule of thumb
9. Clearances and enclosures. ALL vent pipe and fittings must be installed with appropriate air space
clearances to combustibles. These air space clearances apply to indoor or outdoor vents, whether
they are open, enclosed, horizontal or vertical or pass through floors, walls, roofs, or framed
spaces. The appropriate air space clearances should be observed between joists, studs, sub
floors, plywood, drywall, or plaster enclosures, insulated sheathing, rafters, roofing, and any other
combustible material. The minimum air space clearance also applies to electrical wires and any
kind of building insulation.
CAUTION
