Waversasystems WDAC3C User manual
WDAC3C
Owner’s Manual
Important Notice
1. Read these instruction manual
2. Keep the manual
3. Keep remind all warnings
4. Follow all instructions
5. Do not use this equipments near water or moisture
6. Clean only with dry cloth
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions
8. Do not use near any heat sources such as radiators, stoves or heat registers
9. Use grounding-type plug
10. Use only attachments/accessories specified by the manufacturers
11. Unplug this equipment during lightning storms or when unused for long periods of time
12. Refer all servicing to qualified service personnel. Servicing is required when the
equipment has been damaged in any way, such as power-supply cord or plug is
damaged,liguid has been spilled or objects have fallen into the equipment, the equipment
has been exposed to rain or moisture, does not operate normally, or has been dropped.
Manufacturer does not take any responsibility for repairing due to misused operation
13. Do not put any liquid material onto the equipment
14. Remove plug after checking the equipment power is off. Otherwise, it may cause equipment
failure.
WARNING: Unqualified personnel are not able to repair this equipments.
To reduce the risk of electric shock, do not open bottom cover on purpose.
WDAC3C Owner’s Manual 01
About Waversa Systems
Thanks for using
Waversa Systems’ WDAC3C.
Recent development of innovative IT/ Digital technology brings
vast changes in concept and environment of old Analog based
High-end Audio market.
Waversa Systems is leading
New High-end Audio paradigm combining world top class IT with
digital technology under the goal of developing sophisticated
sound and design.
Waversa Systems is
Happy with your purchasing equipments and promises to become
best partners for your audio life.
CEO Junho Shin
WDAC3C Owner’s Manual 02
Key Features of The WDAC3C
Built-in Waversa Audio Processor 3MHz 32bit
Coaxial, AES/EBU, Optical Inputs
UAC2 Compliant USB Input
DLNA, Roon Ready, WNDR Network Inputs
Network/USB Input : DSD256 Support
USB A port for future extension
PCM Enhancement(RES : Bypass, 1X, 2X, 4X, 8X)
4th Generation Waversa Discrete buffer
Output Gain (LEVEL : 0 to -21dB) Adjustment
2x Word Clock Input
System Update via Network and SD card
WDAC3C Owner’s Manual 03
Front Panel
①Power button
②IR remote sensor
③LCD Status Panel
④Source Button
⑤Menu Button
⑥Select Button
Rear Panel
①Balanced output : XLR male
②Unbalanced output : RCA female
③AES/EBU Input
④Coaxial Input
⑤Optical Input
⑥USB B Input
⑦USB A Input/Output
⑧Ethernet
⑨SD Card Slot for software
⑩Word Clock Inputs
⑪Battery Power Input
⑫AC Power Input
WDAC3C Owner’s Manual 04
WDAC3C
RES Menu
WDAC3C Owner’s Manual 05
Source Name
Product Name / Menu
Sample Rate / Resolution
•Select output resolution up to 384KHz
DLNA
44.1 x8
WDAC3C
DLNA
44.1 x8
RES BYPASS
DLNA
44.1 x8
RES 1X
DLNA
44.1 x8
RES 2X
DLNA
44.1 x8
RES 4X
DLNA
44.1 x8
RES 8X
Front Display
WDAC3C
LEVEL Menu
WDAC3C Owner’s Manual 06
•Select analog output level
DLNA
44.1 x8
LEVEL 0dB
DLNA
44.1 x8
LEVEL -9dB
WDAC3C
REMOTE Menu
WDAC3C Owner’s Manual 07
•Select remote controller type
•W– Waversa
•A -Apple
DLNA
44.1 x8
REMOTE W
DLNA
44.1 x8
REMOTE A
* Additional Menu will be added and can be updated via internet
WDAC3C

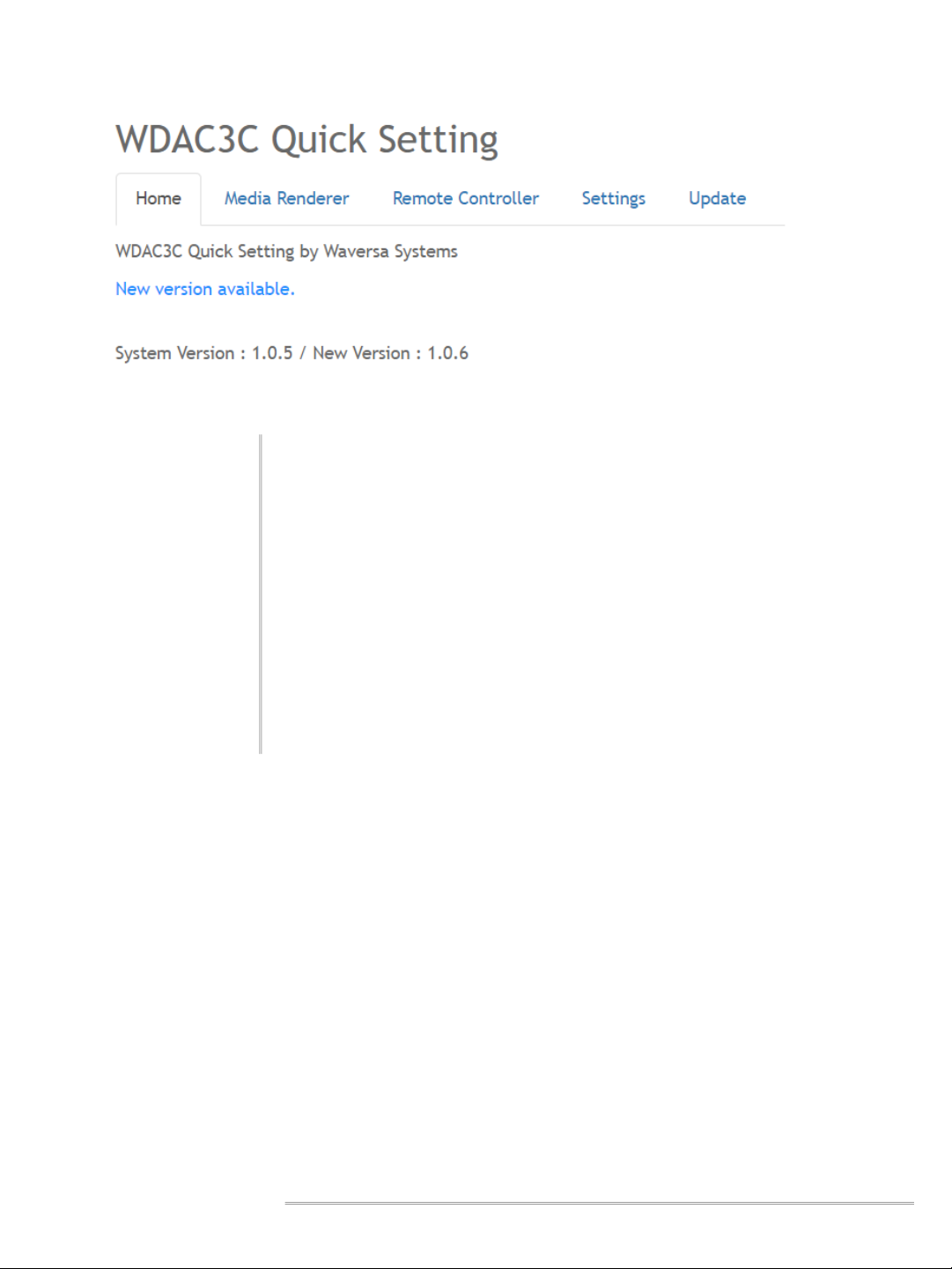

How to Use WDAC3C Quick Setting
1. In PC / Mobile device, User can connect “WDAC3C Quick Setting”
web page.
2.Connect WDAC3C to router with LAN cable
3. Connect PC / Mobile device to network.
4.Enter WDAC3C’s IP address into web browser(Explorer, Safari ,
Chrome)
5. If you have new version, main page indicate new version
availability.
WDAC3C Owner’s Manual 08
Media Renderer Manual Control
If DLNA media renderer does not present, then press “restart” button
to wakeup DLNA media renderer.
WDAC3C Owner’s Manual 09

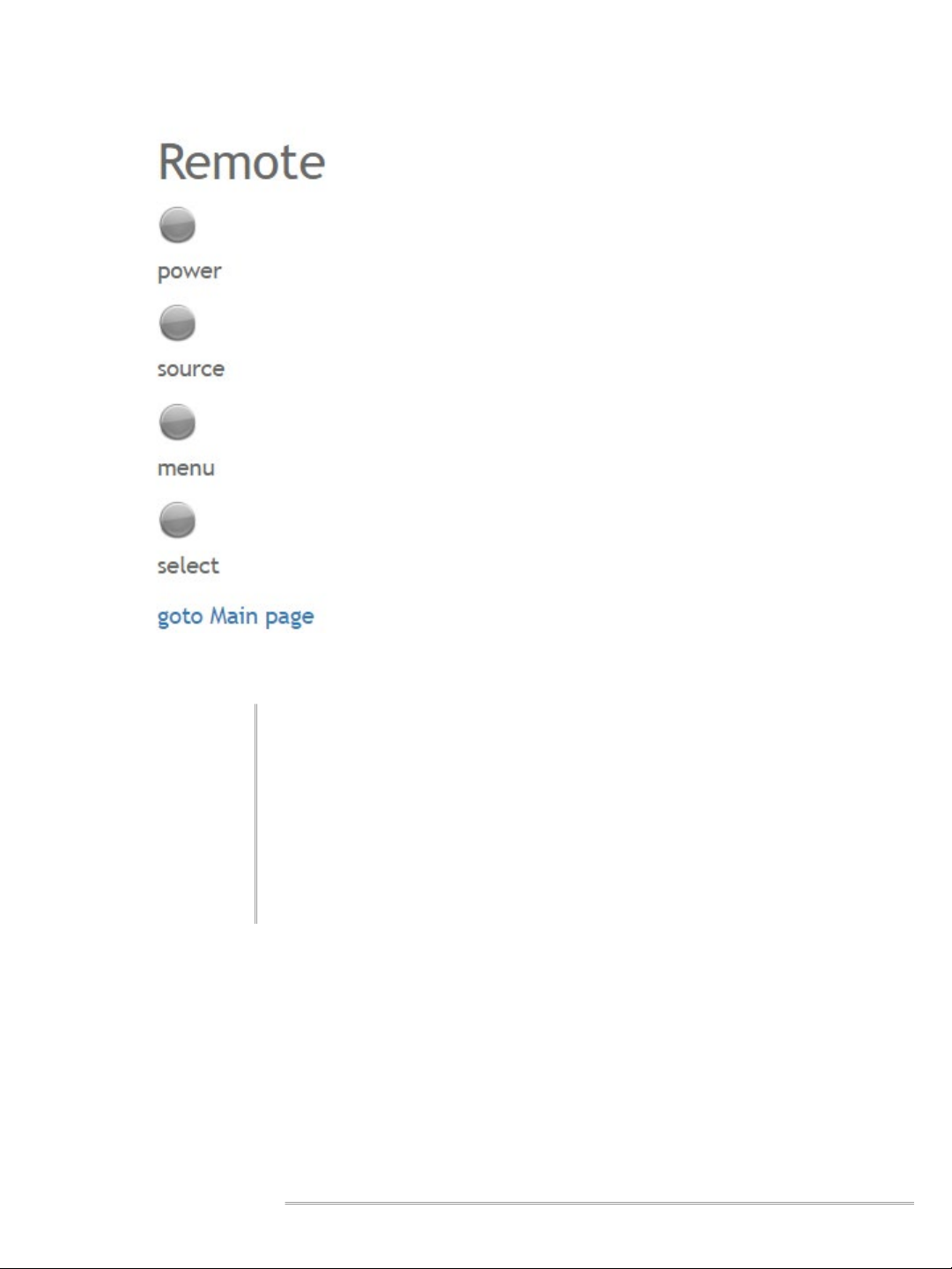

How to Use WDAC3C Remote Controller
1. Select “Remote Controller” and press “Remote Controller” button
to open remote controller page
2.Power button for turn on/off WDAC3C
3. Menu, select button for using menu of WDAC3C
4.Source button to change input source
WDAC3C Owner’s Manual 10
Settings
If you want to use 100Mbps fixed environment, then turn on this menu
WDAC3C Owner’s Manual 11

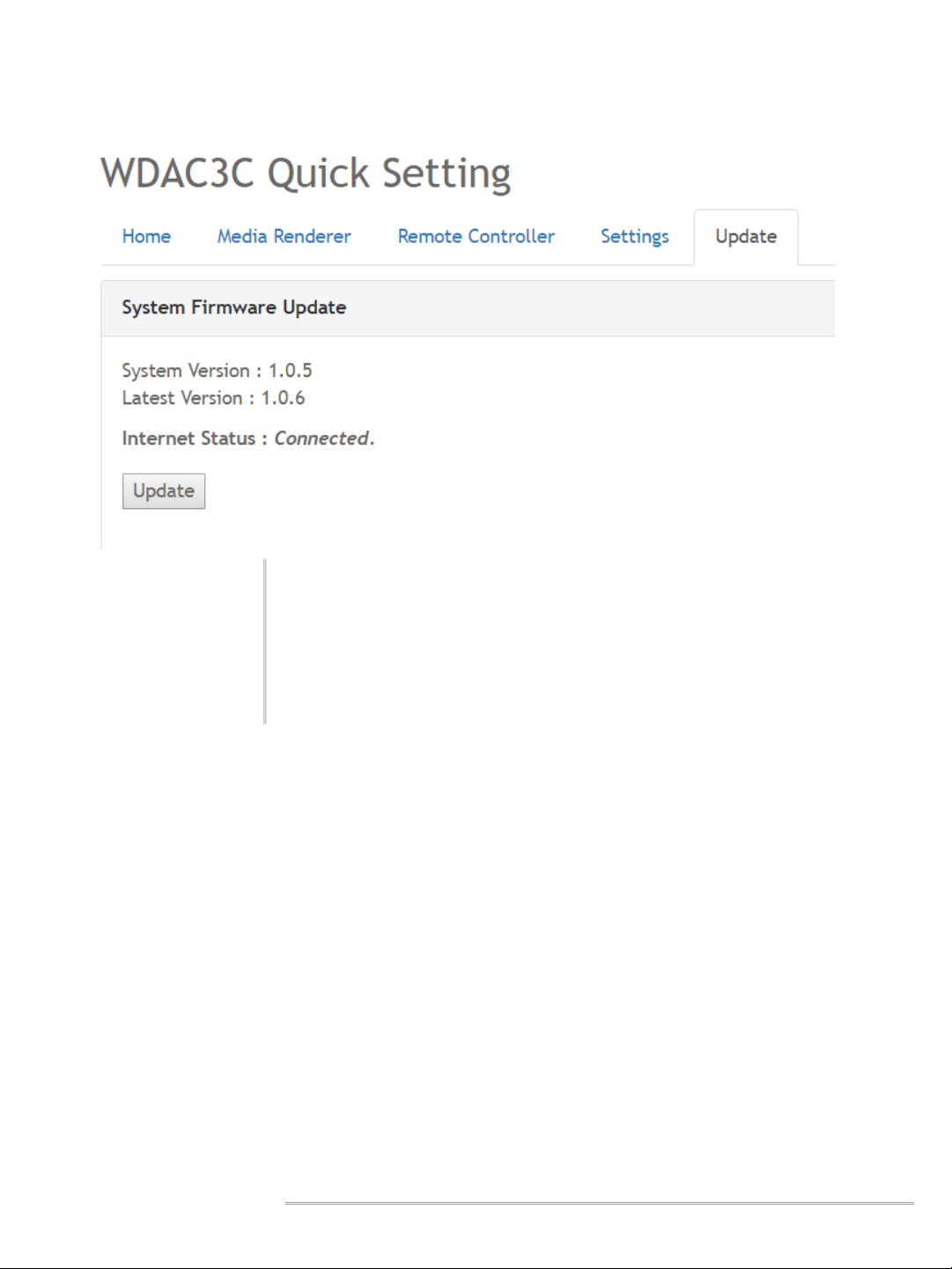

How to Update Software
1. If new version of software for WDAC3C then browser indicate
“New version available”
2.Select “Update” tab in WDAC3C Quick Setting
3. Press “Update” button and wait for update was done.
WDAC3C Owner’s Manual 12
Specification for the WDAC3C
WDAC3C Owner’s Manual 13
Converter Type
USB Chipset
OS
D/A Convertor
Digital Input
Word Clock
Input Sample Rate
Analog Output
Output Impedance
Output Signal Level
Line Voltage
Dimension
Weight
NOTES: All specifications are accurate at the time of printing.
Waversa Systems reserves the right to adjust specifications without
notice.
1 x Balanced(XLR)
1 x Unbalanced(RCA)
Custom Ultra Low Power Universal Serial Bus Audio Class 2.0
with High Precision Clock
Waversa Audio Processor Type 4 applied Built-in 3M high-end Upsampler
Linux 3.2 with 1GHz TI OMAP Processor ( ARM CORTEX-A8 )
ES9038PRO DAC Chip
USB B, Ethernet, AES/EBU, Coaxial, Optical,
2x Word Clock Input
AES/EBU, Coaxial, Optical -up to 192kHz
USB -PCM 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz
USB -DSD64, DSD128/DSD256
Up to 384kHz
50 Ohms
100% RMS 5.8V@0 dBFS
75% RMS 4.35V@0 dBFS
50% RMS 2.9V@0 dBFS
25% RMS 2.2V@0 dBFS
90~120 VAC / 180~240 VAC @ 50~60Hz
W 440 x L 330 x H 105 ( Foot Spike 15 ) mm
4 Kg
404, 10-9, Hwangsaeul-ro 258beon-gil, Bundang-gu,
Seongnam-si, Gyeonggi-do, Republic of Korea
http://www.waversa.com
email: junho@waversa.com
Copyright 2019 Waversa Systems
