WBS D6204A User manual

D6204A
OPENGEAR AES/EBU DIGITAL TO ANALOG AUDIO CONVERTER - 75
OHM
User Manual
by Ward-Beck Systems
Rev:Jan.01 2015

Ward-Beck Part Number: D6204A
• Document Issue: 1
• Printed in Canada
The information contained in this User Manual is subject to change without notice or obligation.
Copyright
©2015 Ward-Beck Systems Inc. All rights reserved.
Contents of this publication may not be reproduced in any form without the written permission of
Ward-Beck Systems Inc. Reproduction or reverse engineering of copyrighted software is
prohibited.
Notice
The material in this manual is furnished for informational use only. It is subject to change without
notice and should not be construed as a commitment by Ward-Beck Systems Inc. Ward-Beck
Systems Inc. assumes no responsibility or liability for errors or inaccuracies that may appear in
this manual.
Trademark
is a registered trademark of Ross Video Limited.
is a registered trademark of Ward-Beck Systems Inc.
All other product names and any registered and unregistered trademarks mentioned in this
manual are used for identification purposes only and remain the exclusive property of their
respective owners.

Important Regulatory and Safety Notices
Before using this product and any associated equipment, refer to the “Important Safety Instructions” listed
below so as to avoid personnel injury and to prevent product damage. Products may require specific
equipment, and /or installation procedures be carried out to satisfy certain regulatory compliance
requirements. Notices have been included in this publication to call attention to these Specific
requirements.
Symbols Meanings
This symbol on the equipment refers you to important operating and maintenance (servicing)
instructions within the Product Manual Documentation. Failure to heed this information may
present a major risk of damage or injury to persons or equipment.
Warning
The symbol with the word “Warning” within the equipment manual indicates a potentially
hazardous situation, which if not avoided, could result in death or serious injury.
Caution
The symbol with the word “Caution” within the equipment manual indicates a potentially
hazardous situation, which if not avoided, may result in minor or moderate injury. It may also be
used to alert against unsafe practices.
Notice
The symbol with the word “Notice” within the equipment manual indicates a situation, which if not
avoided, may result in major or minor equipment damage or a situation which could place the
equipment in a non-compliant operating state.
ESD Susceptibility
This symbol is used to alert the user that an electrical or electronic device or assembly is
susceptible to damage from an ESD event.
Important Safety Instructions
Caution
This product is intended to be a component product of the openGear 8000 series frame. Refer to the
openGear 8000 series frame User Manual for important safety instructions regarding the proper
installation and safe operation of the frame as well as it’s component products.
Warning
Certain parts of this equipment namely the power supply area still present a safety hazard, with the
power switch in the OFF position. To avoid electrical shock, disconnect all A/C power cords from the
chassis' rear appliance connectors before servicing this area.
Warning
Service barriers within this product are intended to protect the operator and service personnel from
hazardous voltages. For continued safety, replace all barriers after any servicing.
This product contains safety critical parts, which if incorrectly replaced may present a risk of fire or
electrical shock. Components contained within the product’s power supplies and power supply area,
are not intended to be customer serviced and should be returned to the factory for repair.
To reduce the risk of fire, replacement fuses must be the same type and rating.
Only use attachments/accessories specified by the manufacturer.

EMC Notices
US FCC Part 15
This equipment has been tested and found to comply with the limits for a class A Digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which case users will be required to correct
the interference at their own expense.
Notice
Changes or modifications to this equipment not expressly approved by Ward-Beck Systems Inc.
could void the user’s authority to operate this equipment.
CANADA
This Class “A” digital apparatus complies with Canadian ICES-003.
Cet appareil numerique de classe “A” est conforme à la norme NMB-003 du Canada.
EUROPE
This equipment is in compliance with the essential requirements and other relevant provisions of CE
Directive 93/68/EEC.
INTERNATIONAL
This equipment has been tested to CISPR 22:1997 along with amendments A1:2000 and A2:2002 and
found to comply with the limits for a Class A Digital device.
Notice
This is a Class A product. In domestic environments this product may cause radio interference in
which case the user may have to take adequate measures.
Maintenance/User Serviceable Parts
Routine maintenance to this openGear product is not required. This product contains no user serviceable
parts. If the module does not appear to be working properly, please contact Technical Support using the
numbers listed under the “Contact Us” section on the last page of this manual. All openGear products are
covered by a generous 5-year warranty and will be repaired without charge for materials or labor within
this period. See the “Warranty and Repair Policy” section in this manual for details.

Environmental Information
The equipment that you purchased required the extraction and use of natural resources for its
production. It may contain hazardous substances that could impact health and the environment.
To avoid the potential release of those substances into the environment and to diminish the need for the
extraction of natural resources, Ward-Beck Systems Inc. encourages you to use the appropriate
take-back systems. These systems will reuse or recycle most of the materials from your end-of-life
equipment in an environmentally friendly and health conscious manner.
The crossed-out wheeled bin symbol invites you to use these systems.
If you need more information on the collection, reuse, and recycling systems, please contact your local or
regional waste administration.

Introduction
Overview
The D6204A is an AES/EBU digital to analog audio converter designed for broadcast use. It provides
digital to analog audio conversion along with AES/EBU signal distribution. The D6204A supports audio
sampling frequencies from 30kHz to 192 kHz. It converts the incoming AES/EBU digital audio signal to a
stereo analog audio signal using 24 bit conversion technology. Cable equalization and reclocking
techniques enable the D6204A to recover the incoming digital audio signal reliably. The D6204A is
housed in the openGear OG3-FR-C series frames.

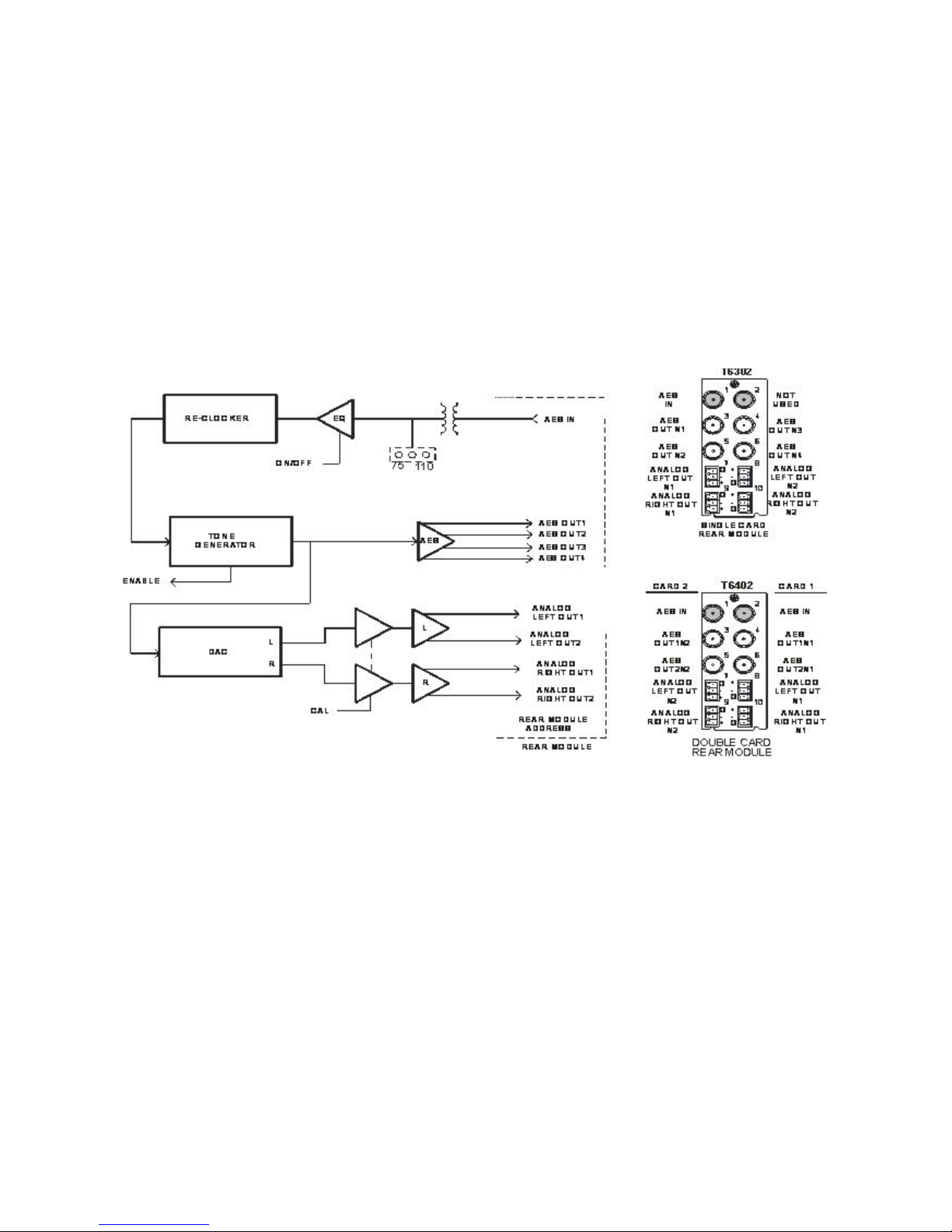

Functional Block Diagram
Figure 1. Simplified Block Diagram of the D6204A Functions
Features
The following features make the D6204A the best solution for digital to analog audio conversion.
• Converts AES/EBU digital to analog audio while providing AES/EBU signal distribution
• Cable equalization and data reclocking on the incoming AES/EBU signal
• 24 bit technology provides the highest quality signal conversion
• Supports audio sampling frequencies from 30kHz to 192 kHz
• Higher density with up to 20 cards in a OG3-FR-C frame
• 5 year warranty
• Fits openGear OG3-FR-C series frames
Documentation Terms
The following terms are used throughout this guide:
• “Frame” refers to the OG3-FR-C frame that houses the D6204A card.
• “Operator” and “User” refer to the person who uses the D6204A.
• “Board”, and “Card” refer to the D6204A card itself, including all components and switches.

Installation and Setup
Static Discharge
Whenever handling the D6204A and other related equipment, please observe all static discharge
precautions as described in the following note:
ESD
Susceptibility
Static discharge can cause serious damage to sensitive semiconductor devices. Avoid
handling circuit boards in high static environments such as carpeted areas, and when
wearing synthetic fiber clothing. Always exercise proper grounding precautions when
working on circuit boards and related equipment.
Unpacking
Unpack each D6204A you received from the shipping container, and check the contents against the
packing list to ensure that all items are included. If any items are missing or damaged, contact your sales
representative or Ward-Beck Systems Inc. directly.
Rear Module Options
There are two rear module options available from the D6204A AES/EBU digital to analog audio converter.
On the 20 slot OG3-FR-C frame the T6302A rear module occupies two slots and provides I/O for one
D6204A card. The T6302A provides one 75 Ohm AES/EBU input, four 75 Ohm AES/EBU outputs and,
two stereo analog audio outputs on 3 pin Phoenix terminal block connectors. For higher density
applications the T6402A rear module occupies two slots and provides I/O for two D6204A cards. The
T6402A provides two 75 Ohm AES/EBU inputs, two 75 Ohm AES/EBU outputs for each input, and one
stereo analog audio output for each input on 3 pin Phoenix terminal block connectors.
Figure 2. Rear Module Terminations

Board Installation
Use the following procedure to install the D6204A in an openGear OG3-FR-C Series frame.
1. Refer to the User Manual of the openGear OG3-FR-C series frame to ensure that the frame
is properly installed according to instructions.
2. When using the D6204A with the T6302A for maximum I/O please note that the even
numbered slots are to be used. Plug the D6204A modules into slots 2,4,6,8,10,12,14,16,18,
and 20 for a maximum of 10 cards. Slot 1 is the left most slot as you look into the frame from
the front.
3. When using the D6204A with the T6402A for maximum density you may insert the card into
any slot for up to 20 cards per frame.
4. After selecting the desired frame installation slot, hold the D6204A card by the edges and
carefully align the card edges with the slots in the frame. Then fully insert the card into the
frame until the rear connection plugs are properly seated on the midplane and rear module.
This completes the procedure for installing the D6204A in an openGear OG3-FR-C Series frame.

User Controls
User Control Diagram
Figure 3. Card-edge User Controls
EQ Switch — SW1
The EQ Switch (SW1) is used to insert the cable equalizer into the incoming AES/EBU signal. The
D6204A can recover digital audio signals conforming to AES/EBU specifications and transmitted over
75ohm, coaxial cable, up to 600 metres (2000 ft) long without equalization. For cable lengths in excess of
600 metres, we recommend that the input equalization be activated. Note that switching the EQ in and out
can cause audible artefacts.
● Pressing the EQ Switches SW1 or SW2 will activate the appropriate yellow EQ LED to
indicate this feature is activated.
● While the EQ Switches SW1 or SW2 are activated pressing it again will disable the EQ
and the yellow EQ LED will go off.

LEDs
The front-edge of the card features LEDs that display the status of the input signals. Descriptions are
provided in the following table:
LED
Color
Location
Display and Description
Lock
Green
Top of the card
When on there is a valid AES/EBU signal at the input.
No Lock
Red
Second from the top
When on a valid AES/EBU signal is not present
EQ
Yellow
Third from the top
When on this indicates that the cable EQ has been inserted by
pressing SW1 or that feature has been enabled through Dashboard.
Com Activity
Green
Fourth from the top
When on this indicates that the D6204A is communicating to Dashboard
through the CAN bus.
Error
Red
Fifth from the top
When on this indicates that there is an error in the communications to
Dashboard through the CAN bus.
Table 1. Status LED Descriptions
DIP Switch Settings
Figure 4. DIP Switch Controls
Table 1: Analog Output Level
cal1
cal0
1
ON
ON
Mute
2
ON
OFF
-12dBFS/+4dBu
3
OFF
ON
-18dBFS/+4dBu
4
OFF
OFF
-20dBFS/+4dBu

Tone Generator
‘ON’ – Generates -20dBFS line up tone. This feature requires an input signal
for reference. The tone is 1Khz when input sample rate is 48K, 2KHz at 96K
and 4KHz at 192 K.
‘OFF’ – Normal operation.
Default (power up default parameter settings)
‘ON’ - Get card parameters from non volatile memory, ignore dip switch
settings. (Configurable with Dashboard Control system)
‘OFF’ - Get card parameters from the Dip switch.
Dashboard Enable
‘ON’ - Only card status is available on Dashboard, users are prevented from
changing parameters.
‘OFF’ - Normal operation, users have full access to the cards parameters.
Technical Specifications
DIGITAL INPUT
Resolution
24 Bit
Input Level
0.2-7 V p-p
Input Impedance (transformer balanced)
75 Ohm, 110 Ohm, HiZ
Sampling Frequency Range
30 kHz to 192 kHz
DIGITAL OUTPUT
Resolution
24 Bit
Output Level
1 V p-p nominal
Output Impedance
75 Ohm unbalanced
Sampling Frequency Range
30 kHz to 192 kHz
Jitter
Less than 5 ns
ANALOG (fs=48 kHz, 0 dBFS = +24 dBu)
Maximum Output Level
+24 dBu
Frequency Response
+/-0.2 dB, 20 Hz to 20 kHz
Nosie (un-weighted)
-84 dBu ,20 Hz to 20 kHz
THD+N
< 0.01%
Stereo Separation
100 dB, 20 Hz to 20 kHz
Output Impedance
60Ω Balanced
GENERAL
Power Requirements
+12 V, 4Watts, MAX
Dimensions
3.025" high x 12.800" deep
Weight
-0115 kg
NOTE: Ward-Beck Systems Inc. reserves the right to change performance specifications without prior
notice.

Warranty and Repair Policy
The openGear D6204A is warranted to be free of any defect with respect to performance, quality,
reliability, and workmanship for a period of FIVE (5) years from the date of shipment from our factory. In
the event that your openGear D6204A proves to be defective in any way during this warranty period,
Ward-Beck Systems Inc. reserves the right to repair or replace this piece of equipment with a unit of equal
or superior performance characteristics.
Should you find that this openGear D6204A has failed after your warranty period has expired, we will
repair your defective product should suitable replacement components be available. You, the owner, will
bear any labor and/or part costs incurred in the repair or refurbishment of said equipment beyond the
FIVE (5) year warranty period.
In no event shall Ward-Beck Systems be liable for direct, indirect, special, incidental, or consequential
damages (including loss of profits) incurred by the use of this product. Implied warranties are expressly
limited to the duration of this warranty.
This openGear D6204A User Manual provides all pertinent information for the safe installation and
operation of your openGear Product. Ward-Beck policy dictates that all repairs to the openGear D6204A
are to be conducted only by an authorized Ward-Beck Systems factory representative. Therefore, any
unauthorized attempt to repair this product, by anyone other than an authorized Ward-Beck Systems
factory representative, will automatically void the warranty. Please contact Ward-Beck Technical Support
for more information.
In Case of Problems
Should any problem arise with your openGear D6204A, please contact the Ward-Beck Technical Support
Department. (Contact information is supplied at the end of this publication.)
A Return Material Authorization number (RMA) will be issued to you, as well as specific shipping
instructions, should you wish our factory to repair your openGear D6204A. If required, a temporary
replacement module will be made available at a nominal charge. Any shipping costs incurred will be the
responsibility of you, the customer. All products shipped to you from Ward-Beck Systems Inc. will be
shipped collect.
The Ward-Beck Technical Support Department will continue to provide advice on any product
manufactured by Ward-Beck Systems, beyond the warranty period without charge, for the life of the
equipment.
WARD-BECK SYSTEMS INC.
945 Middlefield Road, Unit 9, Toronto, Ontario M1V 5E1
V 416 335 5999 F 416 335 5202 Toll-Free 800 771 2556
Website: www.ward-beck.com
E-Mail: sales@ward-beck.com

Ordering Information
Standard Equipment
● D6204A AES/EBU Digital to Analog Audio Converter 75 Ohm
Optional Equipment
● D6204AUM AES/EBU Digital to Analog Audio Converter 75 Ohm User Manual (additional User
Manual)
● T6302A Single Card Rear Module (for installation into OG3-FR-C frame for maximum I/O)
● T6402A Dual Card Rear Module (for installation into OG3-FR-C frame for maximum density)
● OG3-FR-C Digital Products Frame and Power Supply with Cooling Fans (2RU, holds up to 20
cards)
Your D6204A AES/EBU Digital to Analog Audio Converter is a part of the openGear family of products.
Ward-Beck offers a full line of openGear terminal equipment including distribution, conversion, monitoring,
muxing, demuxing and processing of AES/EBU and HD/SD-SDI as well as analog audio and video
products.
