Wearwell FOUNDATION User manual

You’ve made a great choice. FOUNDATION®platforms are designed to be easily assembled on-site.
Just follow these step-by-step instructions.
Before you start, review all of the instructions. Choose where you want to build your platform.
Ensure the area is clean and free of debris then determine how you want to orient your platform. If
there is a wall or xed object the platform will be adjacent to, it is recommended that you start there
to prevent problems later in the installation process. If your desired installation width has an EVEN
number of tiles you will need to start with a 36” wide kit. If your desired installation width has an
ODD number of tiles you will use 18” wide kits throughout.
AREA PREPARATION
Prepare the Floor
REQUIRED TOOLS & EQUIPMENT
FOUNDATION is designed for interior use.
We recommend you sweep the surface of dust
and debris before beginning.
Rubber mallet
Safety gloves
Power drill and 3/16” (5 mm) concrete bit (If
securing to floor)
REQUIRED
For safety and stability, parts are designed to t tight.
We suggest a mallet to tap parts into place and gloves
are always good practice when handling metal parts.
FOUNDATION PLATFORM 5”-12” (13 cm - 30 cm)
CLEANING, TOOLS & EQUIPMENT
Leg/Beam Assembly x 2
Leg Cross Brace x 2
Tiles x 4
FOUNDATION®PLATFORM
ASSEMBLY INSTRUCTIONS
Thank you for purchasing FOUNDATION®Modular Platform(s)
WHAT YOU’LL NEED
BEFORE YOU START!
For shipping purposes, the leg cross braces are assembled to be flush
with the leg/beam assembly. Separate the leg cross braces from the
leg/beam assembly and reattach them as they are displayed below.
Copyright © 2021 by Wearwell®LLC, 199 Threet Industrial Rd, Smyrna, TN 37167 • 800-264-3030 • www.wearwell.com
IFPL6
1
SEE THE
INSTALLATION VIDEO
TO LEARN MORE VISIT US AT WEARWELL.COM/FOUNDATION
BEAM FEATURES

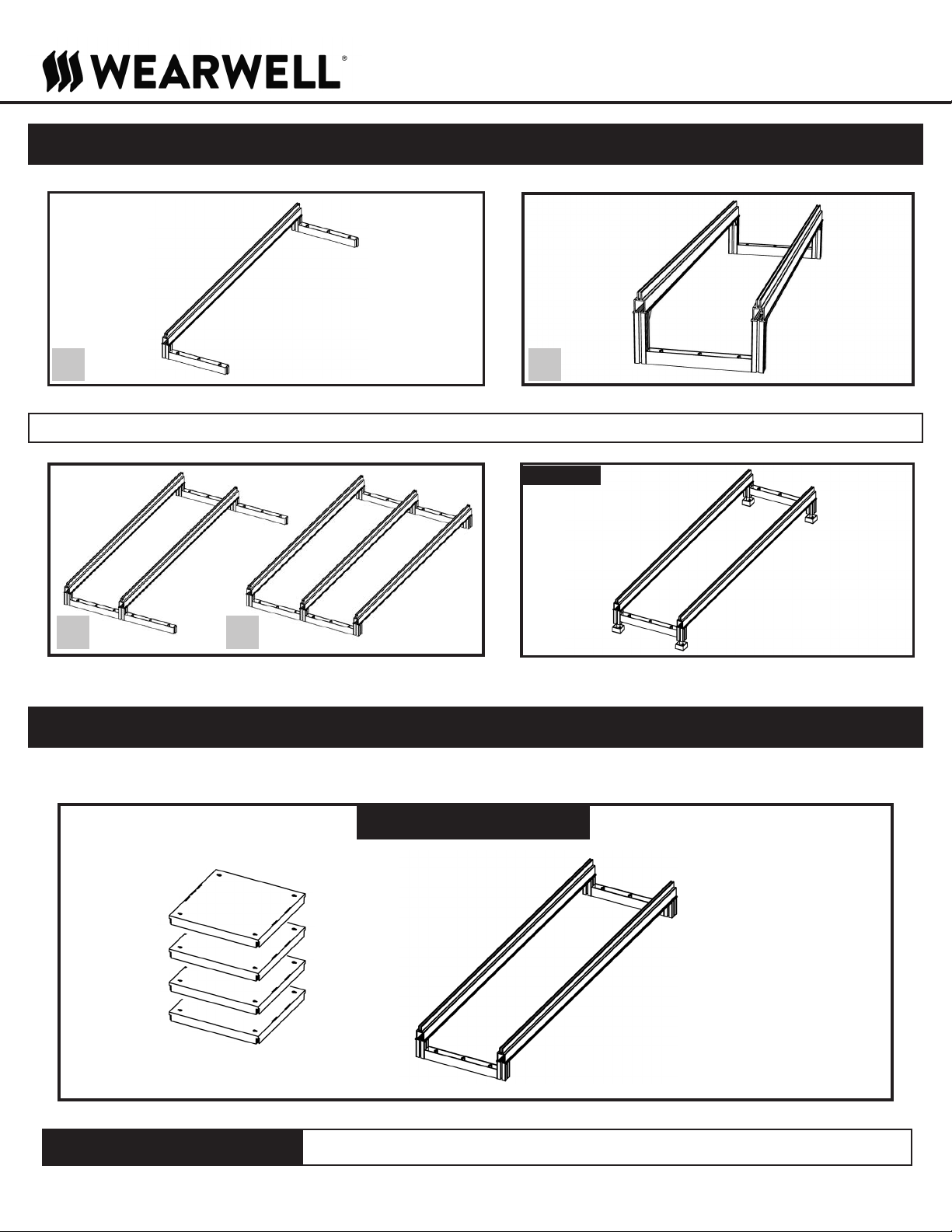

Install the second Leg/Beam Assembly.Slide the Leg Cross Braces into the slots in the legs as shown.
Slide the Leg Cross Brace up each leg. Lift each leg to slide on each rubber foot.Lift each leg and slide Leg Cross Brace into the slots on leg as shown. Then slide the
last Leg/Beam Assembly onto the Leg Cross Braces.
EVEN NUMBER OF TILES WIDE - Assemble 36” WIDE KIT
INSTALL RUBBER FEET
Copyright © 2021 by Wearwell®LLC, 199 Threet Industrial Rd, Smyrna, TN 37167 • 800-264-3030 • www.wearwell.com
IFPL6
2
STEP 2
STEP 1
YOU WILL NEED
Tiles x 4
EXPANDING THE PLATFORM
LAY OUT THE PLATFORM FRAME
FOUNDATION®PLATFORM ASSEMBLY INSTRUCTIONS
EXPANDING THE PLATFORM WIDTH
TO LEARN MORE VISIT US AT WEARWELL.COM/FOUNDATION
A B
C D
Assembled Frame of Platform Kit
OPTIONAL

EXPANDING THE PLATFORM WIDTH
Pick the hole/holes in the Leg Cross Brace that you want to use to secure the platform.
With the 3/16” concrete drill bit in the drill, slide the bit through the hole until contact is made
with the floor. Making sure that the bit is kept perpendicular to the floor drill to a depth of 2”.
Vacuum or sweep the debris before screwing the anchor into the hole. Do not over tighten.
Copyright © 2021 by Wearwell®LLC, 199 Threet Industrial Rd, Smyrna, TN 37167 • 800-264-3030 • www.wearwell.com
IFPL6
3
FOUNDATION®PLATFORM ASSEMBLY INSTRUCTIONS
TO LEARN MORE VISIT US AT WEARWELL.COM/FOUNDATION
OPTIONAL
EXTENDING THE PLATFORM LENGTH
INSERT TILES
AT AN ANGLE
A
A
C
B
B
D
Lay out the platform frames so the sides are about 17” apart. Install the tiles between the frames at a
45°angle with the clip of the tile that is going in the beam pressing against the lock screw.
Install the rest of the tiles in the same manner. Tap the tiles tightly against one another using a
rubber mallet. Repeat between any platform frames.
Move the frames where they need to be and position end to end. Slide
on the U-connector clips.
Complete installation of the tiles on the Platform Kits.
YOU WILL NEED
Assembled
Row of
Platform Kit
U-connector x 2

TO LEARN MORE VISIT US AT WEARWELL.COM/FOUNDATION
TOE PLATE
Using a rubber mallet, insert the toe plate between the tile and the slot next
to the tile.
Ensure the toe plate side beam is secure along the length of the
FOUNDATION platform.
Pick each leg up and slide the bolt into the slot.
Starting at one end hold the toe plate, bolt and slide the bolt into the hole.
Hand tighten the nut onto the bolt.
Repeat with the remaining bolts.
Slide toe plate up to the top and tighten bolts.
Copyright © 2021 by Wearwell®LLC, 199 Threet Industrial Rd, Smyrna, TN 37167 • 800-264-3030 • www.wearwell.com
IFPL6
4
FOUNDATION®PLATFORM ASSEMBLY INSTRUCTIONS
STEP 3 TOE PLATES
SIDE BEAM INSTALLATION
END PLATE INSTALLATION

NORTH AMERICA
Wearwell, LLC. (Headquarters)
Phone: [phone] or 800.264.3030
[email protected]om
www.wearwell.com
MEXICO
www.wearwell.com/mx
CANADA
www.wearwell.com/ca
UK & IRELAND
Wearwell Europe LTD
Phone: [phone]
[e-mail]
www.wearwell.com/uk
FRANCE
www.wearwell.com/fr
EUROPE
Wearwell Europe LTD
[e-mail]
www.wearwell.com/uk
GERMANY
www.wearwell.com/de
PRIVILEGED AND CONFIDENTIAL: This communication, including attachments may contain proprietary, confidential and/or privileged information. If you are not the intended recipient,
any use, copying, disclosure, dissemination or distribution is strictly prohibited. If you are not the intended recipient, please notify the author immediately, delete this communication
and destroy all copies.
FOUNDATION by Wearwell®
WARRANTY DETAILS The materials and workmanship used in the construction of the Wearwell®
products above are backed by a 1 year warranty under normal conditions and use for which it is
intended, but only if it has been properly installed and used. If the purchaser discovers a defect in the
materials or workmanship of one or more of the components, Wearwell, Inc. will, at its own discretion,
either: i.) repair the nonconforming product, ii.) replace the product with the same or substantially
similar product, or iii.) reimburse the buyer for the purchase price of the nonconforming product based
on the expected useful life of the product Wearwell reserves the right to inspect the non-conforming
mat(s) before repairing, replacing or reimbursing the buyer. Therefore, at the preference of Wearwell,
Inc., the parts must be returned or available for on-site inspection. Modifying or installing the product
may void the warranty. The decision to void this warranty will be made at the sole discretion of
Wearwell. To the maximum extent permitted by law, Wearwell’s liability shall not exceed the purchase
price of the product; Wearwell shall not be liable for any incidental, consequential, special, and indirect
or punitive damages (including without limitation, damages from lost business, profits or goodwill).
EXCLUSIONS Does not apply to custom made parts or damage as the result of freight, inappropriate use,
tampering, improper installation, loss or normal wear and tear
CAUTION: MISUSE CAN LEAD TO ELECTRICAL SHOCK AND INJURY
• Use only on a stable level surface. Inclined surfaces, slippery surfaces and broken/uneven ground can cause
injury or damage to the parts.
• Follow all instructions when setting up Foundation.
• Avoid concentrated loads. Load-supporting capacity varies by type of loading conditions. Differences in
wheel diameter and width will affect capacity. Limit Concentrated loads to less than 50psi on the F02 and 75psi on
the F01 and F03.
Environmental conditions also affect capacity. The recommended temperature range is 30-160F.
• Keep the Foundation surface clean to reduce the likelihood of slips and falls.
• It is the customer’s responsibility to determine if securing or rubber feet are necessary to keep platform from
sliding
• Plastics can be attacked by some chemicals. Always test for chemical compatibility before using and follow
maintenance instructions.
MAINTENANCE
• Store in a clean dry area.
• Inspect parts and replace if damaged. Remove any foreign materials and clean out any liquids. Keep clean
with a detergent and water solution.
