Webasto Azimut 43 Fly Reference manual

ON
Push 1x, display will show ON. During first start-up display will also flash the current
frequency (50H=50Hz)
after INIT; finally the room temperature will appear. Air-blower (CPAC) or
evaporator water-pump (Chiller) will start.
Depending on controller setting unit will start in cooling or heating mode. When unit

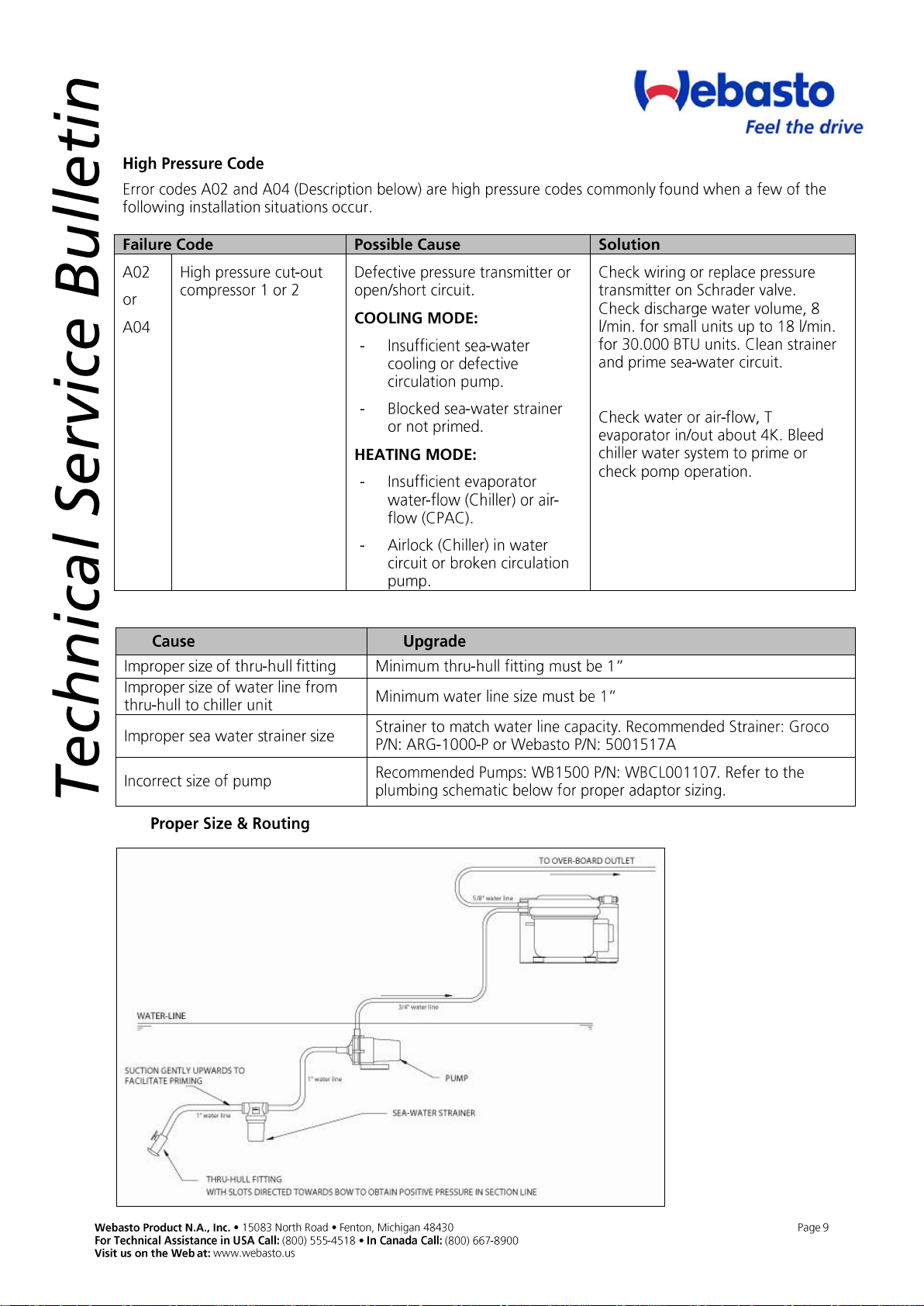

won't start, error codes
will appear. See Troubleshooting.
OFF
Push 1x, unit and display will automatically shut-off when running.
MEMO
Push 1x, to memorize new settings during programming.
RETURN
Push 1x, display will return to room temperature during FUNCTION mode
programming.
FUNCTION
Push 1x, shows b... for blower setting.
Push 2x, shows E** or H** for evaporator temp.
Push 3x, shows CODE, entering code will give access to programming mode level
2. (Default=64)
Change b... or enter CODE by pushing up or down key, after 5 seconds new
settings will be auto memorized.
UP
Push 1x will show actual set point, further pushing will raise the set point and
memorize automatically.
BLOWER
SPEED
Shows actual blower setting, bA automatic or b1-b5 for manual, adjustable by up or
down key.
DOWN
Push 1x will show actual set point, further pushing will lower the set point and auto
memorized.

When security CODE is activated, push 3x FUNCTION when unit is running till CODE appears in
the display.
Set security CODE by pushing UP or DOWN and confirm with FUNCTION. (Default = 64)
When security CODE is not activated, entering the security CODE will not be demanded.
Scroll through settings by pushing FUNCTION, values can be set by UP or DOWN key confirmed
with FUNCTION.
To leave this menu push ON/OFF showing MEMO shortly to memorize new settings.
Function
Description
Setting
Default
Recommended
Chiller
CPAC
AirH.
b..
Fan speed
A=auto b1-5=manual setting
b0=manual off
bA
●
●
●
H10.5
Chilled
water
temperature
Actual temperature
Actual temperature
●
●
E10.5
Evaporator
temperature
Actual temperature
Actual temperature
●
F..
Cycle mode
01 = Cooling only.
02 = Heating only by reverse
cycle.
03 = Automatic cooling or
heating by reverse cycle.
04 = Automatic cooling or
heating by external heater.
03 CPAC/CHILLER
01 Air handler
●
●
Never set F2 or F3 without
reversing valve mounted!
05 = Heating only with external
heater.
●
01 = Solenoid valve only
●
02 = Solenoid valve with AC
reheat in heat cycle
03 = Solenoid valve only in
cool cycle and AC reheat only
in heat cycle.
U230
Line current
Actual line current.
Actual line current.
●
●
1C..
Compressor
1 manual
on/off
1C01 = on / 1C00 = off
01
●
●
2C..
Compressor
2 manual
on/off
2C01 = on / 2C00 = off
01 if present, when
not 00
●
3C..
Compressor
3 manual
on/off
3C01 = on / 3C00 = off
01 if present, when
not 00
●
4C..
Compressor
4 manual
on/off
4C01 = on / 4C00 = off
01 if present, when
not 00
●

Function
Description
Setting
Default
Recommended
Chiller
CPAC
AirH.
P..
Compresso
r starting
sequence
P123 = starting sequence
1,2,3,4
P341 = starting sequence
3,4,1,2 >>> etc.
P A = Automatic random
starting sequence.
Only set PA, P3** or P4** for 3
or 4 compressor units.
P123
●
L..
Start delay
each
compressor
1 - 9 seconds delay between
each compressor.
09
●
1L..
Thermostati
c advance
comp. 1
1L1.0 = 4˚C + 1˚C = 5˚C
switching off comp. 1
0.0
●
2L..
Thermostati
c advance
comp. 2
2L2.4 = 4˚C + 2.4˚C = 6.4˚C
switching off comp. 2
0.0
●
3L..
Thermostati
c advance
comp. 3
3L3.1 = 4˚C + 3.1˚C = 7.1˚C
switching off comp. 3
0.0
●
4L..
Thermostati
c advance
comp. 4
4L0.0 = 4˚C + 0˚C = 4˚C
switching off comp. 4
0.0
●
d…
Automatic
dehumidifyi
ng when
unit is
switched off
(1).
0 = not active
1 = 1x in 24h
2 = 2x in 24h
3 = 3x in 24h
00
●
●
●
(1) To synchronize clock air-handler and chiller controller, cut-off the
main supply after setting a dehumidifying cycle and controllers are
shut-off.
See also settings c and d in 15˚C menu. Don’t set d1-d3 when
onboard or it will wake you up at the oddest hours.
t…
Display
time
secondary
functions
before
room
temperatur
e is shown
again.
01 -05 (1
period is 20
seconds)
01
●
●
●
29˚C Menu
Code
Description
Possible
Default
Recommended
Chiller
CPAC
AirH.
0
T cut-out in cool cycle.
(de-icing starting) See
also 1L00.
Min. 00 / Max.14 ˚C
04 Chiller
00 CPAC
●
●
1
T cut-in in cool cycle.
Min. 00 / Max.14 ˚C
07 Chiller
05 CPAC
●
●

Code
Description
Possible
Default
Recommended
Chiller
CPAC
AirH.
2
T cut-out in heat cycle.
Min. 35/ Max.55 ˚C
With external heater
(e.g. Thermo90S/ST)
set 55˚C.
On Reversed cycle set
42˚C max. or less.
Be aware of right
settings for each
component.
40 Chiller
45 CPAC
(00 Air
handler)
●
●
3
T cut-in in heat cycle.
Min. 35/ Max.55 ˚C
37 Chiller
38 CPAC
●
●
4
Calibration evaporator
or chilled water
temperature sensor.
Min. -9.9 / Max. 9.9 ˚C
0.0
●
●
●
5
Time delay in minutes
before display will go in
sleep mode. In sleep
mode LED will flash at
30 sec. interval to
signal active status.
Min. 5 / Max.60
minutes
15
●
●
●
6
Time delay in seconds
of first start-up after AC
supplied to stage
multiple units with
independent
controllers.
Min.01 / Max.20
seconds
01 Chiller /
CPAC
05 Air handler
●
●
●
7
Calibration room
temperature sensor.
Min. -9.9 / Max. 9.9 ˚C
0.0
●
●
●
8
Calibration AC Voltage
50Hz.
Min.-20/ Max.20 Hz
00
●
●
●
9
Setting relay
R2.(Chiller)
00 = Staging relay.
01 = Air handler 3-way
valve controlling.
02 = Alarm indication.
03 = Cycle indication.
00 Chiller / Air
handler
●
De-icing.(CPAC)
00-99 minutes anti
short cycle delay on
de-icing.
02 CPAC
●
A
Calibration AC Voltage
60Hz.
Min.-30/ Max.20 Hz
00 CPAC
-10 Air handler
●
●
●

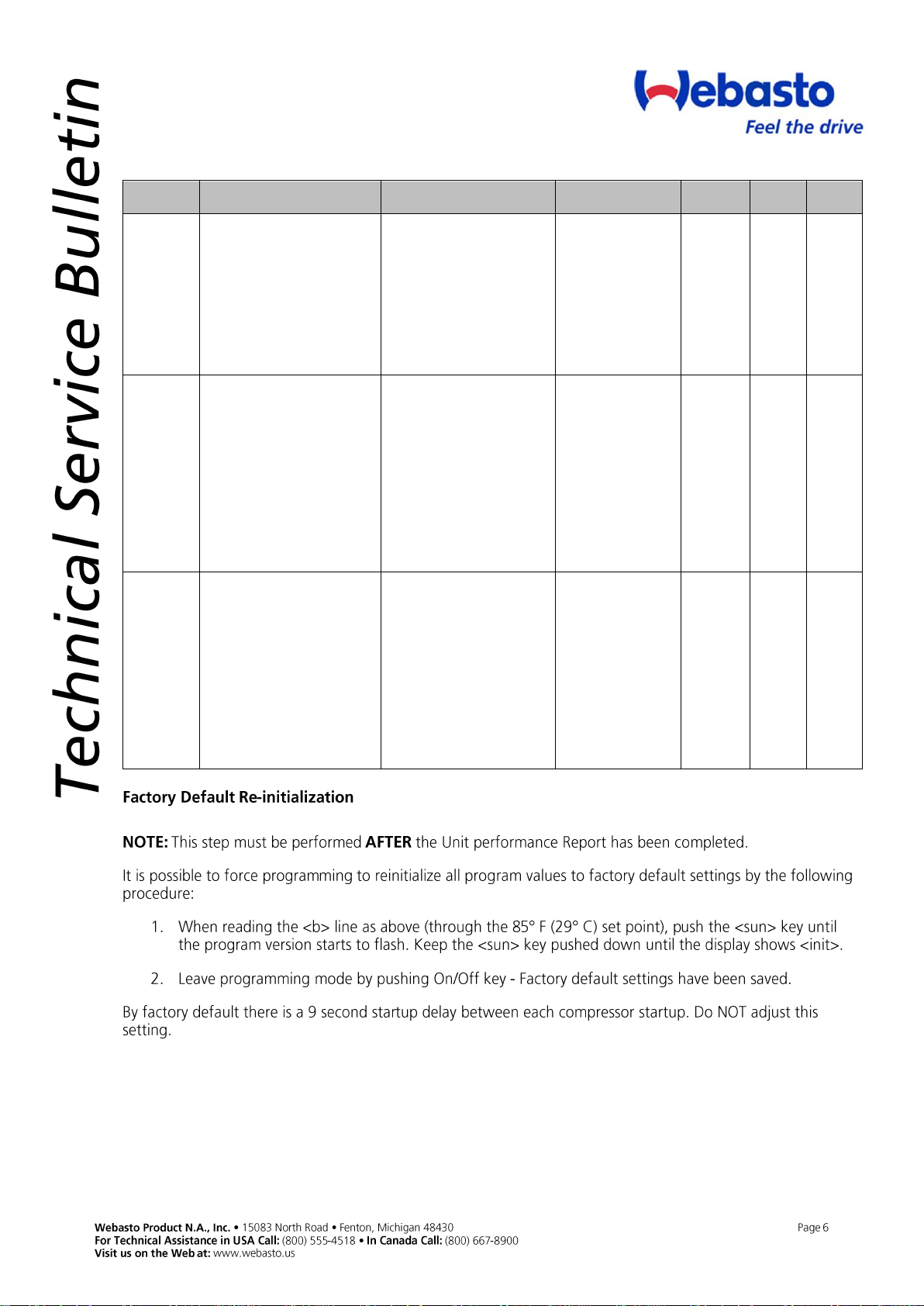

b
Actual software version.
When version b1.00 or
higher is shown all
settings can be reset
to default by pressing
UP till INIT is shown.
4.** Chiller
5.** CPAC
6.** Air handler
●
●
●
c
Pump 1 outlet setting
00 = continuous 01 =
staged
00
●
d
Lower VDC output
Pump 1
Min.12 / Max.18 Volts
12
●
E
Higher VDC output
Pump 1
Min.12 / Max.18 Volts
18
●
F
N/A
00 / 01
01
●

15˚C Menu
Code
Description
Possible
Default
Recommended
Chiller
CPAC
AirH.
0
Low AC voltage cut-out
Min.160 / Max.210
Volt
Starting surge voltage
drops are not taken
into account.
After 90 seconds a
restart will be
attempted.
Settings below 195 V
will void
WARRANTY!
195
Chiller/CPAC
●
●
1
Infrared remote-control.
00 = Not active 01 =
Active.
00
●
●
●
2
Setting Relay R1.
00 = Cycle indication
T1=Heat / R1=Cool
cycle.
01 = Alarm indication
T1=system block /
R1= OK.
00 Chiller
●
Blower type.
00 = centrifugal
blowers only 01 = All
types of blowers.
Avoid blower
burn-out, do not
change!
01 CPAC / Air
handler
●
●
3
Blower control.
00 = Blower speed
regulated.
01 = Blower speed
uninterrupted.
00 Chiller / Air
handler
01 CPAC
●
●
●
4
Internal / external room
temp sensor.
00 = External room
temperature sensor.
01 = Internal room
temperature sensor.
00 Chiller
01 CPAC / Air
handler
●
●
●
5
Display in Fahrenheit or
Celsius.
00 = Celsius.
01 = Fahrenheit.
Changing F/ ˚C will
change all settings
into F or ˚C.
00
●
●
●
6
Setting fan speed level
5 (high).
Min. 18 / Max. 70
Ensure blower start-
up.
70
●
●
●
7
Setting fan speed level
4.
Min. 18 / Max. 70
Ensure blower start-
up.
40
●
●
●
8
Setting fan speed level
3.
Min. 18 / Max. 70
Ensure blower start-
up.
35
●
●
●
9
Setting fan speed level
2.
Min. 18 / Max. 70
Ensure blower start-
up.
29
●
●
●
A
Setting fan speed level
1 (low).
Min. 18 / Max. 70
Ensure blower start-
up.
23
●
●
●

Code
Description
Possible
Default
Recommended
Chiller
CPAC
AirH.
b
Set security CODE.
00 = No access code
required. Possible to
set at 01 - 99.
If security code is set
active, only the
temperature set point
and blower speed
settings can be
changed.
64 Chiller /
CPAC
00 Air handler
●
●
●
c
Dehumidifying heating
run time.
Min. 1 / Max. 99
minutes
Recommended:
Chiller 40 in winter
and 15 in summer
times.
CPAC 30 in winter and
10 in summer times.
Set 45 in tropical
conditions with hot
sea-water.
01 CPAC /
Air handler
●
●
●
d
Dehumidifying cooling
run time.
Min. 01 / Max. 99
minutes
Recommended:
Chiller 20 in winter
and 45 in summer
times.
CPAC 15 in winter and
30 in summer times.
Set 1 in tropical
conditions with hot
sea-water.
01 CPAC / Air
handler
●
●
●

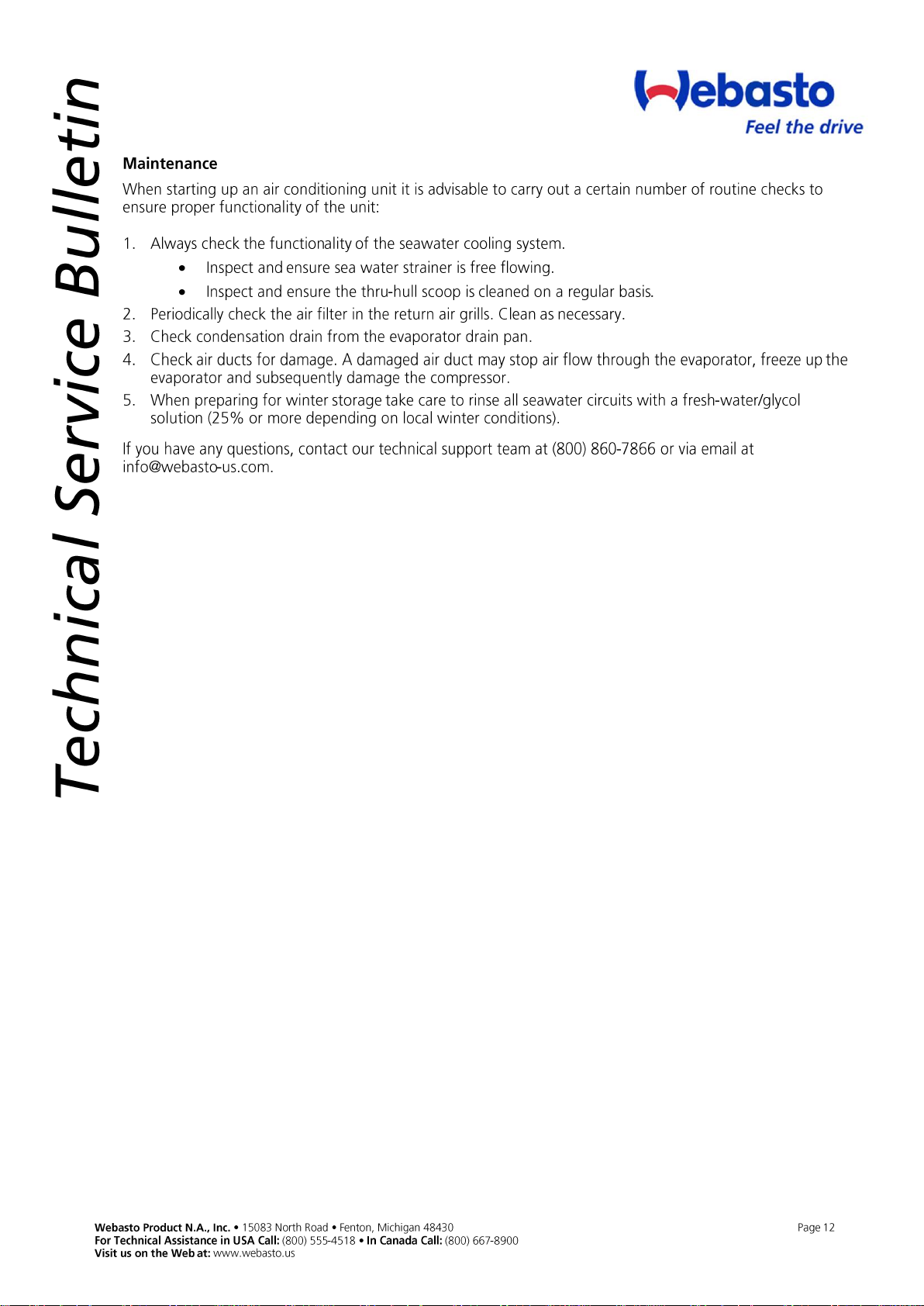

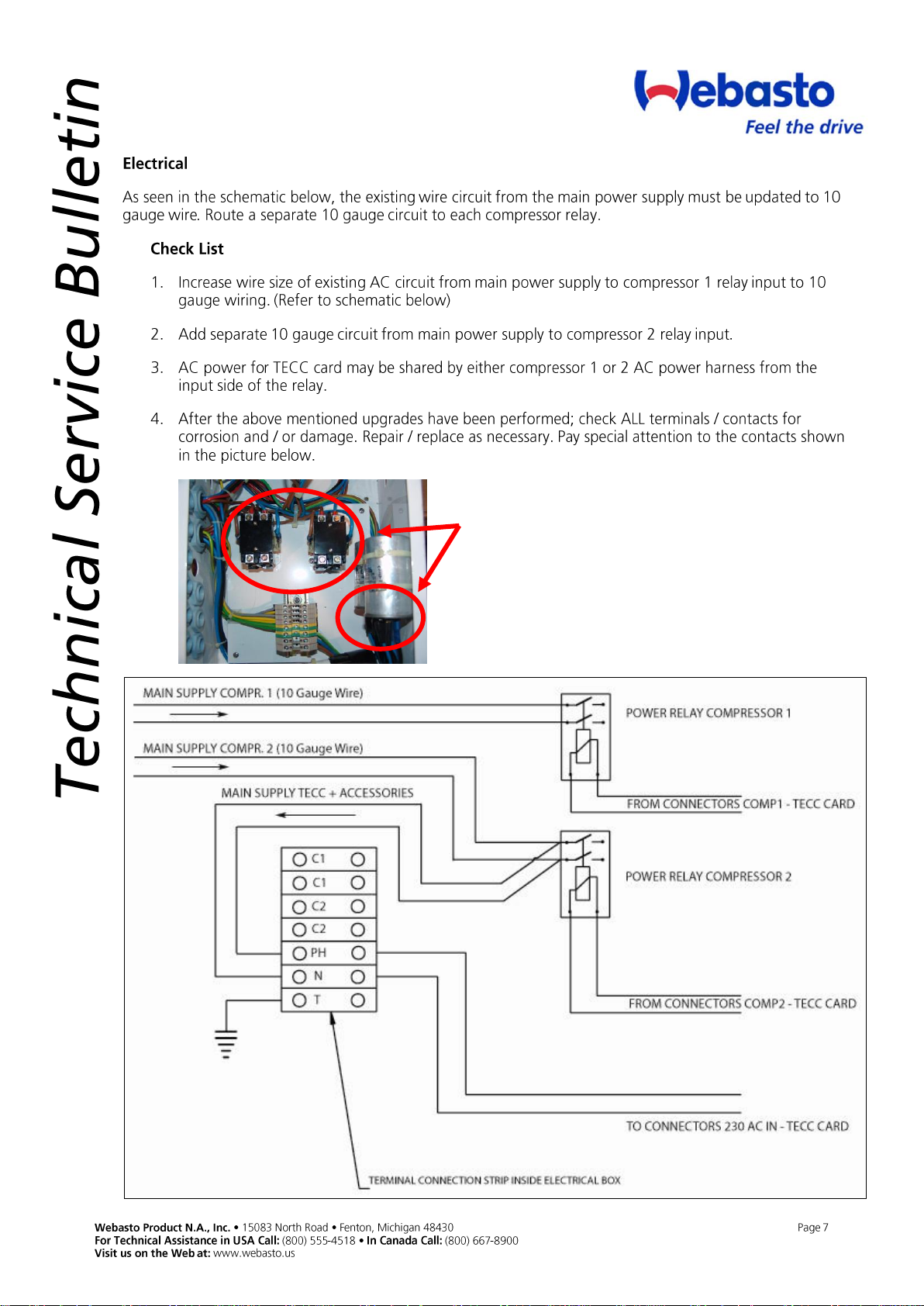

All contacts from both compressor relays and capacitors

Bleed Valve

Carefully apply upward
pressure to compressor
Cut old mount

”½” ½”
New Compressor Spacer
(PPC301010A)
Anti-Vibration Plate
