Weber SUMMIT 400 User manual

SUMMITTM 400
LP Gas Barbecues
Step-By-Step Guide
WARNING: Do not try to light this appliance
without reading "Lighting" instructions
section of this manual.
THIS GAS APPLIANCE IS DESIGNED FOR
OUTDOOR USE ONLY.
NOTICE TO INSTALLER:These instructions
must be left with the owner and the owner
should keep them for future use. FORYOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, immediately call your
gas supplier or your fire department.
WARNING: Follow all leak check procedures
carefully in this manual prior to barbecue
operation. Do this even if barbecue was
dealer assembled.
FORYOUR SAFETY
1. Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
2. An LP tank not connected for use shall
not be stored in the vicinity of this or
any other appliance.
W
E
B
E
R
W
E
B
E
R
97462 10/97
R
A P P R O V E D
CANADIAN GAS ASSOCIATION
®
National Association PROPANE GAS

2
TOOLS NEEDED
SUPPLIES NEEDED
7/16 inch or open end or adjustable wrench
Your LP tank is shipped empty for safety. After setting the
LP fuel scale you will need to fill it. (See Step "Fill LP tank.")
You will need a soap and water solution to check for gas
leaks. (See Step "Check for gas leaks.")
Note - The hardware size of nuts, bolts and screws is
given. For example "1/4-20 x 2 inch bolt" means a bolt
1/4 inch in diameter with 20 threads to the inch, 2 inches
long. On a small screw for example, "6-32 x 1/2 inch
screw" means a number 6 screw, with 32 threads to the
inch, 1/2 inch long.
While we give much attention to our products,
unfortunately an occasional error may occur. If a part
is missing, do not go back to the store. Call the Weber
Customer Service Center toll free 1-888-33-SUMMIT
(1-888-337-8664) to receive immediate assistance.
Have your owner’s manual and serial number of the
barbecue available for reference.
REMOVE PACKAGED
CONTENTS
Cooking grates (2)
LP tank
Bottom wire rack
Drip pan (2)
Catch pan
Catch pan holder
Bottom tray
Cozy Heat Zone lid
Flavorizer bars (7)
Four tool holders

3
INSTALL FLAVORIZER
BARS
You will need: seven flavorizer bars.
Set the Flavorizer bars front to back over the burners in
the slots of the Flavorizer Bar/cooking grill support.
Figure 1(a).
Figure 1
Flavorizer Bar/cooking grill
support
Flavorizer Bar
Slot
You will need: two splash guards
The splash guards are already in place.This step is
only for reinstallation.
Position splash guard, flanges to the rear, at the back of
the cooking box assembly. Figure 2 (a). Insert both wire
ends into the mounting holes in the cooking box.
Figure 2 (b).
Note:You will have to bend the splash guards slightly to
fit into the mounting holes.
Position the second splash guard, flanges facing you, at
the front of the cooking box assembly. Insert both wire
ends into the mounting holes in the cooking box. Figure 2.
Figure 2
(a)
(b)

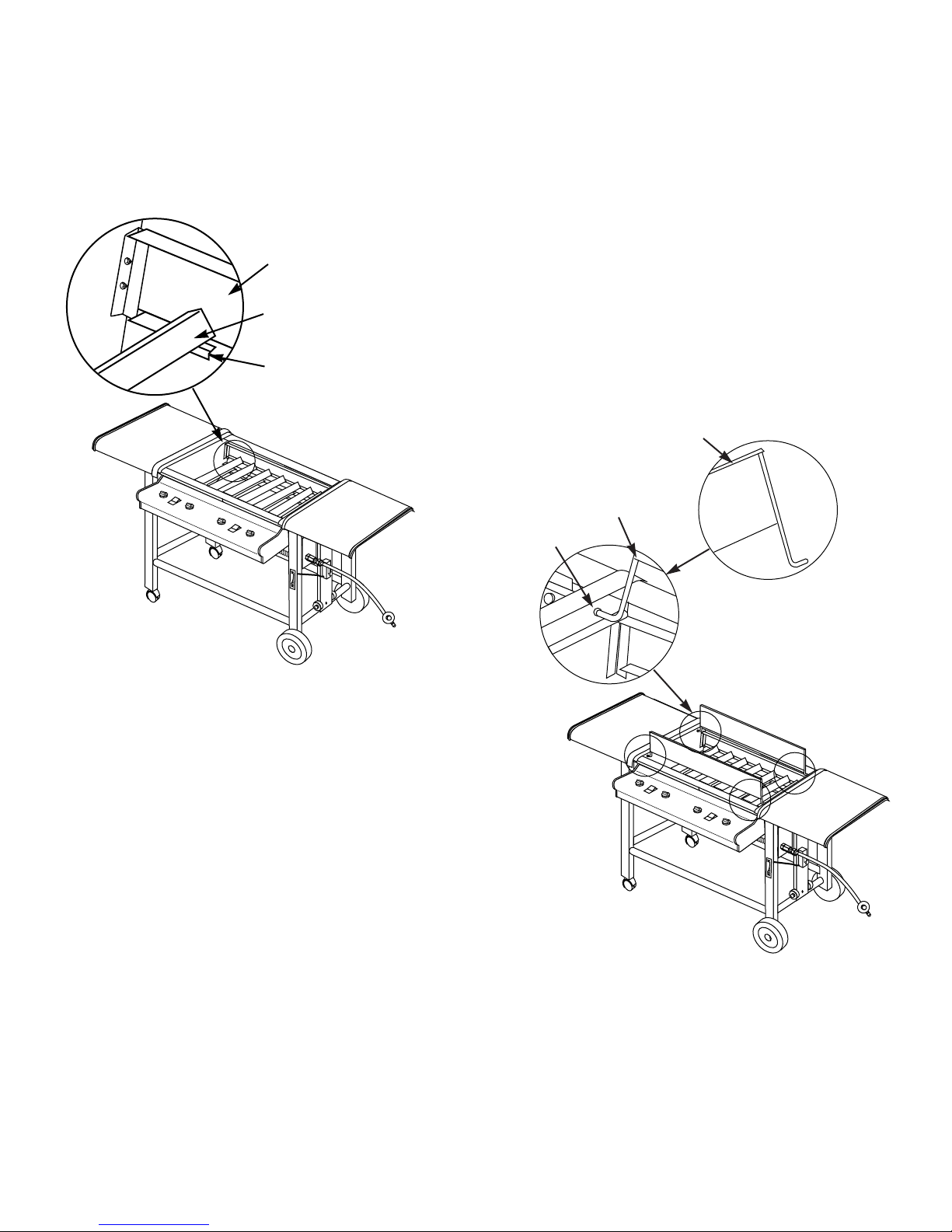

REINSTALL SPLASH
GUARDS
Flanges at the
back of the
splash guards
Mounting holes
Splash guards

4
Figure 3
Figure 4

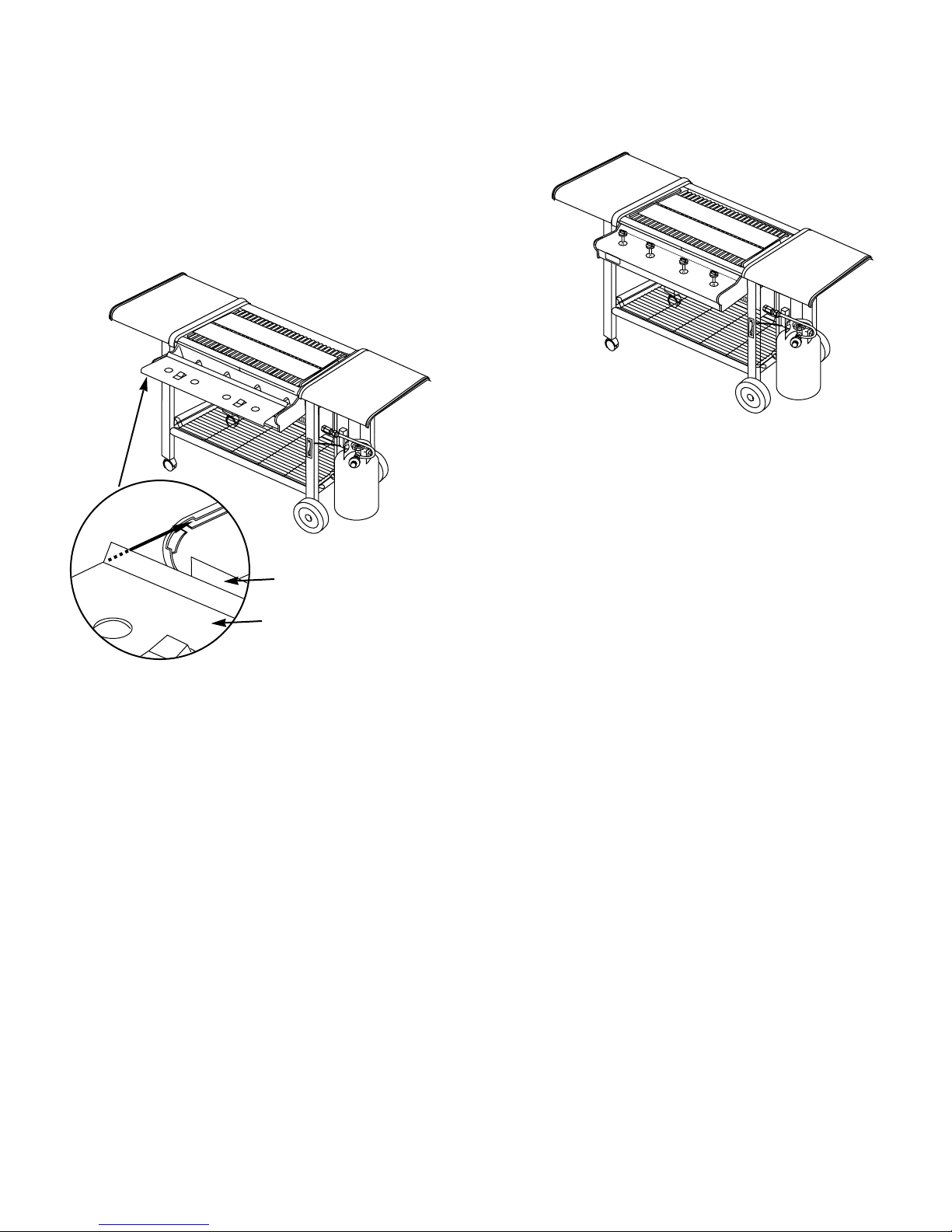

Splash guards open for use. Figure 3.
Splash guards closed for storage. Figure 4.
ADD COOKING GRATES
Figure 5
You will need: two cooking grates.
The cross-rail of the cooking grate goes down. Set the
cooking grates in place next to each other. Figure 5.
REINSTALL SPLASH
GUARDS (CONTINUED)

5
INSTALL BOTTOM TRAY
You will need: Bottom tray, catch pan holder, catch pan,
and one drip pan.
Figure 6
Figure 7
Figure 8
Figure 9
Note: It may be easier to install the catch pan holder by
removing the catch pan from the holder.
Hook the ends of the catch pan holder into the hole in the
bottom tray. Figure 7.
Slide the bottom tray into the mounting slots under the
bottom of the cooking box with the finger grip of the catch
pan toward you. Figure 8.
CAUTION: Do not line the bottom tray with aluminum
foil. It can cause grease fires by trapping the grease
and not allowing grease to flow into the catch pan.
Put the foil drip pan into the catch pan.
Mounting
slots Mounting
slots
View from front of the Cooking Box
Tabs of
bottom tray Tabs of
bottom tray

6
ADD ACCESSORY RACK
You will need: accessory rack.
Set the bottom rack between the two bottom connectors.
Figure 10.
Figure 10
INSTALL TOOL HOLDERS
Figure 11
You will need: four tool holders.
Place the tool holder under the control panel and over the
front panel. Figure 11 (a). Set the tool holder on top of the
front panel and slide it to the left.
(a)

7
SET LP FUEL SCALE
You will need: LP tank (empty).
Note - For accuracy, the fuel scale must be set with an
empty tank.
We utilize various LP tank manufacturers. Some of the
tanks we receive have differing top collar assemblies.
(The top collar is the metal protective ring around the
valve.) One series of tanks mounts with the valve facing
front. The other tanks mount with the valve facing away
from the fuel scale. These types of tanks are illustrated in
Figure 12.
Loosen the tank lock wing nut. Tighten so the lock is held
up out of the way. Figure 12 (a). Lift and hook the tank
onto the fuel scale. With an empty LP tank, adjust the fuel
scale setting to E with scale setting (top) wing nut.
Figure 12 (b).
CAUTION: Do not remove adjustment wing nut from
tank scale.
After adjusting tank scale, push tank down a couple of
times to check that the tank scale is set on “E”.
Figure 12
F
E
F
E
F
E
Tank lock
wing nut
(a) (b)
Scale setting
wing nut
FILL LP TANK
To fill, take the LP tank and filler adapter to an RV center
or look up gas-propane in the phone book for other
sources of LP gas.
WARNING:We recommend that your LP tank be
filled at an authorized LP gas dealer by a qualified
attendant, who fills the tank by weight.
IMPROPER FILLING IS DANGEROUS.
Tell your LP dealer that this is a new LP tank. The air
must be removed from a new LP tank before the initial
filling. Your LP tank dealer is equipped to do this.
WARNING: If you exchange your LP tank, make
sure you get a similar tank in return.Your LP tank is
equipped with a quick-disconnect valve and an OPD
(Overfilling Prevention Device). Other LP tanks are
not compatible with your barbecue connection.
The LP tank must be installed, transported and stored in
an upright position. LP tank should not be dropped or
handled roughly.
Never store or transport the LP tank where temperatures
can reach 125° Fahrenheit (too hot to hold by hand – for
example: do not leave the LP tank in a car on a hot day).
For full instructions on safe handling of LP tanks, see
Section "General Tank Information".

8
GENERAL TANK INFORMATION
LP Tank Manufacturer
The LP tank manufacturer is responsible for the materials,
workmanship and performance of the tank. If the tank has
a defect, malfunctions, or you have a question regarding
the tank, call the tank manufacturer's customer service
center. The phone number is on the warning decal which is
permanently attached to the tank. If the tank manufacturer
has not resolved the issue to your satisfaction, then call
Weber-Stephen Products Co., Customer Service Center.
ForYour Safety
Your LP tank is shipped empty for safety. After setting the LP
fuel scale you will need to fill it. Refer to Filling your LP tank.
Safe handling tips for LP Gas
■Liquid Propane (LP) gas is a petroleum product as are
gasoline and natural gas. LP gas is a gas at regular
temperatures and pressures. Under moderate pressure,
inside a cylinder, LP gas is a liquid.As the pressure is
released the liquid readily vaporizes and becomes gas.
■LP gas has an odor similar to natural gas. You should
know this odor.
■LP gas is heavier than air. Leaking LP gas may
collect in low areas that prevent dispersion.
■The LP tank must be installed, transported and stored
in an upright position. LP tanks should not be dropped
or handled roughly.
■Never store or transport the LP tank where temperatures
can reach 125° F (too hot to hold by hand - for example:
do not leave the LP tank in a car on a hot day).
■The LP cylinder supply must be arranged for vapor
withdrawal.
Note - A refill will last about 20 hours of cooking time
at normal use.The fuel scale will indicate the propane
supply so you can refill before running out.You do not
have to run out before you refill.
■Treat "empty" LP tanks with the same care as when
full. Even when the LP tank is empty of liquid there
still may be gas pressure in the cylinder. Always
close the tank valve before disconnecting.
■Do not use a damaged LP tank. Dented or rusty LP
tanks or LP tanks with a damaged valve may be
hazardous and should be replaced with a new one
immediately.
■The joint where the hose connects to the LP tank
must be tested for leaks each time the LP tank is
reconnected. For example, test each time the LP
tank is refilled.
■Be sure the regulator is mounted with the small vent
hole pointed downward so it will not collect water.
This vent should be free of dirt, grease, bugs etc.
■The LP tank and connections supplied with your
Weber Gas Barbecue have been designed and tested
to meet government, American Gas Association and
Underwriters Laboratories requirements.
■Replacement LP tanks supplied by Weber satisfy the
requirements. Check to be sure the tank has a D.O.T.
certification, and has been tested within five years.
Your LP gas supplier can do this for you. Figure 13.
If you have questions about spare LP tanks, please
call Weber-Stephen Customer Service.
DOT 4BA240
1/97
Date Tested
20 lb LP tank
D.O.T. Certification (example)
■All LP tank supply systems must include a collar to
protect the tank valve.
■The LP tank must be constructed and marked in
accordance with the specifications for LP gas cylinders
of the U.S. Department of Transportation (D.O.T.).
■The LP tank shipped with your barbecue is equipped
with an OPD (Overfilling Protection Device).
Figure 13

9
CONNECT FILLED LP
TANK
Tank lock
wing nut
WARNING: Make sure that the LP tank valve is
closed. Close by turning clockwise.
Hook the LP tank onto the fuel scale. Loosen the tank
lock wing nut. Swing the tank lock down. Tighten the wing
nut. Figure 14.
Figure 14
The hose and regulator are connected in the following
manner:
Slide back the collar of the quick disconnect on the tank
valve. Push the male fitting of the regulator into the quick
disconnect, and maintain pressure. Slide the collar closed.
Figure 15 (a). Figure 15 (b) shows the quick disconnect
engaged and various components of the tank and
regulator. Regulator vent hole should be at 3, 6, or 9
o'clock. It should not be pointed up. Figure 15 (c).
Figure 15
Turn so regulator vent
does not collect water
Hose
Quick disconnect
engaged
Valve handwheel
close clockwise
Tank valve
Collar
Male
fitting
Pressure
relief valve
Tank
Regulator
Regulator
vent
(a)
(b)
(c)

10
The control panel is separate from the front panel. The
control panel needs to be removed before the front panel
can be removed. Figure 17.
Figure 16
Figure 17
Burner control knobs
Ignition button
Control
panel
Front
panel
Front edge of the
control panel
Put your fingers under the front edge of the control panel
and lift up and pull evenly toward you. Figure 18 (a).
Pull the front panel up and out of the cooking box
assembly. Figure 19.
Figure 18
(a)
Figure 19
Front Panel
Control Panel
Front panel
Remove control panel and front panel
Take off all 4 burner control knobs. Pull up on the ignition
buttons until they stay in the up position. Figure 16.
 WARNING
The gas connections of your Weber Gas
Barbecue have been factory tested.We do
however recommend that you leak check
all gas connections before operating your
Weber Gas Barbecue.
CHECK FOR GAS LEAKS

11
CHECK FOR GAS LEAKS
(CONTINUED)
Manifold
 DANGER
Do not use an open flame to check for gas
leaks. Be sure there are no sparks or
open flames in the area while you check
for leaks. This will result in a fire or
explosion which can cause serious bodily
injury or death and damage to property.
a)
c)
b)
Manifold
To perform leak checks: Open tank valve by turning the
tank valve handwheel counterclockwise.
WARNING: Do not ignite burners while leak
checking.
Check for leaks by wetting the connections with the soap
and water solution and watching for bubbles. If bubbles
form or if a bubble grows there is a leak.
Check:
a) Left valves to manifold connection. Figure 20 (a).
b) Right valves to manifold connection. Figure 20 (b).
c) Corrugated gas line to manifold connection.
Figure 20 (c).
WARNING: If there is a leak at connection 20 (c)
turn OFF the gas and retighten the fitting with a
wrench and recheck for leaks with soap and water
solution.
If a leak persists after retightening the fitting, turn
OFF the gas. DO NOT OPERATETHE BARBECUE.
Contact your dealer.
Figure 20
 WARNING
Make sure all burner control knobs are in
the OFF position,including the side burner,
if the barbecue has a side burner.
WARNING:You should check for gas leaks every
time you disconnect and reconnect a gas fitting.

12
REINSTALL FRONT PANEL
You will need: control panel, front panel, and four burner
control knobs.
With the Weber logo to the left, slide front panel down
into place. Figure 22.
Figure 22
Figure 21
b)
a)
a) Hose to regulator connection. Figure 21 (a).
b) Regulator to tank connection. Figure 21 (b).
c) Hose to bracket connection. Figure 21 (c).
WARNING: If there is a leak at connections
20 (a), 20 (b), 21 (a), or 21 (b), turn OFF the gas. Do
not operate the barbecue. Contact your dealer.
WARNING: If there is a leak at connection 21 (c)
retighten and recheck for leaks with soap and water.
When leak checks are complete, turn gas supply OFF at
the source and rinse connections with water.
CHECK FOR GAS LEAKS
(CONTINUED)
c)

13
REINSTALL BURNER
CONTROL KNOBS
Figure 24
Push on the burner control knobs. Figure 24.
INSTALL CONTROL
PANEL
Figure 23
(a)
Pull igniter buttons up until they stay in the up position.
Place the control panel into the grooves on either side of
the front of the cooking box. Push the control panel into
place, using even pressure while pushing. Figure 23 (a).
Use your fingers to lift the front edge of the control panel
slightly and set it into the recess on both sides of the
cooking box. Figure 23.
Front Panel
Control Panel
REFER TO OPERATING
GUIDE BEFORE LIGHTING
BARBECUE

EXPLODED VIEW FOR SUMMIT 400 LP
W
E
B
E
R
W
E
B
E
R
1
2
3
4
5
6
7
8-12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39-40
41
55
42
43
44
45-48
50
49
57
58
51
52
53
54
56

REPLACEMENT PARTS LIST THE FOR SUMMIT 400 LP
1 Cooking grates (2)
2 Flavorizer bars (7)
3 Left work surface
4 Glides (4)
5 Phillips head 1/4-20 x 1 inch machine screws (4)
6 Cooking box assembly
7 Burner control knobs (4)
8 Igniter (2)
9 Igniter lock nut (2)
10 Igniter wire (black) (2)
11 Igniter wire (white) (2)
12 Gas catcher ignition chamber (2)
13 Manifold mounting clips (2)
14 Manifold assembly / Corrugated gas line
15 Igniter buttons (2)
16 Control panel
17 Front panel
18 Match holder bracket
19 Plastic button
20 Caster frame
21 Match holder
22 1/4-20 x 3 1/2 inch bolt (4)
23 Bottom tray
24 Catch pan holder
25 Casters (2)
26 Catch pan
27 Drip pans (2)
28 Accessory rack
29 Splash guards (2)
30 Flavorizer bar / Cooking grate holders (2)
31 Right work surface
32 Crossover tubes (2)
33 Left burner (2)
34 Right burner (2)
35 Top frame rail #1 (2)
36 Top frame rail #2 (2)
37 Plastic handle (4)
38 #8-16 x 1 inch screw (8)
39 1/4 inch nylon washers (14)
40 1/4-20 x 1/2 inch bolts (12)
41 Back panel
42 Wheel hub caps (2)
43 Wheels (2)
44 1/4-20 wing nuts (2)
45 Cylinder guides (2)
46 Glide axle
47 Glide hubcaps (2)
48 Fuel scale assembly
49 Tank panel assembly
50 Wheel frame
51 Bottom connectors (2)
52 Hose / Regulator / Bracket
53 LP tank
54 Filler adapter
55 Tool holder (4)
56 1/4-20 keps nut (2)
57 1/4-20 x 1 3/4 inch bolt
58 1/4-20 hex nut
W
E
B
E
R
W
E
B
E
R
WARNING: Use only Weber factory
authorized parts.The use of any part that is
not factory authorized can be dangerous.
This will also void your warranty.
All items are single quantities unless otherwise specified.
Parts can be ordered directly from Weber-Stephen
Products Company by phone or mail.
Note - Do not return parts to Weber-Stephen Products Co.
without first contacting the Customer Service Center by
phone or mail. Returning the part may not be necessary.
While we give much attention to our products,
unfortunately an occasional error may occur. If a part is
missing, do not go back to the store. Call the Weber
Customer Service Center toll free 1-888-33-SUMMIT
(1-888-337-8664) to receive immediate assistance. Have
your owner’s manual and serial number of the barbecue
available for reference.
Weber-Stephen Products Company
Customer Service Center
250 South Hicks Road
Palatine, IL 60067-6241
(888) 33-SUMMIT
(888-337-8664)
