Weed Eater WEX145H42B User manual

®

166251 10.29.98 JH
PRINTED IN U.S.A.
/
ASSEMBLY/REPAIR
PARTS MANUAL
MODEL NO. WEX145H42B
Lawn Tractor
®

2
HOW TO USE THIS MANUAL
This manual is designed to provide the customer with a means to identify the parts on his/her tractor
whenorderingrepairparts. Theillustrationsmayormaynotrepresenttheactualassemblies;therefore,
it is not recommended to use this manual as a guide to assemble or disassemble the tractor. Some
hardware and parts are drawn larger in order to more readily identify them.
Each tractor has its own model number.
The model number for your tractor can be found on the fender under the seat.
When ordering parts, always give the following information:
• Product - "Tractor"
• Model Number - "WEX145H42B"
• Part Number
• Part Description
TABLE OF CONTENTS
ELECTRICAL ...........................................................................................................4-5
CHASSIS ..................................................................................................................6-7
DRIVE .......................................................................................................................8-9
STEERING WHEEL..............................................................................................10-11
SEAT/DECALS .....................................................................................................12-13
ENGINE .....................................................................................................................14
MOWER LIFT LEVER ...............................................................................................15
MOWER DECK.....................................................................................................16-17
TRANSAXLE ........................................................................................................18-19

3
TRACTOR - - MODEL NUMBER WEX145H42B
SCHEMATIC
BATTERY
FUSE 30 AMP.
IGNITION
SWITCH
RED RED
RED BLACK
IGNITION
UNIT
HEADLIGHTS
NON-REMOVABLE
CONNECTIONS REMOVABLE
CONNECTIONS
BLACK
BLUE
BLACK BLACK
WHITE
WHITE
WHITE
BLUE
BLACK
ORANGE
BLACK
BROWN
BLACK
STARTER
M
SEAT SWITCH
(NOT OCCUPIED)
GROUNDING
CONNECTOR
ATT'MENT CLUTCH
(CLUTCH OFF)
CLUTCH / BRAKE
(PEDAL UP)
SOLENOID
BLACK
LIGHTING SYSTEM OUTPUT
5 AMP AC @ 3600 RPM
ALTERNATOR
14 VOLTS AC MIN. @ 3600 RPM (LIGHTS OFF)
DIODE
28 VOLTS AC MIN. @ 3600 RPM 
(CHARGING SYSTEM DISCONNECTED)
CHARGING SYSTEM OUTPUT
3 AMP DC @ 3600 RPM
NOTE
YOUR TRACTOR IS
EQUIPPED WITH A SPECIAL
ALTERNATOR SYSTEM.
THE LIGHTS ARE NOT 
CONNECTED TO THE
BATTERY, BUT HAVE THEIR
OWN ELECTRICAL SOURCE.
BECAUSE OF THIS, THE
BRIGHTNESS OF THE LIGHTS
WILL CHANGE WITH ENGINE
SPEED. AT IDLE THE LIGHTS
WILL DIM. AS THE ENGINE IS
SPEEDED UP, THE LIGHTS
WILL BECOME THEIR BRIGHTEST.
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY SHOULD BE REPLACED TO
PROPERLY SECURE YOUR WIRING.
A
AMMETER
RED
GBSML
AY
IGNITION SWITCH
CIRCUITPOSITION
OFF B + LRUN/LIGHT
B + L + SSTART
G + M + L
S
B
G
ML
B + LRUN
“MAKE”
A + Y
NONE
NONE
NONE
Y
A
HOUR
METER
(OPTIONAL)
(OPTIONAL)
FUEL SHUT-OFF
SOLENOID
FUEL
LINE
SPARK
PLUG
GAP
(2 PLUGS ON 
TWIN CYL. ENGINES)

4
REPAIR PARTSTRACTOR - - MODEL NUMBER WEX145H42B
ELECTRICAL
52
16
8
2
1
27
48
70
16

5
REPAIR PARTSTRACTOR - - MODEL NUMBER WEX145H42B
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 144925 Battery 12 Volt 25 AMP
2 74760412 Bolt Hex Hd 1/4-20unc X 3/4
8 156417 Case Battery
16 153664 Switch Interlock Push-In
19 10090400 Washer Lock 1/4
20 73350400 Nut Jam Hex 1/4-20 Unc
21 136850 Harness Asm Light W/4152j
22 4152J Bulb Light #1156
24 4799J Cable Battery 6 Ga 11" red
25 146147 Cable Battery 6 Ga 44" red
26 108824X Fuse 30 AMP Auto Green
27 73510400 Nut Keps Hex 1/4-20unc
28 4207J Cable Ground 6 Ga 12" black
29 121305X Switch Plunger Nc Gray
30 140301 Switch Ign 4 pos w/lights
31 124211X Nut Ignition
32 141226 Cover Sw Ignition
33 122147X Key Ign Modleded Generic
40 156442 Harness Ignition LT PL Mech
41 71110408 Bolt Blk Fin Hex 1/4 - 20 x 1/2
42 131563 Cover Terminal Red
43 145673 Solenoid
44 73640400 Nut Keps Hex 1/4-20 Unc
48 140844 Adapter Ammeter
52 141940 Protection Wire Loop
70 140422 Harness, Eng.
NOTE: All component dimensions give in U.S. inches
1 inch = 25.4 mm.

6
REPAIR PARTSTRACTOR - - MODEL NUMBER WEX145H42B
CHASSIS AND ENCLOSURES

7
REPAIR PARTSTRACTOR - - MODEL NUMBER WEX145H42B
CHASSIS AND ENCLOSURES
KEY PART
NO. NO. DESCRIPTION
1 160393 Chassis LT Stamping 98
2 140356 Drawbar, Stretch 94
3 17490612 Screw, Thdrol. 3/8-16 x 3/4 Ty-TT
4 19131216 Washer 13/32 x 3/4 x 16 Gauge
5 155272 Bumper Hood/Dash
6 155923 Saddle LT Fender Shift
8 155138 Clip Retainer Slide-On
9 161937X011 Dash P/L
10 72140608 Bolt, Rdhd Sqnk 3/8-16 x 1
11 155927 Panel Asm.Dash LH
12 145660 Clip Tinnerman Grille P/L
13 155934X010 Dash, Panel RH
14 17490608 Screw Thdrol 3/8-16 x 1/2 Ty-tt
15 74180512 Screw Mach.Trhd 5/16-18 UNC x 3/4
16 73510500 Nut Keps 5/16-18 UNC
17 159639X550 Hood Pnt Stl PL
18 126938X Bumper Hood
24 74780616 Bolt, Hex , Fin. 3/8-16UNC x 1 Gr. 5
25 19131312 Washer 13/32 x 13/16 x12 Gauge
26 73800600 Nut Lock Hex w/Ins. 3/8-16 Unc
28 157373 Grille
29 140273 Lens Grille
30 157583X550 Fender Pnt
31 136619 Bracket Fender
33 105476X550 Footrest Pnt., LH
34 105475X550 Footrest Pnt., RH
35 72110606 Bolt Rdhd Sht. Sqnk 3/8-16 X 3/4
37 17490508 Screw Thdrol 5/16-18 x 1/2 Tyt
38 139886 Bracket Asm. Pvt. LH Mower Rear
39 139887 Bracket Asm. Pvt. RH Mower Rear
51 73800400 Nut Lock Hex W/Ins 1/4-20
52 19091416 Washer 9/32 x 7/8 x 16 Ga.
53 144697 Bracket, Grille LH
54 161464 Screw Hex WSHD 8-18 x 7/8
55 144696 Bracket Grille RH
57 74780412 Bolt Fin Hex 1/4-20 x 3/4
58 150127 Air Duct Engine P/L
140 158418 Bracket Suspension Front
145 156524 Rod Pivot Chassis/Hood
- - 5479J Plug Btn Blk .359 Dia Ch/Inf
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

8
REPAIR PARTSTRACTOR - - MODEL NUMBER WEX145H42B
DRIVE
29
28
51
32
61
30
52
61
32
59
42
51
81
38
61
37
41
42
40
97
16
73
103
108
94
3
19
16
109
147
98
27
53
35
55
36
42
62
35
36
22
39
34
89
69
16
1
77
96
146
71
18
77
30
52
64
65
51 72
63
116
70
57
93
96
26
25 19 24
2
26
26
95
76
78
75
74
83 82
8
21
10
100
104
84
16
105
106
144
145
19
18
66
56
42
27
51
148
149
150
48
150
151
50
49
26
47
50
51
87 87
86
88
88

9
REPAIR PARTSTRACTOR - - MODEL NUMBER WEX145H42B
DRIVE
1 140607 Transmission, Asm.
2 142431 Spring, Return, Brake
3 144698 Pulley, Transmission
8 141003 Rod, Shift
10 76020416 Pin, Cotter 1/8 x 1
16 73800500 Nut, Lock Hex w/Ins 5/16-18 UNC
18 74780616 Bolt Hex 3/8-16 UNC x 1 Gr.5
19 73800600 Nut, Lock Hex w/Wsh 3/8-16 UNC
21 106933X Knob Rd. 1/2-13 Plstc. Thds. Blk.
22 145627 Rod, Brake
24 73350600 Nut
25 106888X Spring, Rod, Brake
26 19131316 Washer 13/32 x 13/16 x 16 Ga.
27 76020412 Pin, Cotter 1/8 x 3/4
28 145204 Rod, Parking Brake
29 71673 Cap, Parking Brake
30 130807 Bracket, Transmission
32 74760512 Bolt Hex 5/16-18 UNC x 3/4
34 155071 Shaft, Foot Pedal
35 120183X Bearing, Nylon
36 19211616 Washer
37 1572H Pin, Roll
38 131494 Pulley, Idler, Flat
39 74760644 Bolt
40 4470J Spacer, Split
41 165838 Keeper, Belt, Idler
42 19131312 Washer 13/32 x 13/16 x 12 Ga.
47 127783 Pulley, Idler, V-Belt
48 154407 Bellcrank Clutch Grnd Drustl
49 123205X Retainer, Belt
50 74760624 Bolt
51 73680600 Nut
52 73680500 Nut Crownlock 5/16-28
53 105710X Link, Clutch
55 105709X Spring, Return, Clutch
56 74760620 Bolt, Hex 3/8-16 UNC x 1-1/4
57 141416 V-Belt, Drive
59 140312 Keeper, Belt, Center
61 17490612 Screw, Thdrol 3/8-16 x 3/4 Type TT
62 8883R Cover, Pedal
63 140186 Pulley, Engine
64 71170764 Bolt Hex 7/16 x 4 Gr. 5
65 10040700 Washer
KEY PART
NO. NO. DESCRIPTION KEY PART NO. NO. DESCRIPTION
66 154778 Keeper, Belt Engine
69 142432 Screw
70 134683 Guide, Belt, Mower Drive RH
71 141417 Strap, Torque, Lh
72 19132012 Washer 13/32 x 1-1/4 x 12 Ga.
73 141418 Strap, Torque, Rh
74 121199X Spacer, Split
75 121749X Washer 25/32 x 1-1/4 x 16 Ga.
76 12000001 Ring, E
77 123583X Key, Square
78 121748X Washer 25/32 x 1-5/8 x 16 Ga.
81 156048 Asm, Shaft
82 123782X Spring, Torsion
83 19171216 Washer 17/32 x 3/4 x 16 Ga.
84 141423 Rod, Tie
86 157480 Bushing
87 19212016 Washer 21/32 x 1-1/4 x 16 Ga.
88 12000008 Ring, Clip
89 164893X428 Console, Shift
93 142564 Line Fuel
94 140462 Fan 7”
95 144643 Control Asm Bypass Hydro
96 4497H Spring, Retainer 1”
97 144201 Keeper, Belt Rh
98 73510600 Nut Keps 3/8-16 UNC
100 19111216 Washer 11/32 x 3/4 x 16 Ga.
103 73940800 Nut, Hex Jam Toplock 1/2-20 UNF
104 141421 Arm, Control Pump 500 Hydro
105 71070516 Bolt, Head Hex 5/16 x 18 x 1
106 74780520 Bolt H 5/16-18 UNC x 1-1/4
108 17541026 Screw Hex Wh Hd #10-24 x 1-5/8
109 145098 Adaptor Fan Hydro Lt Hyd Alum
116 72110610 Bolt Rdhd Sq Neck 3/8-16 x 1-1/4
144 19111016 Washer 11/32 x 5/8 x 16
145 74490540 Bolt Hex Flghd 5/16-18 Gr. 5
146 74490536 Bolt Hex 5/16-18 x 2-1/4
147 74490524 Bolt Hex 5/16-18 UNC x 1-1/2
148 159103 Spacer
149 122052X Spacer Retainer
150 150935 Bushing Nylon Collered
151 19133210 Washer 13/32 x 2 x 10
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

REPAIR PARTSTRACTOR - - MODEL NUMBER WEX145H42B
STEERING WHEEL
10
62 44
51 54
5
9
5
7
7
9
4
332
43
6
43
8
18
19
22
20
27
23
40 66
29
25 58
10
40
68
68
11
15
8
6
9
46
46
8
6
9
2
47
67
13
65
47
17
26
30
28
29
29
29
29
1
41
42
37
36
37
38
63
11
39
11

11
REPAIR PARTSTRACTOR - - MODEL NUMBER WEX145H42B
STEERING WHEEL
1 140044 Wheel Steering
2 154427 Axle Asm Front
3 156483 Spindle Asm LH
4 157473 Spindle Asm RH
5 6266H Bearing, Race, Thrust Hardened
6 121748X Washer 25/32 X 1-5/8 X 16 Ga
7 19272016 Washer 27/32 X 1-1/4 X 16 Ga
8 12000029 Ring Klip
9 3366R Bearing
10 156438 Link Drag
11 10040600 Washer Lock Hvy Hlcl Spr 3/8
13 154779 Bearing Axle Stlt/Gt
15 73901000 Locknut, Hex, Jam, w/Washer Insert 5/8-11 Unc
17 156546 Steering, Assembly Shaft
18 57079 Washer Thrust 515x 750x 033
19 124035X Support Shaft
20 126684X Washer Shim 1/4 X 5/8 X .062
22 71200410 Screw Hex Socket 1/4-20 x 5/8
23 127501 Shaft Asm Pittman
25 154406 Bracket Steering
26 126847X Bushing Link Drag Blk Lr
27 136874 Gear Sector
28 19131416 Washer 13/32 x 7/8 x 16 Ga.
29 17490612 Screw Thdrol. 3/8-16x3/4 Ty-tt
30 76020412 Pin Cotter 1/8 x 3/4 CAD
32 130465 Rod Connecting
36 155099 Bushing Steering
37 152927 Screw TT #10-32 X 5 x 3/8 Flange
38 140045 Cap Wheel Steering
39 19133808 Washer 13/32 x 2-3/8 x 8 Ga
40 7810H Nut Lock Center 3/8-24 Unf
41 100711L Adapter Wheel Strg
42 145054 Boot Shaft Steering
43 121749X Washer 25/32 X 1 1/4 X 16 Ga
44 153720 Extension Steering
46 121232X Cap Spindle
47 6855M Fitting Grease
51 73800500 Nut Lock Hex W/Ins. 5/16-18 Unc P
54 74780520 Bolt Fin Hex 5/16-18 Unc 6 x 1-1/4
62 156594 Kit Steering Asm. Service
63 74780616 Bolt Fin Hex 3/8-16unc x 1 Gr. 5
65 154780 Spacer Axle
66 154404 Bearing Arm Pittman
67 74781044 Bolt Fin Hex 5/8-11 UNC x 2-3/4
68 154429 Brsce Axle
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

12
REPAIR PARTSTRACTOR - - MODEL NUMBER WEX145H42B
SEAT
1 127429 Seat
2 140551 Bracket, Pivot, Seat
3 74760616 Bolt
4 19131610 Washer 13/32 x 1 x 10 Ga.
5 145006 Clip, Push-in
6 73800600 Nut
7 124181X Spring, Seat
8 17490616 Screw, Thdrol 3/8-16 x 1
9 19131614 Washer 13/32 x 1 x 14 Ga.
10 155925 Pan, Seat
12 121246X Bracket, Mounting, Switch, Seat
13 121248X Bushing, Nylon
14 72050412 Nut, Crownlock 1/4-20 x 1-1/2
15 121249X Spacer, Split
16 123740X Spring
17 123976X Nut, Lock, Flange 1/4 Gr. 5
21 153236 Bolt, Shoulder 5/16-18 UNC
22 73800500 Nut
23 74780814 Bolt Fin Hex 1/2 - 13 x 7/8 Gr. 5
24 19171912 Washer 17/32 x 1-3/16 x 12 Ga.
25 127018X Bolt Shoulder 5/16-18 x .62
26 10040800 Washer Lock Hvy Hclc Spr 1/2
KEY PART
NO. NO. DESCRIPTION KEY PART NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
26
23
1
24
16
15
12
13
17
25
4
3
8
9
7
8
9
7
2
622
21
5
10
5
14

13
REPAIR PARTSTRACTOR - - MODEL NUMBER WEX145H42B
DECALS
TIRES AND WHEELS
KEY PART
NO. NO. DESCRIPTION
3
254
14
19
11
KEY PART
NO. NO. DESCRIPTION
15
17
5
18
13
KEY PART
NO. NO. DESCRIPTION
1 59192 Cap, Valve
2 65139 Stem, Valve
3 106222X Tire Front
4 59904 Tube, Front (not furnished)
5 106732X427 Rim, Asm. Front
6 278H Grease Fitting (rear tire only)
7 9040H Bearing, Flange (front tire only)
8 106108X427 Rim, Asm. Rear
9 106268X Tire, Rear TS. 18 x 9.5 - 9 C. Service
10 7152J Tube, Rear (not furnished)
11 104757X Cap, Axle
- - 144334 Sealant, Tire (10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
16
8
6
2
15,8
4,10
3,9
11
7
9
1
14 145005 Decal, Btry Dngr/Psn P/L Sym
15 160396 Decal, V-Belt
16 162391 Decal, Deck, Grass/Weedeater
17 162392 Decal, Grille
18 142341 Decal, Drawbar Cntrl Mut HVD
19 140837 Decal, Parking Brake
- - 138311 Decal, Handle, Lift, Height Adjust (Lift
Handle)
- - 162598 Decal, Drawbar Load Limit
- - 166249 Manual (Euro)
- - 166250 Manual (Scan)
- - 166251 Manual, Repair Parts
1 145498 Decal, Instruction, Operation
2 162395 Decal, Fender Logo
3 162389 Decal, Hood Rh
4 162390 Decal, Hood Lh
5 163441 Decal, Panl Sd
6 159736 Decal, Chassis Hot Muffler
7 159737 Decal, Brake/Clutch Symbol LT
8 145437 Decal, Europe Stand CE
9 165352 Decal, HP Engine
11 145494 Decal, Mower Cutfinger Symbol
12 126187X Decal 100 DBA
13 162398 Decal, Wheel Steering
12
6
7
6

14
REPAIR PARTSTRACTOR - - MODEL NUMBER WEX145H42B
ENGINE
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm.
1 141359 Control Th/ch
2 17720410 Screw Hex Thd Cut 1/4-20x5/8 T
3 - - - - - - Engine Briggs Model No. 287707
4 137352 Muffler Exhaust B&S
13 165291 Gasket Eng 1 313 Id Tin Plated
14 13280324 Nipple Pipe 3/8 Npt X 3"
15 13200300 Elbow Std 90 Degree 3/8-18 Npt
16 11050600 Washer Lock Ext Tooth 3/8
23 159880 Shield BRN/DBR Guard
29 137180 Kit Spark Arrestor (Flat Scrn)
31 109202X Tank Fuel Front
32 140527 Cap Asm Fuel
33 123487X Clamp Hose Blk
KEY PART
NO. NO. DESCRIPTION
35 17490512 Screw Thdrol 5/16-18 x 3/4
37 137040 Line Fuel
38 - - - - - Plug Oil Drain (Order From Engine
Manufacturer)
40 124028X Bushing Snap Nyl Blk Fuel Line
44 17490412 Screw Hexwsh Thdrol 1/4-20x3/4
46 19091416 Washer 9/32 X 7/8 X 16 Ga
62 10040500 Washer 5/16
66 127951 Stop Throttle
72 71070512 Screw 5/16-18 x 3/4
78 17490620 Screw Thdrol 3/8-16x1-1/4 TYTT
81 128861 Nut Flange 1/4-20 Starter Nut

15
REPAIR PARTSTRACTOR - - MODEL NUMBER WEX145H42B
MOWER LIFT
15
20
161718 20
20
15
20
4
5
6
2
31
65
4
7
8
12
11
31
32
31
32
19
19
13
13
13
13
1 159460 Wire Asm. Inner/Sprg w/Plunger
2 159471 Shaft, Asm., Lift R/H
3 105767X Pin, Groove
4 12000002 Ring, E #5133-62
5 19211621 Washer 21/32 x 1 x 21 Ga.
6 120183X Bearing, Nylon
7 109413X Grip Handle Bicycle Matte Blk
8 124526X Button, Plunger
11 139865 Link, Lift, Lh
12 139866 Link, Lift, Rh
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
13 4939M Spring, Retainer
15 127218 Link, Front
16 73350800 Nut, Jam, Hex 1/2-13 Unc
17 130171 Trunnion
18 73680800 Nut, Crownlock 1/2-13 Unc
19 139868 Arm, Suspension, Rear
20 163552 Spring, Retainer
31 140302 Bearing, Pvt Lft
32 73540600 Nut Crownlock 3/8-24

16
REPAIR PARTSTRACTOR - - MODEL NUMBER WEX145H42B
MOWER DECK
67
43
72
41
74
75
76 77
79 92
141
80
73 78
45
71
45
81 82
113
117
116
118
119
114
115 112
121
120
114
117 119
116 115
111
118
121
113
120

17
REPAIR PARTSTRACTOR - - MODEL NUMBER WEX145H42B
MOWER DECK
KEY PART
NO. NO. DESCRIPTION KEY PART NO. NO. DESCRIPTION
50 131340 Bolt Shldr 10-24 Zinc Gr 5 42"
51 69180 Nut Lock #10-24 Unc
52 139888 Bolt Shoulder 5/16-18 Unc Blkz
53 131845 Arm Asm Pad Brake
54 133943 Washer Hardened
55 155046 Arm Idler 42" mower
56 122052X Spacer Retainer Pm Mower
58 140086 Spring Torsion Brakes 42"
59 141043 Guard TUV Idler
67 162132 Knob Rd 7/16-14 Pastic Thds Blk
68 144200 V-Belt Mower
71 142427 Rod Clutch Primary 38/42
72 131870 Spring Return
73 127847 Arm Clutch Secondary
74 121748X Washer 25/32 X 1-5/8 X 16 Ga
75 12000029 Ring Klip #t5304-75
76 128903 Bolt Shoulder 3/8-16 Unc 1 44
77 127845 Keeper Spring 4 000
78 160570 Arm Clutch Primary
79 127498 Bushing 747 Od X 794 Lg Brass
80 153701 Spring Clutch Mower
81 73350600 Nut Hex Jam 3/8-16
82 142028 Trunnion Adj.
83 120958X Washer Sintered
84 156084 Keeper Belt Idler
85 72140620 Bolt Rdhd Sq 3/8-16 UNC x2-1/2
92 73800600 Nut Lock Hex w/Ins 3/8-16 UNC

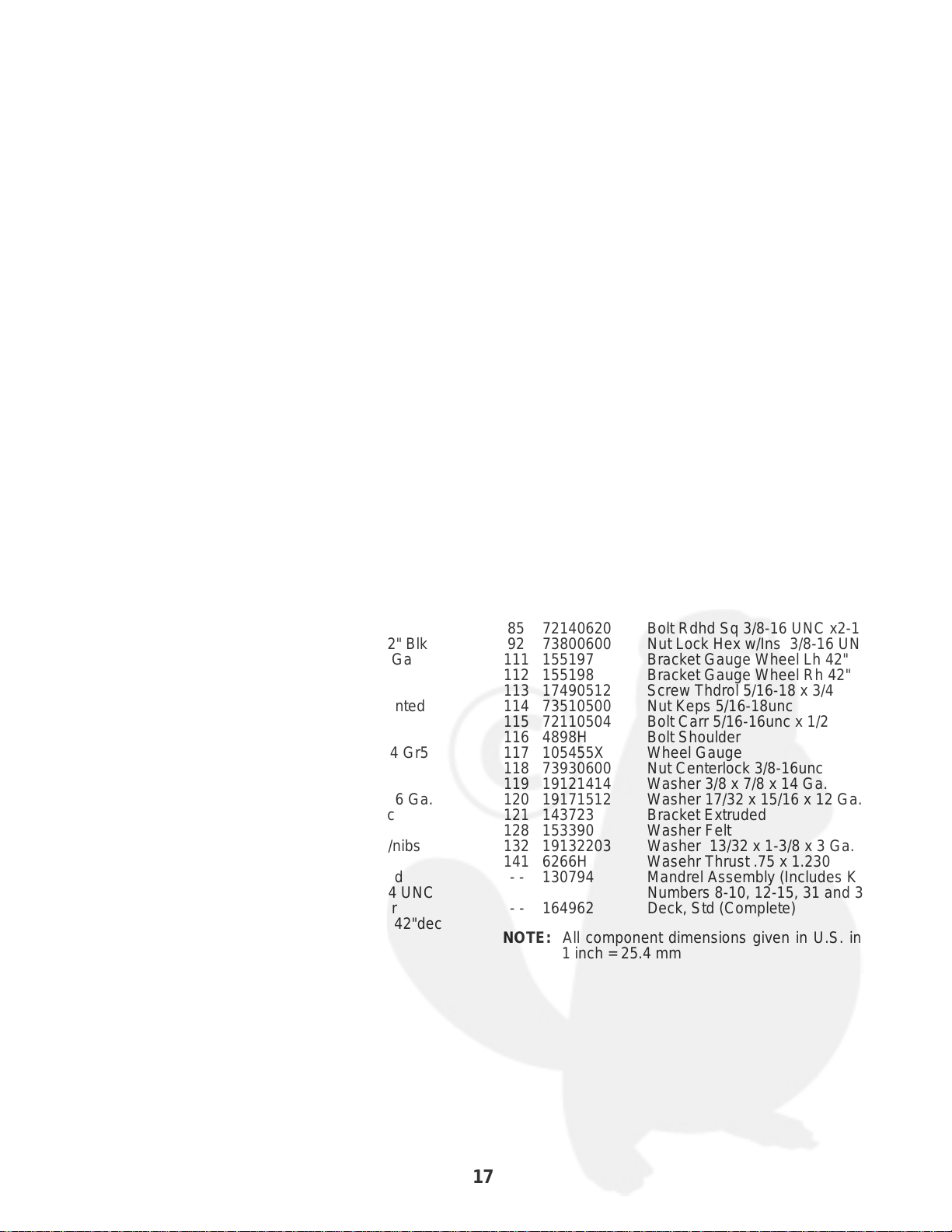

111 155197 Bracket Gauge Wheel Lh 42"
112 155198 Bracket Gauge Wheel Rh 42"
113 17490512 Screw Thdrol 5/16-18 x 3/4
114 73510500 Nut Keps 5/16-18unc
115 72110504 Bolt Carr 5/16-16unc x 1/2
116 4898H Bolt Shoulder
117 105455X Wheel Gauge
118 73930600 Nut Centerlock 3/8-16unc
119 19121414 Washer 3/8 x 7/8 x 14 Ga.
120 19171512 Washer 17/32 x 15/16 x 12 Ga.
121 143723 Bracket Extruded
128 153390 Washer Felt
132 19132203 Washer 13/32 x 1-3/8 x 3 Ga.
141 6266H Wasehr Thrust .75 x 1.230
- - 130794 Mandrel Assembly (Includes Key
Numbers 8-10, 12-15, 31 and 33)
- - 164962 Deck, Std (Complete)
1 164691 Housing Asm MWR 42" HL MCH T-
Path
2 72140506 Bolt Rdhd Sqnk 5/16-18unc X3/4
3 138017 Bracket Asm Fr Sway Bar 38/42
4 138440 Bracket Asm Deck 42"sway Bar
5 4939M Retainer Spring
6 130832 Arm Suspension Rear
8 850857 Bolt 3/8-24x1 25 Gr8 Patched
9 10030600 Washer Lock Hvy 3/8 Unplated
10 140296 Washer Hard Blade Mower Vented
11 138498 Blade Mower 42" High Lift
12 129895 Bearing Ball #6204 (Mandrel)
13 137645 Shaft Asm W/lower Bearing
14 128774 Housing Mandrel Vented(machd)
15 110485X Bearing Ball Mandrel
16 140329 Stripper Mower Round
17 72110610 Bolt Rdhd Sqnk 3/8-16 X 1.25
18 72140505 Bolt Carr 5/16-18 X 5/8
19 132827 Bolt Shoulder
20 159770 Baffle Vortex 42
21 73680500 Nut Crown Lock 5/16-18
22 134753 Stiffener Bracket 42"deck
23 131267 Bracket Deflector Mower 42"
24 105304X Cap Sleeve 80x 112 Blk Mower
25 123713X Spring Torsion Deflector 2 52
26 110452X Nut Push Phos & Oil
27 130968 Shield Deflector Mower 42" Blk
28 19111016 Washer 11/32 X 5/8 X 16 Ga
29 131491 Rod Hinge 42"6 75 Wlg
30 157722 Screw Thdrol Washer Hd
31 129963 Washer Spacer Mower Vented
32 153535 Pulley Mandrel 42/44/50"
33 137266 Nut 9/16top Lock Flng
34 72110614 Bolt Rdhd 3/8-16uncx1-3/4 Gr5
35 133835 Fastner Christmas Tree
36 131494 Pulley Idler Flat 3 060
37 19131316 Washer 13/32 x 13/16 x 16 Ga.
40 73680600 Nut Crownlock 3/8-16 Unc
41 133551 Rod Pivot W/nibs
43 140083 Rod Clutch Secondary W/nibs
44 140088 Guard Mandrel LH Black
45 4497H Spring Retainer 1" Zinc/cad
46 137729 Screw Hex Thd Cut 1/4-24 UNC
48 133944 Washer Hardened Smaller
49 155066 Roller Asm Cam Follower 42"dec NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

18
REPAIR PARTSTRACTOR - - MODEL NUMBER WEX145H42B
TRANSAXLE - HYDRO MODEL NUMBER 0319-0500

19
REPAIR PARTSTRACTOR - - MODEL NUMBER WEX145H42B
TRANSAXLE - HYDRO MODEL NUMBER 0319-0500
KEY PART
NO. NO. DESCRIPTION
1 142986 Housing, Lower
2 142987 Assembly, Upper Housing
3 142932 Seal, Lip
4 142928 Ring, Wire Retaining
5 142933 Ring, Retaining
6 142934 Bearing, Shaft Ball
7 142935 Bearing, Cradle
8 150771 Bearing, Thrust 30 x 52 x 13
9 142937 Swashplate, Variable
13 142938 Block, Cylinder Assembly
14 142939 Arm, Trunnion
15 142940 Seal, Lip
17 142941 Guide, Slot
18 150772 Shaft, Motor
19 150773 Bearing, Thrust 42 x 68 x 16
23 142944 Block, Cylinder Assembly
24 142945 Seal, Lip 10 x 25 x 7
25 142946 Actuator, Bypass
26 150774 Center Section Assembly Kit
27 142948 Seal, Lip 26 x 42 x 8
28 142949 Ring, Retaining
29 142950 Washer 26 x 35 x 1
30 150787 Nut, Jam
34 142951 Oil Filter Element
35 142952 Arm, Bypass
36 142953 Ring, Retaining
37 142954 Arm, Actuating
38 142955 Pin, Actuating
39 150777 Bolt 5/16-24 x 1-3/4
KEY PART
NO. NO. DESCRIPTION
40 150778 Locknut, Hex 5/16-24 UNJC
41 142958 Brake Rotor/Stator Kit
43 142884 Washer 7/16 x 7/8 x .060
44 142990 Differential Assembly
52 142991 Washer 3/4 x 1.5 x .13
53 142961 Seal .75 x 1.25 x .250
56 142963 Shaft, Input
58 142964 Bolt 1/4-20 x 1.38
59 142965 Pin .5 OD x .43 ID x .750
62 142966 Arm, Control
63 142967 Puck, Dampener
64 142920 Set Screw
68 142969 Spring
69 144610 Stud 5/16-24
92 142977 Spring, Block
93 142978 Washer, Block Thrust
98 142993 Sleeve Bearing
99 142976 Seal, Wiper
113 142917 Cap, Vent Assembly
114 142918 Fitting, O-Ring Assembly
119 142980 Spacer
134 144607 Nut, Castle 5/16-24
135 144608 Pin, Cotter
139 150775 Spring, Compression
140 150776 Nut, Hex 5/16-24
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
