POULAN PARTS LIST
RR
POULAN PRO PARTS LIST
PARAMOUNT PARTS LIST
R
PARTS LIST
REPLACES
1

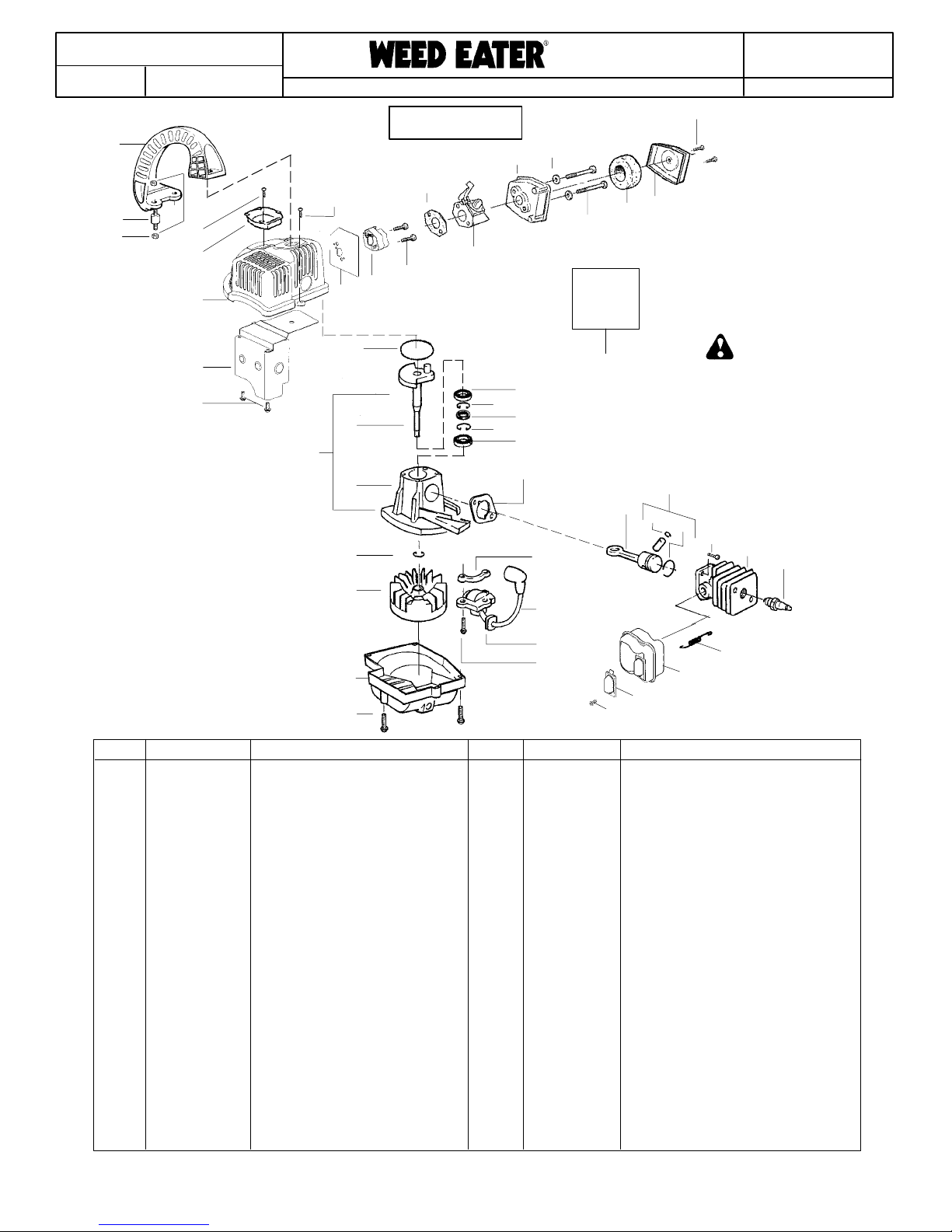

Note: Illustration may differ from actual model due to design changes
PARTS L IST NO.
PAGE NO.
MODEL(s)
530086385 FL1500LE
DATE
3/27/09 530086385 --- 6/06/08
All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be
performed by qualified service
personnel.
WARNING
1. 530054429 Handle
2. 530054432 Isolator--Handle
3. 530016316 Nut
4. 530015810 Screw
5. 530016258 Plate--Crankcase
6. 530055336 Shroud
7. 530055378 Shield--Heat
8. 530015805 Screw
9. 530015880 Screw
10. 530071472 Gasket--Carb. (Kit)
11. 530052333 Air Box
12. 530015123 Washer
13. 530015892 Screw
14. 530052332 Cover--Air Box
15. 530047932 Foam--Air Filter
16. 530016353 Screw
17. ------ Kit--Carburetor Ass’y.
530071471 (W--12
530071629 (C1U--W12A)
18. 530016014 Screw
19. 530056403 Adaptor--Carb.
20. 530071472 Gasket--Cyl/Carb. Adaptor (Kit)
21. 530071472 Gasket--C’case/Shroud (Kit)
22. 530071469 Assy.--C’case & C’shaft
(Incl. 23,24,25, & 30--33)
23. 530052344 Assy.--Crankshaft
24. 530012462 Assy.--Crankcase
(Incl. 30--33)
25. 530015941 Retainer Ring (C’shaft)
26. 530069886 Assy.--Flywheel
27. 530055335 Fan Housing
28. 530015810 Screw
29. 530071472 Kit--Gasket
(incl. 10,20,21,34)
30. 530032125 Inner Bearing
31. 530015945 Retainer Ring (C’case)
32. 530019179 Seal--Crankcase
33. 530032124 Bearing--Outer
34. 530071472 Gasket--Cylinder (Kit)
35. 530036145 Spacer--Ign. Module
36. 530039163 Ignition Module
37. 530019182 Grommet--Ign. Module
38. 530015954 Screw
39. 530069945 Kit--Connecting Rod Assy.
40. 530071357 Kit--Piston (Incl. 41 & 42)
41. 530015162 Wrist Pin Retainer
42. 530055120 Piston Ring
43. 530015953 Screw
44. 530071359 Kit--Cylinder
45. 952030249 Spark Plug (RCJ--6Y)
46. 530042088 Spring--Muffler
47. 530071470 Assy--Muffler(incl. #46)
48. 530071361 Kit--Spark Aresstor
49. 530015241 Screw
Part No. Description Ref. Part No. Description
Ref.
11 12
16
15
13
14
17
10
18
19
20
30
25
32
31 33
21
22
23
24
26
27
38
28
37
36
35
34
39 41 42
40
43
44
46
47
45
9
31
1
2
3
Gasket
Kit
29
1
7
8
6
5
4
=NEW PART NUMBER FOR THIS IPLn=REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
K
48
49
TYPE 1

R
POULAN PARTS LIST
RR
POULAN PRO PARTS LIST
PARAMOUNT PARTS LIST
R
PARTS LIST
REPLACES
2
Note: Illustration may differ from actual model due to design changes
PARTS L IST NO.
PAGE NO.
MODEL(s)
530086385 FL1500LE
DATE
3/27/09 530086385 --- 6/06/08
All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be
performed by qualified service
personnel.
WARNING
1. 530054429 Handle
2. 530054432 Isolator--Handle
3. 530016316 Nut
4. 530015810 Screw
5. 530055336 Shroud
6. 530055378 Shield--Heat
7. 530015805 Screw
8. 530016349 Screw
9. 530071472 Gasket--Carb. (Kit)
10. 530052333 Air Box
11. 530015158 Washer
12. 530015892 Screw
13. 530052332 Cover--Air Box
14. 530047932 Foam--Air Filter
15. 530016394 Screw
16. 530071629 Kit--Carburetor Ass’y.
(C1U--W12A)
17. 530057725 Foam--Air Dam
18. 530016309 Screw
19. 530057634 Adaptor--Carb.
20. 530071472 Gasket--Cyl/Carb. Adaptor (Kit)
21. 530071472 Gasket--C’case/Shroud (Kit)
22. 530071680 Assy.--C’case & C’shaft
(Incl. 23,24,25)
23. 530052344 Assy.--Crankshaft
24. 530012510 Assy.--Crankcase
(Incl. 30--32)
25. 530015941 Retainer Ring (C’shaft)
26. 530069886 Assy.--Flywheel
27. 530055335 Fan Housing
28. 530015810 Screw
29. 530071472 Kit--Gasket
(incl. 9,20,21,33)
30. 530032125 Inner Bearing
31. 530019264 Seal--Crankcase
32. 530055728 Bearing--Outer
33. 530071472 Gasket--Cylinder (Kit)
34. 530039163 Ignition Module
35. 530019182 Grommet--Ign. Module
36. 530016357 Screw
37. 530069945 Kit--Connecting Rod Assy.
38. 530071833 Kit--Piston (Incl. 39 & 40)
39. 530015162 Wrist Pin Retainer
40. 530055120 Piston Ring
41. 530071785 Kit--Piston/Rod Assy.( Incl. 37,38)
42. 530015953 Screw
43. 530012500 Cylinder
44. 952030249 Spark Plug (RCJ--6Y)
45. 530071472 Gasket--Muffler kit)
46. 530071778 Kit--Muffler(incl. #45,47--49)
47. 530016338 Bolt--Muffler
48. 530071544 Kit--Spark Aresstor
49. 530015241 Screw
50. 530071731 Kit--Module spacer/screws
Part No. Description Ref. Part No. Description
Ref.
10 11
15
14
12
13
16
9
18
19
20
30
25
31
32
21
22
23
24
26
27
36
28
35
34
33 37 39 40
38
42
43 44
8
1
2
3
Gasket
Kit
29
1
6
7
5
4
=NEW PART NUMBER FOR THIS IPLn=REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
K
TYPE 2,3
48
49
45
47 46
17
41
Module
Spacer &
Screws
Kit
50

R
POULAN PARTS LIST
RR
POULAN PRO PARTS LIST
PARAMOUNT PARTS LIST
R
PARTS LIST
REPLACES
3
Note: Illustration may differ from actual model due to design changes
PARTS L IST NO.
PAGE NO.
MODEL(s)
530086385 FL1500LE
DATE
3/27/09 530086385 --- 6/06/08
All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be
performed by qualified service
personnel.
WARNING
1. 530054429 Handle
2. 530054432 Isolator--Handle
3. 530016316 Nut
4. 530015810 Screw
5. 530055336 Shroud
6. 530055378 Shield--Heat
7. 530015805 Screw
8. 530016349 Screw
9. 530071472 Gasket--Carb. (Kit)
10. 530052333 Air Box
11. 530015158 Washer
12. 530015892 Screw
13. 530052332 Cover--Air Box
14. 530047932 Foam--Air Filter
15. 530016394 Screw
16. 530071629 Kit--Carburetor Ass’y.
(C1U--W12A)
17. 530057725 Foam--Air Dam
18. 530016309 Screw
19. 530057634 Adaptor--Carb.
20. 530071472 Gasket--Cyl/Carb. Adaptor (Kit)
21. 530071472 Gasket--C’case/Shroud (Kit)
22. 530071680 Assy.--C’case & C’shaft
(Incl. 23,24,25)
23. 530052344 Assy.--Crankshaft
24. 530012510 Assy.--Crankcase
(Incl. 30--32)
25. 530015941 Retainer Ring (C’shaft)
26. 530069886 Assy.--Flywheel
27. 530058942 Fan Housing
28. 530015810 Screw
29. 530071472 Kit--Gasket
(incl. 9,20,21,33)
30. 530032125 Inner Bearing
31. 530019264 Seal--Crankcase
32. 530055728 Bearing--Outer
33. 530071472 Gasket--Cylinder (Kit)
34. 530039163 Ignition Module
35. 530019182 Grommet--Ign. Module
36. 530016357 Screw
37. 530069945 Kit--Connecting Rod Assy.
38. 530071833 Kit--Piston (Incl. 39 & 40)
39. 530015162 Wrist Pin Retainer
40. 530055120 Piston Ring
41. 530071785 Kit--Piston/Rod Assy.( Incl. 37,38)
42. 530015953 Screw
43. 530012500 Cylinder
44. 952030249 Spark Plug (RCJ--6Y)
45. 530071472 Gasket--Muffler kit)
46. 530071778 Kit--Muffler(incl. #45,47--49)
47. 530016338 Bolt--Muffler
48. 530071544 Kit--Spark Aresstor
49. 530015241 Screw
Part No. Description Ref. Part No. Description
Ref.
10 11
15
14
12
13
16
9
18
19
20
30
25
31
32
21
22
23
24
26
27
36
28
35
34
33 37 39 40
38
42
43 44
8
1
2
3
Gasket
Kit
29
1
6
7
5
4
=NEW PART NUMBER FOR THIS IPLn=REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
K
TYPE 4
48
49
45
47 46
17
41

R
POULAN PARTS LIST
RR
POULAN PRO PARTS LIST
PARAMOUNT PARTS LIST
R
PARTS LIST
REPLACES
4
Note: Illustration may differ from actual model due to design changes
PARTS L IST NO.
PAGE NO.
MODEL(s)
530086385 FL1500LE
DATE
3/27/09 530086385 --- 6/06/08
All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be
performed by qualified service
personnel.
WARNING
1. 530054429 Handle
2. 530054432 Isolator--Handle
3. 530016316 Nut
4. 530015810 Screw
5. 530057102 Shroud
6. 530055378 Shield--Heat
7. 530015805 Screw
8. 530016349 Screw
9. 530071472 Gasket--Carb. (Kit)
10. 530052333 Air Box
11. 530015158 Washer
12. 530015892 Screw
13. 530052332 Cover--Air Box
14. 545082301 Foam--Air Filter
15. 530016429 Screw
16. 530071629 Kit--Carburetor Ass’y.
(C1U--W12A)
17. 530057725 Foam--Air Dam
18. 530016309 Screw
19. 530057634 Adaptor--Carb.
20. 530071472 Gasket--Cyl/Carb. Adaptor (Kit)
21. 530071472 Gasket--C’case/Shroud (Kit)
22. 530071680 Assy.--C’case & C’shaft
(Incl. 23,24,25)
23. 530052344 Assy.--Crankshaft
24. 530012510 Assy.--Crankcase
(Incl. 30--32)
25. 530015941 Retainer Ring (C’shaft)
26. 530069886 Assy.--Flywheel
27. 530058942 Fan Housing
28. 530015810 Screw
29. 530071472 Kit--Gasket
(incl. 9,20,21,33)
30. 530032125 Inner Bearing
31. 530019264 Seal--Crankcase
32. 530055728 Bearing--Outer
33. 530071472 Gasket--Cylinder (Kit)
34. 530039163 Ignition Module
35. 530019182 Grommet--Ign. Module
36. 530016357 Screw
37. 530069945 Kit--Connecting Rod Assy.
38. 530071833 Kit--Piston (Incl. 39 & 40)
39. 530015162 Wrist Pin Retainer
40. 530055120 Piston Ring
41. 530071785 Kit--Piston/Rod Assy.( Incl. 37,38)
42. 530015953 Screw
43. 530012500 Cylinder
44. 952030249 Spark Plug (RCJ--6Y)
45. 530071472 Gasket--Muffler kit)
46. 530071778 Kit--Muffler(incl. #45,47--49)
47. 530016338 Bolt--Muffler
48. 530071544 Kit--Spark Aresstor
49. 530015241 Screw
Part No. Description Ref. Part No. Description
Ref.
10 11
15
14
12
13
16
9
18
19
20
30
25
31
32
21
22
23
24
26
27
36
28
35
34
33 37 39 40
38
42
43 44
8
1
2
3
Gasket
Kit
29
1
6
7
5
4
=NEW PART NUMBER FOR THIS IPLn=REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
K
TYPE 5
48
49
45
47 46
17
41

R
POULAN PARTS LIST
RR
POULAN PRO PARTS LIST
PARAMOUNT PARTS LIST
R
PARTS LIST
REPLACES
5
Note: Illustration may differ from actual model due to design changes
PARTS L IST NO.
PAGE NO.
MODEL(s)
530086385 FL1500LE
DATE
3/27/09 530086385 --- 6/06/08
1. 530016392 Screw
2. 530049488 Handle--Starter
3. 530069907 Kit--Rope
4. 530069952 Kit--Starter Pulley
(Incl. 1)
5. 530042086 Spring--Starter
6. 530015149 Washer
7. 530052334 Housing--Impeller (Upper)
8. 530015814 Screw
9. 530052434 Spacer--Flywheel
10. 530053237 Assy--Impeller
11. 530016260 Washer--Flat
12. 530092322 Lockwasher
13. 530626605 Nut
14. 530054181 Assy--Impeller Housing (Lower)
15. 530015886 Screw
16. 530014347 Assy--Fuel Cap
17. 530016349 Screw
18. 530069599 Kit--Fuel Line
19. 530053314 Grommet--Fuel Line
20. 530053021 Assy--Fuel Tank
(Incl. cap,filter, fuel lines)
21. 530014362 Fuel Pick--up Ass’y.
22. 530053461 Tube--Blower
530163349 Operator Manual
Part No. Description Ref. Part No. Description
Ref.
2
3
1
4
5
16
17
18
21
20
7
9
10
11
12
13
14
15
22
8
6
19
Not Shown
=NEW PART NUMBER FOR THIS IPLn=REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL) K
All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be
performed by qualified service
personnel.
WARNING
TYPE 1,2,3

R
POULAN PARTS LIST
RR
POULAN PRO PARTS LIST
PARAMOUNT PARTS LIST
R
PARTS LIST
REPLACES
6
Note: Illustration may differ from actual model due to design changes
PARTS L IST NO.
PAGE NO.
MODEL(s)
530086385 FL1500LE
DATE
3/27/09 530086385 --- 6/06/08
1. 530016392 Screw
2. 530049488 Handle--Starter
3. 530069907 Kit--Rope
4. 530071792 Kit--Starter Pulley
(Incl. 1)
5. 530042086 Spring--Starter
6. 530015149 Washer
7. 530058713 Housing--Impeller (Upper)
8. 530015814 Screw
9. 530052434 Spacer--Flywheel
10. 530053237 Assy--Impeller
11. 530016260 Washer--Flat
12. 530092322 Lockwasher
13. 530626605 Nut
14. 530054181 Assy--Impeller Housing (Lower)
15. 530015886 Screw
16. 530014347 Assy--Fuel Cap
17. 530016349 Screw
18. 530069599 Kit--Fuel Line
19. 530053314 Grommet--Fuel Line
20. 545103903 Assy--Fuel Tank
(Incl. cap,filter, fuel lines)
21. 530014362 Fuel Pick--up Ass’y.
22. 530052337 Tube--Blower
545186783 Operator Manual
522928602 Decal -- Spark Arrestor Warning
Part No. Description Ref. Part No. Description
Ref.
2
3
1
4
5
16
17
18
21
20
7
9
10
11
12
13
14
15
22
8
6
19
Not Shown
=NEW PART NUMBER FOR THIS IPLn=REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL) K
All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be
performed by qualified service
personnel.
WARNING
TYPE 4,5
n

R
POULAN PARTS LIST
RR
POULAN PRO PARTS LIST
PARAMOUNT PARTS LIST
R
PARTS LIST
REPLACES
7
Note: Illustration may differ from actual model due to design changes
PARTS L IST NO.
PAGE NO.
MODEL(s)
530086385 FL1500LE
DATE
3/27/09 530086385 --- 6/06/08
Ref. Part No. Description
Carb.
Repair
Kit
3
Gasket/
Dia.
Kit
4
Carburetor Assembly Part Number 530071471 (WT--12)
KIT D
KIT
12
KIT
KIT
KIT
KIT
KIT
KIT
KIT D
KIT D
KIT D
1. 530038478 Limiter Cap--Low (tan)
2. 530038479 Limiter Cap--High (brown)
3. 530071517 Carburetor Repair Kit
(KIT=CONTENTS)
4. 530071442 Gasket/Diaphragm Kit
(D=CONTENTS)
=NEW PART NUMBER FOR THIS IPLn=REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
K
All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be
performed by qualified service
personnel.
WARNING
Kit -- Carburetor Assy # 530071629 -- C1U--W12A
Note: No Repair kits are available for this carburetor, please order
the complete assembly part number 530--071629 ( C1U--W12A )
530071713 Kit--Throttle Lever
530071714 Kit--Choke Lever
