Weego 44.1 User manual

Flashlight Button
JUMP STARTING
POWER PACK
Model No. 44.1
QUICK START GUIDE

© 2018. Weego is a division of Paris Corporation. Patented & Patents Pending. All Rights Reserved. Rev 06/18
myweego.com
CHARGE UP YOUR WEEGO 44
When you unpack your new Weego 44 for the first time,
charge it up to 100% with either the wall or car charger
provided. Remember to recharge your Weego 44 every
6 months, even when you’re not using it – it will help
extend its lifespan.
POWERING ON/OFF
There’s a Power ON/OFF Button on the back of your
Weego 44. While powered “ON”, the blue power button
will remain illuminated. Make sure you turn OFF your
Weego 44 after every use; leaving it on slowly drains
the battery.
Indicator
Lights
Sequence:
20% Charged
40% Charged
60% Charged
80% Charged
100% Charged
GETTING TO KNOW WEEGO 44
It takes 3 hrs. to fully charge. The
indicator lights will flash one by one
while the unit is charging. A solid light
indicates a completed level of charge.
Power ON/OFF Button
15V/1A Recharge (Input) Port
Power ON/OFF Button
Back of Unit
Lanyard Post
Back of Unit
500 Lumen LED Lights
Smarty Clamps®Socket
19V/3.5A Laptop Port
(Blue)
12V/10A Accessory Port
(Black)
Detect-O-Matic™USB Port
5V, 9V or 12V/2.4A
Battery Indicator Lights Flashlight Button
Smarty Clamps®

Read all instructions and safety information prior to using this product.
Improper use of this product will void your warranty and may result in
product damage, excess heat, toxic fumes, re, and other unsafe
conditions for which Weego is not responsible.
Read vehicle owner’s manual rst: it may have specic cautions
and instructions about jumping your engine.
This product is for use on 12V Lead-Acid batteries only! DO NOT use
this product on any other voltage battery, such as 6V, 24V, etc. DO NOT
use this product on lithium-ion batteries.
Never jump an engine in an enclosed area.
Put your vehicle in PARK and engage the emergency brake (boats and
powersports’ vehicles should be put in NEUTRAL).
TURN OFF ALL ELECTRONICS! – air conditioner, radio, lights, etc.
Remove any devices attached to your Weego 44.
Never leave your Weego 44 connected to your engine’s battery unless
actively jumping.
Always disconnect the Smarty Clamps®from your Weego 44 when
not in use.
BEFORE YOU JUMP
JUMP STARTING
WEEGO CUSTOMER SUPPORT We are dedicated to providing
the best possible service. To reach Weego Customer Support, visit
myweego.com/support or email suppor[email protected].

Connect Clamps
Attach Black (-), Then Red (+)
Power ON
Once it Starts, Disconnect Clamps
from Weego 44
Detach Clamps From Battery
When You Have FLASHING GREEN LIGHT
On Your Smart Box, Start Your Engine

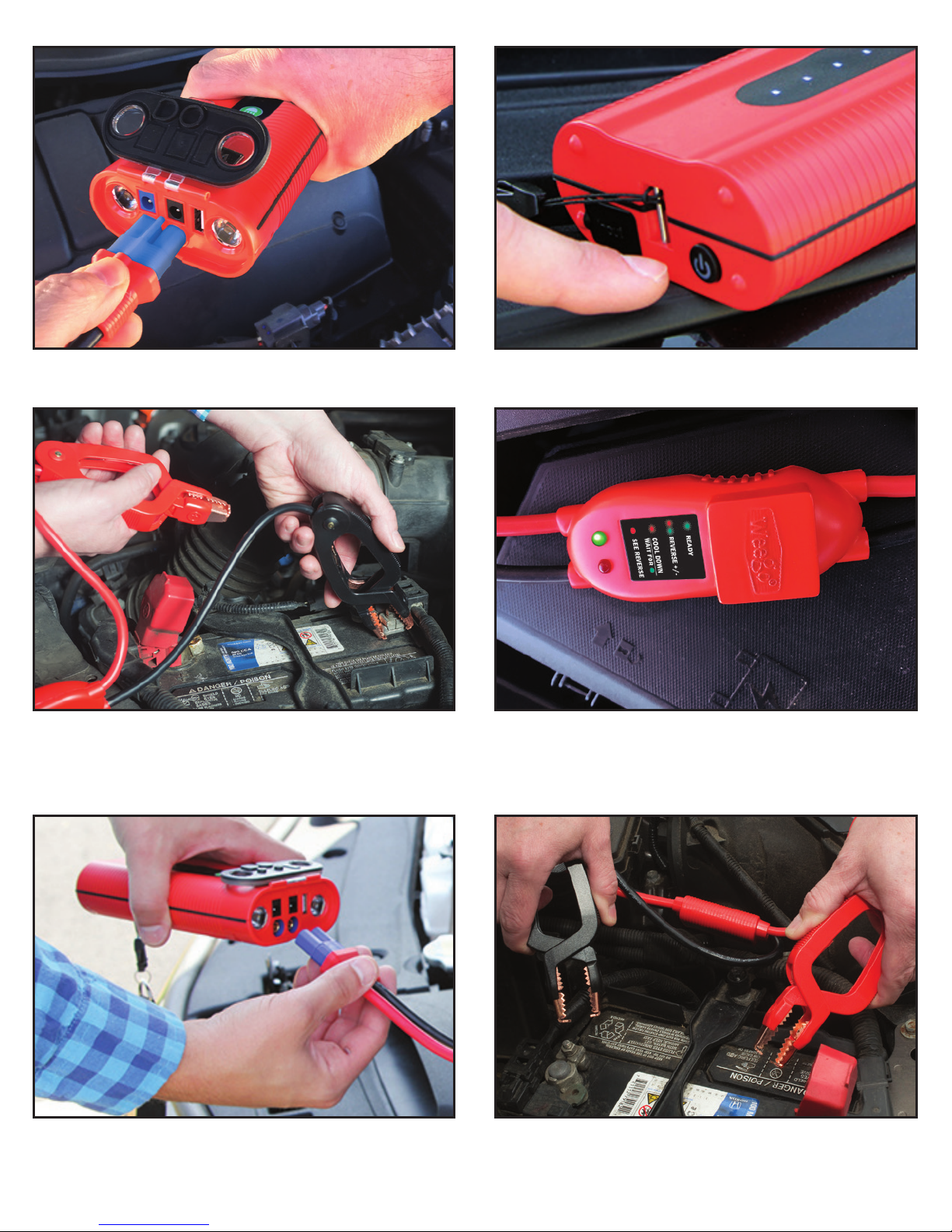

JUMP STARTING YOUR ENGINE
1. Ensure your engine is completely OFF.
2. Securely connect the Smarty Clamps®to your Weego 44, then power ON.
3. Attach BLACK clamp to your battery’s negative (-) terminal, then the RED clamp
to your battery’s positive (+) terminal. Adjust your Smarty Clamps®to achieve
MAXIMUM contact with the terminals. Poor connections will prevent you from
starting your engine! Clear off any dirt or build-up with a wire brush or a dry towel
before connecting your clamps.
4. Place your Weego 44 in a secure location or suspend using the provided hook &
lanyard so it won’t fall. Check your Smarty Clamps®lights.
5. When you have a FLASHING GREEN READY light, start your engine. If the engine
doesn’t start, turn off your vehicle and check your Smarty Clamps®lights.
6. After a successful start, quickly disconnect the Smarty Clamps®from your
Weego 44.
7. Detach the Smarty Clamps®from the battery.
8. You’re now good to go - be sure to run your engine for at least 15 minutes before
shutting it off again so it has time to recharge your battery.
If you are having issues getting your engine started, see the Troubleshooting
section in your quick start guide, owners manual or on myweego.com for further
details and assistance.
WARNING!
Exposed Metal Jaws May Be HOT After Use!

UNDERSTANDING YOUR Smarty Clamps®
Your Smarty Clamps®have a “smart” box that will help guide you through a
jump with both sight and sound. It will let you know when it is safe to jump or
if there is an error.
Flashing Green & Red Lights + Beeping
REVERSE +/-
You attached the Smarty Clamps®on the wrong
terminals. Make sure the BLACK clamp is attached to the
battery’s NEGATIVE (-) terminal, and the RED clamp is
attached to the battery’s POSITIVE (+) terminal. If not
attached properly, Weego 44 will not let you jump your engine.
READY Flashing Green Light, No Sound
Smarty Clamps®detect that you have a good connection
and you are ready to jump.
There’s a voltage incompatibility. The battery is too weak to
even start OR the system voltage of your vehicle is not
compatible with your Weego 44 (for 12V vehicles ONLY).
Solid Red Light, No Sound
There may be an engine incompatibility issue if the engine
you’re connecting to is demanding more power than the
Weego is able to give (440A). Please see Engine
Compatibility in the owner’s manual to determine if your
engine size falls within the scope of Weego 44.
SEE BACK
Solid Red Light + Beeping
SEE BACK
COOL DOWN
WAIT FOR
Flashing Red Light + Beeping
The Weego battery overheats after long cranks or excessive
current draw. Detach the Smarty Clamps®from the battery
and give the unit up to 3 minutes to cool down. Then, repeat
steps 2-5 under Jump Starting Your Engine.
Either you have a poor connection, or your battery is so dead
(nearly 0 volts) that your Weego clamps cannot register a
connection.
No Light

Visit www.myweego.com/support/ for FAQs and additional
troubleshooting inquiries and details.
My unit won’t power on/charge/charge past a few lights
If you’re unit won’t power on, won’t take a charge OR won’t charge past a few
lights then it’s been overdischarged. This can happen if the unit is left ON, or if an
engine pulled the Weego battery past a certain limit during a jump start.
Please reach out to [e-mail] to let them know about this issue –
we’ll receive and test the overdischarged Weego, then determine if we can repair
it or if it needs to be fully replaced.
The Weego won’t jump start my vehicle
A few things can attribute to a failed jump start, which we listed below. For more
detail please visit our troubleshooting page at www.myweego.com/support
• Poor connection between the Weego clamps and vehicle battery: the better
the connection, the more likely you are to have a successful jump
• Dirty battery terminals: build up prevents all the available power from
reaching your battery
• Vehicle-specific compatibility issues: occasionally we come across a vehicle
that has unique power demands that a smaller model cannot fulfill, even
though it’s within our recommended engine range. In addition, vehicles with
heavier electronics can sometimes create issues when jumping with a Weego;
we mostly see this in push-to-start vehicles.
• Cold temperatures: Freezing temperatures create a lot of resistance in an
engine which means it can require up to 3.5X the usual amount of power to
get started; for example, an engine that usually needs 200A could need up to
700A in the extreme cold. In addition, if your Weego was stored in the cold
temps it will make it harder for the Weego to deliver its full power.
• Low-Charged Weego: it’s always best to work with full power on your Weego if
you can. Our jump starters perform better at 100% charge than they do at
20% charge, especially when jumping larger engines.
TROUBLESHOOTING

Charge your phone, tablet and other
portable devices with your Weego 44 using
your own USB charging cord. Your Weego 44
comes equipped with Detect-o-Matic™
USB Charging. This intelligent charger
communicates with your device to detect
and deliver the fastest-possible charge.
To charge your devices, plug your charging
cord into your Weego 44 USB port and
connect to your device. Power on your Weego 44 and start charging!
USB CHARGING
USB Charging Port
LIGHTING
Your Weego 44 comes with a 500 lumen LED
ashlight. Power on your Weego 44, then
briey press and release the ashlight button
to initiate the following sequences:
• 1st click: Normal • 2nd click: Strobe
• 3rd click: SOS • 4th click: OFF
You can also skip directly to the OFF position
by holding down the flashlight button.
Your Weego 44 will give you up to 14 hours of flashlight time and up to 28 hours
of strobe & SOS light on a full charge.
