weewell WPB950 User manual

WPB950
Electric Double Breast Pump
Elektrikli Çiftli Göğüs Pompası
KULLANIM KILAVUZU
USER MANUAL EN
TR

CONTENTS
Main Features of the Product ................................................2
Description of Components List ............................................3
Panel ....................................................................................4
LCD display screen ...............................................................6
Precautions for use ...............................................................7
Assembly of electric breast pump .........................................8
Single/Double suction operation.........................................11
Assembly of power adapter.................................................12
Usage .................................................................................12
How to store and warm the breast milk...............................13
Troubleshooting .................................................................14

2ǀ WPB950 USER MANUAL
Main Features of the Product
Weewell electric breast pump is designed for breast-feeding mothers. Origi-
nal barometric pulse massage technique, along with high microcomputer te-
chnology, simulates the rhythm of baby sucking. Nine-gear ajustable suction
level, and two-stage frequency of massage and suction provide mothers with
LCD screen + 9 gear suction + Memory function
Optimal suction regulation of 9 gears is available for
both lactation promotion through massage and simu-
lation of suction. The simple and intuitive LCD interface
can display suction gear and dynamic time clearly. With
memory function, the system can automatically memo-
rize the gear of lactation promotion and suction before
power-o.
Massage + suction dual-frequency mode
The design of two-stage frequency achieves lactation
promotion through massage and simulation of suction.
The two modes can be easily switched. During lactati-
on promotion through massage, massage the breast to
promote lactation; in simulation of suction, simulate the
baby’s suction, stop and release to suck milk in an easy
and eective way.
Free matching of cups
Cups in diameter of 23,5mm and 26,5mm are provided.
Suitable cups can be selected according to the size of
breasts for safe and comfortable suction.
High-eciency double suction
Single/Double suction, switchable, time-saving, comfor-
table, high-eciency.

WPB950 USER MANUAL ǀ3
Multi Power Mode
USB/Adaptor
Mini portable simple shape
Sample mini shape design, portable.
Description of Components List
Please check the quantity of components before use, and contact with the
stores if there is any missing parts.
Name Material Heat Cold Quantity
A Breast silicone ring Silicone 200°C -20°C 2
B Breast shield(diame-
ter of 23,5mm and
26,5mm)
PP 120°C -20°C 4
C Pump body PP 120°C -20°C 2
D Suction silicone Silicone 200°C -20°C 2
E Upper cover PP 120°C -20°C 2
F Suction vacuum valve Silicone 200°C -20°C 2
G Wide neck adapter PP 120°C -20°C 2
H Feeding bottle (160
ml)
PP 120°C -20°C 2
I Connecting tube Silicone 200°C -20°C 2
J Tube port PP + TPE 90°C -20°C 2
K Joint ABS 80°C -20°C 2

4ǀ WPB950 USER MANUAL
L Motor ABS / / 1
M Sealing cover PP 120°C -20°C 2
N USB cable / / / 1
O Power adapter / / / 1
P Base PP 120°C -20°C 2
The instruction ma-
nual
1
*The product may be inconsistent with the picture. The actual content shall
prevail.
*Breast silicone ring, suction vacuum valve, suction silicone and connecting
tube are easy damage parts. In case of damage after the product is sold, ple-
ase purchase from sales agencies of our company.

WPB950 USER MANUAL ǀ5
Panel
Power key – ON/OFF switch. (Auto powerr-o after 30 min by default
from pressing the key for the last time)
Mode switch –massage/suction, switch selection key. (Automatically shift
to suction mode after 2 min of lactation promotion)
Mode switch – Single/Double suction, switch selection key.

6ǀ WPB950 USER MANUAL
Suction “+” key – 1-9 gears of suction. Press once, the suction enhances
by one level.
Suction “-“ key – 1-9 gears of suction. Press once, the suction attenuates
by one level.
LCD display screen
Name Sign Content
Lactation promotion mode Mode of lactation pro-
motion and massage
Suction mode Mode of suction and
collection
Single suction mode Current mode is single
suction
Double suction mode Current mode is
double suction
Current gear Current gear, 1-9 ge-
ars, gear 9 is the most
powerful
Running time Display current run-
ning time

WPB950 USER MANUAL ǀ7
Precautions for use
Please carefully read the operating instruction and deeply understand the
precautions points before using the product.
Please use the original power adapter of the product.
Please don’t use in bath or shower.
Please assemble or disassemble the parts in the order of right sequence; ple-
ase pay attention to tiny parts when disassembling for cleaning to prevent
impossible assembly or breakdown of the machine, etc. due to missing parts.
Please keep the product out of infants reach.
Set the suction level according to personel constitution to nish suction of
milk with the most comfortable suction mode.
Please use the electric breast pump under the guidance of doctors and nurses
when milk ejection is little.
Please don’t suck milk unduly in case the breast is hurt.
Please immediately inquire medical sta if the product causes pain.
Please don’t use the machine as milk opener. Breast pump is a tool that helps
mothers alleviate breast distension postpartum and lengthens breast feeding
time. It is used on the premise of sucient milk and smooth mammary gland.
Some new mothers tend to suer from unsmooth mammary gland (partly
caused by congenital crater nipple) or insucient milk. You are advised to
purchase the breast pump after conrming that mammary gland is smooth
and breast milk is normal through professional examination of the breasts.
Please clean and disinfect the accessories before use; immediately clean and
keep the components dry after use; the main engine and power adapter can’t
be cleaned or disinfected with water.
If the main engine falls into water, please stop using and repair it at designa-
ted after-sales service center.
In case of any damage, this machine must be replaced by professionals of the
manufacturer, maintenance department or similar department to avoid dan-
ger.

8ǀ WPB950 USER MANUAL
The product is only for purposes described in the instruction.
Assembly of electric breast pump
Insert (B) breast shield into the hole of (C) pump body to the bottom to tightly
connect them.

WPB950 USER MANUAL ǀ9
Wrap the rim of (B) bra with (A) breast silicone ring to make them closely t.

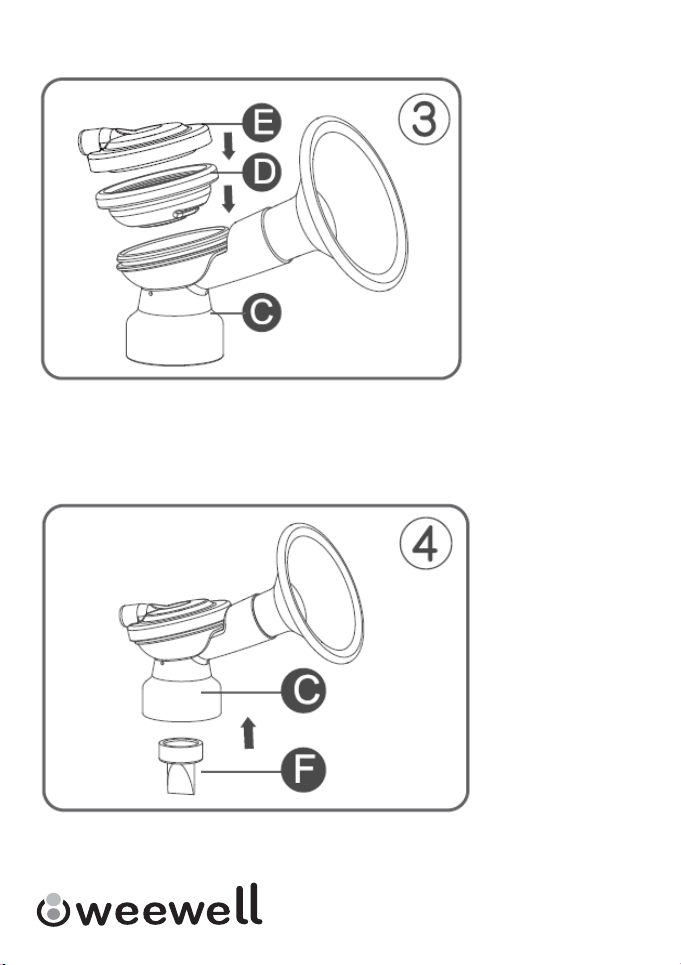

Insert (D) suction silicone into hole at the upper end of (C) pump body to
wrap the rim of hole of (C) pump body with groove of (D) suction silicone to
make them closely t. Then press (E) upper cover onto hole at the upper end
of (C) pump body.

10ǀ WPB950 USER MANUAL
Install (F) suction vacuum valve onto cylinder in the lower part of (C) pump
body. Insert it to the bottom to tightly connect them.
Screw (H) bottle onto (G) wide neck adapter, and then screw on the bottom of
(C) pump body to tightly connect them.

WPB950 USER MANUAL ǀ11
Insert (H) bottom of bottle into (P) base, assembly completed.
Single/Double suction operation

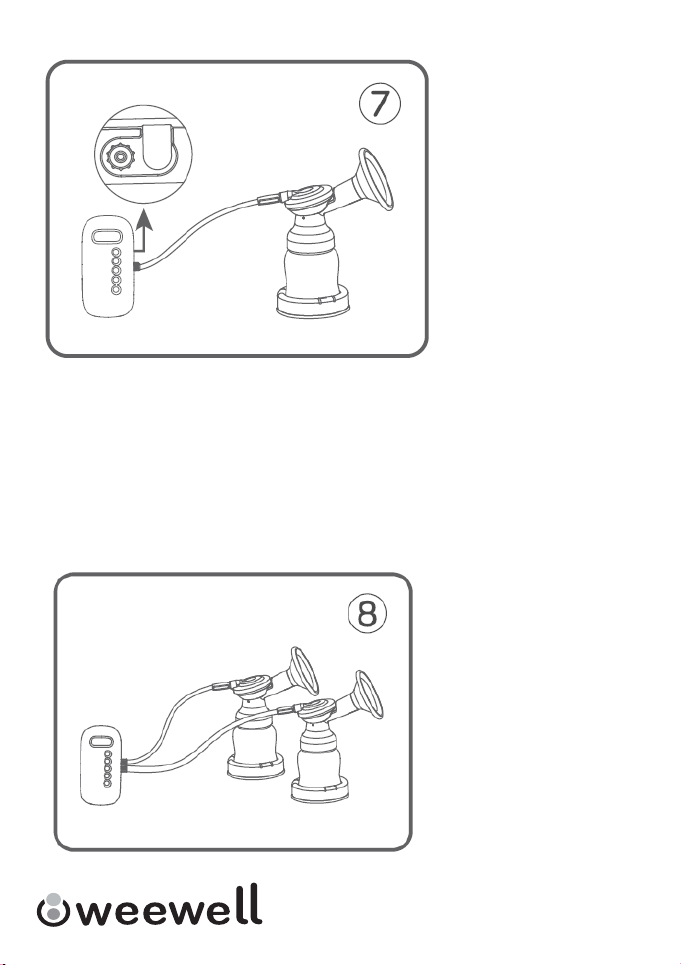

Single suction:
Connect one end of one connecting plug to joint of upper cover, and the ot-
her end to air outlet of main engine, plug in the other outlet of main engine,
plug in the other outlet of main engine with stopple, select single suction
mode.

12ǀ WPB950 USER MANUAL
Double suction:
Connect one end of two connecting plugs to joint of upper cover, and the
other end of two connecting plugs to air outlet of main engine, select double
suction mode.
Note:
Single suction: do not select double suction mode, select single suction mode
and plug in the other outlat of main engine with stopple.

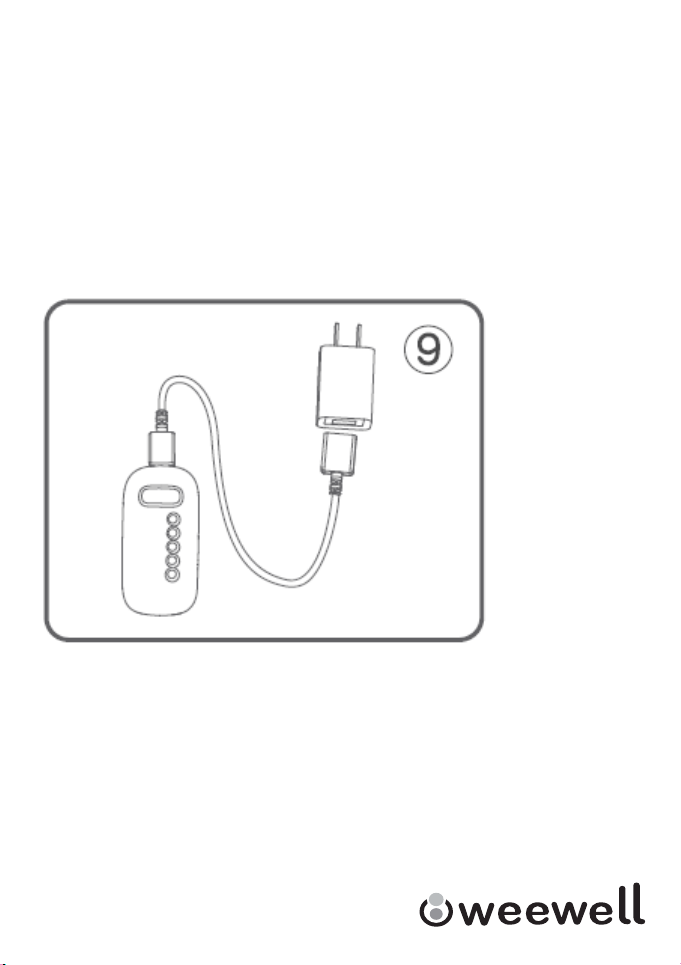

Assembly of power adapter
Please insert the USB charging line to DC hole, the other end insert USB power
adapter hole.
Usage
1) Moms have comfortable sitting posture.
2) Ensure parts are correctly assembled. Ensure USB adapter are properly as-
sembled to pump module. (output current : 5V1A or 5V2A plug)

WPB950 USER MANUAL ǀ13
3) Press button, generally speaking, the rst time, it is single suction
mode. sign will show up on the LCD screen, pump is operating in sing-
le suction massage mode.
4)Press or to increase and decrease the suction pressure as de-
sired, there are 9 levels of suction pressure, the default setting for suction
pressure of pumping mode is set at level 5.
5) 30 mins automatic cycle to provide scientic lactation cycle, 2 mins massa-
ge, then automatically transferred to 30 mins milking.
6) How to nd your most comfortable suction pressure level; please increase
the suction pressure level until you feel a little ache, then decrease the sucti-
on pressure level.
7)After using, press button, the light indicator will go out, turn o the
power and disconnect the plug or USB cord.
8) Wash and sterilize all breast pump parts (except pump body and adapter,
USB) after using. Allow parts to dry completely before keeping in dry and cool
place.
How to store and warm the breast milk
Room
temperature
Refrigerator Freezer Indepen-
dent fre-
ezer
Freshly expres-
sed into closed
container
No 3-5 days
(4°C or
lower)
6 months
(-6°C)
12 months
(-18°C)
Previously fro-
zen-thawed in
No 0 hours No refrige-
rator but not
warmed or
used
*From: breastfeeding: A guide for the medical professional

14ǀ WPB950 USER MANUAL
Sterilize and clean feeding bottles before storing the breast milk. Use 4oz or
5oz bottle for easy thawing and warming.
Write the date/milk of expression and label it on the feeding bottles, so as to
insure that the bottle of the earlier date/milk will be consumed rst.
Breast milk stored in freezer should be taken out and placed in refrigerator to
thaw, the night before you use it.
Do not thaw breast milk at room temperature, Do not refreeze milk once
thawed.
When it is time for feeding, remove the milk from refrigerator. Shaking the
contents gently to blend the fats that may have separated.
Microwaving breast milk is not recommended.
Troubleshooting
Pump Module
When inserting battaries, make sure that the polarities are correct.
Remove batteries with low charge.
Ensure that the ends of the hose are tted properly to breast pump and motor
unit.
Insucient Suction Pressure
Make sure all parts are assembled correctly.
Batteries are on low or no charge.
Check if the valve is correctly inserted.
Ensure breast is aligned to the breast shield with no gaps in between.
Clean Caution
After using, please kindly wipe the motor with a clean wet cloth.
Do not clean the motor, USB and adapter, you can put the other components
into sterilizer for sterilizing.

WPB950 USER MANUAL ǀ15
When assembling and dismantling the breast pump, please make sure all the
components are assembled properly; when washing the breast pump, please
take care of the small components, so as to avoid abnormal working status
due to components loss.
Before cleaning, please disconnect the power cord and wait till colling.
Do not immerse the pedestal in water when cleaning; suggest wiping with a
clean cloth only.

16ǀ WPB950 KULANIM KILAVUZU
İçindekiler
Kullanım Kılavuzu ....................................................................................... 17
Güvenlik Uyarıları (Kullanım Hatalarına İlişkin Bilgiler & Bakım ve Onarım).. 17
Uyarılar....................................................................................................... 18
Genel Bilgiler .............................................................................................. 18
Göğüs Masajı – Sağıma Hazırlık................................................................... 18
Ürün Ana Özellikleri.................................................................................... 20
İçerik Listesi................................................................................................ 21
Panel .......................................................................................................... 23
LCD ekran................................................................................................... 24
Kullanım Uyarıları ....................................................................................... 24
Ürünün Montajı........................................................................................... 25
Güç adaptörünün montajı ........................................................................... 30
Kullanım ..................................................................................................... 30
Sütün Saklanması........................................................................................ 31
Uyarı........................................................................................................... 31
Saklama Koşulları........................................................................................ 31
Sorun Çözme .............................................................................................. 32
Temizlik Uyarıları........................................................................................ 33
Temizleme.................................................................................................. 33
Dikkat!........................................................................................................ 33
Taşıma ve Nakliye ....................................................................................... 34
Enerji.......................................................................................................... 34
Tüketicinin Seçimlilik Hakları ...................................................................... 34
Teknik Özellikler......................................................................................... 35

WPB950 KULANIM KILAVUZU ǀ17
Kullanım Kılavuzu
Bu nitelikli ürüne sahip olduğunuz için sizi tebrik ederiz. Bu cihazı etkin ve
güvenli bir şekilde kullanabilmek için kılavuzu dikkatlice okuyunuz ve ileride
başvurabilmek için saklayınız.
Güvenlik Uyarıları (Kullanım Hatalarına
İlişkin Bilgiler & Bakım ve Onarım)
1. Weewell göğüs pompası parçaları kullanım kılavuzunda anlatıldığı gibi ek-
siksiz ve hatasız monte edildikten sonra kullanılmalıdır. Aksi taktirde ürün
sağlıklı çalışmayacaktır ve istenilen verim alınamayacaktır.
2. Kullanım kılavuzundaki “Ürünün Kullanımı” talimatlarını dikkatlice okuyu-
nuz ve birebir uygulayınız. Aksi durumlarda sağım işlemi sağlıklı yapılamaya-
caktır.
3. Kullanım kılavuzundaki “Sütün Saklanması” ile ilgili talimatlara uyarak be-
beğiniz için sağdığınız sütün sağlıklı saklanmasını sağlayabilirsiniz.
4. Ürünümüz hijyen derecesi yüksek olan bir üründür. Dolayısıyla hijyen seti
kişiye özeldir. Başkaları ile paylaşılması sağlık açısından uygun değildir.
5. Ürünü kendi orijinal adaptörü ile kullanınız. Bozulması ve kaybolması duru-
munda teknik servisinden tedarik ediniz.
6. Ürünü kesinlikle demonte etmeyiniz, tamir etmeye çalışmayınız. Cihazınız
bozulduğunda tamir için Weewell Yetkili Servisi’ne götürünüz. Yetkili servis
dışında cihazın demonte edilmesi, üzerinde işlem uygulanması, sistemine
müdahale edilmesi cihazın garanti kapsamından çıkmasına neden olacaktır.
7. Kullanım ya da saklama durumundayken ürünü nemden, tozdan, doğrudan
güneş ışığından, herhangi bir ısı kaynağından ve ısı yayan cihazlardan uzak
tutunuz. Isıya, neme veya toza maruz kalarak bozulan ürünler garanti kapsa-
mı dışındadır.

18ǀ WPB950 KULANIM KILAVUZU
Uyarılar
• Göğüs yapınızın pompa kullanmaya uygunluğu konusunda lütfen doktoru-
nuza başvurunuz.
• Motoru ve adaptorü kesinlikle suya batırmayınız.
• Sadece orjinal parçaları kullanınız, aksi takdirde cihazınız zarar görebilir.
• Eğer cihaz bozulursa tamiri sadece Yetkili Servis tarafından yapılmalıdır,
aksi durumda garanti kapsamından çıkacaktır.
• Eğer süt premature bebek için alınıyorsa doktorun tavsiyelerine uyduğunuz-
dan emin olunuz.
• Kullanım öncesi tüm parçaların temiz ve steril olduğundan emin olunuz.
Genel Bilgiler
Sağım için sessiz, rahat, kimsenin rahatsız etmeyeceği bir yere geçmenizi tav-
siye ediyoruz. İlk kez kullanıma başlarken sütün gelmesi biraz uzun sürebilir.
Bu durum gayet normaldir. Vücudunuz süt üretimini günlük tüketime göre
ayarlayacaktır. Günlük süt tüketimi bebekten bebeğe değişkenlik gösterir. Bu
nedenle ilk emzirmeye başlandığı dönemde süt üretimini arttırmaya çalışılma-
sındansa sıvı tüketimini arttırmaya çalışılması tavsiye edilmektedir.
Göğüs Masajı – Sağıma Hazırlık
Bazı anneler manual ya da elektrikli göğüs pompasıyla sağım yapmakta zorluk
çekebilirler. Göğüs üzerine sıcak kompres uygulamak süt kanallarını açamak
süt akışını kolaylaştıracaktır.

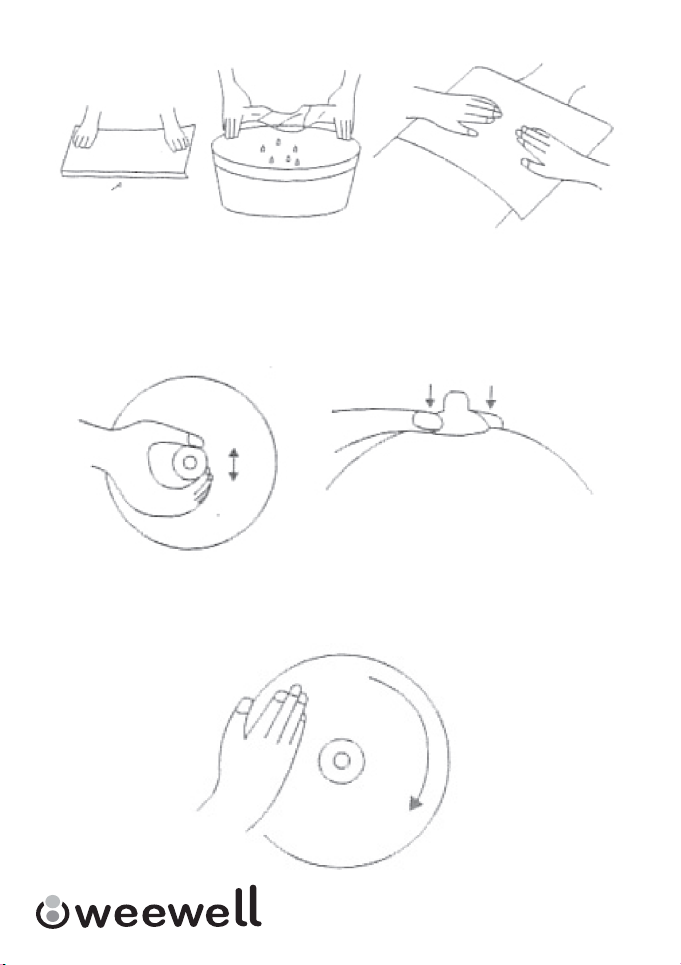

Sıcak kompresi aşağıdaki gibi hazırlayınız:
1. Temiz bir havluyu sıcak suyun içine batırınız (60-70°C).
2. Havluyu sıkarak fazla suyu alınız.
3. Havluyu göğsünüzün üzerine yerleştiriniz ve soğuyana kadar birkaç dakika
üzerinde tutunuz.
4. Adımları 1’den 3’e 4 kere tekrarlayınız.

WPB950 KULANIM KILAVUZU ǀ19
Sıcak kompres tamamlandıktan sonra göğüse masaj uygulamak Göğüs kanal-
larının açılmasına yardımcı olacaktır.
• Baş parmağınız ve işaret parmağınızı göğsün ucuna yerleştirerek yavaşça
5-6 kez aşağı yukarı şeklinde masaj yapınız.
• Göğsü 4 parmağınız ve baş parmağınızı şekildeki gibi yerleştirerek dairesel
hareketlerle nazikçe masaj yapınız. Herbir göğüs için 5-6 dönüşten sonra
durunuz.
