ModelNo.831.150302
SerialNo.
Writetheserialnumberinthe
spaceaboveforreference,
SerialNumberDecal(underseat)
oAssembly
Adjustments
Part List and Drawing
WEIGHT BENCH EXERCISER
User's Manual
_kCAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manu-
al for future reference.
Patent Pending
Sears, Roebuck and Co., Hoffman Estates, IL 60179
TABLE OF CONTENTS
WARNING DECAL PLACEMENT .............................................................. 2
IMPORTANT PRECAUTIONS ................................................................. 3
BEFORE YOU BEGIN ....................................................................... 4
PART IDENTIFICATION CHART ............................................................... 5
ASSEMBLY ............................................................................... 6
ADJUSTMENTS .......................................................................... 10

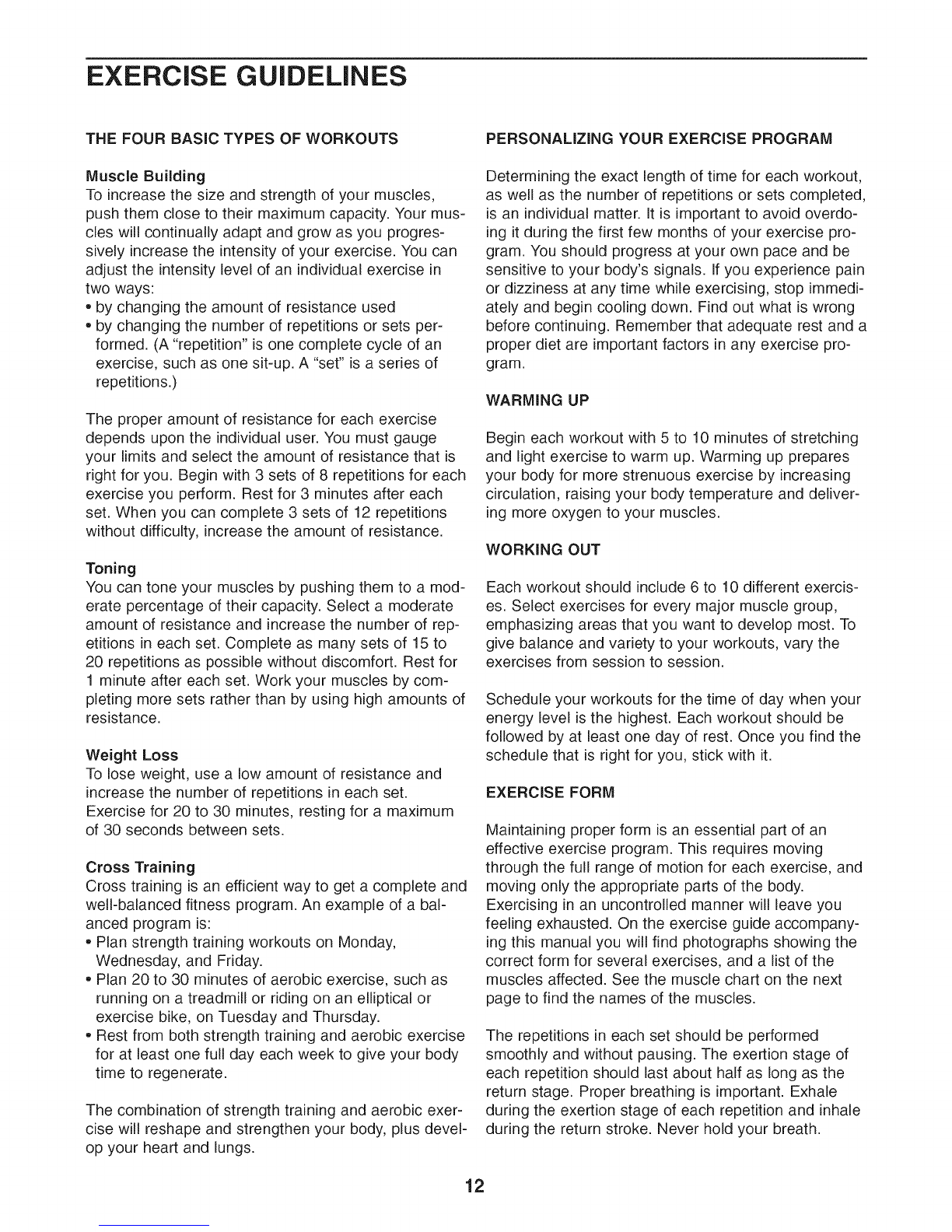

EXERCISE GUIDELINES ................................................................... 12
PART LIST ............................................................................... 14
EXPLODED DRAWING ..................................................................... 15
ORDERING REPLACEMENT PARTS .................................................. Back Cover
FULL 90-DAY WARRANTY ........................................................... Back Cover
WARNING DECAL PLACEMENT
The warning decal shown here has
been placed on the weight bench in
the location shown. If the decal is
missing or illegible, please call toll-
free 1-877-992-5999, Monday through
Friday, 6 a.m. until 6 p.m. Mountain
Time, and order a free replacement
decal. Place the decal on the weight
bench in the location shown.
, Misuse of this machine may result in serious injury.
• Read user's manual prior to use and follow all warnings
and instructions.
=Do not allow children on or around machine.
,Keep body, clothing, and hair free and clear of all moving
parts.
Re_ label if damaged, illegible, or removed.
2
iMPORTANT PRECAUTIONS
WARNING: Toreducetheriskofseriousinjury, readthefollowing important precau-
tionsbefore using the weight bench.
1. Read all instructions in this manual before 11. Always wear athletic shoes for foot protec-
using the weight bench. Use the weight tion while exercising.
bench only as described in this manual. 12. Do not use a barbell that is longer than
2. It is the responsibility of the owner to ensure seven feet with the weight bench.
that all users of the weight bench are ade-
quately informed of all precautions.
3. The weight bench is intended for home use
only. Do not use the weight bench in any
commercial, rental, or institutional setting.
4. Keep the weight bench indoors, away from
13. Always make sure there is an equal amount
of weight on each side of your barbell when
you are using it. Always keep some weight
on both ends of the barbell when adding or
removing weights to prevent the barbell from
tipping.
moisture and dust. Do not put the weight 14. When you are using the leg lever, place a
bench in a garage or covered patio, or near barbell with the same amount of weight on
water, the weight rests to balance the bench.
.
.
.
Use the weight bench only on a level surface. 15. Always exercise with apartner. When you
Cover the floor beneath the weight bench to are performing bench press exercises, your
protect the floor, partner should stand behind you to catch the
Make sure all parts are properly tightened
each time the weight bench is used. Replace
any worn parts immediately.
Make sure the set screws attaching the
Olympic adapters are properly tightened
each time the adapters are used.
8. Keep children under 12 and pets away from
the weight bench at all times.
9. Keep hands and feet away from moving parts.
barbell if you cannot complete a repetition.
16. Make sure that the adjustment knobs are
inserted completely and tightened into the
uprights before beginning any exercise.
17. When you put weight on the weight rests,
make sure you put at least ten pounds on the
leg lever to balance the weight bench.
18. Always remove the cud post from the front
leg before performing leg curls with the leg
lever.
10. The weight bench is designed to support a19. Do not sit on the top end of the backrest;
maximum user weight of 300 pounds, and a this will cause the weight bench to tip.
maximum total weight of 610 pounds. Do not
place more than 310 pounds, including a bar- 20. if you feel pain or dizziness at any time while
bell and weights, on the weight rests. Do not exercising, stop immediately and begin cool-
place more than 150 pounds on the leg lever, ing down.
Note: The weight bench does not include a
barbell or weights.
WARNING: Beforebeg nn,ngthisoranyexerciseprogram,consu,yourphysician.This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. Sears assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
3
BEFORE YOU BEGIN
Thank you for selecting the versatile WELDER®PRO
235 weight bench. The weight bench offers an impres-
sive array of weight stations designed to develop
every major muscle group of the body. Whether your
goal is to tone your body, build dramatic muscle size
and strength, or improve your cardiovascular system,
the weight bench will help you to achieve the specific
results you want.
For your benefit, read this manual carefully before
using the weight bench. If you have questions after
reading this manual, call 1-800-4-MY-HOMF _
(1-800-469-4663). To help us assist you, please note
the product model number and serial number before
calling. The model number is 831.1 50302. The serial
number can be found on a decal attached to the
weight bench (see the front cover of this manual for
the location of the decal).
Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.
ASSEMBLED
DIMENSIONS:
Height: 45 in.
Width: 43 in.
Depth: 71 in.
Upright
Storage Tube
Curl Pad
Leg Lever
Weight Tube
-- Weight Rest
Backrest
Adjustment
Knob
Seat
Backrest
Bracket
4
PART iDENTiFiCATiON CHART
This chart is provided to help you identify the small parts used in assembly. The number in parenthesis by each
part refers to the key number of the part, from the PART LIST on page 14 of this manual. Important: Some
parts may have been pre-assembled for shipping purposes, if you cannot find a part in the parts bags,
check to see if it has been pre=assembled. If a part is missing, call toll-free 1=877=992=5999.
MIO Nylon Locknut (48)
M8 Nylon Locknut (29)
E
MIO Washer (46)
MIO x 76mm Bolt (38)
MIO x 72mm Bolt (43)
MIO x 68mm Bolt (31)
MIO x 65mm Bolt (35)
1/4" x lOmm
Set Screw (44) M8 x 58mm Bolt (42)
M8 Washer (47)
1
MIO Small
Washer (39)
M6 Nylon Locknut (40)
M6 x 40mm Bolt (27)
M6 x 16mm Screw (37)
D
M4 x 16mm Screw (45)
M6 Washer (36) 25mm Round Angle Cap (34)
5
ASSEMBLY
Make Things Easier for Yourself
Everything in this manual is designed to ensure
that the weight bench can be assembled suc-
cessfully by anyone. However, it is important to
realize that the versatile weight bench has many
parts and that the assembly process will take
time. Most people find that by setting aside plen-
ty of time, assembly will go smoothly.
Before beginning assembly, carefully read the
following information and instructions:
o Assembly requires two people.
Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
Tighten all parts as you assemble them, unless
instructed to do otherwise.
• As you assemble the weight bench, make sure all
parts are oriented as shown in the drawings.
For help identifying small parts, use the PART
IDENTIFICATION CHART on page 5.
The following tools (not included) are required
for assembly:
Two adjustable wrenches
One rubber mallet
One standard screwdriver
One Phillips screwdriver -=_
Lubricant, such as grease or petroleum jelly,
and soapy water.
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
,Before beginning assembly, make sure you
understand the information in the box
above.Forhe pdent fy ngsma,pa.sluse
the PART IDENTIFICATION CHART.
Note: The weight bench can be adjusted to be
used with either a standard barbell or an
Olympic barbell.
Align the holes in a Crossbar Extension (5) with the
desired set of holes in the Crossbar (4). Secure the
Extension in place with two M10 x 72ram Bolts (43),
four M10 Small Washers (39), two M10 Washers
(46), and two M10 Nylon Locknuts (48). Make sure
the Locknuts and the Small Washers fit inside
the hexagon holes in the Extension. Make sure
the warning decal is in the indicated position.
Repeat this step with the other Crossbar
Extension (5).
Olympic Width
Hexagon
Holes
39
39
Standard Width 48 Warning
Decal
48
43
46
39 Hexagon
Holes
43
Warning
Decal
6
2. 2
,
,
Lift the Weight Rest (9) in the Right Upright (7)
and secure it in a raised position with a Weight
Rest Knob (23).
Attach the Right Upright (7) to the right Crossbar
Extension (5) with four M10 x 76mm Bolts (38),
two Joint Plates (18), and four M10 Nylon
Locknuts (48). Do not tighten the Locknuts yet.
Repeat this step with the Left Upright (not
shown).
Attach the Front Leg (2) to the Bench Frame (1)
with two M10 x 65mm Bolts (35), two M10
Washers (46), and two M10 Nylon Locknuts (48).
Do not tighten the Locknuts yet.
Attach the Bench Frame (1) to the center holes in
the Crossbar (4) with two M10 x 72mm Bolts (43)
and two M10 Nylon Locknuts (48).
Tighten the M10 Nylon Locknuts (48) used in
steps 1-4.
38
18
5
48
2
Center
Holes 48
43\
43
7
.
.
.
Attach the Weight Tube (16) to the Leg Lever (3)
with an M8 x 58mm Bolt (42), two M8 Washers
(47), a 10ram Spacer (30), and an M8 Nylon
Locknut (29). Press a 25mm Round Angled Cap
(34) onto the end of the Weight Tube.
Lubricate an M10 x 68mm Bolt (31) with grease.
Attach the Leg Lever (3) to the Front Leg (2) with
the Bolt and an M10 Nylon Locknut (48). Do not
overtighten the Locknut; the Leg Lever must
be able to pivot easily.
Attach the Backrest Tubes (12) to the Backrest
Bracket (10) with four M6 x 40ram Bolts (27), four
M6 Washers (36), and four M6 Nylon Locknuts
(40), Do not tighten the Locknuts yet.
Insert the Backrest Bracket (10)into the slot in
the Bench Frame (1).
Lubricate an M10 x 168mm Bolt (41) with grease.
Attach the Backrest Tubes (12) to the Bench
Frame (1) with the Bolt and an M10 Nylon Locknut
(48). Do not overtighten the Locknut; the
Backrest Tubes must be able to pivot easily.
48
2
34 Lubricate
16
47 42
27 36 12
36
40
10
27
12
%
Lubricate 41
10
8
.Orient the Backrest (13) as shown. Attach the
Backrest to the Backrest Tubes (12) with four M6
x 40mm Bolts (27) and four M6 Washers (36).
Attach the tether on the Adjustment Pin (25) to
the Bench Frame (1) with an M4 x 16mm Screw
(45). Insert the Pin through the Bench Frame and
the Backrest Bracket (10).
Tighten the four M6 Nylon Locknuts (40) used
in step 6.
9. Orient the Seat (14) as shown. Attach the Seat to
the Bench Frame (1) with four M6 x 16mm
Screws (37).
10. Slide a Pad Tube (19) into the square hole in the
Front Leg (2). Slide two Foam Pads (20) onto the
Pad Tube. Make sure the Foam Pads are ori-
ented as shown.
Repeat this step with the other two Pad Tubes
(19) and the Leg Lever (3).
11. Attach the Curl Pad (15) to the Curl Post (11) with
two M6 x 16mm Screws (37).
12. Make sure that all parts are properly tightened
before you use the weight bench. The use of
all remaining parts will be explained in ADJUST-
MENTS, beginning on the following page.
9
Wide
36
27
10
11
Wide
End
12
20
19 19
20
/
11
37
ADJUSTMENTS
The weight bench is designed to be used with your own weight set (not included). The steps below explain how
the weight bench can be adjusted. See EXERCISE GUIDELINES on page 12 for important exercise information
and see the accompanying exercise guide to see the correct form for each exercise. Refer also to the
exercise information accompanying your weight set for additional exercises.
Make sure all parts are properly tightened each time the weight bench is used. Replace any worn parts immediate-
ly. The weight bench can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents.
ADJUSTING THE BACKREST
The Backrest (13) can be used in a decline position,
a level position, or an incline position. To use the
Backrest in the decline position, remove the
Adjustment Pin (25) and lay the Backrest on the
Crossbar (4).
To use the Backrest (13) in the level position, lift the
Backrest and insert the Adjustment Pin (25) through
the Bench Frame (1) and the top hole in the Backrest
Bracket (10).
To use the Backrest (13) in an incline position, lift the
Backrest and insert the Adjustment Pin (25) through
the Bench Frame (1) and a lower hole in the Backrest
Bracket (10).
ATTACHING WEIGHTS TO THE LEG LEVER
To use the Leg Lever (3), slide the desired weights
(not included) onto the Weight Tube (16).
WARNING than
150 pounds on the Leg Lever (3),
Weights can be stored on the tubes on the Uprights
(not shown).
ADJUSTING THE WEIGHT RESTS
To change the height of the Weight Rests (9), remove
the Weight Rest Knobs (23). Position the Weight
Rests to the desired height in the Uprights (8, 7 [not
shown]) and secure them with the Weight Rest Knobs.
RNING: A .ayssetbothWeight
Rests (9)atthe same height. Make sure the
Weight Rest Knobs (23)are inserted into both
the Upright (7 or 8)and the Weight Rest.
1
25
10
Weight
j23
f
10
