1. Read all instructions in this manual and all
warnings on the weight system before using
the weight system. Use the weight system
only as described in this manual.
2. It is the responsibility of the owner to ensure
that all users of the weight system are ade-
quately informed of all precautions.
3. The weight system is intended for home use
only. Do not use the weight system in any
commercial, rental, or institutional setting.
4. Keep the weight system indoors, away from
moisture and dust. Place the weight system
on a level surface, with a mat beneath it to
protect the floor or carpet. Make sure that
there is enough clearance around the weight
system to mount, dismount, and use the
weight system.
5. Inspect and properly tighten all parts regular-
ly.Replace any worn parts immediately.
6. Keep hands and feet away from moving parts.
7. Keep children under 12 and pets away from
the weight system at all times.
8. Always wear athletic shoes for foot protec-
tion while exercising.
9. Make sure that the cable remains on the pul-
leys at all times. If the cable binds as you are
exercising, stop immediately and make sure
that the cable is on the pulleys. Replace all
cables at least every two years.
10. The weight system is designed to be used
only with the included weight. Do not use the
weight system with dumbbells or any other
type of weight to increase the resistance.
11. The weight system is designed to support a
maximum user weight of 300 pounds.
12. Always make sure that the weight pin is
inserted fully into the weight stack before
exercising.
13. If you feel pain or dizziness at any time while
exercising, stop immediately and begin cool-
ing down.
14. Always secure the weight stack with the lock
pin and lock after exercising to prevent
unauthorized use of the weight system (see
LOCKING THE WEIGHT STACK on page 29).

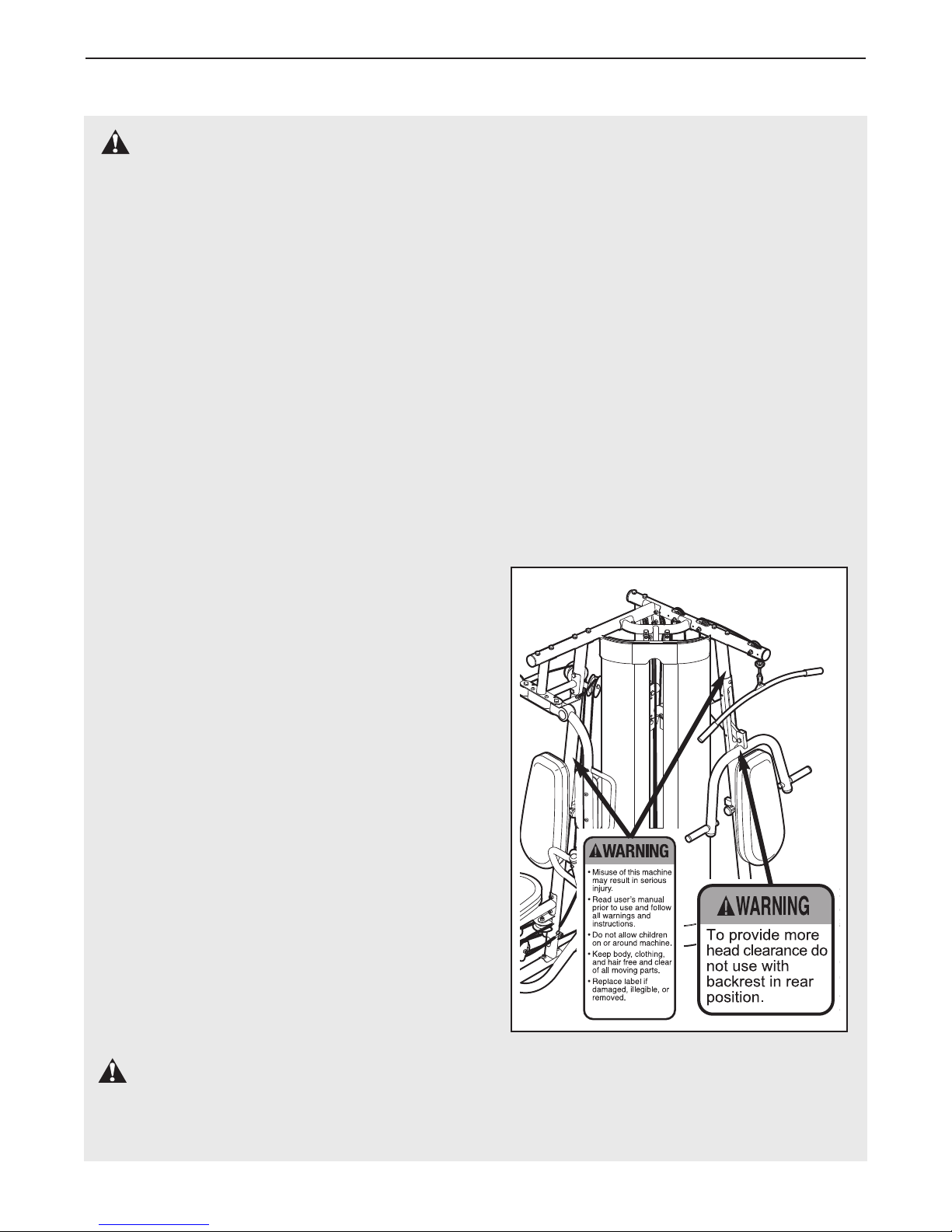

15. The decal shown below has been placed on
the weight system. If the decal is missing or
illegible, call toll-free 1-877-992-5999 and
order a free replacement decal. Apply the
decal in the location shown.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. SEARS assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
WARNING: To reduce the risk of serious injury, read the following important precautions
before using the weight system.
IMPORTANT PRECAUTIONS
3

4
Backrest
Curl Pad
Shroud
Weight
Backrest
Adjustment Knob
Military Press Arm
Seat Adjustment Knob
Curl Adjustment
Knob
Butterfly Arm
Seat
Right Side
Left Side
Note: The terms “right
side” and “left side”
are determined relative
to a person facing
away from the weight
system; they do not
correspond to right
and left on the draw-
ings in the manual.
Leg Lever Leg Press
Foam Pad
Foot Plate
Press Arm
Lat Bar
BEFORE YOU BEGIN
Thank you for selecting the versatile WEIDER™PRO
4950 weight system. The weight system offers a selec-
tion of weight stations designed to develop every major
muscle group of the body. Whether your goal is to tone
your body, build dramatic muscle size and strength, or
improve your cardiovascular system, the weight system
will help you to achieve the specific results you want.
For your benefit, read this manual carefully before
using the weight system. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number is 831.14623.0. The serial number can
be found on a decal attached to the weight system
(see the front cover of this manual).

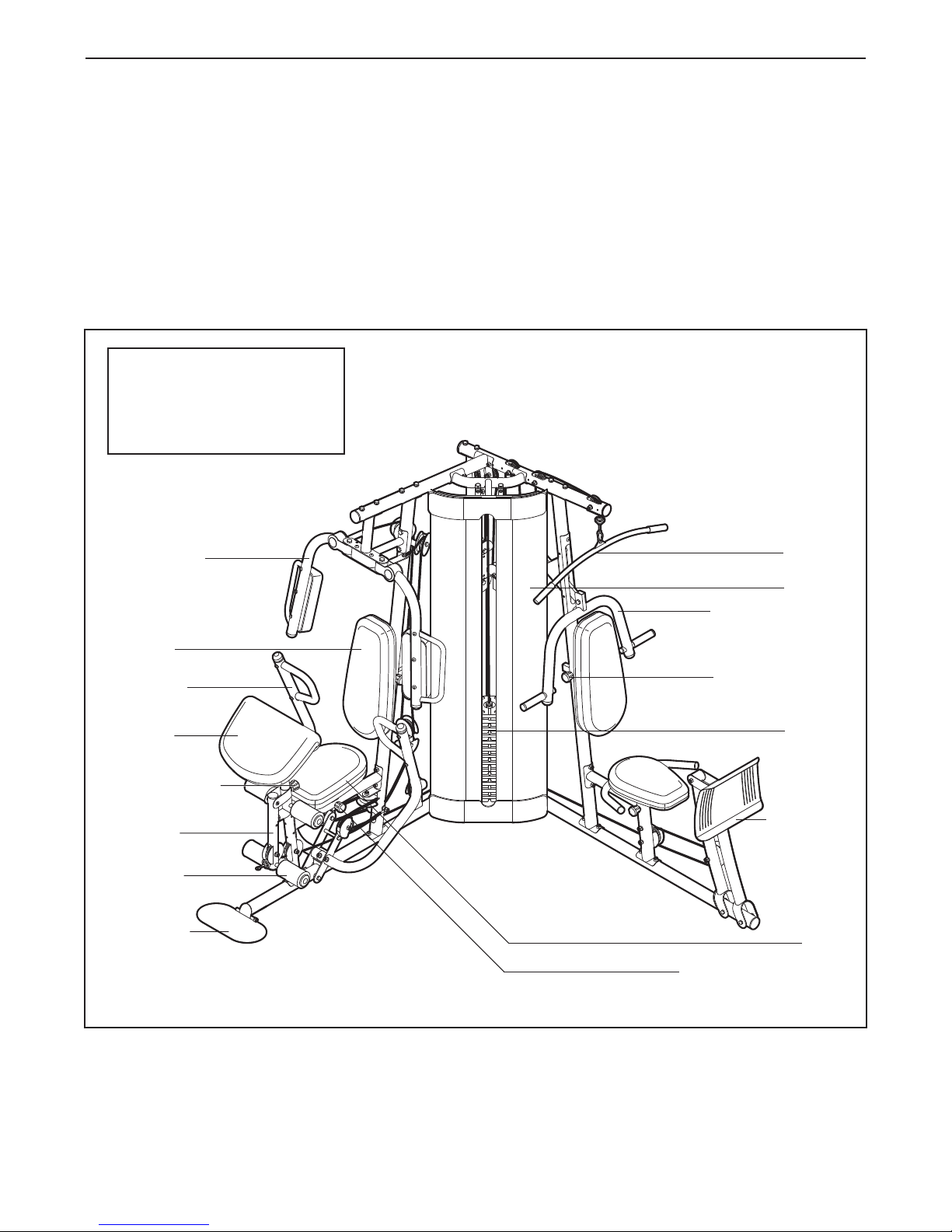

Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.
ASSEMBLED DIMENSIONS:
Height: 82 in. / 208 cm
Width: 95 in. / 241 cm
Depth: 94 in. / 239 cm

M10 Nylon
Locknut (77)
M8 Washer (103)
M8 Nylon
Locknut (78)
M6 Washer
(114)
M4 Washer
(104)
M4 x 12mm
Self-tapping
Screw (102)
M4 x 16mm
Self-tapping
Screw (110)
M6 x 16mm
Screw (88)
M8 x 22mm
Shoulder Bolt (90)
M10 x 75mm Button Screw (118)
M10 Washer (80) M10 Large Washer (105) M12 Large Washer (98)
M10 x 100mm Bolt (140)
M12 Nut (112)
PART IDENTIFICATION CHART—Model No. 831.14623.0 R0606A
Refer to the drawings below to identify small parts used in assembly.The number in parentheses by each draw-
ing is the key number of the part, from the PART LIST on pages 39 and 40. Note: Some small parts may have
been pre-attached. If a part is not in the parts bag, check to see if it has been pre-attached. If a part is
missing, call toll-free 1-877-992-5999.
5

M6 x 60mm Button Screw (91)
M8 x 75mm Carriage Bolt (83)
M8 x 80mm Bolt (100)
M8 x 65mm Bolt (101)
M10 x 141mm Bolt (141)
M10 x 120mm Bolt (115)
M10 x 82mm Button Screw (92)
M10 x 60mm Bolt Set (116)
M4 x 25mm
Self-tapping
Screw (96)
M10 x 90mm Bolt (81)
M10 x 75mm Bolt (82)
M10 x 82mm Bolt (84)
M10 x 63mm Bolt (79)
M10 x 45mm Bolt (86)
M10 x 50mm Bolt (97)
M10 x 110mm Bolt (93)
M10 x 65mm Button Bolt (106)
M10 x 68mm Bolt (85)
M10 x 116mm Bolt (107)
M10 x 40mm Bolt (142)
M8 x 69mm Shoulder Bolt (87)
PART IDENTIFICATION CHART—Model No. 831.14623.0 R0606A
6

7
Make sure you have the following tools:
•Two adjustable wrenches
•One standard screwdriver
•One phillips screwdriver
•One rubber mallet
• You will also need grease or petroleum jelly, a
small amount of soapy water,and clear tape or
masking tape.
Note: Assembly will be more convenient if you have
asocket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
How to Identify Parts
To help you identify the small parts used in assembly,
we have included a PART IDENTIFICATION CHART
in the center of this manual. Place the chart on the
floor and use it to easily identify parts during each
assembly step. Note: Some small parts may have
been pre-attached. If a part is not in the parts
bag, check to see if it has been pre-attached.
How to Orient Parts
As you assemble the weight system, make sure all
parts are oriented exactly as shown in the drawings.
Tightening Parts
Tighten all parts as you assemble them, unless
instructed to do otherwise.
Questions?
If you have questions after reading these assembly
instructions, please call 1-800-4-MY-HOME®
(1-800-469-4663).
Assembly Requires Two Persons
For your convenience and safety, assemble the
weight system with the help of another person.
Set Aside Enough Time
Due to the many features of the weight system, the
assembly process will require several hours. By
setting aside plenty of time and by deciding to
make the task enjoyable, assembly will go smoothly.
You may want to assemble the weight system over
acouple of evenings.
Select a Location for the Weight System
Because of its weight and size, the weight system
should be assembled in the location where it will be
used. Make sure that there is enough room to walk
around the weight system as you assemble it.
How to Unpack the Box
To make assembly as easy as possible, we have
divided the assembly process into four stages. The
parts needed for each stage are found in individual
bags. Important: Wait until you begin each stage
to open the parts bag for that stage. Place all
parts of the weight system in a cleared area and
remove the packing materials. Do not dispose of
the packing materials until assembly is completed.
Make Assembly Easier for Yourself
Everything in this manual is designed to
ensure that the weight system can be assem-
bled successfully by anyone. Before begin-
ning assembly, make sure to read the
information on this page. This brief intro-
duction will save you much more time than
it takes to read it.
The Four Stages of the Assembly Process
Frame Assembly—You will begin by assembling
the base and the uprights that form the skeleton of
the weight system.
Arm Assembly—During this stage you will
assemble the arms and the leg lever.
Cable Assembly—During this stage you will
attach the cables and pulleys that connect the
arms to the weights.
Seat Assembly—During the final stage you will
assemble the seats and the backrests.
ASSEMBLY

8
2. Insert six M8 x 75mm Carriage Bolts (83) up
through the Left Base (119). Note: It may be
helpful to place a piece of tape over each
Bolt head to hold it in place.
2
3
119
83
83
83
1
78
78
119
103
103 100
1
3. Attach the Right Base (1) to the Left Base (119)
with two M8 x 80mm Bolts (100), two M8
Washers (103), and two M8 Nylon Locknuts
(78). Do not Tighten the Nylon Locknuts yet.
1.
Insert four M8 x 75mm Carriage Bolts (83) up
through the Right Base (1). Note: It may be
helpful to place a piece of tape over each
Bolt head to hold it in place.
Apply a portion of the included grease to an
M10 x 141mm Bolt (141). Attach the Foot Plate
(146) to the Right Base (1) with the Bolt and an
M10 Nylon Locknut (77). Do not overtighten
the Locknut, the Foot Plate must pivot
freely.
Before beginning assembly, make sure
you understand the information in the
box on page 7. See the PART IDENTIFI-
CATION CHARTS on pages 5 and 6 for
help identifying small parts.
Frame Assembly
83
77
141
Grease
146
83
1
4. Attach the Bottom Center Base (147) to the
Right and Left Bases (1, 119) with four M8 x
80mm Bolts (100), four M8 Washers (103), and
four M8 Nylon Locknuts (78). Do not Tighten
the Nylon Locknuts yet.
4
100
100 103
103
103
103
78
1
147
119

9
5. Attach the Right Upright (2) to the Right Base
(1) with two M8 Nylon Locknuts (78) and the
two indicated M8 x 75mm Carriage Bolts (83).
Do not Tighten the Nylon Locknuts yet.
5
2
78
78
83
1
6. Orient the Rear Upright (121) so that the top
bracket slopes toward the Left Upright (120).
Attach the Rear Upright to the Left Base (119)
with two M8 Nylon Locknuts (78) and the indi-
cated M8 x 75mm Carriage Bolts (83). Do not
Tighten the Nylon Locknuts yet.
Attach the Left Upright (120) in the same man-
ner. Do not Tighten the M8 Nylon Locknuts
(78) yet.
6
78
83
78
78
83
78
119
120
121
Top Bracket

10

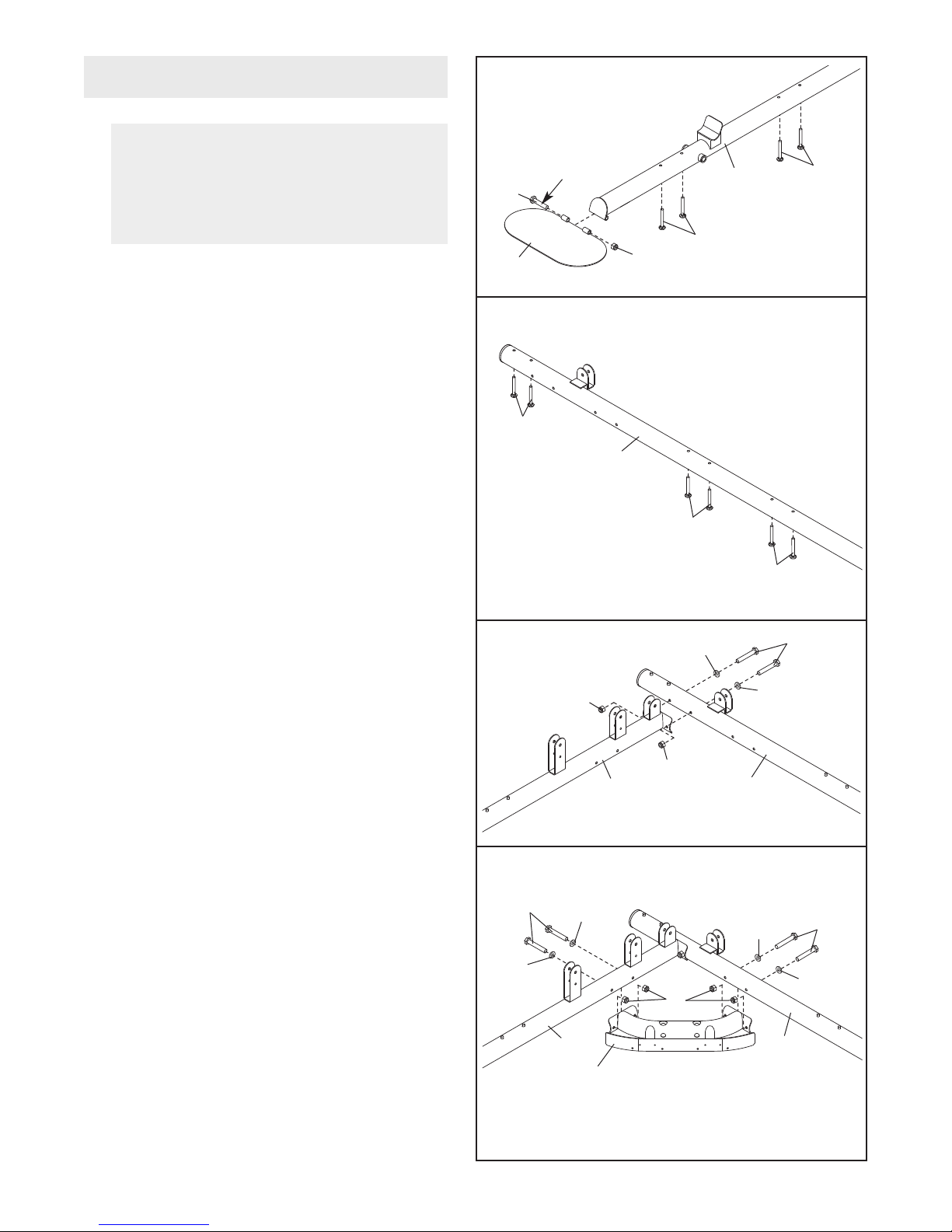

7. Attach the RIght Top Frame (4) to the Right
Upright (2) with two M8 x 80mm Bolts (100),
two M8 Washers (103), and two M8 Nylon
Locknuts (78). Do not Tighten the Nylon
Locknuts yet.
7
4
78
78
2
103
103
100
8. Attach the Left Top Frame (126) to the Rear
Upright (121), the Left Upright (120), and the
Right Top Frame (4) with six M8 x 80mm Bolts
(100), six M8 Washers (103), and six M8 Nylon
Locknuts (78). Do not tighten the Nylon
Locknuts yet.
8
126
103
100
100 100
103
78
78
121
120
78
4
78
9. Orient the Weight Guides (18) with the indicated
holes toward the floor. Attach a Weight Guide to
the Bottom Center Base (147) with an M10 x
82mm Bolt (84), two M10 Washers (80), two
20mm Steel Spacers (108), and an M10 Nylon
Locknut (77). Do not tighten the Nylon
Locknut yet.
Attach the other Weight Guide (18) in the same
manner.Do not tighten the M10 Nylon
Locknut yet.
9
18
80
80
77
84
108
108
147
18
Holes

11

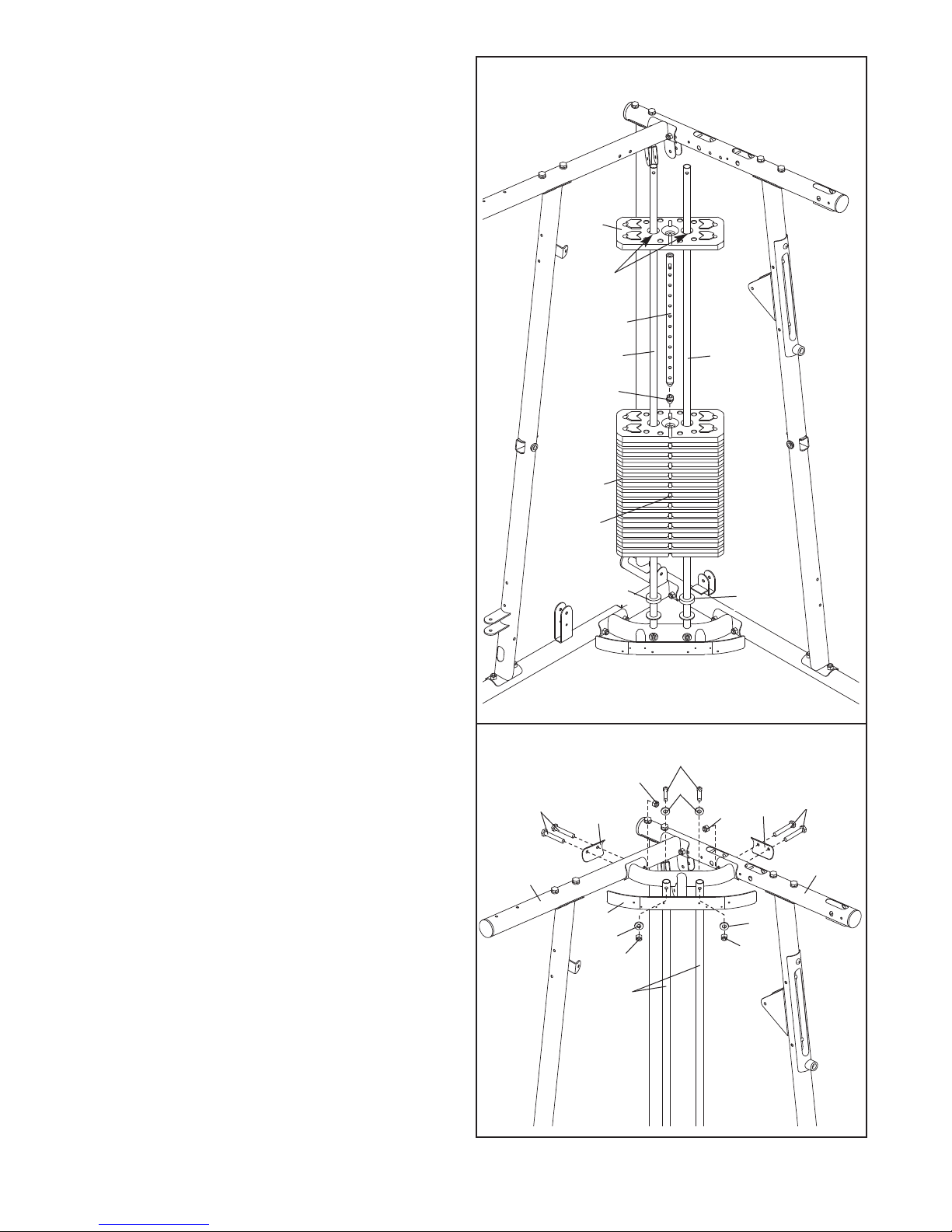

10. Slide the two Weight Bumpers (71) onto the
Weight Guides (18). Orient eleven Weights (19)
with the pin holes on the bottom as shown.
Slide the Weights onto the Weight Guides.
Insert the Weight Tube Cap (76) into the Weight
Tube (20). Insert the Weight Tube into the
eleven Weights (19). Make sure the pin on the
Weight Tube is oriented as shown.
Lubricate the indicated holes in a Weight (19)
with the included grease packet. Slide the
Weight onto the Weight Guides (18).
11. Attach the Top Center Frame (148) to the Right
and Left Top Frames (4, 126) with four M10 x
82mm Bolts (84), two Top Frame Plates (137),
and two M10 Nylon Locknuts (77). Do not tight-
en the Nylon Locknuts yet.
Attach the Weight Guides (18) to the Top Center
Frame (148) with two M10 x 90mm Bolts (81),
four M10 Washers (80), and two M10 Nylon
Locknuts (77). Do not tighten the Nylon
Locknuts yet.
10
19
20
18 18
Grease
Pin Hole
76
19
71
11
148
77
77
77
77
18
80
80
81
84 84
80
126
137 137
4
71

12
12. Attach Leg Lever Bumper (75) to the Front Leg
(10) with an M4 x 16mm Self-tapping Screw
(110) and an M4 Washer (104).
Attach the Front Leg (10) to the Right Base (1)
with two M8 Nylon Locknuts (78) and the indi-
cated M8 x 75mm Carriage Bolts (83). Do not
tighten the Nylon Locknuts yet.
13. Attach the Right Frame (9) to the Front Leg (10)
and the Right Upright (2) with two M8 x 65mm
Bolts (101), two M8 x 80mm Bolts (100), four
M8 Washers (103), and four M8 Nylon Locknuts
(78). Do not tighten the Nylon Locknuts yet.
14. Attach the Left Frame (122) to the Left Base
(119) and the Left Upright (120) with two M8 x
80mm Bolts (100), two M8 Washers (103), four
M8 Nylon Locknuts (78), and the two indicated
M8 x 75mm Carriage Bolts (83).
Tighten all the M10 and M8 Nylon Locknuts
(77, 78) used in steps 3–14.
12
13
78
78
78
78
10
9
101 103
100
103
10
75
78
78
110
104
1
83
2
14
122
120
119
78
78
78
83
103
103
100

13
15. Attach the Butterfly Frame Brace (6) to the
Right Upright (2) with two M8 x 80mm Bolts
(100), two M8 Washers (103), and two M8
Nylon Locknuts (78). Do not tighten the Nylon
Locknuts yet.
Attach the Butterfly Frame (5) to the Right Top
Frame (4) and the Butterfly Frame Brace (6)
with two M8 x 80mm Bolts (100), an M10 x
75mm Button Screw (118), two M8 Washers
(103), and two M8 Nylon Locknuts (78).
Tighten the M8 Nylon Locknuts (78) used in
this step.
16. Apply grease to the locations shown and attach
the Left Butterfly Bracket (28) to the Butterfly
Frame (5) with an M10 x 82mm Bolt (84) and
an M10 Nylon Locknut (77).
Repeat this step for the Right Butterfly
Bracket (29).
17. Remove the indicated Butterfly Arm Cap (43)
from the Right Butterfly Arm (26). Attach a
Butterfly Handle (27) to the Butterfly Arm with
an M10 x 65mm Button Bolt (106), two M10
Washers (80), two 13mm Steel Spacers (109),
and an M10 Nylon Locknut (77).
Attach the Butterfly Arm Cap (43) to the Right
Butterfly Arm (26) with an M10 x 82mm Button
Screw (92) and an M10 Large Washer (105).
Repeat this step for the Left Butterfly Arm
and Butterfly Handle (25, 27).
Apply grease in the locations shown and attach
the Right Butterfly Arm (26) to the Right
Butterfly Bracket (29) with an M10 x 75mm Bolt
(82) and an M10 Nylon Locknut (77). Press a
Bolt Cap (44) onto the end of the Bolt. Do not
overtighten the Bolt; the Butterfly Arm must
be able to pivot freely.
Repeat this step for the Left Butterfly Arm
(25).
16
29
77
28
84
84
5
17
27
26 25
27
82
80
80
109
105
92
106
29
44
77
77
118
4
2
6
100
100
103
100
103
103
5
78
78
15
Grease
Grease
Grease
Grease
43
Arm Assembly
Grease

14

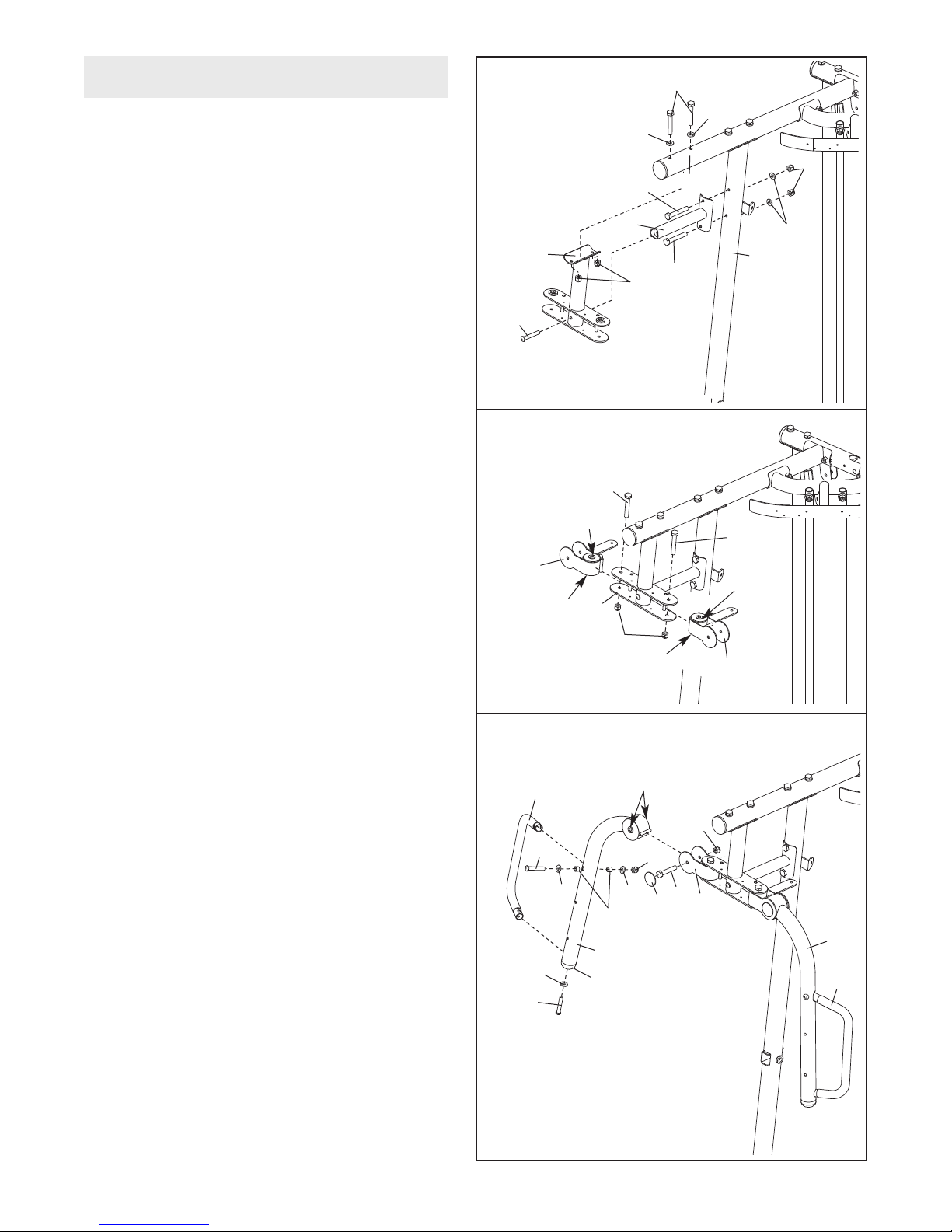

18. Apply grease to the 44mm Bushing (136) and
an M10 x 68mm Bolt (85). Then, insert the
Bushing into the Military Press Frame (127).
Attach the Military Press Frame inside the Left
Upright (120) with the Bolt (85) and an M10
Nylon Locknut (77). Do not overtighten the
Nylon Locknut; the Military Press Frame
must pivot freely.
19. Apply grease to an M10 x 40mm Bolt (142).
Attach the Military Press Arm (128) to the
Military Press Frame (127) with the Bolt and an
M10 Nylon Locknut (77). Do not overtighten
the Nylon Locknut; the Military Press Arm
must pivot freely.
20. Apply grease to a 77mm Bushing (138) and to
an M10 x 100mm Bolt (140). Attach the Leg
Press Frame (123) to the Left Base (119) with
the Bushing, the Bolt, and an M10 Nylon
Locknut (77). Make sure the bushing is on
the indicated side.
Repeat this step with the Front Leg Press
Frame (132). Do not overtighten the Nylon
Locknuts (77); the Leg Press Frames must
pivot freely.
18
19
77
142
128
127
127
120
136
77
Grease
Grease
85
20
132
77
123
Bushing
119
140
138
Grease

15
21. Apply grease to tw0 M10 x 82mm Bolts (84)
and to the indicated locations on the Leg Press
Frame (123) and the Front Leg Press (132).
Attach the Leg Press (124) to the Leg Press
Frame and the Front Leg Press Frame (123,
132) with the two Bolts (84) and two M10 Nylon
Locknuts (77).
22. Apply grease in the locations shown. Insert a
57mm Spacer (69) into the indicated hole in the
Leg Lever (12). Attach the Leg Lever to the
Front Leg (10) with an M10 x 60mm Bolt Set
(116). Make sure the barrel of the Bolt Set is
inserted through both sides of the bracket
on the Front Leg. Make sure the indicated
rod is oriented as shown.
See the left inset drawing. Attach the Lock
Plate (14) to the Front Leg (10) with the M8 x
69mm Shoulder Bolt (87), an M8 Washer (103),
and an M8 Nylon Locknut (78).
See the right inset drawing. Insert the Lock
Plate Pin (95) through the Lock Plate (14) and
the Leg Lever (12). Attach the tether on the
Lock Plate Pin to the Front Leg (10) with an M4
x12mm Self-tapping Screw (102).
23. Orient a Press Arm Handle (17) with the 90°
bend at the top as shown in the inset drawing.
Attach the Press Arm Handle to the Right Press
Arm (16) with two M10 x 65mm Button Bolts
(106), four M10 Washers (80), four 11mm
Spacers (99), and two M10 Nylon Locknuts
(77).
Repeat this step for the Left Press Arm (not
shown).
21
22
12
69
10
116
116
124
132
123
Grease
Grease
77
84
Rod
23
106
106
80
80
80
17
77
16
99
99
99
99
Grease Bracket
Grease
102
103
87
14
10
78
95
10
14
12
90° Bend
17

16
24. Apply grease to an M10 x 110mm Bolt (93) and
a90mm Spacer (59). Attach the Left Press Arm
(15) to the Right Press Arm (16) with the Bolt,
the Spacer, and an M10 Nylon Locknut (77).
Finish attaching the Press Arms (15, 16) with
two M10 x 63mm Bolts (79), two M10 Washers
(80), and two M10 Nylon Locknuts (77). Do not
tighten the Nylon Locknuts yet.
Apply grease to an M10 x 110mm Bolt (93) and
a90mm Spacer (59). Attach the Left and Right
Press Arms (15, 16) to the Right Base (1) with
the Bolt, the Spacer, and an M10 Nylon Locknut
(77). Do not over tighten the Nylon Locknut;
the Press Arms must pivot freely.
Tighten the Nylon Locknuts (77) used in
this step.
25. See the CABLE DIAGRAMS on page 32 and
33 to identify the cables as you assemble
them.
Identify the Butterfly Cable (50). Grease an
M8 x 22mm Shoulder Bolt (90). Attach the
Cable to the Left Butterfly Bracket (28) with the
Shoulder Bolt and an M8 Nylon Locknut (78).
Make sure the flat edge of the Cable is
against the Left Butterfly Bracket. Do not
overtighten the Shoulder Bolt; the Cable
must be able to pivot freely.

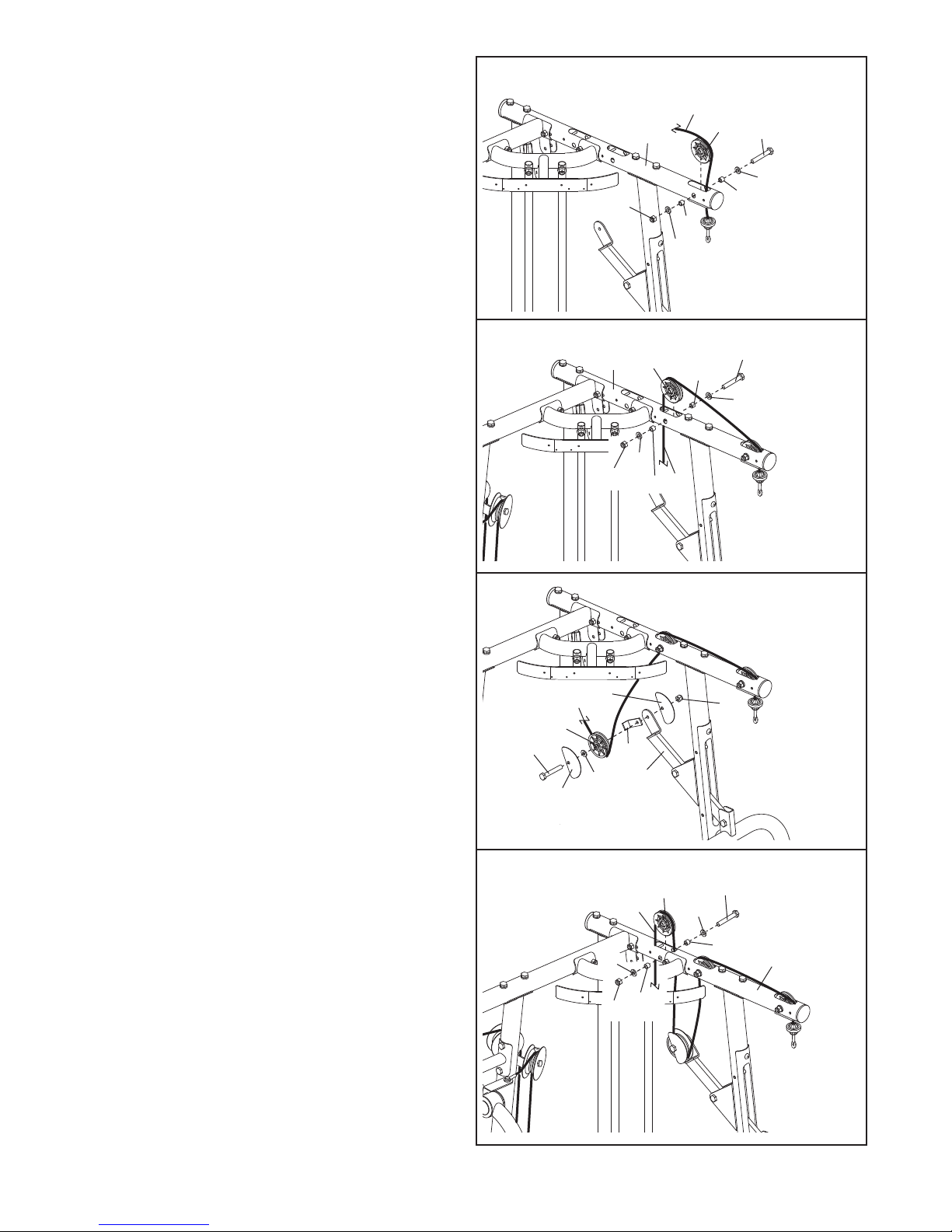

26. Wrap the Butterfly Cable (50) over a “V”-pulley
(47). Attach the “V”-pulley, a Long Cable Trap
(57), an M10 Washer (80), and two Guards (54)
to the Right Upright (2) with an M10 x 63mm
Bolt (79) and an M10 Nylon Locknut (77).
24
25
28
59
Grease
Grease
Grease
59
1
77
80 93
15
93
79
77
77
16
78
90
50
26
50
2
77 54
54
79
47 57
80
Cable Assembly
Flat Edge
Grease

17

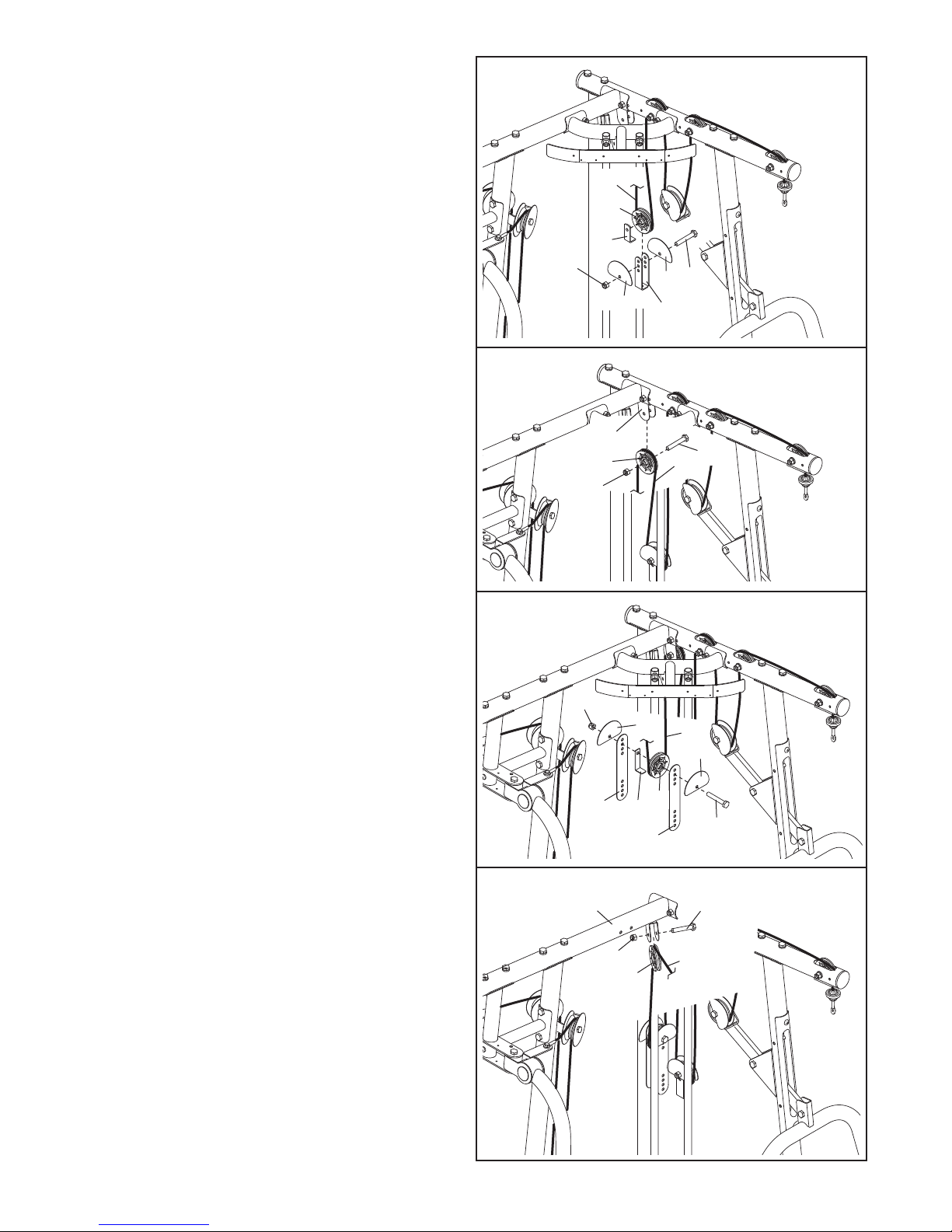

27. Wrap the Butterfly Cable (50) under a 90mm
Pulley (48). Attach the Pulley and two Half
Guards (55) to the Double “U”-bracket (61) with
an M10 x 50mm Bolt (97) and an M10 Nylon
Locknut (77). Make sure the Half Guards are
oriented as shown.
28. Wrap the Butterfly Cable (50) over a “V”-pulley
(47). Attach the “V”-pulley, a Long Cable Trap
(57), an M10 Washer (80), and two Guards (54)
to the Right Upright (2) with an M10 x 63mm
Bolt (79) and an M10 Nylon Locknut (77).
29. Grease an M8 x 22mm Shoulder Bolt (90).
Attach the Butterfly Cable (50) to the Right
Butterfly Bracket (29) with the Shoulder Bolt
and an M8 Nylon Locknut (78). Make sure the
flat edge of the Cable is against the Butterfly
Bracket.
27
28
54
54
77
2
79
50
48
97
77
61
55
55
57
50
80
47
29
90
Grease 50
78
29
Flat Edge

18

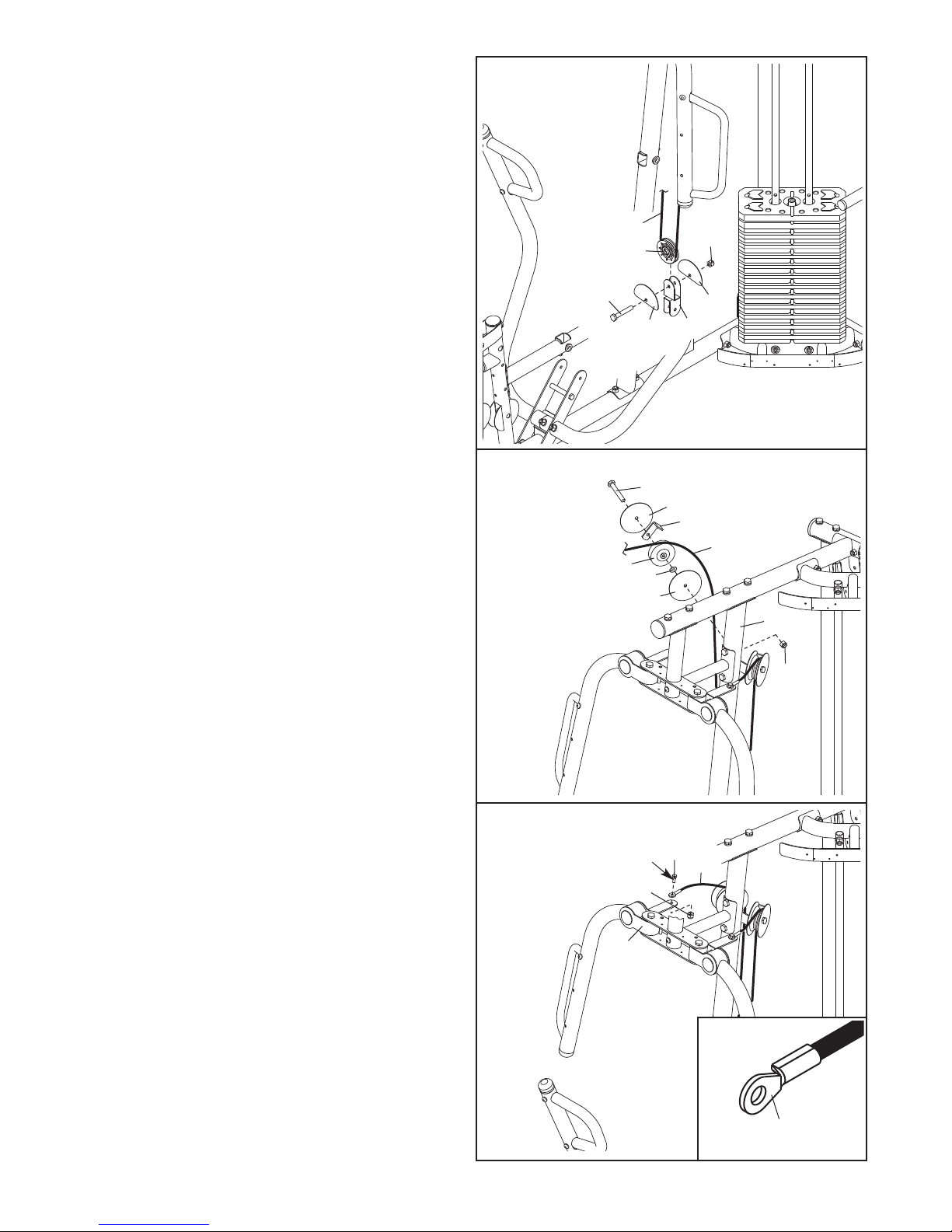

30. Identify the Lat Cable (49). Route the Cable
up through the Left Top Frame (126) and over a
90mm Pulley (48). Attach the Pulley inside the
Left Top Frame with an M10 x 82mm Bolt (84),
two M10 Washers (80), two 19mm Spacers
(67), and an M10 Nylon Locknut (77).
31. Route the Lat Cable (49) over a 90mm Pulley
(48) and down through the Left Top Frame
(126). Attach the Pulley inside the Left Top
Frame with an M10 x 82mm Bolt (84), two M10
Washers (80), two 19mm Spacers (67), and an
M10 Nylon Locknut (77).
32. Wrap the Lat Cable (49) under a 90mm Pulley
(48). Attach the Pulley, a Cable Trap (56), and
two Half Guards (55) to the Military Press
Frame (127) with an M10 x 50mm Bolt (97), an
M10 Washer (80), and an M10 Nylon Locknut
(77). Make sure the Cable Trap and the Half
Guards are oriented as shown.
30
31
49
48
77
80
80
84
67
67
126
32
77
55
55
56
48
80
49
84
48
49
80
126 67
67
80
77
97
127
33. Route the Lat Cable (49) up through the Left
Top Frame (126) and over a 90mm Pulley (48).
Attach the Pulley inside the Left Top Frame with
an M10 x 82mm Bolt (84), two M10 Washers
(80), two 19mm Spacers (67), and an M10
Nylon Locknut (77).
33
126
84
77
80
80
67
67
48
49

19
34. Wrap the Lat Cable (49) under a 90mm Pulley
(48). Attach the Pulley and a Cable Trap (56) to
the second hole in the “U”-bracket (151) with an
M10 x 50mm Bolt (97), two Half Guards (55),
and an M10 Nylon Locknut (77). Make sure the
Cable Trap and Half Guards are oriented as
shown.
35. Wrap the Lat Cable (49) over a 90mm Pulley
(48). Attach the Pulley to the Left Top Frame
(126) wtih an M10 x 45mm Bolt (86) and an
M10 Nylon Locknut (77).
34
77
55
55 97
56
151
48
49
35
126
77
86
49
48
36. Wrap the Lat Cable (49) under a 90mm Pulley
(48). Attach the Pulley, a Cable Trap (56), and
two Half Guards (55) at the second hole from
the top of the two Pulley Plates (60) with an
M10 x 50mm Bolt (97) and an M10 Nylon
Locknut (77). Make sure the Cable Trap and
Half Guards are oriented as shown.
36
60
60
48
56
77
55
49
55
97
37. Wrap the Lat Cable (49) over a 90mm Pulley
(48). Attach the Pulley to the Right Top Frame
(4) with an M10 x 45mm Bolt (86) and an M10
Nylon Locknut (77).
37
48
49
486
77

20
38. Wrap the Lat Cable (49) over a 90mm Pulley
(48). Attach the Pulley to the Top Center Frame
(148) wtih an M10 x 45mm Bolt (86) and an
M10 Nylon Locknut (77).
38
77
48 49
86 148
39. Set an M12 Large Washer (98) on top of the
Weight Tube (20). Thread the M12 Nut (112) all
the way onto the Lat Cable (49).
Thread the Lat Cable (49) into the Weight Tube
(20) two turns.Tighten the M12 Nut (112)
against the M12 Large Washer (98).
39
49
98
20
112
40. Identify the Press Cable (133). Attach the
Cable to the Left Frame (122) with an M10 x
82mm Bolt (84), an M10 Washer (80), and an
M10 Nylon Locknut (77). Make sure the flat
edge of the Cable is against the Left Frame.
41. Wrap the Press Cable (133) over a 90mm
Pulley (48). Attach the Pulley and a Cable Trap
(56) to the Leg Press Frame (123) with an M10
x110mm Bolt (93), two Guards (54), two M10
Washers (80), and an M10 Nylon Locknut (77).
Make sure the Cable Trap is oriented as
shown.
40
84
133
122
80
77
41
54
93
77
123
54
80 48 56
133
80
Flat Edge
