SFT
User Manual

SFT User Manual V1.5
Page 2 of 17
Contents
Release History ...............................................................................................................................................2
Case Contents .................................................................................................................................................3
LED States .......................................................................................................................................................3
Operation........................................................................................................................................................4
Cleaning Procedure.........................................................................................................................................4
Warnings.........................................................................................................................................................4
Android Software............................................................................................................................................5
Play Store Link ...........................................................................................................................................5
Installation.................................................................................................................................................5
Add License Key.........................................................................................................................................9
Change Minimum and Maximum Limits..................................................................................................10
PC Software ..................................................................................................................................................12
Requirements..........................................................................................................................................12
Installation...............................................................................................................................................12
Change Minimum and Maximum Limits..................................................................................................15
Fire SFT via a Hotkey................................................................................................................................16
Specifications................................................................................................................................................ 17
Warranty Statement and Terms and Conditions of Sale...............................................................................17
Contact Details:.............................................................................................................................................17
Release History
Version
Description
1.5
Improved PC installation instructions.
1.4
Added Add License Key
1.3
Added WEL Connect Hotkey.
1.2
Added cleaning procedure.
Added new LED states.
1.1
Converted to booklet
1.0
First Release

SFT User Manual V1.5
Page 3 of 17
Case Contents
LED States
LED State
Meaning
Green (single flash)
Valid test result.
Pink (single flash)
Below minimum g-force threshold.
Yellow (single flash)
Above maximum g-force threshold.
Red (single flash)
Invalid test result.
Blue (breathing)
Waiting to be connected to.
Blue (blinking)
Connected to device.
Red (solid)
Charging.
SFT PC Dongle
PC Software Flash Drive
Charge Cable
Test Block

SFT User Manual V1.5
Page 4 of 17
Operation
1. Place the SFT perpendicular to the fruit.
2. Press the trigger on the SFT.
•A beep and a green light indicates a valid measurement.
•Haptic feedback and a Red light indicates an invalid measurement.
3. Regularly clean the SFT tip

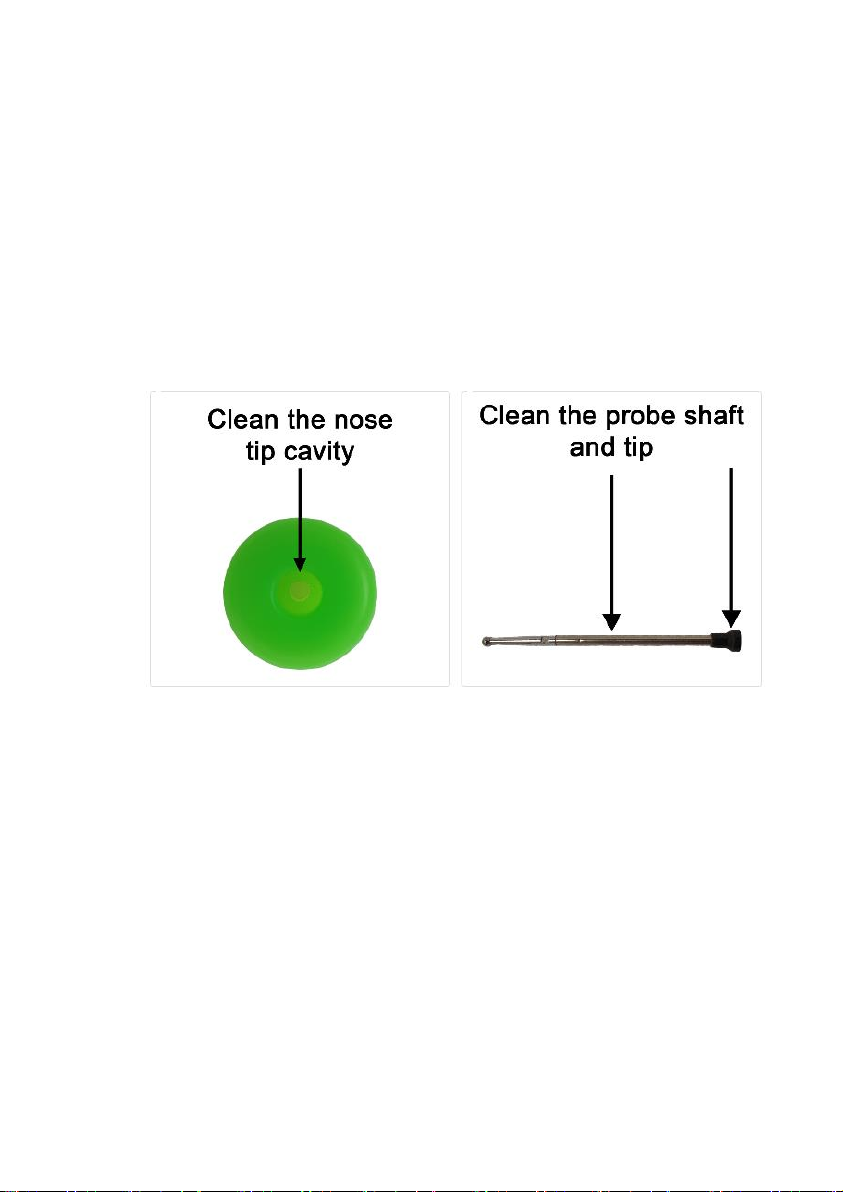

Cleaning Procedure
Clean the inside of the tip and probe regularly to prevent debris entering the gun mechanism.
1. Remove the nose tip and probe. Then clean both.
2. Re-install the tip. Then re-install the probe.
3. Fire the SFT twice to ensure the probe is seated correctly.
Warnings
•Avoid triggering the SFT while pointing it upwards, as debris may be dragged into the
mechanism.
•If the probe falls out. Reinsert the probe and fire the gun at least twice.

SFT User Manual V1.5
Page 5 of 17
Android Software

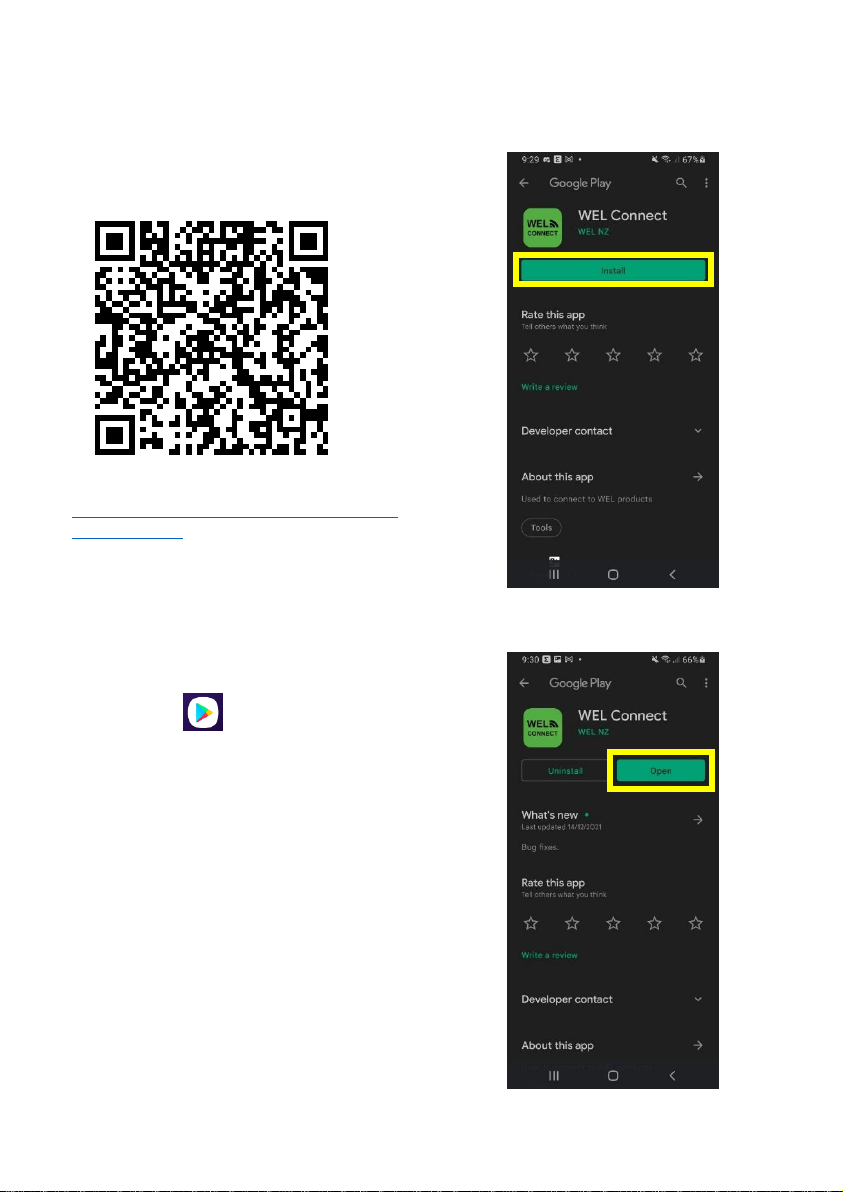

Play Store Link
https://play.google.com/store/apps/details?id=co
m.welnz.connect
Note a license is required to use the SFT with WEL
Connect.
Installation
1. Search for “WEL Connect”in the Play
Store or scan the QR code above.
2. Tap on “Install”
3. Tap on “Open”

SFT User Manual V1.5
Page 6 of 17
4. Allow access to location. (This is
required to connect to devices.)
5. Press the trigger on the SFT gun to turn
it on. Note: The SFT will be highlighted
in red after the trigger has been
pressed.
6. Tap on “CONNECT”
7. Complete calibration check, then tap on
“CLOSE”.
8. Tap on “START SESSION”.

SFT User Manual V1.5
Page 7 of 17
9. Fill out fields as required, then tap on
“START SESSION”.
10. Record measurements. To end the
session, press “back button.”
11. Once your data session is completed,
tap the icon or slide your finger
from the left side of the screen to the
right side to bring up the MENU.
12. Select “Data”.

SFT User Manual V1.5
Page 8 of 17
13. Select the data you want to email off.
Then tap on “EMAIL”. Note: Tap on the
recorded data to resume.
14. Allow access to photos and media. This
is required to generate the email
attachments.
15. Select your email client.
16. If using Gmail tap the “paper plane”
Button to send the data file.

SFT User Manual V1.5
Page 9 of 17
Add License Key
1. Tap on “Licenses”.
2. Tap on “SCAN DEVICE KEY”
3. Scan the QR code in the SFT rugged
case.

SFT User Manual V1.5
Page 10 of 17

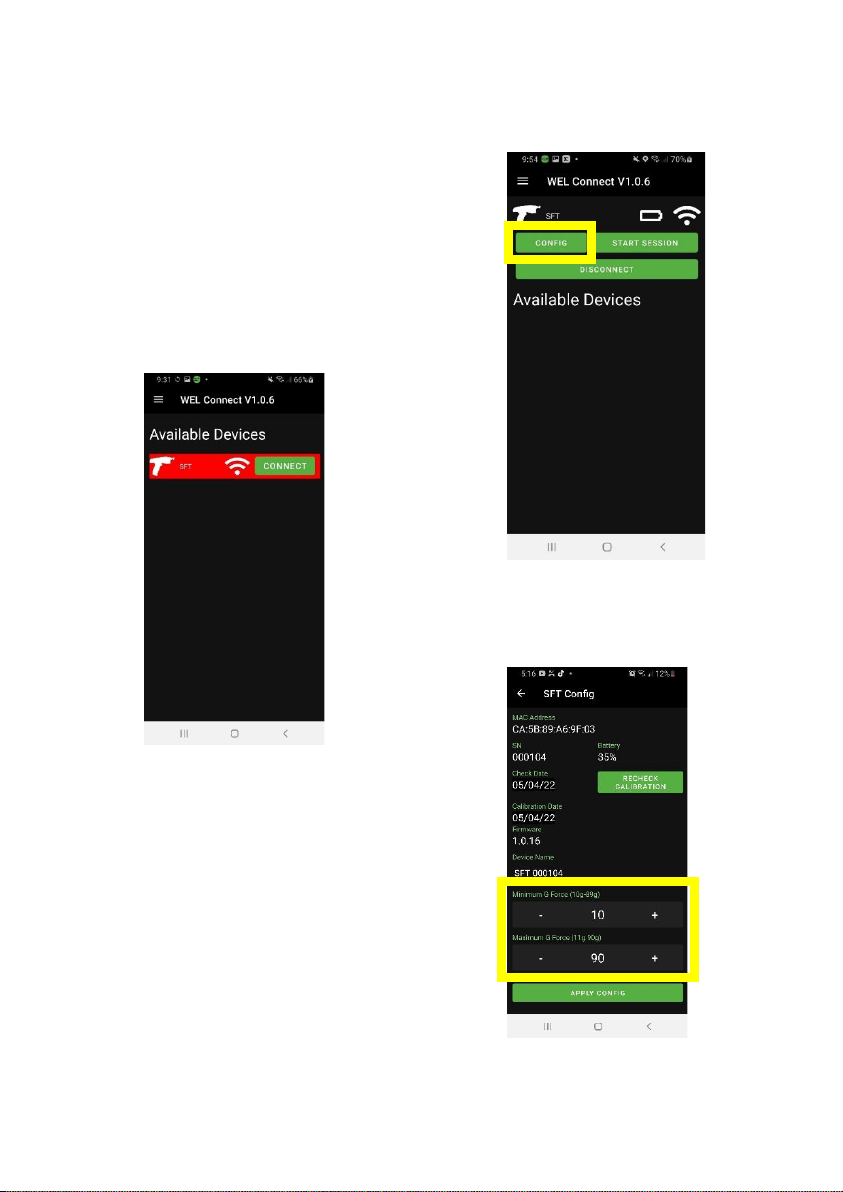

Change Minimum and
Maximum Limits
On the SFT you can set minimum and maximum
limits for a valid measurement.
If the measurement is below the minimum value.
The SFT will flash pink.
If the measurement is above the maximum value
the SFT will flash yellow.
1. Tap on “CONNECT”
2. Tap on “CONFIG”
3. To edit the minimum and maximum
limits to what you want.
Tap on the “+” to increment the value.
Tap on the “-” to decrement the value.
Tap on the value to type the value in.

SFT User Manual V1.5
Page 11 of 17
4. Tap on “APPLY CONFIG” to save the
limits to the SFT.

SFT User Manual V1.5
Page 12 of 17
PC Software
Requirements
The SFT dongle is required to use the SFT with WEL
Connect for PC.

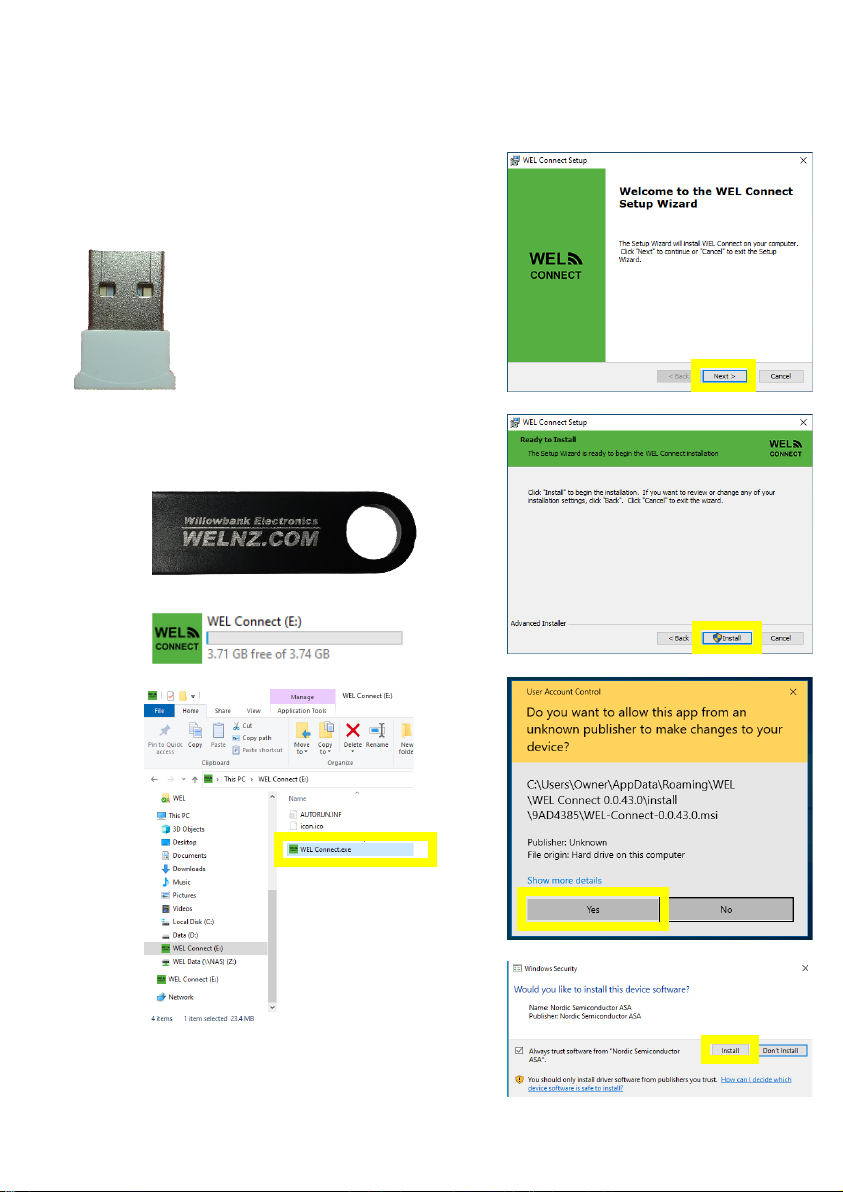

Installation
1. Insert the flash drive included into your
computer.
2. Open the flash drive.
3. Double click on “WEL Connect.exe”.
4. Click “Next”
5. Click “Install”
6. Click “Yes”
7. Click “Install”

SFT User Manual V1.5
Page 13 of 17

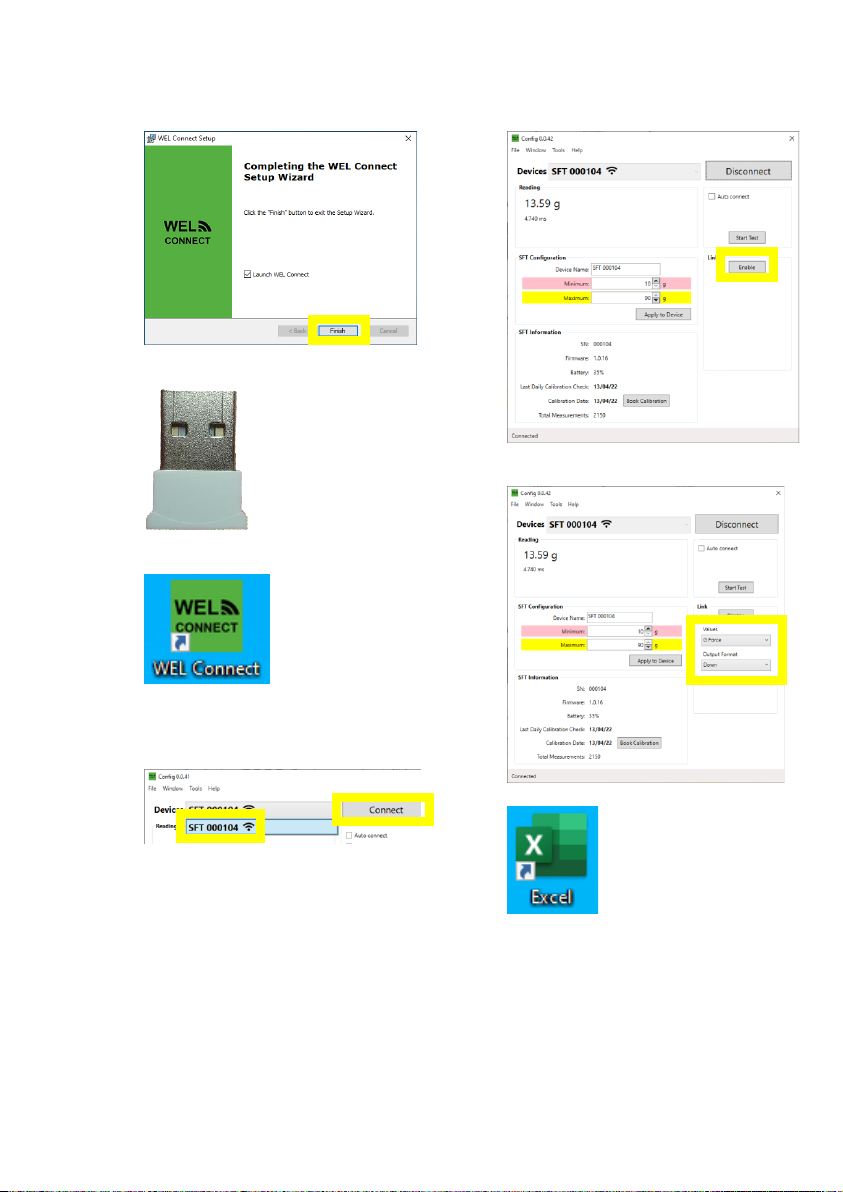

8. Click “Finish”
9. Insert the “SFT Dongle” into your
computer.
10. Open the “WEL Connect”Software on
your desktop.
11. Press the trigger on the SFT to wake it
up.
12. Select the “SFT”from the drop down
and then click “Connect”
13. Click “Enable”.
14. Select values to type into Excel and
output format required.
15. Open “Excel”

SFT User Manual V1.5
Page 14 of 17

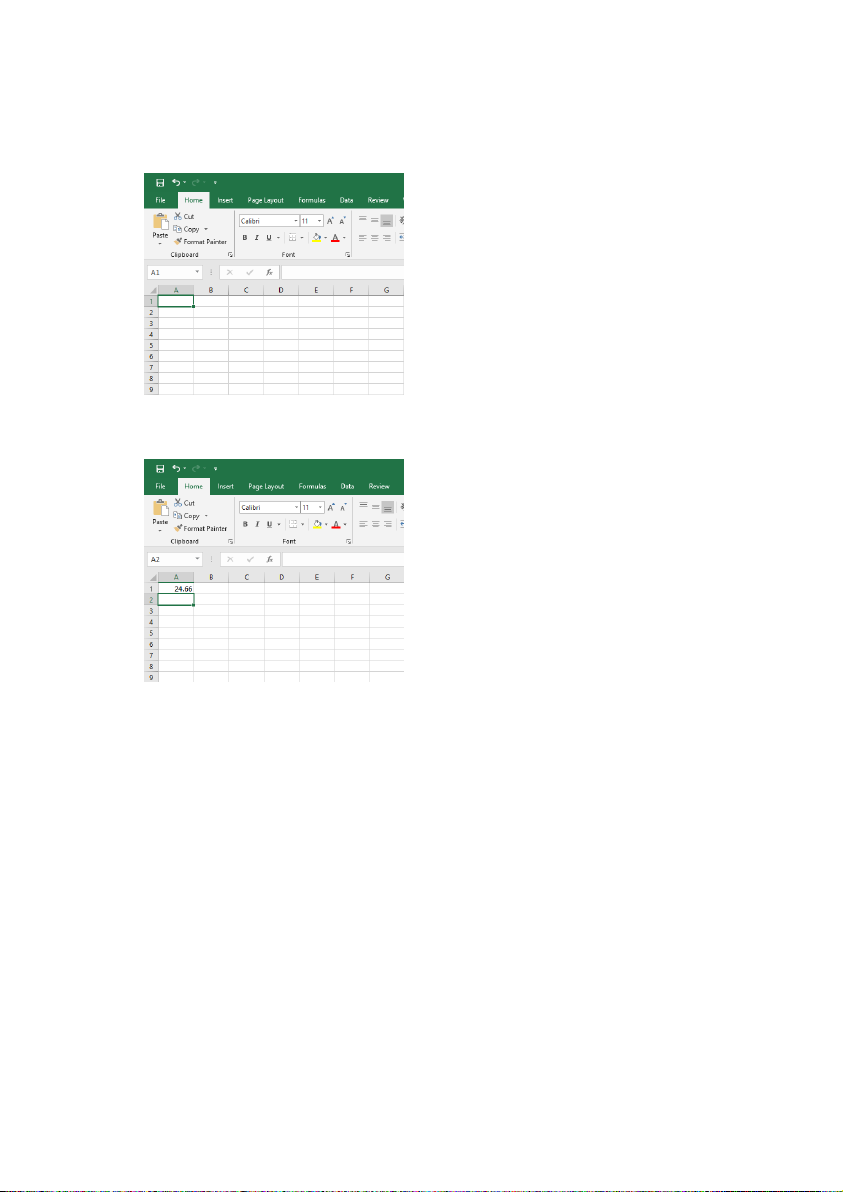

16. Click the cell that you want to insert the
first measurement into.
17. Press the trigger on the SFT.
The measurement will be inserted into
Excel in the nominated cell.

SFT User Manual V1.5
Page 15 of 17
Change Minimum and
Maximum Limits
On the SFT you can set minimum and maximum
limits for a valid measurement.
If the measurement is below the minimum value.
The SFT will flash pink.
If the measurement is above the maximum value
the SFT will flash yellow.
1. Edit the minimum and maximum limits
to what you want.
2. Click “Apply to Device”to save the
limits to the SFT.

SFT User Manual V1.5
Page 16 of 17
Fire SFT via a Hotkey
You can use the WEL Connect software to remotely
fire the SFT and collect data into Excel.
1. Select the “SFT” from the dropdown
and then click “Connect”.
2. Click “Enable”
3. Click “Settings”in the “File”menu.
4. To change the Hotkey click into the
textbox. Then press a key combination.
5. Click “Save” to apply settings.
6. Open “Excel”
7. Click the cell that you want to insert the
first measurement into.
8. Press the Hotkey then the SFT will fire.
The measurement will then be inserted
into Excel.

SFT User Manual V1.5
Page 17 of 17
Specifications
USB
USB 2.0 Type B
Battery
3500mAh lithium-ion
Battery Life
10000 Tests
Gun Weight
370g
Box Weight
1847g
Supported Operating Systems
Android 7.0 and above. Windows 10 and 11.
Warranty Statement and Terms and Conditions of
Sale
Willowbank Electronics warrantees this product against manufacturing, electronic and electrical defect for
a period of 12 months.
Any warranty claim is on a “return to base” basis, freight paid by the customer.
Any accepted claim will be repaired/replaced at the discretion of Willowbank Electronics Ltd or its
authorized agent, providing that the equipment is being used in the manner for which it was intended.
Willowbank Electronics Ltd accepts no direct or consequential liability for any damage or losses arising
from the use of this instrument.
In the event of any proven loss, liability shall not exceed the purchase value or upgrade value of the device.
This unit is sold under the terms and conditions of New Zealand Law.
Contact Details:
Willowbank Electronics Ltd
1419 Korokipo Road
RD 3
Napier 4183
Hawke’s Bay
New Zealand
Phone: [phone]
Email: [e-mail]
Website: welnz.com
© 2022 Willowbank Electronics Ltd. All rights reserved.
