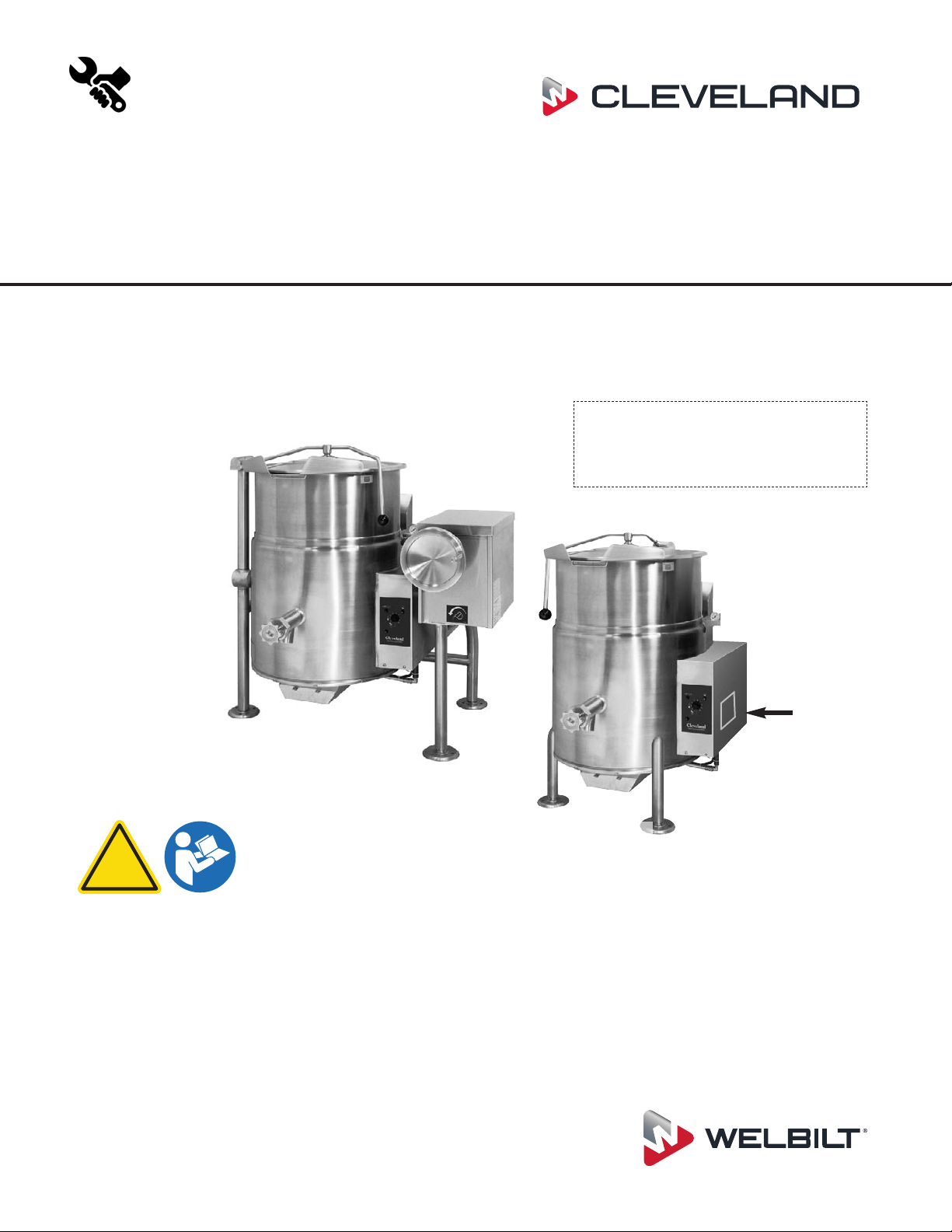

Welbilt KGL-25 Owner's manual

TABLE OF CONTENTS
Statement of Responsibilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
For your safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Cleaning Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Preventative Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Safety Inspection Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Operating Sequences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Service Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Service Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Read the manual thoroughly.
Improper installation, operation or
maintenance can cause property
damage, injury or death.
!
Model # &
Serial #.
KGT-25
KGT-25-T
Installation, Operation, Maintenance, Parts & Service
This manual is updated as new information and models are released. Visit our website for the latest manual.
Gas 25 Gallon Kettle
Part # - KE004021-2 B August 2019
MODELS:
KGL-25
KGL-25-T
For your future reference.
Model # ______________________________________
Serial # _______________________________________
Visit www.clevelandrange.com to locate a
service or sales representative in your area.

1.
STATEMENT OF RESPONSIBILITIES /
DÉCLARATION DES RESPONSABILITÉS /
DECLARACIÓN DE RESPONSABILIDADES
This document is for use by experienced
and trained Qualified Cleveland Range,
LLC Authorized Service Representatives
who are familiar with both the safety
procedures, and equipment they
service. Cleveland Range, LLC assumes
no liability for any death, injury,
equipment damage, or property damage
resulting from use of, improper use of,
or failure to use the information
contained in this document. Cleveland
Range, LLC has made every effort to
provide accurate information in this
document, but cannot guarantee that
this document does not contain
unintentional errors and omissions.
The information in this document may
be subject to technical and
technological changes, revisions, or
updates. Cleveland Range, LLC
assumes no liability or responsibility
regarding errata, changes, revisions, or
updates.
Qualified Cleveland Range, LLC
Authorized Service Representatives are
obligated to follow industry standard
safety procedures, including, but not
limited to, OSHA regulations, and
disconnect / lock out / tag out
procedures for all utilities including
steam, and disconnect / lock out / tag
out procedures for gas, electric, and
steam powered equipment and / or
appliances.
All utilities (gas, electric, water and
steam) should be turned OFF to the
equipment and locked out of operation
according to OSHA approved practices
during any servicing of Cleveland Range
equipment
Qualified Cleveland Range, LLC
Authorized Service Representatives are
obligated to maintain up-to-date
knowledge, skills, materials and
equipment.
Ce document est destiné à l’usage des
Représentants de Service qualifiés et
autorisés de Cleveland Range, LLC qui
possèdent l’expérience et la formation ainsi
que la bonne connaissance des mesures de
sécurité et du matériel qu’ils entretiennent.
Cleveland Range, LLC décline toute
responsabilité pour tout cas de décès,
blessure, dommage matériel ou dommage
aux biens résultant de l'utilisation, de la
mauvaise utilisation ou du manquement
d’utilisation des renseignements contenus
dans ce document.
Cleveland Range, LLC s’est efforcé à fournir
des renseignements précis dans ce
document mais ne peut garantir que ce
document soit exempt d’erreurs et
d’omissions non intentionnelles.
Les renseignements contenus dans ce
document peuvent être assujettis à des
changements techniques et technologiques,
des révisions ou des mises à jour.
Cleveland Range, LLC décline toute
obligation ou responsabilité concernant les
errata, modifications, révisions ou mises à
jour.
Les Représentants de Service qualifiés et
autorisés de Cleveland Range, LLC sont
tenus de se conformer aux mesures de
sécurité normalisées de l’industrie, y
compris, mais sans s'y limiter, les
réglementations de l'OSHA, les procédures
de débranchement / verrouillage /
étiquetage relatives à tous les services
publics, dont l’approvisionnement en vapeur,
et les procédures de débranchement /
verrouillage / étiquetage relatives aux
équipements et/ou appareils fonctionnant au
gaz, à l’électricité et à la vapeur.
Au cours de tout entretien d’un appareil
Cleveland Range, tous les services publics
(gaz, électricité, eau et vapeur) doivent être
FERMÉS au niveau de l’appareil et le
dispositif de fonctionnement doit être
verrouillé suivant les pratiques approuvées
de l’OSHA.
Les Représentants de Service qualifiés et
autorisés de Cleveland Range, LLC sont
tenus d’actualiser en permanence leurs
connaissances, compétences, matériel et
équipement.
Este documento está destinado para el uso de
los Representantes de Servicio calificados y
autorizados de Cleveland Range, LLC quienes
cuentan con la experiencia y la capacitación
así como el buen conocimiento de las medidas
de seguridad y de los equipos que mantienen.
Cleveland Range, LLC, declina toda
responsabilidad en caso de cualquier
fallecimiento, lesiones, daños al equipo o
daños a la propiedad resultantes de la
utilización, del uso indebido o de la falta de
utilización de la información provista en este
documento.
Cleveland Range, LLC se ha esforzado en
suministrar información precisa en este
documento, pero no puede garantizar que este
documento esté exento de errores y de
omisiones no intencionales.
La información contenida en este documento
podría estar sujeta a cambios técnicos o
tecnológicos, revisiones o actualizaciones.
Cleveland Range, LLC declina toda obligación
o responsabilidad con respecto a erratas,
modificaciones, revisiones o actualizaciones.
Los Representantes de Servicio calificados y
autorizados de Cleveland Range, LLC tienen
la obligación de seguir los procedimientos
estándar de seguridad de la industria; los
cuales incluyen pero no se limitan a los
reglamentos de la OSHA (La Administración
de la Seguridad y Salud Ocupacionales), los
procedimientos de desconexión, cierre y
etiquetado relativos a todos los servicios
públicos incluyendo el suministro de vapor y
los procedimientos de desconexión, cierre y
etiquetado para los equipos y/o aparatos que
funcionan a base de gas, electricidad o vapor.
Cuando se esté dando servicio o
mantenimiento a un aparato de Cleveland
Range, todos los servicios públicos (gas,
electricidad, agua y vapor) deben estar
APAGADOS para el equipo en cuestión y se
debe seguir el procedimiento de cierre de
operaciones de acuerdo con las prácticas
aprobadas por la OSHA.
Los Representantes de Servicio calificados y
autorizados de Cleveland Range, LLC tienen
la obligación de actualizar constantemente sus
conocimientos, destrezas, materiales y
equipamiento.

2.
WARNING: Improper
installation, operation,
adjustment, alteration,
service or maintenance
can cause property
damage, injury or death.
Read the installation
and operating
instructions thoroughly
before installing,
operating or servicing
this equipment.
FOR YOUR SAFETY
Do not store or use
gasoline or any other
flammable liquids and
vapours in the vicinity of
this or any other
appliance.
Do not spray aerosols in the vicinity of
this appliance while it is in operation.
This appliance is not to be used by
persons with reduced physical,
sensory or mental capabilities, or lack
of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the
appliance by a person responsible for
their safety.
This appliance is not for use by
children and they must be supervised
not to play with it.
Post in a prominent location,
instructions to be followed in the event
the user smells gas. This information
shall be obtained by consulting your
local gas supplier.
Do not obstruct the flow of combustion
and ventilation air.
Retain this manual for your reference.
AVERTISSEMENT : Toute
mauvaise pratique en matière
d’installation, de
fonctionnement, de réglage,
de modification, d’entretien ou
de maintenance peut causer
des dommages matériels, des
blessures ou la mort. Lisez la
totalité des instructions
d’installation et d’utilisation
avant d’installer, d’utiliser ou
d’entretenir cet équipement.
POUR VOTRE SÉCURITÉ
Ne pas entreposer ou
utiliser d'essence ou
d'autres liquides ou
vapeurs inflammables à
proximité de cet appareil
ou de tout autre appareil.
Ne pas pulvériser des aérosols dans le
voisinage de cet appareil alors qu'il est en
fonctionnement.
Cet appareil ne doit pas être utilisé par des
personnes dont les capacités physiques,
sensorielles ou mentales sont réduites, ou
des personnes dénuées d'expérience ou de
connaissance, sauf si elles ont pu bénéficier,
par l'intermédiaire d'une personne
responsable de leur sécurité, d'une
surveillance ou d'instructions préalables
concernant l'utilisation de l'appareil.
Cet appareil n'est pas destiné à être utilisé
par des enfants et ils doivent être surveillés
pour s'assurer qu'ils ne jouent pas avec
l'appareil.
Affichez à un endroit bien visible les
instructions à suivre dans le cas où
l'utilisateur sent une odeur de gaz. Ces
informations seront obtenues auprès de
votre fournisseur de gaz local.
Ne pas obstruer le flux d'air de combustion
et de ventilation.
Conservez ce manuel pour votre référence.
ADVERTENCIA: La indebida
instalación, operación,
ajuste, modificación,
servicio o mantenimiento
puede ocasionar daños a la
propiedad, lesiones o
muerte. Lea detenidamente
las instrucciones de
instalacion y de operación
antes de instalar, poner a
funcionar o dar servicio a
este equipo.
PARA SU SEGURIDAD
No guarde ni use gasolina
o cualesquiera otros
líquidos o vapores
inflamables en las
cercanías de éste o
cualquier otro aparato.
No pulverice aerosoles en las
proximidades de este aparato
mientras está en funcionamiento.
Este aparato no debe ser utilizado por
personas con capacidades físicas,
sensoriales o mentales reducidas, o
que no tengan la experiencia y los
conocimientos adecuados, a menos
que estas personas hayan recibido
supervisión e instrucciones en cuanto
al uso del aparato por la persona
responsable de la seguridad de ellas.
Este aparato no debe ser usado por
los niños y ellos deben ser
supervisados para que no jueguen
con el aparato.
No obstruya el flujo del aire
combustión y de ventilación.
Guarde este manual para su
referencia.
FOR YOUR SAFETY / POUR VOTRE SÉCURITÉ /
PARA SU SEGURIDAD

3.
Improper installation, operation, adjustment, alteration,
service or maintenance can cause property damage,
injury or death. Read the installation and operating
instructions thoroughly before installing, operating or
servicing this equipment. / Toute mauvaise pratique en
matière d’installation, de fonctionnement, de réglage, de
modification, d’entretien ou de maintenance peut causer des dommages
matériels, des blessures ou la mort. Lisez la totalité des instructions
d’installation et d’utilisation avant d’installer, d’utiliser ou d’entretenir cet
équipement. / La indebida instalación, operación, ajuste, modificación,
servicio o mantenimiento puede ocasionar daños a la propiedad, lesiones o
muerte. Lea detenidamente las instrucciones de instalacion y de operación
antes de instalar, poner a funcionar o dar servicio a este equipo.

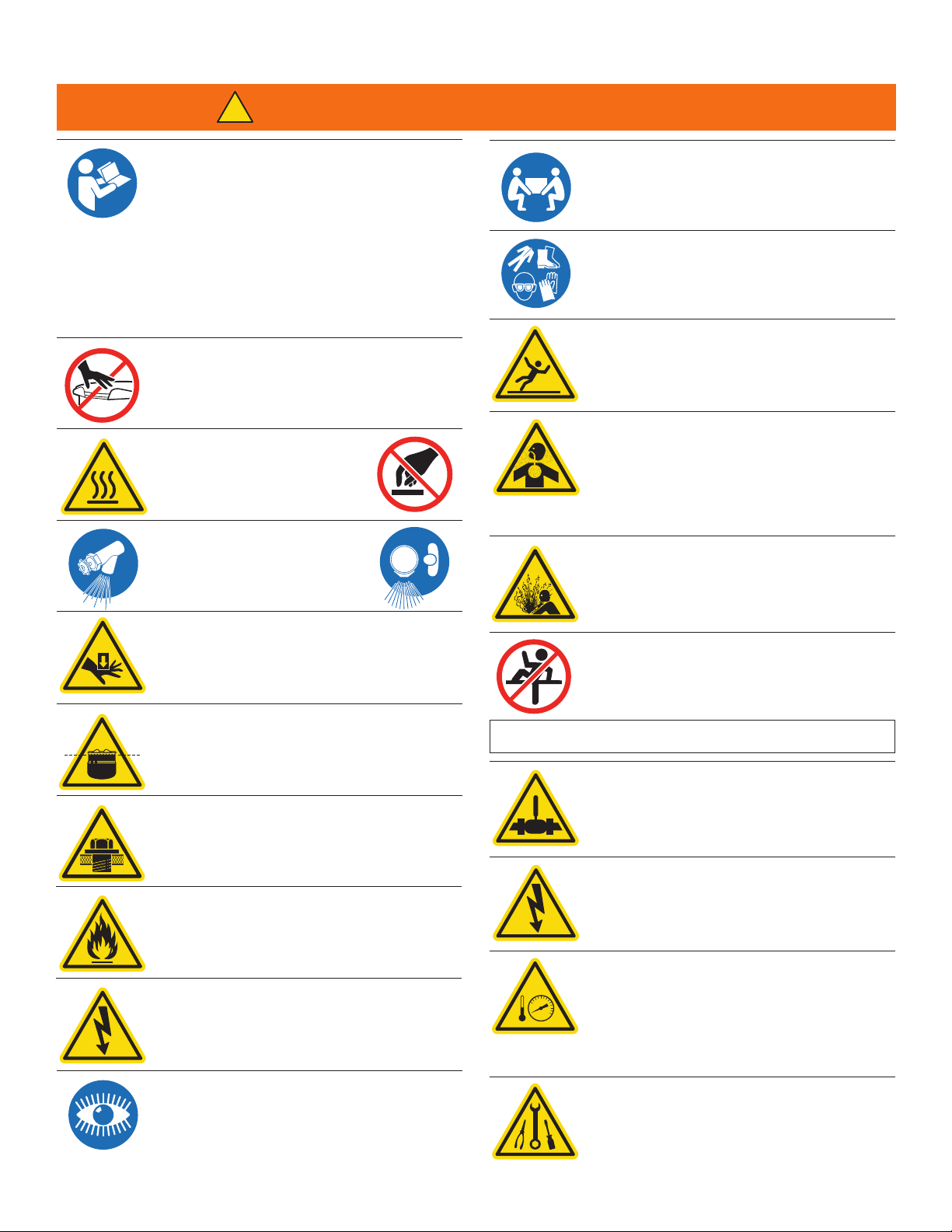

Surfaces and product may be hot! Wear protective
equipment. /Les surfaces et le produit peuvent être
chauds! Portez un équipement de protection. / ¡Las
superficies y el producto pueden estar calientes!
Utilice equipo protector.
Stand clear of product discharge path
when discharging hot product. /
Écartez-vous du chemin de décharge
d’un produit chaud. / Permanezca
alejado de la ruta de descarga del
producto al vaciar producto caliente.
Keep hands away from moving parts and pinch points.
/ Gardez les mains loin des pièces mobiles et des
points de pincement. / Mantenga las manos lejos de
piezas movibles y puntos de presión muy localizada.
Remove electrical power prior to servicing. / Coupez
l'alimentation électrique avant l'entretien. / Desconecte
la energía eléctrica antes de darle servicio.
Risk of electric shock. / Risque de choc électrique. /
Riesgo de choque eléctrico.
Hot product and surfaces. / Produit et
surfaces chaudes. / Producto y
superficies calientes.
Do not touch. / Ne pas toucher. / No
la toque
Do not climb, sit or stand on equipment. / Il ne faut pas
monter, s'asseoir ni se tenir debout sur l'équipement. /
No subirse, ni sentarse ni pararse sobre el equipo.
Pressurized device. / Appareil sous pression. /
Dispositivo de presión.
Keep clear of pressure relief discharge. / Restez à
l'écart de la soupape de sureté. / Permanezca alejado
de la descarga de presión.
Do not lean on or place objects on lip. / Ne vous
penchez pas sur oune placez pas des objets sur la
lèvre. / No se apoye ni coloque objetos en el labio.
Inspect unit daily for proper operation. / Inspectez
l’unité tous les jours pour son bon fonctionnement. /
Inspeccione diariamente el funcionamiento correcto de
la unidad.
WARNING / AVERTISSEMENT / ADVERTENCIA
!
Have a qualified service technician maintain your
equipment. / Demandez à un technicien en entretien
et en réparation qualifié d’effectuer l’entretien de votre
équipement. / Haga que un técnico de servicio
calificado mantenga su equipo
Floor may become slippery from product spillage. /
Déversement de produit peut causer de plancher à
être glissante. / Derrame de producto puede causar
piso a ser resbaladizo.
Do not fill kettle above recommended level marked on
outside of kettle. / Ne remplissez pas la chaudière en
excès du niveau recommandé marqué sur la
chaudière. / No llene la marmita arriba del nivel
recomendado marcado fuera de la marmita.
Unit must be anchored as per manual. / Unité doit être
ancrée selon les directives du manuel. / Unidad debe
estar fijado según el manual.
0
Ensure kettle is at room temperature and pressure
gauge is showing zero or less prior to removing any
fittings. / Assurez-vous que la chaudière est à
température ambiante et que le manomètre est à zéro
ou moins avant de retirer des accessoires. /
Asegúrese de que la marmita esté a temperatura
ambiente y el manómetro esté mostrando cero o
menos antes de retirar cualquier accesorio.
Keep appliance and area free and clear of
combustibles. / Gardez l'appareil et son entourage
libre de tous combustibles. / Mantenga el aparato y el
área libres de combustibles.
Do not attempt to operate this appliance during a
power failure. / N’essayez pas de faire fonctionner cet
appareil lors d'une panne de courant. / No intente
poner en marcha este aparato durante un fallo de
suministro eléctrico.
Shut gas supply off prior to servicing. / Fourniture de
gaz fermée au loin avant d'entretenir. / Suministro de
gas cerrado apagado antes del mantenimiento.
Unit exhaust contains carbon monoxide. Operate only
under a properly functioning hood with adequate makeup
air. / L'échappement de l'unité émet du monoxyde de
carbone. Exploiter uniquement sous une hotte
fonctionnant correctement avec une source adéquate d'air
d'appoint. / El escape de la unidad contiene monóxido de
carbono. Operar solamente bajo una campana en buen
funcionamiento con aire de relleno adecuado.
SERVICING / ENTRETIEN / SERVICIO
Heavy / Lourd / Pesado
Team or mechanical lift. / Équipe ou remontée
mécanique. / Equipo o elevador mecánico.

4.
GENERAL
Insure gas and electrical supplies match rating plate.
Installation of the kettle must be accomplished by qualified
installation personnel working to all applicable local and
national codes.
This equipment is built to comply with applicable standards
for manufacturers. Included among those approval agencies
are: UL, NSF, ASME/N.Bd., CSA, ETL, and others. Many local
codes exist, and it is the responsibility of the owner/installer to
comply with these codes.
Observe all clearance requirements. Do not obstruct the flow
of combustion and ventilation air.
RECEIVING INSPECTION
Before unpacking visually inspect the unit for evidence of
damage during shipping.
If damage is noticed, do not unpack the unit, follow shipping
damage instructions.
SHIPPING DAMAGE INSTRUCTIONS
If shipping damage to the unit is discovered or suspected,
observe the following guidelines in preparing a shipping
damage claim.
1. Write down a description of the damage or the reason for
suspecting damage as soon as it is discovered. This will
help in filling out the claim forms later.
2. As soon as damage is discovered or suspected, notify
the carrier that delivered the shipment.
3. Arrange for the carrier's representative to examine the
damage.
4. Fill out all carrier claims forms and have the examining
carrier sign and date each form.

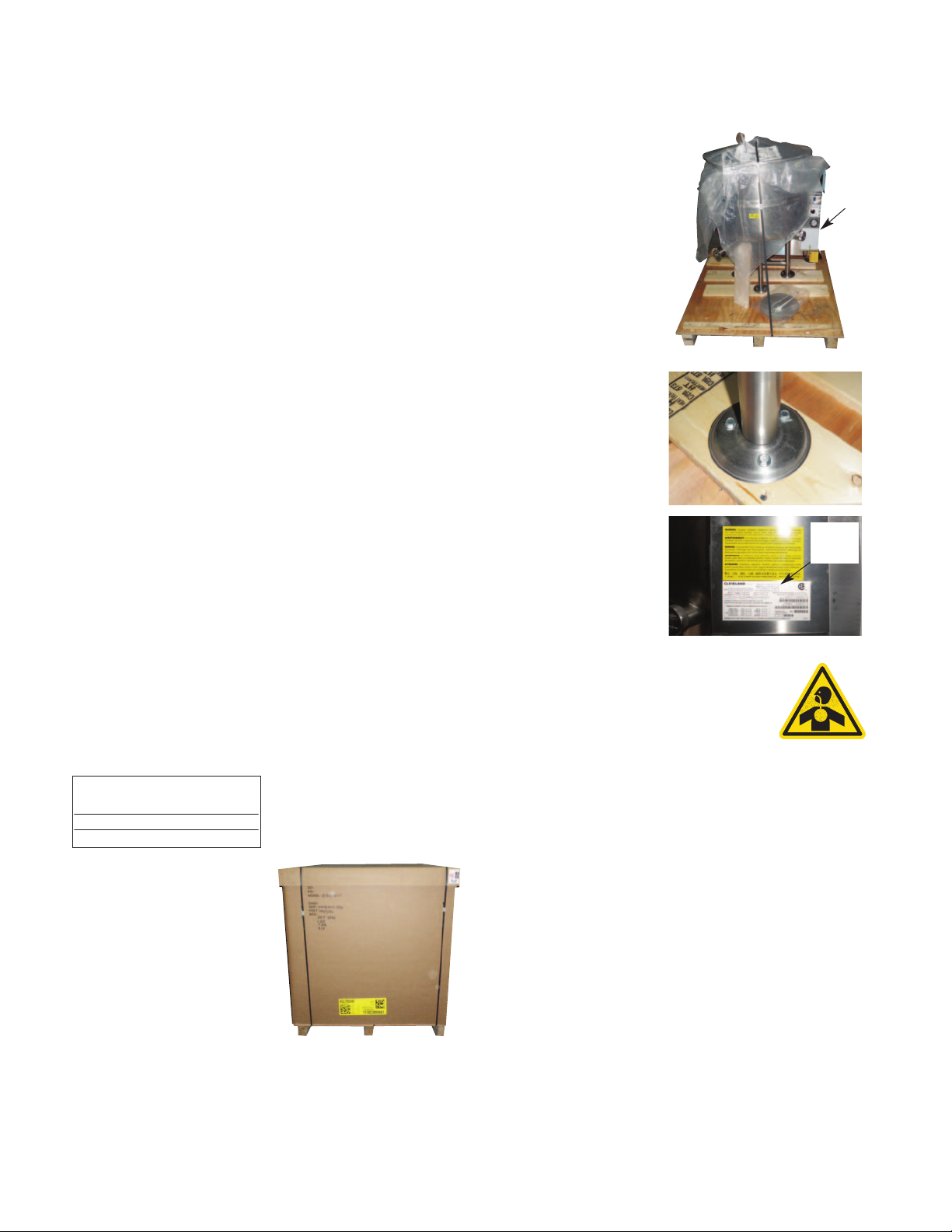

UNCRATING
Caution:
Straps under tension and will
snap when cut.
Carton may contain staples and
Skid contains Nails.
Use proper safety equipment
and precautions.
Unit is heavy use adequate help or lifting equipment as
needed.
1. Carefully cut any straps
from container.
2. Lift off carton.
3. Inspect for hidden
damage.
If found refer to
“SHIPPING DAMAGE
INSTRUCTIONS”.
4. Cut strap holding unit.
5. Remove lag bolts from
feet.
6. Remove manual from
kettle pot. Write down
the model# and serial#
of the unit onto the front
of this manual.
7. Lift kettle off skid and
move kettle to its
installation location.
8. Discard packaging
material according to
local and or state
requirements.
VENTILATION
Gas fired kettles are only to be installed
under a ventilation hood in a room which
has provisions for adequate make up air. Further information
can be obtained by referring to the U.S.A. National Fire
Protection Associations NFPA96 regulations. These standards
have also been adopted by the National Building Code in
Canada.
POSITIONING
This unit must be installed in accordance with the clearances
shown on the rating label which is adhered to the unit.
1. Position the unit in it's permanent location, and level the
unit by turning the adjustable feet.
2. Once positioned and leveled, permanently secure the
unit's flanged feet to the floor using 5/16" lag bolts and
floor anchors (supplied by the installer). Three bolts are
required to secure each of the flanged feet.
3. Seal joints of flanged feet with a silicone sealant.
4. Remove any protective material covering the stainless
steel panels.
INSTALLATION
Model/
Serial#
Model/
Serial#
Unit with
Model # Unit shipping
box
KGL-25 320 lbs. 360 lbs.
KGL-25-T 320 lbs. 360 lbs.
APPROXIMATE WEIGHTS

5.
GAS
ENSURE THE GAS SUPPLY MATCHES THE KETTLE'S
REQUIREMENTS AS STATED ON THE RATING PLATE.
Installation must conform, with local codes or in the absence
of local codes, with the National Fuel Gas Code ANSI
Z223.1/NFPA 54, or the Natural Gas and Propane Installation
Code, CSA B149.1.
The appliance and its individual shut-off valve must be
disconnected from the gas supply piping system during any
pressure testing of that system at test pressures in excess of
1/2 psi (3.45 kPa).
The appliance must be isolated from the gas supply piping
system by closing its individual manual shut-off valve during
any pressure testing of the gas supply piping system at test
pressures equal to or less than 1/2 psi (3.45 kPa).
It is recommended that a sediment trap (drip leg) be installed
in the gas supply line. If the gas pressure exceeds 1/2 psi
(3.45 kPa) water column, a pressure regulator must be
installed, to provide a maximum of 1/2 psi (3.45 kPa) water
column gas pressure to the gas control valve.
Use a gas pipe joint compound which is resistant to L.P. gas.
Test all pipe joints for leaks.

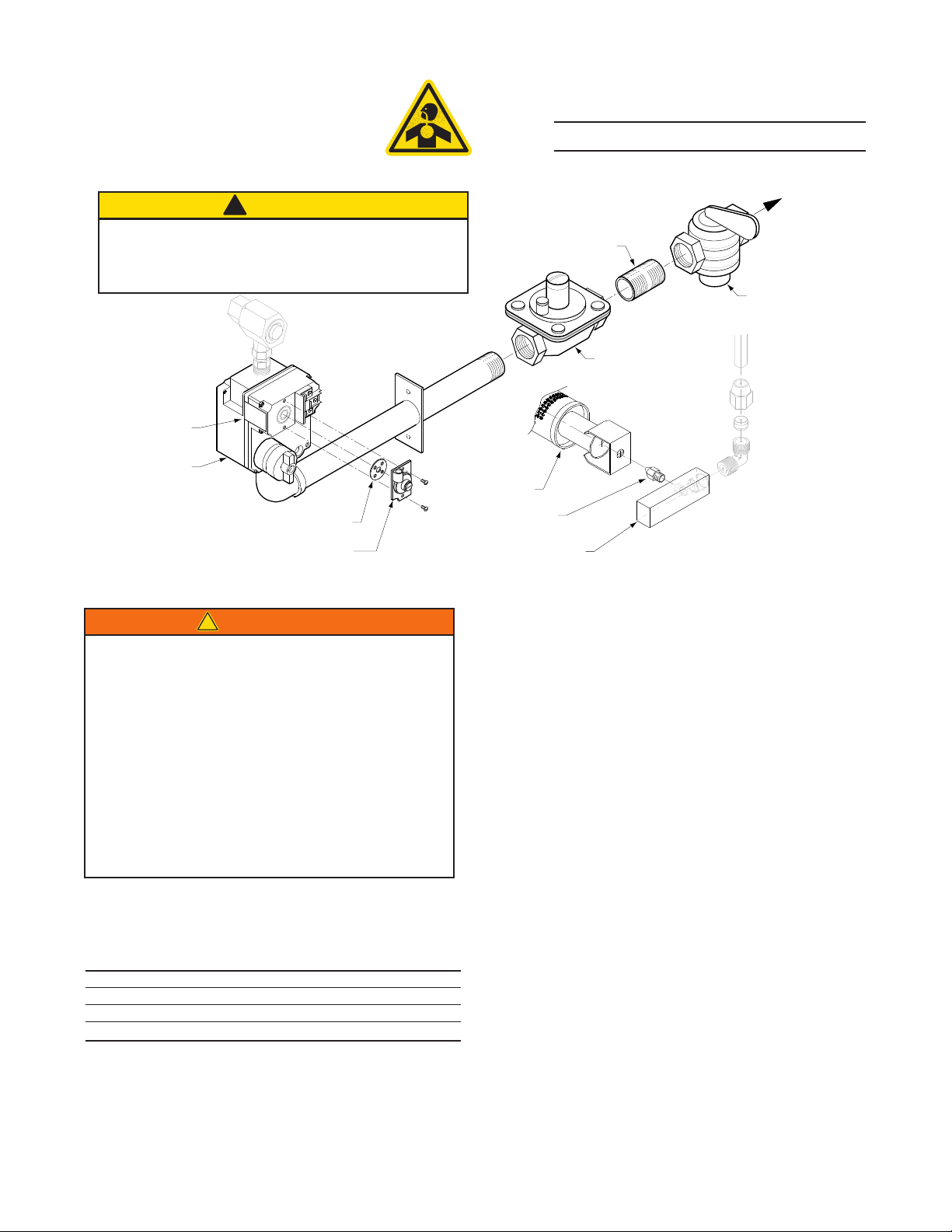

1. Removed supplied manual shut-off valve and establish
mounting location.
2. Add union and
piping as required.
3. Connect the gas
line to the manual
shut-off valve.
ELECTRICAL
ENSURE THE ELECTRICAL SUPPLY MATCHES THE
KETTLE'S REQUIREMENTS AS STATED ON THE RATING
LABEL.
For 110-120 volt units a cord and plug are supplied with the
unit. Simply plug the unit into any grounded outlet rated for a
minimum of 10 amps.
The kettle must be electrically installed and grounded in
accordance with local codes, or in the absence of local
codes, with National Electrical Code, ANSI/NFPA 70 (USA) or
the Canadian Electrical Code, CSA C22.2, (Canada).
Standard supply voltage is 115 volts A.C., however, optional
A.C. voltages can be supplied on special order. A separate
fused disconnect switch must be supplied and installed in the
high voltage electrical supply line.
The wiring diagram is located under the cover of electrical
box inside the back console.
For 200-240 volt units a terminal block is provided.
1. Remvove the consol cover. A wiring diagram is affixed to
the underside of the cover.
2. Feed permanent copper wiring through the cut-out in the
rear or bottom of the console, and fasten to the terminal
block. Be sure to connect the ground wire to the separate
ground terminal connector (ground lug).
NOTE: Units are tested on a in-house ground fault system.
However, there is no guarantee the unit will work on all
ground fault systems. If you are having problems you can
hard wire the unit.
WATER
The sealed jacket of the gas-fired kettle is precharged with
the correct amount of a water-based formula, and therefore,
no water connection is required to the kettle jacket. The kettle
can be equipped with optional hot and cold water taps,
requiring 1/2" copper tubing as supply lines.
INSTALLATION CHECKS
Although the kettle has been thoroughly tested before leaving
the factory, the installer is responsible for ensuring the proper
operation of kettle once installed.

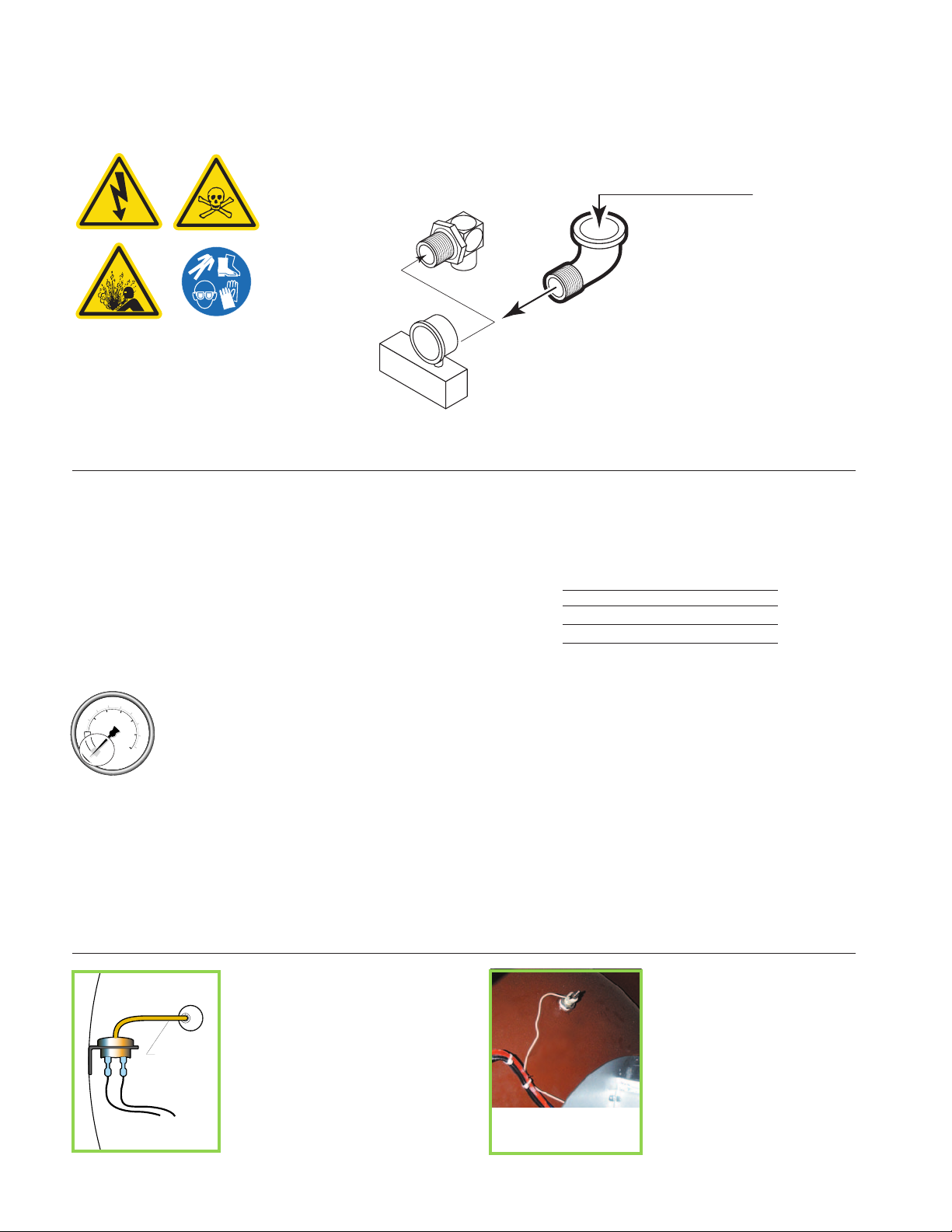

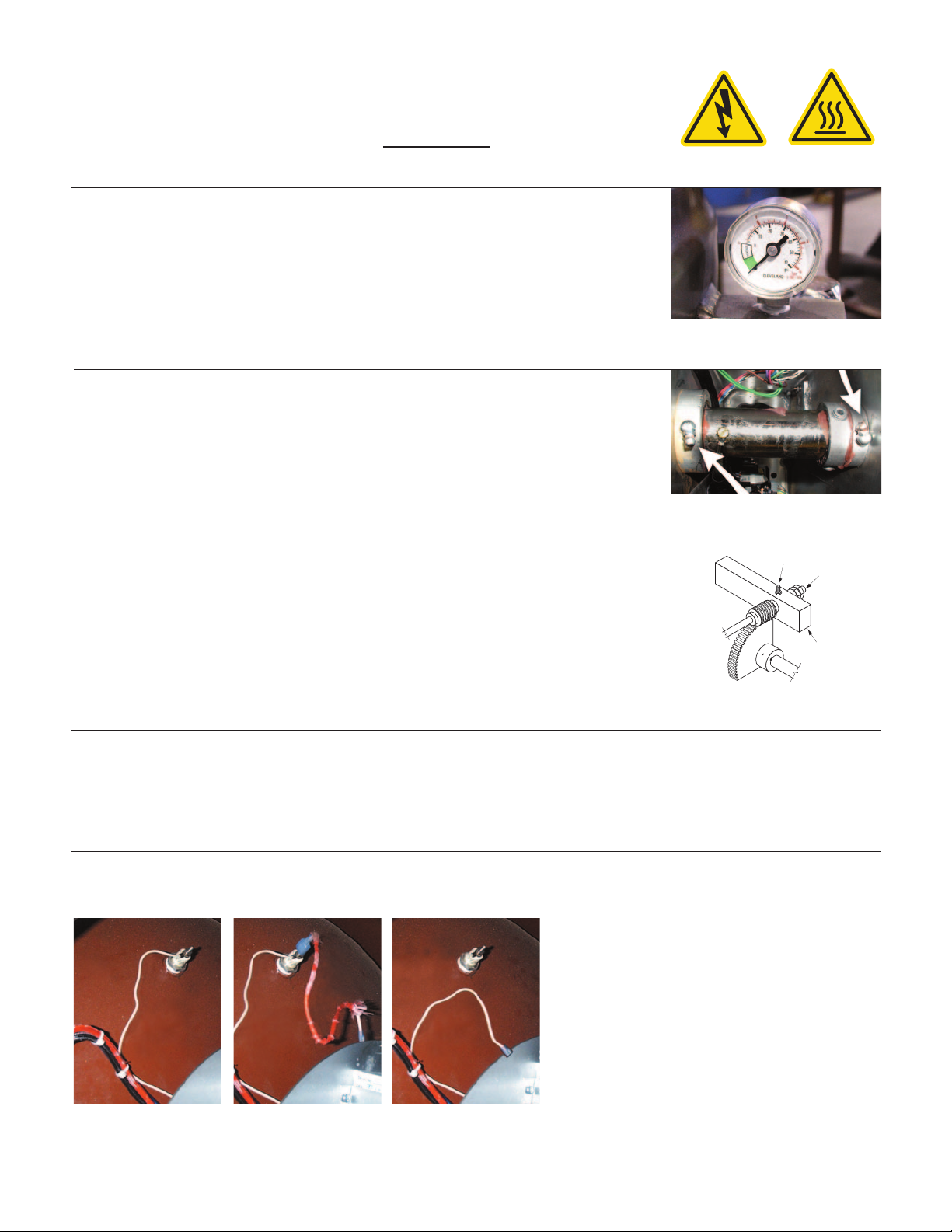

1. Before turning the kettle on, read the vacuum/pressure
gauge. The gauge's needle should be in the green zone.
If the needle is in the "VENT AIR" zone, follow air venting
procedure.
2. Unit has been thoroughly checked for gas leaks at the
factory however the installer should check all connections
for any leaks which may have resulted from shipping or
installation.
3. Supply power to the kettle by placing the fused
disconnect switch to the "ON" position.
4. Open gas shut-off valve to turn on main gas supply.
5. Turn the temperature control knob to "1" (Min.). The green
LED light should remain lit, indicating the burner is lit, until
the set temperature is reached. Then the green light will
cycle on and off, indicating the burner is cycling on and off
to maintain temperature.
6. Tilt the kettle forward. After a few seconds the red "LOW
WATER" light should be lit when the kettle is in a tilted
position. This light indicates that the burner has
automatically been shut off by the kettle's safety circuit.
This is a normal condition when the kettle is in a tilted
position.
7. Raise the kettle to the upright position. The red "LOW
WATER" light should go out when the kettle is upright.
8. Turn the temperature control knob to "10"(Max.) and allow
the kettle to preheat. The green light should remain on
until the set temperature is reached. Then the green light
will cycle ON and OFF, indicating the burner is cycling
ON and OFF to maintain temperature.
9. Check carbon monoxide is less than 0.08 percent in an
air-free sample of the flue gases. See FREE AIR
CALCULATION procedure in “Maintenance Procedures &
Parts Lists” manual.
CLEANING
After installation the kettle must be thoroughly cleaned and
sanitized prior to cooking.
BACK OF KETTLE
UNION NIPPLE SHUT-OFF
VALVE
GAS
SUPPLY
WARNING: Electrical Grounding Instructions.
This unit is equipped with a three-prong (grounding)
plug for your protection against shock hazard and
should be plugged directly into a properly grounded
three-prong receptacle. Do not cut or remove the
grounding prong from this plug.

6.
3
8
2
1
5
4
7
6
9
OPERATING THE KETTLE
1. Perform daily startup inspection.
2. Preheat the kettle by turning the ON/OFF Temperature
Control
to the desired temperature setting. The Heat
Indicator Light (Green) will remain lit, indicating the
burner is on, until the temperature setting is reached.
When the green light goes off, the burners are off, and
preheating is complete.
NOTE: When cooking egg and milk products, the kettle should not
be preheated, as products of this nature adhere to hot cooking
surfaces.
3. Place food product into the kettle. The green Heat
Indicator Light will cycle on and off indicating the burners
are cycling on and off to maintain the set temperature.
4. When cooking is completed turn
Temperature Control
to
the "OFF' position.
5. Pour the contents of the kettle into an appropriate
container by tilting the kettle forward or using discharge
valve.
NOTE: Cleaning should be completed immediately after cooked
foods are removed.
NOTE: A five minute complete shut-of period is required
before relighting.
Temperature Approximate
Control Product Temperature
Setting °F °C
1. 120 49
2. 135 57
3. 150 66
4. 165 74
5. 180 82
6. 195 91
7. 210 99
8. 225 107
9. 245 118
10. 265 130
NOTE: Certain combinations of ingredients will
result in temperature variations

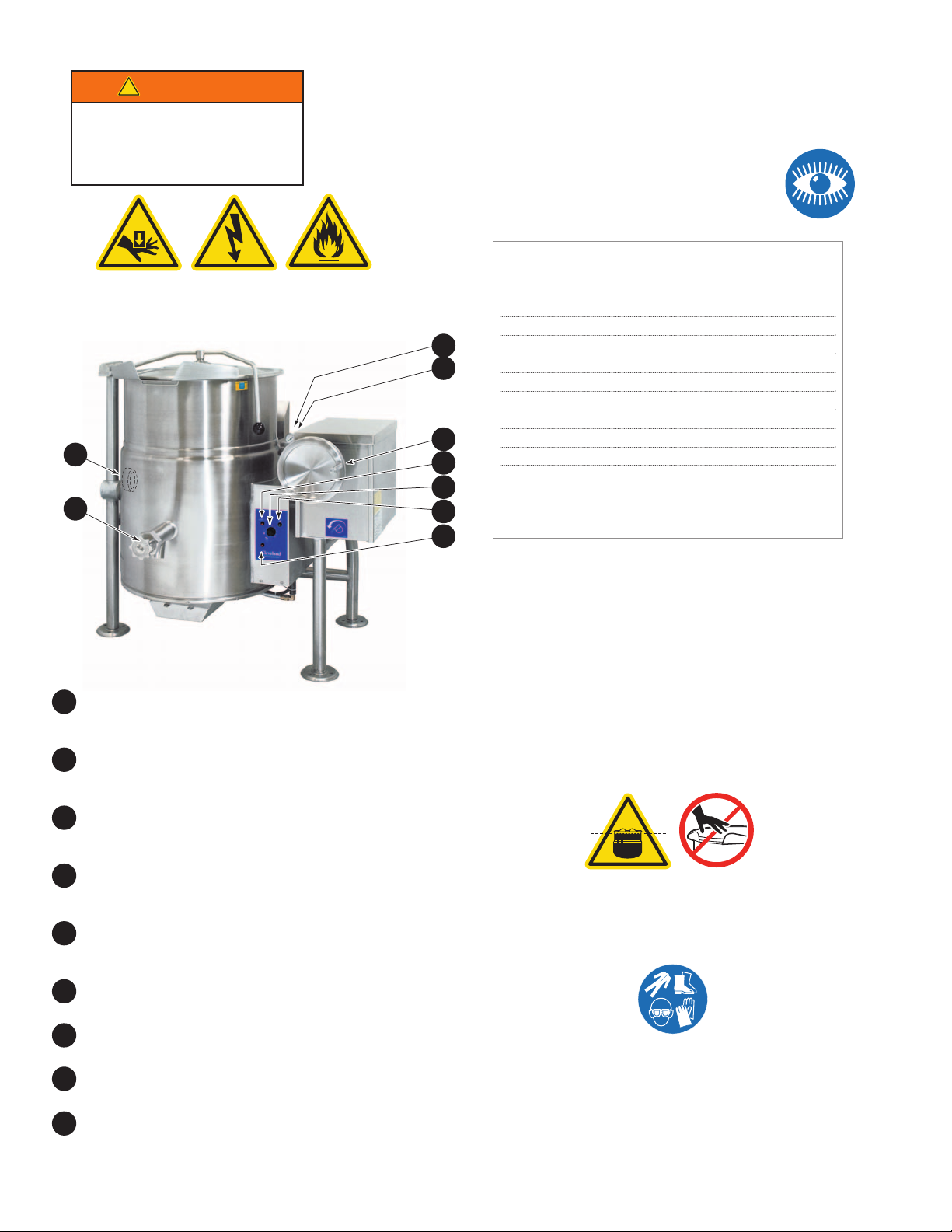

OPERATING CONTROLS AND
INDICATORS
OPERATING INSTRUCTIONS
LOW WATER INDICATOR LIGHT (RED)
When lit, indicates that the kettle is low on water and will not operate in
this condition. This will also light when the kettle is in the tilted position.
ON-OFF TEMPERATURE CONTROL
Turns kettle ON/OFF and allows the operator to adjust the kettle
temperature.
HEAT INDICATOR LIGHT (GREEN)
When lit, indicates that the kettle's burner is on. Cycles ON-OFF with
burner.
VACUUM/PRESSURE GAUGE
Indicate steam pressure in PSI inside steam jacket and vacuum in inches of
mercury.
PRESSURE RELIEF VALVE (NOT SHOWN)
This valve is used to vent the kettle and in the unlikely event there is an
excess steam build-up in the jacket.
WATER LEVEL SIGHT GLASS
Displays water level in steam jacket.
TILT WHEEL
Used for tilting the kettle on hand tilt models.
LOW WATER INDICATOR LIGHT (RED)
When lit, indicates a low water condition.
TANGENT DRAW-OFF VALVE
Used for draining product or wash water from kettle.
1
2
3
5
8
9
7
6
4
WARNING
If for any reason this unit is not
functioning correctly DO NOT
OPERATE. Contact your
authorized service agent.
!

7.
CARE AND CLEANING
Cooking equipment must be cleaned
regularly to maintain its fast, efficient
cooking performance and to ensure its
continued safe, reliable operation. The
best time to clean is shortly after each
use (allow unit to cool to a safe
temperature).
WARNINGS
Do not use
detergents or
cleansers that are
chloride based or
contain quaternary
salt.
Unit should never be
cleaned with a high
pressure spray hose.
Steel wool should
never be used for
cleaning the stainless
steel.
Do not leave water
sitting in unit when
not in use.
Do not use a metal
bristle brush or
scraper.
CLEANING INSTRUCTIONS
CLEANING INSTRUCTIONS
1. Turn unit off.
2. Remove drain screen (if applicable). Thoroughly wash and rinse the screen
either in a sink or a dishwasher.
3. Prepare a warm water and mild detergent solution in the unit.
4. Remove food soil using a nylon brush.
5. Loosen food which is stuck by allowing it to soak at a low temperature setting.
6. Drain unit.
7. Rinse interior thoroughly.
8. If the unit is equipped with a Tangent Draw-Off Valve, clean as follows:
a) Disassemble the draw-off valve first by turning the valve knob counter-
clockwise, then turning the large hex nut counter-clockwise until the valve
stem is free of the valve body.
b) In a sink, wash and rinse the inside of the valve body using a nylon brush.
c) Use a nylon brush to clean tangent draw-off tube.
d) Rinse with fresh water.
e) Reassemble the draw-off valve by reversing the procedure for disassembly.
The valve's hex nut should be hand tight only.
9. If the unit is equipped with a Butterfly Valve, clean as follows:
a) Place valve in open position.
b) Wash using a warm water and mild detergent solution.
c) Remove food deposits using a nylon brush.
d) Rinse with fresh water.
e) Leave valve open when unit is not in use.
10. If the unit is equipped with an Air Valve, clean as follows:
a) Open product valve.
b) Disconnect air hoses.
c) Remove air cylinder.
d) Remove valve tee.
e) Remove all O-rings.
f) Clean air cylinder, do not submerge in water. Wipe clean and sanitize.
g) Clean and sanitize tee and O-rings.
h) Grease and reinstall O-rings.
i) Reinstall valve tee to kettle outlet.
j) Reinstall air cylinder to bottom of tee.
k) Reconnect air hoses.
l) Close valve and check for alignment.
11. Using mild soapy water and a damp sponge, wash the exterior, rinse, and dry.
NOTES
➩For more difficult cleaning applications one of the following can be used: alcohol,
baking soda, vinegar, or a solution of ammonia in water.
➩Leave the cover off when the kettle is not in use.
➩For more detailed instructions refer to Stainless Steel Equipment Care and
Cleaning (www.nafem.org/resources/stainlesssteelfinal.doc) on Nafem’s website
(www.nafem.org).
DISPOSAL INSTRUCTIONS
This unit is recyclable. Do not dispose in landfill.
The unit may contain rust inhibitor and or antifreeze within the
jacket. Drain unit and dispose following Federal, State and local
regulations.
The majority of the unit is composed of stainless steel. Other alloys and electrical
components make up a small percentage of the total. Follow Federal, state and
local regulations for disposal.
Chloride Cleaners
Wire Brush &
Scrapers
Steel Pads
High Pressure
Spray Hose
Stagnant
Water

8.
DAILY
PRE-STARTUP
INSPECTION
1. Flue is not obstructed.
2. Draw-Off Valve is installed and handle is in place.
3. Cover lifts up and down freely and is held in place when fully open.
4. Pressure Gauge is in the green when unit is cold.
5. Green Light comes on when unit is energized.
6. Red Light comes on when unit is tilted (tilting models only).
PREVENTATIVE MAINTENANCE
FOR MAINTENANCE AND REPAIRS CONTACT YOUR AUTHORIZED MANITOWOC SERVICE AGENCY
AND HAVE A QUALIFIED SERVICE TECHNICIAN MAINTAIN YOUR EQUIPMENT.
SIX MONTH SERVICE INSPECTION
1. Perform daily startup inspection.
2. Tilt hand wheel is tight (tilting model).
3. Grease bearings on both trunnions (tilting model).
4. Check for play in gears (adjust if required) (tilting model).
5. Fasteners securing panels are in place and tight.
6. Perform pressure relief valve periodic test (see Pressure Relief Valve Testing).
7. Adequate exhaust and makeup air is supplied to working area.
YEARLY SERVICE INSPECTION
1. Perform six month service inspection.
2. Check kettle maximum temperature setting (see Calibrating Procedure).
3. Perform free air calculation (see FREE AIR CALCULATION).
4. Follow “SAFETY INSPECTION CHECKLIST”.
If for any reason this unit is not
functioning correctly DO NOT
OPERATE. Contact your
authorized service agent.
WARNING:
!
0

9.

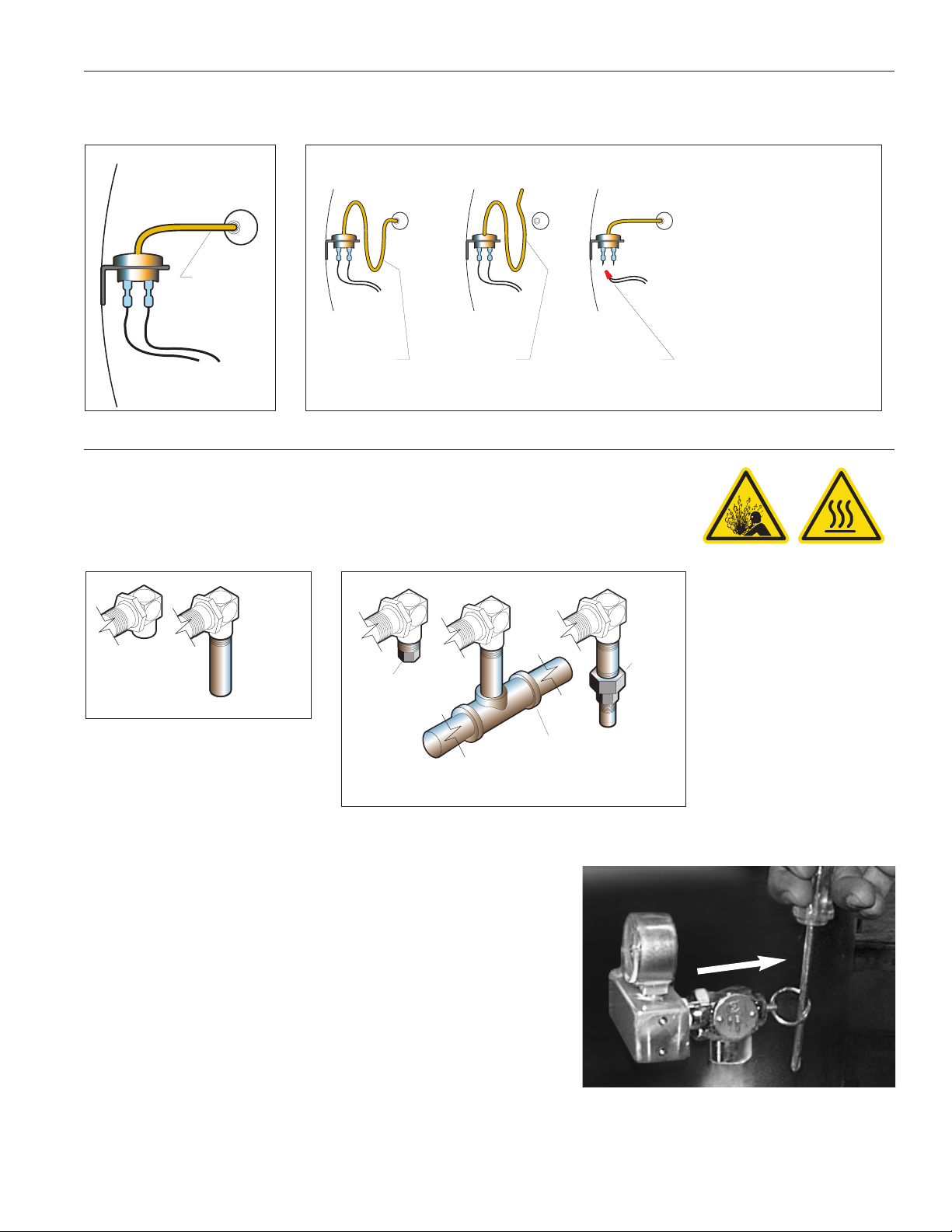

D/ LOW WATER LEVEL PROBE:
Probe
bypassed
by running (A) an
additional wire
Probe properly
attached
✔✘Probe
bypassed by
(B) grounding the
connecting wire
✘
(A)
Functional Test:
1. Turn main power on at fused disconnect
switch.
2. Turn kettle on and set temperature to maximum.
3. Green light will come on and contactors close.
4. Tilt kettle over. After approximately a five-
second delay the red light will come on, green
light go off and the contactors will disengage.
5. Turn kettle upright. Green light will come back
on and contactors reengage.
6. Turn kettle off
7. If unit does not function as above, make
required repairs.
8. Disconnect main power at fused disconnect
switch.
Installation Check:
B/ MECHANICAL CHECKS
1. Inspect controls, replace damaged seals, switches, LED's etc..
2. Remove the console cover and check that the seal is not cracked or split.
Replace seal, screws, missing or worn nylon anchor nuts. Leave cover off.
3. Remove the kettle bottom cover and check that the seal is not cracked or split.
Leave cover off.
4A. For units with tilt handle-
A. Check handle for tightness. If loose apply lock tight and reinstall. Check handle
knob is on end of handle and firmly tightened. If missing replace, if loose apply
lock tight and reinstall.
B. Check that kettle tilts smoothly and there is no excessive wear in the trunnion bearings.
Add grease to nipples as required.
4B. For units with tilt crank-
A. Check that the kettle tilts smoothly. If there is excess play adjust the worm to gear
clearance with Locking Nuts or Adjusting Screw as required.
B. Check that there is no excessive wear in the trunnion bearings.
C. Apply grease to gear teeth and bearings.
SAFETY INSPECTION CHECKLIST
NOTE: The following instructions are intended for use by qualified service personnel.
The following steps should be completed IN SEQUENCE.
A/ KETTLE PREPARATION
1. Disconnect main power at fused disconnect switch.
2. Kettle should be cold. If necessary add water to kettle pot to cool unit.
3. The pressure gauge should now show a vacuum and have no indication of leakage.
If gauge gauge looks damaged replace gauge.
4. Gauge must be showing a vacuum prior to proceeding. If not check for leaks, and repair
kettle prior to proceeding. Refer to REFERENCE SECTION (KETTLE VENTING INSTRUCTIONS).
C/ MARINE LOCK TEST
1. Check that lock mechanism is not bent or damaged.
2. Check that lock clears stop pin on side box without rubbing when kettle is tilted.
3. Check side to side play. Lock should remain fully over stop pin when pushed to it's maximum side to side play.
Adjusting
Screw
W
orm
Screw and
T
ilt
Gear
Cross
Bar
Locking
Nuts
4B. Illustration inverted for clarity.
4A. Grease Nipples.
Pressure Gauge in Vacuum.

10.
F/ SAFETY VALVE
Installation Check:
Pressure Relief Valve Periodic Testing Procedure
1. With the kettle empty, set On-Off Switch/Temperature Control to "10"
(Max.). Allow the kettle to heat until the unit cycles off.
2. Switch On-Off Switch/Temperature Control to " 0 " (Off) and disconnect main
power at fused disconnect switch.
3. Stand to the side of the pressure relief valve discharge tube and pull
valve open for a maximum of one second. Repeat test three to four
times. Each time the mechanism should move freely and be
accompanied by a rapid escape of steam.
If valve appears to be sticking replace pressure relief valve.
If foreign material is discharged then drain kettle and replace pressure
relief valve.
✔
✔
✘
1
Plug
✘Plumbed to drain
or water line
2
Tub e
diameter
reduced
✘
3
Physical Checks
1.
Check that the PSI rating
on the valve matches
MAWP (maximum
allowable working
pressure) on the plate
welded to the kettle.
2. Check that the Safety
Valve has a "UV" stamp.
3. Check that the valve is
not damaged in any way.
If any of the above criteria
is not met, replace valve.
The above illustrations show the
variations of factory installed Safety
Valves. Any modifications are
unacceptable.
4"
maximum
length
Correct
Installation
Incorrect Installation
✔
Probe
fully
inserted
in tube
Wiring is properly
connected
E/ SAFETY THERMOSTAT
Installation Check:
Incorrect Installations
1. Safety thermostat probe
is not completely
inserted into tubing
(except KET-3-T that
has a small loop).
2. Safety thermostat probe
is removed from tubing.
3. Safety thermostat
electrical connection is
bypassed.
Correct
Installation
✘
Probe
removed
partially
✘
Probe
removed
completely
✘
Thermostat
electrically
bypassed
123

11.
G/ CALIBRATING PROCEDURE
1. Kettle must be empty when this procedure is executed.
2. Insure the unit has a vacuum before you begin calibrating procedures. If unit
requires venting see REFERENCE SECTION (KETTLE VENTING
INSTRUCTIONS).
3. Turn kettle ON and set temperature dial to 10 (Max.).
4. Allow the unit to cycle twice (the green light must go on and off).

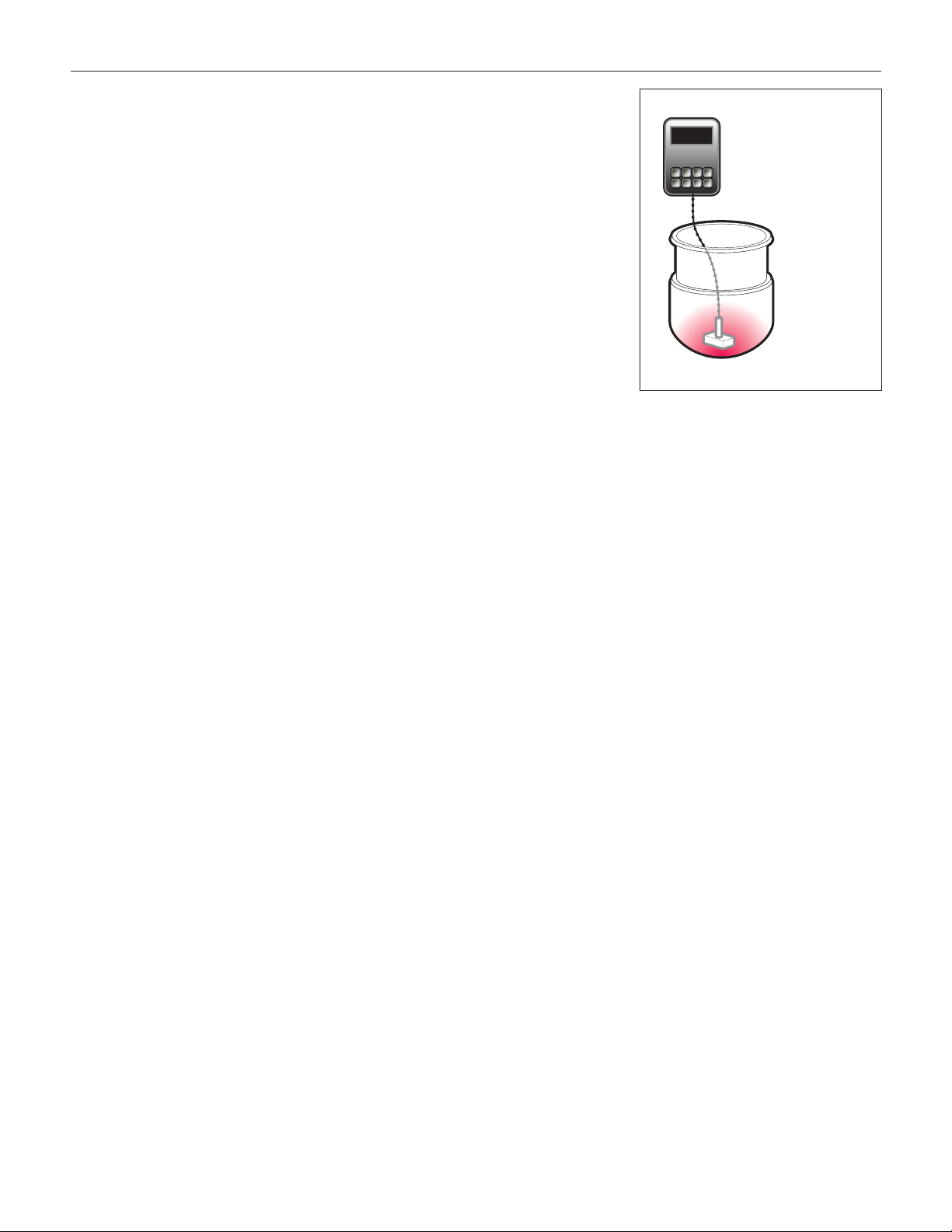

5. Check temperature of the inner kettle surface with a digital surface thermometer.
For accurate readings move probe around bottom of kettle to locate the hottest
location.
6. Temperature should be between 260° F and 265° F. Pressure gauge should read
between 20 - 28 PSI.
7. Using a screw driver adjust temperature by turning the potentiometer on the
black box. Turn very little. Turn clockwise to INCREASES and counter-clockwise
to DECREASE temperature.
8. Allow the unit to cycle twice.
9. Re-check temperature.
10. Repeat steps 7- 9until unit is calibrated.
260º - 265º
MAXIMUM
KETTLE
TEMPERATURE
265º
✔
Take reading
from hottest
spot in bottom
of kettle.
OPERATING SEQUENCES
1. Turn On-Off / Temperature Dial*- 14 volt transformer is energized and powers solid state control system.
- Temperature knob is turned up and control box calls for heat.
- Relay (RY-1) closes and powers 24 volt transformer.
- Ignition control box is powered.
3. Ignitor Sparks*- Gas valve is energized.
- Ignitor sparks and ignition occurs.
4. Temperature Reached*- Solid state controls senses temperature reached.
- Relay (RY-1) opens and 24 volt transformer loses power.
- Ignition control box is turned off.
- Gas valve closes.
5. Maintaining Temperature*- Solid state controls senses temperature drop.
- Relay (RY-1) closes and powers 24 volt transformer.
- Ignitor control box is powered.
- Steps three and four are repeated.
SOLID STATE CONTROL SEQUENCE
Our solid state controls consist of the following components.
On-Off / Temperature*Provides or interrupts electrical power to the control system.
Dial (Potentiometer) Rotate to change resistance from 0 to 50,000 ohms. This resistance is compared to the resistance on the thermistor using a voltage
comparator circuit inside the control box.
If the resistance is lower than the thermistor resistance then the control box will provide 14v dc to pin #8. The green indicator light
illuminates and the control relay (RY-1) is energized closed to provide power to the heating system.
Control Box*Analyzes inputs from water level probe, tilt switch, potentiometer, thermistor. Energizes control relay (RY-1)
Water Level Probe*Senses water in jacket.
Tilt Switch When kettle is in upright position tilt switch is closed to complete circuit between pin #8, the relay (RY-1) and green indicator light.*
Thermistor*The thermistor resistance decreases as temperature increases. When the thermistor resistance equals the potentiometer then 14v dc
is removed from pin #8. The control relay (RY-1) returns to the normally open position.
Green LED Light Indicates that the control box is calling for heat. Pin #8 powered.
Red LED Light Indicates that the water level probe is not immersed in water. Not enough water in the jacket or kettle tilted.
Relay (RY-1) When energized allows the heating circuit to function. Electric elements or gas burner system.
NOTES:
*A ground loop circuit must be established between kettle body, water in jacket, water level probe and control box. If this loop is present, it
indicates that there is sufficient water in the kettle for safe operation.
*If there is not sufficient water in the jacket then the loop is broken and the control box will prevent 14v DC from being supplied to pin #8.
The control relay (RY-1) will remain (or return) to the normally open position and the unit cannot heat. The red LED light will be illuminated.

12.
PROBLEM:
KGL-25
Kettle Won't
Heat
Does red light
come on when unit
is first turned on?
Does red light go
off shortly after
unit is turned on?
Yes Add water to
jacket of Kettle.
With the
potentiometer set
at 10, is 12 VDC at
the coil of the
relay?
No
Yes
Is 16 VAC
measured across
Pins 9 and 10 on
the controller?
No
Yes
Is 16 VAC at the
secondary side of
the transformer?
No
Replace
the on/off
switch (toggle
or rotary).
Yes
Is there 115 VAC
to the primary of
the transformer?
No
Replace the
transformer.
Yes
Supply115
VAC to the
kettle.
No
Does the relay pull
in?
Yes
Replace the
relay. No
Is there 115 VAC
to the primary of
the ignition
transformer?
Yes
No
Replace the
high limit.
Replace
the Ignition
module.
Is there 24 VAC to
the ignition
Module?
Yes
Replace the
ignition
transformer
No
Is there 24 VAC to
the Gas valve for 4
Seconds?
Yes
No
Is there Gas to the
burner?
Yes
If there
is spark and gas to
the burner assmbly
there should be
flame. Check
alighnment.
Yes
With a jumper
across pins 5 and
7 on the controller,
is there 12 VDC
across the coil of
the DC relay?
No
With the jumper
removed and the
probe wire
grounded at the
probe, is 12 VDC
measured across
the coil of the DC
relay?
No
Replace the
wire harness in
the trunion
No
Add water
Yes
Does the
potentiomer have
a resistance of
50,000 ohms on
low and 0 ohms at
high?
Yes
Replace the
potentiometer
No
Does the probe
have a resistance
of 100,000 ohms +
10% at room
temperature?
Yes
Replace the
controller
Yes
Replace Probe
No
Replace the
gas valve
No
Is there Spark to
the ignitor for 4
seconds.
No
Yes
TROUBLESHOOTING GUIDE

13.
PROBLEM:
KGL-25
Kettle Not
Hot Enough
With kettle pot
empty and
temperature knob
set at 10, is the
temperature of the
surface of the pot
260 degrees?
Unit is
operating
properly
Yes
When unit is cold
(room temp) is the
pressure gauge in
the green?
No
Vent
the kettle per
instructions in
the manual.
No
When the unit is
calling for heat
(the green light is
on), is there flame
at the burner?
Yes
Yes
Is the resistance of
the thermister
100,000 ohms
+10% at room
temperature?
Replace the
thermister.
No
Is the
potentiometer
resistance 50,000
ohms at low and 0
ohms at high?
Yes
Replace
controller. Yes Replace the potentiometer.
No
Does the kettle
heat at all?
Yes
See Problem:
kettle won't heat.
No
Is there 115 VAC
to the primary of
the ignition
module?
No
Is there 24 VAC to
the ignition
module?
Yes
Yes
Replace the
igniton
transformer
No
Replace the
high limit
No

14.
PROBLEM:
KGL-25
Kettle Gets
Too Hot
With the kettle
empty and the
temperature set at
10, is the surface
temp 260-265
degrees?
The
kettle is working
properly.
Yes
Does the kettle
continue to call for
heat (green light
stays on) when
the kettle reaches
260-265 degrees?
No
Is there 115 vac to
the primary of the
ignition
transformer?
No
Replace the
gas valve. No
Is there DC
voltage to the coil
of the relay?
Replace the
Relay
Yes
Replace the
controller
Yes
No
Is the resistance of
;the thermister
100,000 ohms +
10% at room
temperature?
Yes Replace the
thermister.
No
Is the resistance of
the potentiometer
50,000 ohms at
the low setting and
0 ohms at high?
Yes
Replace the
controller
Replace the
potentiometer
No
Yes
PROBLEM: Red Add Water LED Stays On
Does Red LED stay on
after adding the proper
amount of distilled
water and rust inhibitor?
Add the proper
amount of distilled
water and rust
inhibitor.
No
Is the red LED on
with probe
grounded?
Yes
Clean or
replace water
probe.
No
Does the red LED
stay on with a
jumper between
pins 5 and 7 on
the controller?
Yes
Replace the
wire harness in
the trunion.
No Replace the
controller.
Yes

15.
0
KETTLE VENTING INSTRUCTIONS
1. Turn kettle ON and set dial to
10 (Max.), heat the empty
kettle until unit cycles off.
2. Vent kettle by pulling safety
valve ring 8-10 times in short
2-3 second blasts with a 5
second interval between pulls.
NOTE:If unit cycles ON, stop
venting and wait for kettle to
cycle OFF before continuing.
3. Turn kettle OFF. Add cold
water to kettle until its surface
temperature is below 100°F.
The pressure gauge needle
should be in the green zone,
indicating a vacuum in the
kettle’s jacket.
2
3
56
7
8
9
1
4
10
OFF
50
0
100 150 200
250
300
350
400
40
50
60
0
10
20 30
psi
kPa
V
E
N
T
A
I
R
50
0
100 150 200
250
300
350
400
40
50
60
0
10
20 30
psi
kPa
V
E
N
T
A
I
R
Pressure
Gauge
Pressure
Relief
Valve
The following procedure should be followed when the
Vacuum/Pressure Gauge needle is in the "VENT AIR" zone:
NOTE: Check for and eliminate leaks prior to venting (See
Repairing Leaks in Steam Jacketed Kettle Fittings.
REPAIRING LEAKS IN STEAM
JACKETED KETTLE FITTINGS
If unit will not hold a vacuum the most likely cause is a
leak at one of the components threaded fittings, or within
the component itself.
There are two methods available for preventing leaks. The
advantage of the “Preferred Method” is that you eliminate
all potential leaks.
Preferred Method: Replace (using teflon tape)
Pressure Relief Valve, Pressure Guage, Water Level Probe
and Sight Glass.
Second Method: Remove and reinstall (using teflon
tape) all of the above four components. If unit continues
to lose vacuum replace components as per “Preferred
Method”.
DANGER: PRESSURE RELIEF
VALVE WILL EXHAUST HIGH
TEMPERATURE STEAM. CONTACT
WITH SKIN COULD RESULT IN
SERIOUS BURNS. KEEP FACE,
HANDS AND BODY CLEAR OF
DISCHARGE.
Pressure
Relief Valve
Sight
Glass
Pressure
Gauge
Water Level
Probe
SERVICE PROCEDURES
FOR MAINTENANCE AND REPAIRS CONTACT YOUR AUTHORIZED MANITOWOC SERVICE AGENCY
AND HAVE A QUALIFIED SERVICE TECHNICIAN MAINTAIN YOUR EQUIPMENT.

16.
RESERVOIR FILL PROCEDURES
DISTILLED WATER REQUIREMENTS
1. Ensure kettle is at room temperature
and pressure gauge showing zero
or less pressure.
2. Remove electrical plug from
power source.
Shut off gas supply to kettle.
3. Pull Pressure Relief Valve (A) open to insure vessel
is not pressurized.
4. Remove Pressure Relief Valve (A).
5. Replace Pressure Relief Valve (A) with 1/2” Street
Elbow (B).
6. Add distilled or bottled water (C)
through the Street Elbow (B),
using a funnel if necessary. Fill
the unit to the high level mark on
the Sight Glass.
7. Apply a thread sealant (i.e. Teflon tape) to the
Pressure Relief Valve's (A) thread and replace.
8.
Reconnect gas and electrical supplies.
9.
The kettle must now be vented. (Refer to the
KETTLE VENTING INSTRUCTIONS).
Sight
Glass
50
0
100 150 200
250
300
350
400
40
50
60
0
10
20 30
psi
kPa
V
E
N
T
A
I
R
A. *
Remove Pressure
Relief Valve
B.
Attach Street
Elbow
C. Fill unit via 1/2” Street Elbow
*Important-
Pull ring on Pressure Relief Valve
prior to removal to
insure vessel is not pressurized.
CALIBRATING PROCEDURE
1. Insure the unit has a vacuum before you begin
calibrating procedures. If unit requires venting refer
to Kettle Venting Instructions.
2. Turn dial to "10" (Max.).
3. Allow the unit to cycle twice.
4. Check temperature of the inner kettle surface with a
digital surface thermometer.
5. Temperature should be between 260° F and 265° F.
6. Using a screw driver adjust temperature by turning
the potentiometer on the black box. Turn very little.
Turn clockwise to INCREASES and counter-clockwise
to DECREASE temperature.
7. Allow the unit to cycle twice.
8. Check temperature of the inner kettle surface with a
digital surface thermometer.
9. Repeat steps 4. through 8. until unit is calibrated.
PRESSURE
RELIEF
VALVE
PERIODIC
TESTING
PROCEDURE
WARNING: Kettle surface will be hot and steam will be
released during testing. Take necessary precautions
including the use of gloves and eye protection to
prevent personal injury.
1. With the kettle empty, turn dailto "10" (Max.). Allow the
kettle to heat until the unit cycles off.
2.
Turn dial to
"
0
"
(Off).
3. Stand to the side of the pressure relief valve discharge
tube and pull valve open for a maximum of one
second. Repeat test three to four times. Each time the
mechanism should move freely and be accompanied
by a rapid escape of steam.
If valve appears to be sticking replace pressure relief valve.
If foreign material is discharged then drain kettle and
replace pressure relief valve.
If Low Water Light comes on after this procedure, you need
to add water to the jacket (see RESERVOIR FILL
PROCEDURE).
Kettle When red “Low Water Light” comes on,
Capacity add distilled or botttled water.
6 gallon 70 ounces
12 gallon 120 ounces
DANGER:
PRESSURE RELIEF VALVE WILL EXHAUST
HIGH TEMPERATURE STEAM. CONTACT
WITH SKIN COULD RESULT IN SERIOUS
BURNS. KEEP FACE, HANDS AND
BODY CLEAR OF DISCHARGE.

17.
KETTLE JACKET CLEANOUT AND PASSIVATION PROCEDURES
The following procedure should be preformed at least once every three years to prevent possible corrosion
and ensure the optimum life of the kettle.
Remove
Pressure
Relief
Valve
Attach
Street
Elbow
Fill unit via Street Elbow
Important-
Pull pressure relief valve
ring open to insure vessel
is not
p
ressurized.
PROCEDURE
1. Ensure kettle is at room temperature and
pressure gauge showing zero or less pressure.
2. Shut off and disconnect gas supply.
3. Remove electrical plug from power source.
4. Remove bolts holding kettle to tabletop.
5. Pull ring on pressure relief valve to insure there
is no pressure within the kettle jacket.
6. Remove pressure relief valve.
7. Replace pressure relief valve with street elbow (see
above illustration).
8. Remove sight glass from left side of kettle.
9. Tilt kettle on its side (sight glass opening facing
downwards) and allow to drain. Flush out with water.
50
0
100 150 200
250
300
350
400
40
50
60
0
10
20 30
psi
kPa
V
E
N
T
A
I
R
RUST INHIBITOR
Use a “radiator rust inhibitor” that can be purchased at
your local automotive centre. It should not contain any
anti-freeze and preferably no lubricant.
To ensure satisfactory mixing follow the manufacturer’s
instructions.
DISPOSAL - Follow all Federal, State and local codes
when disposing of product.
10. Tilt kettle upright, apply a thread sealant (i.e. Teflon
tape) to the sight glass threads and replace.
11. Refer to chart below to determine the required
volume of water.
12. In a separate container mix water with the required
rust inhibitor.
13. Fill jacket via the street elbow with the mixture.
14. Remove street elbow.
15. Apply a thread sealant (i.e. Teflon tape) to the pressure
relief valve and replace.
16. Reconnect gas and electrical supplies.
17. Turn kettle on, vent and heat to high for 1/2 hour.
18. Cool kettle.
19. Repeat steps 5-15.
20. Replace bolts holding kettle to tabletop.
21. Reconnect gas and electrical supplies.
22. Turn kettle on and vent kettle.
Kettle Size Volume of Mixture
U.S. Gal. Liters
6 U.S. Gal. 1.6 5.8
12 U.S. Gal. 2.2 8.3
✔
Probe
fully
inserted
in tube
Wiring is properly
connected
Probe properly
attached
✔
SAFETY
THERMOSTAT
CONNECTION
LOW WATER
LEVEL PROBE
CONNECTION

18.
GAS
SHUT-OFF
VALVE
REGULATOR
PIPE
NIPPLE
PRESSURE
REGULATOR
UNIT
GAS
COMBINATION
VALVE
GASKET
GAS
IDENTIFICATION
STICKER
BURNER
MAIN
ORIFICE
MAIN
ORIFICE
FITTING
TO MAIN GAS
SUPPLY
T
H
I
S
C
O
N
T
R
O
L
H
A
S
BE
E
N
C
O
N
V
E
R
T
E
D
T
O
LP
NOTE: Use thread sealant compatible with propane gas on all
threaded piping connections.
1. Disconnect electrical connection.
2. Shut off main gas supply and disconnect kettle from supply line.
3. Remove GAS SHUT-OFF VALVE from kettle supply pipe
and install REGULATOR (pre-set to 10 " W.C. pressure)
supplied in field conversion kit.
4. Re-install SHUT-OFF VALVE using PIPE NIPPLE supplied
in kit.
5. Remove side cover from control console.
6. Remove PRESSURE REGULATOR UNIT from GAS
COMBINATION VALVE inside console, and replace with
blocked PRESSURE REGULATOR UNIT from kit. Make
sure GASKET is correctly seated in recess in GAS
COMBINATION VALVE during installation.
7. Tilt kettle. Remove kettle side box cover. Remove screw
securing end of BURNER. Remove BURNER. Support
MAIN ORIFICE FITTING and remove MAIN ORIFICE.
Install new orifice from kit.
8. Replace BURNER. Check MAIN ORIFICE/BURNER
alignment insuring MAIN ORIFICE points straight into the
center of the BURNER.
9. Reconnect to gas supply. Turn on propane gas. Tilt kettle to
upright position, turn on power and check all gas
connections for leaks.
10. Check inlet pressure is between 12-14 inches W.C.
11. On the underside of the console cover with indelible marker
place the following information: Company, Name, Address
& Date of Conversion.
12. Turn off power and main gas supply, and replace all covers.
Attach GAS IDENTIFICATION STICKER to nameplate.
13. Place gas conversion label next to rating label.
14. Reconnect electrical and gas supplies.
Atmospheric Burner Gas Kettles
BTU's per Gas Water # of
Hour Type Column Orifices
KGL-25, KGL-25-T 90000 NAT 4.2 2
90000 LP 10 2
Conversion Kit (KE003716-3)
Part No. Description Quantity
KE53406-18 Orifice 1
KE55240-4 Valve Conversion Kit 1
KE603910-2 Instruction Sheet 1
KE603911-3 Rating Label 1
FIELD CONVERSION
INSTRUCTIONS -
Natural Gas to Propane Gas
KE603910-2
The gas supply shall be shut off prior to disconnecting
the electrical power, before proceeding with the
conversion.
CAUTION
!
This conversion kit shall be installed by a qualified
service agency in accordance with the manufacturer’s
instructions and all applicable codes and requirements
of the authority having jurisdiction. If the information in
these instructions is not followed exactly, a fire, and
explosion or production of carbon monoxide may result
causing property damage, personal injury or loss of life.
The qualified service agency is responsible for the
proper installation of this kit. The installation is not
proper and complete until the operation of the
converted appliance is checked as specified in the
manufacturer’s instructions supplied with the kit.
WARNING:
!

19.
THERMISTOR REPLACEMENT
1. Disconnect main power at fused disconnect switch.
2. Remove bottom cover.
3. Locate thermistor.
4. Cut pigtail connection off.
5. Remove wire from ground lug.
6. Remove thermistor from tube.
7. Add new “eye” connector to one of the thermistor
leads and fasten to ground lug.
8. Connect orange wire to the other thermistor lead and
fasten with pigtail connector.
9. Insert thermistor as far as possible into tube and
hold in place. While holding add silicon to secure
thermistor into tube. Insure silicon completely
surrounds tube and thermistor.
10. Replace covers, reconnect power and test operation.
REPAIRING LEAKS IN STEAM
JACKETED KETTLE FITTINGS
If unit will not hold a vacuum the most likely cause is a leak
at one of the fittings. Often, the easiest way to eliminate a
leak is reseal the suspect areas.
1. Water Level Probe Remove, clean threads, apply
teflon thread sealant and reinstall.
2. Pressure Relief Valve A/ Inspect for signs of leaks.
Replace if required.
B/ Remove, clean threads, apply
teflon thread sealant and reinstall.
3. Pressure Gauge A/ Inspect face of gauge. If it
contains moisture on the inside of
face replace.
B/ Remove, clean threads, apply
teflon thread sealant and reinstall.
If leek persist replace all these components at the same
time.
Pressure
Relief Valve
Pressure Gauge
Water Level Probe
