Welbilt Frymaster PF50 CE Series Guide

PF50 CE Series
Portable Filtration System
Models PF50, PF50S, MPF50 and MPF50S
Operation, Service and Parts Manual
This manual is updated as new information and models are released. Visit our website for the latest manual.
Part Number: FRY_IOM_8197927 08/2021
*8197927*
Original Instructions
Your Growth Is Our Goal
CAUTION
READ THE INSTRUCTIONS BEFORE USING THE FILTER.
Keep these instructions for future reference.

NOTICE
A Frymaster Factory Authorized Servicer (FAS) or other qualified professional should
perform installation, maintenance, and repairs.
WARNING
ELECTRICAL GROUNDING INSTRUCTIONS
This filter is equipped with a three-prong, grounded plug for your protection against
shock hazard and should be plugged directly into a properly grounded, three-hole
receptacle. Do not cut off, remove or otherwise bypass the grounding prong on this
plug.
If it is necessary to use an extension cord, it MUST be a three-conductor, grounded
cord of 16 gauge or greater.
WARNING
This appliance is not intended for use by children under the age of 16 or persons with
reduced physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision concerning use of the appliance by a person
responsible for their safety. Do not allow children to play with this appliance.
WARNING
Use caution and wear appropriate safety equipment to avoid contact with hot oil or
surfaces that may cause severe burns or injury.
DANGER
Do not filter more than one fry tank at a time.
Hot fluid – Do not fill above a point 1-½ inches below the OIL CONTAINER RIM.
WARNING
Do not overfill the filter to avoid overflow of hot oil that may cause severe burns,
slipping and falling.
WARNING
This filter unit is not suitable for outdoor use. When operating this unit, it MUST be
placed on a horizontal surface.
WARNING
This filter unit is not suitable for installation in an area where a water jet can be
used, and this appliance MUST NOT be cleaned with a water jet.

WARNING
NEVER drain boil out or cleaning solution into a portable filter unit, These units are
not intended for this purpose and will be damaged by the solution and void the
warranty.
NOTICE
If this filter unit is cleaned with water, disconnect the unit from power source before
cleaning and thoroughly dry the filter unit before reconnecting to electrical power
source.
DANGER
The crumb tray (if equipped) in portable filter systems must be emptied into a
fireproof container at the end of frying operations each day. Some food particles can
spontaneously combust if left soaking in certain shortening material.
NOTICE
Drawings and photos used in this manual are intended to illustrate operational,
cleaning and technical procedures and may not conform to on-site management
operational procedures.
NOTICE
IF, DURING THE WARRANTY PERIOD, THE CUSTOMER USES A PART FOR THIS
FRYMASTER EQUIPMENT OTHER THAN AN UNMODIFIED NEW OR RECYCLED PART
PURCHASED DIRECTLY FROM FRYMASTER, OR ANY OF ITS AUTHORIZED SERVICE
CENTERS, AND/OR THE PART BEING USED IS MODIFIED FROM ITS ORIGINAL
CONFIGURATION, THIS WARRANTY WILL BE VOID. FURTHER, FRYMASTER AND ITS
AFFILIATES WILL NOT BE LIABLE FOR ANY CLAIMS, DAMAGES OR EXPENSES INCURRED
BY THE CUSTOMER WHICH ARISE DIRECTLY OR INDIRECTLY, IN WHOLE OR IN PART,
DUE TO THE INSTALLATION OF ANY MODIFIED PART AND/OR PART RECEIVED FROM
AN UNAUTHORIZED SERVICE CENTER.

PF50 CE Series Portable Filtration System
Models PF50, PF50S, MFP50 and MFP50S
Operation, Service and Parts Manual
TABLE OF CONTENTS
CHAPTER 1: INTRODUCTION .................................................................................................. 1-1
CHAPTER 2: IMPORTANT INFORMATION ............................................................................. 2-1
CHAPTER 3: FILTER PREPARATION ........................................................................................ 3-1
CHAPTER 4: OPERATING/FILTER INSTRUCTIONS ................................................................ 4-1
CHAPTER 5: CLEANING AND MAINTENANCE....................................................................... 5-1
CHAPTER 6: TROUBLESHOOTING/SERVICE PROCEDURES.................................................. 6-1
CHAPTER 7: PARTS LIST ........................................................................................................... 7-1

PF50 CE SERIES PORTABLE FILTRATION SYSTEMS
CHAPTER 1: INTRODUCTION
1-1
1.1 Parts Ordering
Place parts orders directly with your local Frymaster Factory Authorized Servicer. A list of
Frymaster Factory Authorized Servicers (FAS’s) is located on the Frymaster website at
www.frymaster.com. If you do not have access to this list, please contact the Frymaster service
department at 1-800-551-8633 or 1-318-865-1711.
To help speed your order, the following information is required:
Model Number
Type
Serial Number
Optional Features
Item Part Number
Quantity Needed
1.2 Service Information
Go to www.frymaster.com or call the 1-800-551-8633 or [phone] Service Hotline number
for the location of your nearest Factory Authorized Servicer. Always give the model and serial
numbers of your filter unit. Also, identify if your unit is supplied with or without a heater.
To assist you more efficiently, the following information will be needed:
Model Number
Type
Serial Number
Optional Features
Nature of Problem:
Additional information (i.e. oil temperature at filter time, time of day and other pertinent
information) may be helpful in solving your service problem.

PF50 CE SERIES PORTABLE FILTRATION SYSTEMS
CHAPTER 1: INTRODUCTION
1-2
1.3 After Purchase
In order to improve service, fill out the following chart with the nearest Frymaster Authorized
Servicer and FAS in your area.
Factory Authorized
Servicer
Technician/FAS
Address
Telephone/Fax
Filter Model Number
Filter Serial Number
1.4 Safety Information
Before attempting to operate your unit, read the instructions in this manual thoroughly.
Throughout this manual, you will find notations enclosed in double-bordered boxes similar to the
ones below.
CAUTION
CAUTION boxes contain information about actions or conditions that may cause or result in a
malfunction of your system.
WARNING
WARNING boxes contain information about actions or conditions that may cause or result in
damage to your system, and which may cause your system to malfunction.
DANGER
DANGER boxes contain information about actions or conditions that may cause or result in injury
to personnel, and which may cause damage to your system and/or cause your system to malfunction.

PF50 CE SERIES PORTABLE FILTRATION SYSTEMS
CHAPTER 1: INTRODUCTION
1-3
1.5 Service Personnel
1.5.1 Definitions
A. Qualified and/or Authorized Operating Personnel
1. Qualified/authorized operating personnel are those who have carefully read the information
in this manual and have familiarized themselves with the equipment functions or have had
previous experience with the operation of equipment covered in this manual.
B. Qualified Installation Personnel
1. Qualified installation personnel are individuals, or firms, corporations, or companies that,
either in person or through a representative, are engaged in and are responsible for the
installation of electrical appliances. Qualified personnel must be experienced in such work,
be familiar with all electrical precautions involved, and have complied with all requirements
of applicable national and local codes.
C. Qualified Service Personnel
1. Qualified service personnel are those who are familiar with Frymaster/Dean equipment and
have been authorized by Frymaster/Dean to perform service on Frymaster/Dean equipment.
All authorized service personnel are required to be equipped with a complete set of service
parts manuals and stock a minimum amount of parts for Frymaster equipment. A list of
Frymaster Factory Authorized Servicer’s (FAS’s) is located on the Frymaster website at
www.frymaster.com. Failure to use qualified service personnel will void the Frymaster
warranty on your equipment.
1.6 Warranty Statement
1. Frymaster L.L.C. warrants the PF50 CE Series one year, parts and labor, against defects in
material and workmanship.
2. This warranty is void if equipment is found by Frymaster L.L.C. to have been subjected to
alteration, misuse, or abuse.

PF50 CE SERIES PORTABLE FILTRATION SYSTEMS
CHAPTER 2: IMPORTANT INFORMATION
2-1
2.1 General
PF50 CE Series portable filters can be used with a variety of Frymaster fryers, as well as other
manufacturers’ equipment. Oil capacity is approximately 50 pounds. Unit specifications are listed
below.
Model
Unit Height
(inches)
Unit Width
(inches)
Unit Length
(inches)
Tank Height
(inches)
Oil Capacity
(pounds)
PF50, PF50S,
MPF50 and
MPF50S
13-¼
13-¼
30
11-¾
50
Unit
Width
Tank
Height
Unit
Height
Unit
Length

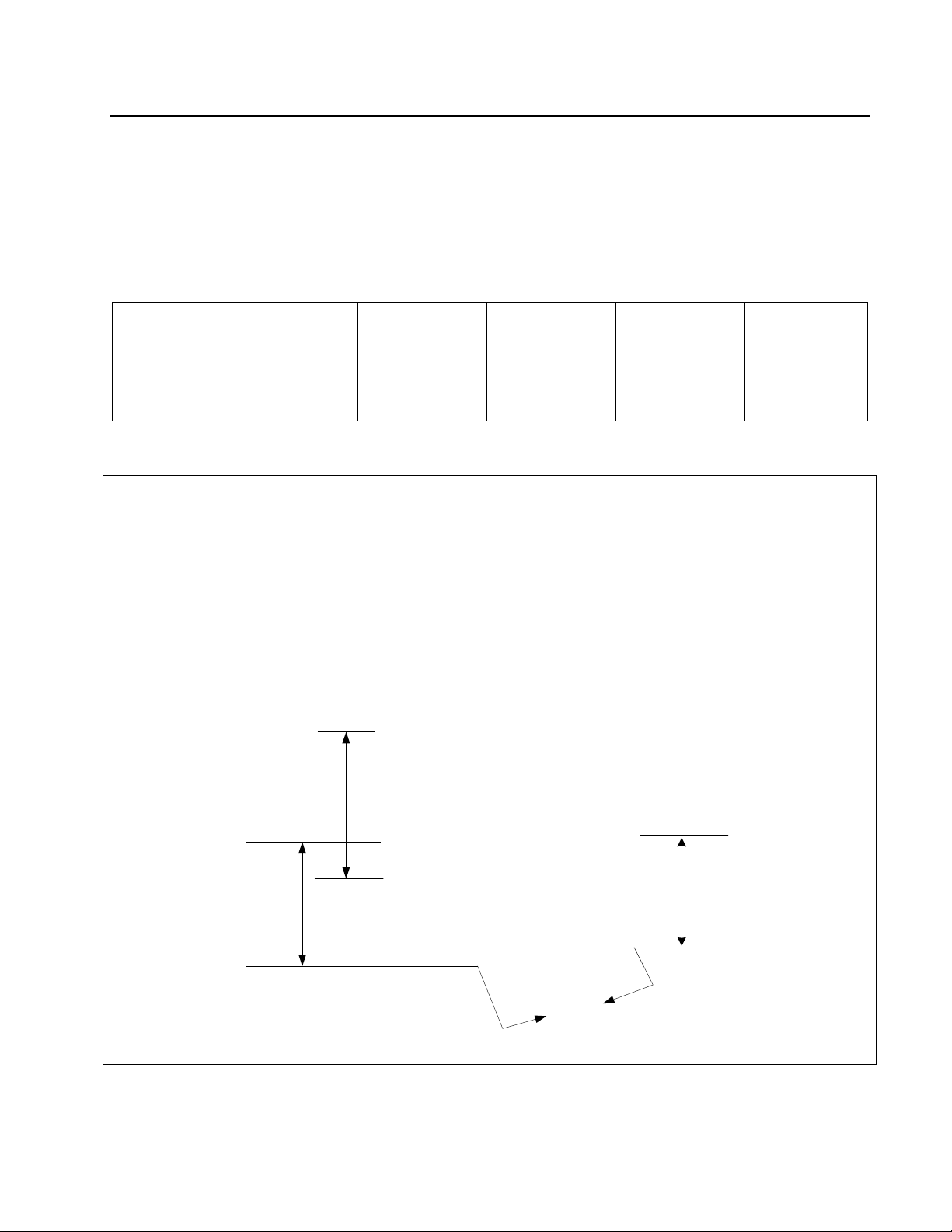

PF50 CE Series portable filter dimensions.

PF50 CE SERIES PORTABLE FILTRATION SYSTEMS
CHAPTER 2: IMPORTANT INFORMATION
2-2
2.1 General (cont.)
Oil or shortening is gravity-drained from the fryer into the filter pan, and then filtered through filter
paper. Filter powder, which enhances the filtering process, is distributed over the paper prior to
filtering.
All units are shipped completely assembled with accessories packed inside the filter pan. All units
are adjusted, tested and inspected at the factory before shipment.
WARNING
The on-site supervisor is responsible for ensuring that operators are made aware of
the inherent dangers of operating a hot oil filter system, particularly the aspects of
oil filtration, and draining/cleaning procedures.

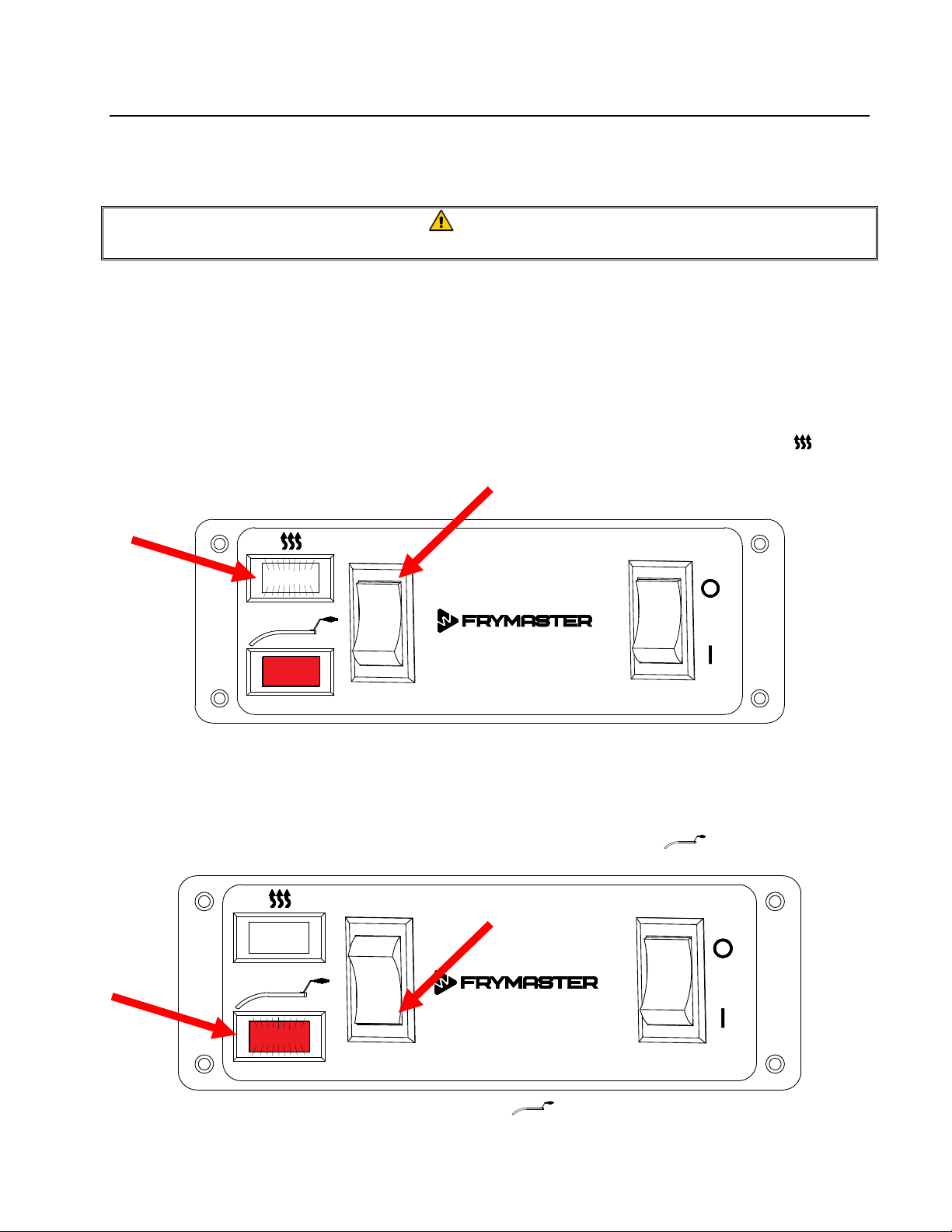

A Pump switch (right switch on illustration to
the right) activates/deactivates the filter pump
(O= OFF, I= ON). The filter also has a
Heater / Filter switch (left switch on
illustration to the right) for use when filtering
solid shortening.
A thermal-overload switch on the pump motor
provides protection against overheating.
NOTE: If the thermal overload is triggered,
wait 45 minutes, and then press the
reset button to activate the circuit after
the failure has been detected and
repaired.
2.2 Rating Plate
Information on the rating plate includes model and serial numbers, as well as electrical requirements.
The rating plate is located on the back housing, near the electrical receptacle. Have the rating plate
information handy when communicating with the factory about a unit or requesting special parts or
information. Without rating plate information, proper identification of the unit cannot be confirmed.
The motor thermal overload switch (arrow) is
located on the left side of the filter.
Switch/light panel

PF50 CE SERIES PORTABLE FILTRATION SYSTEMS
CHAPTER 2: IMPORTANT INFORMATION
2-3
2.3 Pre-Installation
NOTE: Failure to use qualified service personnel will void the Frymaster warranty.
A. Standards: Use of this filter unit must be in accordance with all applicable state and local
codes.
DANGER
This portable filter is equipped with a three-prong (grounding) plug for protection
against electrical shock and must be plugged directly into a properly grounded,
three-prong receptacle. DO NOT CUT, REMOVE, OR OTHERWISE BYPASS THE
GROUNDING PRONG ON THIS PLUG!
B. Electrical Connections: International/CE units require 230V 50 Hz., 7 amp electrical supply.
Units are equipped with a grounded male receptacle for use with a 16-3 SJT power cord set.
If an extension cord is required, it must be a three-conductor, grounded power cord of at
least 16 gauge.
2.4 Unpacking the Filter System
Ensure the container is upright. Unpack the filter carefully and remove all accessories from the
carton. Do not discard or misplace parts and/or accessories; they will be needed for filter setup
and operation. Any accessories or starter kits included with the unit will be packaged inside
the filter tank.
After unpacking, immediately check the equipment for visible signs of shipping damage. If
such damage has occurred, contact the carrier and file the appropriate freight claims. Do not
contact the factory, as the responsibility of shipping damage is between the carrier and dealer
or end-user.
If your equipment arrives damaged:
a. File claim for damages immediately – Regardless of extent of damage.
b. Visible loss or damage – Be sure this is noted on the freight bill or express receipt and is
signed by the person making the delivery.
c. Concealed loss or damage – If damage is unnoticed until equipment is unpacked, notify
freight company or carrier immediately, and file a concealed damage claim. This should be
done within 15 days of date of delivery. Retain the shipping container for inspection.
NOTE: Frymaster does not assume responsibility for damage or loss incurred in transit.

PF50 CE SERIES PORTABLE FILTRATION SYSTEMS
CHAPTER 3: FILTER PREPARATION
3-1
3.1 Assembling The Filter System
On initial installation and before each use, remove all loose parts from the filter, wash all accessories
in hot, soapy water and dry thoroughly. DO NOT WASH INTERIOR OF FILTER PAN WITH
DETERGENT OR WATER! Wipe debris and residue from the filter pan with a damp cloth or
paper towel, then with a dry cloth or paper towel.
WARNING!
Water, detergent or boil-out solution MUST NOT be allowed into the filter pan or
filter system. Irreversible pump damage will result if water is allowed into the
system, and the warranty will be voided.
MPF50S Series portable filtration systems use a filter support grid, one sheet of filter paper and a
hold-down ring to secure the filter paper in place.
See illustration for proper assembly.
1. Filter Pan Cover
2. Hold-Down Ring
3. Filter Paper (one sheet)
4. Screen/Support Grid
5. Filter Pan
1
2
3
4
5

PF50 CE SERIES PORTABLE FILTRATION SYSTEMS
CHAPTER 3: FILTER PREPARATION
3-2
3.1 Assembling The Filter System
1. Ensure the filter pan is clean and free of all food and breading particles that could prevent the
filter paper from sealing against the bottom of the pan.
2. Place the filter paper support screen between the raised dimples in the bottom of the pan.
3. Place one sheet of filter paper on top of the support screen. Ensure the paper evenly covers the
filter pan bottom.
4. Position the hold-down ring on top of the filter paper and ensure the filter paper overlaps all
sides of the hold-down ring, forming a tight seal.
5. Place filter pan cover onto the filter pan and assembly is complete.

PF50 CE SERIES PORTABLE FILTRATION SYSTEMS
CHAPTER 4: OPERATING/FILTERING INSTRUCTIONS
4-1
4.1 Filter Operation
WARNING
Use care when draining and filtering oil to avoid the possibility of a serious burn.
1. Sprinkle 8 ounces (1 cup) of filter powder over the filter paper, distributing the powder as evenly
as possible. If filtering a second frypot immediately after the first, add only 4 ounces of filter
powder for the second filtering.
2. Ensure the power cord is securely plugged into the receptacle on the back of the portable filter.
Plug the power cord into an 230V outlet.
3. If solid shortening is filtered through the portable filter, turn the Heater/Filter switch to (see
illustration below). The white indicator light will illuminate. Leave the heater on for 20-30
minutes before operating the filter.
Note: The filter pump cannot be activated while the switch is in the "Heater" position.
4. Ensure the pump switch is OFF (O). Turn the Heater/Filter switch to for filter operation
(see illustration below). The red indicator light will illuminate.
Use the filter heater for 20-30 minutes prior to filtering if solid shortening is filtered.
The Heater/Filter switch must be in the FILTER position before the filter pump can
be operated. The red light will illuminate when the switch is properly positioned.

PF50 SERIES PORTABLE FILTRATION SYSTEMS
CHAPTER 4: OPERATING/FILTERING INSTRUCTIONS
4-2
4.1 Filter Operation (cont.)
5. Ensure the oil is at operating temperature, 350°F (177°C). Turn the fryer off.
WARNING
The filter pan maximum capacity is 50 lbs. DO NOT OVERFILL THE FILTER PAN.
6. Place filter pan directly under fryer drain valve and
drain the oil into the filter. Ensure the oil level is no
higher than the upper oil level line (see right). Place
the filter hose nozzle inside the frypot. Turn the pump
switch to the ON (I) position to start the filter pump
(see illustration below).
Allow the oil to circulate through the frypot and filter for approximately 5 minutes
(process known as "polishing"). Polishing the oil produces maximum filtration and
extends the life of the oil. Rinse any residual oil or sediment from the frypot during the
polishing process.
Close the drain valve and return the filtered oil to the frypot. Ensure all oil is returned to
the frypot before turning filter off.
Allow the portable filter to cool, then remove and discard the filter paper. Clean the
interior of the filter pan and all components. Do not use detergent or water in the filter
pan for cleaning.
See Chapter 5 for preventive maintenance/cleaning procedures.

PF50 CE SERIES PORTABLE FILTRATION SYSTEMS
CHAPTER 5: CLEANING AND MAINTENANCE
5-1
5.1 General
Cleaning operations fall into three general categories:
•Wiping unit clean after each filter session.
•Cleaning, changing filter paper and preparing the unit for the next day’s business.
•Weekly cleaning to remove oil deposits and other particles.
WARNING
Do not use water jets to clean this equipment. To do so will damage the unit and
void the warranty.
WARNING
Never operate the filter unit unless cooking oil is at operating temperature.
5.2 Each Filter Use
Each time the portable filter is used:
•Wash down the insides of the filter pan with hot oil during the filtering process. DO NOT
allow excessive residue buildup to occur inside the filter pan.
•Change filter paper after each filter session or at the end of the day. Scrape excess sediment
from filter paper after each frypot is filtered within a filter session. If oil is not returned to the
frypot within 7 minutes, the filter paper may be clogged. Change filter paper if this occurs.
•Wipe up any oil which may have splashed or spilled.
•Wipe all exterior surfaces of the filter unit.
WARNING
Do not run water or boil-out solution through the portable filter. Doing so will cause
irreparable damage to the pump and void the warranty.

PF50 CE SERIES PORTABLE FILTRATION SYSTEMS
CHAPTER 5: CLEANING AND MAINTENANCE
5-2
5.3 Daily— Close Of Business
At the close of a working day, filter the oil in all fryers. When the last fryer is filtered, follow these
steps:
1. Ensure the flexible hose and pump lines are clear by running the filter pump for an
additional 15–30 seconds after air bubbles start coming from the oil return line. Drain the
flexible hose as much as possible, especially if solid shortening is used.
2. Remove the filter pan cover and hold-down ring, and then remove the filter paper and filter
paper support screen.
3. Discard filter paper.
4. Wash all filter components with hot soapy water and rinse. DO NOT use soap and/or water
inside the filter pan. Wipe residual oil and sediment from inside the filter pan with a clean
cloth or paper towel.
5. Rinse all parts with clean water (except filter pan interior), and then dry all filter parts
thoroughly before reassembling.
6. Check the hose fitting on the pump and ensure that it is tight. Check plumbing for leaks.
See Chapter 6 for service procedures. Check plumbing for leaks.
5.4 Weekly
Follow the same procedure as for "Daily", with these additional steps:
•Clean built-up residue and debris from filter pan by wiping with a clean cloth or paper
towel. DO NOT use soap and/or water inside the filter pan. Ensure all components fit
properly and function correctly.
•Clean thoroughly under, around, and behind the fryers and filtering area with hot soapy
water and rinse.
•Check the hose connection and tighten if hose becomes loose and starts to leak oil.

PF50 CE SERIES PORTABLE FILTRATION SYSTEMS
CHAPTER 6: TROUBLESHOOTING/SERVICE PROCEDURES
6-1
6.1 Operating Problems
Plugged lines and plugged filter paper account for over 90 percent of filtration system malfunctions.
A general troubleshooting chart, included in this chapter, provides instructions in diagnosing
common malfunctions. Contact a factory-authorized service technician for troubleshooting beyond
the scope of the operator.
A. Plugged Lines
1. To guard against plugged lines when using solid shortening, follow these guidelines:
a. Turn the Heater/Filter switch to and allow the heater to remain on for 20-30 minutes
before attempting a filter cycle.
b. At the end of the filtering cycle, let the filter bubble into the fryer through the flexible
hose for about 15-30 seconds. If it is blowing bubbles, air is moving through the lines
and the filter is less likely to be plugged.
c. When filtering is complete, drain oil or shortening from the hose.
B. Plugged Paper
Improper use of the filter powder will cause a slow oil flow return rate. The first indication of paper
plugging is a surging, jerking movement of the hose. To correct this, review the instructions for the
correct use of filter powder, and change the filter paper more frequently. When filtering several
fryers prior to changing paper, ensure that excess sediment is scraped off the filter paper after
filtering each frypot.
6.2 General Troubleshooting
The following chart contains information to assist in diagnosing the most common malfunctions
with portable filtration systems. Possible solutions and/or corrective actions are given for each
scenario.
If the malfunction cannot be diagnosed using the information in this section, contact your Factory
Authorized Service Agent for repairs.
DANGER
Use extreme care when testing electrical circuits. Live circuits will be exposed.
DANGER
Inspection, testing and repair of gas or electrical equipment should be performed by
qualified personnel.

PF50 CE SERIES PORTABLE FILTRATION SYSTEMS
CHAPTER 6: TROUBLESHOOTING/SERVICE PROCEDURES
6-2
6.2 General Troubleshooting (cont.)
Pump won't
start.
•Tripped thermal overload switch.
•Incorrect or no line voltage.
•Filter heater switch in the Heat position.
Pump stops
during
filtering
process.
•Allow filter unit to cool for at least 45 minutes and
then press (reset) the motor thermal overload
switch.
•Turn filter pump "OFF". Allow oil to cool then empty
pan. Verify filter paper is clean and properly
installed. Refill pan and restart process.
Pump starts
and abruptly
stops.
•Reset thermal overload switch.
•Pump is blocked or wiring is loose. Call FAS for
service.
•Motor failed; call FAS for service.
Pumping is
erratic.
•Verify that filter paper is properly installed under
hold-down ring.
•Verify that filter hose connection is tight and secure.
Oil not being
returned to
frypot.
•The filter hose is clogged with debris. Clear hose.
•Clogged filter paper. Scrape off excess sediment
or replace filter paper.
•Filter pan suction tube is blocked. Use a thin,
flexible wire to unclog.

PF50 CE SERIES PORTABLE FILTRATION SYSTEMS
CHAPTER 6: TROUBLESHOOTING/SERVICE PROCEDURES
6-3
6.3 Wiring Diagrams
6.3.1 230/240V
6.3.2 230V Pump Motor Wiring
BLK #5
YEL 9P
*
WHT 11P
BRN 12P
(PF50)
BLK 13P
3
4
L1
L2
RED #8
BLU 10P
* DENOTES BOBTAIL
*
BRN 12P
(PF50S)

PF50 CE SERIES PORTABLE FILTRATION SYSTEMS
CHAPTER 6: TROUBLESHOOTING/SERVICE PROCEDURES
6-4
6.4 Service Procedures
6.4.1 Replace Lights/Switches
WARNING
Disconnect power cord from electrical power before servicing.
1. Disconnect power cord from power supply.
2. Remove four screws securing the switch
panel to the control panel.
3. Lift the panel out of the control panel to
access wiring.
4. Mark the wire locations on the defective
switch/light and disconnect the wiring.
5. Install new switch or light, connect the wiring
and install the switch panel. Replace the
screws removed in Step 1.
