1. Technical Information
1.1. Mechanical Data
Item
Unit
Description
Height
mm
32.6
Fastener
M3
*For details, please refer to the 3D Modelling on the hompage.

WELCON Servo Drive Hardware Manual
5 / 17
© 2021 WELCON Systems. All rights reserved.
www.welconsystems.com
1.2. Electrical Data

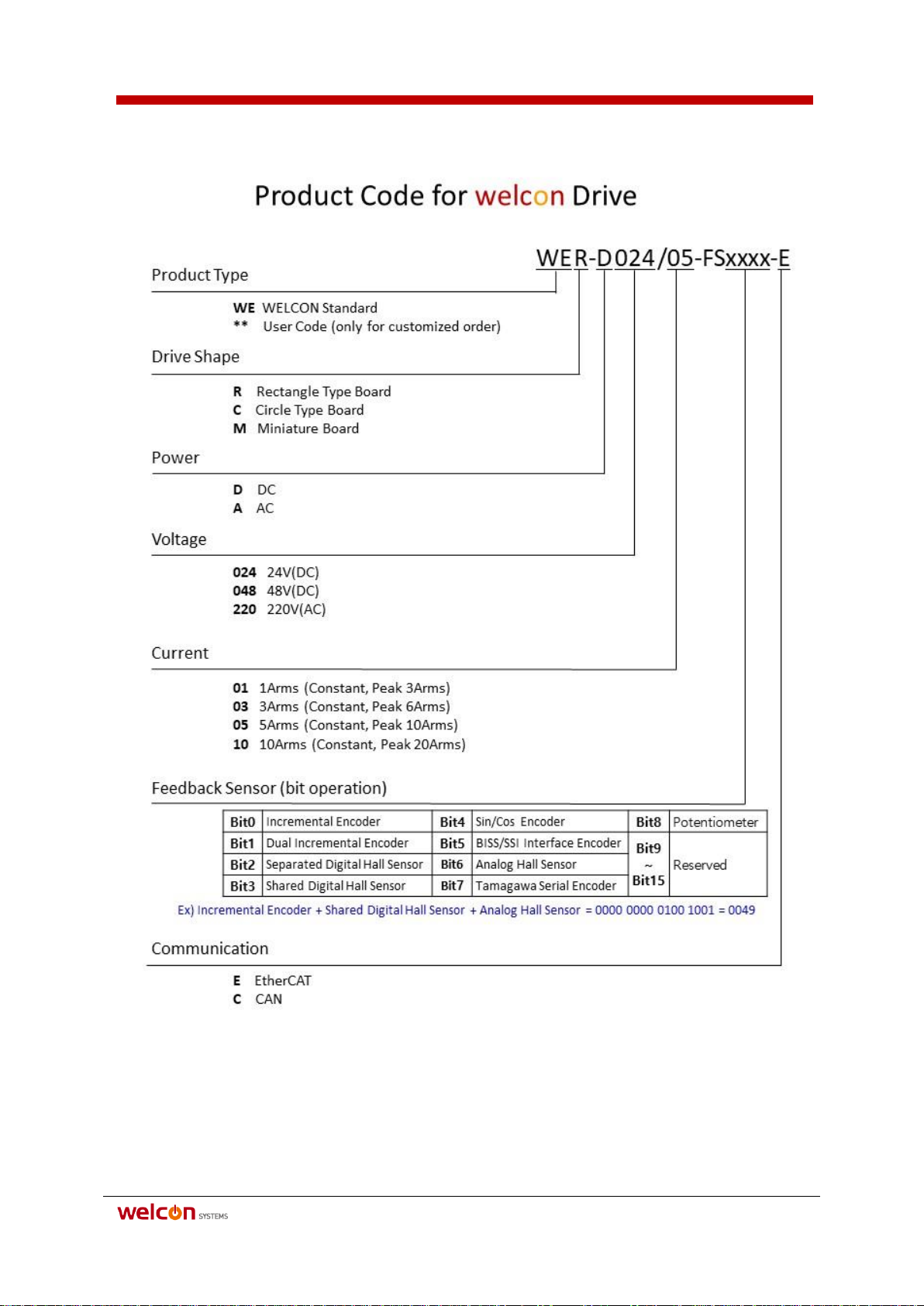

WEC-D048/25-FS002D-E
Basic
Motors
DC/BLDC/PMSM/VCM
Communication
USB + EtherCAT(CoE, FoE)
GUI
WELSS, Setting, Drive, Motor, Feedback, I/O, Motion
Position Sensor
Incremental Encoder
Shared/Separated Hall sensor
SSI, Biss-C Serial Encoder
Inputs
&
Outputs
Analog Input
Quantity
1
Voltage Range
Analog ±10 VDC differential
Input Resolution
14 bit
Motor
Feedback
General
Supply Voltage
5VDC
Incremental
Encoder
Signal
A-quad-B with or without index, shared
digital hall sensor, RS422, Differential
A-quad-B Max Input
Frequency
10MHz (before quadrature)
Digital
Hall Sensor
Signal
Differential-ended
Type
Separated and shared hall sensor
Serial Encoder
Type
SSI, Biss-C
Bit rate
0.5Mbps, 1Mbps, 2Mbps, 2.5Mbps, 5Mbps

WELCON Servo Drive Hardware Manual
6 / 17
© 2021 WELCON Systems. All rights reserved.
www.welconsystems.com
2. Wiring
2.1. Tools
Tool
Manufacturer
Part Number
Hand crimp Tool
MOLEX
638190500

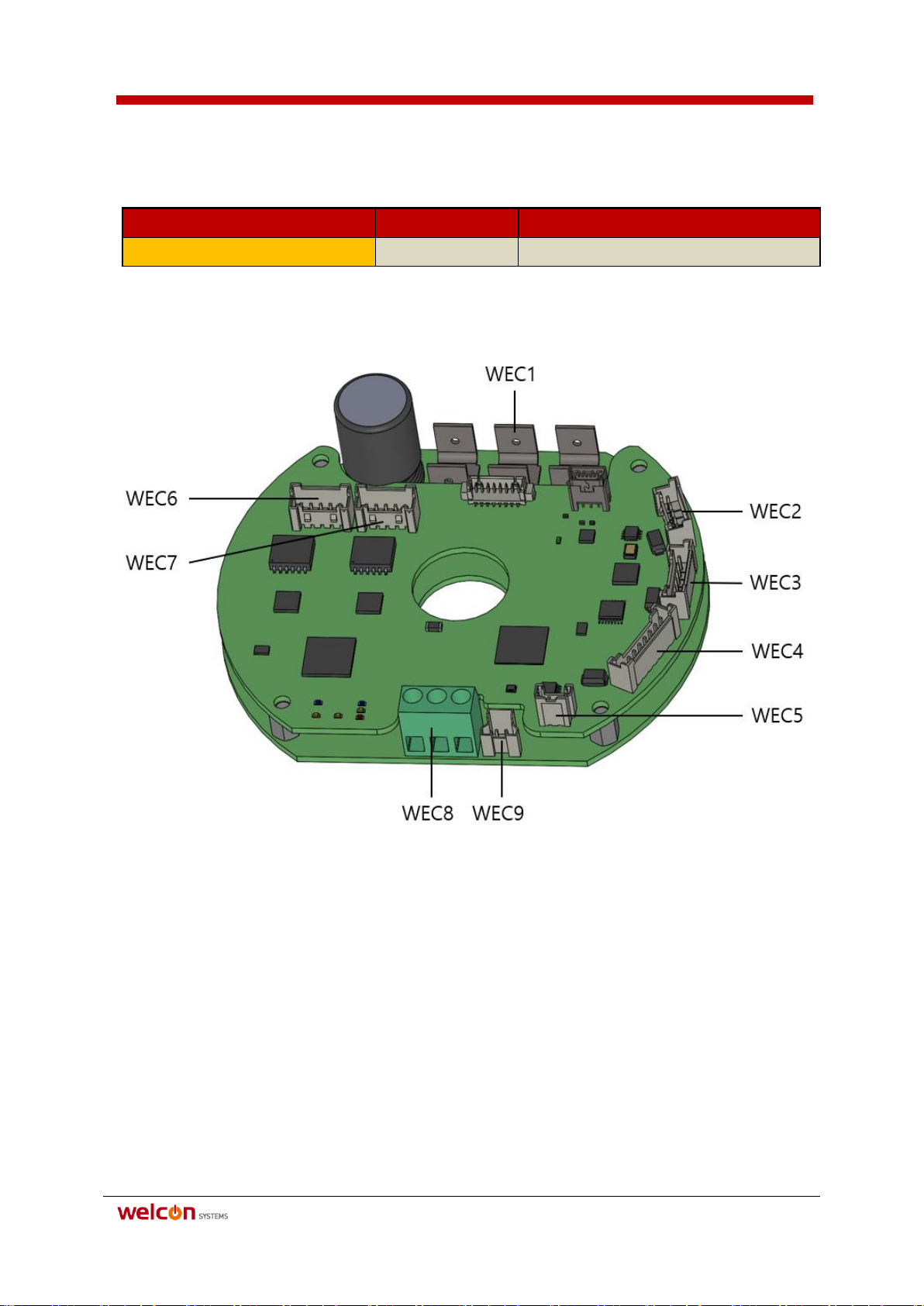

2.2. Connections
WEC1 →Main Power
WEC2 →HALL Sensor
WEC3 →Serial Encoder
WEC4 →Digital Encoder
WEC5 →Analog Input
WEC6 →EtherCAT IN
WEC7 →EtherCAT OUT
WEC8 →UVW
WEC9 →Brake

WELCON Servo Drive Hardware Manual
7 / 17
© 2021 WELCON Systems. All rights reserved.
www.welconsystems.com
2.3. Main Power
A100452CT-ND
J701~706
Pin
Signal
Input Power
1
24V
*24V
2
GND
GND
3
VCC
12V~ 48V DC
* Over voltage Caution (Only 24V)

WELCON Servo Drive Hardware Manual
8 / 17
© 2021 WELCON Systems. All rights reserved.
www.welconsystems.com

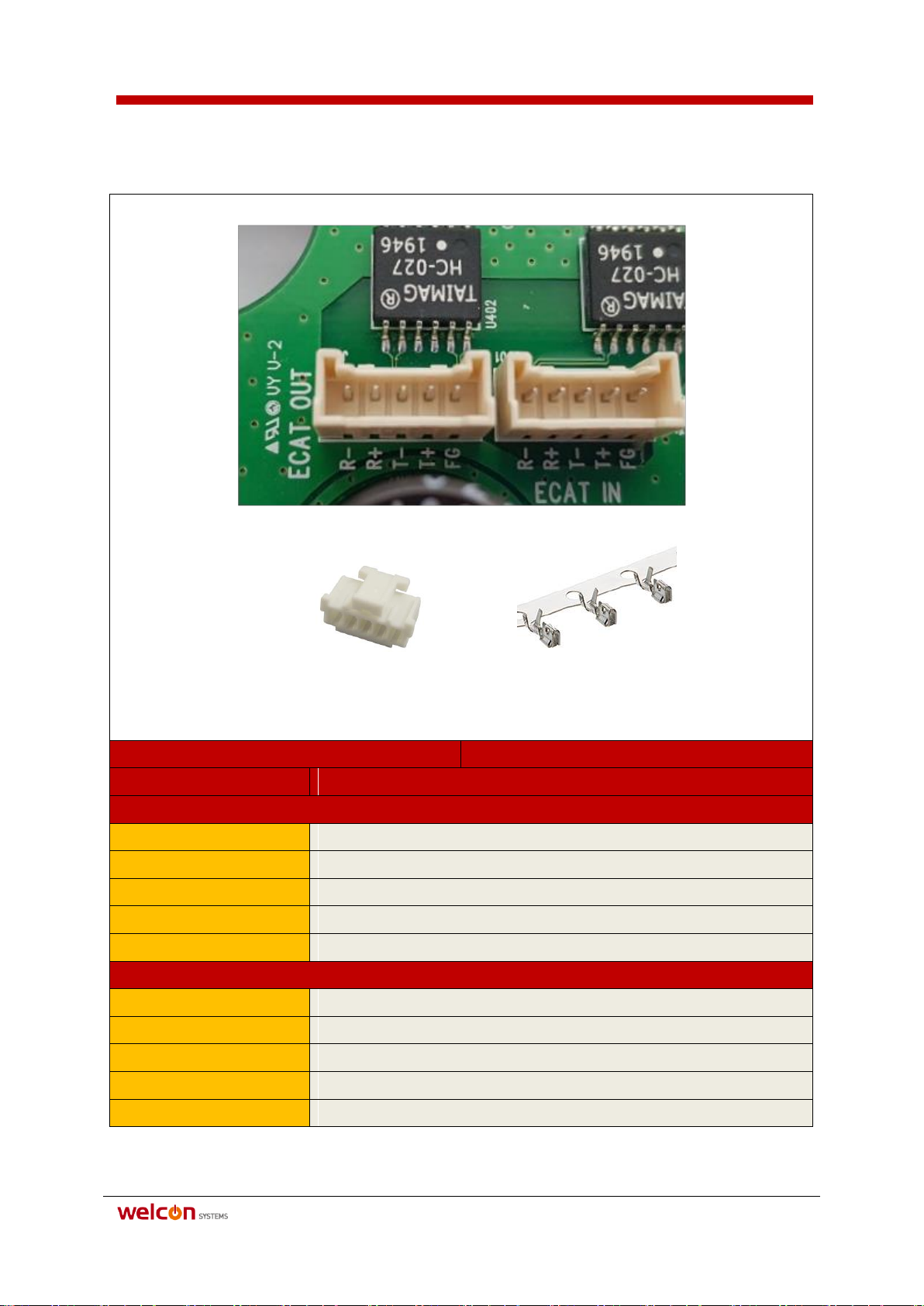

2.4. EtherCAT IN/OUT
MOLEX_35507_0500 502128000
MOLEX_35507-0500
J301, J401
Pin
Signal
ECAT IN
1
EtherCAT_RX0-
2
EtherCAT_RX0+
3
EtherCAT_TX0-
4
EtherCAT_TX0+
5
FG
ECAT OUT
1
EtherCAT_RX1-
2
EtherCAT_RX1+
3
EtherCAT_TX1-
4
EtherCAT_TX1+
5
FG

WELCON Servo Drive Hardware Manual
9 / 17
© 2021 WELCON Systems. All rights reserved.
www.welconsystems.com

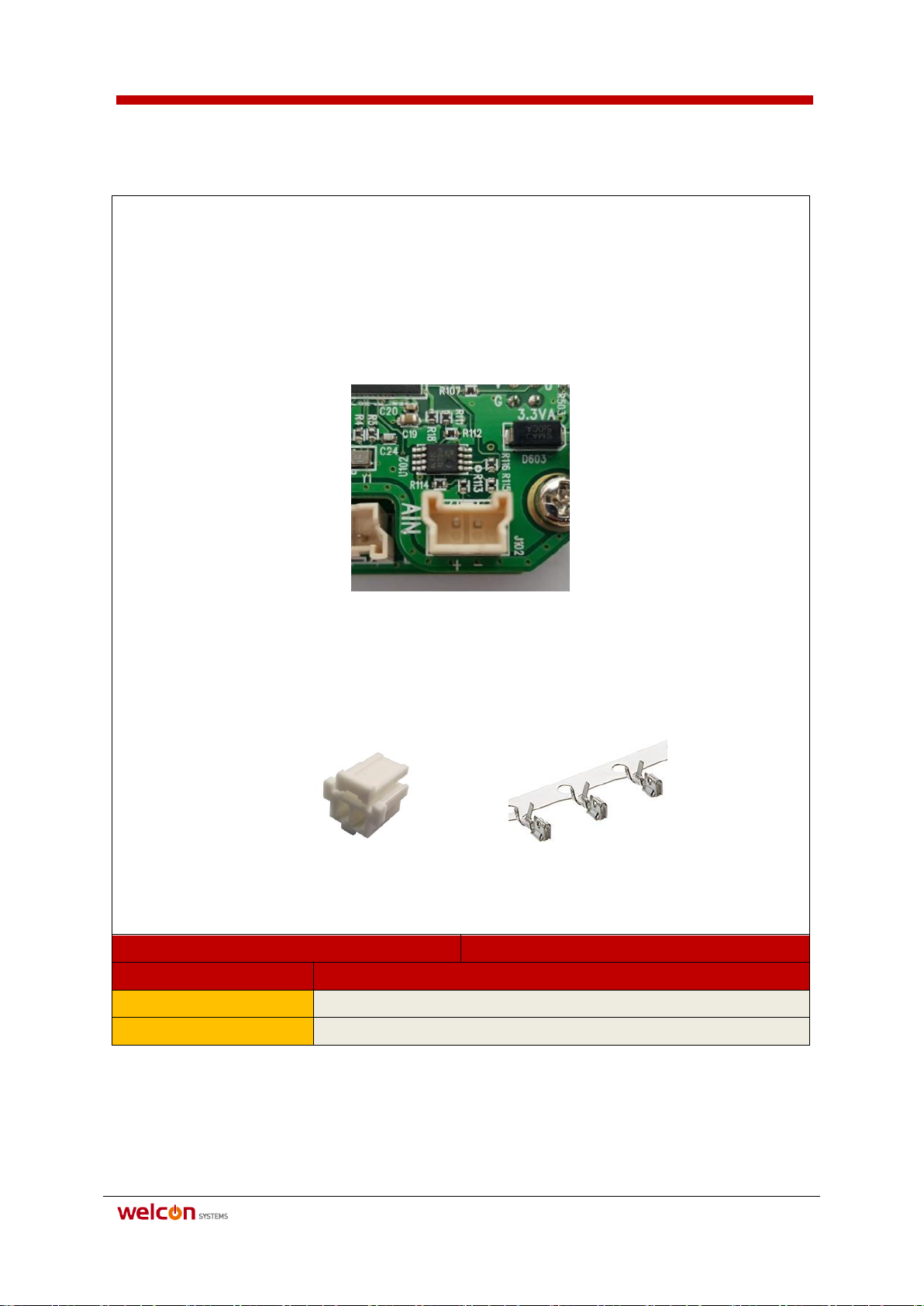

2.5. Analog Input
MOLEX_35507_0200 502128000
MOLEX_35362-0250
J701
Pin
Signal
1
AIN0+
2
AIN0-

WELCON Servo Drive Hardware Manual
10 / 17
© 2021 WELCON Systems. All rights reserved.
www.welconsystems.com

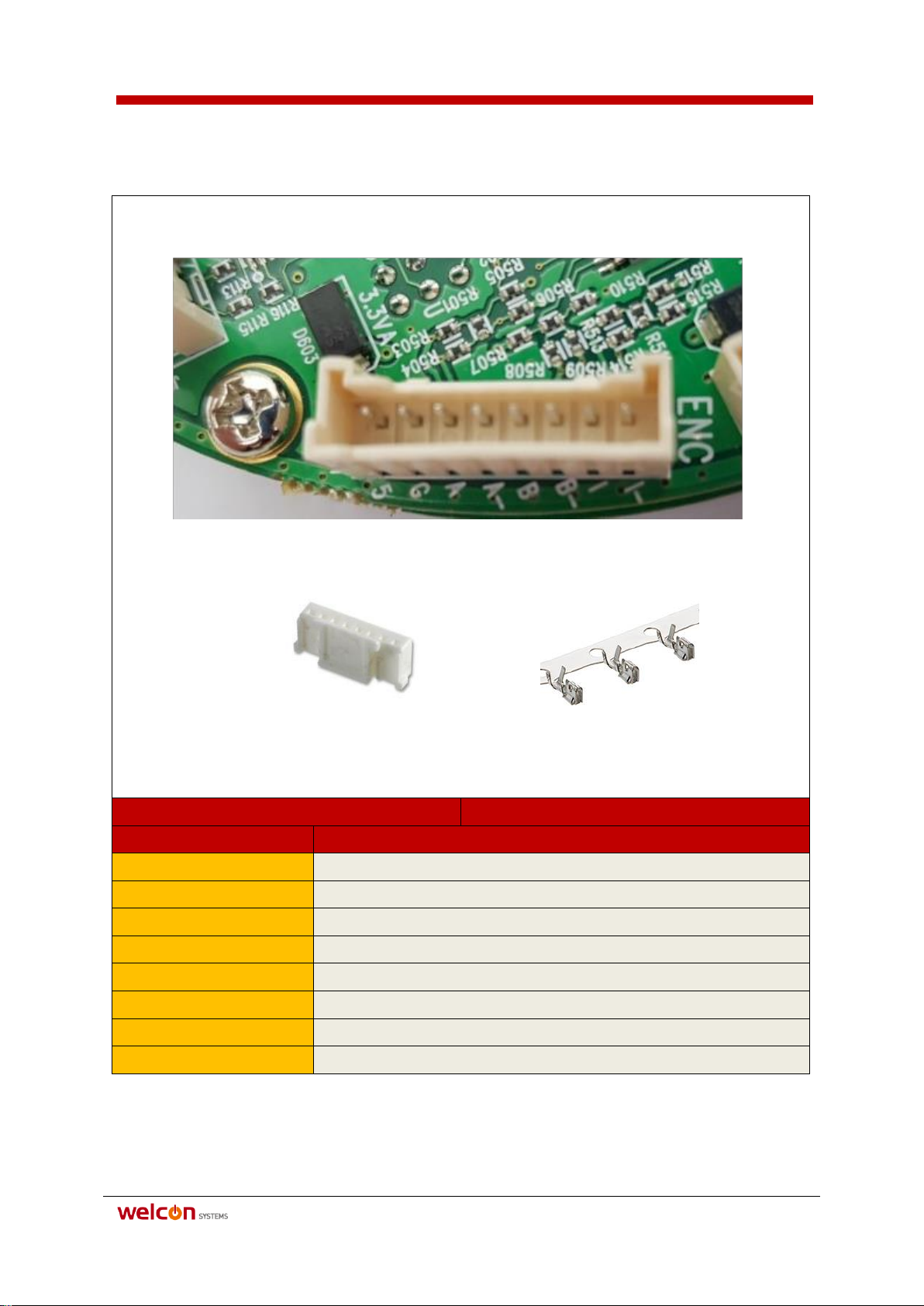

2.6. Digital Encoder
MOLEX_35507_0800 502128000
MOLEX_35362-0850
J501
Pin
Signal
1
5V
2
GND
3
ENC_A
4
ENC_/A
5
ENC_B
6
ENC_/B
7
ENC_I
8
ENC_/I

WELCON Servo Drive Hardware Manual
11 / 17
© 2021 WELCON Systems. All rights reserved.
www.welconsystems.com

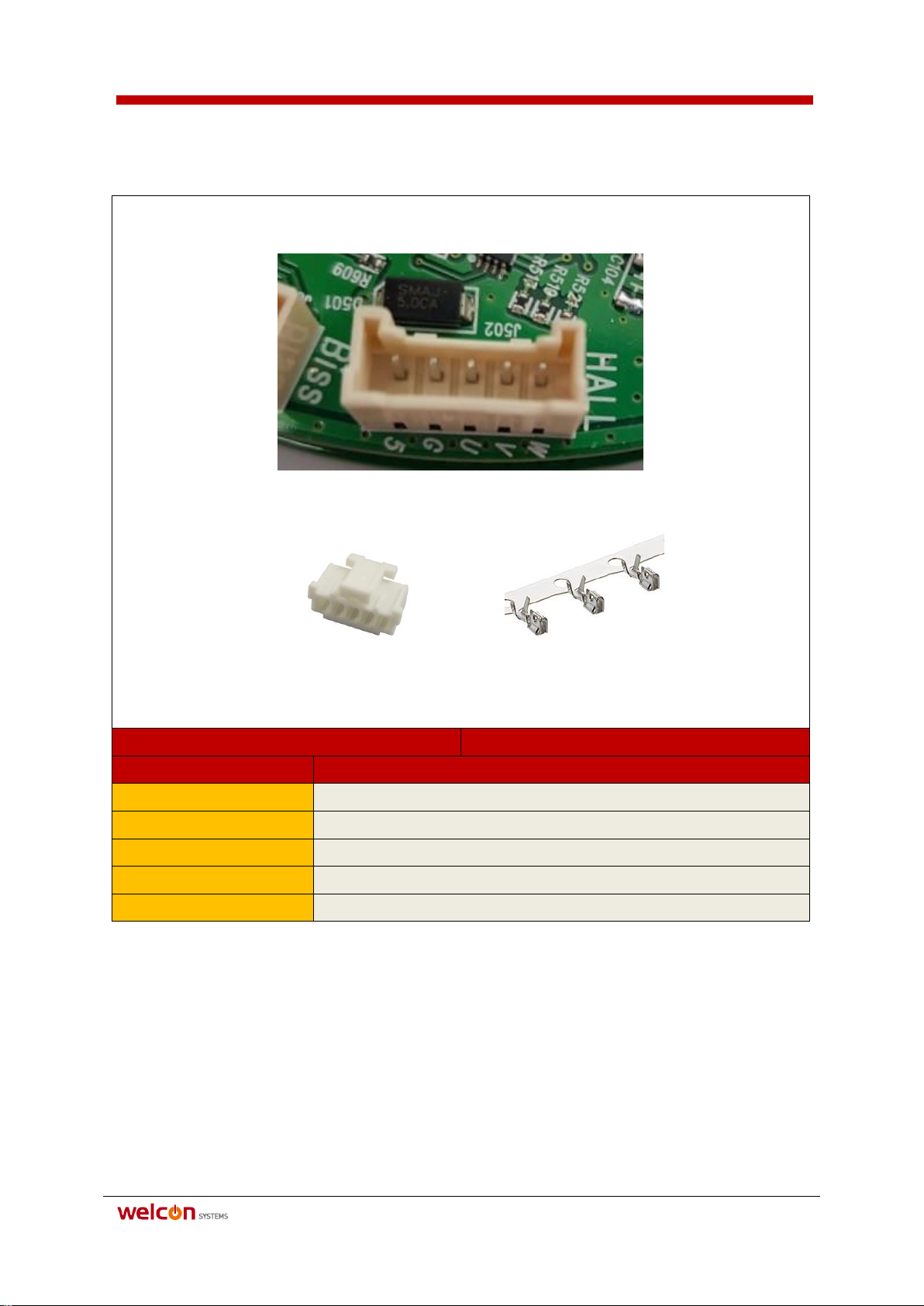

2.7. HALL
MOLEX_35507_0500 502128000
MOLEX_35362-0550
J502
Pin
Signal
1
5V
2
GND
3
U
4
V
5
W

WELCON Servo Drive Hardware Manual
12 / 17
© 2021 WELCON Systems. All rights reserved.
www.welconsystems.com
2.8. Serial Encoder
MOLEX_35507_0600 502128000
MOLEX_35362-0650
J601
Pin
Signal
1
5V
2
GND
3
BISS DATA+
4
BISS DATA-
5
BISS CLK+
6
BISS CLK-

WELCON Servo Drive Hardware Manual
13 / 17
© 2021 WELCON Systems. All rights reserved.
www.welconsystems.com

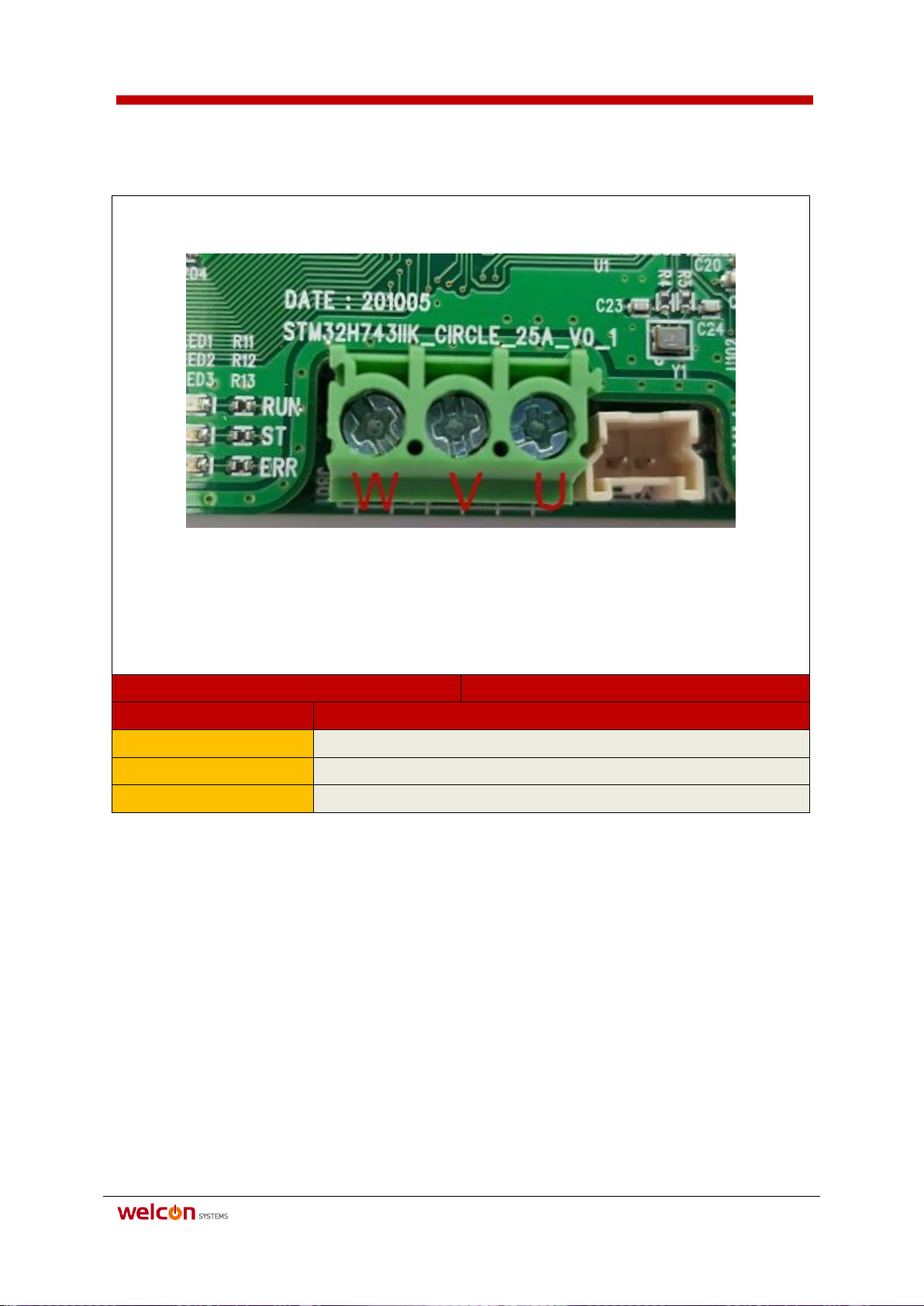

2.9. Motor Power
5EHDVC_3P
J101
Pin
Signal
1
U
2
V
3
W

WELCON Servo Drive Hardware Manual
14 / 17
© 2021 WELCON Systems. All rights reserved.
www.welconsystems.com

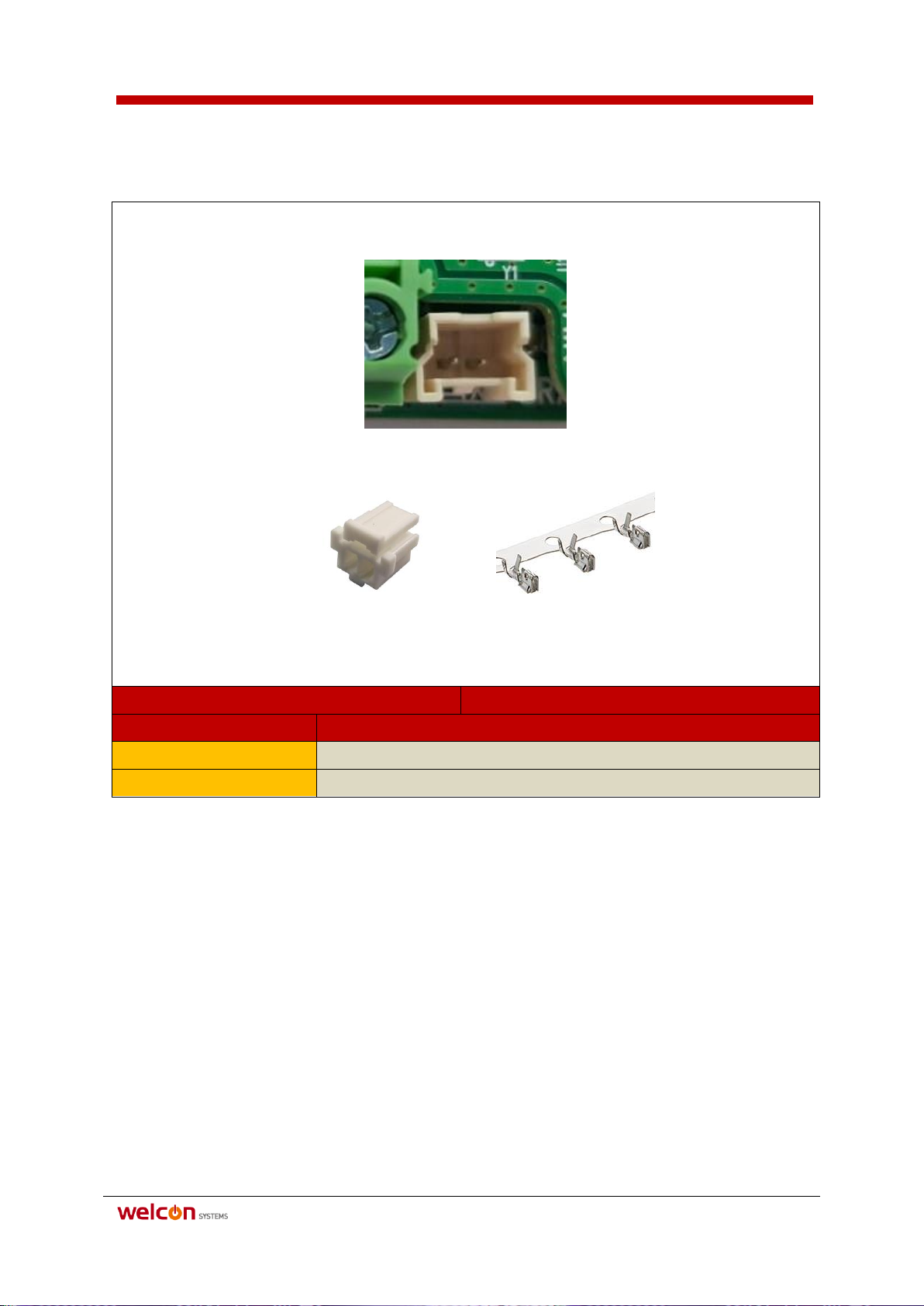

2.10. BRAKE
MOLEX_35507_0200 502128000
MOLEX_35362-0260
J7
Pin
Signal
1
24V
2
GND

WELCON Servo Drive Hardware Manual
15 / 17
© 2021 WELCON Systems. All rights reserved.
www.welconsystems.com

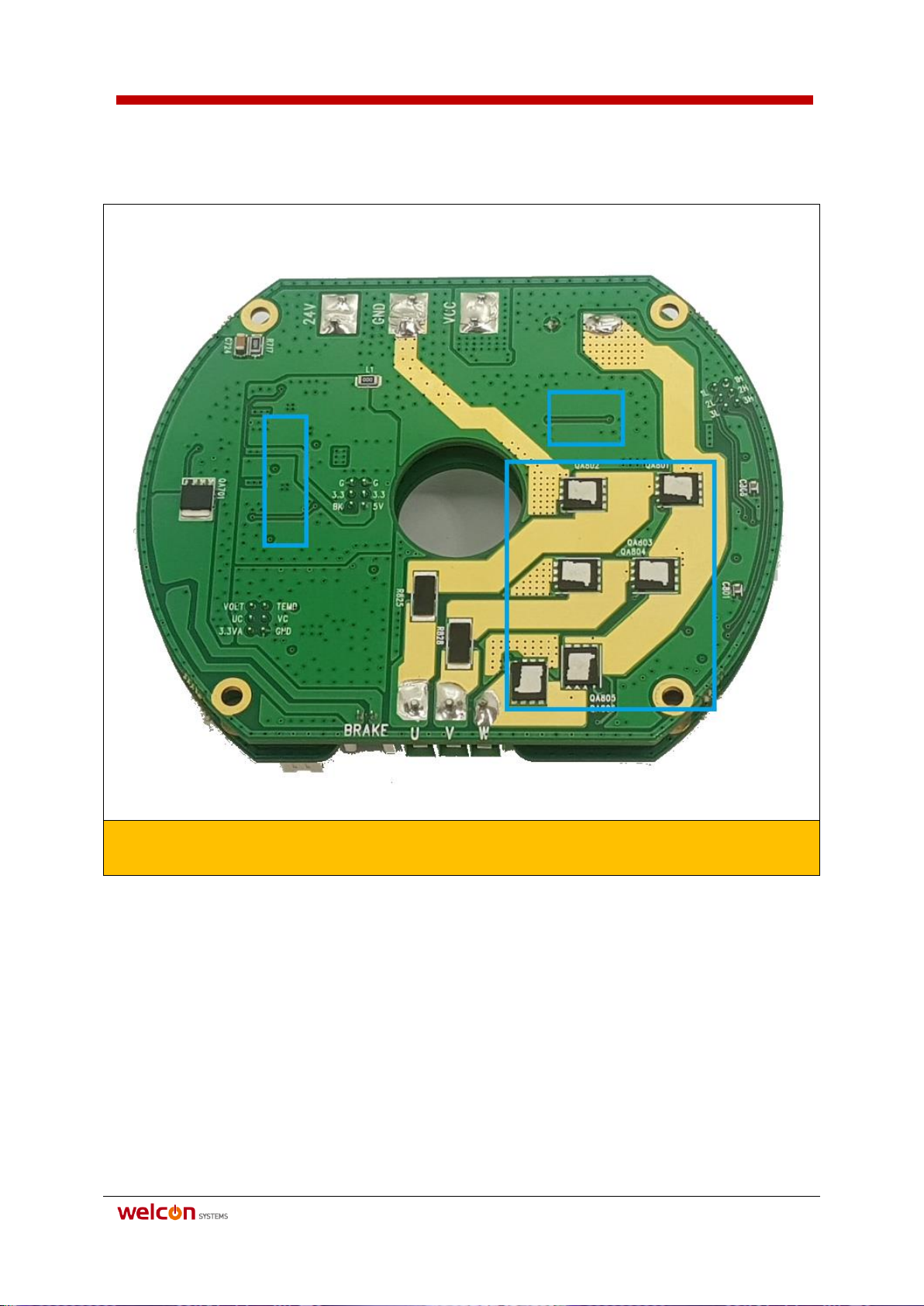

2.11. Heatsink
Attach the thermal pad (5mm) to the marked location.
