Well WHOOPEE User manual

USER MANUAL

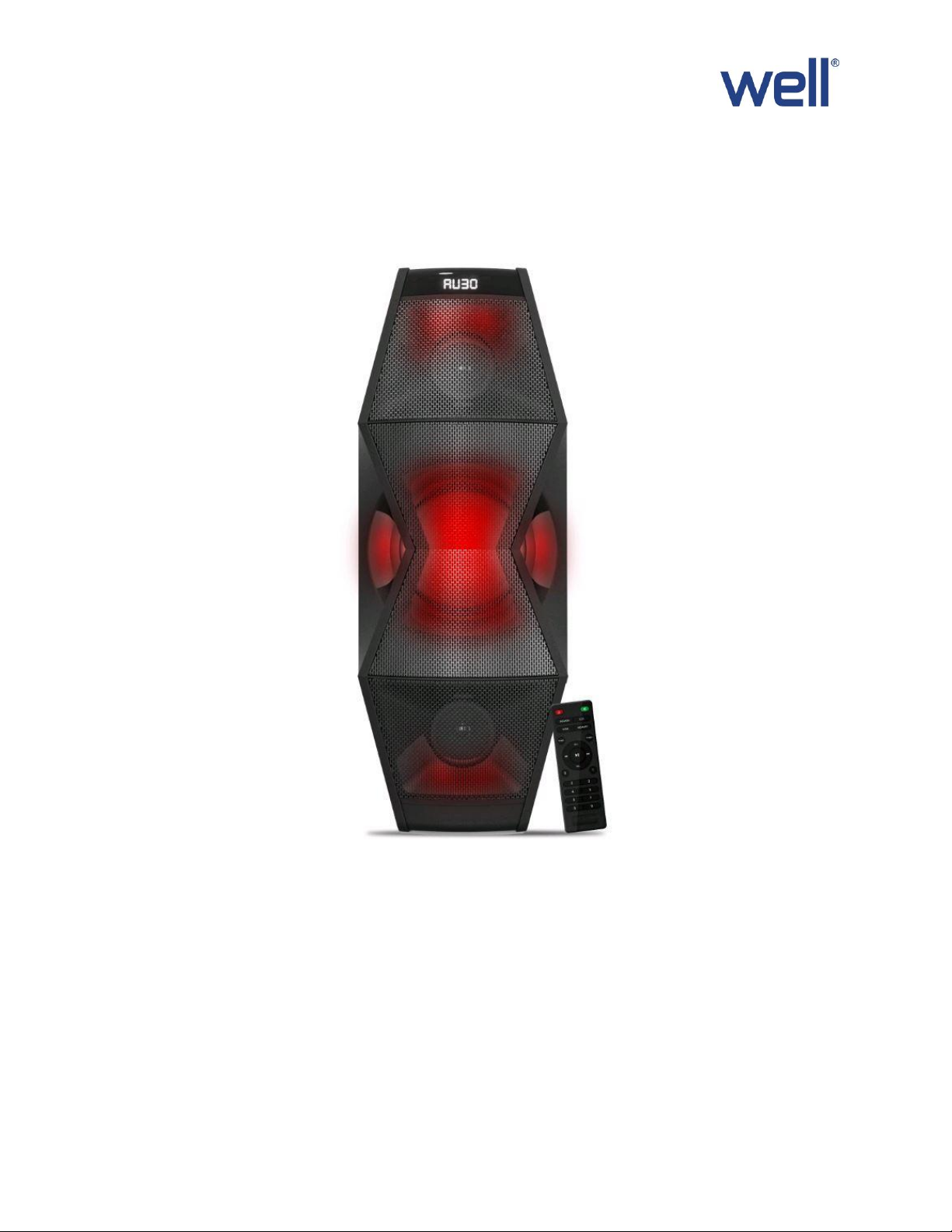

Model: WHOOPEE
Thank you for choosing WELL. Please read carefully the following instructions and keep them within reach.
Preorder No: SPKR-BT-WHOOPEE-WL

Features:
1. Quality Mini-Hifi speaker system with built-in amplifier;
2. Full audio spectrum performances, ideal for your favorite entertainment from Mp3, Mp4,
CD/DVD movies and digital playbacks;
3. Specially designed woofer cabinet for bass and resolution;
4. Comes with remote control and 3.5mm stereo connection.
Accessories:
Remote control, Audio cable, User manual, FM antenna.
Specification:
Output Power: 100W(RMS)
Drive Units: 3” x2 + 6.5”
Frequency Response: tweeter: 120Hz-20KHz
Woofer: 20Hz-170Hz
Separation: > 40 dB
S/N: > 70 dB
Distortion: < 0.5%(1K, 1W)
Power Supply: ~230V/50Hz
Product size: W221xL594xD332(mm)

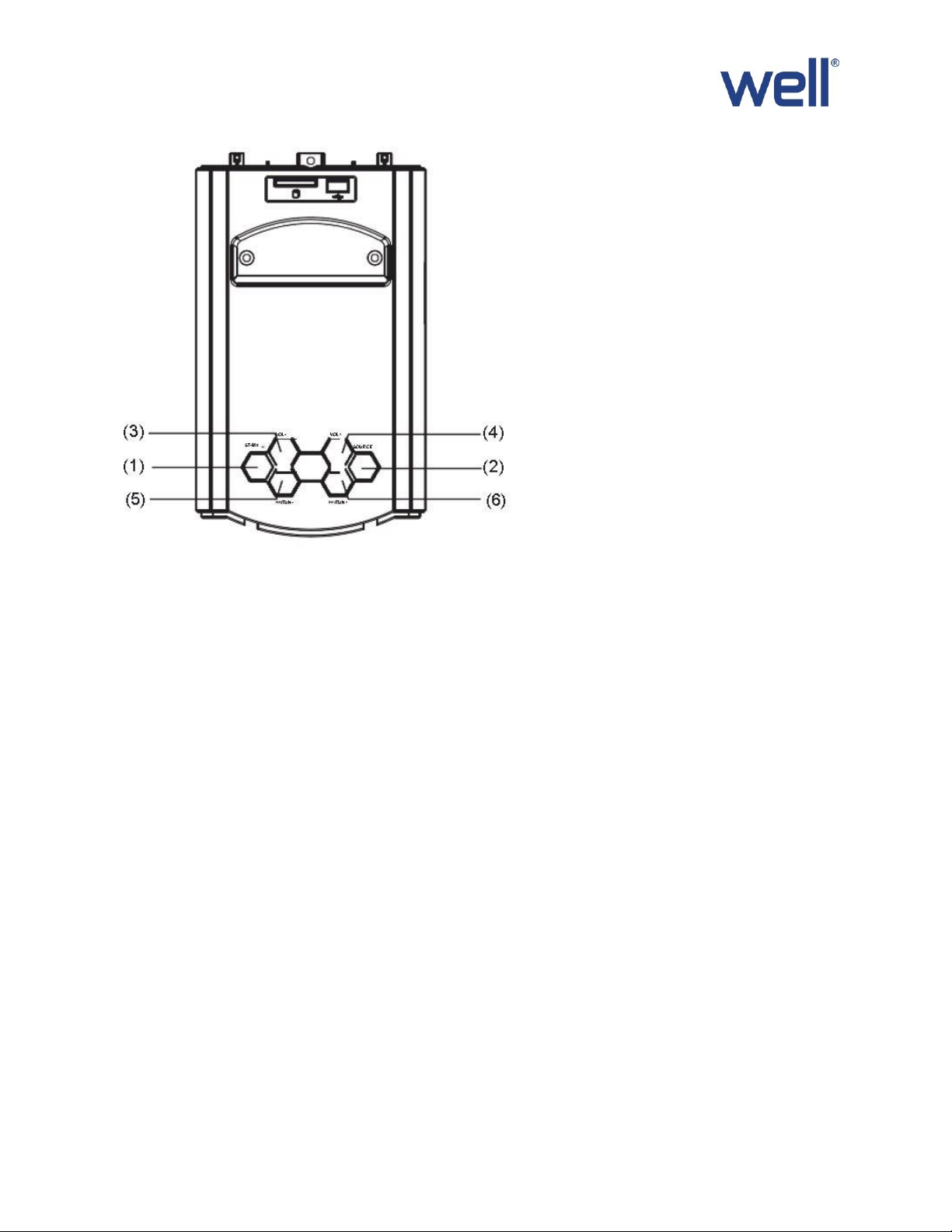

Front panel
1. ST-BY/PLAY/PAUSE
2. SOURCE
3. VOLUME-
4. VOLUME+
5. TUNING-/PREVIOUS
6. TUNING+/NEXT
ST-BY/PLAY/PAUSE Press to turn on speaker, long press into stand-by.
PLAY/PAUSE on the USB/SD/BT mode.
SOURCE - Change the input mode.
VOLUME -- Volume down
VOLUME+- Volume up.
TUNING+/NEXT Press once to increase the FM frequency 0.1M, long
press to the semi-automatic search for radio.
In USB/SD/BT mode, press “ NEXT ” play next song.
TUNING-/PREVIOUS Press once to reduce the FM frequency 0.1M, long
press to the semi-automatic search for radio. In USB/SD/BT
mode, press “PREVIOUS ”play previous song.

How to use the remote control
1. ST-BY
2. SOURCE
3. TONE
4. TUNING-
5. VOL+
6. PREVIOUS
7. VOL-
8. 0-9
9. MUTE
10.LED EFFECT
11.MEMORY
12.TUNING+
13.PLAY/PAUSE
14.NEXT
1. Press “ST-BY” LED showing “AU18”,it is AUX mode playing state.
2. “MUTE” means to activate or deactivate mute.
3. “SOURCE” means you can choose AUX , DVD ,USB/SD,FM,BL inputmode,
at the same time ,the LED will show “Au18”means AUX mode, “Du18” means DVD mode.
“87.5”means FM mode, “Bl18”means BL mode.
4. “TONE” means you can choose “TREBLE” and “BASS” “VOL+/-”means
you can increase or decrease volume of “ TREBLE ” or “BASS”.
5. When enter into FM mode, press “MEMORY” the number on the LED will Blink. This means the
machine is under save channel state. You can changethe blinking number by pressing “NEXT” or
“PREV” ,press “PLAY/PAUSE” you can save the channel into same number.it will enter into
automatic search channel and automatic save channel when pressing “MEMORY” for 3-5 seconds
(noted: the channel which you saved before will be deleted when you press “MEMORY” for 3-5
seconds.

6. When entering into USB/SD mode. “NEXT” means next song; “PREV” means previous song;
“PLAY/PAUSE” means play/pause; pressing the number “0-9”on the remote control, you can choose
the corresponding song.
7. VOL+/- means you can increase or decrease volume.
8. “TUNING-”means decrease the frequency of channel selection. Press “TUNING-” for a long time
means decrease the frequency of channel selection continuously
9. “TUNING+” means increase the frequency of channel selection. Press “TUNING+” for a long
time means increase the frequency of channel selection continuously.
10. “PLAY/PAUSE” means play/pause for USB/SD.
11. “PREV” means previous song for USB/SD.
12. “NEXT” means next song for USB/SD.
13. Press “SOURCE” buttons on the remote to convert to Bluetooth input mode, LED display right
bottom start to flashing (2 seconds) to search the Bluetooth device. Turn on your mobile Bluetooth
device and search the device name “BT SPEAKER”, paired them well. When you have successfully
paired your mobile to the speaker system, the LED right bottom stop flashing. When start to play
your mobile music, the LED flashed every one second. The functions as "PREVIOUS/NEXT",
"PLAY/PAUSE", can operate via the front panel. On BL mode, when connecting with mobile, press
“ ” for 3 seconds, Bluetooth function can be force-disconnected .
14. Press “LED” each time to change LED effect(LED1-LED6-LEDF).
Rear panel
1. ANTENNA
2. AUX/DVD IMPUT:
Connect to sound sources such
as computer, CD Player,
Mp3,etc.
3. AC IN: AC Power cord

System connection diagram
1. Connect the audio sources
Connect the 3.5 stereo cable to the input of the
subwoofer, Connect the 3.5 stereo input jack into output
of the audio sources, such as MP3,MP4, Walkman,
computer etc.
2. Power on the system, adjust the master volume
to the suitable level. Adjust volume to the suitable to
meet your different requirement.
* Do not leave objects generating magnetism near the speakers.

In use please pay attention to the following items:
Waste electrical and electronic equipment are a special waste category,
collection, storage, transport, treatment and recycling are important because
they can avoid environmental pollution and are harmful to health. Submitting
waste electrical and electronic equipment to special collection centers makes
the waste to be recycled properly and protecting the environment. Do not
forget! Each electric appliance that arrives at the landfill, the field, pollutes the
environment!
Importer & distributor:
SC VITACOM ELECTRONICS SRL
CIF: RO 214527
Tel. [phone]*
[email protected]o, www.vitacom.ro
