welldana 34-180139 User manual

t
Thank you for choosing Aqua inverter heat pump
.
This manual provides you necessary information for optimal
use and maintenance, please read it carefully and keep it for
subsequent use.
INSTALLATION AND
USER MANUAL

Summary
1. General information.................................................................................................- 1 -
1.1. Contents......................................................................................................................- 1 -
1.2. Operating conditions and range ..............................................................................- 1 -
1.3. Advantages of different modes................................................................................- 1 -
1.4. Kind reminder.............................................................................................................- 2 -
2. Operations ....................................................................................................................- 4 -
2.1. Notice before using ...................................................................................................- 4 -
2.2. Operation instructions ...............................................................................................- 4 -
2.3. Daily maintenance and winterizing .........................................................................- 5 -
3. Technical specification...........................................................................................- 6 -
1. Transportation.............................................................................................................- 7 -
2. Installation and maintenance .............................................................................- 7 -
2.1. Notice before installation ..........................................................................................- 7 -
2.2. Installation instructions .............................................................................................- 8 -
2.3. Trial after installation...............................................................................................- 11 -
2.4. Maintenance and winterizing .................................................................................- 11 -
3. Trouble shooting for common faults............................................................- 12 -
4. Failure code...............................................................................................................- 13 -
Appendix 1: Heating priority wiring diagram …………………...………………...…..... -14-
For users ………………………………………………………………………………. P.1-P.6
For installers and professionals ………………………………………………… P.7-P.17

For users
- 1 -
1. General information:

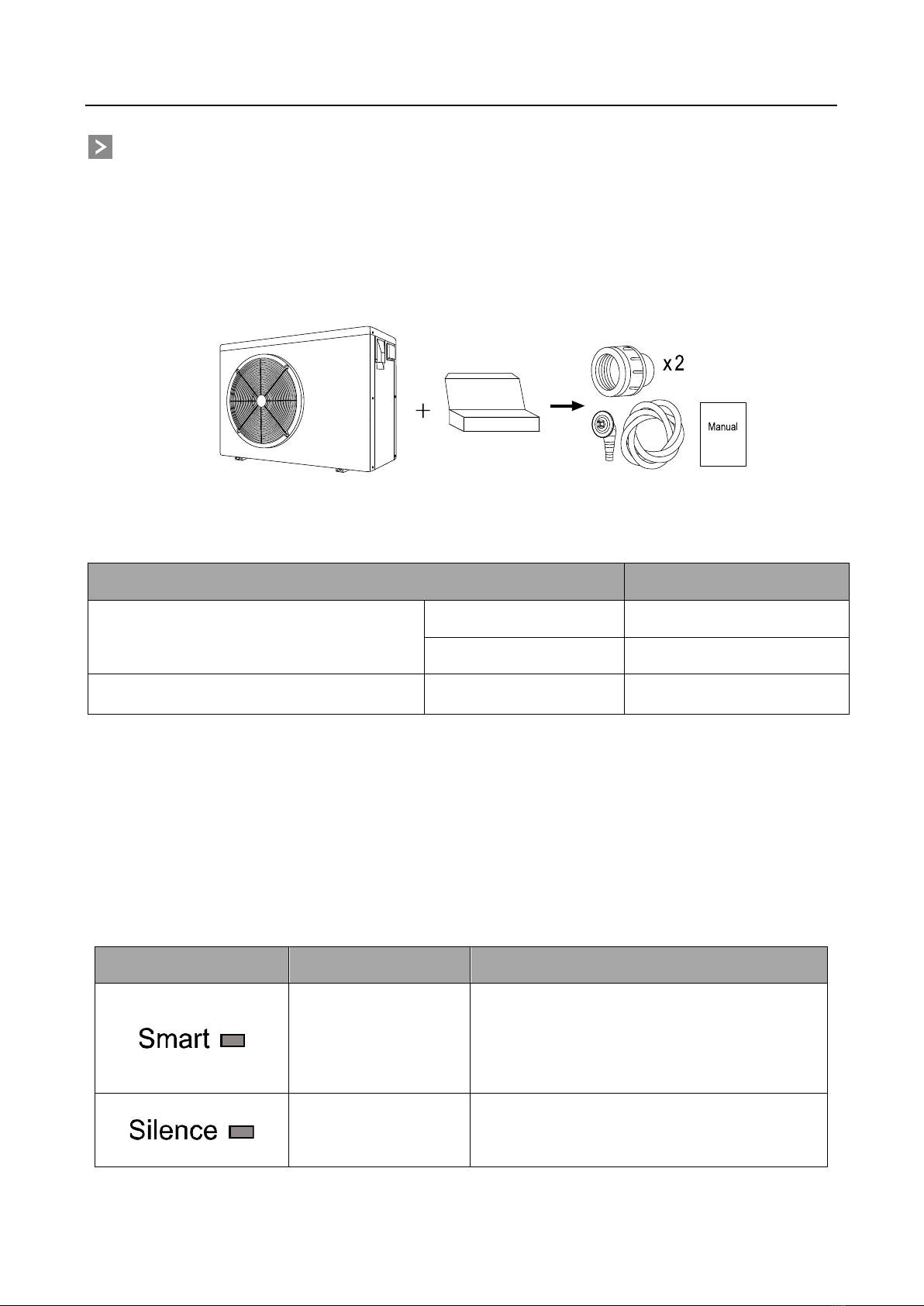

1.1. Contents:
After unpacking, please check if you have all the following components.
1.2. Operating conditions and range:
Items
Range
Operating range
Air temp
-7℃～43℃
Water temp
0℃～35℃
Temp. setting
heating
18℃-35℃
The heat pump will have ideal performance in the operation range Air 15 ℃～ 25 ℃
1.3. Advantages of different modes:
The heat pump has two modes: Smart and Silence. They have different advantages under
different conditions
Mode
Recommendation
Advantages
As standard
Heating capacity: 20% to 100% capacity
Intelligent optimization
Fast heating
Use at night
Heating capacity: 20% to 80% capacity
Sound level: 3dB (A) lower than Smart mode.

For users
- 2 -

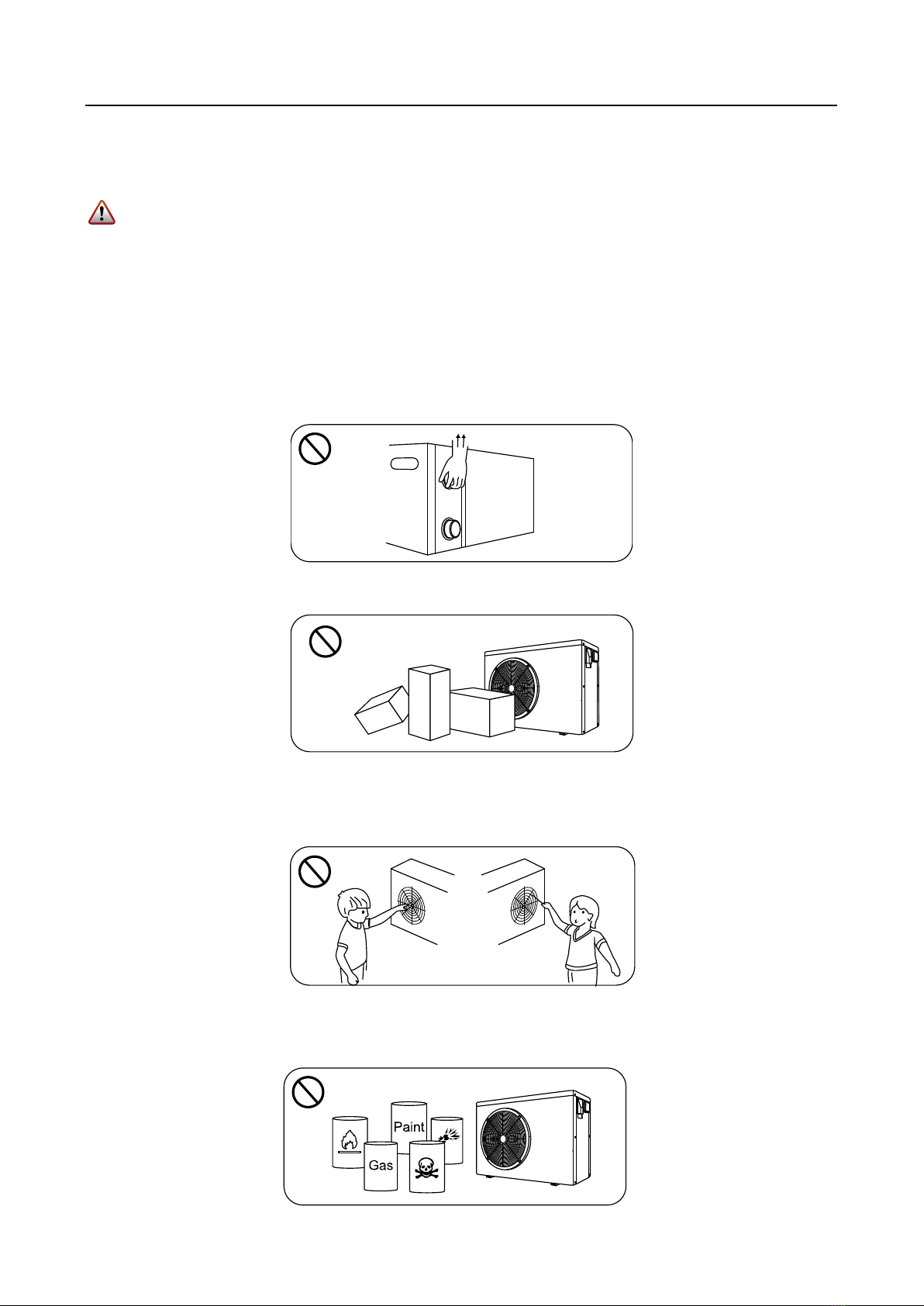

1.4. Kind reminder:
This heat pump has Power-off memory function. When the power is recovered, the heat
pump will restart automatically.
1.4.1. The heat pump can only be used to heat the pool water. It can NEVER be used to
heat other flammable or turbid liquid.
1.4.2. Don’t lift the water union when moving the heat pump since the titanium heat
exchanger inside the heat pump will be damaged.
1.4.3. Don’t put obstacles before the air inlet and outlet of the heat pump.
1.4.4. Don’t put anything into inlet or outlet, or the efficiency of the heat pump will be
reduced or even stopped.
1.4.5. Don’t use or store combustible gas or liquid such as thinners, paint and fuel to avoid
fire.

For users
- 3 -
1.4.6. If any abnormal circumstances occurred, e.g.: abnormal noises, smells, smokes and
leakage of electricity, switch off the main power immediately and contact your local
dealer. Don’t try to repair the heat pump by yourselves.
1.4.7. The main power switch should be out of the reach of Children.
1.4.8. Please cut off the power in the lightning storm weather.
1.4.9. Please note that following codes are not failure.
Codes
Out of the operating range
No water
Insufficient water flow or pump
blocked
Power abnormal
Defrosting
heating light twinkling

For users
- 4 -
2. Operations
2.1. Notice before using
①The user is advised to start the water pump before the heat pump, and turn off the
heat pump before the water pump for long life circle.
②Check firstly for any water leakage of piping connection, then power on, press the
ON/OFF button of the heat pump, and set suitable temperature.

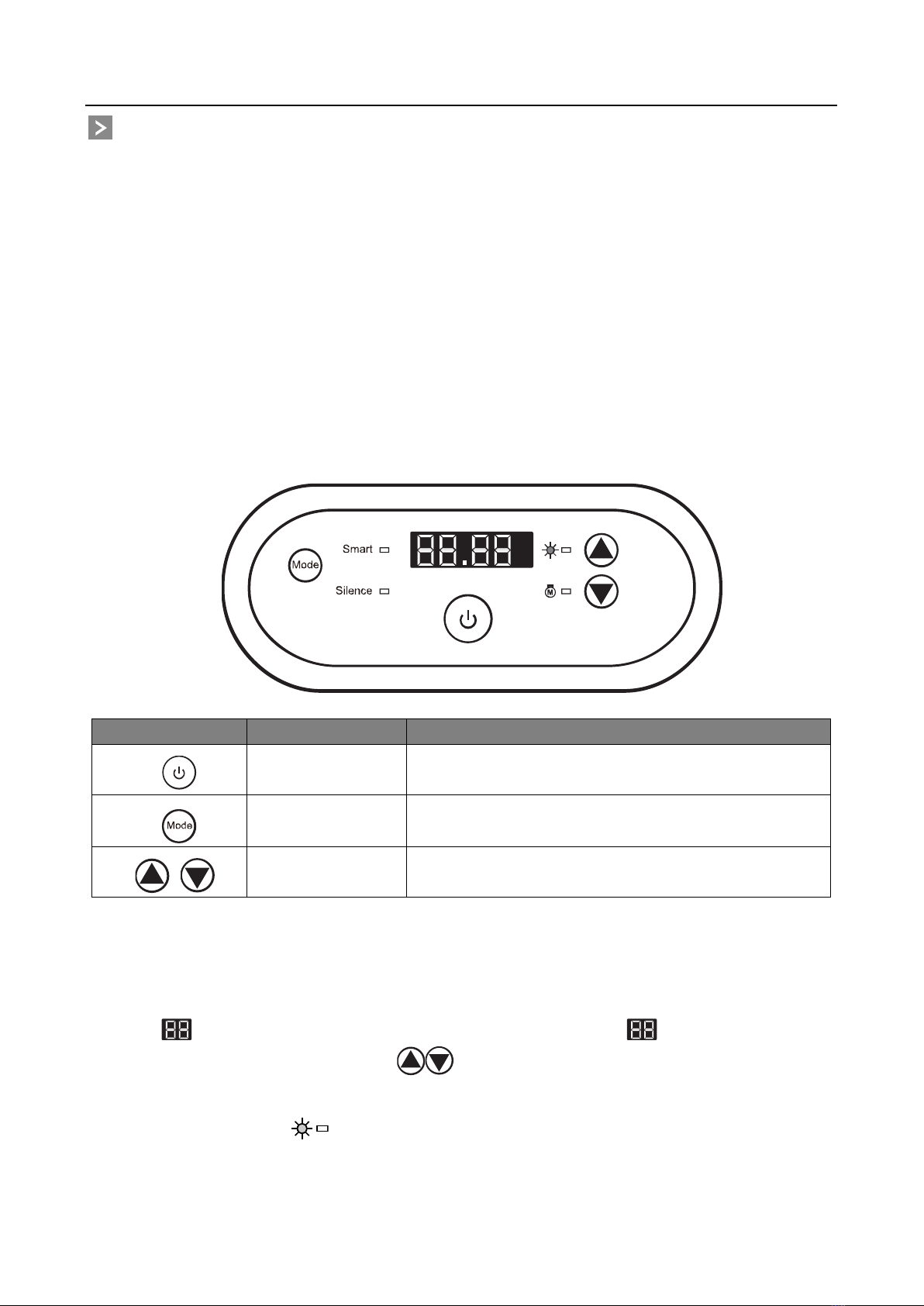

2.2. Operation instructions
Symbol
Designation
Operation
Power ON/OFF
Press to power on or off the heat pump
Mode
Press to select Smart/Silence mode
Up/ Down
Press to set desired water temperature
Note:
①You may set the desired water temperature from 18 to 35℃.
②The on the right shows the inlet water temperature. The on the left shows the
set temperature by pressing buttons at the same time.
③After you turn on the heat pump, the fan will start to run in 3 minutes. In another 30
seconds, the compressor will start to run.
④During heating, the will be light.

For users
- 5 -

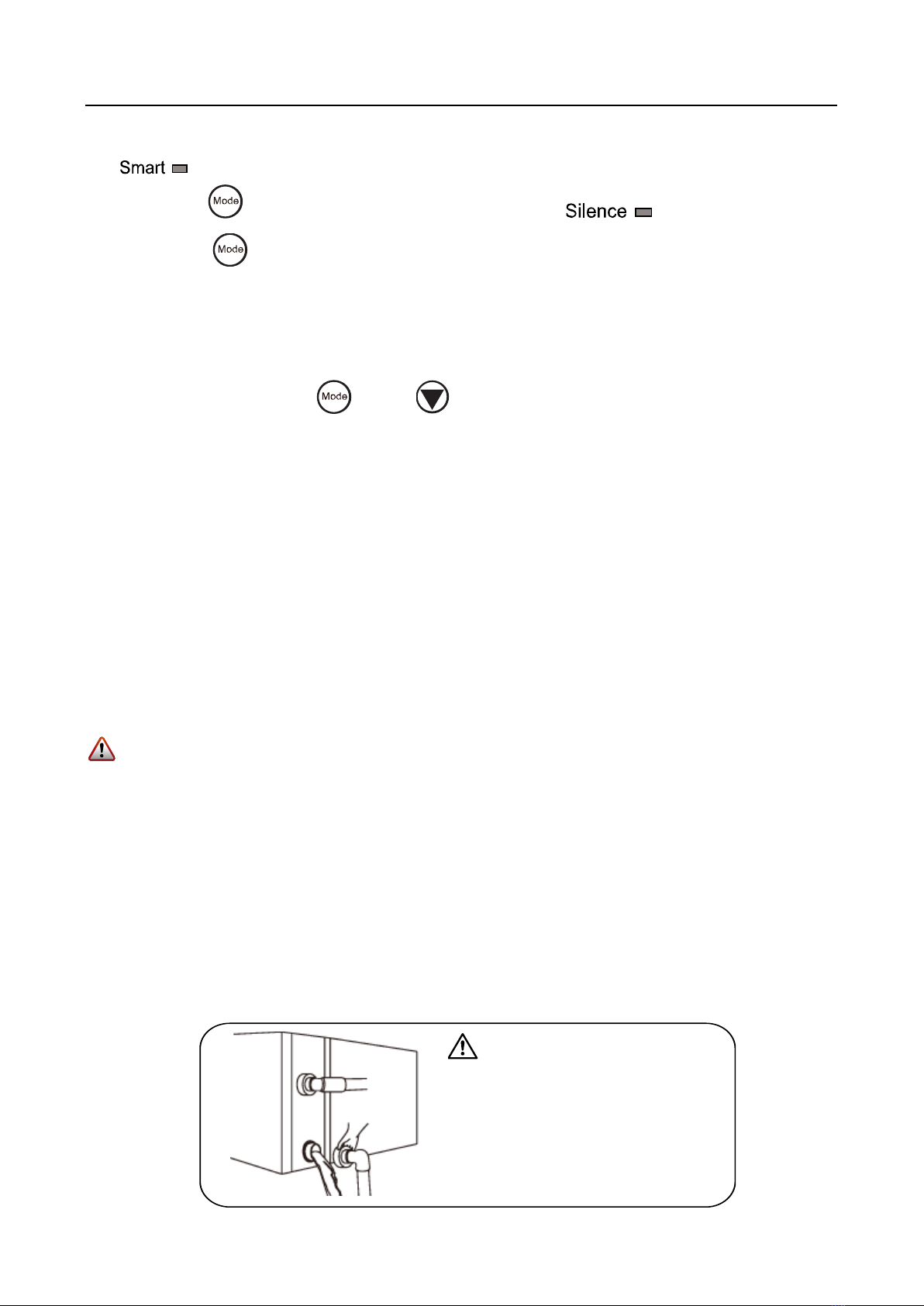

2.2.1. Mode selections
①will be light as standard when you turn on the heat pump.
②Press the button to enter the Silence mode, the will be light.
Press the button again to exit and enter the SMART mode.
2.2.2. Compulsory defrosting
①When the heat pump is heating and the compressor is working continuously for 10
minutes, press both “ ” and “ ” buttons for 5 seconds to start compulsory
defrosting. (Note: the interval between compulsory defrosting should be more than 30
minutes.)
②The heating light will be twinkling when heat pump is in compulsory or auto defrosting.
③The running process and ending of compulsory defrosting are the same as
auto-defrosting.
2.3. Daily maintenance and winterizing
2.3.1. Daily Maintenance
Please don’t forget to cut off power supply of the heat pump
①Please clean the evaporator with household detergents or clean water, NEVER use
gasoline, thinners or any similar fuel.
②Check bolts, cables and connections regularly.
2.3.2. Winterizing
In winter season when you don’t swim, please cut off power supply and drain water out
of the heat pump. When using the heat pump under 0℃, make sure that the water
pump is always running.

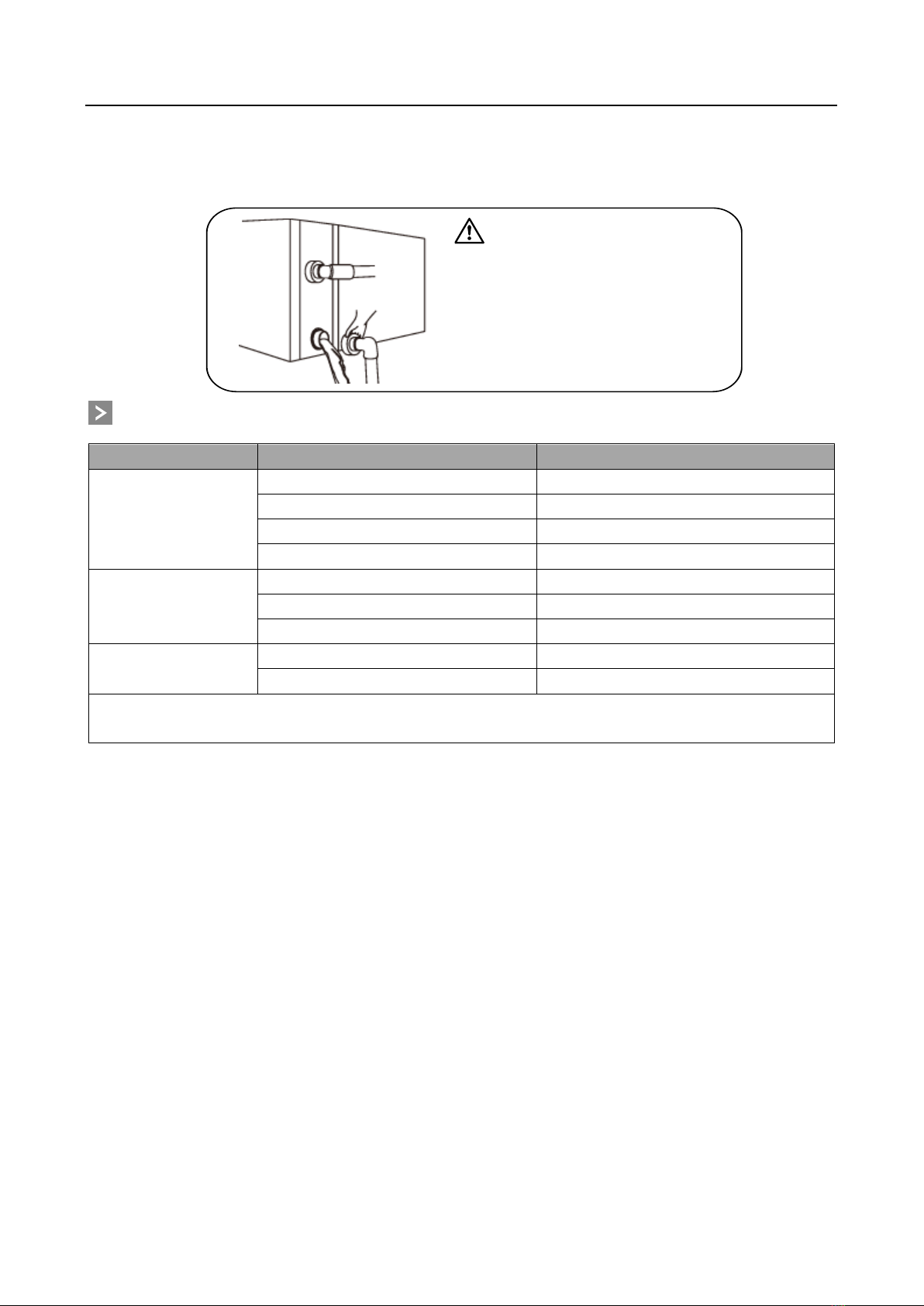

Important:
Unscrew the water union of inlet pipe
to let the water flow out.
When the water in machine freezes in
winter season, the titanium heat
exchanger may be damaged.

For users
- 6 -
3. Technical specification
Model
34-180139
34-180140
Advised pool volume (m3)
25-50
30-60
Working air temp (℃)
-7~43
Performance Condition: Air 26°C, Water 26°C, Humidity 80%
Heating capacity (kW)
11.3~2.8
13.3~3.4
Heating capacity (kW) in silence
mode
9.0~2.8
10.4~3.4
C.O.P
15.1~6.5
15.0~6.4
C.O.P in silence mode
15.1~7.5
15.0~7.4
Performance Condition: Air 15°C, Water 26°C, Humidity 70%
Heating capacity (kW)
7.3~1.9
9.4~2.3
Heating capacity (kW) in silence
mode
5.8~1.9
7.4~2.3
C.O.P
7.7~4.5
7.6~4.4
C.O.P in silence mode
7.7~5.2
7.6~5.1
Rated input power (kW)
1.6~0.22
2.1~0.25
Rated input current (A)
7.4~0.95
9.1~1.1
Power supply
230V/1 Ph/50Hz
Advised water flux (m³/h)
4~6
5~7
Sound pressure 1m dB(A)
39.5~48.2
42.8~52.1
Sound pressure 10m dB(A)
19.5~28.2
22.8~32.1
Water pipe in-out Spec (mm)
50
Net Dimension LxWxH (mm)
961×312×658
961×312×658
Net Weight (kg)
50
52
1. The values indicated are valid under ideal conditions: Pool covered with an isothermal cover, filtration
system running at least 15 hours a day
2. Related parameters are subject to adjustment periodically for technical improvement without further
notice. For details please refer to nameplate.
。

For installers and professionals
- 7 -

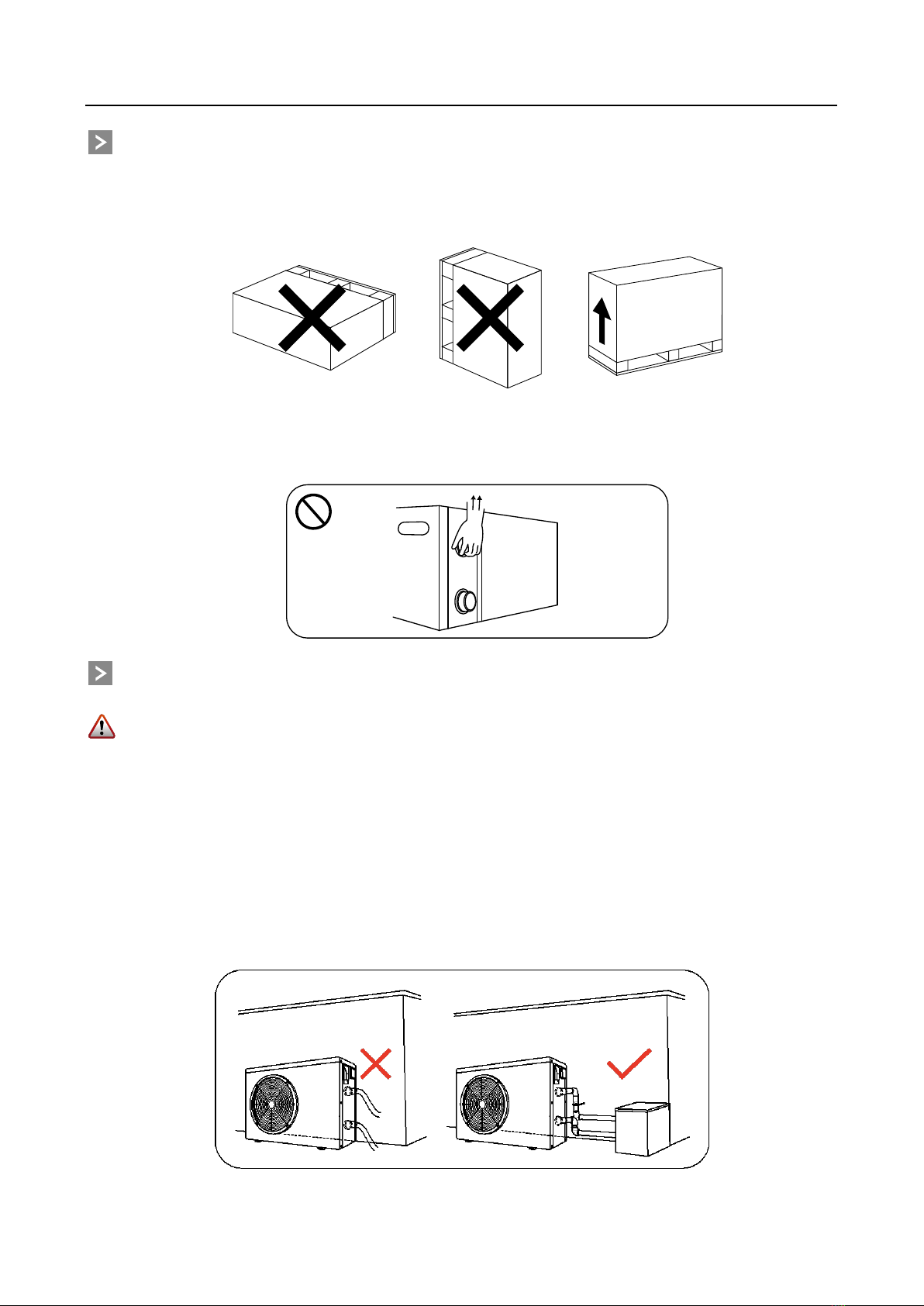

1. Transportation
1.1. When storing or moving the heat pump, the heat pump should be at the upright
position.
1.2. When moving the heat pump, do not lift the water union since the titanium heat
exchanger inside the heat pump will be damaged.
2. Installation and maintenance
The heat pump must be installed by a professional team. The users are not qualified to
install by themselves, otherwise the heat pump might be damaged and risky for users’
safety.
2.1. Notice before installation：
2.1.1. The inlet and outlet water unions can’t bear the weight of soft pipes. The heat pump
must be connected with hard pipes!

For installers and professionals
- 8 -
2.1.2．In order to guarantee the heating efficiency, the water pipe length should be ≤10m
between the pool and the heat pump.
2.2. Installation instruction

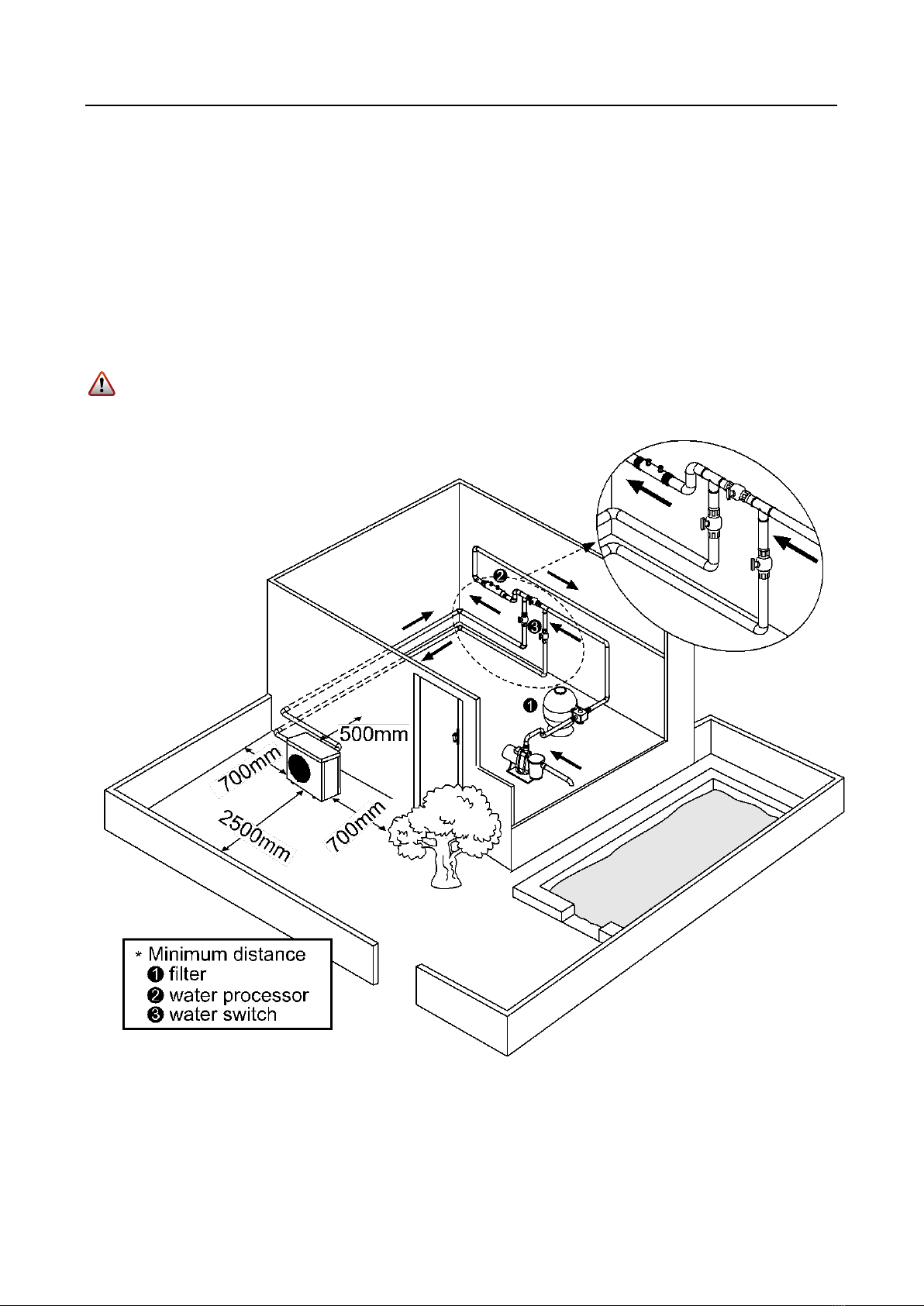

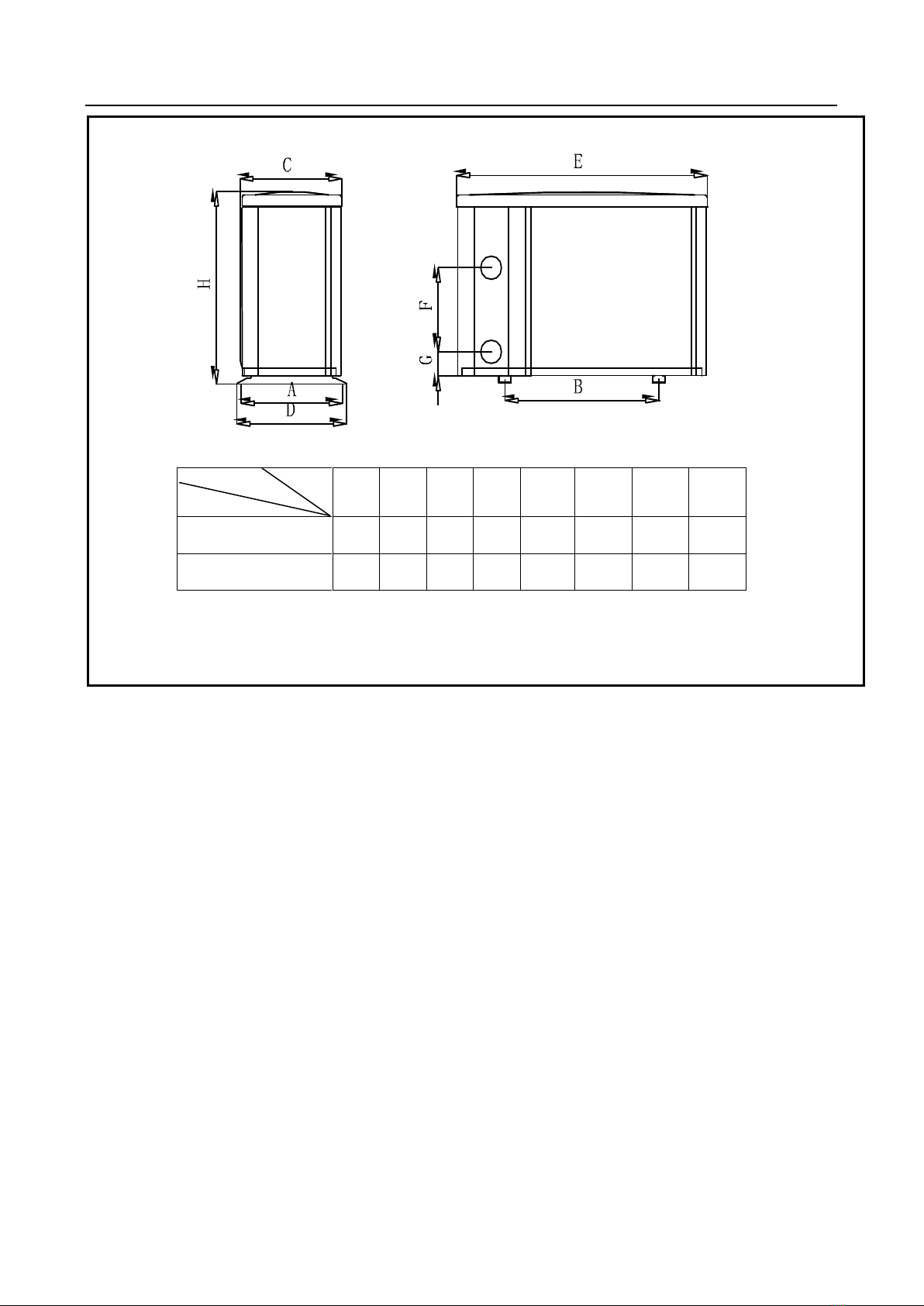

2.2.1. Location and size
The heat pump should be installed in a place with good ventilation

For installers and professionals
- 9 -
※ Above data is subject to modification without notice.
2.2.2. Heat pump installation.
①The frame must be fixed by bolts (M10) to concrete foundation or brackets. The
concrete foundation must be solid; the bracket must be strong enough and anti-rust
treated;
②The heat pump needs a water pump (Supplied by the user). The recommended pump
specification-flux: refer to Technical Parameter, Max. lift ≥10m
③When the heat pump is running, there will be condensation water discharged from the
bottom, please pay attention to it. Please insert the drainage tube(accessory) into the
hole and clip it well, then connect a pipe to drain off the condensation water.
2.2.3. Wiring & protecting devices and cable specification
①Connect to appropriate power supply, the voltage should comply with the rated voltage
of the products.
②Well earth the heat pump.
③Wiring must be connected by a professional technician according to the circuit
diagram.
④Set breaker or fuse according to the local code (leakage operating current ≤ 30mA).
⑤The layout of power cable and signal cable should be orderly and not affecting each
other.
A
B
C
D
E
F
G
H
34-180139
315
590
312
340
961
340
74
658
34-180140
315
590
312
340
961
340
74
658
Size(mm)
Model
BE机

For installers and professionals
- 10 -

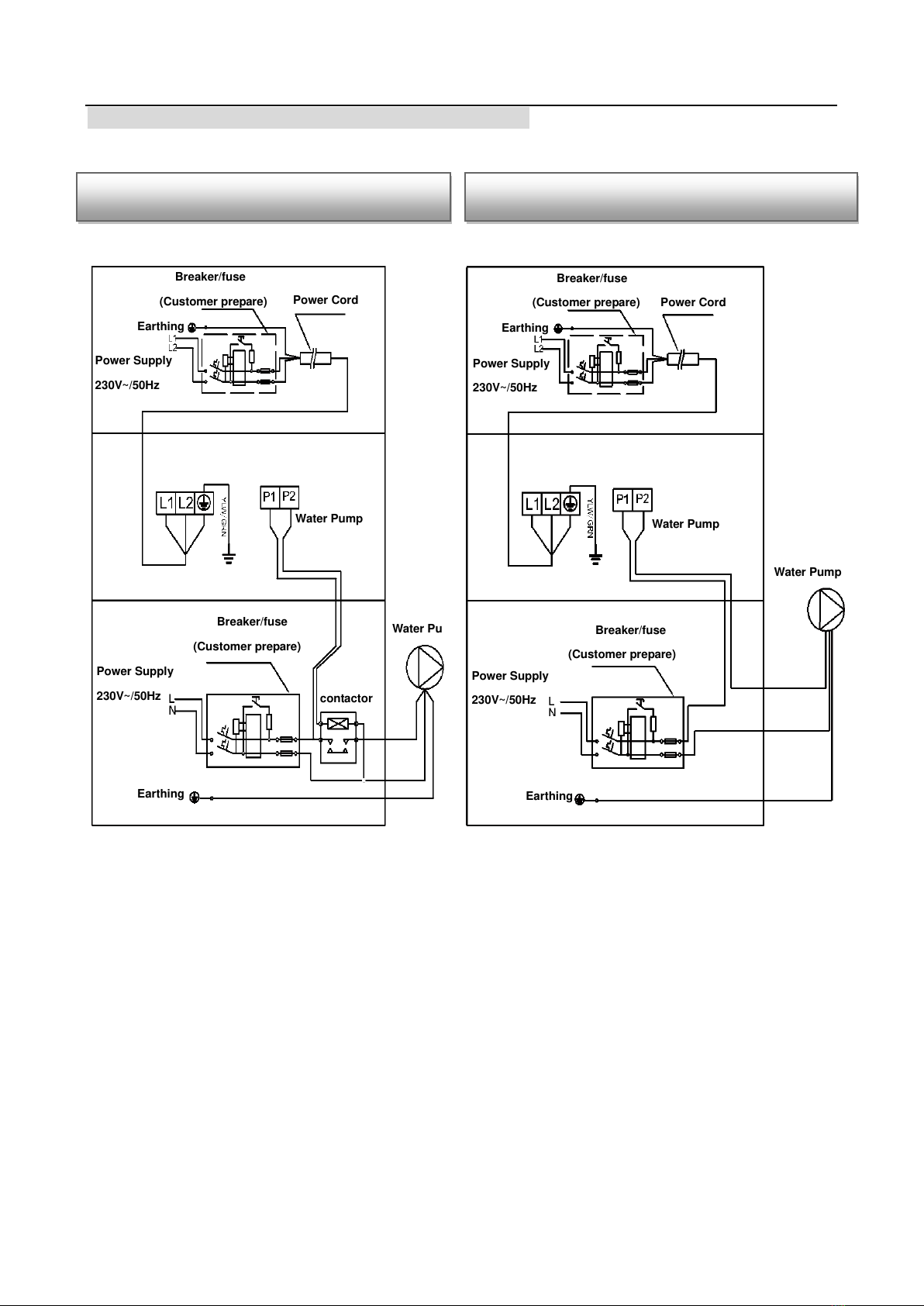

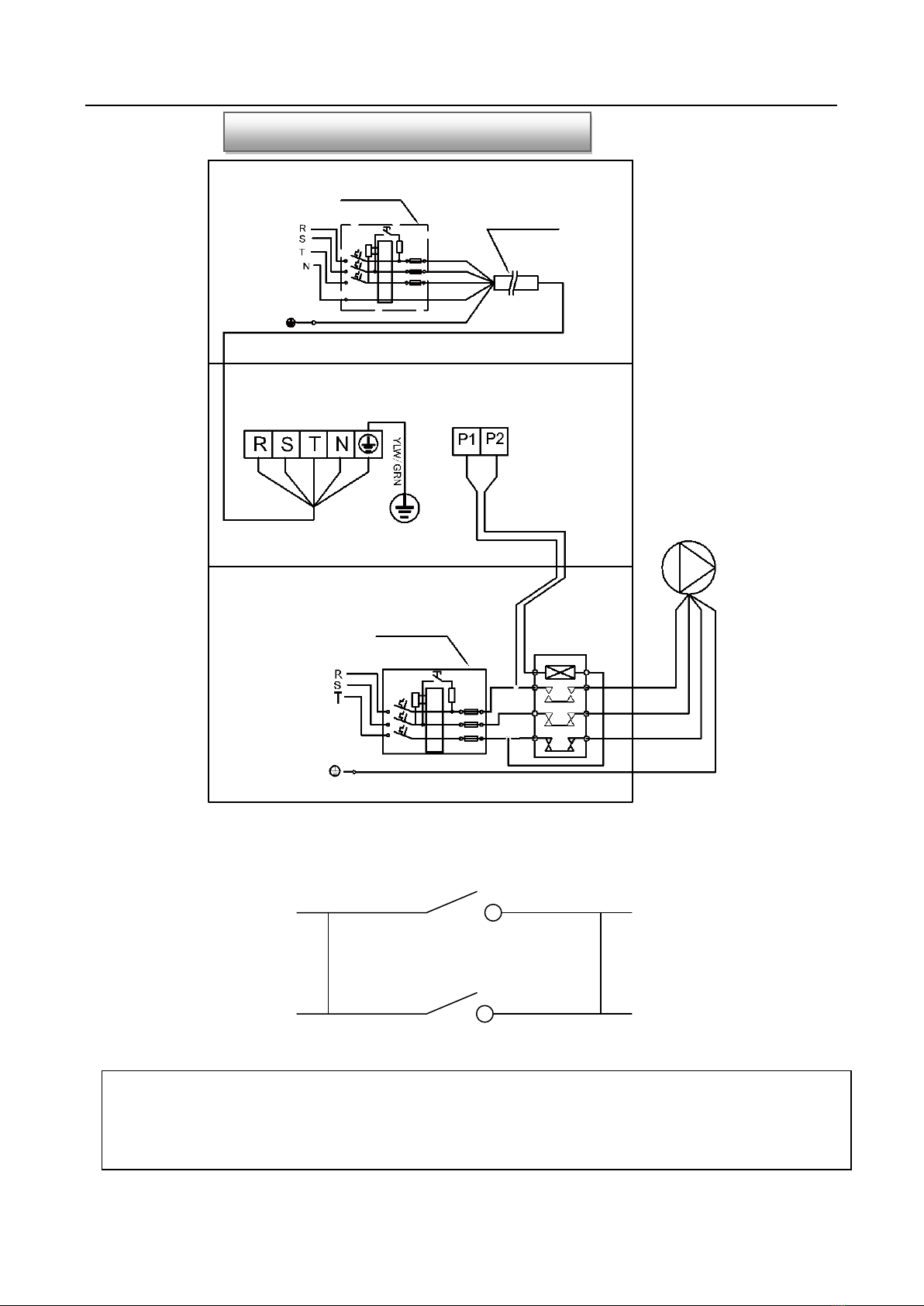

1. Wiring diagram
Note: For your safe use in winter, it’s strongly recommended to equip heating priority
function. For the detailed wiring diagram, please refer to Appendix 1.
2．Options for protecting devices and cable specification
MODEL
34-180139
34-180140
Breaker
Rated Current A
12
13
Rated Residual
Action Current mA
30
30
Fuse A
12
13
Power Cord（mm2）
3×2.5
3×2.5
Signal cable（mm2）
3×0.5
3×0.5
NOTE: The above data is adapted to power cord ≤ 10m .If power cord is
＞ 10m, wire diameter must be
increased. The signal cable can be extended to 50m at most.
For power supply: 230V 50Hz
Distribution Box(Customer prepare)
Power Cord
Swimming Pool Heat Pump Wiring Board
Power Supply
230V 50Hz
Breaker
Earthing
Fuse

For installers and professionals
- 11 -
2.3. Trial after installation
Please check all the wirings carefully before turning on the heat pump.
2.3.1．Inspection before use
①Check installation of the whole heat pump and the pipe connections according to the
pipe connecting drawing;
②Check the electric wiring according to the electrical wiring diagram and earthing
connection;
③Make sure that the main power is well connected;
④Check if there is any obstacle in front of the air inlet and outlet of the heat pump
2.3.2．Trial
①The user is advised to start the water pump before the heat pump, and turn off the heat
pump before the water pump for long life circle.
②The user should start the water pump, and check for any leakage of water; Power on
and press the ON/OFF button of the heat pump, and set desired temperature in the
thermostat.
③In order to protect the heat pump, the heat pump is equipped with start delay
function. When starting the heat pump, the fan will start to run in 3 minutes, in another
30 seconds, the compressor will start to run.
④After pool heat pump starts up, check for any abnormal noise from the heat pump.
⑤Check the temperature setting
2.4. Maintenance and winterizing
2.4.1 Maintenance
The maintenance should be carried out once per year by qualified professional
technician.
①Cut off power supply of the
heat pump before cleaning,
examination and repairing .
Do not touch the electronic
components until the LED
indication lights on PCB turn off.
②Please clean the evaporator with household detergents or clean water, NEVER use
gasoline, thinners or any similar fuel.
③Check bolts, cables and connections regularly.

For installers and professionals
- 12 -
2.4.2 Winterizing
In winter season when you don’t swim, please cut off power supply and drain water out of
the heat pump. When using the heat pump under 0℃, make sure that the water pump is
always running.
3 . Trouble shooting for common faults
Failure
Reason
Solution
Heat pump doesn’t run
No power
Wait until the power recovers
Power switch is off
Switch on the power
Fuse burned
Check and change the fuse
The breaker is off
Check and turn on the breaker
Fan running but with
insufficient heating
evaporator blocked
Remove the obstacles
Air outlet blocked
Remove the obstacles
3 minutes start delay
Wait patiently
Display normal, but no
heating
Set temp. too low
Set proper heating temp.
3 minutes start delay
Wait patiently
If above solutions don’t work, please contact your installer with detailed information and your model
number. Don’t try to repair it yourself.
ATTENTION！Please don’t try to repair the heat pump by yourself to avoid any risk.
Important:
Unscrew the water union of inlet pipe
to let the water flow out.
When the water in machine freezes in
winter season, the titanium heat
exchanger may be damaged.

For installers and professionals
- 13 -
4. Failure code
NO.
Display
Failure description
1
E1
High gas pressure protection
2
E2
Low gas pressure protection
3
E3
No water flow protection (not failure)
4
E4
3 phase sequence protection (only for three phase)
5
E5
Outdoor power supply abnormity protection
6
E6
Excessive temp. difference between inlet and outlet
water(Insufficient water flow protection)
7
E7
Protection of low outlet water temperature
8
E8
Protection of high exhaust temperature
9
E9
Protection of compressor overheat ( reserved)
10
EA
Protection of evaporator overheat
11
EB
Ambient temperature too high/low protection
12
EC
Radiator high temperature protection
13
ED
Two-level antifreeze (not failure, only available when
connecting to heating priority)
14
P0
Controller communication failure
15
P1
Water inlet temp sensor failure
16
P2
Water outlet temp sensor failure
17
P3
Gas exhaust temp sensor failure
18
P4
Evaporator l temp sensor failure
19
P5
Gas return temp sensor failure
20
P6
Heat exchanger temp sensor failure
21
P7
Ambient temp sensor failure
22
P8
Radiator temp sensor failure
23
P9
Current sensor failure
24
PA
Restart memory failure
25
F1
Compressor drive module failure
26
F2
PFC module failure
27
F3
Compressor start failure
28
F4
Compressor running failure
29
F5
Compressor module over current protection
30
F6
Compressor module overheat protection
31
F7
Current protection
32
F8
Radiator overheat protection
33
Fb
Capacitor No-power protection

For installers and professionals
- 14 -
Appendix 1: Heating priority wiring diagram (Optional)
For water pump: Voltage 230V, Capacity ＞500W
For water pump: Voltage 230V, Capacity ≤500W
Water Pump
Power Supply
230V~/50Hz
Earthing
Breaker/fuse
(Customer prepare)
Water Pump
contactor
Power Supply
230V~/50Hz
Breaker/fuse
(Customer prepare)
Power Cord
Earthing
Power Supply
230V~/50Hz
Earthing
Breaker/fuse
(Customer prepare)
Power Cord
Water Pump
Power Supply
230V~/50Hz
Earthing
Breaker/fuse
(Customer prepare)
Water Pump

For installers and professionals
- 15 -
Parallel connection with filtration clock
Note: The installer should connect A parallel with B (as above picture). To start the water
pump, condition A or B is connected. To stop the water pump, both A and B should
be disconnected.
Breaker/fuse
(Customer prepare)
Power Supply
400V~/50Hz
Earthing
Earthing
Water Pump
Water Pump
Power Supply
400V~/50Hz
Breaker/fuse
(Customer prepare)
Contactor
coil voltage: 400V
Power Cord
For water pump: Voltage 400V
A: Water pump timer
B: Water pump wiring of Heat Pump

For installers and professionals
- 16 -
Note:

- 17 -
