Wen LA3424 User manual

IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use
your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
TECHSUPPOR[email protected]1-800-232-1195 (M-F 8AM-5PM CST)
For replacement parts and the most up-to-date instruction manuals, visit WENPRODUCTS.COM
12-INCH 5-SPEED
WOODWORKING LATHE
Instruction Manual
MODEL LA3424

CONTENTS
WELCOME 3
Introduction ..................................................................................................... 3
Specifications................................................................................................... 3
SAFETY 4
General Safety Rules........................................................................................ 4
Wood Lathe Safety Warnings........................................................................... 6
Electrical Information....................................................................................... 7
BEFORE OPERATING 8

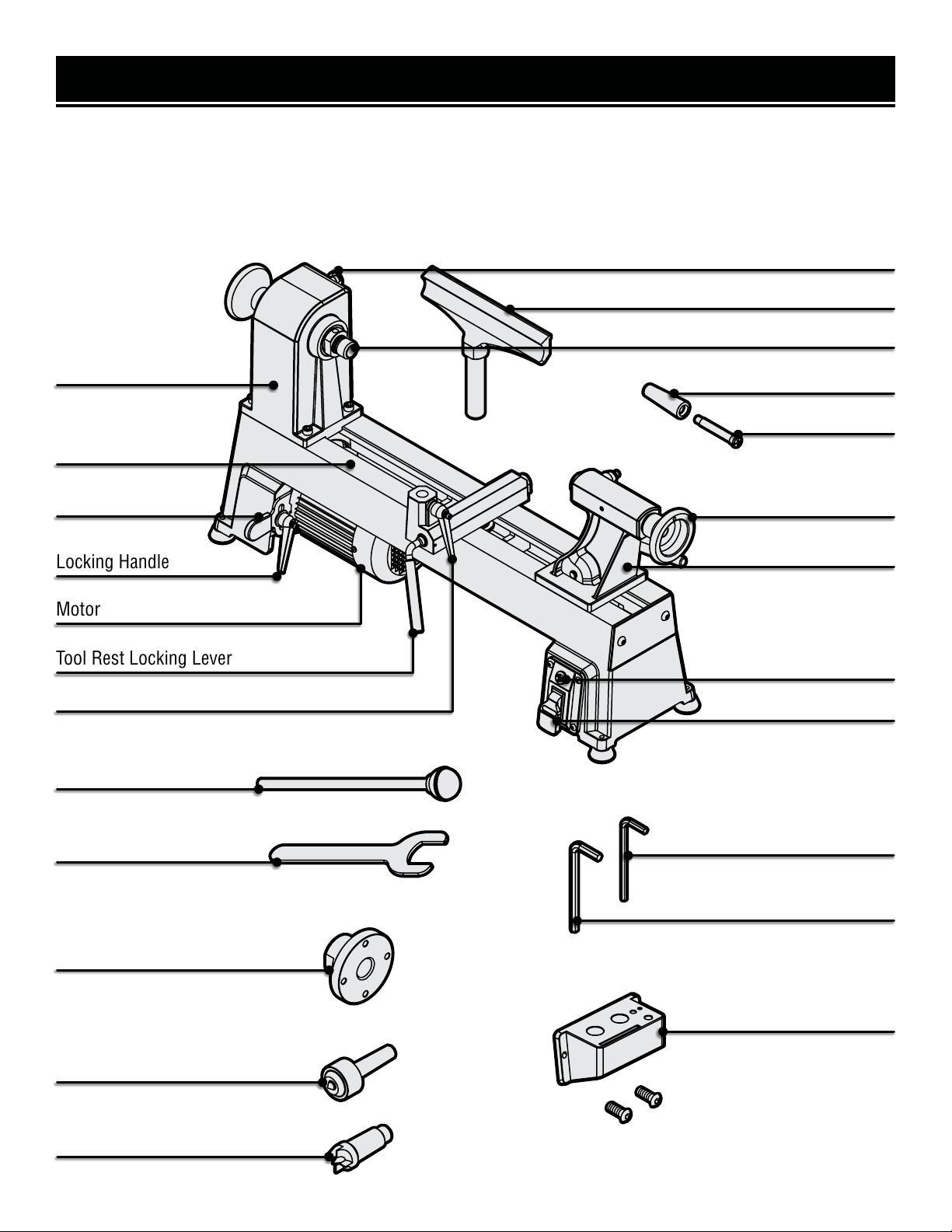

Know Your Wood Lathe ....................................................................................8
Assembly ......................................................................................................... 9
Adjustments................................................................................................... 12
OPERATION & MAINTENANCE 14
Operation ....................................................................................................... 14
Maintenance................................................................................................... 19
Exploded View & Parts List.............................................................................20
Troubleshooting Guide................................................................................... 23
Warranty Statement ....................................................................................... 24
2
To purchase chisels, lathe stands, live centers, and other accessories, visit WENPRODUCTS.COM

Model Number LA3424
Motor 120V, 60 Hz, 4.5A
Swing Over Bed 12 Inches
Distance Between Centers 18 Inches
Single Speeds 520, 900, 1400, 2150, and 3400 RPM
Spindle Taper MT2
Spindle Thread 1" - 8
Tailstock Taper MT2
Quill Travel 2 Inches
Tool Rest Length 7-7/8 Inches
Face Plate Diameter 3-1/8 Inches
Product Dimensons 30-1/4 in. x 8-3/4 in. x 16-1/4 in.
Product Weight 70.3 lbs
SPECIFICATIONS
INTRODUCTION
Thanks for purchasing the WEN Wood Lathe. We know you are excited to put your tool to work, but first, please
take a moment to read through the manual. Safe operation of this tool requires that you read and understand this
operator’s manual and all the labels affixed to the tool. This manual provides information regarding potential safety
concerns, as well as helpful assembly and operating instructions for your tool.
NOTE: The following safety information is not meant to cover all possible conditions and situations that may occur.
WEN reserves the right to change this product and specifications at any time without prior notice.
At WEN, we are continuously improving our products. If you find that your tool does not exactly match this manual,
please visit wenproducts.com for the most up-to-date manual or contact our customer service at 1-800-232-1195.
Keep this manual available to all users during the entire life of the tool and review it frequently to maximize
safety for both yourself and others.
SAFETY ALERT SYMBOL: Indicates danger, warning, or caution. The safety symbols and the explanations
with them deserve your careful attention and understanding. Always follow the safety precautions to reduce the
risk of fire, electric shock or personal injury. However, please note that these instructions and warnings are not
substitutes for proper accident prevention measures.
3

GENERAL SAFETY RULES
WORK AREA SAFETY
1. Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of flammable liquids,
gases or dust. Power tools create sparks which may ig-
nite the dust or fumes.
3. Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose control.
ELECTRICAL SAFETY
1. Power tool plugs must match the outlet. Never mod-
ify the plug in any way. Do not use any adapter plugs
with earthed (grounded) power tools. Unmodified plugs
and matching outlets will reduce risk of electric shock.
2. Avoid body contact with earthed or grounded surfac-
es such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body
is earthed or grounded.
3. Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of elec-
tric shock.
4. Do not abuse the cord. Never use the cord for car-
rying, pulling or unplugging the power tool. Keep cord
away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric
shock.
5. When operating a power tool outdoors, use an ex-
tension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric
shock.
6. If operating a power tool in a damp location is un-
avoidable, use a ground fault circuit interrupter (GFCI)
protected supply. Use of a GFCI reduces the risk of elec-
tric shock.
PERSONAL SAFETY
1. Stay alert, watch what you are doing and use com-
mon sense when operating a power tool. Do not use a
power tool while you are tired or under the influence
of drugs, alcohol or medication. A moment of inatten-
tion while operating power tools may result in serious
personal injury.
2. Use personal protective equipment. Always wear
eye protection. Protective equipment such as a respira-
tory mask, non-skid safety shoes and hearing protection
used for appropriate conditions will reduce the risk of
personal injury.
3. Prevent unintentional starting. Ensure the switch is
in the off-position before connecting to power source
and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or
energizing power tools that have the switch on invites
accidents.
4. Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal
injury.
5. Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or jew-
elry. Keep your hair and clothing away from moving
parts. Loose clothes, jewelry or long hair can be caught
in moving parts.
Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool”
in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
SAVE THESE SAFETY INSTRUCTIONS.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury.
4

GENERAL SAFETY RULES
7. If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-related hazards.
POWER TOOL USE AND CARE
1. Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
2. Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
3. Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained us-
ers.
5. Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any
other condition that may affect the power tool’s opera-
tion. If damaged, have the power tool repaired before
use. Many accidents are caused by poorly maintained
power tools.
6. Keep cutting tools sharp and clean. Properly main-
tained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits, etc.
in accordance with these instructions, taking into ac-
count the working conditions and the work to be per-
formed. Use of the power tool for operations different
from those intended could result in a hazardous situa-
tion.
8. Use clamps to secure your workpiece to a stable
surface. Holding a workpiece by hand or using your
body to support it may lead to loss of control.
9. KEEP GUARDS IN PLACE and in working order.
SERVICE
1. Have your power tool serviced by a qualified repair
person using only identical replacement parts. This
will ensure that the safety of the power tool is main-
tained.
CALIFORNIA PROPOSITION 65 WARNING
Some dust created by power sanding, sawing, grinding,
drilling, and other construction activities may contain
chemicals, including lead, known to the State of Califor-
nia to cause cancer, birth defects, or other reproductive
harm. Wash hands after handling. Some examples of
these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement, and other
masonry products.
• Arsenic and chromium from chemically treated
lumber.
Your risk from these exposures varies depending on
how often you do this type of work. To reduce your ex-
posure to these chemicals, work in a well-ventilated area
with approved safety equipment such as dust masks
specially designed to filter out microscopic particles.
Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool”
in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
SAVE THESE SAFETY INSTRUCTIONS.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury.
5

WOOD LATHE SAFETY
1. This lathe is designed and intended for use by prop-
erly trained and experienced personnel only. If you are
not familiar with the proper and safe operation of a lathe,
do not use it until proper training and knowledge have
been acquired.
2. Always wear eye protection and a face shield/dust
mask when using the lathe.
3. Do not wear loose clothing or jewelry when using the
lathe. Keep your hair, clothing and gloves away from
moving parts. Loose clothes, jewelry or long hair can be
caught in the spinning tool.
4. Select the right tool for your task at hand. Make sure
all tools, chisels and accessories are sharp before using
them. Do not use dull or damaged tools.
5. Select the appropriate speed for the task. Use slower
speeds when starting on a workpiece. Allow the lathe
to ramp up to the operating speed before engaging any
chisels, tools or other carving accessories.
6. Check the workpiece carefully for splits, knots, nails,
or other obstructions. These types of blemishes may
cause a safety hazards during turning.
7. If gluing up a workpiece for turning, always use a high
quality glue that meets the needs of the particular work-
piece to prevent the workpiece from falling off during
operation.
8. Cut the workpiece to a rough outline of the finished
shape before mounting it on the lathe.
9. Rotate the workpiece by hand to check clearance with
the tool rest before turning the machine on.
10. When turning between centers, make sure the head-
stock and tailstock are tight and snug against the work-
piece.
11. Never apply coolants or water to a spinning work-
piece.
12. Never stop a rotating workpiece with your hand.
13. Do not change speeds until the machine comes to a
complete stop.
14. Turn off and unplug the machine before doing any
cleaning or maintenance. Use a brush or compressed
air to remove chips or debris. Never use your hands to
remove excess material and debris.
These safety instructions can’t possibly warn of every
scenario that may arise with this tool, so always make
sure to stay alert and use common sense during op-
eration.
WOOD LATHE SAFETY WARNINGS
WARNING! Do not operate the power tool until you have read and understood the following instructions and
the warning labels.
6

ELECTRICAL INFORMATION
AMPERAGE REQUIRED GAUGE FOR EXTENSION CORDS
25 ft. 50 ft. 100 ft. 150 ft.
4.5A 18 gauge 16 gauge 16 gauge 14 gauge
GROUNDING INSTRUCTIONS
In the event of a malfunction or breakdown , grounding provides the path of least resistance for an electric
current and reduces the risk of electric shock. This tool is equipped with an electric cord that has an
equipment grounding conductor and a grounding plug. The plug MUST be plugged into a matching outlet
that is properly installed and grounded in accordance with ALL local codes and ordinances.
1. Do not modify the plug provided. If it will not fit the outlet, have the proper outlet installed by a licensed
electrician.
2. Improper connection of the equipment grounding conductor can result in electric shock. The conductor
with the green insulation (with or without yellow stripes) is the equipment grounding conductor. If repair or
replacement of the electric cord or plug is necessary, DO NOT connect the equipment grounding conductor
to a live terminal.
1. Examine extension cord before use. Make sure your extension cord is properly wired and in good condition.
Always replace a damaged extension cord or have it repaired by a qualified person before using it.
2. Do not abuse extension cord. Do not pull on cord to disconnect from receptacle; always disconnect by pulling on
plug. Disconnect the extension cord from the receptacle before disconnecting the product from the extension cord.
Protect your extension cords from sharp objects, excessive heat and damp/wet areas.
3. Use a separate electrical circuit for your tool. This circuit must not be less than a 12-gauge wire and should be
protected with a 15A time-delayed fuse. Before connecting the motor to the power line, make sure the switch is in
the OFF position and the electric current is rated the same as the current stamped on the motor nameplate. Running
at a lower voltage will damage the motor.
3. Check
with a licensed electrician or service personnel if you do not completely
understand the grounding instructions or whether the tool is properly grounded.
4. Use only three-wire extension cords that have three-pronged plugs and outlets
that accept the tool’s plug. Repair or replace a damaged or worn cord immediately.
CAUTION! In all cases, make certain the outlet in question is properly grounded. If
you are not sure, have a licensed electrician check the outlet.
GUIDELINES AND RECOMMENDATIONS FOR EXTENSION CORDS
When using an extension cord, be sure to use one heavy enough to carry the current your
product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating.
The table below shows the correct size to be used according to cord length and ampere rating. When in doubt, use
a heavier cord. The smaller the gauge number, the heavier the cord.
Fig. 1
7

UNPACKING
With the help of a friend or trustworthy foe, carefully remove the wood lathe from the packaging. Do not discard
the packaging until all of the parts below are accounted for. If any part is damaged or missing, please contact our
customer service at 1-[phone], M-F 8-5 CST or email us at
[email protected].
Headstock
Bed
Motor Support Plate
Motor Pulley
Locking Handle
Motor
Tool Rest Locking Lever
Tool Rest Locking Handle
Back Cover Knob
Tool Rest
Spindle
Handle
Handle Screw
Tailstock Handwheel
Tailstock
Power Switch
Circuit Breaker
Knockout Rod
Wrench
Faceplate
Live Center (MT2) for Tailstock
Spur Center (MT2) for Headstock
3mm Hex Wrench
5mm Hex Wrench
Accessory Holder
KNOW YOUR WOOD LATHE
8


INSTALLING THE HANDLE (FIG. A)
1. Insert the handle screw (Fig. A - 1) through the handle (Fig. A - 2) and
into the hole of the handwheel (Fig. A - 3).
2. Tighten the handle screw using a flathead screwdriver (not included).
INSTALLING THE TOOL REST (FIG. B)
1. Loosen the locking handle (Fig. B - 1) and insert the tool rest (Fig.
B - 2) into the tool rest base.
2. Adjust the tool rest height up or down to the desired position and
then tighten the locking handle (Fig. B - 1).
INSTALLING/REMOVING THE FACE PLATE (FIG. C)
1. Mount the face plate (Fig. C - 1) onto the spindle by screwing it clock-
wise as far as it will go onto the spindle threads.
2. Then insert the knockout rod (Fig. C - 2) into the hole to lock the
spindle and use the wrench (Fig. C - 3) to fully tighten the face plate.
To remove the face plate, insert the knockout rod into the hole and use
the wrench to loosen the face plate.
1
ASSEMBLY
WARNING: To prevent injury from accidental operation, make sure the tool is switched OFF and un-
plugged from the power source before assembling or making any adjustments.
REMOVING THE ANTI-RUST GREASE
The lathe bed and centers have been coated with grease to prevent them from rusting.
1. Remove the excess oil and grease by wiping it off with a clean cloth.
2. Remove any residue with a rag moistened with acetone, kerosene, or other removal agent. Wear gloves to protect
your skin. Do not use gasoline, or cellulose-based solvents such as paint thinner or lacquer thinner, as these will
damage the painted surfaces.
3. Apply a light coat of good-quality paste wax to the surfaces to guard against rust and corrosion.
Fig. A
Fig. B
Fig. C
1
3
2
1
2
3
2
1
9

INSTALLING THE SPUR CENTER (FIG. D)
1. Make sure the mating surfaces of both the spur center and
the headstock spindle are clean.
2. Drive the spur center (Fig. D - 1) into the workpiece (Fig.
D - 2) using a rubber mallet or a piece of scrap wood.
3. Push the spur center through the face plate into the spindle
on the headstock.
NOTE: It is not necessary to remove the face plate to
install the spur center.
REMOVING THE SPUR CENTER (FIG. E)
The workpiece can be mounted between the spur center and
live center, or it can be mounted onto the face plate. Remove
the spur center before mounting workpiece onto the face plate.
1. Hold the spur center (Fig. E - 1) to prevent it from falling.
Use a rag to protect your hand from the sharp edges.
2. Insert the knockout rod (Fig. E - 2) through the spindle hole
to tap out the spur center.
INSTALLING THE LIVE CENTER (FIG. F)
1. Rotate the tailstock handwheel (Fig. F - 1) clockwise a few
times to advance the quill (Fig. F - 2) forward.
2. Push the live center (Fig. F - 3) into the quill.
REMOVING THE LIVE CENTER (FIG. G)
1. Hold the live center (Fig. G - 1) to prevent it from falling.
Use a rag to protect your hand from the sharp edges.
2. Rotate the handwheel (Fig. G - 2) counterclockwise to re-
tract the quill until the live center is released from the quill.





ASSEMBLY
Fig. D
Fig. E
Fig. F
Fig. G
1
2
2
1
3 2
1
2
1
10

737mm
165mm
756mm
185mm
M8-1.25
MOUNTING THE LATHE TO A BENCHTOP (FIG. J)
For effective and safe operation, the lathe must be mounted to a bench table. Place the machine on a stable, flat
work surface. Make sure there is sufficient open space around the machine for operation and adjustments. Route
the power cord so that it will not make contact with the lathe’s moving parts.
Refer to the graph below (Fig. J) for your lathe’s base dimensions. Mount the machine’s base to the benchtop with
rubber feet in between to help dampen the vibration. Threaded holes on the lathe’s base are M8-1.25. Mounting
hardware is not included.
INSTALLING THE ACCESSORY HOLDER (FIG. H & I)
1. Position the accessory holder (Fig. H - 1) below the headstock on the back of the base. Align the holes and secure
the accessory holder using two M5×12 pan head screws (Fig. H - 2). Tighten the screws using the 3mm hex wrench.
You can organize your wrench, hex wrenches, knockout rod, live center and spur center into the accessory holder
as shown in Fig. I.

ASSEMBLY
Fig. H
1
2Fig. I
Fig. J
11

TOOL REST ADJUSTMENTS (FIG. K)
You can adjust the height, position and angle of the tool rest assembly
(Fig. K - 1) to suit your task at hand. To adjust the tool rest:
1. Loosen the small locking handle (Fig. K - 2) to raise and lower the tool
rest or to adjust its angle. Tighten the handle to secure the tool rest.
2. Loosen the locking lever (Fig. K - 3) on the tool rest base to slide the
base back and forth or to adjust its angle. Tighten the locking lever firmly
before operating the lathe.
NOTE: Adjust the height of the tool rest just below the center of the work-
piece, so that the tool will cut at the center of the workpiece.
TAILSTOCK ADJUSTMENTS (FIG. L)
1. Loosen the tailstock locking lever (Fig. L - 1) and slide the tailstock into
the desired position. Retighten the locking lever.
2. Loosen the quill locking handle (Fig. L - 2) to unlock the tailstock quill.
Use the handwheel (Fig. L - 3) to advance and retract the quill. Retighten
the quill locking handle.

ADJUSTMENTS
Fig. K
1
2
3
Fig. L
3
2
1
12


SPEED ADJUSTMENTS (FIG. M TO P)
This lathe has five speeds (520, 900, 1400, 2150 and 3400 RPM) as
shown on the speed label (Fig. M). To change the speed:
1. Loosen the back cover knob (Fig. N - 1), then pull up and open the
back cover (Fig. N - 2) to access the spindle pulley.
2. Loosen the side cover knob (Fig. O - 1), pull up and open the side
cover (Fig. O - 2) to access the motor pulley.
3. Release the motor pulley locking handle (Fig. P - 1) and pull up on
the motor plate flange (Fig. P - 2) to loosen the tension on the drive
belt. Place the drive belt between the spindle pulley and motor pulley
as shown in Fig. M to achieve the desired speed setting.
NOTE: Always start at slower speeds for rough cuts and when work-
ing on larger workpieces. Use faster speeds for more refined cuts and
detailed work.
4. Re-tension the belt tension and lock the handle. Replace the back
cover and side cover.


ADJUSTMENTS
Fig. M
Fig. N
Fig. O
Fig. P
2
1
2
1
13
1
2

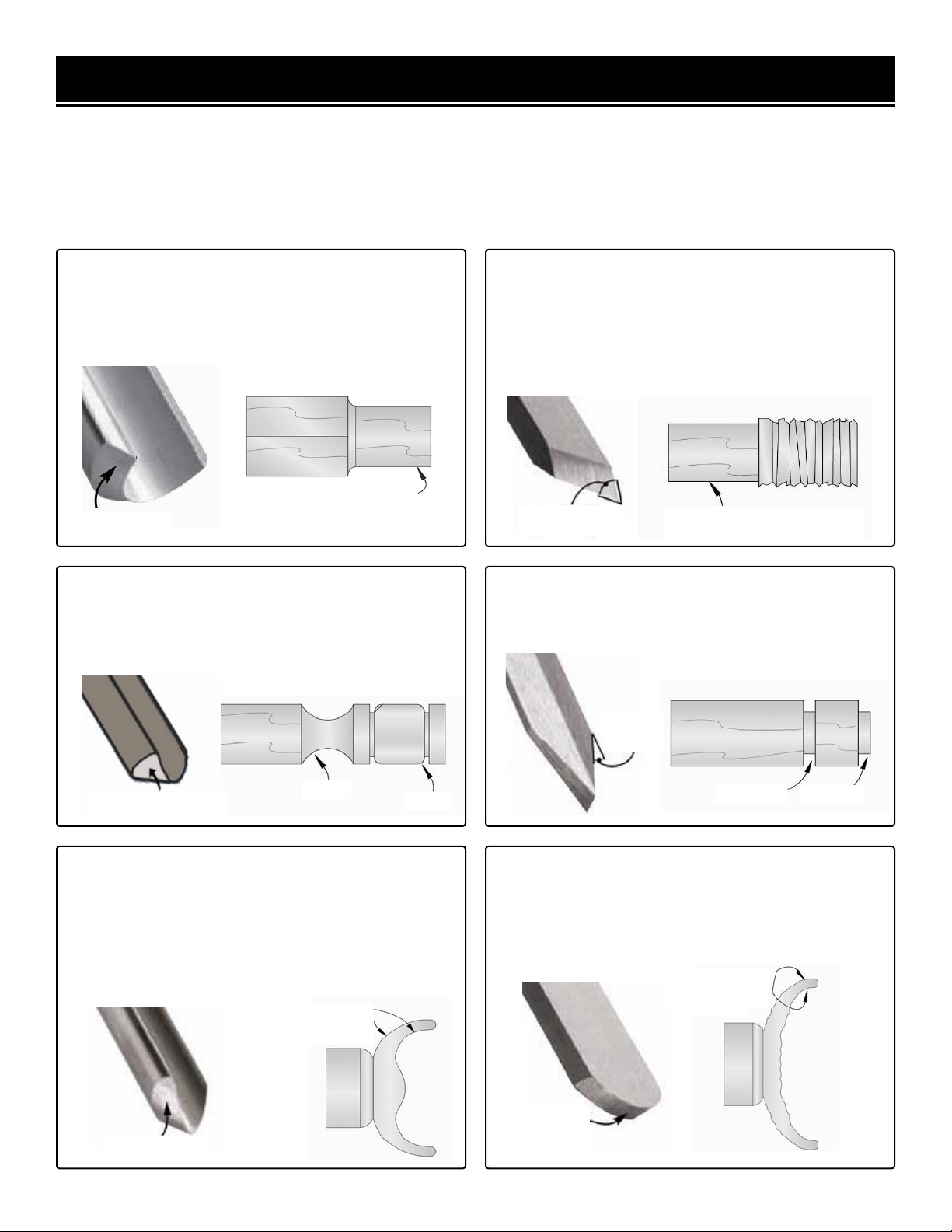

TURNING TOOLS
If possible, select only quality high-speed steel turning tools. High-speed steel tools hold an edge and last longer
than ordinary carbon steel. As one becomes proficient in turning, a variety of specialty tools for specific applications
can be acquired. The following tools provide the basics for most wood-turning projects. Sharp tools must be used;
do not use dull or damaged tools.
1. Large roughing gouge - use this tool to shape
square or out-of-round spindle-turning stock into
a cylinder. This can also be used for creating shal-
low coves.
2. Skew chisel - the skew evens out high and low
spots to shape the cylinders. Vary angle at which
the tip meets the workpiece to change the aggres-
siveness of the cut. This can also be used for cut-
ting beads and V-grooves.
5. Bowl gouge - the bowl gouge cuts external and
internal profiles on faceplate-mounted stock, such
as bowls and platters. It can also be used for cre-
ating ultra smooth cuts on bowls and spindles by
using it as a shearing scraper.
6. Round nose scraper - use this scraper for non-
agressive shaping of spindles and bowls and to
smooth out surfaces without removing too much
stock.
45° bevel
75-90°
bevel
60-80° bevel
Shaping &
Hollowing Bowls
3. Spindle gouge - the spindle gouge cuts coves,
beads and free-form contours. It can also be used
for producing shallow hollows on faceplate turn-
ings.
4. Parting tool - use the parting tool to form grooves
and tenons and to remove stock. It can also be used
for rolling small beads.
30-40° bevel
30-45°
bevel
Cove Bead Groove Tenon
Smoothing
Bowls
Turning rough stock
round ~70° skew Planing and Smoothing
OPERATION
14

MOUNTING THE WORKPIECE BETWEEN SPINDLES (FIG. Q & R)
Spindle turning takes place between the centers of the lathe. It requires a spur center in the headstock and a live cen-
ter in the tailstock. Stock for spindles should be straight grained and free of cracks, knots, nails and other defects.
A cup center rather than a cone center in the tailstock will often reduce the risk of splitting the stock.
1. With a combination square, locate and mark the center on
each end of the workpiece. Accuracy is not critical on full
rounds but is extremely important on stock where square
sections are to remain. Put a dimple in the stock with an awl
or nail (or use a spring-loaded automatic center punch).
NOTE: Extremely hard woods may require kerfs cut into the
ends of the stock using a band saw, so the wood will accept
the spur center and the live center.
2. Drive the spur center about .1 inches (3 mm) into the work-
piece (Fig. Q). Use a wood mallet or dead blow hammer. Be
careful that you do not split the workpiece. Never use a steel
face hammer and never drive the workpiece onto the spur
center while it is mounted on the spindle of the lathe.
3. Clean the tapered end of the spur center and the inside of
the headstock spindle. Insert the tapered end of the spur cen-
ter (with the attached workpiece) into the headstock spindle.
Support the workpiece while loosening the tailstock locking
lever and bringing the tailstock into position. Tighten the tail-
stock locking lever to lock the tailstock to the bed.
4. Advance the tailstock quill with the hand wheel in order to
seat the live center into the workpiece. Use enough pressure
to secure the workpiece between the centers so that it won’t
fly off, but do not use excessive pressure. Excessive pressure
runs the risk of overheating the center bearings and damag-
ing both the workpiece and the lathe. Tighten the quill locking
handle.
5. Adjust the position of the tool rest to be parallel to the
workpiece. The tool rest height should be just below the cen-
terline and approximately .1 to .2 inches (3 mm to 6 mm)
from the corners of the workpiece to be turned. Secure the
tool rest by tightening the tool rest locking handle and locking
lever (Fig. R).
6. Before switching on the lathe, rotate the workpiece by hand
to check for proper clearance.
3-6mm
Centerline
Direction of Rotation
OPERATION
WARNING: To prevent serious injury, make sure all the warnings and instructions have been read and
understood before operating this tool.
Fig. Q
Fig. R
15

ROUGHING OUT
Begin with a large roughing gouge (see page 14 for examples of common cutting tools).
1. Place the tool on the tool rest with the heel of the tool on the surface to be cut. Slowly and gently raise the tool
handle until the cutting edge comes into contact with the workpiece.
2. Beginning about 2 inches from the tailstock end of the workpiece, roll the flute of the tool (the hollowed-out por-
tion) in the direction of the cut.
3. Make long sweeping cuts in a continuous motion to turn the piece to a cylinder. Keep as much of the bevel of the
tool in contact with the workpiece as possible to ensure control and avoid catches.
NOTE: Always cut downhill, or from the large diameter to the small diameter. Always work towards the end of the
workpiece; never start at the cutting end.
4. Once the workpiece is roughed down to a cylinder, smooth it with a large skew. Keep the skew handle perpen-
dicular to the spindle and use only the center third of the cutting edge for a long smoothing cut (touching one of the
points of the skew to the spinning workpiece may cause a catch and ruin the workpiece).
5. Add details to the workpiece with skews, parting tools, scrapers or spindle gouges.
CREATING BEADS
Make a parting cut for the desired depth and location of your bead.
1. Place the parting tool on the tool rest and move the tool forward to make the full bevel of the tool come into
contact with the workpiece. Gently raise the handle to make cuts of the appropriate depth. Repeat for the other side
of the bead.
2. Using a small skew or spindle gouge, start in the center between the two cuts and cut down each side to form
the bead. Roll the tool in the direction of the cut.
CREATING COVES
Using a spindle gouge to create a cove.
1. With the flute of the tool at 90 degrees to the workpiece, touch the point of the tool to the workpiece and roll in
towards the bottom of the cove. Stop at the bottom, as attempting to go up the opposite side may cause the tool to
catch.
2. Move the tool over the desired width of the cove. With the flute facing the opposite direction, repeat the step for
the other side of the cove. Stop at the bottom of the cut.
OPERATION
16

CREATING V-GROOVES
Using the point of the skew to create a V-groove in the workpiece.
1. Lightly mark the center of the V with the top of the skew. Move the point of the skew to the right half of the desired
width of your cut.
2. With the bevel parallel to the right side of the cut, raise the handle and push the tool in to the desired depth. Re-
peat from the left side.
NOTE: The two cuts should meet at the bottom and leave a clean V-groove. Additional cuts may be taken to add to
either the depth or the width of the cut.
PARTING OFF
Adjust the lathe to a slower speed for parting through a workpiece.
1. Place a parting tool on the tool rest and raise the handle until is starts to cut. Continue cutting towards the center
of the workpiece.
2. Loosely hold on to the piece in one hand as it separates from the waste wood.
SANDING
NOTE: The cleaner the cuts, the less sanding will be required. To sand your workpiece:
1. Move away the tool rest and set the lathe to a low speed.
2. Use sandpaper finer than 120 grit, as coarse sandpaper may scratch the workpiece. Fold the sandpaper into a pad
will allow easier and safer sanding. Do not wrap the sandpaper around your fingers or the workpiece.
3. Sand and progress through finer grits of sandpaper until the desired surface is achieved.
FINISHING
1. Turn off the lathe. The workpiece can be left on the lathe when applying finish.
2. Apply the finish using a brush or paper towel. Remove any excess finish before restarting the lathe.
3. Start the lathe at the lowest speed, as high speed may cause the fresh coat to splash. Allow the finish to dry and
sand again with 320 to 400 grit sandpaper.
4. Apply a second coat of finish and buff the workpiece.
OPERATION
17

MOUNTING THE WORKPIECE ONTO THE FACE PLATE
The face plate is common for holding a block of wood of a larger diameter for turning bowls and plates.
1. Select a stock that is at least .2 inches (5 mm) larger than each dimension of the finished workpiece.
2. True one of the surfaces of the workpiece for mounting against the face plate. Using the face plate as a template,
mark the location of the mounting holes on the workpiece and drill pilot holes of the appropriate size.
3. If the mounting screws on the face plate interfere with the workpiece, a glue or waste block can be used. Make
sure the block is of the same diameter as the face plate. Both the waste block and the workpiece should have flat
surfaces for gluing. Glue the block to the workpiece.
While face plates are the most reliable method for holding a larger block of wood for turning, chucks can also be
used. A chuck is not a requirement, but is handy when working on more than one piece at a time. Rather than re-
moving screws, simply open the chuck and change workpieces. The most popular ones are four jaw scroll chucks
(dovetails) with a variety of jaws to accommodate different size tenons. Most also come with a screw chuck as well.
SHAPING THE OUTSIDE OF THE BOWL
1. Prepare the workpiece before mounting. Remove any bark from the top of the workpiece (that will be later at-
tached onto a face plate or in a chuck).
2. Drive the spur center into the top center of the workpiece using a wood mallet or a dead blow hammer.
3. Insert the spur center into the headstock taper.
4. Insert the live center to the tailstock. Adjust the position of the tailstock along the bed and lock it into position.
Lock the tailstock to the bed and advance the quill in order to seat the cut center into the workpiece. Tighten the
quill locking handle.
5. Rotate the workpiece by hand to check for proper clearance before starting the tool. Start with the slowest speed
for rough cuts and increase the speed for refined cuts.
NOTE: If the machine starts to vibrate, lower the speed until the vibration stops.
6. Rough out the outside of the bowl with the bowl gouge, holding the handle of the tool firmly against your hip.
As the bowl takes shape, work on the bottom (tailstock end) to accommodate attaching a face plate. Turn a short
tenon to the size of the hole in the face plate. This will allow centering the workpiece when the face plate is attached.
If you plan to use a chuck, turn a tenon of the appropriate length and diameter to fit your chuck.
Stop the lathe and remove the workpiece. Leave additional material at the base of the bowl for support while turning
the interior. This will be removed later.
OPERATION
18

TO SHAPE THE INSIDE OF THE BOWL
Stop the lathe and move the tailstock away. Adjust the tool rest in front of the bowl just below the centerline at a
right angle to the lathe’s turning axis. Rotate the workpiece by hand to check for clearance.
Start by lightly shearing across the top of the workpiece from rim to center. Place a bowl gouge on the tool rest at
the center of the workpiece with the flute facing the top of the bowl. The tool handle should be level and pointed
toward the four o’clock position.
Use the left hand to control the cutting edge of the gouge, while the right hand swings the tool handle around to-
wards your body. The flute should start out facing the top of the workpiece, rotating it upwards as it moves deeper
into the bowl to maintain a clean and even curve. As the tool goes deeper into the bowl, progressively work outwards
towards the rim of the bowl. It may be necessary to turn the tool rest into the piece as you get deeper into the bowl.
NOTE: Try to make one light continuous movement from the rim to the bottom of the bowl to ensure a clean, sweep-
ing curve through the piece. Should there be a few small ridges left, a light cut with a large domed scraper can even
out the surface.
Develop the preferred wall thickness at the rim and maintain it as you work deeper into the bowl (once the piece is
thin toward the bottom, you cannot make it thinner at the rim). When the interior is finished, move the tool rest back
to the exterior to re-define the bottom of the bowl. Work the tight area around the face plate or the chuck with a bowl
gouge. Begin the separation with a parting tool, but do not cut all the way through.
GENERAL MAINTENANCE
Keep your machine clean. At the end of each day, clean the machine. Wood contains moisture, meaning that saw-
dust and wood chips can cause rust if not removed. Regular oil attracts dust and dirt. Teflon lubricant tends to dry
and has less of a tendency to accumulate dirt and saw dust. Periodically check that all nuts and bolts are tight.
DRIVE BELT
The drive belt should last for many years depending on usage, but it needs to be inspected regularly for cracks, cuts
and general wear. If damage is found, replace the belt before operation.
BEARINGS
All bearings are sealed for life and don’t require any maintenance. If bearing becomes faulty, replace it.
RUST
The lathe is made from steel and cast iron. All non-painted surfaces will rust if not protected. It is recommended
that they are protected by applying a light coat of good-quality paste wax to the surfaces to guard against rust and
corrosion.
OPERATION
MAINTENANCE
WARNING: Disconnect the machine from the power source before making any maintenance or adjust-
ments. Failure to do so may result in serious injury.
19

EXPLODED VIEW & PARTS LIST
20
