Wernerco Bailey supa-lite series User manual

Need help or information?

Consumer Advice AU 1300 760 717 / NZ +64 9 912 6780

baileyladders.com.au

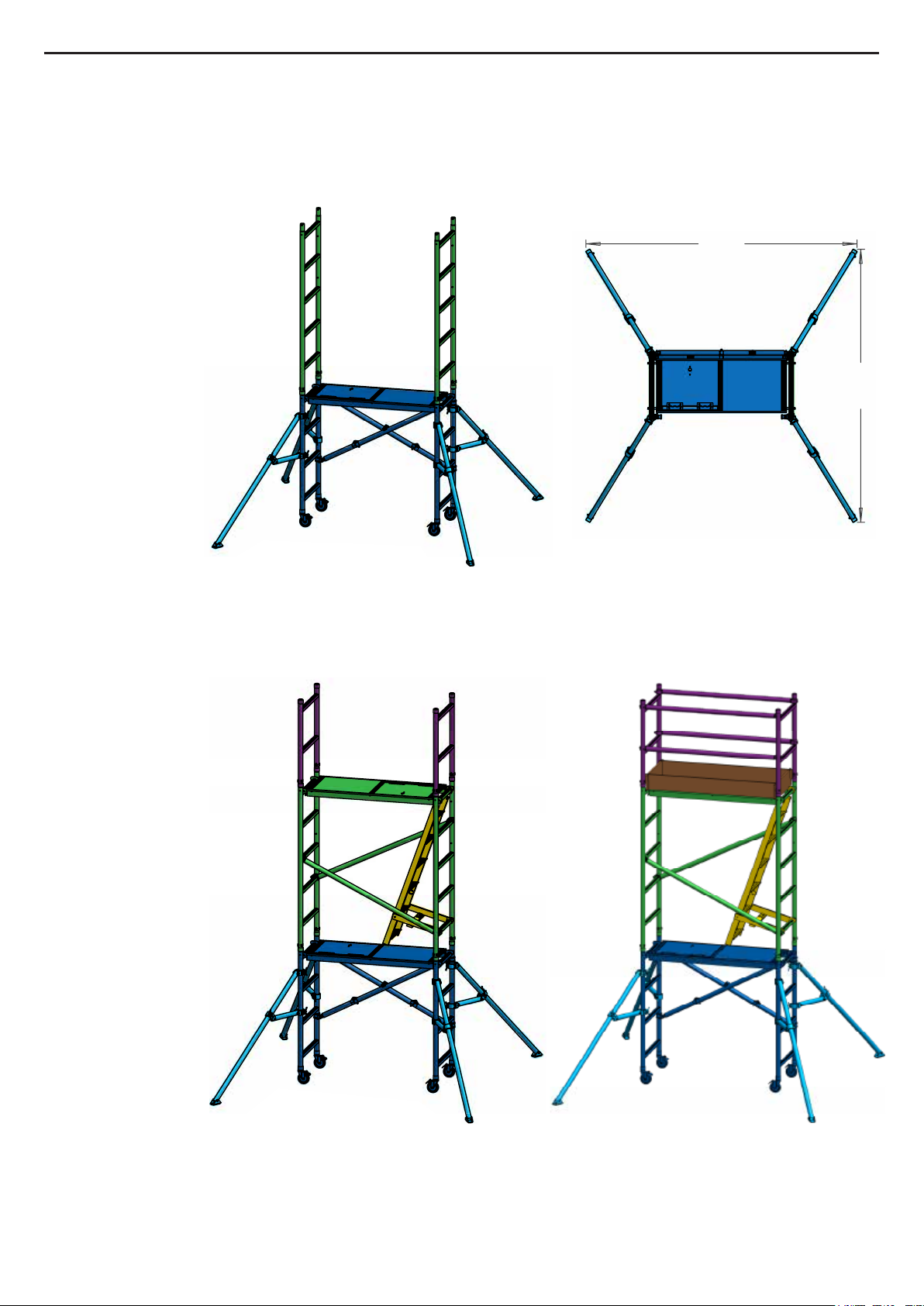

1.5M CONFIGURATION

Base Pack

2.3M CONFIGURATION

Base Pack + Extension Pack + Outrigger Pack +

Toe Board Pack + Horizontal Pack

1.5M CONFIGURATION

Base Pack + Guardrail Pack + Toe Board Pack

3.4M CONFIGURATION

Base Pack + Extension Pack + Outrigger Pack +

Guardrail Pack + Toe Board Pack

ASSEMBLY MANUAL

READ THESE INSTRUCTIONS COMPLETELY BEFORE STARTING WORK

WARNING Failure to comply with all instructions may result in serious injury. Before assembling this product, identify all components.

If any components are missing or damaged, return to the place of purchase. Do not substitute any components.

ATTENTION This product is to be stored in a clean dry location. It is not designed to be left out and exposed to the elements for

extended periods of time.

SCAN TO VIEW

ASSEMBLY

VIDEO

1. Unfold Base Pack

2. Lock Brace Locks

3. Lock Castors

UNLOCKED

LOCKED

UNLOCKED

LOCKED

4. Install Platform

1. Install Guardrail End Frames

2. Engage Spring Clips

3. Install Horizontal Braces

4. Install End Toe Boards

5. Install Side Toe Boards

ENGAGED

Install Horizontal Braces on the

inside of the Standards.

1.5m Configuration Erection

(Base Pack)

1.5m Configuration Erection

(Base Pack, Guardrail Pack & Toe Board Pack)

1.5M CONFIGURATION

Base Pack

1.5M CONFIGURATION

Base Pack + Guardrail Pack + Toe Board Pack

ENGAGE

SPRING CLIPS

INSTALL HORIZONTAL BRACES ON

THE INSIDE OF THE STANDARDS

1. Unfold Base Pack

2. Lock Brace Locks

3. Lock Castors

UNLOCKED

LOCKED

UNLOCKED

LOCKED

4. Install Platform

1. Install Guardrail End Frames

2. Engage Spring Clips

3. Install Horizontal Braces

4. Install End Toe Boards

5. Install Side Toe Boards

ENGAGED

Install Horizontal Braces on the

inside of the Standards.

1.5m Configuration Assembly

(Base Pack)

1.5m Configuration Assembly

(Base Pack, Guardrail Pack & Toe Board Pack)

1. Unfold Base Pack

2. Lock Brace Locks

3. Lock Castors

UNLOCKED

LOCKED

UNLOCKED

LOCKED

4. Install Platform

1. Install Guardrail End Frames

2. Engage Spring Clips

3. Install Horizontal Braces

4. Install End Toe Boards

5. Install Side Toe Boards

ENGAGED

Install Horizontal Braces on the

inside of the Standards.

1.5m Configuration Assembly

(Base Pack)

1.5m Configuration Assembly

(Base Pack, Guardrail Pack & Toe Board Pack)

1. Unfold Base Pack

2. Lock Brace Locks

3. Lock Castors

UNLOCKED

LOCKED

UNLOCKED

LOCKED

4. Install Platform

1. Install Guardrail End Frames

2. Engage Spring Clips

3. Install Horizontal Braces

4. Install End Toe Boards

5. Install Side Toe Boards

ENGAGED

Install Horizontal Braces on the

inside of the Standards.

1.5m Configuration Assembly

(Base Pack)

1.5m Configuration Assembly

(Base Pack, Guardrail Pack & Toe Board Pack)

1. Unfold Base Pack

2. Lock Brace Locks

3. Lock Castors

UNLOCKED

LOCKED

UNLOCKED

LOCKED

4. Install Platform

1. Install Guardrail End Frames

2. Engage Spring Clips

3. Install Horizontal Braces

4. Install End Toe Boards

5. Install Side Toe Boards

ENGAGED

Install Horizontal Braces on the

inside of the Standards.

1.5m Configuration Assembly

(Base Pack)

1.5m Configuration Assembly

(Base Pack, Guardrail Pack & Toe Board Pack)

UNLOCKED

LOCKED

1. Unfold Base Pack

2. Lock Brace Locks

3. Lock Castors

UNLOCKED

LOCKED

UNLOCKED

LOCKED

4. Install Platform

1. Install Guardrail End Frames

2. Engage Spring Clips

3. Install Horizontal Braces

4. Install End Toe Boards

5. Install Side Toe Boards

ENGAGED

Install Horizontal Braces on the

inside of the Standards.

1.5m Configuration Erection

(Base Pack)

1.5m Configuration Erection

(Base Pack, Guardrail Pack & Toe Board Pack)

1. Unfold Base Pack

2. Lock Brace Locks

3. Lock Castors

UNLOCKED

LOCKED

UNLOCKED

LOCKED

4. Install Platform

1. Install Guardrail End Frames

2. Engage Spring Clips

3. Install Horizontal Braces

4. Install End Toe Boards

5. Install Side Toe Boards

ENGAGED

Install Horizontal Braces on the

inside of the Standards.

1.5m Configuration Erection

(Base Pack)

1.5m Configuration Erection

(Base Pack, Guardrail Pack & Toe Board Pack)

1. Unfold Base Pack

2. Lock Brace Locks

3. Lock Castors

UNLOCKED

LOCKED

UNLOCKED

LOCKED

4. Install Platform

1. Install Guardrail End Frames

2. Engage Spring Clips

3. Install Horizontal Braces

4. Install End Toe Boards

5. Install Side Toe Boards

ENGAGED

Install Horizontal Braces on the

inside of the Standards.

1.5m Configuration Erection

(Base Pack)

1.5m Configuration Erection

(Base Pack, Guardrail Pack & Toe Board Pack)

1. Unfold Base Pack

2. Lock Brace Locks

3. Lock Castors

UNLOCKED

LOCKED

UNLOCKED

LOCKED

4. Install Platform

1. Install Guardrail End Frames

2. Engage Spring Clips

3. Install Horizontal Braces

4. Install End Toe Boards

5. Install Side Toe Boards

ENGAGED

Install Horizontal Braces on the

inside of the Standards.

1.5m Configuration Erection

(Base Pack)

1.5m Configuration Erection

(Base Pack, Guardrail Pack & Toe Board Pack)

1. Unfold Base Pack

2. Lock Brace Locks

3. Lock Castors

4. Install Platform

1. Install Guardrail

End Frames

2. Engage Spring Clips

3. Install Horizontal Braces

(YELLOW)

4. Install End Toe Boards

5. Install Side Toe Boards

1. Unfold Base Pack

2. Lock Brace Locks

3. Lock Castors

4. Install Lower Platform

5. Install Outriggers

6. Install Extension End Frames

7. Engage Spring Clips

3055

3078

8. Install Lower Diagonal Brace

9. Install Ladder

10. Install Upper Platform

11. Install Horizontal Braces

12. Install Upper Diagonal Brace

13. Install End Toe Boards

14. Install Side Toe Boards

2.3m Configuration Assembly

(Base Pack, Extension Pack, Outrigger Pack,

Toe Board Pack & Horizontal Pack)

2.3M CONFIGURATION

Base Pack + Extension Pack + Outrigger Pack + Toe Board Pack + Horizontal Pack

1. Unfold Base Pack

2. Lock Brace Locks

3. Lock Castors

4. Install Lower Platform

5. Install Outriggers

6. Install Extension End Frames

7. Engage Spring Clips

3055

3078

8. Install Lower Diagonal Brace

9. Install Ladder

10. Install Upper Platform

11. Install Horizontal Braces

12. Install Upper Diagonal Brace

13. Install End Toe Boards

14. Install Side Toe Boards

2.3m Configuration Assembly

(Base Pack, Extension Pack, Outrigger Pack,

Toe Board Pack & Horizontal Pack)

1. Unfold Base Pack

2. Lock Brace Locks

3. Lock Castors

4. Install Lower Platform

5. Install Outriggers

6. Install Extension End Frames

7. Engage Spring Clips

3055

3078

8. Install Lower Diagonal Brace

9. Install Ladder

10. Install Upper Platform

11. Install Horizontal Braces

12. Install Upper Diagonal Brace

13. Install End Toe Boards

14. Install Side Toe Boards

2.3m Configuration Assembly

(Base Pack, Extension Pack, Outrigger Pack,

Toe Board Pack & Horizontal Pack)

1. Unfold Base Pack

2. Lock Brace Locks

3. Lock Castors

4. Install Lower Platform

5. Install Outriggers

6. Install Extension End Frames

7. Engage Spring Clips

3055

3078

8. Install Lower Diagonal Brace

9. Install Ladder

10. Install Upper Platform

11. Install Horizontal Braces

12. Install Upper Diagonal Brace

13. Install End Toe Boards

14. Install Side Toe Boards

2.3m Configuration Assembly

(Base Pack, Extension Pack, Outrigger Pack,

Toe Board Pack & Horizontal Pack)

1. Unfold Base Pack

2. Lock Brace Locks

3. Lock Castors

4. Install Lower Platform

5. Install Outriggers

6. Install Extension

End Frames

7. Engage Spring Clips

8. Install Lower Diagonal

Brace (BLUE)

9. Install Ladder

10. Install Upper Platform

11. Install Horizontal Braces

(YELLOW)

12. Install Upper Diagonal

Brace (BLUE)

13. Install End Toe Boards

14. Install Side Toe Boards

3.4M CONFIGURATION

Base Pack + Extension Pack + Outrigger Pack + Guardrail Pack + Toe Board Pack

1. Unfold Base Pack

2. Lock Brace Locks

3. Lock Castors

4. Install Lower Platform

5. Install Outriggers

6. Install Extension End Frames

7. Engage Spring Clips

3055

3078

8. Install Diagonal Braces

9. Install Guardrail End Frames

10. Engage Spring Clips

11. Install Ladder

12. Install Upper Platform

13. Install Horizontal Braces

14. Install End Toe Boards

15. Install Side Toe Boards

3.4m Configuration Assembly

(Base Pack, Extension Pack, Outrigger Pack,

Guardrail Pack & Toe Board Pack)

1. Unfold Base Pack

2. Lock Brace Locks

3. Lock Castors

4. Install Lower Platform

5. Install Outriggers

6. Install Extension End Frames

7. Engage Spring Clips

3055

3078

8. Install Diagonal Braces

9. Install Guardrail End Frames

10. Engage Spring Clips

11. Install Ladder

12. Install Upper Platform

13. Install Horizontal Braces

14. Install End Toe Boards

15. Install Side Toe Boards

3.4m Configuration Assembly

(Base Pack, Extension Pack, Outrigger Pack,

Guardrail Pack & Toe Board Pack)

1. Unfold Base Pack

2. Lock Brace Locks

3. Lock Castors

4. Install Lower Platform

5. Install Outriggers

6. Install Extension End Frames

7. Engage Spring Clips

3055

3078

8. Install Diagonal Braces

9. Install Guardrail End Frames

10. Engage Spring Clips

11. Install Ladder

12. Install Upper Platform

13. Install Horizontal Braces

14. Install End Toe Boards

15. Install Side Toe Boards

3.4m Configuration Assembly

(Base Pack, Extension Pack, Outrigger Pack,

Guardrail Pack & Toe Board Pack)

1. Unfold Base Pack

2. Lock Brace Locks

3. Lock Castors

4. Install Lower Platform

5. Install Outriggers

6. Install Extension End Frames

7. Engage Spring Clips

3055

3078

8. Install Diagonal Braces

9. Install Guardrail End Frames

10. Engage Spring Clips

11. Install Ladder

12. Install Upper Platform

13. Install Horizontal Braces

14. Install End Toe Boards

15. Install Side Toe Boards

3.4m Configuration Assembly

(Base Pack, Extension Pack, Outrigger Pack,

Guardrail Pack & Toe Board Pack)

Werner Co Australia reserves the right to alter product speciﬁcations at any time without notice.

1. Unfold Base Pack

2. Lock Brace Locks

3. Lock Castors

4. Install Lower Platform

5. Install Outriggers

6. Install Extension

End Frames

7. Engage Spring Clips

8. Install Diagonal Braces

(BLUE)

9. Install Guardrail

End Frames

10. Engage Spring Clips

11. Install Ladder

12. Install Upper Platform

13. Install Horizontal Braces

(YELLOW)

14. Install End Toe Boards

15. Install Side Toe Boards

Popular Construction Equipment manuals by other brands

Ammann

Ammann AV23-2 manual

stellar labs

stellar labs Model 7628 owner's manual

Hailo

Hailo H-50 manual

Graco

Graco LineLazer ES 1000 Operation - repair - parts

Greenlee

Greenlee 555RSC instruction manual

Manitowoc

Manitowoc Grove CD3340B Service manual

Lux Tools

Lux Tools A-FMR-20 Set manual

SIP

SIP 03683 manual

Volvo

Volvo L30G Operator's manual

Grizzly

Grizzly G8712 instruction sheet

Case

Case DV201 Service manual

Wacker Neuson

Wacker Neuson DT05 Operator's manual

HYVA

HYVA AMCO VEBA 81 Series WARNING, OPERATING AND MAINTENANCE MANUAL

Atlas Copco

Atlas Copco Dynapac V5100TV manual

Manitowoc

Manitowoc National Crane 1400A Operator's manual

SGS

SGS EC1500 owner's manual

Turbosol

Turbosol BM 30 Use and maintenance manual

Fayat

Fayat CC424CHF instruction manual

WERNERCO BAILEY SUPA-LITE Series User manual

Popular Construction Equipment manuals by other brands
