Wesco T504 Guide

D - 22391 Hamburg •Tel.: + 49 40 60009468-0 •Fax: + 49 40 536 75 01
• Equipment Imp.-Exp. GmbH •Zitterpappelweg 9
E - M a i l : i n f o @ w e s c o - n a v y. c o m •w w w . w e s c o - n a v y. c o m
Manual / Handbuch
Spare parts list / Ersatzteilliste

3
Before using your machine for
the first time
3Do not tumble dry
4Important safety instructions
4Installation
5Grounding instructions
5Interrupting a program
5Packing material
5Disposal
6Child safety
6General
7Description of the tumble dryer
8Front panel
8Options button
9
Advice and tips before you
tumble dry
9Have the clothes been spun?
9Materials that can be tumble dried
9
Materials that should not be
tumble dried
9Static electricity
10Operating instructions
10Sort your fabrics
10Turn on the main power switch.
10
Open the door, load the items, and
then close the door
10Select the program
12Selecting Options
13Press the Start button
13Drying program finished
14Once drying has finished
15
Care and maintenance
instructions
15Cleaning the lint filter
15
Cleaning the outside of the
machine
16Troubleshooting
16The machine will not start
16Overheating cut-off
16Drying takes too long
16
The laundry does not dry, or is too
dry
17Technical information
17Technical data
18Service and guarantee
19Warranty
19
How to contact the ASKO
Appliances Inc.
20Installation instructions
20Positioning the tumble dryer
23Adjusting the feet
23Air exhaust
25Electrical installation
28Reversing the door
28Reversing the door
32Quick guide
32Fabrics
32Turn on the main power switch
32Load the laundry
32Select a program and any options
32Press the Start/Stop button
32Drying program finished
32Once tumble drying has finished
Contents

Do you need this Use&Care Guide in spanish? Log onto www.askousa.com/customercare to download.
¿Necesita esta Instrucciones de uso y cuidado en español? Entre en www.askousa.com/customercare
y descárguesela.
Do not tumble dry
Certain materials are not suitable for tumble dry-
ing. Always check and follow the instructions on
each item's laundry label. You can find more infor-
mation in the "Advice and tips before you tumble
dry" chapter.
Note!
When starting the tumble dryer for the first time
or after a long period without use, you may hear
a slight thumping noise. This noise is completely
normal and will disappear after a few loads.
See the Quick guide on the last page.
Before using your machine for the first time
Do
y
ou
need
this
Use&C
ar
e
Guide
in
spanish?
L
og
on
to
www
.ask
ousa.com/customer
car
e
to
do
wnload.
¿Necesita
esta
Instrucciones
de
uso
y
cuidado
en
español?
Entr
e
en
www
.ask
ousa.com/customer
car
e
y
descár
guesela.

Save these instructions for future reference
Installation
See the "Installation" chapter.
Warning!
WARNING - To reduce the risk of fire, electric
shock, or injury to persons when using your appli-
ance, follow basic precautions, including the fol-
lowing:
•Read all instructions before using the appli-
ance.
•Do not wash or dry articles that have been
previously cleaned in, washed in, soaked in,
or spotted with gasoline, dry-cleaning solvents,
cooking oils, other flammable or explosive
substances as they give off vapors that could
ignite or explode.
•Do not allow children to play on or in the appli-
ance. Children should be closely supervised
when near the appliance.
•Before the appliance is removed from service
or discarded, remove the door to the drying
compartment.
•Do not reach into the appliance if the drum is
moving.
•Do not install or store this appliance where it
will be exposed to the weather.
•Do not tamper with controls.
•Do not attempt to repair or replace any part of
the appliance or perform any servicing unless
specifically recommended in this guide.
•Do not use fabric softeners or dryer sheets
unless the manufacturer gives written assur-
ance that the product will not damage a tumble
dryer.
•Do not heat-dry items containing: vinyl, plastic,
foam rubber or similarly textured rubberlike
materials, fiberglass, or wool unless wool un-
less the label specifies “washable”.
•Clean the lint filter before or after each load.
•Keep the area around the exhaust opening and
adjacent surrounding areas free from the accu-
mulation of lint, dust and dirt.
•The interior of the machine should be cleaned
periodically by an authorized ASKO service
agent.
•Do not place items exposed to cooking oils in
your dryer. Items contaminated with cooking
oils may contribute to a chemical reaction that
could cause a load to catch fire.
•Electrical installation, if required, must be done
by a licensed electrician.
•Do not operate appliance while away from the
home.
•Do not heat dry items that have been dry-
cleaned.
•The dryer is made and marked to facilitate re-
cycling. When it is no longer useful, contact
your local refuse collection service for advice
on how to properly dispose of the dryer for
purposes of recycling.
•Damaged power cables should only be re-
placed by a certified professional.
•Provide sufficient ventilation, otherwise smoke
from open fires or fumes from equipment
burning other fuels can be drawn into the room.
Caution!
During the program, the back of the dryer will get
very hot. Let the machine cool completely before
touching the back.
Warning!
This appliance must be properly grounded.
Important safety instructions

Grounding instructions
A) Grounding instructions for a grounded,
cord-connected appliance
In the event of malfunction or breakdown,
grounding will reduce the risk of electric shock by
providing a path of least resistance for electric
current. This appliance (Canadian market only)
is equipped with a cord having an equipment-
grounding conductor and a grounding plug. The
plug must be plugged into an appropriate outlet
that is properly installed and grounded in accor-
dance with all local codes and ordinances.
Warning!
Improper connection of the equipment-grounding
conductor can result in a risk of electric shock.
Check with a qualified electrician or service repre-
sentative or personnel if you are in doubt as to
whether the appliance is properly grounded. Do
not modify the plug provided with the appliance
(Canadian market only). If it will not fit the outlet,
have a proper outlet installed by a qualified elec-
trician.
To reduce the risk of fire, this appliance must be
exhausted outdoors or the equivalent. Do not ex-
haust into a chimney, wall, ceiling or concealed
space in a building.
B) Grounding instructions for a
permanently connected appliance:
This appliance must be connected to a grounded
metal, permanent wiring system, or an equipment-
grounding conductor must be run with the circuit
conductors and connected to the equipment-
grounding terminal or lead on the appliance.
Note
This manual does not cover every possible condi-
tion and situation that may occur. Use common
sense and caution when installing, operating, and
maintaining any appliance.
Interrupting a program
You can stop a drying program by:
•Opening the door. The drum will then stop au-
tomatically.
•Pressing the main power switch.
•Press the Start/Stop button for three seconds.
When you want to resume tumble drying, simply
close the door and press the Start/Stop button.
Packing material
Please sort waste materials in accordance with
local guidelines.
Disposal
This machine is manufactured and labeled for
recycling. In order to prevent injuries, the machine
must be made unusable once the decision has
been made to dispose of it. Contact your munici-
pality for information about where and how your
machine can be recycled correctly.
Save these instructions for future reference
Important safety instructions

General
Do not allow
children to play
with the tumble
dryer.
The tumble dryer does not start automatically
when the door closes (for example, if a child
closes the door from inside). The tumble dryer
has a magnetic catch, which allows the door to
be opened from the inside. The door has a door
switch that automatically stops the tumble dryer
when the door is opened.
Child safety

1
2
3
45
Outer door4.Panel1.
Fan (behind the front plate)5.Serial number tag and rating plate2.
Lint filter6.Lint filter holder3.
9
6
Description of the tumble dryer

125 6
7
34
Main power switch1.
Options buttons2-4
Program selector5.
Display6.
Start/Stop7.
Options button
2
4
3
Button for selecting Low Temperature2.
Button for selecting Anti Wrinkle3.
Button for selecting Delayed Start 1-24h4.
Front panel

Here are some tips that may help you before you
begin tumble drying.
Have the clothes been spun?
Items to be tumble dried should be spun at 1000
rpm or faster. Higher spin speeds save both ener-
gy and drying time.
Materials that can be tumble dried
This symbol means that the material is suitable
for tumble drying. Fabrics best suited to tumble
drying are cotton fabrics, terry cloth, and synthetic
fibers. Garments will be softer and lighter when
tumbled than when hung out to dry.
Note!
The tumble dryer does not cause any significant
wear to fabrics. The lint trapped in the lint filter
consists of dust and fiber residues which gather
when the items are used.
Materials that should not be tumble
dried
This symbol means that the material is not
suitable for tumble drying. Certain materials may
melt or become a fire hazard if exposed to heat
and others can lose their shape or shrink.
And do not tumble dry
•materials labeled "Do not dry near heat".
•garments that have been dry-cleaned at home.
•plastic foam.
•fiberglass material.
•wool must not be tumble dried due to the risk
of piling.
Static electricity
To reduce the risk of static electricity in the laundry
after tumble drying, you can:
•Use fabric softener when washing.
•Wait five minutes after the drying program ends
before opening the door and removing the
laundry from the dryer.
Note!
If the door is opened during the program, the
program will be interrupted and will return to the
start. The clothes may be too damp or too dry as
a result.
Advice and tips before you tumble dry

Warning!
To reduce the risk of electric shock or injury to
persons, read the "Important Safety Instructions"
section before operating this appliance.
Below are step-by-step instructions to help you
achieve the best possible tumble drying results.
1Sort your fabrics
You will achieve the most uniform drying
results if the items are made of the same
type of material. Close zippers and fasten buttons
or belts; sort the items and adjust load and tem-
perature.
2Turn on the main power switch.
3Open the door, load the items,
and then close the door
4Select the program
The choice of program depends on what
you intend to do with the items after drying
them.
Guidelines as to what specific programs
can be used for.
Auto Normal
Auto Heavy
Timed Dry
Auto Delicate
Auto Iron Dry
Air Fluff
Auto Heavy
This program is for items that are particularly diffi-
cult to dry, such as jeans with very thick seams.
Note!
Knitted fabrics in particular are prone to shrinkage.
Use the Auto Normal, Auto Delicate, or Auto Iron
Dry programs for these items. Stretch clothes
back into shape immediately after drying.
Auto Normal and Auto Delicate
These programs shut off the heat once the load
is dry but before it is "bone-dry". The Auto Normal
program shuts off the heat slightly later than Auto
Delicate. Use trial and error to find out what works
best. Use these programs when you want items
to be completely dry.
Auto Iron Dry
This program shuts off the heat once the load is
just damp enough for ironing or pressing.
Timed Dry
The Timed Dry program has a fixed drying time
and tumble dries the load for 60 minutes.
Air Fluff
Use the Air Fluff program when you just want to
refresh, air out,, or soften up items.
Operating instructions

Program chart
Here we present a few examples of the energy and time consumption of a few different program settings.
Consumption can vary due to room temperature, humidity, load, variations in the power supply, and se-
lected options
For the consumption values given below, the requirements
are as follows:
73°F (23°C)Temperature of intake air:
55 %Moisture content of intake air:
Normal or LowDrying temperature:
3000WHeater output:
Program chart
Program time
(approx. hrs and min.)
Energy consumption
(approx. kWh)
Max. load
(lb)
TemperatureMaterialProgram
1600 rpm800 rpm1600 rpm800 rpm
1:452:103.24.113NormalCotton, linenAuto Heavy
1:302:002.93.713NormalCotton, linenAuto Normal
-0:50-1.67NormalWrinkle-resistant,
polyester/cotton
Auto Normal
1:251:502.63.513NormalCotton, linen 1) Auto Delicate
-0:50-1.57NormalWrinkle-resistant,
polyester/cotton
Auto Delicate
-0:55-1.87LowAcrylic, rayon, acetateAuto Delicate
0:551:251.92.813NormalCotton, linenAuto Iron Dry
Operating instructions

5Selecting Options
By selecting options, you can tailor drying
programs to suit your own laundry require-
ments. The machine remembers the selected
option and uses it the next time you select the
same program. You can, of course, change this
if you want.
Low Temperature
Select or deselect Low Temperature by pressing
the Temperature button. Once Low Temperature
has been selected, the red field next to the button
lights up.
Anti Wrinkle
This option will cause the drum to rotate for three
seconds each minute for two hours once the dry-
ing program has finished. This prevents the items
remaining in the same position and becoming
wrinkled. This is a useful feature if you are not
able to remove the load as soon as tumble drying
has finished. A lighted red field next to the button
indicates that the Anti Wrinkle option has been
activated.
Delayed Start
When you select Delayed Start, the machine will
start 1-24 hours after you press the Start/Stop
button.
•Press the Delayed Start button the same
number of times as the number of hours by
which you want to delay the start (1-24 hours).
A lighted red field next to the button indicates
that the option has been activated.
•The number of hours delay until start is shown
on the display.
•Press the Start/Stop button.
•The number of hours to start is displayed with
a countdown one hour at a time.
•Cancel Delayed Start by pressing the
Start/Stop button for 3 seconds. The red field
will go out.
•Select a program and press the Start/Stop
button.
Important!
Remember to press the Start/Stop button to start
the program.
Operating instructions

6Press the Start button
Remaining drying time
An estimate of the remaining drying time
will be shown on the display a few minutes after
the drying program starts. For example, 1:35
means it will take approximately 1 hour and 35
minutes for the load to dry. If the Anti Wrinkle op-
tion has been selected, the drum will rotate for 3
seconds every minute for 2 hours after the pro-
gram is finished.
Stopping or changing a program
Press and hold the Start/Stop button for three
seconds. The red field next to the button will go
out.
Note!
The program will not be affected if you change
the program selector after the program has start-
ed.
Loading or removing laundry
If you want to load or remove laundry once you
have started the machine, open the door and the
program will stop. Load more laundry or take out
the items you want, close the door, and press the
Start/Stop button.
7Drying program finished
The text "END" appears on the display
when the program is finished. If the Anti
Wrinkle option has been selected, the drum will
rotate for 3 seconds every minute for 2 hours after
the program is finished.
Important!
•Clean the lint filter after each load.
Caution!
If the lint filter becomes clogged, the machine’s
automatic overheating cut-off may be triggered.
In order to be able to restart the machine, you
must clean the filter and allow the machine to cool
down for around 30 minutes.
Cleaning the lint filter
1. Grasp the filter handle and pull it toward you.
2. Pull the filter out of its holder.
!
3. Open the filter and remove the lint by hand.
4. Fold the filter up and insert it into its holder. The
filter may need to be cleaned if it has limescale
deposits. See the "Care and cleaning" chapter.
Operating instructions

To install the automatic drain hose, please see
the section titled Installation
8Once drying has finished
Turn off the main power switch. Remove
the clothes and close the door to prevent
small children from climbing into the machine.
Operating instructions

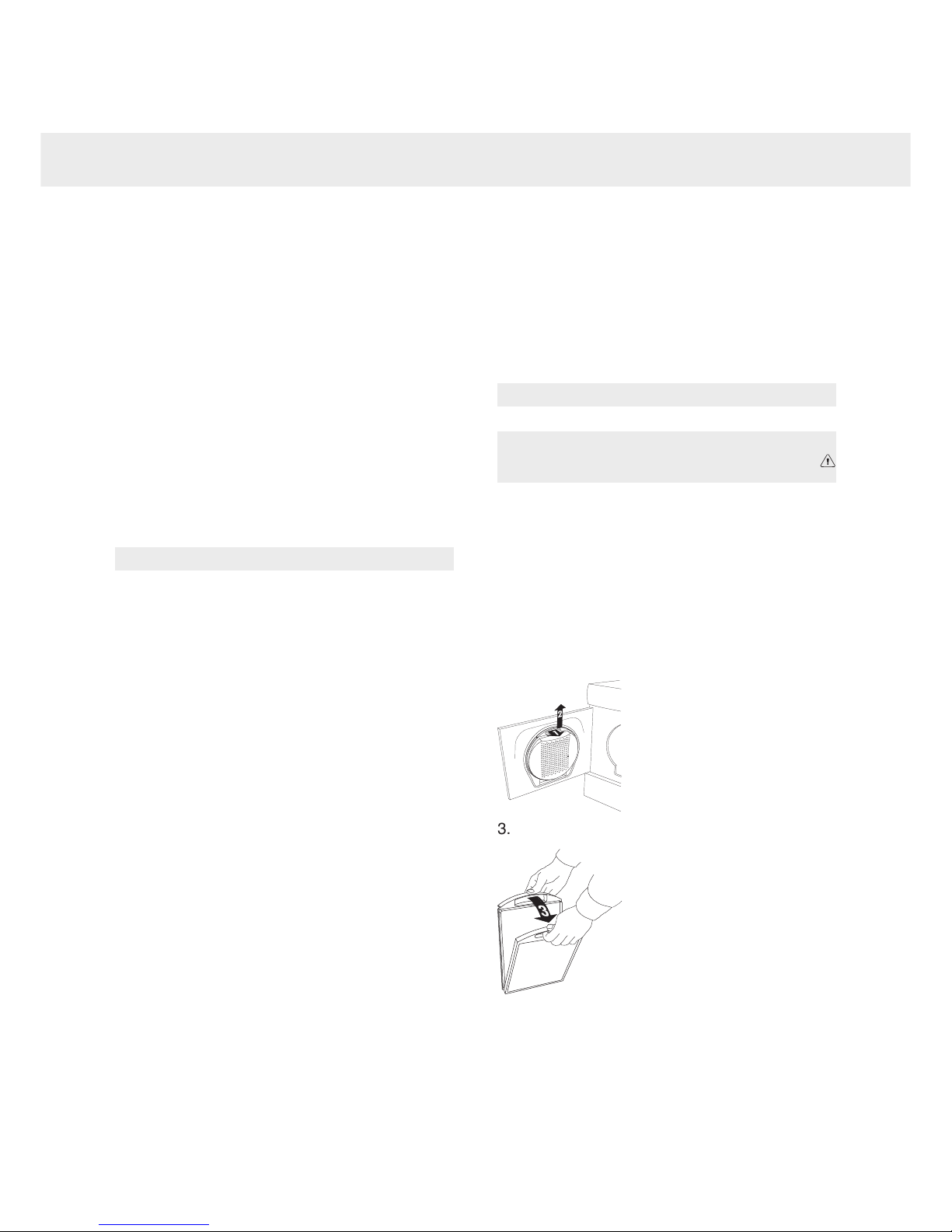

Cleaning the lint filter
The lint filter must be cleaned after each load. If
you have very hard water, this can cause
limescale deposits in the lint filter. Check for any
limescale deposits when cleaning the lint filter
and, if necessary, wash the filter by hand. Addi-
tionally, the filter should be cleaned with hot water,
detergent, and a soft brush quarterly.
1. Grasp the filter handle and pull it toward you.
2. Pull the filter out of its holder.
!
3. Open the filter and remove the lint from all
sides of it by hand. Use a soft, dry cloth to re-
move any deposits.
4. Replace the filter in its holder.
Note!
If you have hard water, the filter should be washed
with water to remove any limescale deposits. Use
a sponge and a little dishwashing detergent if
necessary. Dry the filter carefully with a towel. If
you cannot remove the limescale, you can buy a
new filter from the retailer where you bought the
tumble dryer.
Cleaning the outside of the machine
Clean the outside of the machine and the program
panel with a mild cleaner. Do not use solvents,
as these can damage the machine. Do not hose
down or spray the machine with water.
Note!
Do not allow dust to accumulate around the ma-
chine. Keep the area around the tumble dryer
clean and cool; dust, heat, and moisture prolong
drying times.
Care and maintenance instructions

The machine will not start
Check
•that the door is properly closed.
•that the main power switch is on.
•that the Delayed Start option has not been se-
lected. If so, the time remaining until start will
be shown in full hours on the display (e.g., 5,
4, 3h). To cancel Delayed Start, press the
Start/Stop button for 3 seconds.
•that any plug is connected.
•that the fuses (circuit breakers) in your house
are intact. Flip the dryer breaker off and then
back on to make sure. You can not always tell
from the outside if the circuit breaker has
tripped.
•that the overheating cut-off has not been trig-
gered (see below).
Overheating cut-off
The overheating cut-off shuts off the tumble dryer
if the temperature is too high, caused by lint
clogging the lint filter, for instance.
•Clean the filter.
•The overheating cut-off will reset automatically
once the machine has cooled down.
Drying takes too long
•Check that the lint filter is not clogged (see the
"Care and maintenance" chapter).
The laundry does not dry, or is too
dry
•The door has been opened while the program
is running, which disrupts the moisture monitor-
ing function.
Troubleshooting

Technical data
33 1/2'' (850mm)Height:
23 7/16'' (595mm)Width:
23,0" (585mm)Depth:
104lb (47kg)Weight:
29,3gal (111l)Cylinder volume:
13lb (6kg)Max. drying capacity:
52 rpmSpeed:
See serial number tag and rating plate.Rated power:
Stainless steelDrum material:
Powder-coated and hot-galvanized sheet steel or
stainless steel.
Outer casing material:
Stacking or freestandingSetup
67" (1.7m) polypropylene hoseDrain:
Technical information

WARNING!
WARNING - Risk of fire.
Install the clothes dryer according to the manufac-
turer's instructions and local codes.
Do not install a clothes dryer with flexible plastic
venting materials. If flexible metal (foil type) duct
is installed, it must be of a specific type identified
by the applience manufacturer as suitable for use
with clothes dryers. Flexible venting materials are
known to collapse, be easily crushed, and trap
lint. These conditions will obstruct clothes dryer
airflow and increase the risk of fire.
To reduce the risk of of severe injury or death,
follow all installation instructions.
Save these instructions for future reference.
Positioning the tumble dryer
The tumble dryer can be freestanding or stacked.
Remember that the tumble dryer produces heat
and should therefore not be located in a room that
is too small. If the room is very small, drying will
take longer due to the limited quantity of air.
Caution!
For proper ventilation, the machine should not be
installed behind a door.
Caution!
The tumble dryer's toe kick ventilation must not
be blocked by a rug or the like.
Tip!
If the unit must be installed behind a door should
be louvered. To improve ventilation, the door
where the tumble dryer is located should be left
open when the dryer is in use.
Caution!
Clothes dryer installation must be performed by
a qualified installer.
A. Freestanding
The tumble dryer can be positioned beside the
washing machine.
B. Stacked
The tumble dryer can be placed on top of a ASKO
washing machine. To stack the dryer, you need
the stacking attachments (foot cups and anti-tip
devices) that come with the machine: You will find
2 foot cups in a bag in the drum and 2 anti-tip de-
vices attached to the bottom left corner at the back
of the machine. Extension plates can be ordered
from your local retailer.
Installation instructions

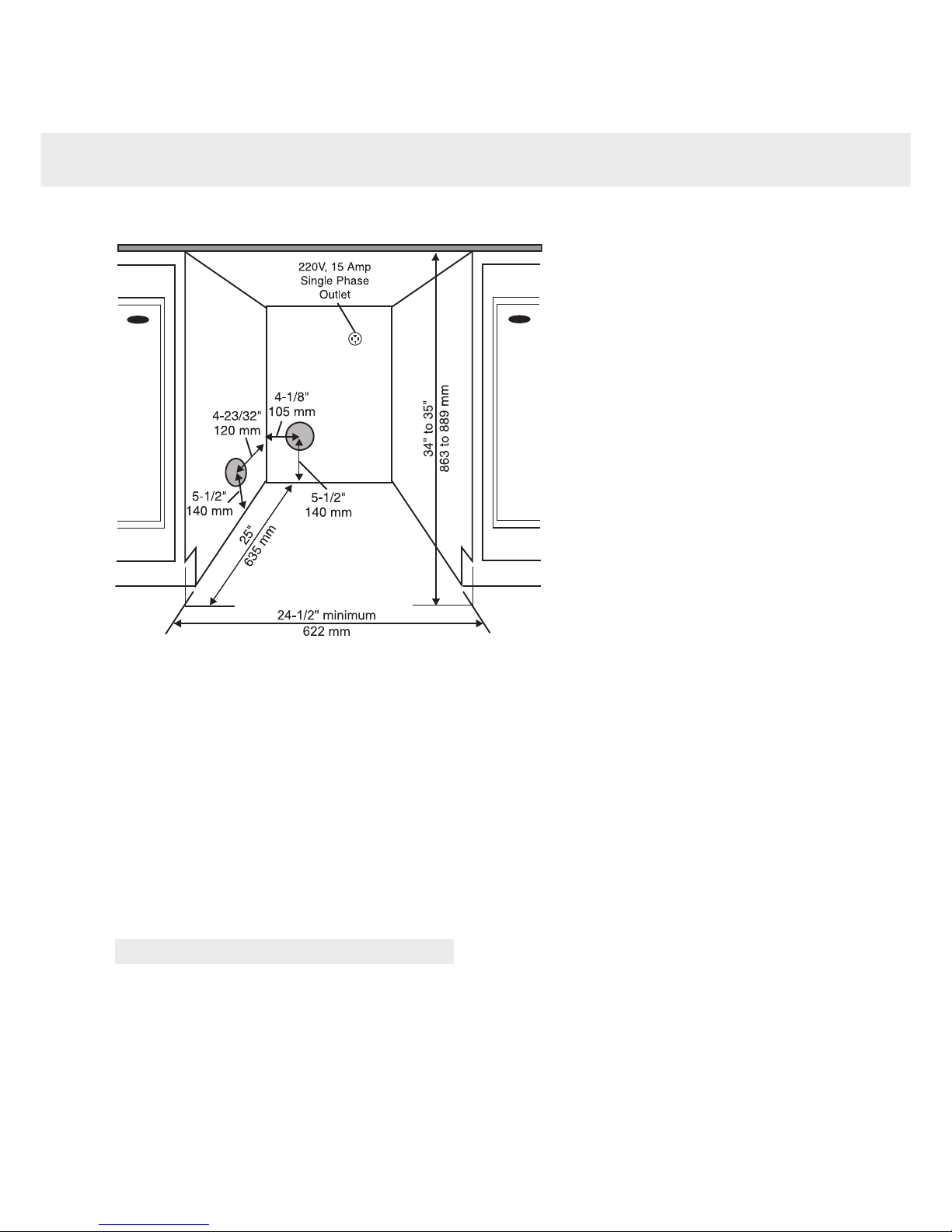

C. Built-in
ASKO dryers can be installed beneath a cabinet
or worktop with a minimum height of 34” (864
mm). There must be a gap of about 1/2” (12 mm)
all around the machine, including between the
rear edge of the machine top panel and the back
wall. The opening width must be at least 24-1/2”
(622 mm). The condensing models work best
when they have good air circulation. Install the
dryer so the condensed water will continuously
flow into a drain or sink, you will need a drain
outlet behind the unit. The maximum drain height
is 40” (1016 mm).
Notes
The height adjustment for the dryer is 33-1/2” to
34-1/2” (850 mm to 876 mm). Do not raise it
higher than 34-1/2” (876 mm). Hole measure-
ments are from center of hole.
Installation instructions

How to assemble the stacking kit:
1. Undo the anti-tip device.
2. Remove the two screws indicated on the back
of the washing machine.
3. Secure the anti-tip device using the screws as
shown in the picture.
4. Attach the plastic cups for mounting the tumble
dryer’s front feet to the washing machine’s top
cover. This is essential, as only when the tum-
ble dryer’s feet are resting in the plastic cups
can you be sure that the dryer is correctly posi-
tioned on the washing machine.
Break off tab A on the cup fitted on the right
side and tab B on the cup fitted on the left side.
Then remove the paper from the self-adhesive
surface under the plastic cups.
A
B
A
B
5. Fit the plastic cups so that the "tags" marked
with arrows are against the front edge or side
edge of the cover and press them firmly onto
the cover. Then break off the remaining tabs.
6. Push out the knock-out hole on the back of the
dryer (you don't have to completely remove
the knockout, just fold it up far enough for the
stacking bracket to fit inside the slot) using a
hammer and screwdriver.
7. Push the tumble dryer in under the metal
brackets. At the same time, keep the front edge
raised by 0,4" (10mm) to 0,8" (20mm).
8. Lower the tumble dryer’s front feet into the
plastic cups and adjust the dryer to ensure that
it is balanced.
Installation instructions
