Wesco LDT-3080 Service manual

© Copyright 2018 WESCO Industrial Products, LLC. Specifications subject to change. Not responsible for errors or omissions.
Description
Thank you for purchasing a Wesco Long Deck Scissors Lift
Table. This table is designed for horizontal lifting and
transportation of loads. Please carefully read these
instructions before use and keep it on file for reference.
This product is distributed by:
Wesco Industrial Products, LLC
1250 Welsh Road
North Wales, PA 19454
Tel: [phone] Fax: [phone]
Contact the factory for parts information and ordering.
Visit us on the web at www.wescomfg.com
Unpacking
When unpacking the Wesco Product, check carefully for
shipping damage and missing parts. If damage has occurred
or any parts are missing, file a claim with the delivering carrier
within 24 hours and notify the dealer from whom the unit was
purchased. Warranty Repairs
If the unit does not work properly, contact your dealer or the
factory (215-699-7031) for units less than one year.
Non-Warranty Service
If units are older than one year, repairs can be made easily
on site with factory supplied parts.
NOTE: Do not send units to the factory for service without
first obtaining a “Return Merchandise Authorization” (RMA)
number from the customer service department. We will not
be responsible for merchandise returned without proper
authorization.
To Purchase Parts
To Order Parts contact Customer Service at:
Phone: [phone]
Fax: [phone]
Specifications
Part Number 273230
Model Number LDT-3080
Capacity 2200 lbs
Table Size 30” Width x 80” Length
Raised Height 53.5”
Lowered Height 14.2”
Wheel Size 7” x 2”
Caster Size 3” x 1-1/2” (Swivel)
Weight 435 lbs
80” Long Deck Scissors Lift Tables
(Part # 273230)
Operating Instructions and Parts Manual
ATTENTION: TO INSURE SAFE AND EASY USE OF YOUR WESCO LIFT TABLE, READ THESE INSTRUCTIONS BEFORE USING.
General Safety Information
Warning: The Wesco Lift Tables are designed for a wide
range of uses. To insure safe use, the following instructions
must be adhered to.
1) Read these instructions carefully before operation and
get to know the performance and operation requirements
of the lift table.
2) Do not overload the hydraulic lift table. Overloading can
result in damage to the table and could cause injury.
3) Do not stand or sit on the table during operation.
4) Do not insert hands or feet under a lowering table.
5) Brake the table when loading goods to prevent it from
moving.
6) When loading, goods should be distributed uniformly over
the table’s top surface.
7) Loose or unstable goods are not permitted to be loaded.
Do not load and/or raise loose or unstable goods for fear
of injury.
8) Do not move table while lifting a load.
9) The table can only be moved on flat and hard ground, do
not use on sloped or rugged ground;
10) The safety valve only works in the hoisting process, if the
table has been hoisted, and then has overweight load on
it, the safety valve will not work (also possibly damaging
the unit).
11) When loading and unloading goods on hoisted table,
don’t drag goods in cross direction, which may cause
serious off-set loading and make the table turn over.
12) When maintaining and repairing the table, the stand bar
should be used to support fork arm in order to prevent
table from falling (there should be no load on the table).
Operation Instructions
Braking
Engage the brakes to prevent movement of the table and lift
and lower loads.
1) Press down on both brake pedals, situated above the
casters
2) Release the brakes by applying pressure to the other side
of the release pedals.
Lifting
Warning: Do not place load on side or end of table or
overload the lift table. Stay within its rated capacity shown
below. Model LDT-3080
Part Number 273230
Max Capacity (lbs) 2200
1) Press foot pedal to raise loads.
2) Use release lever to lower loads
3) Use locking pins to prevent lowering of loads.
Fi
g
ure 1

© Copyright 2018 WESCO Industrial Products, LLC. Specifications subject to change. Not responsible for errors or omissions.
80” Long Deck Scissors Lift Tables
(Part # 273230)
Operating Instructions and Parts Manual
A
MAINTENANCE INFORMATION Lubrication Points
Apply lubrication to these areas monthly.
REPLACEMENT PART INFORMATION

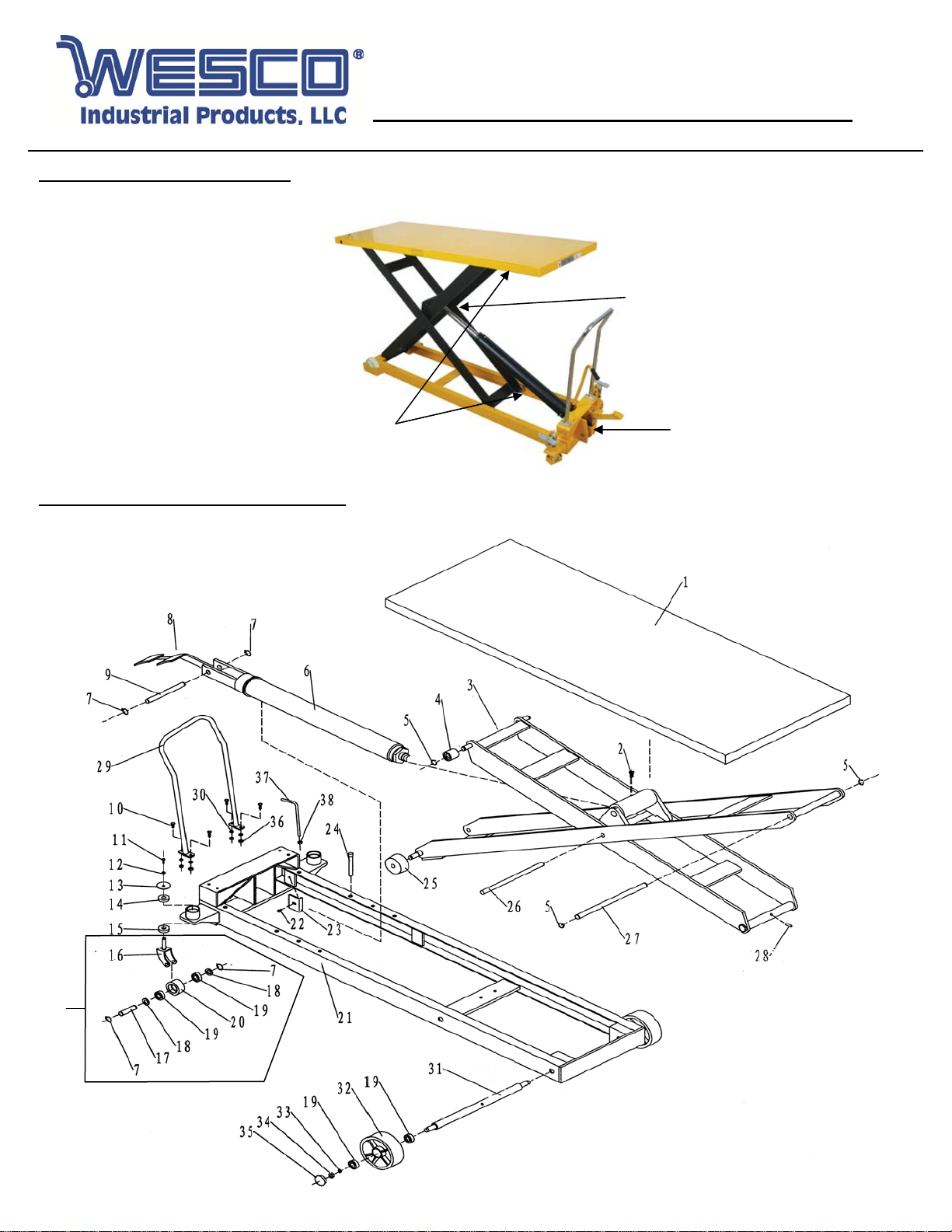

Frame Part Diagram
Roller Surface
(
Grease
)
Pedal Linkage Point
(
Oil
)
Cylinder Fitting
(
Oil
)

© Copyright 2018 WESCO Industrial Products, LLC. Specifications subject to change. Not responsible for errors or omissions.
80” Long Deck Scissors Lift Tables
(Part # 273230)
Operating Instructions and Parts Manual
ATTENTION: TO INSURE SAFE AND EASY USE OF YOUR WESCO LIFT TABLE, READ THESE INSTRUCTIONS BEFORE USING.
REPLACEMENT PART INFORMATION
Frame Part List
ItemP/NDescriptionQtyItemP/NDescriptionQty
1 Table 1
20 273722 Caster: Rigid, 7” x 2” Nylon 2
2 Screw 1
21 Frame 1
3 Fork Arm 1
22 Screw 2
4 Roller of Table 2 23 Plate 2
5 Locking Ring 4
24 273758 Pin 2
6 273720 Hydraulic Pump 1
25 Roller 2
7 Locking Ring 2
26 Axle 1
8 273759 Pedal Bar 1
27 Shaft 1
9 Shaft 1
28 Elastic Pin 1
10 Bolt 4
29 273723 Handle (With Release Lever & Cables) 1
11 Bolt 2
30 Elastic Washer 4
12 Elastic Washer 2
31 Shaft 1
13 Cover 2
32 273721 Caster: Locking, Swivel 7” x 2” Nylon 2
14 Bearing 2
33 Locking Washer 2
15 273724 Bearing 2 34 Nut 2
16 273725 Housing: Swivel Caster 2 35 Dust Cover 2
17 273726 Axle: Swivel Caster 2 36 Nut 4
18 Washer 4
37 273756 Control Handle 1
19 273727 Bearing 8 A 273757 Assembly: Caster 2

© Copyright 2018 WESCO Industrial Products, LLC. Specifications subject to change. Not responsible for errors or omissions.
80” Long Deck Scissors Lift Tables
(Part # 273230)
Operating Instructions and Parts Manual
ATTENTION: TO INSURE SAFE AND EASY USE OF YOUR WESCO LIFT TABLE, READ THESE INSTRUCTIONS BEFORE USING.
REPLACEMENT PART INFORMATION
Pump Part Diagram

© Copyright 2018 WESCO Industrial Products, LLC. Specifications subject to change. Not responsible for errors or omissions.
80” Long Deck Scissors Lift Tables
(Part # 273230)
Operating Instructions and Parts Manual
ATTENTION: TO INSURE SAFE AND EASY USE OF YOUR WESCO LIFT TABLE, READ THESE INSTRUCTIONS BEFORE USING.
REPLACEMENT PART INFORMATION
Pump Part List
ItemP/NDescriptionQtyItemP/NDescriptionQty
273720 Complete Hydraulic Pump 1 B126 Release Valve Pin 1
B101 Dust Ring 1
B127 O Ring 1
B102 Screw Cover 1
B128 Sleeve of Valve 1
B103 O Ring 1
B129 O Ring 1
B104 Sleeve 1
B130 Elastic Pin 1
B105 O Ring 1
B131 273755 Lever Plate 1
B106 Big Piston Rod 1
B132 Nut 1
B107 O Ring 2
B133 Screw 1
B108 Piston 1
B134 Seal Washer 1
B109 O Ring 1
B135 O Ring 1
B110 Y Ring 1
B136 O Ring 1
B111 Washer 1
B137 Steel Ball 1
B112 Locking Ring 1
B138 Body of Valve 1
B113 Safety Valve Spindle 1
B139 Steel Ball 1
B114 Spring 1
B140 Cylinder 1
B115 Adjusting Screw 1
B141 O Ring 1
B116 Seal Washer 1
B142 Y Ring 1
B117 Screw 1
B143 Piston Rod 1
B118 Screw 1
B144 Spring 1
B119 Seal Washer 1
B145 Cap of Spring 1
B120 Body of Pump 1
B146 Locking Ring 2
B121 Screw 1
B147 Pedal 1
B122 Seal Washer 1
B148 Shaft 1
B123 Spring 1
B149 Shaft 1
B124 Valve Spindle of Pump 1
B150 Elastic Pin 1
B125 Spring 1
B151 Nut 1
