IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read the following important precautions before
using the WESLO¨PURSUIT 675s.
1. Read all instructions in this manual before
using the exercise cycle.
2. It is the responsibility of the owner to ensure
that all users of the exercise cycle are ade-
quately informed of all precautions. Use the
exercise cycle only as described in this
manual.
3. Use the exercise cycle indoors on a level
surface. Keep the exercise cycle away from
moisture and dust. Place a mat under the
exercise cycle to protect the floor or carpet.
4. Inspect and tighten all parts regularly.
Replace any worn parts immediately.
5. Keep children under the age of 12 and pets
away from the exercise cycle at all times.
6. The exercise cycle should not be used by
persons weighing more than 250 pounds.
7. Wear appropriate clothing when exercising;
do not wear loose clothing that could
become caught on the exercise cycle.
Always wear athletic shoes when using the
exercise cycle.
8. Always keep your back straight when using
the exercise cycle. Do not arch your back.
9. If you feel pain or dizziness at any time
while exercising, stop immediately and
begin cooling down.
10. The exercise cycle is intended for in-home
use only. Do not use the exercise cycle in a
commercial, rental, or institutional setting.

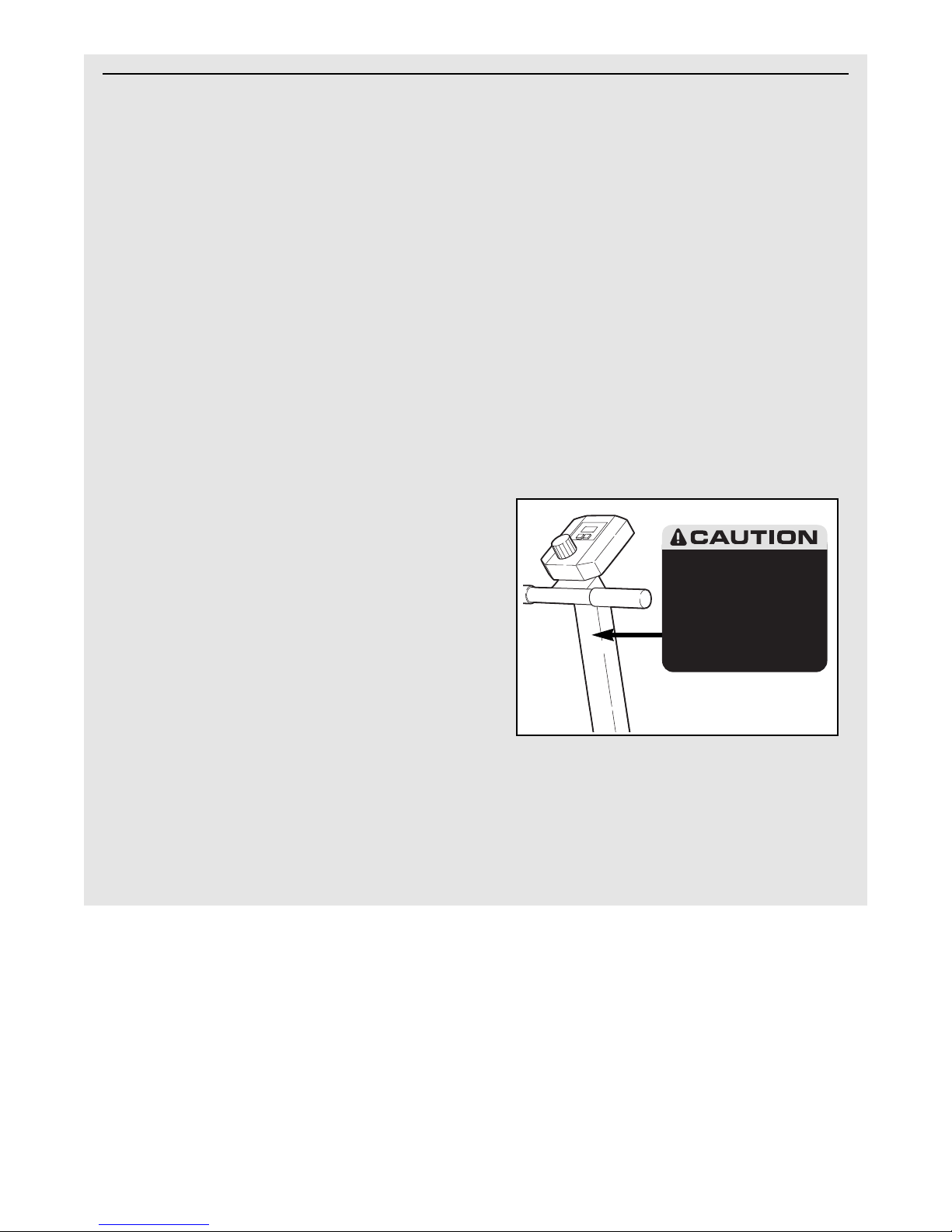

11. CAUTION DECAL PLACEMENT: The decal
shown below has been placed on the exer-
cise cycle. If the decal is missing, or if it is
not legible, please call our Customer Service
Department toll-free at 1-800-999-3756 to
order a free replacement decal. Apply the
decal in the location shown.
WARNING: Before beginning this or any exercise program, consult your physician. This is espe-
cially important for persons over the age of 35 or persons with pre-existing health problems. Read
all instructions before using. ICON assumes no responsibility for personal injury or property dam-
age sustained by or through the use of this product.
Decal is shown at
75% of actual size
Do not allow children on or
around machine.
Keep hands and feet away
from moving parts and contact
points.
Read owner's manual and
follow instructions.

4
BEFORE YOU BEGIN
Thank you for selecting the innovative WESLO¨
PURSUIT 675s. The PURSUIT 675s offers a unique
form of low-impact exercise that offers greater cardio-
vascular benefits and increased muscle toning. And
the 675s features adjustable resistance to let you tai-
lor your exercise to the level thatÕs perfect for you.
For your benefit, read this manual carefully before
you use the PURSUIT 675s. If you have additional
questions, please call our Customer Service
Department toll-free at 1-800-999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time
(excluding holidays). To help us assist you, please
mention the product model number and serial number
when calling. The model number is WLEX27182. The
serial number can be found on a decal attached to the
PURSUIT 675s (see the front cover of this manual for
the location of the decal).

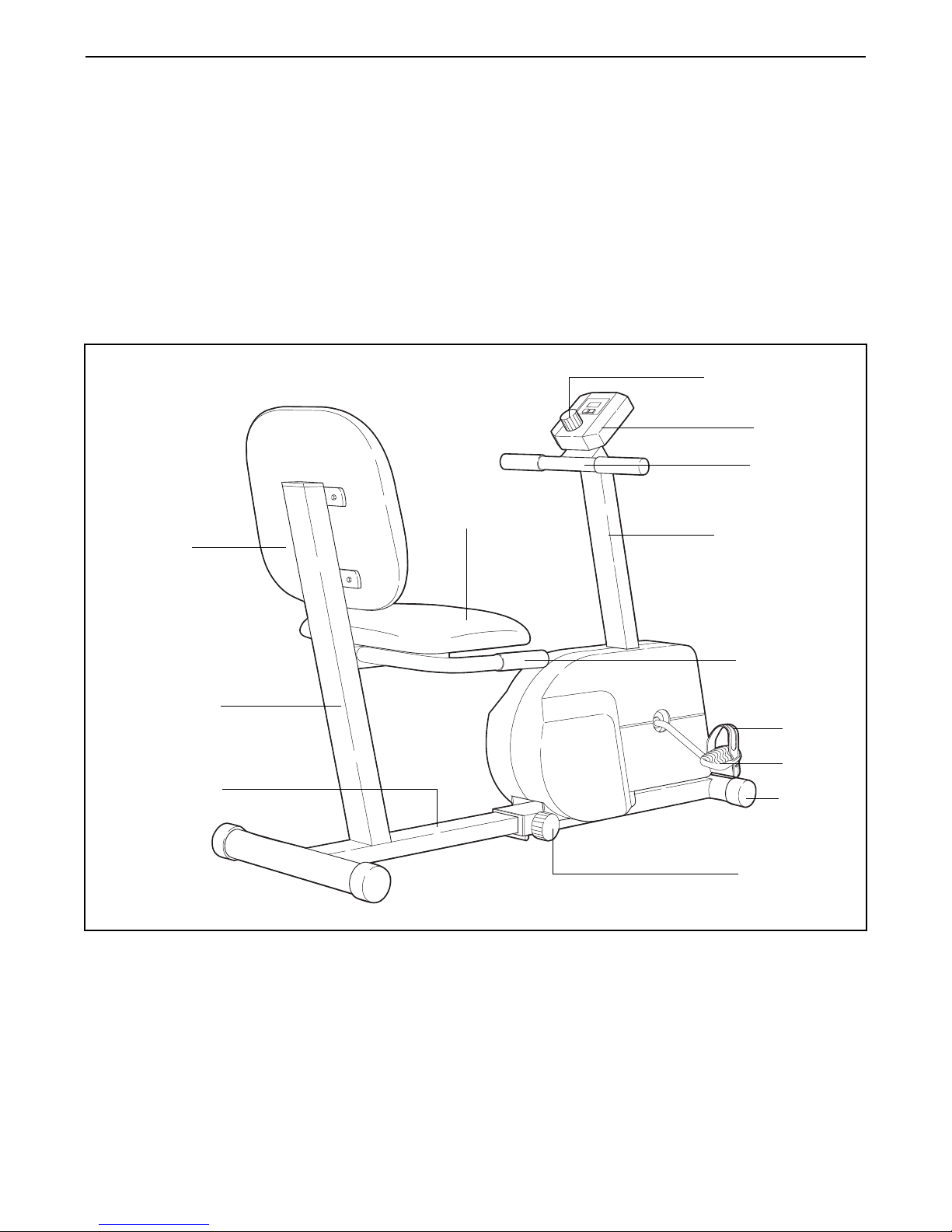

Before reading further, please look at the drawing
below and familiarize yourself with the parts that are
labeled.
Seat Handle
Handlebar
FRONT
Seat
Seat Upright
Wheel
Frame Knob
Seat Frame
Backrest
Pedal
Pedal
Strap
Console
Resistance Knob
Handlebar Post
LEFT SIDE

5
ASSEMBLY
Place all parts of the exercise cycle in a cleared area and remove the packing materials. Do not dispose of the
packing materials until assembly is completed.
Assembly requires the included tools and your own adjustable wrench and phillips
screwdriver .

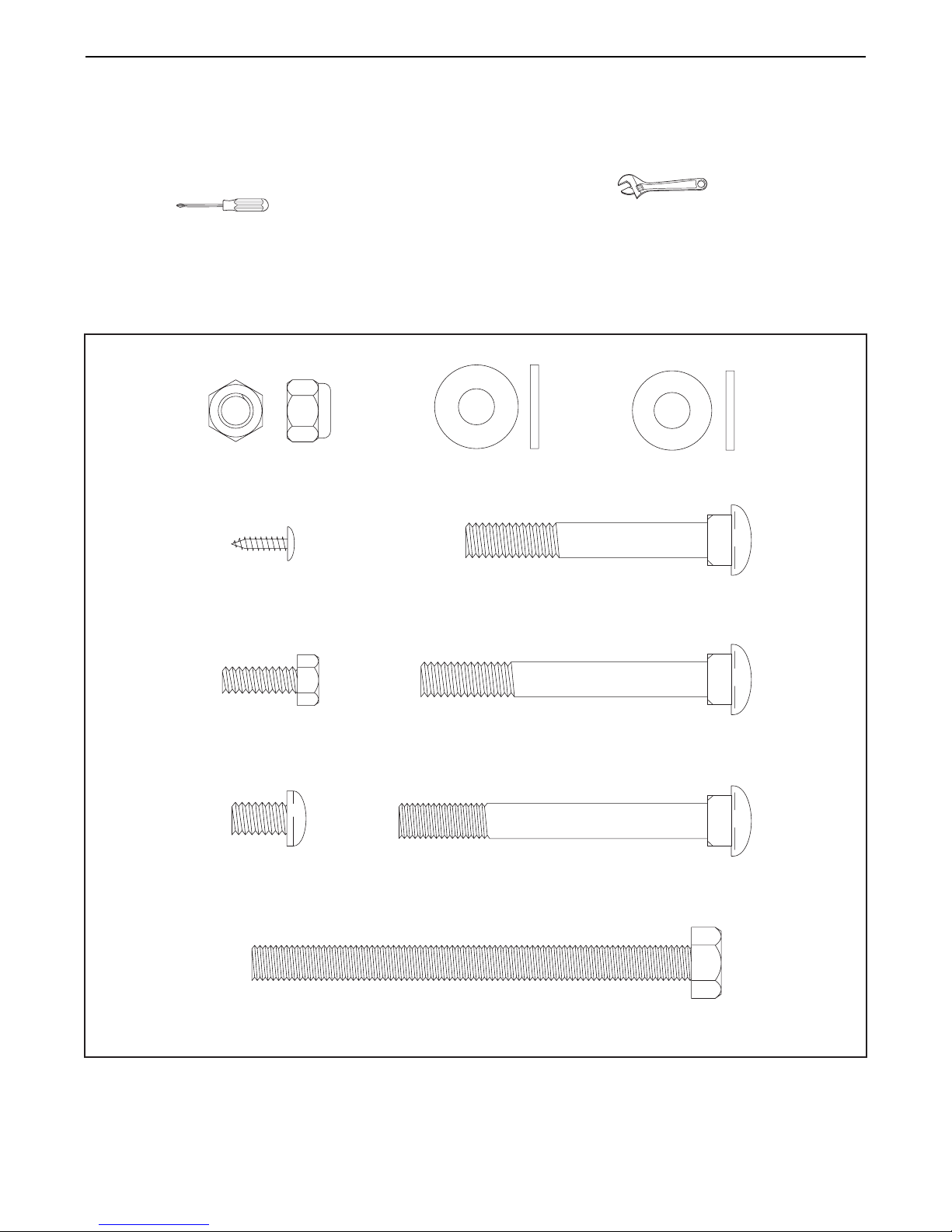

To identify the small parts used in assembly, use the drawings below. The number in parenthesis below each
drawing refers to the key number of the part, from the PART LIST on page 14. The second number refers to the
quantity used in assembly. Note: Some small parts may have been pre-attached for shipping. If a part is
not in the parts bag, check to see if it has been pre-attached.
M8 x 100mm Hex Head Bolt (12)Ð2
M6 x 16mm Hex Head
Screw (46)Ð8
#8 x 1/2Ó Screw (43)Ð5
M8 Nylon Locknut (55)Ð12
M8 x 70mm Carriage Bolt (27)Ð2
M8 x 65mm Carriage Bolt (52)Ð4
M8 x 55mm Carriage Bolt (11)Ð4
M8 Washer (26)Ð2
M8 x 15mm Button
Screw (53)Ð3
M8 x 19mm
Washer (54)Ð3

6
29
1
2
1
1. Loosen the Frame Knob (29) on the right side of the
Frame (1). Slide the Seat Frame (2) out until it
stops. Retighten the Frame Knob.
2. Route the Reed Switch Wire Extension (62) down
through the Handlebar Post (3) and connect it to the
Reed Switch Wire (42). Next, push the Resistance
Cable (61) up through the Handlebar Post (3).
Attach the Handlebar Post (3) to the Frame (1) with
three M8 x 15mm Button Screws (53) and three M8
x 19mm Washers (54). Be careful not to pinch the
Reed Switch Wire and Extension (42, 62) or the
Resistance Cable (61).
2
3
1
54
54
53
53
61
62
42
3
4
3
62
61
33
59
31
43
43
33

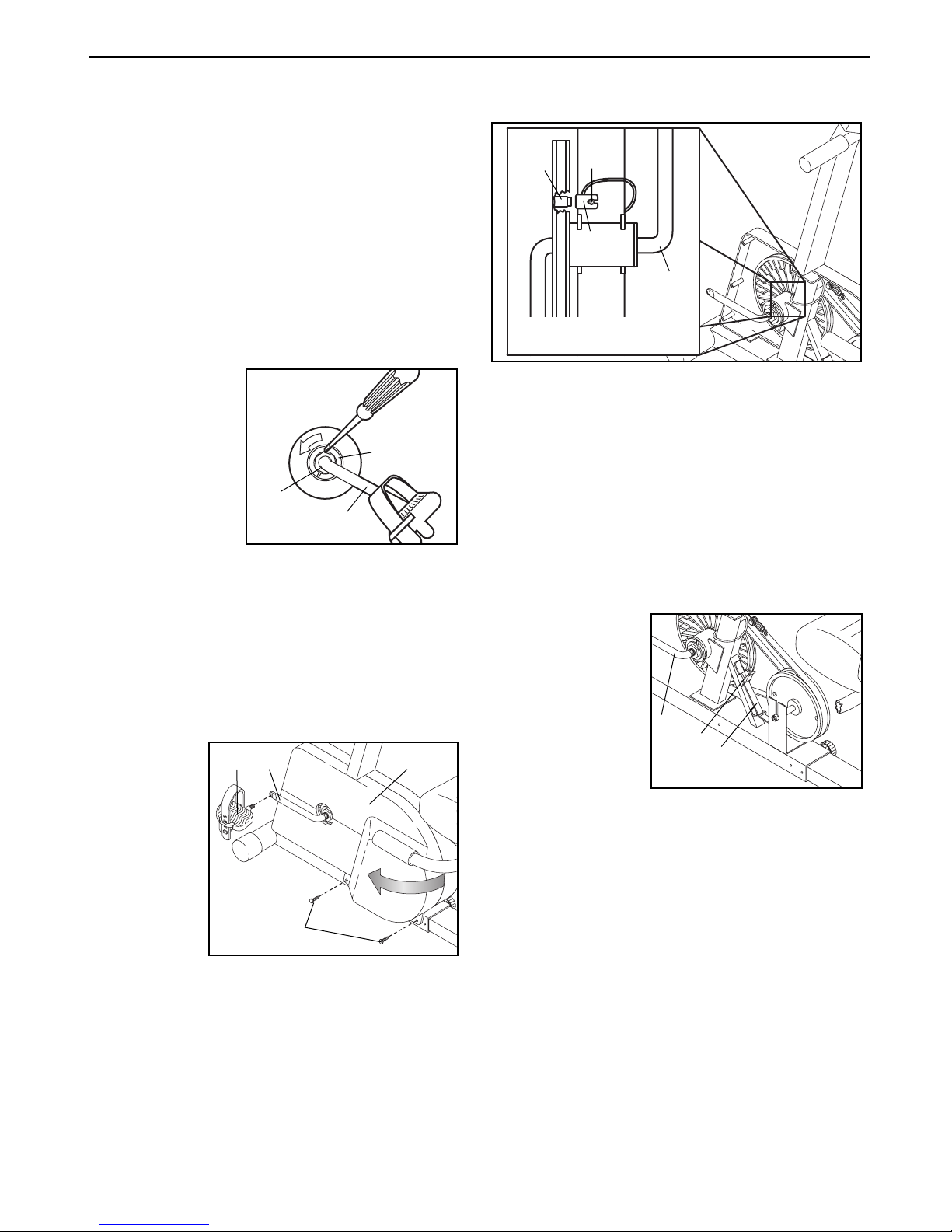

3. Plug the Reed Switch Wire Extension (62) into the
jack on the back of the Console (33). Push the
Resistance Control (31) into its socket in the
Console. Next, attach the Console (33) to the
Handlebar Post (3) with four #8 x 1/2Ó Screws (43).
Next, connect the short cable on the Resistance
Control (31) to the Resistance Cable (61) in the
following way:
¥ Insert the tip of the short cable into the wire clip as
shown in drawing A.
¥ Firmly pull the short cable and slide it into the
metal bracket as shown in drawings B and C.
Make sure that the tip of the short cable is held by
the wire clip as shown.
3. The Console (33) requires two ÒAAÓ batteries (not
included); alkaline batteries are recommended.
Remove the Battery Cover (59) from the top of the
Console. Refer to the inset drawing. Press two bat-
teries into the Console. Make sure that the nega-
tive (Ð) ends of the batteries are touching the
springs. Reattach the Battery Cover.
53
Batteries
Console Top
A
B C
Wire
Clip

7

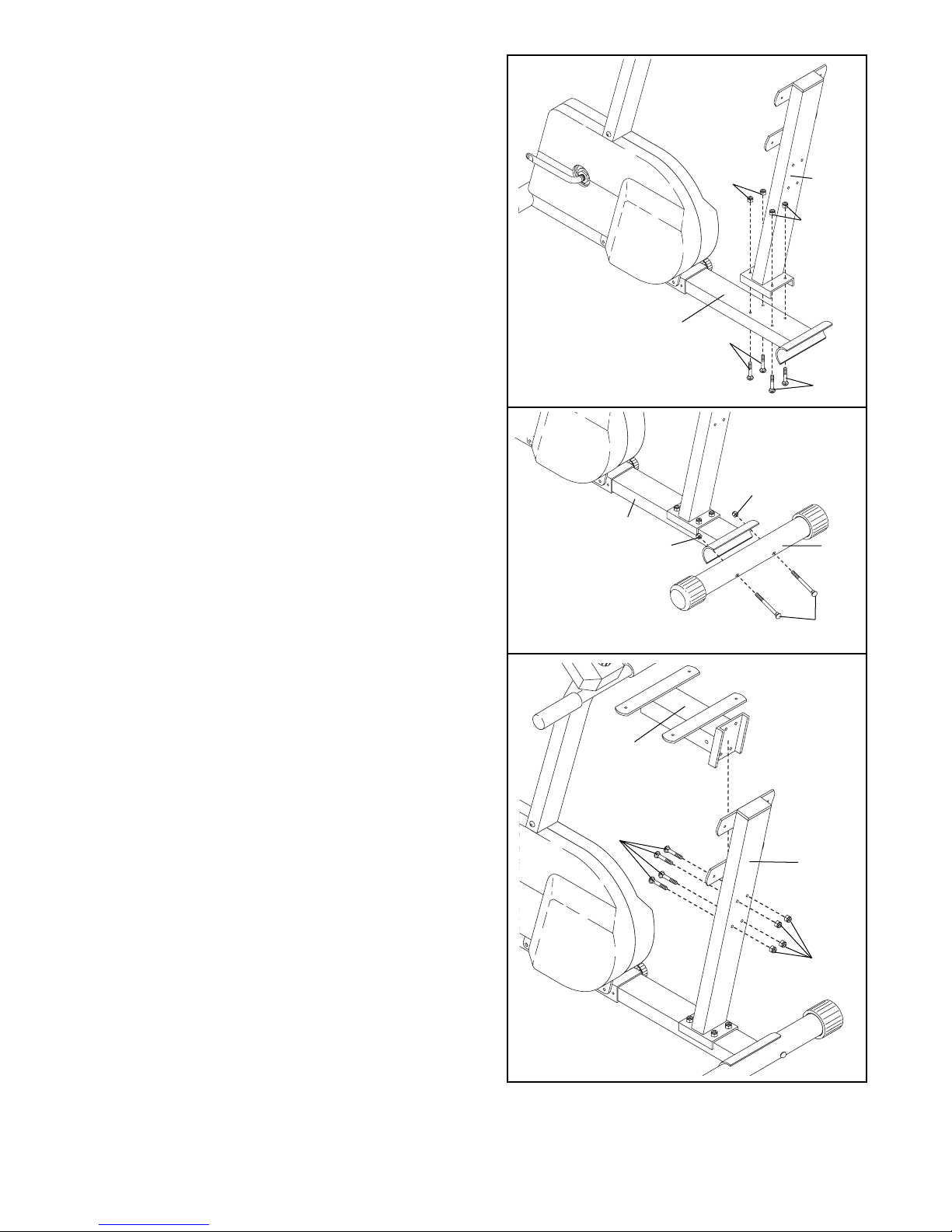

6. Attach the Stabilizer (30) to the Seat Frame (2) with
two M8 x 70mm Carriage Bolts (27) and two M8
Nylon Locknuts (55).
7. Attach the Seat Bracket (56) to the Seat Upright
(57) with four M8 x 65mm Carriage Bolts (52) and
four M8 Nylon Locknuts (55).
52
56
55
57
2
30
27
6
7
55
55
5. Attach the Seat Upright (57) to the Seat Frame (2)
with four M8 x 55mm Carriage Bolts (11) and four
M8 Nylon Locknuts (55). Note: It may be helpful to
tip the exercise cycle on its side to attach the Seat
Upright.
55
55 57
211
11
5

10. Attach the Backrest (45) to the Seat Upright (57)
with four M6 x 16mm Hex Head Screws (46).
8
45
46
57
10
12
12
25
56
26
26 25
55
9
9. Attach the Seat Handles (25) to the Seat Bracket
(56) with two M8 x 100mm Hex Head Bolts (12),
two M8 Washers (26) and two M8 Nylon Locknuts
(55).
8. Attach the Seat (44) to the Seat Bracket (56) with
four M6 x 16mm Hex Head Screws (46). 44
56
46
8

HOW TO USE THE EXERCISE CYCLE
HOW TO ADJUST THE POSITION OF THE SEAT
FRAME
The Seat Frame (2) can be adjusted to the position
that is the most comfortable for you. To adjust the
Seat Frame, first loosen the Frame Knob (29) on the
right side of the Frame. Slide the Seat Frame forward
or backward to the desired position. Tighten the
Frame Knob.
HOW TO ADJUST THE PEDAL STRAPS
To adjust each Pedal Strap (10), first pull the Pedal
Strap off the Adjustment Tab on the pedal. Align a dif-
ferent hole in the Pedal Strap with the adjustment tab.
Press the Pedal Strap onto the adjustment tab.
HOW TO ADJUST THE PEDALING RESISTANCE
The pedaling
resistance can
be adjusted
with the
Resistance
Knob (32) locat-
ed on the
Console (33).
To increase the
resistance, turn
the Resistance Knob clockwise; to decrease the resis-
tance, turn the Resistance Knob counterclockwise.
10
32
33
Adjustment Tab
29
2
7
10
39
Adjustment
Tab
11
12. Make sure that all parts are properly tightened before you use the exercise cycle.
9
11. Identify the Left Pedal (39) (there is an ÒLÓ on the
Left Pedal for identification). Using an adjustable
wrench, firmly tighten the Left Pedal counterclock-
wise into the left arm of the Crank (7). Tighten the
Right Pedal (not shown) clockwise into the right arm
of the Crank. Tighten both Pedals as firmly as
possible. Important: After using the exercise
cycle for one week, retighten the Pedals. For best
performance, the Pedals must be kept tightened.
Adjust the Left Pedal Strap (10) to the desired posi-
tion and press the Pedal Strap onto the tab on the
Left Pedal (39). Adjust the Right Pedal Strap (not
shown) in the same manner.

10
DESCRIPTION OF THE CONSOLE
The console features six modes that provide instant
exercise feedback during your workouts. The modes
are described below.
¥ SpeedÑDisplays your pedaling speed, in miles per
hour.
¥ TimeÑDisplays the elapsed time. Note: If you stop
pedaling for ten seconds or longer, the time mode
will pause until you resume.
¥ DistanceÑDisplays the total distance you have ped-
aled, in miles.
¥ Fat CaloriesÑDisplays the approximate number of
fat calories you have burned. (See BURNING FAT
on page 13.)
¥ CalorieÑDisplays the approximate number of
Calories you have burned.
¥ ScanÑDisplays the speed, time, distance, fat calo-
ries, and calorie modes, for 5 seconds each, in a
repeating cycle.
HOW TO OPERATE THE CONSOLE
1. To turn on the
power, press
the on/reset
button or simply
begin pedaling.
When the
power is turned
on, the entire
display will
appear for two
seconds. The console will then be ready for opera-
tion.
2. Select one of the six modes:
Scan modeÑWhen the power is turned on, the
scan mode will automatically be selected. One
mode arrow will show that the scan mode is select-
ed, and a flashing mode arrow will show which
mode is currently displayed. Note: If a different
mode is selected, you can select the scan mode
again by repeatedly pressing the mode button.
Speed, time,
distance, fat
calories, or
calorie modeÑ
To select one of
these modes for
continuous dis-
play, press the
mode button
repeatedly. The
mode arrows will show which mode is selected.
Make sure that the scan mode is not selected.
3. To reset the display, press the on/reset button.
4. To turn off the power, simply wait for about four
minutes. Note: The monitor has an Òauto-offÓ
feature. If the pedals are not moved and the
monitor buttons are not pressed for four min-
utes, the power will turn off automatically in
order to conserve the batteries.
Mode Indicator

11
Inspect and tighten all parts of the exercise cycle reg-
ularly. The exercise cycle can be cleaned with a soft,
damp cloth. To prevent damage to the console, keep
liquids away from the console and keep the console
out of direct sunlight.
BATTERY REPLACEMENT
If the console does not function properly, the batteries
should be replaced. See assembly step 3 on page 6.
CRANK ADJUSTMENT
If the arms of the
Crank (7) become
loose, they should
be tightened in
order to prevent
excessive wear.
Loosen the Hex
Crank Nuts (14)
on the left arm of
the Crank. Place
the tip of a stan-
dard screwdriver in one of the slots in the slotted
crank nut. Tap the screwdriver with a hammer to turn
the slotted crank nut counterclockwise until the arms
are no longer loose. Do not overtighten the slotted
crank nut. When the slotted crank nut is properly
tightened, tighten the Hex Crank Nuts.
HOW TO ADJUST THE REED SWITCH
If the console
does not dis-
play correct
feedback, the
reed switch
may need to
be adjusted.
To adjust the
reed switch,
you must first
remove the
Left Side
Shield (20).
Using an adjustable wrench, turn the Left Pedal (39)
clockwise and remove it. Next, remove the indicated
#8 x 1/4Ó Screws (22). Grasp both Side Shields and
gently pull them apart. Turn the left arm of the Crank
(7) to the position shown, and then carefully slide the
Left Side Shield forward and remove it.
With the left side shield removed, locate the Reed
Switch (42). Turn the Crank (7) until the Magnet (51)
is aligned with the Reed Switch. Loosen but do not
remove the #8 x 1/2Ó Screw (43). Slide the Reed
Switch slightly closer to or away from the Magnet.
Retighten the Screw. Turn the Crank for a moment.
Repeat until the console displays correct feedback.
When the Reed Switch is correctly adjusted, reattach
the left side shield and the left pedal.
HOW TO ADJUST THE RESISTANCE BELT
If there is not
enough pedaling
resistance when
the resistance
knob is turned to
the highest set-
ting, the Resis-
tance Belt (49)
may need to be
adjusted. To adjust
the Resistance
Belt, the left side shield must first be removed. Refer
to the instructions at the left and remove the left side
shield.
Next, turn the resistance knob to the lowest setting.
Locate and open the Belt Clamp (65). Grip the end of
the Resistance Belt (49) and pull it up to remove any
slack. While holding the end of the Resistance Belt,
fully close the Belt Clamp. Turn the Crank (7) for a
moment to make sure that there is not too much
resistance. When the Resistance Strap is properly
adjusted, reattach the left side shield and pedal.
14
Slotted
Crank Nut
7
42
51 43
7
22
20
39 7
View from the Front
MAINTENANCE
49
65
7

12
The following guidelines will help you to plan your
exercise program.
EXERCISE INTENSITY
To maximize the benefits of exercising, it is important
to exercise with the proper intensity. The proper inten-
sity level can be found by using your heart rate as a
guide. For effective aerobic exercise, your heart rate
should be maintained at a level between 70% and
85% of your maximum heart rate as you exercise.
This is known as your training zone. You can find
your training zone in the table below. Training zones
are listed according to age and physical condition.
During the first few months of your exercise program,
keep your heart rate near the low end of your training
zone as you exercise. After a few months of regular
exercise, your heart rate can be increased gradually
until it is near the middle of your training zone as you
exercise.
Burning Fat
To burn fat effectively, you must exercise at a relative-
ly low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible carbohydrate calories for ener-
gy. Only after the first few minutes of exercise does
your body begin to use stored fat calories for energy. If
your goal is to burn fat, adjust the intensity of your
exercise until your heart rate is near the low end of
your training zone as you exercise.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys-
tem, your exercise must be Òaerobic.Ó Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time. This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust the intensity of your exercise until your heart
rate is near the high end of your training zone.

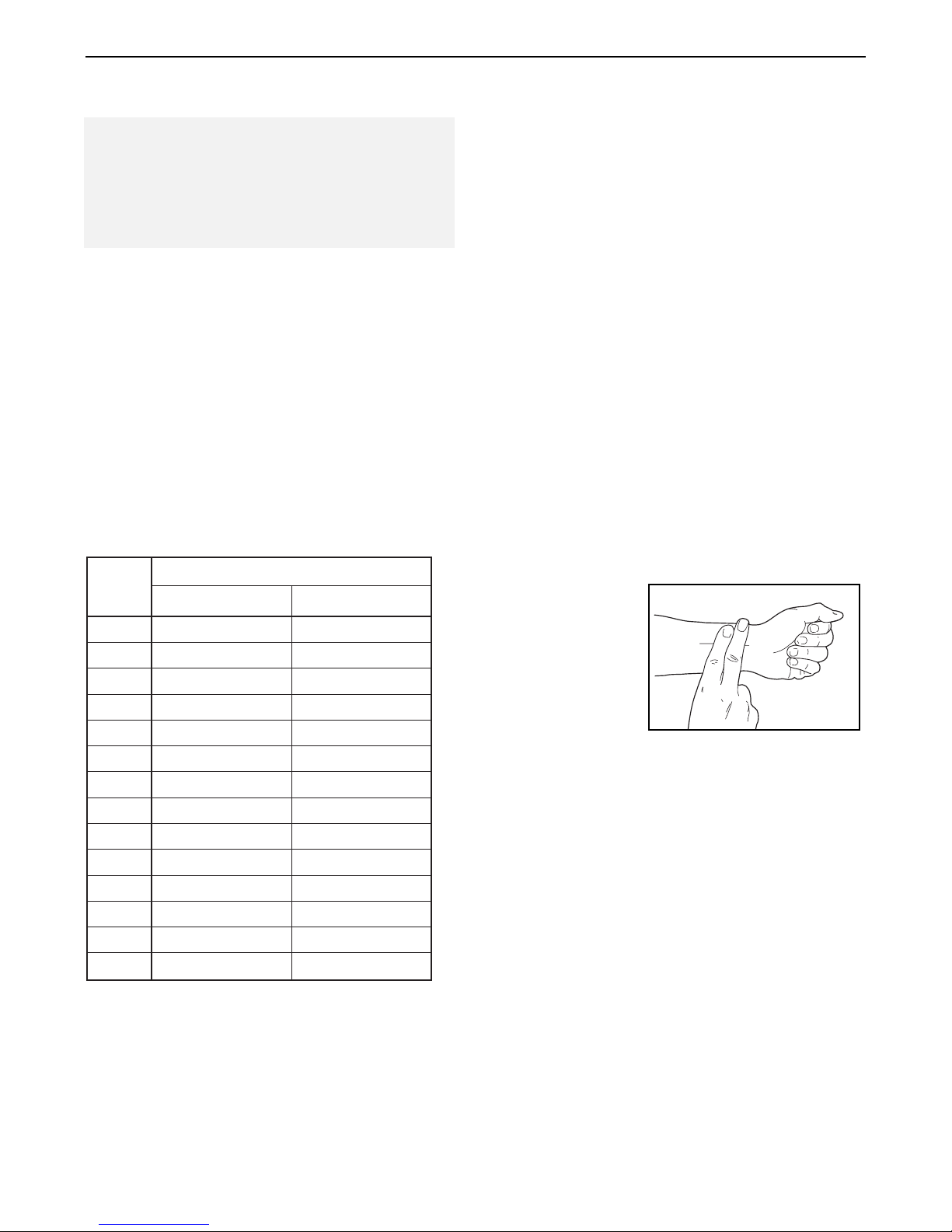

HOW TO MEASURE YOUR HEART RATE
To measure your
heart rate, place
two fingers on
your wrist as
shown. Stop exer-
cising and take a
six-second heart-
beat count.
Multiply the result
by ten to find your
heart rate. (A six-second count is used because your
heart rate drops quickly when you stop exercising.) If
your heart rate is too high or low, adjust the intensity
of your exercise.
WORKOUT GUIDELINES
Each workout should include three important parts:
A Warm-upÑBegin each workout with 5 to 10 min-
utes of stretching and light exercise. A proper warm-up
increases your body temperature, heart rate and circu-
lation in preparation for exercise.
Training zone exerciseÑAfter warming up, increase
the intensity of your exercise until your heart rate is in
your training zone for 20 to 30 minutes. NOTE: During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.
CONDITIONING GUIDELINES
TRAINING ZONE (BEATS/MIN.)
20
25
30
35
40
45
50
55
60
65
70
75
80
85
AGE CONDITIONEDUNCONDITIONED
133Ð162
132Ð160
130Ð158
129Ð156
127Ð155
125Ð153
124Ð150
122Ð149
121Ð147
119Ð145
118Ð144
117Ð142
115Ð140
114Ð139
138Ð167
136Ð166
135Ð164
134Ð162
132Ð161
131Ð159
129Ð156
127Ð155
126Ð153
125Ð151
123Ð150
122Ð147
120Ð146
118Ð144
WARNING: Before beginning this or any
exercise program, consult your physician.
This is especially important for individuals
over the age of 35 or individuals with pre-
existing health problems.

13
A Cool-downÑFinish each workout with 5 to 10 min-
utes of stretching. This will increase your flexibility and
will help to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, plan three work-
outs each week, with at least one day of rest between
workouts. After a few months of regular exercise, you
may complete up to five workouts each week if
desired.
Remember, the key to success is make exercise a
regular and enjoyable part of your everyday life.
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the
right. Move slowly as you stretchÑnever bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward
from your hips. Allow your back and shoulders to relax as you
reach down toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Hamstrings,
back of knees and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot
toward you and rest it against the inner thigh of your extended
leg. Reach toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times for each leg. Stretches:
Hamstrings, lower back and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place
your hands against a wall. Keep your back leg straight and
your back foot flat on the floor. Bend your front leg, lean for-
ward and move your hips toward the wall. Hold for 15 counts,
then relax. Repeat 3 times for each leg. To cause further
stretching of the achilles tendons, bend your back leg as well.
Stretches: Calves, achilles tendons and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and
grasp one foot with your other hand. Bring your heel as close
to your buttocks as possible. Hold for 15 counts, then relax.
Repeat 3 times for each leg. Stretches: Quadriceps and hip
muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees out-
ward. Pull your feet toward your groin area as far as possible.
Hold for 15 counts, then relax. Repeat 3 times. Stretches:
Quadriceps and hip muscles.
1
2
3
4
5

14

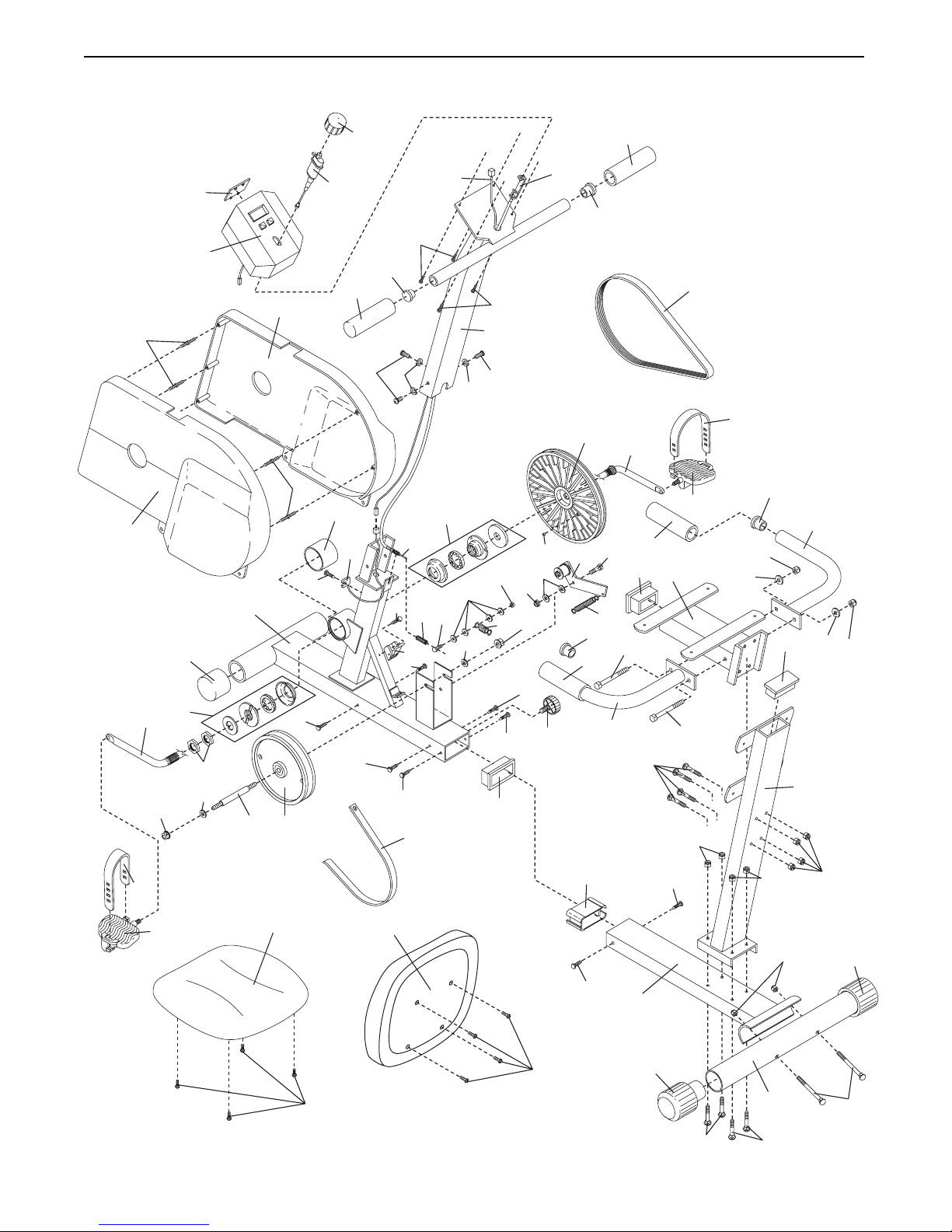

PART LISTÑModel No. WLEX27182 R0200A
Note: Ò#Ó refers to a non-illustrated part. Specifications are subject to change without notice. See the back cover
of this manual for information about ordering replacement parts.
1 1 Frame
2 1 Seat Frame
3 1 Handlebar Post
4 1 Tension Spring
5 1 Cable Clamp Bolt
6 1 Drive Belt
7 1 Crank
8 1 12Ó Pulley
9 2 Bearing Assembly
10 1 Left Pedal Strap
11 4 M8 x 55mm Carriage Bolt
12 2 M8 x 100mm Hex Head Bolt
13 4 Handle Endcap
14 2 Hex Crank Nut
15 1 Flywheel Assembly
16 1 Flywheel Axle
17 2 Idler Arm Washer
18 2 5/16Ó Nylon Jam Nut
19 1 Idler Arm Bolt
20 1 Left Side Shield
21 1 Right Side Shield
22 4 #8 x 1/4Ó Screw
23 6 Tree Fastener
24 2 Wheel Assembly
25 2 Seat Handle
26 2 M8 Washer
27 2 M8 x 70mm Carriage Bolt
28 4 Foam Grip
29 1 Frame Knob
30 1 Stabilizer
31 1 Resistance Control
32 1 Resistance Knob
33 1 Console
34 2 Stabilizer Endcap
35 1 Seat Frame Bushing
36 1 Frame Bushing
37 4 #8 x 1/2Ó Black Screw
38 1 Right Pedal w/Strap
39 1 Left Pedal w/Strap
40 4 Cable Clamp Washer
41 1 Resistance Spring
42 1 Reed Switch w/Wire
43 5 #8 x 1/2Ó Screw
44 1 Seat
45 1 Backrest
46 8 M6 x 16mm Hex Head Screw
47 2 2Ó x 3Ó Endcap
48 1 Cable Clamp Nut
49 1 Resistance Belt
50 1 Idler Arm Assembly
51 1 Magnet
52 4 M8 x 65mm Carriage Bolt
53 3 M8 x 15mm Button Screw
54 3 M8 x 19mm Washer
55 12 M8 Nylon Locknut
56 1 Seat Bracket
57 1 Seat Upright
58 1 Right Pedal Strap
59 1 Battery Cover
60 2 M10 Washer
61 1 Resistance Control Cable
62 1 Reed Switch Wire Extension
63 1 Idler Arm Spring
64 1 Idler Arm Nut
65 1 Belt Clamp
66 1 Belt Clamp Screw
# 1 UserÕs Manual
# 2 Assembly Tool
Key No. Qty. Description Key No. Qty. Description

EXPLODED DRAWINGÑModel No. WLEX27182 R0200A
15
19
13
28
28
47 56
6
33
32 28
53 54 53
54
58
10
21
20
23
23
3
34
34
1
43
42
9
7
39
14
922
18 16 15
22
37
22
18
22
37
36
29
51
41
87
38
47
52
55
55
55
37
35
37
46
46
2
11
57
44 45
27
24
24
11
55
55
55
12
12
25
25
26
26
30
13
62
31
17
28
61
43
43
48
40
5
4
50
49
13
13
59
60
60
31
63
64
65
66

Part No. 163623 R0200A Printed in Taiwan © 2000 ICON Health & Fitness, Inc.
WESLO¨is a registered trademark of ICON Health & Fitness, Inc.
ORDERING REPLACEMENT PARTS
To order replacement parts, call our Customer Service Department toll-free at 1-800-999-3756, Monday through
Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be prepared to give
the following information:
¥ The MODEL NUMBER of the product (WLEX27182).
¥ The NAME of the product (WESLO¨PURSUIT 675s).
¥ The SERIAL NUMBER of the product (see the front cover of this manual).
¥ The KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST on page 14 of this manual).
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of pur-
chase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is lim-
ited to replacing or repairing, at ICON's option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be pre-authorized by ICON. This warranty does not
extend to any product or damage to a product caused by or attributable to freight damage, abuse, mis-
use, improper or abnormal usage or repairs not provided by an ICON authorized service center, products
used for commercial or rental purposes, or products used as store display models. No other warranty
beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con-
nection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of inci-
dental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
