Weslo Pursuit R 2.2 Bike User manual

USER’S MANUAL
Serial Number
Decal
www.weslo.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Model No. WLEX81312.0
Serial No.
Write the serial number in the space
above for reference.
QUESTIONS?
If you have questions, or if parts
are damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-866-699-3756
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.wesloservice.com

2

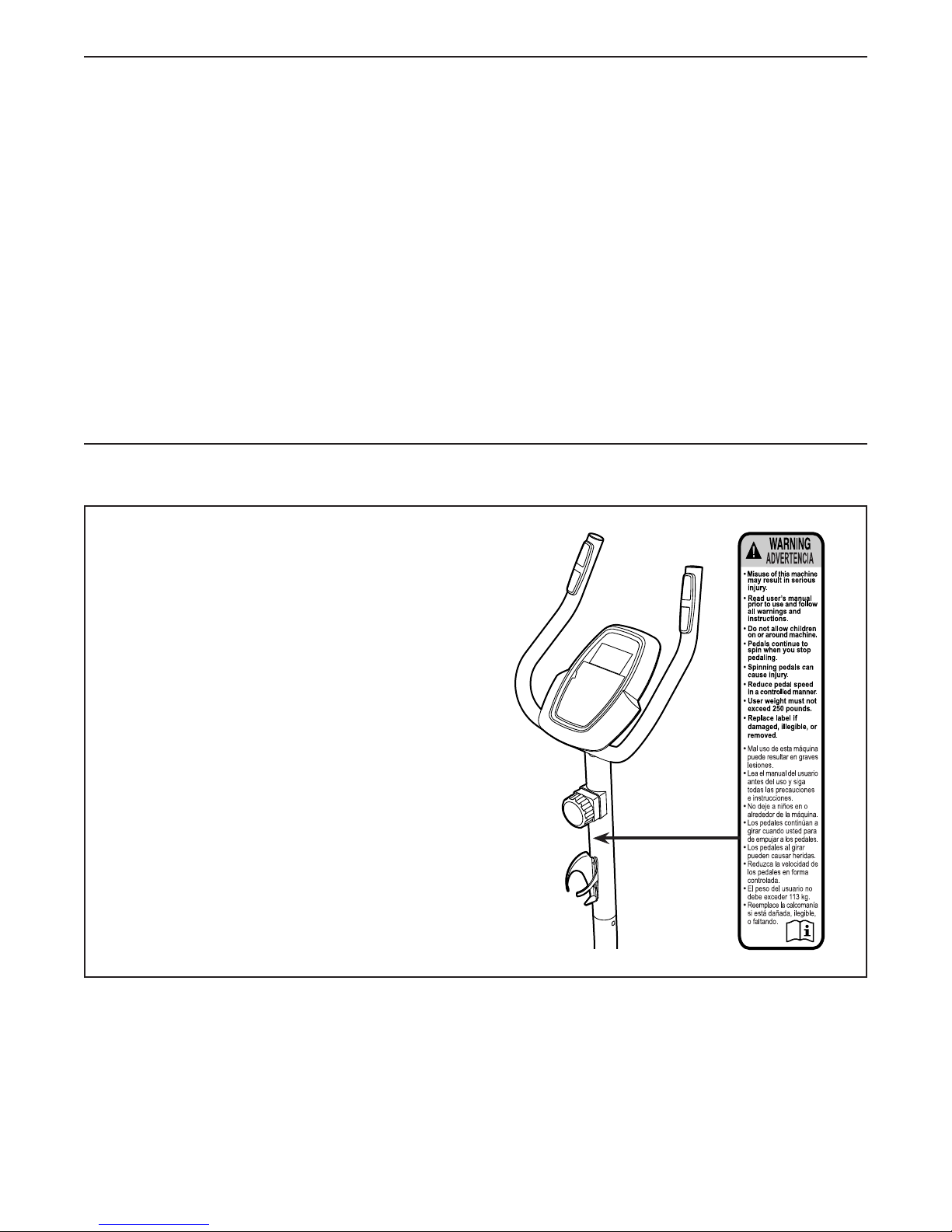

WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
HOW TO USE THE EXERCISE BIKE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
MAINTENANCE AND TROUBLESHOOTING ....................................................15
FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
EXERCISE GUIDELINES ....................................................................17
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
ORDERING REPLACEMENT PARTS .................................................. Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
WESLO is a registered trademark of ICON IP, Inc.

3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your exercise bike before using your exercise bike.
ICON assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. It is the responsibility of the owner to ensure
that all users of the exercise bike are ade-
quately informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
3. Use the exercise bike only as described in
this manual.
4. The exercise bike is intended for home use
only. Do not use the exercise bike in a com-
mercial, rental, or institutional setting.
5. Keep the exercise bike indoors, away from
moisture and dust. Do not put the exercise
bike in a garage or covered patio, or near
water.
6. Place the exercise bike on a level surface,
with a mat beneath it to protect the floor or
carpet. Make sure that there is at least 2 ft.
(0.6 m) of clearance around the exercise bike.
7. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
8. Keep children under age 12 and pets away
from the exercise bike at all times.
9. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the exercise bike. Always wear
athletic shoes for foot protection.
10. The exercise bike should not be used by
persons weighing more than 250 lbs.
(113 kg).
11. Be careful when mounting and dismounting
the exercise bike.
12. Always keep your back straight while using
the exercise bike; do not arch your back.
13. The heart rate monitor is not a medical
device. Various factors may affect the accu-
racy of heart rate readings. The heart rate
monitor is intended only as an exercise aid
in determining heart rate trends in general.
14. The exercise bike does not have a freewheel;
the pedals will continue to move until the
flywheel stops. Reduce your pedaling speed
in a controlled way.
15. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.

4
Thank you for selecting the new WESLO®PURSUIT R
2.2 exercise bike. Cycling is an effective exercise for
increasing cardiovascular fitness, building endurance,
and toning the body. The PURSUIT R 2.2 exercise bike
provides a selection of features designed to make your
workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the exercise bike. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.

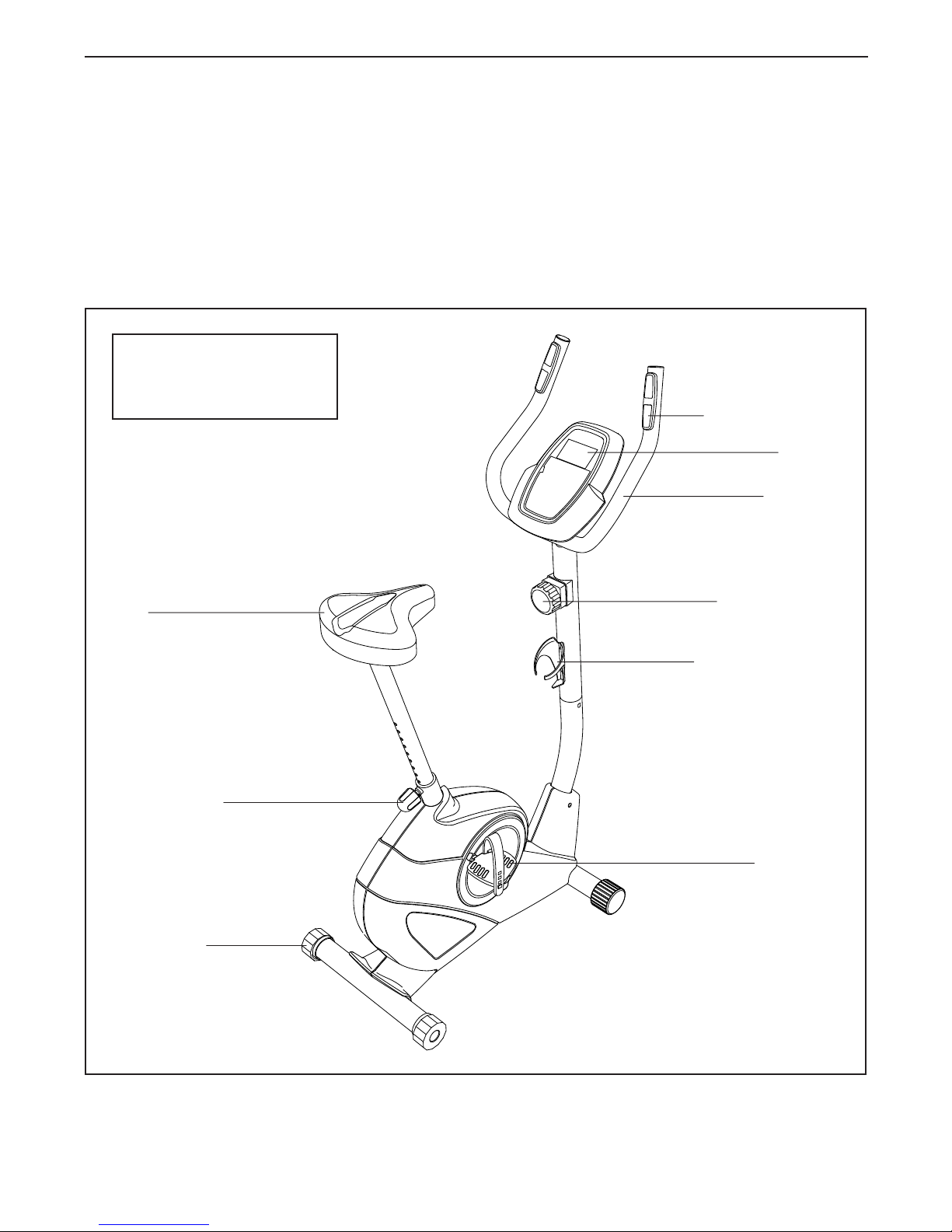

Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Resistance Knob
Water Bottle Holder*
Seat
Seat Post Knob
Pedal/Strap
Leveling Cap
Console
Heart Rate Monitor
Handlebar
BEFORE YOU BEGIN
*Water bottle is not included
Length: 2 ft. 9 in. (84 cm)
Width: 1 ft. 8 in. (51 cm)
Weight: 52 lbs. (24 kg)

5
M8 Split
Washer (50)–3
M8 Locknut
(10)–6
M4 x 15mm
Screw (48)–6
M8 x 15mm
Screw (34)–3
M10 x 70mm Screw (33)–2
M8 x 60mm Screw (30)–4 M8 x 65mm Bolt (49)–2
PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.

6
• To hire an authorized service technician to
assemble this product, call 1-800-445-2480.
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materialsuntilyounishallassemblysteps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 5.
• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one adjustable wrench
one pair of pliers
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
ASSEMBLY

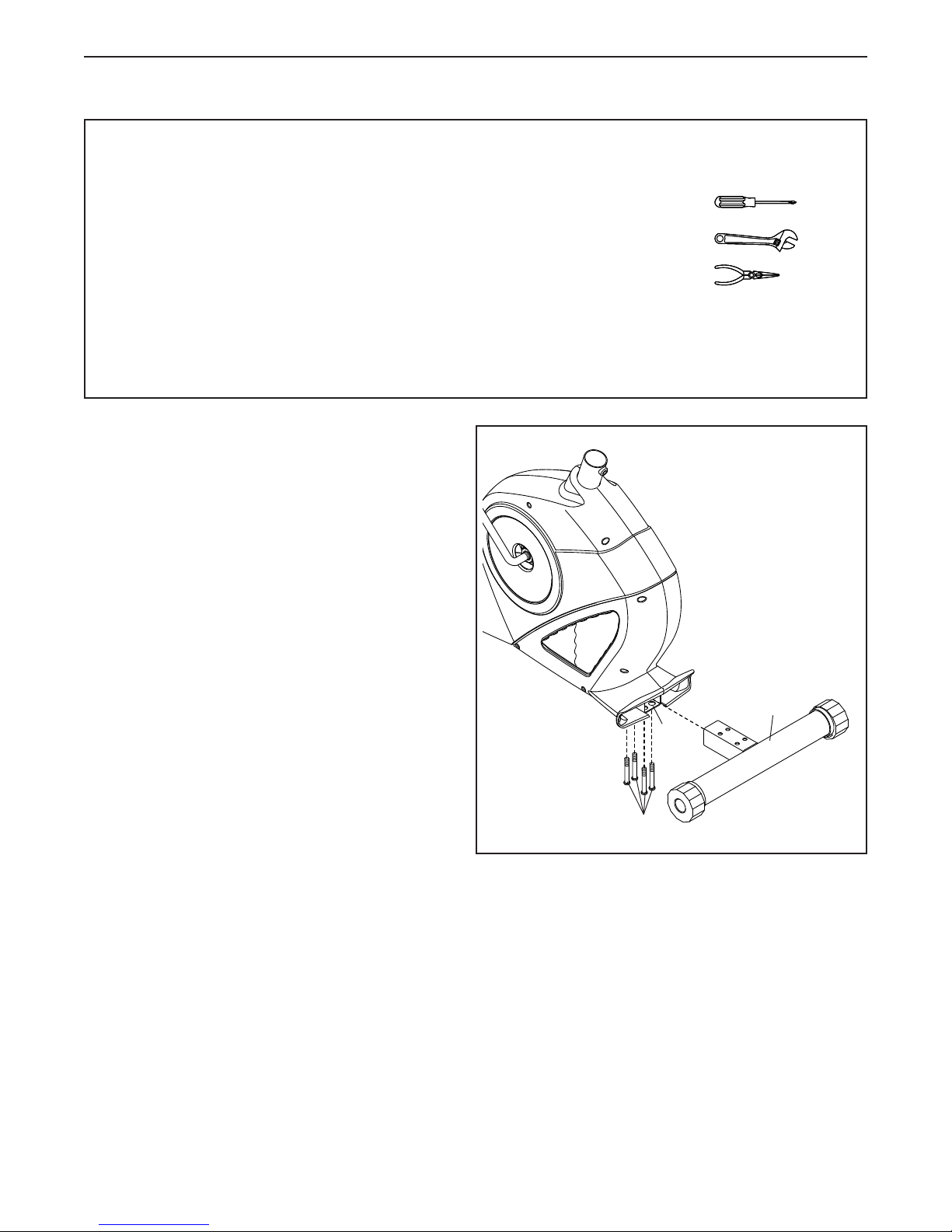

1. Insert the Rear Stabilizer (6) into the Frame (1).
Attach the Rear Stabilizer with four M8 x 60mm
Screws (30).
6
30
1
1

7
2. Remove the screw (not shown) and the card-
board tube (not shown) from the Frame (1) if
necessary. Discard the screw and the cardboard
tube.
Orient the Front Stabilizer (2) so that the large
holes face the Frame (1).
Attach the Front Stabilizer (2) to the Frame (1)
with two M10 x 70mm Screws (33).
1
2
33 2
Large
Holes
3
3. While a second person holds the Upright (13)
near the Frame (1), connect the Extension Wire
(23) to the Reed Switch Wire (39).
Next, connect the Resistance Cable (19) to the
Lower Resistance Cable (29) in the following
way:
 •See drawing A. Pull upward on the metal
bracket on the Lower Resistance Cable (29),
and insert the tip of the Resistance Cable (19)
into the wire clip inside the metal bracket.
 •See drawing B. Firmly pull the Resistance
Cable (19) upward and slide it into the top of
the metal bracket.
 •See drawing C. Using pliers, squeeze the
prongs on the upper end of the metal bracket
together.
Insert the wires and cables into the Frame (1).
Tip: Avoid pinching the wires and cables.
Insert the Upright (13) into the Frame (1).
Attach the Upright (13) with three M8 x 15mm
Screws (34) and three M8 Split Washers (50).
Avoid pinching the
wires and cables
39
19
29
34 50 50
23
13
1
34
ABC
29
19
19
Metal
Bracket

8
4
4. Have a second person hold the Handlebar (42)
near the Upright (13). Insert the Pulse Wires (A)
into the Upright and pull them out of the top of
the Upright.
Avoid pinching the wires. Attach the Handlebar
(42) to the Upright (13) with two M8 x 65mm
Bolts (49) and two M8 Locknuts (10).
Attach the Water Bottle Holder (3) to the Upright
(13) with two M4 x 15mm Screws (48).
3
13 A
49
10
48
42
16
Battery
Cover
5
5. The Console (16) can use four AA batteries (not
included); alkaline batteries are recommended.
Do not use old and new batteries together or
alkaline, standard, and rechargeable batter-
ies together. IMPORTANT: If the Console has
been exposed to cold temperatures, allow it
to warm to room temperature before insert-
ing batteries. Otherwise, you may damage
the console displays or other electronic
components.
Remove the battery cover from the back of the
Console (16), and insert batteries into the battery
compartment. Make sure to orient the bat-
teries as shown by the diagram inside the
battery compartment. Then, reattach the bat-
tery cover.
Avoid pinching
the wires

9
6
6. While a second person holds the Console (16)
near the Upright (13), connect the wires on the
Console to the Extension Wire (23), to the Pulse
Wires (A), and to the Ground Wire (46).
Insert the excess wire into the Upright (13) or
into the Console (16).
Tip: Avoid pinching the wires. Attach the
Console (16) to the Upright (13) with four M4 x
15mm Screws (48).
48
16
13
46
A
23
Avoid pinching
the wires
7
7. Attach the Seat (12) to the Seat Post (5) with
four M8 Locknuts (10). Note: The Locknuts
may be preattached to the underside of the
Seat.
5
10
12

10
8. Loosen and remove the Seat Post Knob (9) from
the Frame (1).
Next, insert the Seat Post (5) into the Frame
(1). Adjust the Seat Post to the desired height,
and insert the Seat Post Knob (9) through the
indicated hole in the Frame into one of the
adjustment holes in the Seat Post.
Tighten the Seat Post Knob (9). Make sure that
the Seat Post Knob is inserted into one of the
adjustment holes in the Seat Post (5). 5
1
9
Hole
Adjustment
Holes
8
9. Identify the Left Pedal (24).
Using an adjustable wrench, firmly tighten the
Left Pedal (24) counterclockwise into the left
arm of the Crank (21).
Tighten the Right Pedal (not shown) clockwise
into the right arm of the Crank (not shown).
Adjust the strap on the Left Pedal (24) to the
desired position, and press the end of the strap
onto the tab on the side of the Left Pedal. Adjust
the strap on the Right Pedal (not shown) in
the same way.
9
24
Strap
Tab
21
10. After the exercise bike is assembled, inspect it to make sure that it is assembled correctly and that it
functions properly. Make sure that all parts are properly tightened before you use the exercise bike.
Note: Extra parts may be included. Place a mat beneath the exercise bike to protect the floor.

11
HOW TO USE THE EXERCISE BIKE
HOW TO ADJUST THE SEAT POST
For effective exercise, the seat should be at the proper
height. As you pedal, there should be a slight bend in
your knees when the pedals are in the lowest position.
To adjust the height
of the seat, first
loosen and remove
the seat post knob.
Next, slide the seat
post upward or
downward and align
one of the adjust-
ment holes in the
seat post with the
indicated hole in the
frame. Insert the
seat post knob into
the frame and the
seat post, and then
tighten the seat post
knob. Make sure
that the seat post
knob is inserted into one of the adjustment holes
in the seat post.
HOW TO ADJUST THE PEDALING RESISTANCE
To increase the
resistance of
the pedals, turn
the resistance
knob clockwise;
to decrease the
resistance, turn the
knob counterclock-
wise. IMPORTANT:
Stop turning the
knob when turning
becomes difficult,
or damage may
result.
HOW TO LEVEL THE EXERCISE BIKE
If the exercise bike
rocks on your floor
during use, turn
one or both of the
leveling caps until
the rocking motion is
eliminated.
Knob
Leveling
Caps
Hole
Knob

12

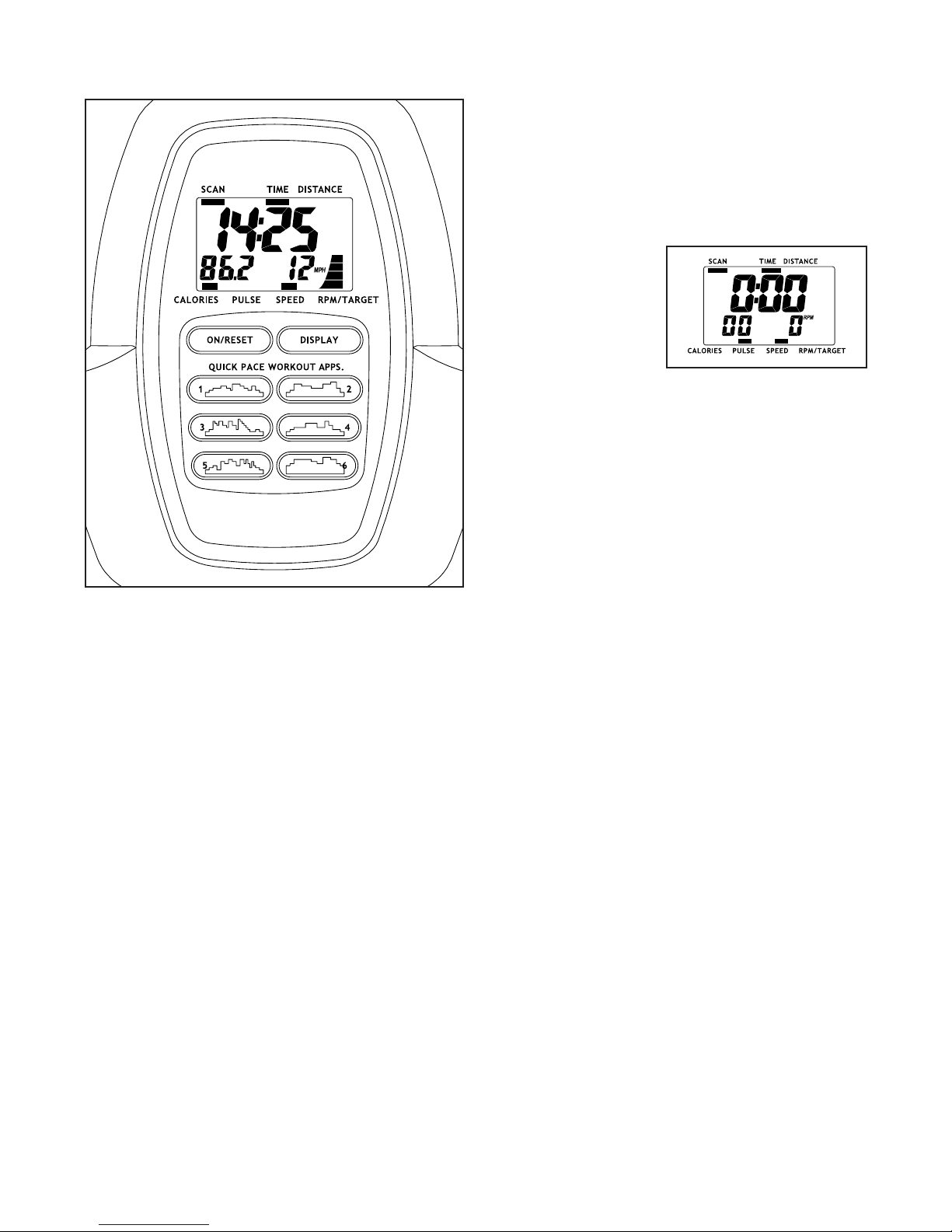

CONSOLE DIAGRAM
FEATURES OF THE CONSOLE
The console offers a selection of features designed to
make your workouts more effective.
When you use the manual mode of the console, the
console will provide continuous exercise feedback. You
can even measure your heart rate using the handgrip
heart rate monitor.
The console also offers six quick pace workouts that
prompt you to vary your pedaling speed while guiding
you through an effective workout.
Before using the console, make sure that batteries are
installed (see assembly step 5 on page 8). If there
is a sheet of plastic on the display, remove the plastic.
To use the manual mode, see the instructions at the
right. To use a quick pace workout, see page 14.
HOW TO USE THE MANUAL MODE
1. Turn on the console.
To turn on the console, press the On/Reset button
or begin pedaling. The entire display will turn on for
a moment; the console will then be ready for use.
2. Select the manual mode.
When you turn
on the console,
the manual
mode will be
selected. If you
have selected a
workout, reselect
the manual mode
by pressing any of the Quick Pace Workout Apps
buttons repeatedly until zeros appear in the display.
3. Follow your progress with the display.
The console has several displays that show the
following workout information:
Speed—This display shows your pedaling speed in
revolutions per minute (rpm).
Time—This display shows the elapsed time.
Note: When a workout is selected, the display
shows the time remaining in the workout instead of
the elapsed time.
Distance—This display shows the distance you
have pedaled in total revolutions.
Calories—This display shows the approximate
number of calories you have burned.
Pulse—This display shows your heart rate when
you use the handgrip heart rate monitor.
Scan—When you select this display option, the
upper section of the display will show both time and
distance information, and the lower left section of
the display will show calories information.
Washo
EBWL31512
WLEX81312.0
Washo
EBWL31512
WLEX81312.0

13
When you turn
on the console,
the scan display
will be selected
automatically.
An indicator will
appear below
the word SCAN
to show that the
scan display is
selected.
As you exercise,
the upper sec-
tion of the display
will alternately
show the elapsed
time and the
distance that you
have pedaled;
the lower left section of the display will show the
number of calories you have burned. The lower
right section of the display will show your pedaling
speed.
In addition, the
RPM meter on
the right side
of the display
will provide a
visual represen-
tation of your
pedaling speed.
As you increase
or decrease your
speed, bars will
appear or disappear in the RPM meter.
To cancel the scan mode, press the Display button.
The indicator below the word SCAN will disappear.
The upper section of the display will then show only
the elapsed time. If you press the Display button
again, the upper section of the display will show
only the distance pedaled. To select the scan mode
again, press the Display button repeatedly until an
indicator appears below the word SCAN.
To reset the display, press the On/Reset button.
To pause the console, stop pedaling. When the
console is paused, the time will flash in the display.
To continue your workout, simply resume pedaling.
4. Measure your heart rate if desired.
Note: If there are
sheets of plastic on
the metal contacts
of the handgrip
heart rate monitor,
remove the plastic.
To measure your heart
rate, hold the handgrip
heart rate monitor, with
your palms resting
against the contacts.
Avoid moving your hands or gripping the con-
tacts tightly.
When your pulse is detected, the heart-shaped
indicator in the display will flash each time your
heart beats and two dashes will appear. After
a moment, your heart rate will be shown in the
display.
For the most accurate heart rate reading, con-
tinue to hold the contacts for about 15 seconds.
Note: If you continue to hold the handgrip heart
rate monitor, the display will show your heart rate
for up to 30 seconds. The display will then show
your heart rate along with the other modes.
If your heart rate is not shown, make sure that your
hands are positioned as described. Be careful not
to move your hand excessively or to squeeze the
contacts tightly. For optimal performance, clean
the contacts using a soft cloth; never use alcohol,
abrasives, or chemicals to clean the contacts.
5. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for a few seconds, the
time will flash in the display and the console will
pause.
If the pedals do not move for a few minutes, the
console will turn off and the display will be reset.
Washo
EBWL31512
WLEX81312.0
Washo
EBWL31512
WLEX81312.0
Washo
EBWL31512
WLEX81312.0
Indicator
RPM Meter
Contacts

14
HOW TO USE A QUICK PACE WORKOUT
1. Turn on the console.
To turn on the console, press the On/Reset button
or begin pedaling. The entire display will turn on for
a moment; the console will then be ready for use.
2. Select a quick pace workout.
To select a quick
pace workout,
press the desired
Quick Pace
Workout Apps
button. The name
of the workout
will appear in the
display.
A few seconds after you select a quick pace
workout, the display will show the duration of the
workout.
3. Begin pedaling to start the workout.
The quick pace workouts consist of several one-
minute segments. One target speed (rpm) is
programmed for each segment.
The target speed settings for the workout will be
shown by the target meter in the display. The RPM
meter will show your actual pedaling speed.
As the target
meter changes in
height during the
workout, adjust
your pedaling
speed so that the
same number of
bars appears in
both meters.
If your pedaling speed is slower than the cur-
rent target speed, an arrow will appear next to the
RPM meter to prompt you to increase your speed;
if your pedaling speed is faster than the target
speed, an arrow will prompt you to decrease your
speed.
IMPORTANT: The target speed settings for the
workout are intended only to provide a goal.
Your actual pedaling speed may be slower than
the target speed settings, especially during
the first few months of your exercise workout.
Make sure to pedal at a speed that is comfort-
able for you.
The display will show the time remaining in the
workout. If you stop pedaling for a few seconds,
the workout will pause and the time will flash in
the display. To resume the workout, simply resume
pedaling.
4. Follow your progress with the display.
See step 3 on page 12.
5. Measure your heart rate if desired.
See step 4 on page 13.
6. When you are finished exercising, the console
will turn off automatically.
See step 5 on page 13.
Washo
EBWL31512
WLEX81312.0
Washo
EBWL31512
WLEX81312.0
Target Meter
RPM Meter

15
Inspect and tighten all parts of the exercise bike regu-
larly. Replace any worn parts immediately.
To clean the exercise bike, use a damp cloth and a
small amount of mild detergent. IMPORTANT: To
avoid damage to the console, keep liquids away
from the console and keep the console out of
direct sunlight.
CONSOLE TROUBLESHOOTING
If the console display becomes dim, replace the bat-
teries; most console problems are the result of low
batteries. To replace the batteries, see assembly step 5
on page 8.
If the console does not display your heart rate when
you hold the handgrip heart rate monitor, or if the dis-
played heart rate appears to be too high or too low, see
step 4 on page 13.

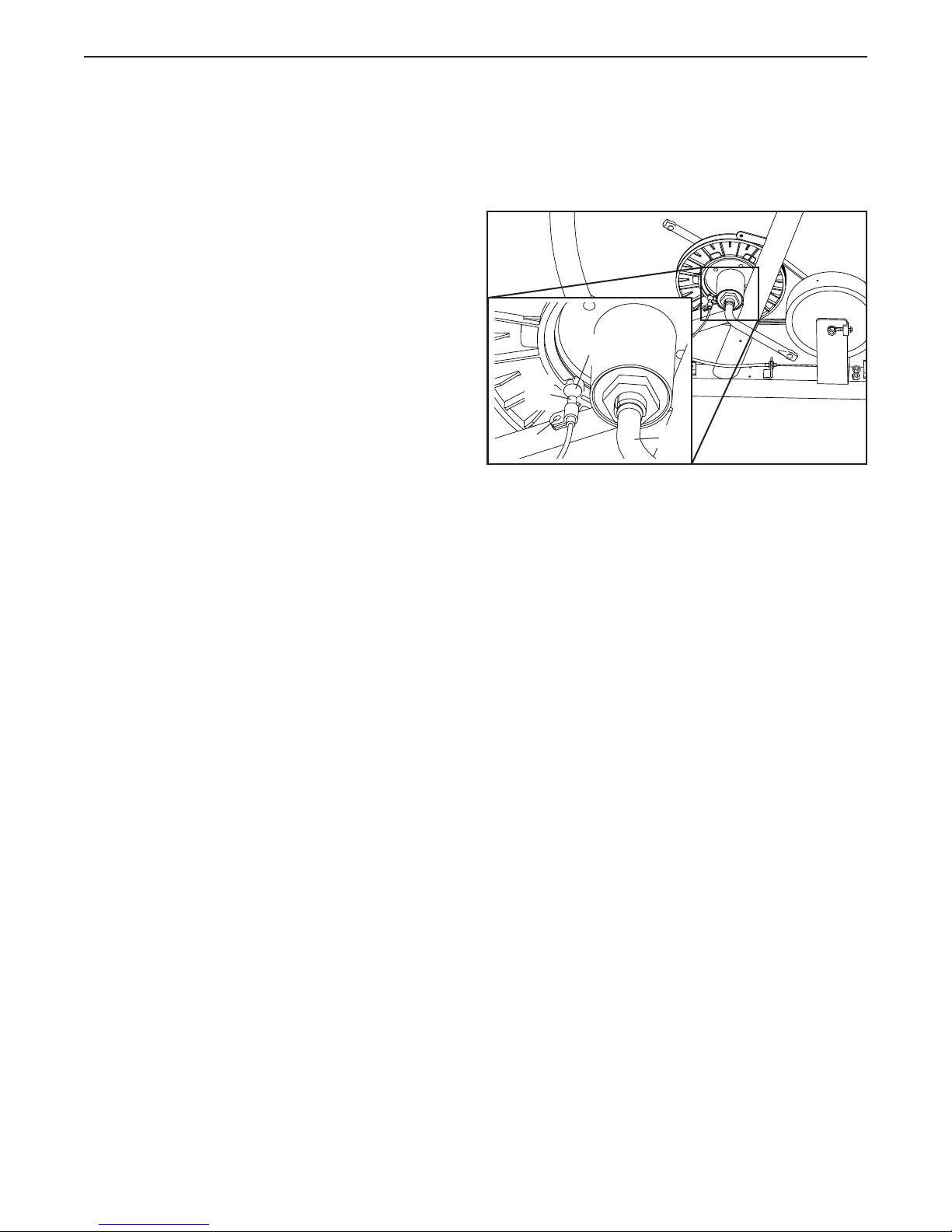

HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, the left pedal and the left shield must be
removed.
Using an adjustable wrench, turn the left pedal clock-
wise and remove it. Next, remove all of the screws
from both shields; there are two sizes of screws in
the shields—note which size of screw you remove
from each hole. Then, carefully remove the left shield.
Next, turn the resistance knob to the lowest setting.
Locate the Reed Switch (39). Turn the Crank (21) until
a Magnet (38) is aligned with the Reed Switch. Loosen,
but do not remove, the #8 x 16mm Screw (41).
Next, slide the Reed Switch (39) slightly closer to or
away from the Magnet (38), and then retighten the #8
x 16mm Screw (41). Turn the Crank (21) for a moment.
Repeat these actions until the console displays correct
feedback.
When the reed switch is correctly adjusted, reattach
the shields and the left pedal.
MAINTENANCE AND TROUBLESHOOTING
21
41
39
38

16
HOW TO ADJUST THE DRIVE BELT
If you can feel the pedals slip while you are pedaling,
even when the resistance is at the highest level, the
drive belt may need to be adjusted. To adjust the drive
belt, the pedals and the shields must be removed.
Use an adjustable wrench to remove the pedals.
To remove the left pedal, turn the left pedal clock-
wise; to remove the right pedal, turn the right pedal
counterclockwise.
Next, remove all of the screws from both shields; there
are two sizes of screws in the shields—note which
size of screw you remove from each hole. Then,
carefully remove the shields.
Next, loosen the 3/8" Nut (27) and the Flywheel Nut
(43) on each side of the Flywheel (37). Then, tighten
the M6 Locknuts (32) on each side of the Flywheel until
the Drive Belt (35) is properly tightened. Finally, tighten the 3/8" Nut (27) and the Flywheel Nut
(43), and reattach the shields and the pedals.
35 37
43
32
27
FCC INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, try to correct the interference by one or more of the following measures:
• Reorientorrelocatethereceivingantenna.
• Increasetheseparationbetweentheequipmentandthereceiver.
• Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.
• Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
FCC CAUTION: To assure continued compliance, use only shielded interface cables when connecting to
computer or peripheral devices. Changes or modifications not expressly approved by the party respon-
sible for compliance could void the user’s authority to operate this equipment.

17
EXERCISE GUIDELINES
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper inten-
sity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.

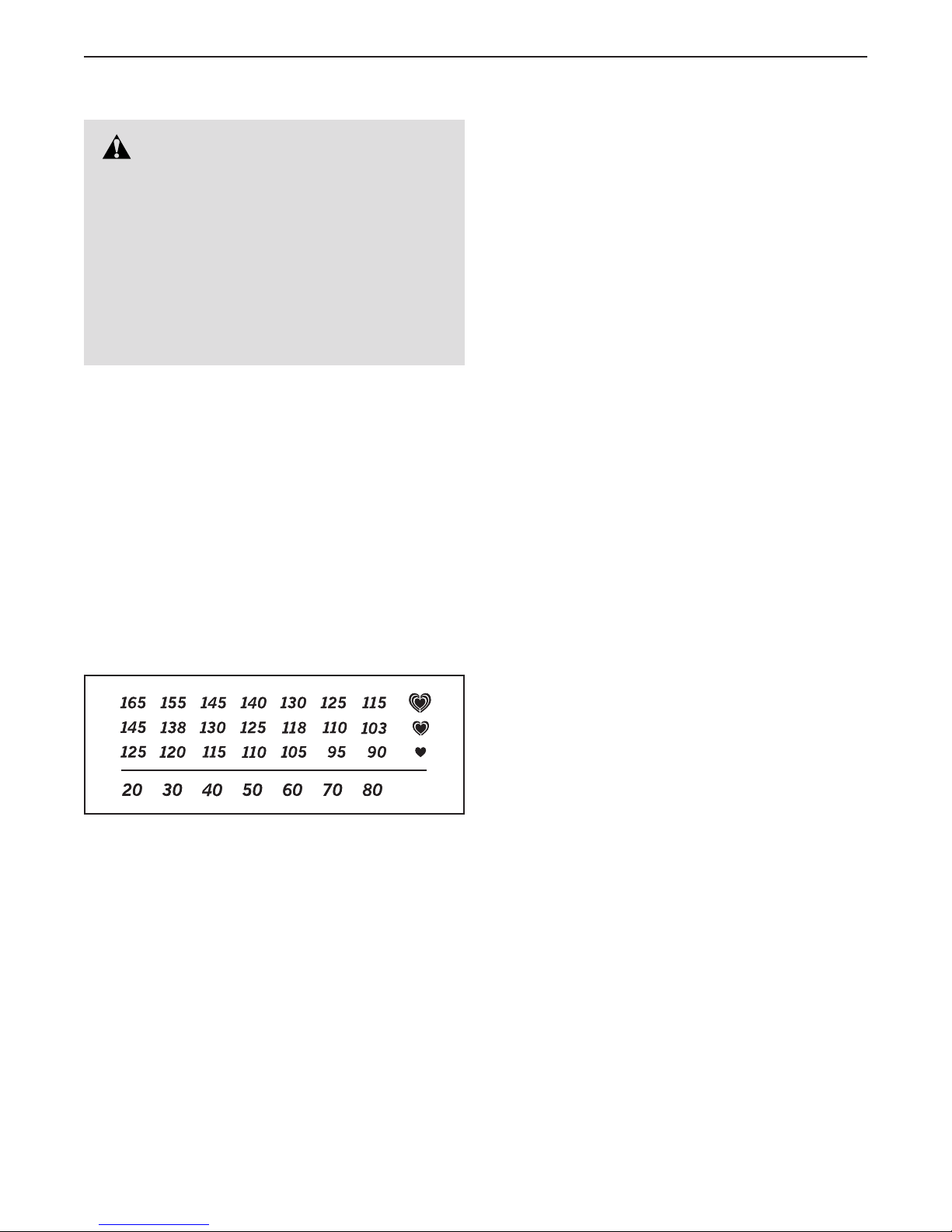

The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the near-
est ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until your
heart rate is near the highest number in your training
zone.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretch-
ing and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 min-
utes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise; never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of stretch-
ing. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exer-
cise, you may complete up to five workouts each week,
if desired. Remember, the key to success is to make
exercise a regular and enjoyable part of your everyday
life.
WARNING: Before beginning this
or any exercise program, consult your physi-
cian. This is especially important for persons
over age 35 or persons with pre-existing
health problems.
The heart rate monitor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The heart rate monitor is
intended only as an exercise aid in determin-
ing heart rate trends in general.

18
1 1 Frame
2 1 Front Stabilizer
3 1 Water Bottle Holder
4 2 Front Stabilizer Cap
5 1 Seat Post
6 1 Rear Stabilizer
7 2 Handlebar Cap
8 2 Leveling Cap
9 1 Seat Post Knob
10 7 M8 Locknut
11 1 Idler
12 1 Seat
13 1 Upright
14 15 #8 x 20mm Screw
15 1 Frame Bushing
16 1 Console
17 1 Left Shield
18 1 Right Shield
19 1 Resistance Control/Cable
20 1 Seat Post Bushing
21 1 Crank/Pulley
22 1 Clamp
23 1 Extension Wire
24 1 Left Pedal/Strap
25 1 Spring
26 1 Right Pedal/Strap
27 1 3/8" Nut
28 2 U-bracket
29 1 Lower Resistance Cable
30 4 M8 x 60mm Screw
31 2 Eyebolt
32 2 M6 Locknut
33 2 M10 x 70mm Screw
34 3 M8 x 15mm Screw
35 1 Drive Belt
36 1 Crank Bearing Set
37 1 Flywheel
38 2 Magnet
39 1 Reed Switch/Wire
40 1 M8 x 20mm Bolt
41 1 #8 x 16mm Screw
42 1 Handlebar/Pulse Wires
43 3 Flywheel Nut
44 1 M5 x 50mm Screw
45 1 M8 Washer
46 1 Ground Wire
47 1 M5 x 16mm Screw
48 6 M4 x 15mm Screw
49 2 M8 x 65mm Bolt
50 3 M8 Split Washer
51 2 Contact
52 1 Ground Screw
* – User’s Manual
* – Assembly Tool
Key No. Qty. Description Key No. Qty. Description
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
PART LIST Model No. WLEX81312.0 R0912A

19
7
7
51
51
46
52
10
42
10
16
34
19
17
14
18
35
2
4
30
29
9
31
32
37
38
28
31
32
28
11
1
33
14
22
39
20
5
12
21
24
26
36
34
48
8
27
6
43
23
41
14
14
14
4
8
44
43
43
45
25
10
40
10 38
3
14
14
14
15
47
48
49
13
14
50
50
EXPLODED DRAWING Model No. WLEX81312.0 R0912A

Part No. 337946 R0912A Printed in China © 2012 ICON IP, Inc.
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
•themodelnumberandserialnumberoftheproduct(seethefrontcoverofthismanual)
•thenameoftheproduct(seethefrontcoverofthismanual)
•thekeynumberanddescriptionofthereplacementpart(s)(seethePARTLISTandtheEXPLODED
DRAWING near the end of this manual)
ORDERING REPLACEMENT PARTS
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. Parts and labor are warranted for ninety (90) days from
the date of purchase.
This warranty extends only to the original purchaser (customer). ICON’s obligation under this warranty is
limited to repairing or replacing, at ICON’s option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped
to a service center, freight charges to and from the service center will be the customer’s responsibility. If
replacement parts are shipped while the product is under warranty, the customer will be responsible for a
minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge.
This warranty does not extend to freight damage to the product. This warranty will automatically be voided
if the product is used as a store display model, if the product is purchased or transported outside the USA,
if all instructions in this manual are not followed, if the product is abused or improperly or abnormally used,
oriftheproductisusedforcommercialorrentalpurposes.Nootherwarrantybeyondthatspecicallyset
forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in con-
nection with the use or performance of the product; damages with respect to any economic loss, loss of
property,lossofrevenuesorprots,lossofenjoymentoruse,orcostsofremovalorinstallation;orother
consequential damages of any kind. Some states do not allow the exclusion or limitation of incidental or
consequential damages. Accordingly, the above limitation may not apply to the customer.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of
merchantabilityortnessforaparticularpurposearelimitedintheirscopeanddurationtothetermsset
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to the customer.
Thiswarrantyprovidesspeciclegalrights;thecustomermayhaveotherrightsthatvaryfromstatetostate.
ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813
LIMITED WARRANTY
IMPORTANT: You must register this product within 30 days of the purchase date to avoid added
fees for service needed under warranty. Go to www.wesloservice.com/registration.
