Weslo PURSUIT CT 3.8R User manual

Model No. 831.21811.1
Serial No.
Write the serial number in the
space above for reference.
Serial Number
Decal
• Assembly
•Operation
• Maintenance
• Part List and Drawing
Sears, Roebuck and Co.
Hoffman Estates, IL 60179
IEXERCISE
User's Manual

TABLE OF CONTENTS
WARNING DECAL PLACEMENT .............................................................. 2
IMPORTANT PRECAUTIONS ................................................................ 3
BEFORE YOU BEGIN ...................................................................... 4
ASSEMBLY ............................................................................... 5
HOW TO USE THE EXERCISE BIKE ......................................................... 11
MAINTENANCE AND TROUBLESHOOTING ................................................... 14
FCC INFORMATION ....................................................................... 15

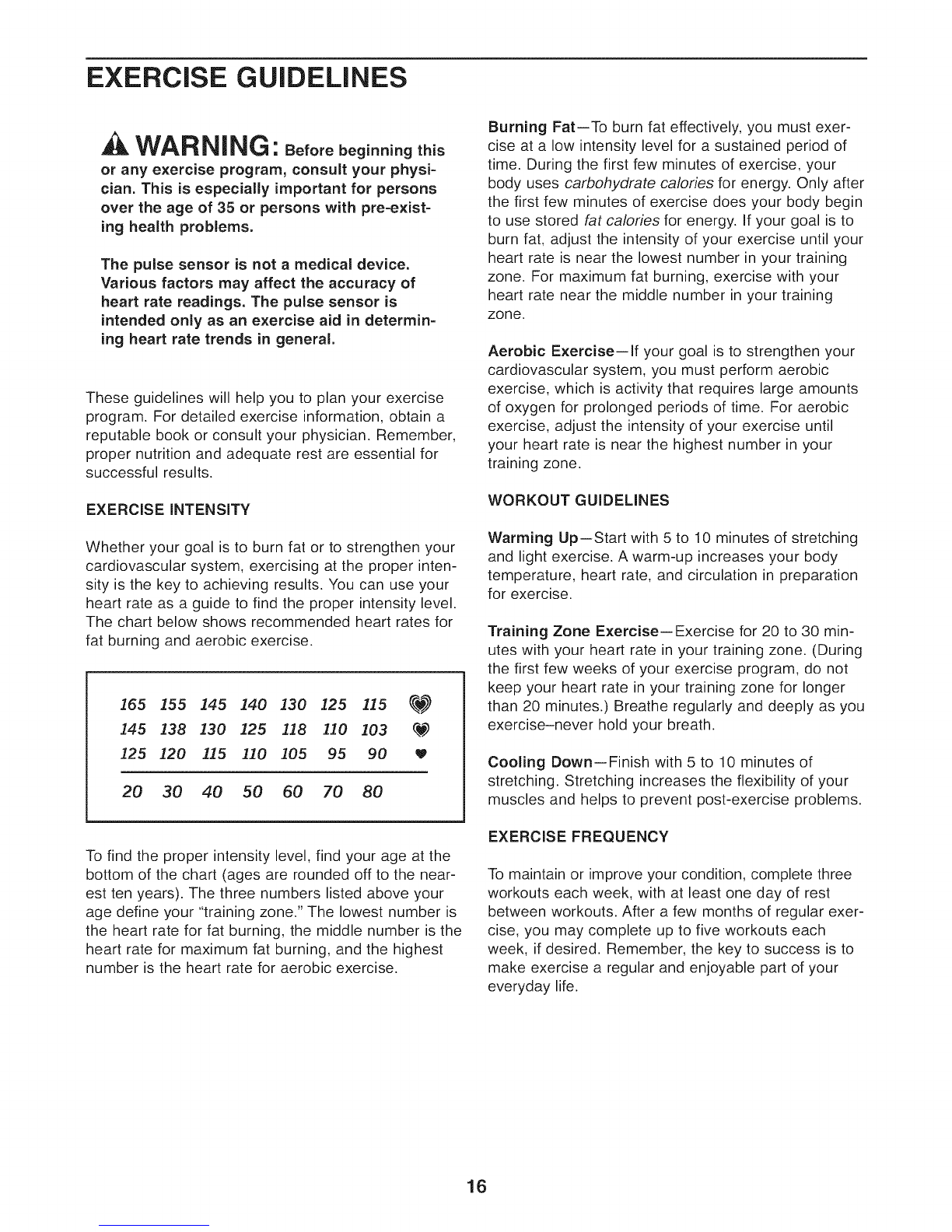

EXERCISE GUIDELINES ................................................................... 16
PART LIST .............................................................................. 18
EXPLODED DRAWING .................................................................... 19
ORDERING REPLACEMENT PARTS .................................................. Back Cover
90 DAY FULL WARRANTY .......................................................... Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the
warning decal(s). If a decal is missing
or illegible, call 1-866-699-3756 and
request a free replacement decal.
Apply the decal in the location
shown. Note: The decal(s) may not be
shown at actual size.
• Misuseof this machine
may result in serious
injury.
•Read user's manual
prior to use and follow
all warnings and
instructions.
• Do not allow children
on or around machine.
• Pedals continue to
spin when you stop
pedaling.
•Spinning pedals can
cause injury.
•Reduce pedal speed
in acontrolled manner.
• User weight must not
exceed 250 pounds.
, Replace label if
damaged, illegible, or
removed. _
2

iMPORTANT PRECAUTIONS
WARNING: Toreducetheriskofse.ousinjury,reada. mportantprecautions and
instructions in this manual and all warnings on your exercise bike before using your exercise bike.
iCON assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. Before beginning any exercise program, 9.
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
.
.
=
Use the exercise bike only as described in
this manual.
it is the responsibility of the owner to ensure
that all users of the exercise bike are ade-
quately informed of all precautions.
The exercise bike is intended for home use
only. Do not use the exercise bike in acom-
mercial, rental, or institutiona! setting.
10.
11.
The exercise bike should not be used by
persons weighing more than 250 Ibs.
(113 kg).
Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the exercise bike. Always wear
athletic shoes for foot protection.
The pulse sensor is not a medical device.
Various factors, including the user's move=
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
.Keep the exercise bike indoors, away from
moisture and dust. Do not put the exercise
bike in a garage or covered patio, or near
water.
12. The exercise bike does not have a free
wheel; the pedals will continue to move until
the flywheel stops. Reduce your pedaling
speed in a controlled way.
.
.
Place the exercise bike on a level surface
with at least 2 ft. (0.6 m) of clearance around
the exercise bike. To protect the floor or
carpet from damage, place a mat under the
exercise bike.
inspect and properly tighten all parts regular-
ly. Replace any worn parts immediately.
13.
14.
Always keep your back straight while using
the exercise bike; do not arch your back.
Over exercising may result in serious injury
or death, if you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
8. Keep children under age 12 and pets away
from the exercise bike at all times.
3

BEFORE YOU BEGIN
Thank you for selecting the new WESLO ®PURSUIT
CT 3.8 R exercise bike. Cycling is an effective exer-
cise for increasing cardiovascular fitness, building
endurance, and toning the body. The PURSUIT CT
3.8 R exercise bike provides a selection of features
designed to make your workouts at home more effec-
tive and enjoyable.
For your benefit, read this manual carefully before
you use the exercise bike. If you have questions
after reading this manual, please see the back cover
of this manual. To help us assist you, note the product
model number and serial number before contacting
us. The model number and the location of the serial
number decal are shown on the front cover of this
manual.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Handlebar
Console
Thumb Pulse Sensor
Resistance Knob
Seat
Seat Frame
Pedal/Strap
Adjustment Knob
Seat Handle
4

ASSEMBLY
Assembly requires two persons. Place all parts of the exercise bike in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
in addition to the included tool(s), assembly requires aPhillips screwdriver _, two adjustable
wrenches _, and pliers _.
See the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following
the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if
it has been preassembled. To avoid damaging parts, do not use power tools for assembly. If a part is
missing, call 1-866-699-3756.
U
M4 Washer M6 Washer M6 Curved M8 Split M8 Curved
(70)-2 (68)-8 Washer (69)-4 Washer (42)-3 Washer (46)-2
M8 Washer
(54)-4
M8 Locknut
(10)-4 M10 Locknut (65)-2
M4 x 5mm M4 x 8mm M4 x 15mm
M6 Locknut Self-tapping Screw Self-tapping
(63)-4 Screw (66)-2 (29)-2 Screw (47)-4
M6 x 30mm Button
Bolt (64)-4 M6 x 35mm Button
Screw (61)-8 M8 x 65mm Button Bolt (36)-2
M8 x 20mm Button
Screw (34)-3
M10 x 65mm Button Screw (33)-2
M8 x 125mm Bolt (62)-2
M10 x 75mm Carriage Bolt (30)-2
5

Turn the Front Stabilizer (2) so that the large
holes are facing the Frame (1). Attach the Front
Stabilizer to the Frame with two M10 x 65mm
Button Screws (33).
33
Large
Holes
.Attach the Rear Stabilizer (6) to the Seat Frame
(5) with two M10 x 75mm Carriage Bolts (30)
and two M10 Locknuts (65).
65
30
.Insert the end of the Seat Frame (5) into the
Frame (1).
Firmly press the Frame Bushing (56) into the
Frame (1).
Attach the Frame Bushing (56) to the Frame (1)
with two M4 x 5mm Self-tapping Screws (66).
Tighten the Adjustment Knob (9) into the Frame
(1). Carefully tip the exercise bike onto its side.
Attach the two Bumpers (57) to the Frame (1)
with two M4 x 8mm Screws (29) and two M4
Washers (70). Then, tip the exercise bike
upright.
29
56 5
6

.Attach the Left and Right Seat Brackets (14, 15)
to the Seat Frame (5) with two M8 x 125mm
Bolts (62), four M8 Washers (54), and two M8
Locknuts (10) as shown. Do not tighten the
Locknuts yet.
54 10 54 10
15
.Attach a Seat Handle (59) to the round tube on
the Left Seat Bracket (14) with two M6 x 30mm
Button Bolts (64), two M6 Curved Washers (69),
and two M6 Locknuts (63).
Attach the other Seat Handle (59) to the
Right Seat Bracket (15) in the same way.
59
59
.Attach the Backrest (60) to the Seat Brackets
(14, 15) with four M6 x 35mm Button Screws
(61) and four M6 Washers (68).
See step 4. Tighten the two M8 Locknuts (10). 60
68
15
68
61
68
61
7

7. 7
Attach the Seat (12) to the Seat Brackets (14,
15) with four M6 x 35mm Button Screws (61)
and four M6 Washers (68).
.While another person holds the Upright (13) in
the position shown, connect the Extension Wire
(52) to the Reed Switch Wire (43).
Connect the Resistance Cable (19) to the
Lower Cable (45) in the following way:
oSee drawing A. Pull upward on the metal
bracket on the Lower Cable (45), and insert
the tip of the Resistance Cable (19) into the
wire clip inside the metal bracket as shown.
oSee drawing B. Firmly pull the Resistance
Cable (19) upward and slide it into the top of
the metal bracket as shown.
oSee drawing C. Using pliers, squeeze the
prongs on the upper end of the metal bracket
together.
Push the excess wire and cable downward into
the Frame (1), and insert the Upright (13) into
the Frame.
Tip: Avoid pinching the wires and cables.
Attach the Upright (13) to the Frame (1) with
three M8 x 20mm Button Screws (34) and three
M8 Split Washers (42).
8
Avoid pinching the _'_
wiresandcables
._ Metal
19_ ____i_cket
Bc
Meta i
Bracket
8

9. 9
Attach the Handlebar (53) to the Upright (13)
with two M8 x 65mm Button Bolts (36), two M8
Curved Washers (46), and two M8 Locknuts
(10).
13
53
36
10. The Console (16) requires four AA batteries (not
included); alkaline batteries are recommended.
iMPORTANT: If the Console has been
exposed to cold temperatures, allow it to
warm to room temperature before inserting
batteries. Otherwise, you may damage the
console displays or other electronic compo-
nents. Remove the screw, remove the battery
cover, and insert the batteries into the battery
compartment. Make sure to orient the batter-
ies as shown by the diagram inside the bat-
tery compartment. Then, reattach the battery
cover.
10
Screw-,_ Battery Cover
' Batteries
i
i I
16
\
11. While another person holds the Console (16)
near the Upright (13), connect the console wire
to the Extension Wire (52).
Insert the wires downward into the Upright (13).
Tip: Avoid pinching the wires. Attach the
Console (16) to the Upright (13) with four M4 x
15mm Self-tapping Screws (47).
11
Avoid pinching
the wires
47
52
Console
Wire
9

12. Identify the Left Pedal (24), which is marked
with an "L" sticker.
Using an adjustable wrench, firmly tighten the
Left Pedal (24) counterclockwise into the left
arm of the Crank (21).
Tighten the Right Pedal (not shown) clockwise
into the right arm of the Crank (not shown).
Adjust the strap on the Left Pedal (24) to the
desired position, and press the end of the strap
onto the tab on the Left Pedal (24), Adjust the
strap on the Right Pedal (not shown) in the
same way.
12
Strap
13. Make sure that all parts are properly tightened before you use the exercise bike. After assembly is
completed, some extra parts may be left over. Place a mat under the exercise bike to protect the floor.
10
