West Marine 17335084 User manual

READ AND FOLLOW ALL WARNINGS AND
INSTRUCTIONS IN THIS MANUAL TO AVOID
PERSONAL INJURY OR PROPERTY DAMAGE.
TO PREVENT DAMAGE TO EYESIGHT, NEVER
LOOK INTO LIGHT WHEN LIGHT IS ON. DO
NOT SHINE LIGHT INTO THE FACE OF
SOMEONE ELSE.
WARNING WARNING
Owner’s
Manual
12 Volt DC
Glare Free
Halogen Spotlight
Dry Location Use Only

•Never place light face down when light is on or is still hot from recent use. Doing so could burn/ignite surfaces such as
carpeting, etc. and cause major property damage. Always turn light o and unplug from power source when not in use.
• To prevent serious damage to eyesight, never look into light when light is on. Do not shine light into the face of others.
•Do not touch lens of light when light is on or if it was recently on. The lens will be hot and could cause serious burns.
•Keep battery clips or DC plug dry and out of water at all times. Dry location use only.
•Do not place light in water.
•Do not allow children to handle or operate this light.
•Do not use this product for other than its intended use.
•Do not operate in close proximity of combustible or ammable materials.
• Do not attempt to operate light if cord, plug, bulb or any part of the light is damaged or corroded.
USE CAUTION AND COMMON SENSE WHEN OPERATING YOUR LIGHT.
FAILURE TO ADHERE TO THE SAFETY WARNINGS AND GUIDELINES IN THIS MANUAL
COULD RESULT IN BODILY INJURY OR PROPERTY DAMAGE.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
IMPORTANT SAFETY WARNINGS
READ AND FOLLOW ALL SAFETY WARNINGS AND INSTRUCTIONS IN THE OWNER’S MANUAL
BEFORE OPERATING LIGHT.
WARNING
•Never attempt to wipe or clean the inner reective surface of the
reector. Touching or wiping the surface will damage it permanently.
•The lens is made of optical-quality, tempered glass. As with all glass,
avoid dropping or sharp impact on light.
•Do not allow the hot lens to come in contact with water or materials
subject to heat damage.
•This light is not waterproof. Do not use the light under water or store
outdoors.
•Only use a 12-volt, halogen bulb that is designed for your
light. Use of any other bulb may result in poor performance
and may damage your light.
•After months of use, DC receptacles can build up corrosion that may
prevent your light from making good contact. It may be
necessary to clean the inside of your DC receptacle with a ne emery
cloth. Before cleaning receptacle, remove the fuse to prevent it from
shorting out.
Tips to Avoid Damage to
Your Light
1

2
OPERATING INSTRUCTIONS
READ AND FOLLOW ALL SAFETY WARNINGS AND INSTRUCTIONS IN THE OWNER’S MANUAL
BEFORE OPERATING LIGHT.
Step 1: To activate light, plug the DC adapter into
a DC receptacle. Move switch to ON.
WARNING:Never place light face down when light is on or
is still hot from recent use. Doing so could burn/ignite
surfaces such as seats, carpeting, etc. and cause
major property damage. Always turn light o
and unplug from power source when not in use.
Step 2: To deactivate, move switch to OFF and unplug from
power source.

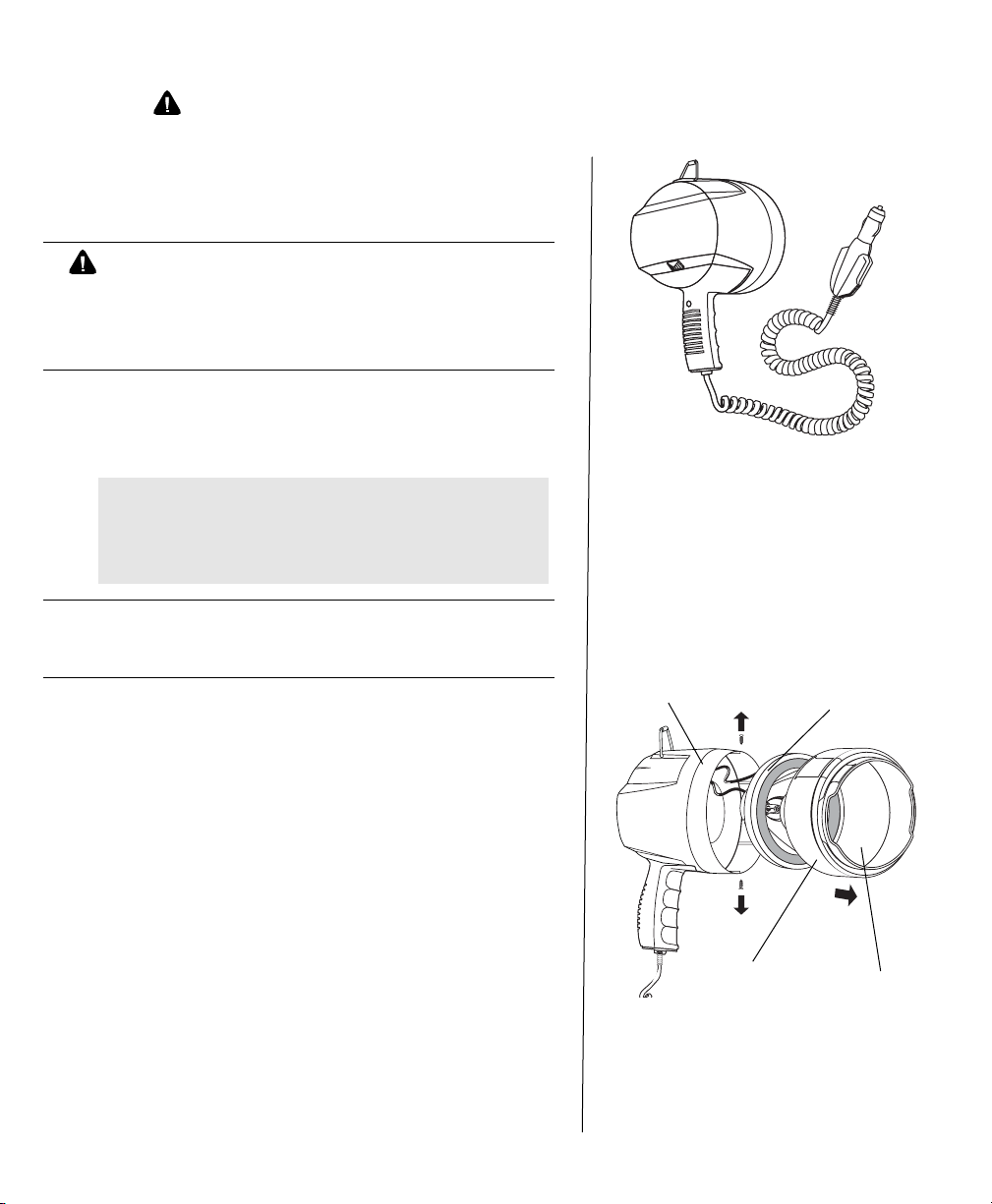

To Replace Bulb
Lens
Rear
Housing
Front
Housing
Reector
IMPORTANT: Do not touch the glass part of bulb with ngers as natural
oils aect the life and performance of bulb. Handle bulb by
metal end only.
Step 1: Disconnect light from power source.
Step 2: Remove the two screws from top and bottom of front housing
(see Figure 1).
Step 3: Lay the light face (lens) down on a at surface.
Step 4: Holding the front housing secure, slowly lift the rear
housing o.
Step 5: Pull reector away from rear housing being careful not to pull
wire connections inside. Do not touch the inside of reector.
NOTE:The glass lens is not attached to front housing. Use care when
disassembling to avoid breaking lens.
FIGURE 1
Only use a halogen bulb that is designed for the light as a
replacement. Use of any other bulb may result in poor
performance and may damage your light.

3
Step 6: Disconnect bulb wire from connector by holding the connector
rmly with ngers then pulling bulb wire straight out as shown
in Figure 2.
Step 7: Pinch the ends of the wire retainer together and lift up as
illustrated (Figure 3).
Step 8: Pull bulb straight out from the reector mounting plate.
Step 9: Disconnect bulb wire from connector by holding the connector
rmly with ngers then pulling bulb wire straight out.
Step 10: To install new bulb, grasp the bulb from the metal end
(DO NOT TOUCH THE GLASS PART) and insert into the
reector mounting plate. Align the slots in the bulb base with
those in the reector mounting plate.
Step 11:Replace wire retainer by pinching ends together while pressing
down. Push ends apart so they catch on the reector
mounting plate.
Step 12:Reconnect the bulb wire to the connector as illustrated
in Figure 4.
Step 13: To reassemble, place the front housing face (lens) down on a
at surface. Set the reector into housing. Insert the rear hous-
ing into the front housing of the light.
Step 14:Replace the two screws that were removed in Step 2. Do not
over tighten screws.
Connector
Connector
FIGURE 3
FIGURE 4
FIGURE 2

4

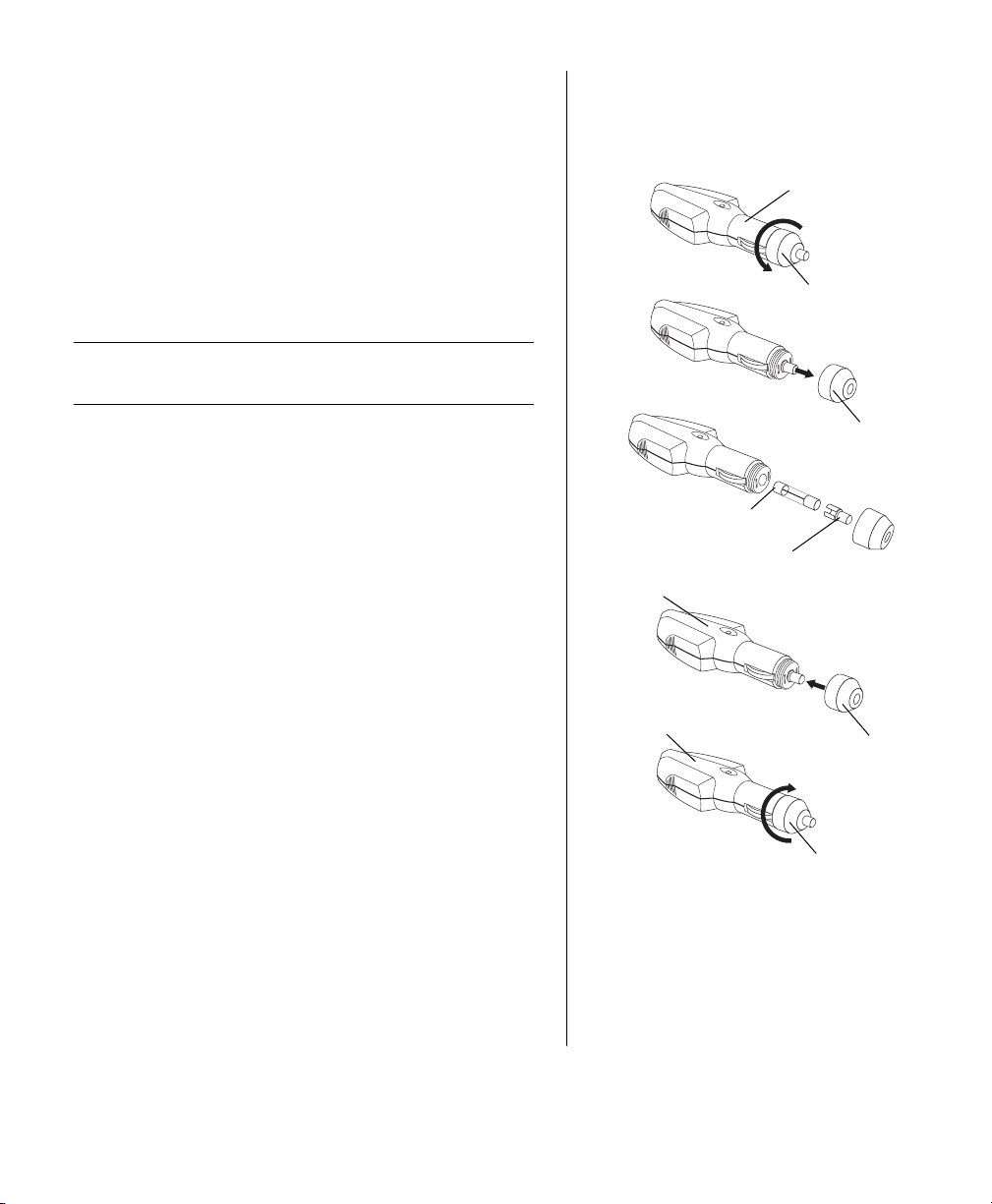

To Replace Cigarette DC
Plug Fuse
DC Plug
Cap
DC Plug
DC Plug
Cap
Fuse
Fuse Holder
Cap
Cap
Step 1: Disconnect light from power source.
Step 2: Unscrew cap of DC plug and pull straight away from fuse.
Step 3: Pull fuse holder and fuse out of DC plug. Observe to see if fuse is
burned out.
Note: Use a 10A fuse only. Fuse is burned out when fuse element
is missing or broken inside glass tube. Replace with new
10A fuse if fuse element is missing or broken.
Step 4: Pull fuse out of fuse holder. Insert new fuse into holder.
Step 5: Insert fuse holder and fuse into DC plug.
Step 6: Screw cap onto DC plug.

What Does This Limited Warranty Cover?
West Marine warrants to the original retail purchaser of the West Marine product, where the purchase is made in the United
States, that the product will be free from defects in materials and craftsmanship with only the limitations or exclusions set o ut
below.
How Long Does This Limited Warranty Last?
This limited warranty is valid for twelve months from the date of the original retail purchase from West Marine within the United
States (the “Limited Warranty Term”).
The warranty period is not extended if we repair or replace a warranted product or any parts. West Marine reserves the right
to change the availability of limited warranties, at its discretion, but any changes will not be retroactive and will only apply to
subsequent purchases.
What Does This Limited Warranty Not Cover?
This limited warranty does not cover:
• Normal maintenance items or normal wear and tear.
• Problems resulting from re.
• If the product was damaged, modied or altered by you.
• If the product was used as part of any conversion kits, subassemblies, or any congurations not appropriate or contemplated
for this product or its use.
• If damage or loss occurring during return shipment of the product to West Marine or its authorized service representative.
• If the product was subject to improper service, repair, installation, storage, maintenance, alteration or application.
• Problems that result from accident, neglect, abuse, misuse or issues with electrical power.
• Problems caused by accessories, parts or components added to the product that are not appropriate for this product or its use .
THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM
STATE TO STATE (OR JURISDICTION TO JURISDICTION). WEST MARINE’S RESPONSIBILITY FOR MALFUNCTIONS AND DEFECTS
IN HARDWARE IS LIMITED TO REPAIR OR REPLACEMENT AS SET FORTH IN THIS WARRANTY STATEMENT. ALL EXPRESS AND
IMPLIED WARRANTIES FOR THE PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES AND CONDITIONS OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN TIME TO THE LIMITED WARRANTY TERM (AS
SPECIFIED ABOVE). NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE LIMITED WARRANTY TERM HAS
EXPIRED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS,
SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.
WE DO NOT ACCEPT LIABILITY BEYOND THE REMEDIES PROVIDED FOR IN THIS LIMITED WARRANTY OR FOR CONSEQUENTIAL
OR INCIDENTAL DAMAGES INCLUDING, WITHOUT LIMITATION, ANY LIABILITY FOR THIRD-PARTY CLAIMS AGAINST YOU FOR
DAMAGES, FOR PRODUCTS NOT BEING AVAILABLE FOR USE, FOR PERSONAL INJURY AND/OR FOR LOST PROPERTY, DATA
OR SOFTWARE. OUR LIABILITY AND THE MAXIMUM AMOUNT FOR WHICH WE ARE RESPONSIBLE WILL BE NO MORE THAN
THE AMOUNT YOU PAID FOR THE PRODUCT THAT IS THE SUBJECT OF A CLAIM. SOME STATES DO NOT ALLOW
THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE
LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
1-YEAR LIMITED WARRANTY (Page 1 of 2)

Ownerʼs Manual for
Model 17335084
500 Westridge Dr., Watsonville, CA 95076 Made in China, Fabriqué en Chine
www.westmarine.com
What Must I Do To Keep the Warranty in Eect?
• You must keep your receipt or other appropriate documentation as proof of the date of sale and purchase.
• You must keep your serial number or order number for the product. This is found on the product itself or on your receipt.
• You must not do any of the things that will make the warranty invalid as provided for in this warranty statement.
• You must use, install, maintain and operate the product in accordance with published specications and the user’s manual.
What Do I Do If I Need Warranty Service?
• Before the warranty expires, please call us at 1-800-BOATING. Please also have your West Marine serial number or order
number available.
• When you contact us, we will issue a Return Material Authorization Number for you to include with your return. We will also
provide you the address of where to ship the product.
• You must return the product to us in its original or equivalent packaging, prepay shipping charges, and insure the shipment or
accept the risk if the product is lost or damaged in shipment.
What Will West Marine Do?
During the Limited Warranty Term, if the product you return to us proves to be defective in materials or workmanship and not for
the reasons which would otherwise disqualify it (as explained above), we will:
• Repair the product or, if we are unable to repair it, replace it with a comparable product that is new or refurbished;
• Or, as an alternative, at West Marine’s option, we will refund you the original purchase price;
• If we repair or replace the product, we will return the repaired or replacement product to you; and
• Pay to ship the repaired or replacement product to you if you use an address in the United States (excluding Puerto Rico and
U.S. possessions and territories). Otherwise, we will ship the product to you freight collect.
If we determine that the problem is not covered under this warranty, we will notify you of this when we return your product to
you to the address you provide us in the United States (excluding Puerto Rico and U.S. possessions and territories).
We use new and refurbished parts made by various manufacturers in performing warranty repairs and in building replacement
parts and systems. Refurbished parts and systems are parts or systems that have been returned to West Marine, some of which
were never used by a customer. Replacement parts and systems are covered for the remaining time left in the Limited Warranty
Term for the product you bought. West Marine owns all parts removed from repaired products.
Maintenance is the Owner’s Responsibility
Cleaning, polishing, lubricating, replacing lters, tuning, replacing worn parts, using your purchased product according to the
user’s manual, and regularly maintaining your purchased product is your responsibility.
What if I purchased a Plus Protection Plan?
Service will be provided to you under the terms of the Plus Protection Plan contract. Please refer to that contract for details on
how to obtain service.
How State Law Relates to the Warranty.
This warranty gives you specic legal rights, and you may also have other rights which vary from state to state.
1-YEAR LIMITED WARRANTY (Page 2 of 2)
