Westermo AD-01 User manual

www.westermo.com
AD-01
M-BUS Adapter
Industrial adapter, M-bus, Repeater,
Converter and zone controller

2
6612-2202

3
6612-2202
General information
Legal information
The contents of this document are provided “as is”. Except as required by applicable law,
no warranties of any kind, either express or implied, including, but not limited to, the
implied warranties of merchantability and fitness for a particular purpose, are made in
relation to the accuracy and reliability or contents of this document. Westermo reserves
the right to revise this document or withdraw it at any time without prior notice.
Under no circumstances shall Westermo be responsible for any loss of data or income or
any special, incidental, and consequential or indirect damages howsoever caused.
More information about Westermo can be found at the following Internet address:
www.westermo.com

4
6612-2202
Safety
Before installation:
This modem is for restricted access area use only.
Read this manual completely and gather all information on the unit. Make sure
that you understand it fully. Check that your application does not exceed the safe
operating specifications for this unit.
This unit should only be installed by qualified personnel.
This unit should be built-in to an apparatus cabinet, or similar, where access is
restricted to service personnel only.
The power supply wiring must be sufficiently fused, and if necessary it must be
possible to disconnect manually from the power supply. Ensure compliance to
national installation regulations.

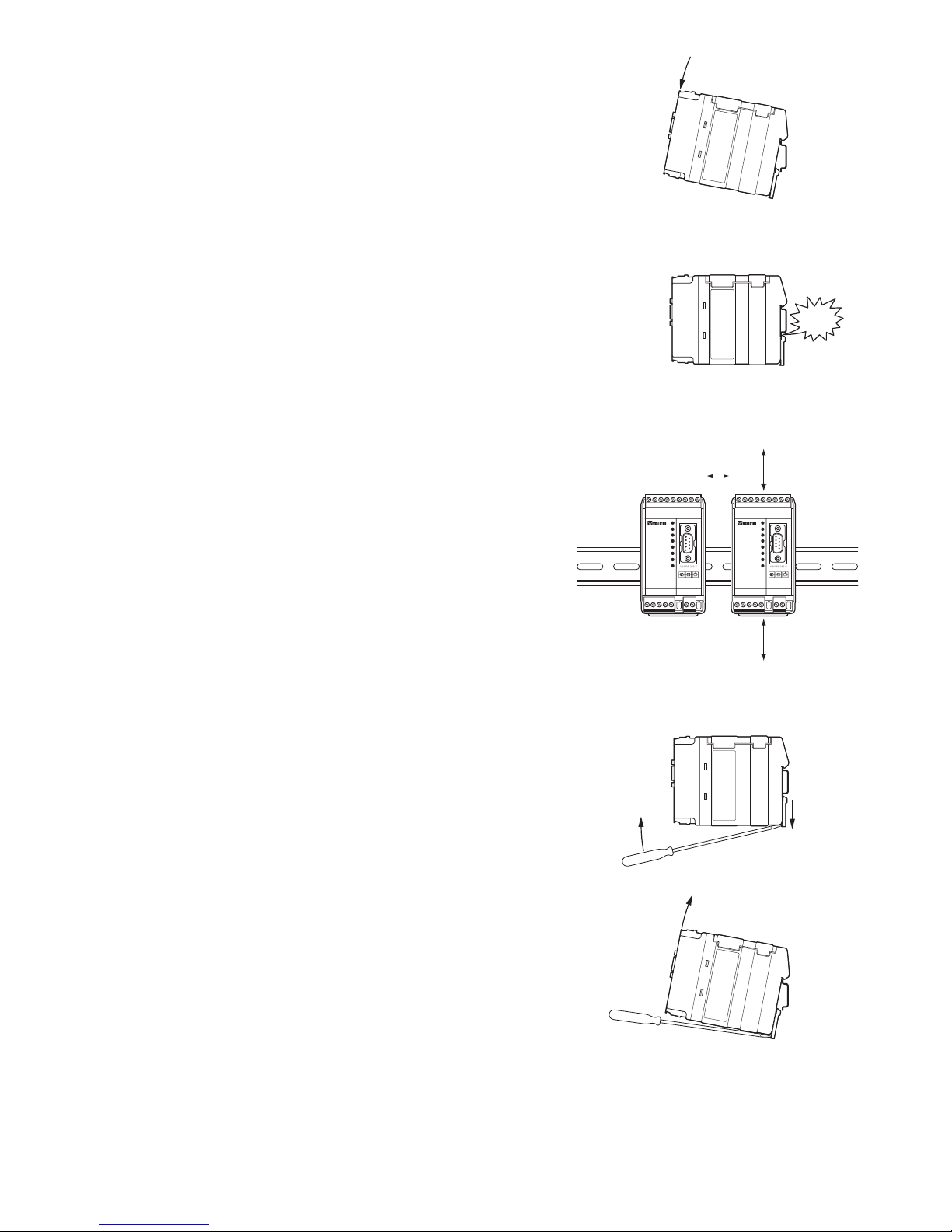

This unit uses convection cooling. To avoid obstructing the airflow around the unit,
follow the spacing recommendations (see Cooling section).
Before mounting, using or removing this unit:
Prevent access to hazardous voltage by disconnecting the unit from power supply.
Warning! Do not open connected unit.
Hazardous voltage may occur within this unit when
connected to power supply or TNV circuits.
Care recommendations
Follow the care recommendations below to maintain full
operation of unit and to fulfil the warranty obligations.
This unit must not be operating with removed covers or
lids.
Do not attempt to disassemble the unit. There are no user serviceable parts inside.
Do not drop, knock or shake the unit, rough handling above the specification may cause
damage to internal circuit boards.
Do not use harsh chemicals, cleaning solvents or strong detergents to clean the unit.
Do not paint the unit. Paint can clog the unit and prevent proper operation.
Do not expose the unit to any kind of liquids (rain, beverages, etc). The unit is not water-
proof. Keep the unit within the specified humidity levels.
Do not use or store the unit in dusty, dirty areas, connectors as well as other mechanical
part may be damaged.
If the unit is not working properly, contact the place of purchase, nearest Westermo
distributor office or Westermo Tech support.
Maintenance
No maintenance is required, as long as the unit is used as intended within the specified
conditions.

5
6612-2202
Product disposal
This symbol means that the product shall not be treated as
unsorted municipal waste when disposing of it. It needs to
be handed over to an applicable collection point for recy-
cling electrical and electronic equipment.
By ensuring this product is disposed of correctly, you will
help to reduce hazardous substances and prevent potential
negative consequences to both environment and human
health, which could be caused by inappropriate disposal.

6
6612-2202
Agency approvals and standards compliance
Type Approval / Compliance
EMC EN 61000-6-1, Immunity residental environment
EN 61000-6-2, Immunity industrial environments
EN 61000-6-3, Emission residential environments
EN 61000-6-4, Emission industrial environments
Safety EN 60950-1, IT equipment
Simplified EU declaration of conformity
Hereby, Westermo declares that the equipment is in compliance with applicable EU
directives. The full EU declaration of conformity and other detailed information are
available at the respective product page at www.westermo.com.
FCC Part 15.105
Notice:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful inter-
ference to radio communications. However, there is no guarantee that interference
will not occur in a partic ular installation. If this equipment does cause harmful interfer-
ence to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
… Reorient or relocate the receiving antenna
… Increase the separation between the equipment and receiver
… Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected
… Consult the dealer or an experienced radio/TV technician for help.

7
6612-2202
Type tests and environmental conditions
Electromagnetic Compatibility
Phenomena Test Description Level
ESD EN 61000-4-2 Enclosure contact ± 4 kV
Enclosure air ± 8 kV
RF field AM modulated IEC 61000-4-3 Enclosure 10 V/m 80% AM (1 kHz), 80 - 2700 MHz
Fast transient EN 61000-4-4 Signal ports ± 1 kV
Power ports ± 2 kV
Surge EN 61000-4-5 Signal ports unbalanced ± 1 kV line to earth, ± 1 kV line to line
Signal ports balanced ± 1 kV line to earth, ± 1 kV line to line
Power ports ± 2 kV line to earth, ± 2 kV line to line
RF conducted EN 61000-4-6 Signal ports 10 V 80% AM (1 kHz), 0.15 – 80 MHz
Power ports 10 V 80% AM (1 kHz), 0.15 – 80 MHz
Voltage dips and
interruption
EN 61000-4-11 AC power ports 10, 20 & 5000 ms, interruption
200 ms, 60% reduction
500 ms, 30% reduction
Radiated emission CISPR 16-2-3
ANSI 63.4
(FCC part 15)
Enclosure Class B
Conducted emission CISPR 16-2-1 AC power ports Class B
Dielectric strength EN 60950 Signal port to all other
isolated ports
2 kVrms 50 Hz 1min
Power port to other
isolated ports
3 kVrms 50 Hz 1min
2 kVrms 50 Hz 1min (@ rated power < 60V)
Environmental
Temperature EN 60068-2-1
EN 60068-2-2
Operating –0 to +50°C
Storage & Transport -25 to +70°C
Humidity EN 60068-2-30 Operating 5 to 95% relative humidity
Storage & Transport 5 to 95% relative humidity
Altitude Operating 2 000 m / 70 kPa
Service life Operating 10 years
Vibration IEC 60068-2-6 Operating 7.5 mm, 5 – 8 Hz
2 g, 8 – 500 Hz
Shock IEC 60068-2-27 Operating 15 g, 11 ms
Packaging
Enclosure UL 94 PC / ABS Flammability class V-1
Dimension W x H x D 55 x 100 x 128 mm
Weight 0.9 kg
Degree of protection IEC 529 Enclosure IP 20
Cooling Convection
Mounting Horizontal on 35 mm DIN-rail

8
6612-2202
Description
AD-01 is an industrial adapter for M-bus communication. AD-01 is a very flexible
product for building of M-Bus networks. The AD-01 can be configured for a number of
applications. It is possible to access the AD-01 and activate/deactivate RS-232 and M-Bus
slave port using commands over M-Bus.
… 9-position D-sub connector (RS-232, (M-Bus))
… Data rate from 300 bit/s up to 9600 bit/s
… Automatic data rate detection
… Converter between RS-232 (M-Bus) and M-Bus networks
… Repeater
… Used to interconnect M-Bus and SIOX networks
… Zone controller
… Up to 120 M-bus slaves
… Galvanic isolated
… Designed for hash environments
AD-01 is a flexible product which implements a number of possibilities to
extend / control a M-Bus network.
AD-01 includes a micro controller (µC) which handles the data flow through the unit.
The main function is activating / deactivating of the two ports, RS-232/V.24 master and
M-Bus master which gives possibilities for the unit to work as a zone controller.
Data packets received on the slave side is passed further on the active master ports.
Data packets received on active master ports is passed further on both slave ports.
AD-01 can be addressed and configured over the slave ports.
AD-01’s master ports are active according to factory default. This means that AD-01 can
be used as a RS-232 / M-Bus converter without any external configuration.

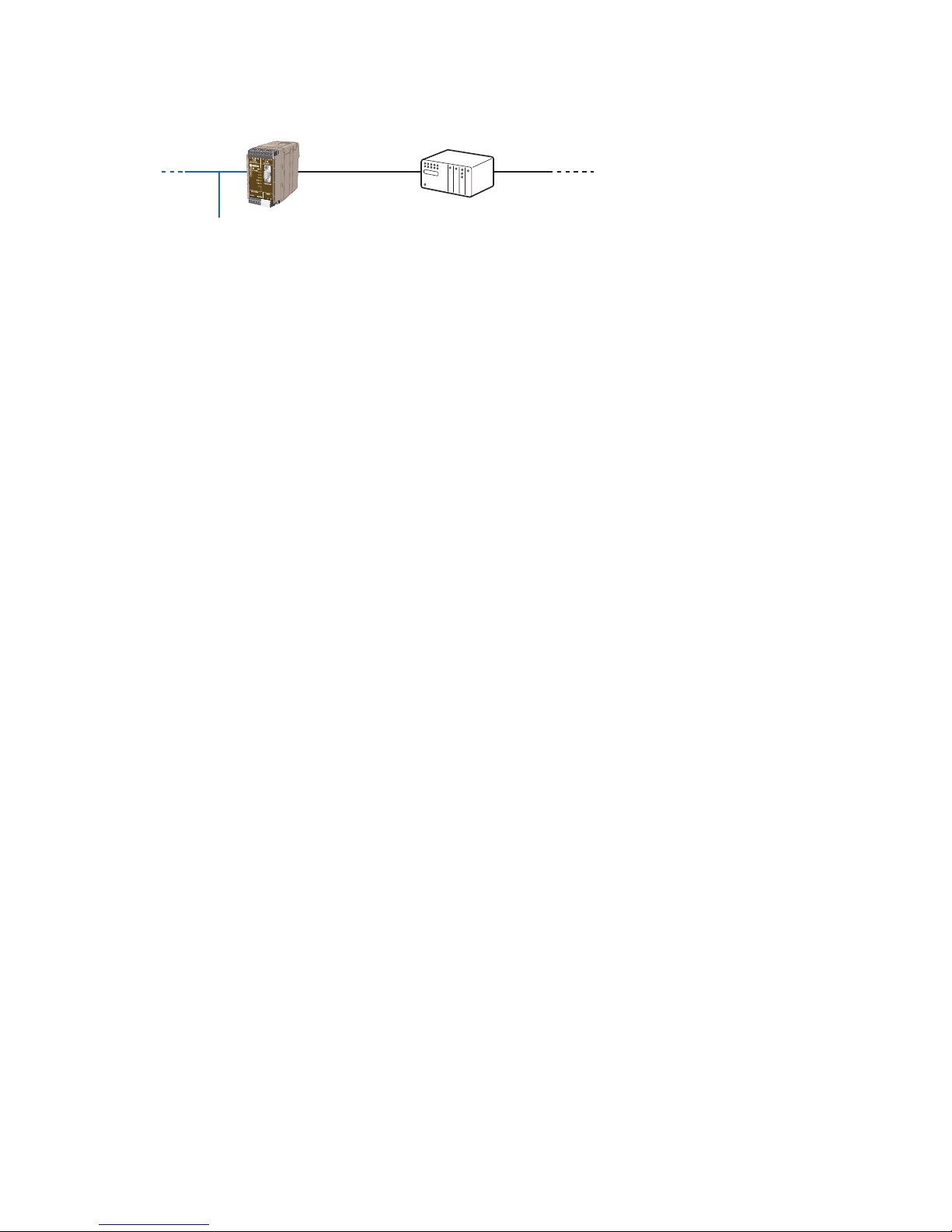

RS-232/V.24
slave
RS-232/V.24
master
M-Bus slave M-Bus master
DIP
C
E2

9
6612-2202
Interface specifications
Power interface
Rated voltage 230 V AC ±10%
Rated current 150 mA
Rated frequency 48–62 Hz
Connection 3-position screw terminal
M-Bus interface (master)
Electrical specification M-Bus according to EN1434-3
Data rate Up to 9600 bit/s
Number of slaves Up to 120 slave loads
Connection 5-position screw terminal
M-Bus interface (slave)
Electrical specification M-Bus according to EN1434-3
Data rate Up to 9600 bit/s
Power consumption Maximum 2 slave loads
Connection 5-position screw terminal
Serial RS-232/V.24 interface (master)
Electrical specification RS-232/V.24
Data rate Up to 9600 bit/s
Connection 9-position screw terminal (DTE)
Serial RS-232/V24 interface (slave)
Electrical specification RS-232/V.24
Data rate Up to 9600 bit/s
Connection 9-position screw terminal (DCE)
9-position D-sub (DCE)

10
6612-2202

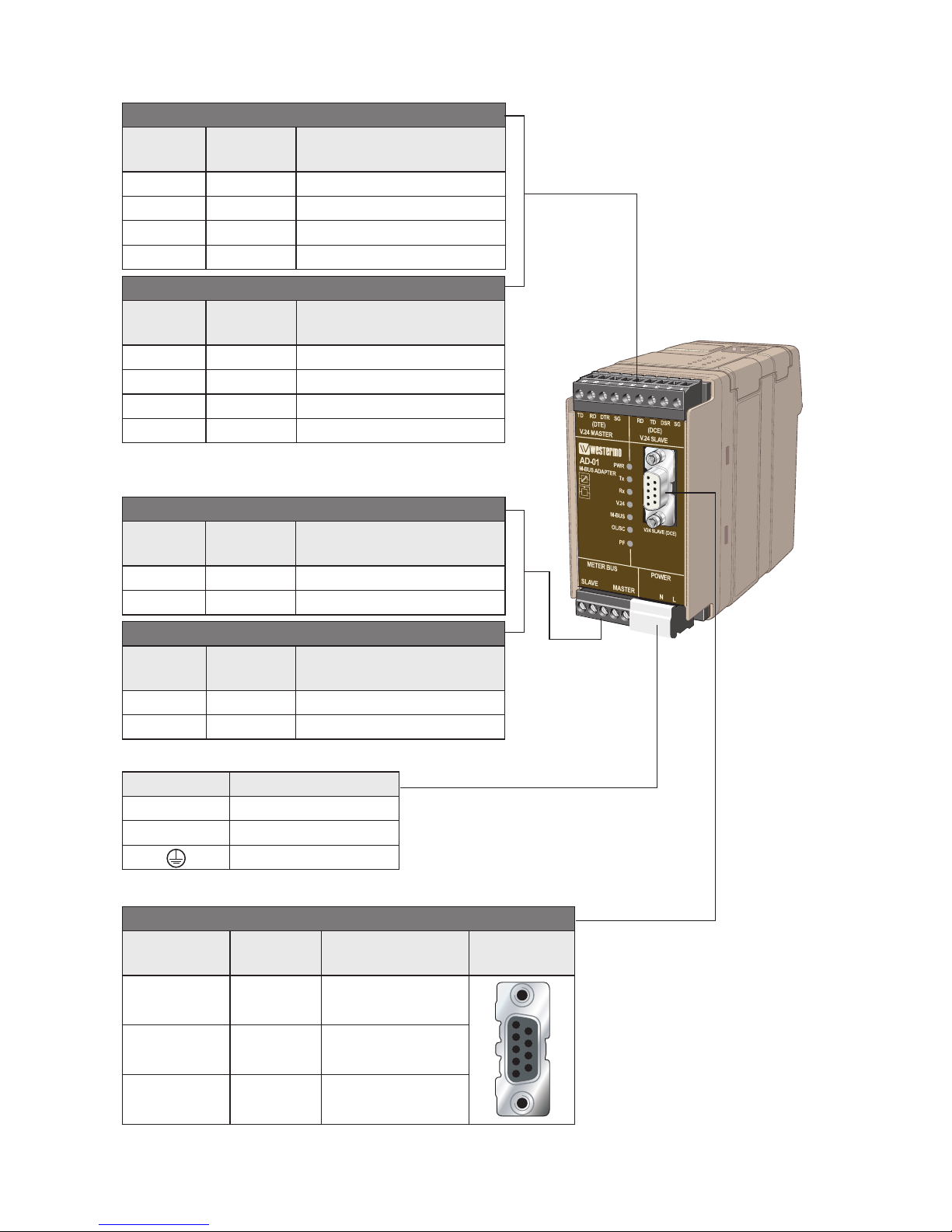

Master
Screw
terminal Direction Desctiption
No 4 In/Out M-Bus connection
No 5 In/Out M-Bus connection
METER BUS
Slave
Screw
terminal Direction Description
No. 1 In/Out M-Bus connection
No. 2 In/Out M-Bus connection
Master
Screw
terminal
Direction
(DTE) Description
No. 6 – Signal ground (SG)
No. 7 Out Data terminal ready (DTR)*
No. 8 In Receive Data (RD)
No. 9 Out Transmit Data (TD)
*) DSR / DTR is always +5 V
Slave
Screw
terminal
Direction
(DCE) Description
No. 1 – Signal ground (SG)
No. 2 Out Data set ready (DSR)*
No. 3 In Transmit Data (TD)
No. 4 Out Receive Data (RD)
RS-232/V.24 for M-Bus protocol
Slave
Connection Direction
(DCE) Description D-sub description
No. 2 Out Receive data (RD)
No. 3 In Transmit data (TD)
No. 5 – Signal Ground (SG)
1
2
3
4
5
6
7
8
9
RS-232/V.24
Power
Connection Description
L Power 230V AC ±10%
N Power 230V AC ±10%
Protective earth

11
6612-2202
LED indications
LED Status Description
PWR LED on Correct internal power
LED off No internal power
Tx LED on Data received slave interface
LED off No data slave interface
Rx LED on Data received master interface
LED off No data master interface
V.24 LED on RS-232/V.24 master port open
LED off RS-232/V.24 master port closed
M-BUS LED on M-Bus master port open
LED off M-Bus master port closed
OL/SC LED on Overload / short-circuit M-Bus master
interface
LED off Normal communication M-Bus master
interface
PF* LED on Power failure M-Bus slave interface
LED off M-Bus slave interface receives correct
power from line
* Observe that if M-Bus slave mode is set to not used, PF led is always inactive.

12
6612-2202
DIP-switch settings
Before DIP-switch settings:
Prevent damage to internal electronics from electrostatic discharges (ESD)
by discharging your body to a grounding point (e.g. use of wrist strap).
NOTE DIP-switch alterations are only effective after a power on.

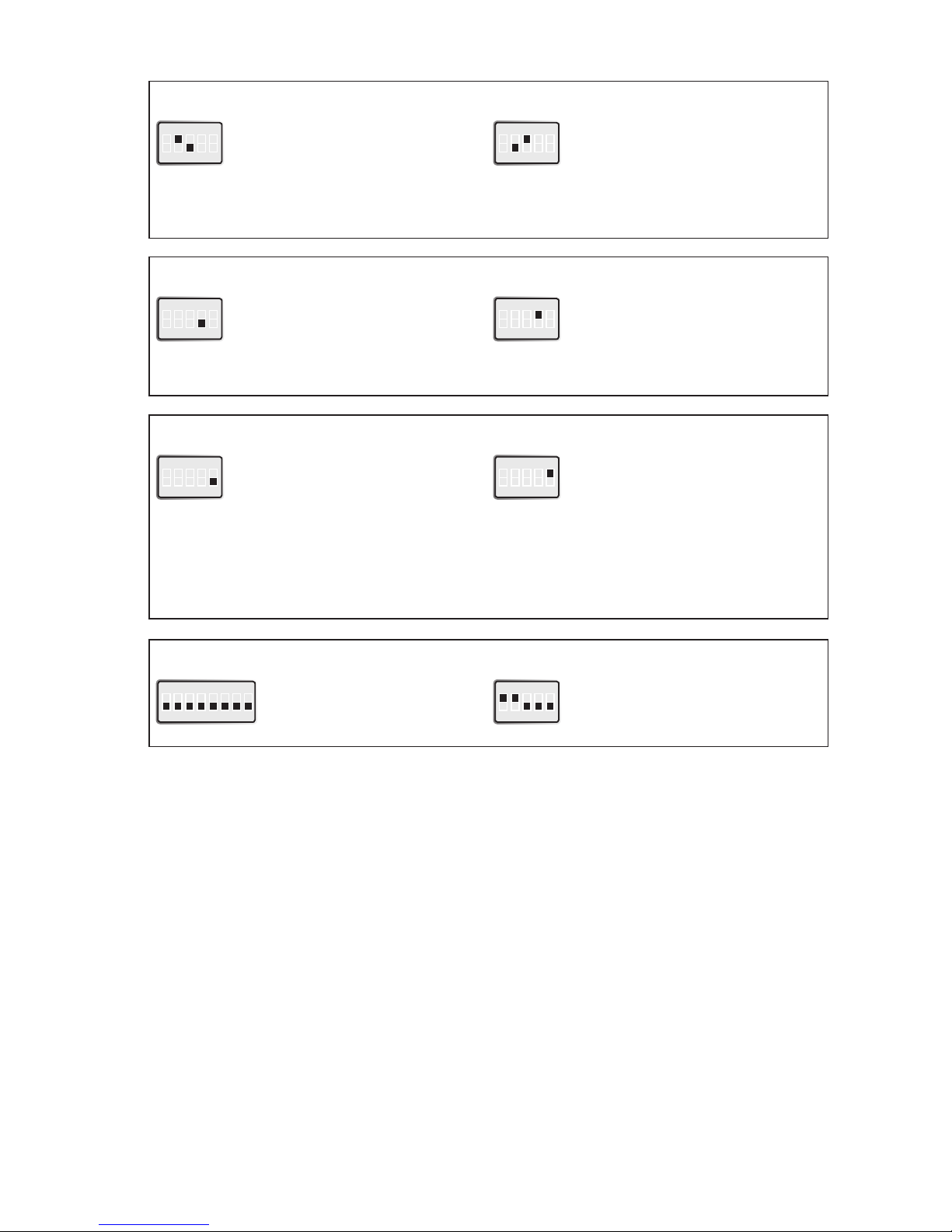

S2 S1
S1 Primary address
S2 Data rate functionality
ON
1 2 3 4 5 6 7 8
Address bit active ('1')
Autobaud
ON
1 2 3 4 5 6 7 8
Address bit inactive ('0')
Data rate using protocol
The units primary address is set up as a 8-bit binary address (0–255)
S1:1 is the least significant bit, S1:8 is the most significant bit.
Observe that only primary addresses 1–250 is allowed to use according to M-Bus
standard.
Example, address 103 = "01100111" binary = S1: 4, 5, 8 OFF, others ON,
see table on page xxxx
Data rate using protocol means that data rate is set using protocol commands.
Autobaud implies that every incoming packet on slave interfaces is data rate
controlled and data rate is set accordingly.
ON
1 2 3 4 5
ON
1 2 3 4 5

13
6612-2202
S2 Processor mode
S2 Factory default mode
Factory settings
S2 M-Bus slave mode
Flash mode
Reset to factory default
S2
M-Bus slave used
Normal mode
Normal mode
M-Bus slave not used
Flash mode implies that an update of the application program is possible using the
serial port. See chapter program update.
Disconnected power to AD-01.
Set switch to factory default.
Repower AD-01, the unit is now set as factory default.
Disconnect power and set switch to normal mode.
M-Bus slave mode specifies if the M-Bus slave interface is used or not.
ON
1 2 3 4 5
ON
1 2 3 4 5
ON
1 2 3 4 5
ON
1 2 3 4 5
ON
1 2 3 4 5
ON
1 2 3 4 5
ON
1 2 3 4 5
ON
1 2 3 4 5 6 7 8
S1

14
6612-2202
CLICK!
10 mm *
(0.4 inches)
25 mm
25 mm
* Spacing (left/right) recommended for
full operating temperature range
Cooling
This unit uses convection cooling. To avoid
obstructing the airflow around the unit, use the
following spacing rules. Minimum spacing 25 mm
(1.0 inch) above /below and 10 mm (0.4 inches)
left /right the unit. Spacing is recommended for
the use of unit in full operating temperature
range and service life.
Removal
Press down the black support at the back of the unit
using a screwdriver, see figure.
Mounting
This unit should be mounted on 35 mm DIN-rail, which is
horizontally mounted inside an apparatus cabinet, or similar.
Snap on mounting, see figure.

15
6612-2202
Protocol implementation
Parts of the M-Bus protocol is implemented in the unit. Data packets which are not
addressed to the unit are transparently passed further without format or checksum
control. Packets addressed to the unit are controlled according to M-Bus standard.
Unit addressing
AD-01 can be addressed over the M-Bus protocol in two ways, by using primary or
secondary addressing.
Primary addressing
The primary address is set with switches inside the unit. See page 11, Switch settings /
Primary address.
Secondary addressing
The secondary address is based on a unique identification number in every unit. The
AD-01 secondary address is according the unit serial number and can in this way easily
be identified. The following secondary address parameters is used in AD-01
Parameter Value
ID number 10000000 + serial number*
Manufacturer WMO = 5DAF (hex)
Version Software version
Medium Bus / system = 0E (hex)
* Example: Unit with serial number 729 has ID number 10000729
Unit configuration
Some of the M-Bus protocol applications are implemented in AD-01. This makes it
possible to configure a number of internal parameters. The following applications are
implemented.
Initialisation of slave (SND_NKE)
Selection of data rate
(only if data rate using protocol is selected, see page 11, Switch settings / Data rate
functionality).
All data rates from 300 bit/s up to 9 600 bit/s can be configured according to M-Bus
standard.
Selection of slave
Selection of slave to be able to use secondary addressing. Slave select is performed
according to M-Bus standard.
Set up / Read out of master ports setting
Set up or read out of the units master ports setting is made with a specific command
sequence.

16
6612-2202
Set up of master ports
Set up of the master ports is possible using a SND_UD command, CI = 51 (hex) with
the following data field.
Data field DIF = 01 (hex) VIF = FD (hex) VIFE = E2 (hex) VIFE = 00 (hex) DATA
Description 8-bit integer Ext. coding Cont. signal Write replace Port setup
The DATA is coded according the following:
Value Master RS-232 port Master M-Bus port
00 (hex) Inactive Inactive
01 (hex) Inactive Active
02 (hex) Active Inactive
03 (hex) Active Active
Read out of master ports
Read out of the master ports setting is possible using a REQ_UD2 command. AD-01 will
respond with a RSP_UD, CI=72 (hex) with the following data field.
Data field DIF = 01 (hex) VIF = FD (hex) VIFE = E2 (hex) DATA
Description 8-bit integer Ext. coding Cont. signal Port setup
The DATA is coded according the following:
Value Master RS-232 port Master M-Bus port
00 (hex) Inactive Inactive
01 (hex) Inactive Active
02 (hex) Active Inactive
03 (hex) Active Active
Error indication
AD-01 includes possibilities to alert the supervision system of short-circuit or overload
on the M-Bus master interface. Readout of error status can be made using a REQ_UD2
command. AD-01 uses the status field in a RSP_UD answer sequence to alert possible
errors.
The coding of the status field is according to the following:
Value status field Description
00 (hex) No error
10 (hex) Overload / short-circuit of
M-Bus master interface

17
6612-2202
Program update
A software update can be made using the 9-position D-sub connection. AD-01 has a
micro controller with flash memory which can be reprogrammed.
To perform a program update a program file from Westermo and flash software is
necessary.
Set up of AD-01 for program update
1. Connect AD-01 to computer serial interface.
Observe that the connection must be to AD-01 9-position D-sub.
2. Set AD-01 in flash mode, S2:2 OFF, S2:3 ON.
Observe, power must be removed before switch setting.
Set up of flash program
After installation and start the following window will appear on screen.
1. Choose ”Set Environment” and select serial port.
2. Choose ”Target Microcontroller” as MB90F497/G.
3. Choose ”Crystal Frequency” as 4 MHz.
4. Choose ”Open” and select program file.
5. Choose ”Full Operation”.
6. Control that the programming is completed without errors.
7. Remove power to AD-01
8. Set AD-01 in normal operation, S2:2 ON, S2:3 OFF.
9. Reconnect power to AD-01.

18
6612-2202
Application example
AD-01 is an industrial adapter for M-Bus communication. AD-01 is a flexible product for
building of M-Bus networks. The unit is equipped with two RS-232/V.24 interfaces, one
M-Bus master and one M-Bus slave interface. The AD-01 can be configured for a number
of applications.
AD-01 as converter RS-232 to M-Bus
AD-01 can be used as a converter between RS-232 and M-Bus. The M-Bus master inter-
face can drive up to 120 slave loads.
Consider the following points.
• AD-01 can be used transparently, no addressing or set up of AD-01 using the M-Bus
protocol is necessary.
• The primary address should be set to 0 to avoid addressing of the AD-01 unit.
AD-01 as repeater
AD-01 can be used as repeater for M-Bus. The M-Bus master interface can extend the
network with up to 120 new slave loads.
Consider the following points.
• AD-01 can be used transparently, no addressing or set up of AD-01 using the M-Bus
protocol is necessary.
• The primary address should be set to 0 to avoid addressing of the AD-01 unit.
M-BUS M-BUS
AD-01
AD-01 AD-01
Telephone
modem
Telephone
modem
ISDN,
PSTN
M-BUS RS-232 M-BUSRS-232

19
6612-2202
AD-01 and connection to SIOX networks
AD-01 can be used to connect a M-Bus network to a SIOX network.
Consider the following points.
• AD-01 can be used transparently, no addressing or set up of AD-01 using the M-Bus
protocol is necessary.
• The primary address should be set to 0 to avoid addressing of the AD-01 unit.
• AD-01 should only be used in datarate using protocol mode since autobaud is not
possible when receiving SIOX commands.
AD-01 to extend a network with a modem link
Two AD-01 units can be used to extend an existing network with any type of modem
link.
Consider the following points.
• AD-01 can be used transparently, no addressing or set up of AD-01 using the M-Bus
protocol is necessary.
• The primary address should be set to 0 to avoid addressing of the AD-01 unit.
• Observe that if a dial-up modem is used the supervision system needs to send dial
commands to the modem. The supervision system must also control that a link is
established before sending data over the link.
RS-232 SIOX
AD-01
M-Bus
SIOX master

20
6612-2202
AD-01 as zone controller
AD-01 can be used as zone controller to build larger M-Bus networks.
Consider the following points.
• AD-01 is addressed and set up by the supervision system
• AD-01 can be addressed with primary or secondary address
• If meters with different data rate is used the AD-01 should be set up for autobaud.
AD-01
RS-232 RS-232 RS-232
M-Bus
AD-01
M-Bus
AD-01
M-Bus
Zone 1 Zone 2 Zone 3
