My Passport®Wireless
Portable Hard Drive
User Manual
Preliminary Cert. -P1

ii
WD Service and Support
Should you encounter any problem, please give us an opportunity to address it before returning this
product. Most technical support questions can be answered through our knowledge base or email
support service at http://support.wd.com. If the answer is not available or if you prefer, please
contact WD at the best telephone number shown below.
Your product includes 30 days of free telephone support during the warranty period. This 30-day
period starts on the date of your first telephone contact with WD Technical Support. Email support is
free for the entire warranty period and our extensive knowledge base is available 24/7. To help us
keep you informed of new features and services, remember to register your product online at
http://register.wd.com.
Accessing Online Support
Visit our product support website at http://support.wd.com and choose from these topics:
Downloads—Download drivers, software, and updates for your WD product.
Registration—Register your WD product to get the latest updates and special offers.
Warranty & RMA Services—Get warranty, product replacement (RMA), RMA status, and data
recovery information.
Knowledge Base—Search by keyword, phrase, or answer ID.
Installation—Get online installation help for your WD product or software.
WD Community—Share your thoughts and connect with other WD users.
Online Learning Center — Start here to get the most out of your WD product.
(http://www.wd.com/setup).
Contacting WD Technical Support
When contacting WD for support have your WD product serial number, system hardware, and
system software versions available.
Registering Your WD Product
Register your WD product to get the latest updates and special offers. You can easily register your
drive online at http://register.wd.com.
North America Europe (toll free)* 00800 ASK4 WDEU
English 800.ASK.4WDC (00800 27549338)
(800.275.4932) Europe [phone]
Spanish 800.832.4778 Middle East [phone]
Africa [phone]
Mexico 001 8002754932 Russia 8 10 8002 335 5011
South America Asia Pacific
Chile 1230 020 5871 Australia 1800 429 861 / 0011 800 2275 4932
Colombia 009 800 83247788 China 800 820 6682 / 400 627 6682
Venezuela 0800 100 2855 Hong Kong 3057 9031
Peru 0800 54003 India 1800 200 5789 / 1800 419 5591
Uruguay 000 413 598 3787 Indonesia 001 803 852 3993
Argentina 0800 4440839 Japan 0800 805 7293
Brazil 0800 7704932 Korea 02 2120 3415
0021 800 83247788 Malaysia 1800 817 477
New Zealand 0508 555 639 / 00800 2275 4932
Philippines 1800 1855 0277
Singapore 1800 608 6008
Taiwan 0800 225 593
Thailand 00 1800 852 5913
Other countries [phone]
* Toll free number available in the following countries: Austria, Belgium, Czech Republic, Denmark, France, Germany, Ireland,
Italy, Netherlands, Norway, Poland, Slovakia, Spain, Sweden, Switzerland, United Kingdom.

TABLE OF CONTENTS – iii
Table of Contents
WD Service and Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
Registering Your WD Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
1 About Your WD Storage Device. . . . . . . . . . . . . . . . . 1
Introduction - Christina. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Features - Christina . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Kit Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
About the Online Learning Center . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Handling Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Registering Your Drive? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Turning the Drive On and Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Setting up the Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Loading Content onto Your Drive . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3 Connecting the Drive . . . . . . . . . . . . . . . . . . . . . . . . 13
Connecting to Your Computer Wirelessly . . . . . . . . . . . . . . . . . . . . 13
Connecting with WD My Cloud on a Mobile Device . . . . . . . . . . . . 14
Connecting to a Hotspot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Connecting to Your Home Wi-Fi Network . . . . . . . . . . . . . . . . . . . 17
Removing a Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
4 How do I? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Stream Content to a DLNA Device. . . . . . . . . . . . . . . . . . . . . . . . . 21

TABLE OF CONTENTS – iv
Use with an SD Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Maximize Battery Life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Upgrade Firmware on the Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Understand the LEDs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
View Battery Status When Drive is Off? . . . . . . . . . . . . . . . . . . . . . 27
Charge the Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Reset Your Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Reset Your Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Use WPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . Use FTP w/ my Wi-Fi camera28
5 . . . . . Playing/Streaming Videos, Photos, & Music29
Accessing Your Content Using Media Players . . . . . . . . . . . . . . . . 32
6 Customizing the Drive: Dashboard . . . . . . . . . . . . . 34
Dashboard Home Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Wi-Fi Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Admin Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Hardware Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Media Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Support Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Firmware Page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
7 Using WD Apps to Back Up and Manage Drive . . . 52
Backing up a Windows Computer . . . . . . . . . . . . . . . . . . . . . . . . . 52
Backing up a Mac Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Managing with WD Quick View . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

TABLE OF CONTENTS – v
8 Technical Specifications . . . . . . . . . . . . . . . . . . . . . 59
9 Compliance and Warranty Information. . . . . . . . . . 60
Regulatory Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
GNU General Public License (“GPL”) . . . . . . . . . . . . . . . . . . . . . . . 64
10 Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

ABOUT YOUR WD STORAGE DEVICE
1
MY PASSPORT WIRELESS
USER MANUAL
About Your WD Storage Device
This chapter includes the following topics:
Introduction - Christina
Features - Christina
Kit Contents
Optional Accessories
About the Online Learning Center
Compatibility
Physical Description
Handling Precautions
Introduction - Christina
Welcome to your My Passport®Wireless portable hard drive.
This portable drive is ideal for the mobile creative pro with WHATamazing transfer speeds up
to 233 MB/s, an integrated Thunderbolt™ cable, and a durable aluminum enclosure. It
delivers the ultimate in speed, flexibility and convenience.
Features - Christina
3-year limited warranty—For added peace of mind, we back the drive with a 3-year limited
warranty.
Kit Contents
Your My Passport Wireless storage drive kit includes:
My Passport Wireless storage drive
USB 3.0 18-inch cable
AC power brick
Quick Install Guide
Important: For the latest WD product information and news, visit our website at
http://www.westerndigital.com. For the latest software, firmware, and product
documentation and information, go to http://support.wd.com/downloads.
1
1

ABOUT YOUR WD STORAGE DEVICE
2
MY PASSPORT WIRELESS
USER MANUAL
Optional Accessories
For information about optional accessories for this product, visit:
About the Online Learning Center
WD’s online Learning Center provides the latest information, instructions, and software to
help users get the most out of their personal cloud storage. This web-based guide offers
step-by-step help with setting up remote access, backing up data, monitoring device status
and more. It’s an interactive resource to walk users through installing and using their
My Passport Wireless drive. The online Learning Center allows you to:
Learn about your new personal cloud storage product.
Download the latest software for your product.
Find in-depth, interactive information on how to explore each of your product’s
features.
Update your product whenever new features become available.
Access an always-available resource online, without a manual or CD.
US http://www.shopwd.com or http://www.wdstore.com
Canada http://www.shopwd.ca or http://www.wdstore.ca
Europe http://www.shopwd.eu or http://www.wdstore.eu
All others Contact WD Technical Support in your region. For a list of Technical Support contacts,
visit http://support.wd.com and see Knowledge Base Answer ID 1048.
Quick Install Guide
My Passport Wireless
Portable Hard Drive
Power brick USB 3.0 cable

ABOUT YOUR WD STORAGE DEVICE
3
MY PASSPORT WIRELESS
USER MANUAL
Compatibility
Operating Systems
Note: Compatibility may vary depending on your computer’s hardware
configuration and operating system.
For highest performance and reliability, always install the latest software update.
Web Browsers
Internet Explorer 8.0 and later on supported Windows computers
Safari 6.0 and later on supported Mac computers
Firefox 21 and later on supported Windows and Mac computers
Google Chrome 27 and later on supported Windows and Mac computers

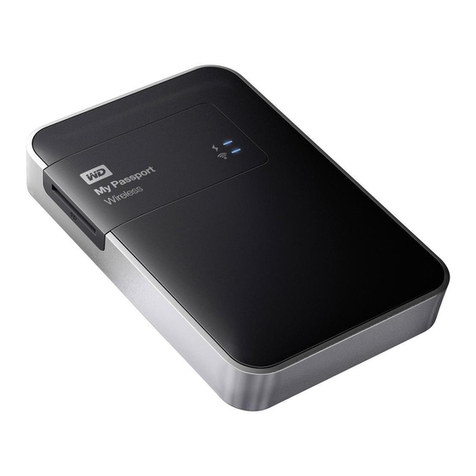

Physical Description
Front View
The top of the My Passport Wireless portable hard drive has:
A power LED indicator
An activity/wireless (Wi-Fi?) LED indicator
Windows®Mac OS X®
Windows 8.1 or earlier
Windows 7
Windows Vista®
Windows XP (32 bit) SP3 or later
Mavericks (Mac OS 10.9)
Mountain Lion (Mac OS 10.8)
Lion (Mac OS 10.7)
Snow Leopard (Mac OS 10.6)
Power LED
Wireless Activity LED

ABOUT YOUR WD STORAGE DEVICE
4
MY PASSPORT WIRELESS
USER MANUAL
LEDs
The top of the drive has two LEDs: Power and Activity/Wireless (Wireless Activity?). For
detailed information about the power and Activity LEDs, see “Understand the LEDs” on
page 25.
Back View
Component Icon Description
USB 3.0 port Included cable connects the USB 3.0 port to the computer’s USB port
What kind of cable?
Power button Turns the drive on and off:
• To turn on: Push until lights start blinking
• To turn off: push for about 5 seconds to turn off
Wi-Fi button • Connects to a router or mobile drive wirelessly
• Starts SD card transfer
• Turns on hotspot down link?
Power button
USB 3.0 port
Wireless (Wi-Fi) button

ABOUT YOUR WD STORAGE DEVICE
5
MY PASSPORT WIRELESS
USER MANUAL
Left Side View
The left side of the drive contains a slot for an SD (secure digital) card.
Handling Precautions
WD products are precision instruments and must be handled with care during unpacking
and installation. Rough handling, shock, or vibration can damage drives. Always observe the
following precautions when unpacking and installing your external storage product:
Do not drop or jolt the drive.
Do not move the drive during activity.
Do not place the drive on carpeting. Make sure the drive is on a clean, firm, and stable
surface.
To allow proper ventilation, do not block any of the enclosure’s air slots.
Registering Your Drive?
SC card port

GETTING STARTED
6
MY PASSPORT WIRELESS
USER MANUAL
Getting Started
This chapter includes the following topics:
Turning the Drive On and Off
Setting up the Drive
Loading Content onto Your Drive
Turning the Drive On and Off
You have the following options:
To turn the drive on when it is not connected to an outlet, push the power button
until then the power LED is blinking. When the wireless LED is solid blue, the drive is
ready to connect.
To turn the drive on when it is connected to an outlet, the power LED starts blinking
automatically.
To turn the drive off, hold the power button again for about 5 seconds until the
power LED goes off.
Setting up the Drive
To connect and set up the drive for wireless use, do one of the following:
Use a computer and a web browser.
Download and use the My Cloud app on your smart phone or tablet.
Important: It is best to charge the battery before using the My Passport Wireless drive
the first time as the factory charge may have decreased during shipping.
1
2
1
2

GETTING STARTED
7
MY PASSPORT WIRELESS
USER MANUAL
Setting up with a Computer and Web Browser
Note: The computer must be wireless enabled.
1. Make sure the My Passport Wireless device is turned on and boy LEDs are lit.
2. Do one of the following:
a. On your Windows computer, open the list of available networks. win8?Android
b. On a Mac computer, click System Preferences >Network > Wi-Fi

GETTING STARTED
8
MY PASSPORT WIRELESS
USER MANUAL
3. Select MyPassport.
4. Open a browser and type one of the following:
Windows computer: http://mypassport
Mac computer: http://mypassport.local
Windows or Mac computer: http://192.168.60.1
5. Read the agreement and click I accept:
The Secure My Passport Wireless screen displays:
6. (Optional) The drive’s default network name is MyPassport. To add security and to
differentiate the drive from others, enter a new name.
Note: It is a good practice to rename the drive to differentiate it from any other
similar devices. If you enter a new name, you will have to select the new
name on the list of available networks the next time you use the drive. Be
sure to record the new Wi-Fi name.
You have the following options:
To go to the next screen without entering credentials, click the Skip check box. The
My Passport Wireless dashboard appears.
Note: If you click Next instead, an error message displays.
To secure the drive with a password, enter and confirm a password of at least 8
characters. The password is case sensitive and may not contain double quotes. To
display the password, click the Show Password check box.
Record network information
here:
Network Name:
Password:

GETTING STARTED
9
MY PASSPORT WIRELESS
USER MANUAL
SHOW RECONNECT SCREEN-WHY?
7. Click Next. The first time you set up the drive, a Download to Shortcut message pops
up. NEED SCREENSHOT ?Check you computer’s Downloads folder to find a link to
your data.
8. Click Next to display the My Passport Wireless dashboard. You are ready to use your
wireless drive.
The dashboard gives you an overview of the status of your drive. For detailed information
about the dashboard, see “Customizing the Drive: Dashboard” on page 34.
Setting up Using a Mobile Device with WD My Cloud App
1. Download the WD My Cloud app to your mobile device from the App Store, Android
App for Google Play store, or Amazon Apps (for Android).
2. Tap the My Cloud icon to display the My Passport Wireless Western Digital
Technologies, Inc. License Agreement displays.

GETTING STARTED
10
MY PASSPORT WIRELESS
USER MANUAL
3. Read the agreement and tap Accept to display the WD My Cloud app Welcome screen.
4. Tap Connect Now to display a list of available wireless devices and networks.

GETTING STARTED
11
MY PASSPORT WIRELESS
USER MANUAL
5. Tap MyPassport (or the Wi-Fi name you assigned your drive). The following page
displays:
6. Tap Next to display the Secure Your Device screen:
7. (Optional) Enter or change the name of your My Passport Wireless drive.
8. If you have not assigned a password to your drive (and don’t want to now), tap Skip.
Continue to step 14
9. If you want to assign or change one, enter the password for the My Passport Wireless
drive in both password fields. ***

GETTING STARTED
12
MY PASSPORT WIRELESS
USER MANUAL
10. Tap Save Changes to display the following screen:
11. On your mobile device, go to Settings and connect to the My Passport Wireless using
your new password:
12. Tap Join. The Settings screen shows the connection to the drive:

GETTING STARTED
13
MY PASSPORT WIRELESS
USER MANUAL
13. Tap MyPassport (or whatever you named your drive) to display the following
confirmation screen:
14. You can now open any of the folders to view its contents:
Loading Content onto Your Drive
One of the first things to do with your drive is to load content to it from a PC or Mac
computer or from an Android/iOS mobile device with WD My Cloud.
Using a Wi-Fi Connection
When you first connect to the My Passport Wireless Wi-Fi network, none of your media is on
the drive. (There are some samples. You can start copying files from your computer to the
drive using Wi-Fi, or for faster download, by connecting the drive’s USB 3 port to a USB port
on your computer.
From your computer wirelessly
1. On your computer, open the File Explorer (PC) window or Finder (Mac).

GETTING STARTED
14
MY PASSPORT WIRELESS
USER MANUAL
2. Do one of the following:
For a Windows PC, in the left pane of the File Explorer window, click Computer >
Downloads > MyPassport (or the name you assigned to the drive).
For a Mac computer, in the left pane of the Finder window in the SHARED section,
double-click MyPassport.
If you set up a shortcut during setup, click Computer > Downloads > and double-
click MyPassport (or the name you assigned to the drive).Same as first bullet?
The drive’s Public folder opens.
3. Drag and drop files from your computer to the Public folder.
From a mobile device with WD My Cloud
HOW do you do this?
Using a USB Connection
If you want to copy over a lot of files, consider using the USB port on your computer, which
can be faster than using the My Passport Wireless Wi-Fi network.
1. Plug one end of the USB cable into the drive and the other end into your computer's
USB port.
Note: When you connect your computer and drive this way, the wireless
connection between the two is disabled.
2. On your computer, open the File Explorer (Windows PC) or Finder (Mac) window.
3. Do one of the following:
For a Windows PC: In the left pane of the File Explorer window, click Computer and
double-click the My Passport Wireless drive.
For a Mac computer: In the left pane of the Finder window in the DEVICES section,
double-click the My Passport Wireless drive.
4. Drag and drop files from your computer to the drive.
Note: Your files reside in two places: on your computer and on the drive.

CONNECTING THE DRIVE
13
MY PASSPORT WIRELESS
USER MANUAL
Connecting the Drive
Connecting to Your Computer Wirelessly
Connecting with WD My Cloud on a Mobile Device
Connecting to a Hotspot
Connecting to Your Home Wi-Fi Network
Ways to Connect the Drive
(NEED Graphics)
The My Passport Wireless Drive can make the following connections:
Wireless drive connect directly to your computer or mobile device
You set up a direct connection between the drive and your computer using Wi-Fi.
Your computer joins the My Passport Wireless drive’s Wi-Fi network.
Note: The drive is not connected to your local network or the Internet.
Wireless drive with Internet access
You connect your drive to a hotspot—a wireless local area network (WLAN) with
Internet connectivity. You have access to your media on your drive and to the
Internet.
Wireless drive for all devices connected to your home’s Wi-Fi network
You connect the drive to your home network. You have access to your media
through your router (LAN) as well as to the Internet (provided your network has
Internet connectivity).
External drive that you plug into your computer
You connect your computer and My Passport Wireless drive with a USB cable,
essentially turning it into a Direct-Attached Storage (DAS) drivev. In this case, there is
no wireless connectivity so you don’t get Internet access and you will unable to
display the My Passport Wireless web interface.
Connecting to Your Computer Wirelessly
After initial setup, you can create a direct connection using a browser or the WD My Cloud
app on a mobile device.
Using a Browser
1. Make sure the My Passport Wireless device is on, the power LED is lit, and the wireless
LED is solid blue. (See “Understand the LEDs” on page 25 for more information.)
1
2
1
3
