Western Digital Ultrastar Data60 User manual

Installation
Guide
Ultrastar Data60
Regulatory Model: H4060-J
August 2020
Rev. 1.13
1ET1105

Installation Guide Table of Contents
Table of Contents
Revision History.....................................................................................................................................iii
Notices....................................................................................................................................................v
Points of Contact..................................................................................................................................vi
Product Label Information............................................................................................................. vi
Chapter 1. Overview.........................................................................................................1
Ultrastar Data60 Description............................................................................................................... 2
Ultrastar Data60 Layout....................................................................................................................... 2
Environmental Specifications...............................................................................................................4
Electrical Specifications....................................................................................................................... 4
Mechanical Specifications....................................................................................................................5
Performance Specifications................................................................................................................. 5
Ultrastar Data60 Rack Requirements.................................................................................................. 6
Compatible Rack Hardware Configuration................................................................................. 7
List of Compatible Drives....................................................................................................................9
Chapter 2. Disclaimers..................................................................................................20
Restricted Access Location............................................................................................................... 21
Safety Compliance..............................................................................................................................21
Electromagnetic Compatibility (EMC) Class A Compliance............................................................ 21
Country Certifications........................................................................................................................ 22
Chapter 3. Safety........................................................................................................... 23
Safety Warnings and Cautions..........................................................................................................24
Electrostatic Discharge......................................................................................................................24
Optimizing Location...........................................................................................................................24
Power Connections............................................................................................................................25
Power Cords.......................................................................................................................................25
Rackmountable Systems....................................................................................................................25
i

Installation Guide Table of Contents
Safety and Service............................................................................................................................. 26
Chapter 4. Packaging....................................................................................................27
Ultrastar Data60 Packaging Overview..............................................................................................28
Ultrastar Data60 Unpacking Procedure............................................................................................29
Chapter 5. Installation...................................................................................................34
Ultrastar Data60 Installation Overview............................................................................................. 35
Ultrastar Data60 Installation Procedure............................................................................................35
Special Considerations for Cable Routing................................................................................56
Cabling for CMA.................................................................................................................................58
Before You Begin........................................................................................................................58
Cabling CMA............................................................................................................................... 59
SAS Cabling........................................................................................................................................60
ii

Installation Guide Revision History
Revision History
Date Revision Comment
November 2017 Revision 1.0 Initial Release
November 2017 Revision 1.1 •The crossbar on the CMA was changed. See the installation
instructions for details.
•Changed required rack depth, see Required Rack Depth (page
5).
•Changed typical power consumption, see Typical Power
Consumption (page 4).
December 2017 Revision 1.2 •Added active cable support
•Added a note regarding single IOMs in SATA TLAs. See
Ultrastar Data60 Description (page 2)
•Updated the Non-Op altitude specification. See Non-
Operational Altitude (page 4).
•Correct the packaging images to show the two CMA boxes
that come in the accessory tray. See Packaging Layout (page
28).
January 2018 Revision 1.2.1 Updated the product name
January 2018 Revision 1.2.2 Added an image for cage nut positioning in the installation
procedure.
January 2018 Revision 1.3 •Updated information on the 2.5" drive carrier option. (topic
removed)
•Added torque requirements for all screws used in the
enclosure.
•Updated the IOM replacement section to account for the
possibility of a firmware mismatch. (topic removed)
•Updated the drive assembly installation instructions to clarify
the orientation of the drive assemblies. See Ultrastar Data60
Installation Procedure (page 35).
April 2018 Revision 1.4 •Updated Compatible Drives List. See List of Compatible Drives
(page 9).
•Updated the Rack Requirements. See Ultrastar Data60 Rack
Requirements (page 6).
June 2018 Revision 1.5 •Updated the Compatible Drives List. See List of Compatible
Drives (page 9)
December 2018 Revision 1.6 •Updated Compatible Drives List. See List of Compatible Drives
(page 9)
iii

Installation Guide Revision History
Date Revision Comment
March 2019 Revision 1.7 Updated the Ultrastar Data60 Installation Procedure (page 35)
May 2019 Revision 1.8 Updated the Ultrastar Data60 Installation Procedure (page 35)
July 2019 Revision 1.9 •Updated servicing image to correct length values and rail
servicing extension in Ultrastar Data60 Rack Requirements
(page 6) section.
•Updated revision history to remove broken links to topics no
longer in this document.
November 2019 Revision 1.10 •Replaced references to He12 drives with Ultrastrar DC HC520
in List of Compatible Drives (page 9)
•Corrected layout image annotations to match table numbering
in Ultrastar Data60 Layout (page 2)
•Updated images of chassis cover screws throughout
December 2019 Revision 1.11 •Rebranded document to WD design
•Updated the List of Compatible Drives (page 9)
April 2020 Revision 1.12 •Updated drive installation order in the Ultrastar Data60
Installation Procedure (page 35)
•Added SAS Cabling (page 60)
•Added note about minimum time between removing and
reapplying power in Power Connections (page 25)
August 2020 Revision 1.13 Updated SAS Cabling (page 60)
iv

Installation Guide Notices
Notices
Western Digital Technologies, Inc. or its affiliates' (collectively “Western Digital”) general policy does not
recommend the use of its products in life support applications wherein a failure or malfunction of the product
may directly threaten life or injury. Per Western Digital Terms and Conditions of Sale, the user of Western
Digital products in life support applications assumes all risk of such use and indemnifies Western Digital
against all damages.
This document is for information use only and is subject to change without prior notice. Western Digital
assumes no responsibility for any errors that may appear in this document, nor for incidental or consequential
damages resulting from the furnishing, performance or use of this material.
Absent a written agreement signed by Western Digital or its authorized representative to the contrary,
Western Digital explicitly disclaims any express and implied warranties and indemnities of any kind that may,
or could, be associated with this document and related material, and any user of this document or related
material agrees to such disclaimer as a precondition to receipt and usage hereof.
Each user of this document or any product referred to herein expressly waives all guaranties and warranties
of any kind associated with this document any related materials or such product, whether expressed or
implied, including without limitation, any implied warranty of merchantability or fitness for a particular
purpose or non-infringement. Each user of this document or any product referred to herein also expressly
agrees Western Digital shall not be liable for any incidental, punitive, indirect, special, or consequential
damages, including without limitation physical injury or death, property damage, lost data, loss of profits or
costs of procurement of substitute goods, technology, or services, arising out of or related to this document,
any related materials or any product referred to herein, regardless of whether such damages are based on
tort, warranty, contract, or any other legal theory, even if advised of the possibility of such damages.
This document and its contents, including diagrams, schematics, methodology, work product, and
intellectual property rights described in, associated with, or implied by this document, are the sole and
exclusive property of Western Digital. No intellectual property license, express or implied, is granted by
Western Digital associated with the document recipient's receipt, access and/or use of this document or the
products referred to herein; Western Digital retains all rights hereto.
Western Digital, the Western Digital logo, and Ultrastar are registered trademarks or trademarks of Western
Digital Corporation or its affiliates in the US and/or other countries. Linux® is the registered trademark of
Linus Torvalds in the U.S. and other countries. All other marks are the property of their respective owners.
Product specifications subject to change without notice. Pictures shown may vary from actual products. Not
all products are available in all regions of the world.
Western Digital
5601 Great Oaks Parkway
San Jose, CA 95119
© 2020 Western Digital Corporation or its affiliates. All Rights Reserved.
v

Installation Guide Points of Contact
Points of Contact
For further assistance with a Western Digital product, contact Western Digital Datacenter Platforms technical
support. Please be prepared to provide the following information: part number (P/N), serial number (S/N),
product name and/or model number, and a brief description of the issue.
Email:
[e-mail]
Website:
https://portal.wdc.com/Support/s/
1.1 Product Label Information
The following product information is required for technical support requests:
•Part Number (P/N)
•Serial Number (S/N)
•Product Name and/or Model Number (MODEL)
This information may be found on the product label, which is affixed to an exterior, non-removable surface of
the chassis. The following is an example label with the applicable information fields highlighted:
vi

Western Digital
Overview
This section provides a high level overview of the features of the
Ultrastar Data60 .
In This Chapter:
- Ultrastar Data60 Description........................ 2
- Ultrastar Data60 Layout................................ 2
- Environmental Specifications........................4
- Electrical Specifications................................ 4
- Mechanical Specifications............................. 5
- Performance Specifications...........................5
- Ultrastar Data60 Rack Requirements........... 6
- List of Compatible Drives..............................9
1

Installation Guide 1. Overview
1.1 Ultrastar Data60 Description
1.1 Ultrastar Data60 Description

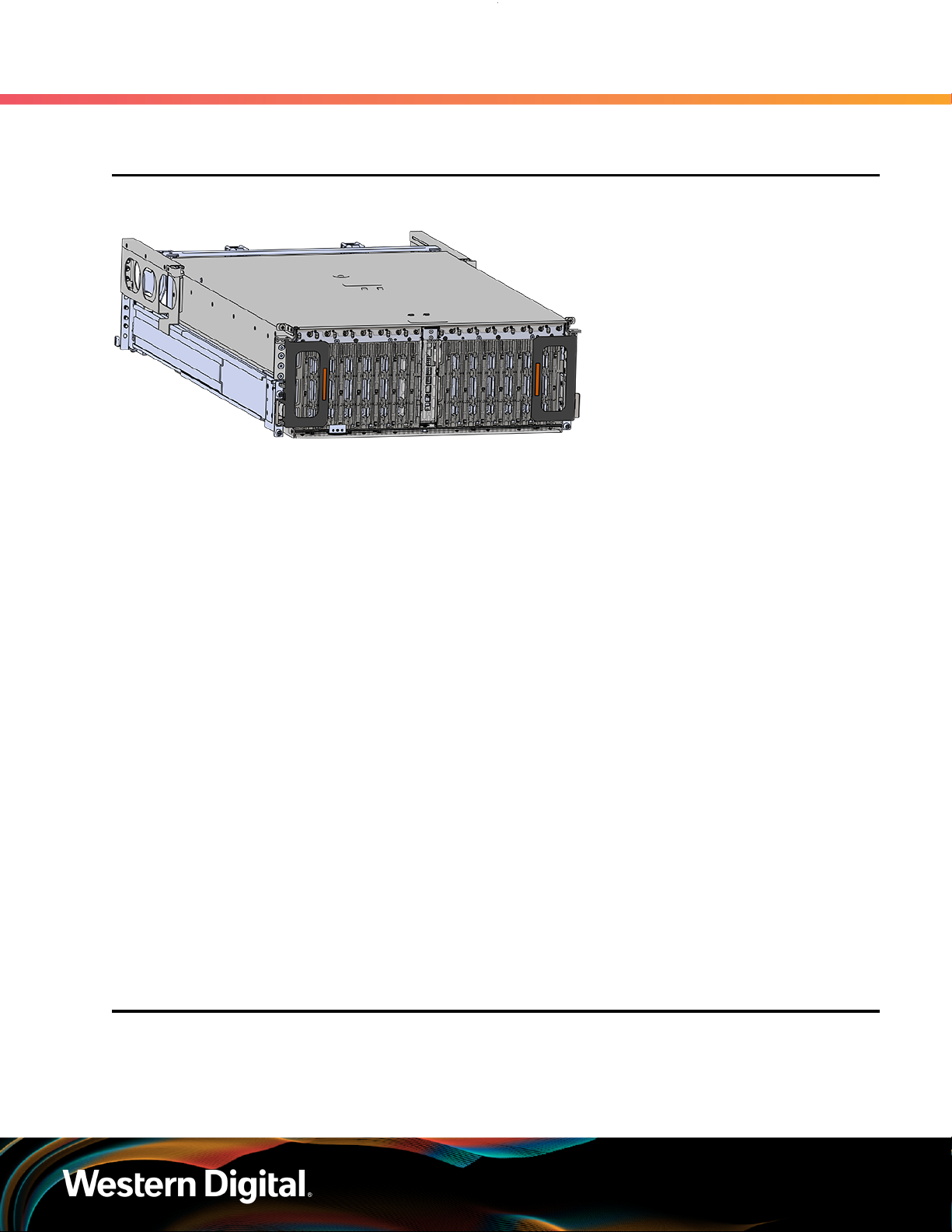

Figure 2: Ultrastar Data60
The Ultrastar Data60 is a 4U form factor, high availability, high density, rack-mounted storage enclosure
that is capable of hosting up to 60 SAS or SATA drives. The maximum data storage capacity of the Ultrastar
Data60 is 840 TB using 14TB HGST Ultrastar® HC530 drives . (For a full list of compatible drives and total
storage capacities, see the List of Compatible Drives (page 9).) The enclosure runs on an input voltage
of 200 - 240 VAC and consumes ~1000W of power under typical conditions. It requires a maximum of
~1250W at full load.
It is designed to fit within a 4U rack space and requires 900mm (35.43in.) usable rack space, frame to frame.
A fully loaded system will add 79.4 kg. / 175 lbs. of static load when fully loaded with drives.
•4U Storage Enclosure
•Supports up to 60 Drives
•Can support 3.5” drives and 2.5” SSD drives (2.5" requires an adapter) in the 60 available drive bays.
•Up to 12W per drive slot for the 60 data storage drives (Cannot exceed 85A on the 5V rail)
•House and control four (4) N+1 redundant 80mm rear fans
•House and control a dual rotor 40mm internal IOM Fan
•Controlled by two (2) redundant I/O Modules1
•Powered by two (2) redundant 1600W PSUs
•Supports High Line (220-240 VAC) Input Power
•Full high availability with independent dual paths to all HDDs
•Toolless replacement of all Customer Replaceable Units (CRUs)
•Fits within a standard EIA-310 rack including all necessary cable management (see Compatible Rack
Hardware Configuration (page 7))
•Supports up to 3m passive SAS cables (limited to 3m or less) or active cables (any length) (see SAS
Cabling (page 60))
1.2 Ultrastar Data60 Layout
1. SATA based models will only include 1 IOM
2

Installation Guide 1. Overview
1.2 Ultrastar Data60 Layout
Figure 3: Front and Rear Product Layout
Table 1: Front and Rear Component Identification
Number Component
1 Enclosure Handles
2 CMAs
3 CMA Tray
4 Rear Fans
5 PSUs
6 Chassis Cover
7 Rear Cover Alignment Brackets
8 Rails
The following is an image of the layout of the major system components inside the Ultrastar Data60 .
3

Installation Guide 1. Overview
1.3 Environmental Specifications

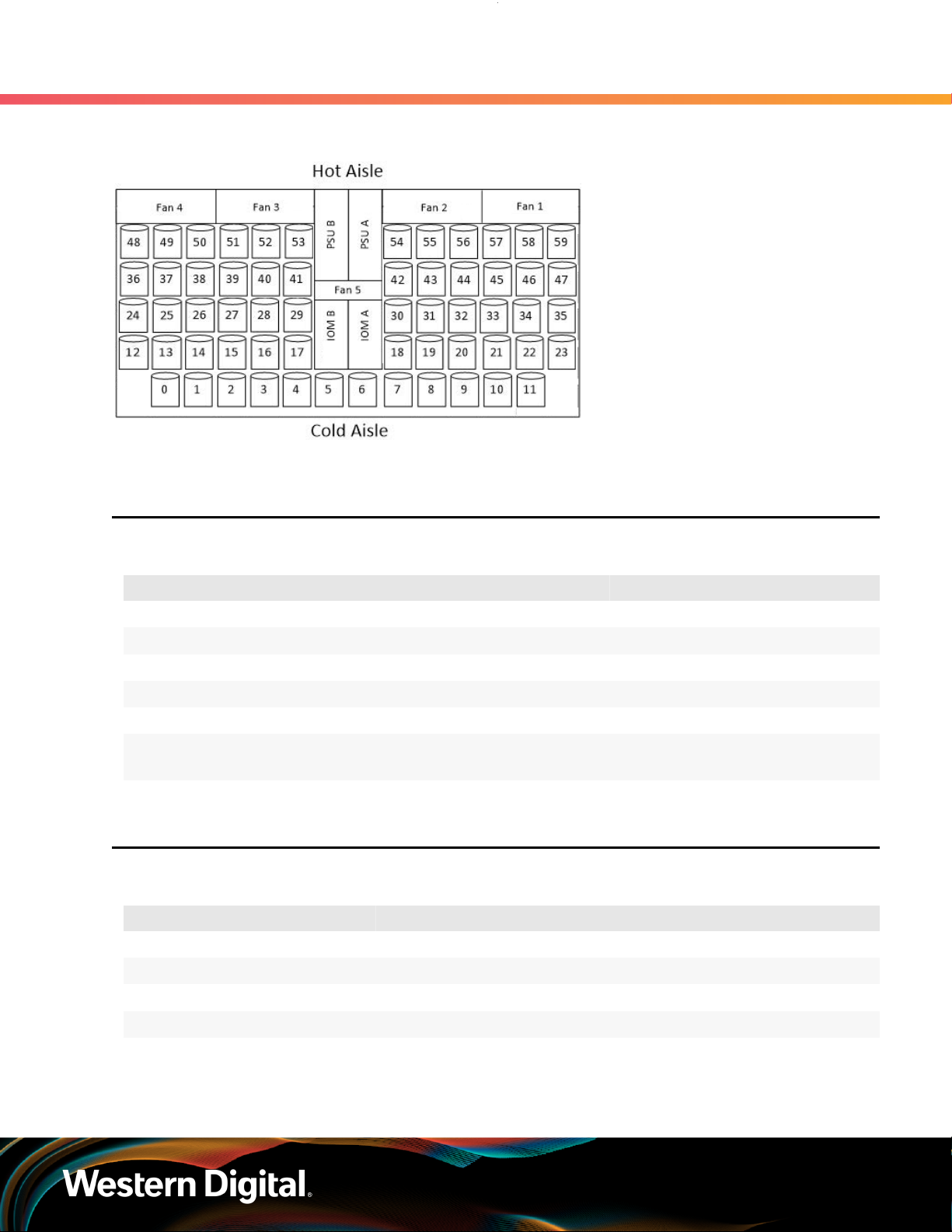

Figure 4: Component Layout
1.3 Environmental Specifications
Table 2: Environmental Specification Summary
Specification Non-Operational Operational
Temperature -40°C to 70°C 5°C to 35°C
Temperature Gradient 30°C / Hr 20°C per hour maximum
Temperature De-rating 1°C per 300m above 3000m 1°C per 300m above 900m
Relative Humidity 8-90% Non-Condensing 8-90% Non-Condensing
Relative Humidity Gradient 30% per hour maximum 30% per hour maximum
Altitude -300m to 12,000m /
-984 ft. to 39,370 ft
-300m to 3048m /
-984 ft. to 10,000 ft.
1.4 Electrical Specifications
Table 3: Electrical Specifications
Specification Value
Max Power Consumption ~1250W
Typical Power Consumption2~1000W
Input Voltage 200 - 240 VAC
PSU Connector Type C14
PSU Efficiency 80 PLUS Platinum
2. Max and typical power consumption values represent the output power to the system. Input power will vary depending
on the PSU efficiency and load sharing between PSUs.
4

Installation Guide 1. Overview
1.5 Mechanical Specifications
Specification Value
Inrush Current Maximum (per
PSU)
AC line inrush current shall not exceed 40A peak for up to
one-quarter of the AC cycle, after which, the input current
should be no more than the specified maximum input current.
Caution: The Ultrastar Data60 can only be plugged into highline. If the unit is plugged into
lowline, the PSU will report a "Critical" state when status pages are queried using SES. In this
case, the enclosure will power up, but the drives will not. The enclosure will remain in low-
power mode.
1.5 Mechanical Specifications
Table 4: Mechanical Specifications
Specification Non-Operational Operational
Shock 10G, 0 - peak,11ms half sine;
3 positive and 3 negative
pulses in each axis Shock
5G, 0 - peak, 11ms half sine; 3 positive
and 3 negative pulses in each axis-
minimum 6 seconds between shocks
to allow for write/read recovery
Vibration 0.75G, 0 - peak swept sine;
5 -500Hz; 1 complete sweep
@ 1/2 octave per minute
0.10G,0 - peak swept sine; 5
-500Hz; 1 complete sweep
@ 1/2octave per minute
Weight 79.4 kg. / 175 lbs.
Dimensions 447mm x 890mm x 175mm / 17.67in. x 35.04in. x 6.89in.
Length without CMA 712 mm / 28.03in.
Required Rack Width 450mm (17.72in.) with 465mm (18.31in.) ± 1.5mm
nominal hole spacing. See EIA-310 Rack Standard
Required Rack Depth 900mm (35.43in.) usable rack space, frame to frame
Rack Units (U) 4U
Vertical Rack Rail
Spacing
24 in. - 32 in.
1.6 Performance Specifications
Table 5: Performance Specifications
Specification Value
Number of Drive Slots 60
Data Transfer Rates 12Gbps SAS / 6Gbps SATA
Max Raw Data Storage Capacity 840 TB using 14TB HGST Ultrastar® HC530 drives
SAS Ports 12 x Mini-SAS HD ( 6 per IOM)
5

Installation Guide 1. Overview
1.7 Ultrastar Data60 Rack Requirements
Specification Value
2 x 10/100/1G Ethernet
1.7 Ultrastar Data60 Rack Requirements
The Ultrastar Data60 is designed to be installed into a rack that meets the EIA-310 standard at a minimum
900mm (35.43in.) usable rack space, frame to frame. The vertical rack rails must be set between 24 in. -
32 in. to support the enclosure. It requires 4U of rack space, and it should be installed into the rack at the
lowest possible U height to keep the load on the rack balanced.
Table 6: Required Rack Specifications
Parameter Requirement
Rack Depth 900mm (35.43in.) usable rack space, frame to frame
Rack Width 450mm (17.72in.) with 465mm (18.31in.) ± 1.5mm
nominal hole spacing. See EIA-310 Rack Standard
Rack Units (U) 4U
Vertical Rack Rail Spacing 24 in. - 32 in.
Static Load Rating 1360.7 kg. / 3000 lbs.
Dynamic Load Rating 1020.5 kg. / 2250 lbs.
Warning: When extended out of the rack on the rail system, the Ultrastar Data60 will be
~630mm / 24.8in. extended outward. This may be a potential tipping hazard depending on
the configuration of the rack. Ensure that leveling feet, anti-tilt, and any other safety features
recommended by the specific rack manufacturers have been deployed before servicing.
The following section provides specific information necessary to install, service, and remove the Ultrastar
Data60 . The installation of the Ultrastar Data60 requires two people and a space of 1270mm / 50in.
in front of the installation space. The servicing of the enclosure requires one person and a minimum of
863.6mm / 34in. of space in front of the installation space. The removal of the enclosure requires two
people, 914.4mm / 36in. of space in front of the installation space, and 24in. on either side of the enclosure
for two people to remove the enclosure.
Warning: The handles on the front of the chassis are not intended to be used to support the
weight of the Ultrastar Data60 . Lifting the unit by the chassis handles or trying to support the
unit on the handles can cause them to fail. This can cause serious damage to the unit or serious
bodily harm to those handling the unit. Always team lift the chassis by gripping the underside
of the unit, and never try to lift a chassis that is filled with drives.
6

Installation Guide 1. Overview
1.7 Ultrastar Data60 Rack Requirements
Figure 5: Installation, Servicing, and Removal
Attention: Do not install or remove the enclosure while it is populated with drives. The fully
populated enclosure exceeds the amount of weight that a team of two should lift.
1.7.1 Compatible Rack Hardware Configuration
The following table(s) list the approved rack hardware configurations for the Ultrastar Data60 :
Table 7: Compatible Hardware Configuration 1
Parameter Rack PDU (Vertical) PDU Mounting
Bracket
Additional Mounting
Bracket Hardware
Vendor CRENLO/EMCOR Server Technology Server Technology Various
Part
Number
AS-160099-03
(Drawing
Number EMCOR
526121 Rev 5)
412-0761-11_STV-4501
412-0761-20_STV-4502
412-0761-23_STV-4503
KIT-MBVPT-1B
(one kit per PDU) 4 x M6 x 16 Hex
Cap Screws
8 x M6 Fender
Washers
4 x M6 Hex Nut
with Nylon Lock
Quantity 1 2 2 Varies
Table 8: Compatible Hardware Configuration 2
Parameter Rack PDU (Vertical) PDU Mounting
Bracket
Additional Mounting
Bracket Hardware
Vendor AFCO/Legrand Server Technology Server Technology Various
Part
Number
Options: 412-0761-11_STV-4501 KIT-MB-40 None
7

Installation Guide 1. Overview
1.7 Ultrastar Data60 Rack Requirements
Parameter Rack PDU (Vertical) PDU Mounting
Bracket
Additional Mounting
Bracket Hardware
42RU –
WEDIT605
45RU –
WEDIT604
48RU –
WEDIT603
51RU –
WEDIT606
412-0761-20_STV-4502
412-0761-23_STV-4503
Quantity 1 rack 2 1 N/A
Table 9: Compatible Hardware Configuration 3
Parameter Rack PDU (Vertical) PDU Mounting
Bracket
Additional Mounting
Bracket Hardware
Vendor TRIPP LITE Server Technology Server Technology Various
Part
Number
Options:
SR42UBDP (Rack)
SREXTENDER
25U (Rack
Extension)
SREXTENDER
42U (Rack
Extension)
SREXTENDER
48U (Rack
Extension)
412-0761-11_STV-4501
412-0761-20_STV-4502
412-0761-23_STV-4503
KIT-MBVPT-1B None
Quantity 1 rack 2 1 N/A
Table 10: Compatible Hardware Configuration 4
Parameter Rack PDU (Vertical) PDU Mounting
Bracket
Additional Mounting
Bracket Hardware
Vendor APC/Schneider Server Technology Server Technology Various
Part
Number
AR3300W 412-0761-11_STV-4501
412-0761-20_STV-4502
412-0761-23_STV-4503
KIT-MBVPT-1B
(one kit per PDU) 4 x M6 x 16 Hex
Cap Screws
8 x M6 Fender
Washers
4 x M6 Hex Nut
with Nylon Lock
8

Installation Guide 1. Overview
1.8 List of Compatible Drives
Parameter Rack PDU (Vertical) PDU Mounting
Bracket
Additional Mounting
Bracket Hardware
Quantity 1 rack 2 2 Varies
1.8 List of Compatible Drives
HDD with 3.5-inch Drive Carrier
Table 11: Western Digital Ultrastar DC HC310
Drive Type Interface Sector
Size Encryption Volume Part Number
Ultrastar DC HC310
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e SE 6TB 1EX1189
Ultrastar DC HC310
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e TCG 6TB 1EX1188
Ultrastar DC HC310
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 4Kn SE 6TB 1EX1187
Ultrastar DC HC310
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 4Kn TCG 6TB 1EX1186
Ultrastar DC HC310
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e SE 6TB 1EX1185
Ultrastar DC HC310
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e TCG 6TB 1EX1184
Ultrastar DC HC310
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e TCG-FIPS 6TB 1EX1853
Ultrastar DC HC310
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn SE 6TB 1EX1183
Ultrastar DC HC310
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn TCG 6TB 1EX1182
Ultrastar DC HC310
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn TCG-FIPS 6TB 1EX1852
Table 12: Western Digital Ultrastar DC HC320
Drive Type Interface Sector
Size Encryption Volume Part Number
Ultrastar DC HC320
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e SE 8TB 1EX1227
Ultrastar DC HC320
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e SED 8TB 1EX1226
Ultrastar DC HC320
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 4Kn SE 8TB 1EX1225
Ultrastar DC HC320 HDD SATA 6Gb/s 4Kn TCG 8TB 1EX1224
9

Installation Guide 1. Overview
1.8 List of Compatible Drives
Drive Type Interface Sector
Size Encryption Volume Part Number
w/ 3.5 in. drive carrier
Ultrastar DC HC320
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e SE 8TB 1EX1223
Ultrastar DC HC320
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e TCG 8TB 1EX1222
Ultrastar DC HC320
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e TCG-FIPS 8TB 1EX1343
Ultrastar DC HC320
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn SE 8TB 1EX1221
Ultrastar DC HC320
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn TCG 8TB 1EX1220
Ultrastar DC HC320
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn TCG-FIPS 8TB 1EX1342
Table 13: Western Digital Ultrastar DC HC330
Drive Type Interface Sector
Size Encryption Volume Part Number
Ultrastar DC HC330
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e SE 10TB 1EX2440
Ultrastar DC HC330
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e SED 10TB 1EX2441
Ultrastar DC HC330
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 4Kn SE 10TB 1EX2438
Ultrastar DC HC330
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 4Kn SED 10TB 1EX2439
Ultrastar DC HC330
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e SE 10TB 1EX2435
Ultrastar DC HC330
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e TCG 10TB 1EX2436
Ultrastar DC HC330
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e TCG-FIPS 10TB 1EX2437
Ultrastar DC HC330
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn TCG 10TB 1EX2433
Ultrastar DC HC330
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn TCG-FIPS 10TB 1EX2434
Table 14: Western Digital Ultrastar DC HC510
Drive Type Interface Sector
Size Encryption Volume Part Number
Ultrastar DC HC510
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e SE 10TB 1EX0499
10

Installation Guide 1. Overview
1.8 List of Compatible Drives
Drive Type Interface Sector
Size Encryption Volume Part Number
Ultrastar DC HC510
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e ISE 10TB 1EX0497
Ultrastar DC HC510
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e SED 10TB 1EX0498
Ultrastar DC HC510
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 4Kn SE 10TB 1EX0496
Ultrastar DC HC510
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 4Kn ISE 10TB 1EX0494
Ultrastar DC HC510
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 4Kn SED 10TB 1EX0495
Ultrastar DC HC510
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e SE 10TB 1EX0487
Ultrastar DC HC510
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e ISE 10TB 1EX0485
Ultrastar DC HC510
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e TCG 10TB 1EX0486
Ultrastar DC HC510
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e TCG-FIPS 10TB 1EX1341
Ultrastar DC HC510
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn SE 10TB 1EX0484
Ultrastar DC HC510
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn ISE 10TB 1EX0482
Ultrastar DC HC510
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn TCG 10TB 1EX0483
Ultrastar DC HC510
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn TCG-FIPS 10TB 1EX1340
Table 15: Western Digital Ultrastar DC HC520
Drive Type Interface Sector
Size Encryption Volume Part Number
Ultrastar DC HC520
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e SE 12TB 1EX1015
Ultrastar DC HC520
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e ISE 12TB 1EX1013
Ultrastar DC HC520
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e SED 12TB 1EX1014
Ultrastar DC HC520
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 4Kn SE 12TB 1EX1012
Ultrastar DC HC520
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 4Kn ISE 12TB 1EX1010
Ultrastar DC HC520 HDD SATA 6Gb/s 4Kn SED 12TB 1EX1011
11

Installation Guide 1. Overview
1.8 List of Compatible Drives
Drive Type Interface Sector
Size Encryption Volume Part Number
w/ 3.5 in. drive carrier
Ultrastar DC HC520
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e SE 12TB 1EX1009
Ultrastar DC HC520
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e ISE 12TB 1EX1007
Ultrastar DC HC520
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e TCG 12TB 1EX1008
Ultrastar DC HC520
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e TCG-FIPS 12TB 1EX1338
Ultrastar DC HC520
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn SE 12TB 1EX1006
Ultrastar DC HC520
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn ISE 12TB 1EX1004
Ultrastar DC HC520
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn TCG 12TB 1EX1005
Ultrastar DC HC520
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn TCG-FIPS 12TB 1EX1339
Table 16: Western Digital Ultrastar DC HC530
Drive Type Interface Sector
Size Encryption Volume Part Number
Ultrastar DC HC530
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e SE 14TB 1EX1793
Ultrastar DC HC530
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e SED 14TB 1EX1794
Ultrastar DC HC530
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 4Kn SE 14TB 1EX1790
Ultrastar DC HC530
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e SE 14TB 1EX1791
Ultrastar DC HC530
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e ISE 14TB 1EX1583
Ultrastar DC HC530
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e TCG 14TB 1EX1792
Ultrastar DC HC530
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e TCG-FIPS 14TB 1EX1855
Ultrastar DC HC530
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn SE 14TB 1EX1788
Ultrastar DC HC530
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn TCG 14TB 1EX1789
Ultrastar DC HC530 HDD SAS 12Gb/s 4Kn TCG-FIPS 14TB 1EX1854
12

Installation Guide 1. Overview
1.8 List of Compatible Drives
Drive Type Interface Sector
Size Encryption Volume Part Number
w/ 3.5 in. drive carrier
Table 17: Western Digital Ultrastar DC HC550
Drive Type Interface Sector
Size Encryption Volume Part Number
Ultrastar DC HC550
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e SE 16TB 1EX2476
Ultrastar DC HC550
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e SED 16TB 1EX2477
Ultrastar DC HC550
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e SE 16TB 1EX2473
Ultrastar DC HC550
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e TCG 16TB 1EX2474
Ultrastar DC HC550
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e TCG-FIPS 16TB 1EX2475
Ultrastar DC HC550
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e SE 18TB 1EX2481
Ultrastar DC HC550
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e SED 18TB 1EX2482
Ultrastar DC HC550
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e SE 18TB 1EX2478
Ultrastar DC HC550
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e TCG 18TB 1EX2479
Ultrastar DC HC550
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e TCG-FIPS 18TB 1EX2480
SSD with 2.5-inch Drive Carrier
Table 18: Western Digital Ultrastar SS300
Drive Type Interface Drive Writes Encryption Volume Part
Number
Ultrastar SS300
w/ 2.5 in. drive carrier SSD SAS 12Gb/s RI-3DW/D SE 400GB No longer available
Ultrastar SS300
w/ 2.5 in. drive carrier SSD SAS 12Gb/s RI-3DW/D ISE 400GB No longer available
Ultrastar SS300
w/ 2.5 in. drive carrier SSD SAS 12Gb/s RI-3DW/D TCG 400GB No longer available
Ultrastar SS300
w/ 2.5 in. drive carrier SSD SAS 12Gb/s RI-3DW/D TCG-FIPS 400GB No longer available
Ultrastar SS300
w/ 2.5 in. drive carrier SSD SAS 12Gb/s ME-10DW/D SE 400GB No longer available
13
