WL-BELL
Intelligent Outdoor Speaker unit for
WTIME Master Clocks

QWTIME
Document:
DOK1
1093
en
0
1
Author:
PM
Date:
20
21
-
1
2
-
2
2
Page:
2
of 1
3
WESTERSTRAND URFABRIK AB
P O Box 133 Tel [phone] Internet:: http://www westerstrand se
SE-545 23 TÖREBODA Fax [phone] E-mail: info@westerstrand se
Table of contents
WL-BELL ................................................................................................................................. 3
General description ......................................................................................................................................................... 3
Work mode ...................................................................................................................................................................... 3
User Interface .................................................................................................................................................................. 4
Unlock buttons .............................................................................................................................................................. 4
Setting the volume ........................................................................................................................................................ 4
Select melody ............................................................................................................................................................... 5
Select zone.................................................................................................................................................................... 5
Remark ......................................................................................................................................................................... 5
Installation....................................................................................................................................................................... 6
1. Work Mode ............................................................................................................................................................... 6
. Melody selection ....................................................................................................................................................... 6
3. Connection ................................................................................................................................................................ 7
4. Mechanical Installation ............................................................................................................................................. 6
SD memory card.............................................................................................................................................................. 9
Default melodies ........................................................................................................................................................... 9
Technical data ............................................................................................................................................................... 1
MASTER CLOCK .................................................................................................................. 11
Configuration ................................................................................................................................................................ 11
Week Program, example 1 ............................................................................................................................................ 12
Week Program, example 2 ............................................................................................................................................ 13

QWTIME
Document:
DOK1
1093
en
0
1
Author:
PM
Date:
20
21
-
1
2
-
2
2
Page:
3
of 1
3
WESTERSTRAND URFABRIK AB
P O Box 133 Tel [phone] Internet:: http://www westerstrand se
SE-545 23 TÖREBODA Fax [phone] E-mail: info@westerstrand se
WL-BELL
General description
Westerstrand WL-BELL is a part of Westerstrand Wireless Clock System for flexible installations. WL-BELL
is a fully automatic sound generator with built in audio player, amplifier and external loudspeaker. The device
has built in microcontroller and UHF receiver. It is fed from mains using an external ad/dc power supply (wall
adapter).
WL-BELL can be used in schools for class change, in industries for break signalling or for sending out general
messages or melodies. The unit is delivered with a SD memory card containing 16 pre-programmed sounds
including bells, ringtones, and melodies. The customer can easily add or replace the sounds on the card.
WL-BELL is controlled from a Master Clock in the QWTIMEIII product range. It is possible to create up to 8
zones with different break times and/or other messages. Start time, zone and melody number is programmed in
the Master Clock and is sent wireless to the unit prior to the play.
Alternatively, if the wireless feature is not supported by the Master Clock, the device can be connected via wire.
WL-BELL for outdoor use supports several ways of power supply. It comes with a plug for connection to 30V,
but it is also possible to use fixed installation. A third option is DC power.
Speaker
Control box
Power connection
Speaker
connection

QWTIME
Document:
DOK1
1093
en
0
1
Author:
PM
Date:
20
21
-
1
2
-
2
2
Page:
4
of 1
3
WESTERSTRAND URFABRIK AB
P O Box 133 Tel [phone] Internet:: http://www westerstrand se
SE-545 23 TÖREBODA Fax [phone] E-mail: info@westerstrand se
Work mode
WL-BELL has four work modes; wireless (default), wired with serial communication, wired with closing
contact, and play instantly when powered on. The work mode used is determined by a 4-pin DIP switch
accessible from inside the control box. In wired use, the unit may have a continuous power supply via an AC
adapter or only receive power, from the main clock, when it is time to play a melody.
1. Wireless communication. Start time, zone and melody number are sent wireless from the main clock.
Volume and zone are set via the +/- buttons inside the control box.
2. Wired communication. Start time, zone and melody number are sent by wire (RS485) from the main clock.
Volume and zone are set via the +/- buttons
3. Wired, closing contact. Play melody when a closed contact is detected.
Melody and volume are selected with the buttons.
4. Wired, play instantly when powered on. Play melody immediately when the power is turned on.
Melody and volume are selected with the buttons.
User Interface
To facilitate configuration WL-BELL has 3 buttons and four LEDs that are used to set volume, zone, select
melody (wired) and pre-listen a melody.
The LEDs are marked as follows:
Status
Volume
Melody
Zone
Unlock buttons
The buttons are locked by default to prevent unauthorized people from changing the settings.
To unlock the buttons, the P button must be pressed for at least seconds. Depending on how long the button is
pressed different menus are entered. The status LED normally lights up steadily, but when a menu is open it
flashes once / second.
Remark: To leave a menu without saving press – button for at least 3 seconds.
Setting the volume
Press P -3 seconds: The STATUS LED flashes once / second and the VOLUME LED lights up.
Briefly press P. Now the last played melody starts, and it is repeated to facilitate the volume setting.
Select volume with + and -. Each press of the button will increase / decrease the volume one step. Accept and
save the current volume setting by pressing press P for at least 3 seconds. The unit is now back in running mode.

QWTIME
Document:
DOK1
1093
en
0
1
Author:
PM
Date:
20
21
-
1
2
-
2
2
Page:
5
of 1
3
WESTERSTRAND URFABRIK AB
P O Box 133 Tel [phone] Internet:: http://www westerstrand se
SE-545 23 TÖREBODA Fax [phone] E-mail: info@westerstrand se
Select melody
Press P 4-5 seconds: Melody mode opens. The STATUS LED flashes once / second and the MELODY LED
lights up. Briefly press -. Now melody no. 1 is played. To play the next song, press + once. Now melody no. is
played and so on. The playback can be interrupted by a brief press on the P button.
To save a selection press P for at least 3 seconds.
To leave the menu without saving press – button for at least 3 seconds.
Select zone
Press 6-7 seconds: Zone mode opens. The STATUS LED flashes once / second and the ZONE LED lights up.
Briefly press P. Now the ZONE LED flashes once every 4 seconds to indicate zone 1.
Press P again. Now the LED flashes twice every 4 seconds to indicate zone .
Etc.
To save a selection press P for at least 3 seconds.
Remark
To facilitate the control of receiving messages from the Master Clock, via air or wire, the STATUS LED flashes
twice each time the device has received an approved message.

QWTIME
Document:
DOK1
1093
en
0
1
Author:
PM
Date:
20
21
-
1
2
-
2
2
Page:
6
of 1
3
WESTERSTRAND URFABRIK AB
P O Box 133 Tel [phone] Internet:: http://www westerstrand se
SE-545 23 TÖREBODA Fax [phone] E-mail: info@westerstrand se
Installation
Before the WL-BELL is mounted on the wall some settings must be done.
To make the settings, the control box cover must be removed. See photo under section 4, connection.
1. Work Mode
Choose work mode, by setting the DIP-switches in correct position. Factory default is wireless. The DIP switch
is accessible from inside the control box. Please note that the DIP-switch is only read directly after power up.
DIP switch
Work Mode
DIP 1
DIP 2
DIP 3
DIP 4
Remark
1. Wireless communication OFF OFF OFF OFF
2. Wired communication RS485 ON OFF OFF OFF
3. Wired closing contact OFF ON OFF ON
4. Wired play instantly ON ON OFF OFF Play instantly when powered on.
Remark: Switch power OFF/ON if the DIP switch is changed.
2. Melody selection
The unit is delivered with a SD memory card containing 16 pre-programmed sounds. The SD-card is accessible
from inside the control box.
In wired work mode the selection of melody is done using the configuration buttons on the left side of the pc-
board. In wireless mode the selection is done in the Master Clock.
3. Mechanical Installation
Mount the unit on the wall using the four mounting holes and suitable screws (screws are not included).
O
FF
ON

QWTIME
Document:
DOK1
1093
en
0
1
Author:
PM
Date:
20
21
-
1
2
-
2
2
Page:
7
of 1
3
WESTERSTRAND URFABRIK AB
P O Box 133 Tel [phone] Internet:: http://www westerstrand se
SE-545 23 TÖREBODA Fax [phone] E-mail: info@westerstrand se

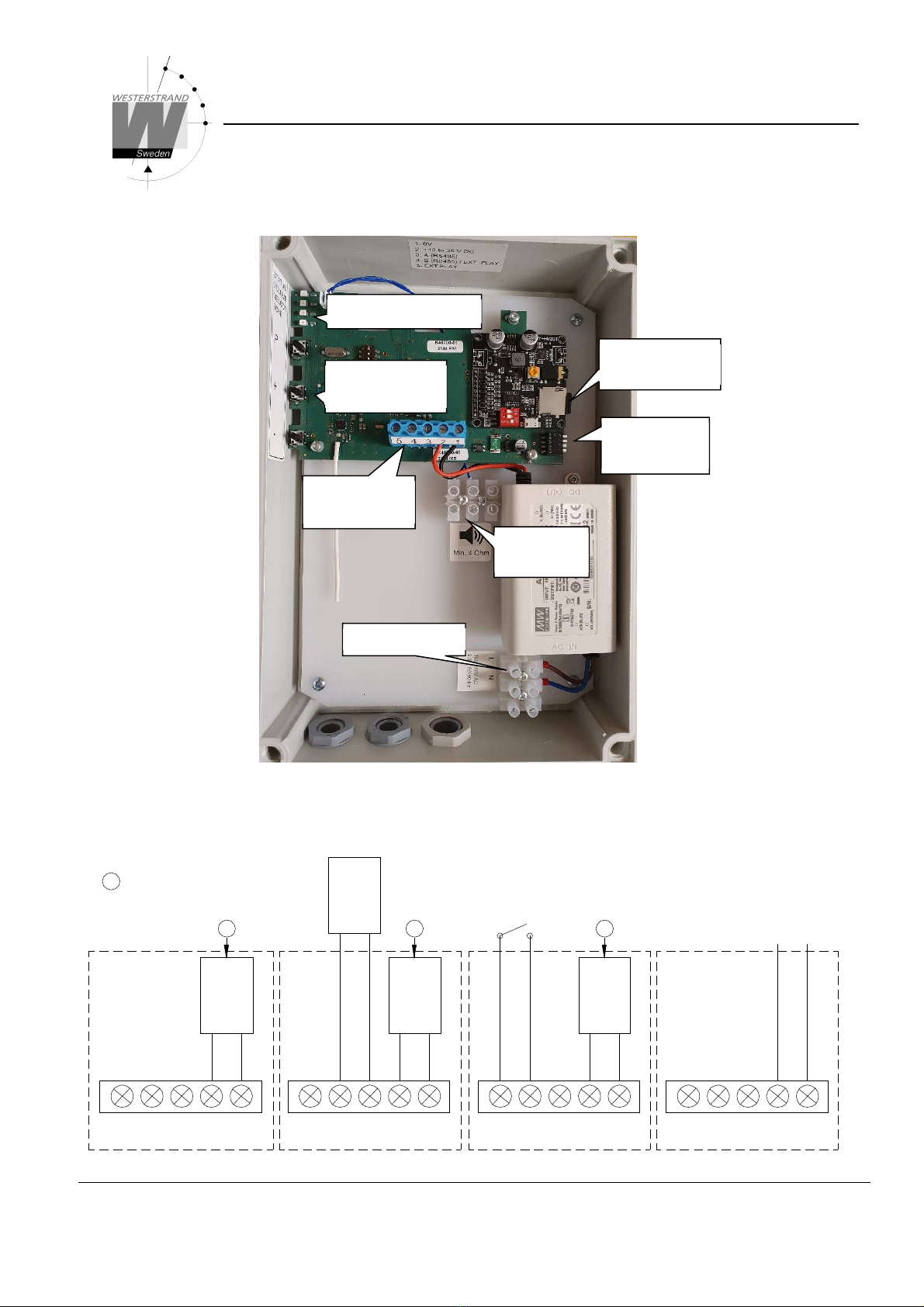

4. Connection
1. Wireless . Wired via RS485 3. Wired via closing 4. Wired, play when
contact powered
5 4 3 2 1
Speaker
connction
Wired
connections
Configuration
buttons
Information LEDs
Work mode
switch
Micro SD
memory card
100- 40V AC
mains
Master
RS485
B A
B A
+ -
push button
Closing relay
contact or
via push button
+ -
1 -35VDC via
Master Clock
adapter
SVARTRÖD
5 4 3 1 5 4 3 15 4 3 1 5 4 3 1
Built in
A
30V AC from mains power
outlet or fixed installation
A
-+
A
+ -
A
Clock
adapter
Built in
mains
adapter
Built in
mains
relay contact or

QWTIME
Document:
DOK1
1093
en
0
1
Author:
PM
Date:
20
21
-
1
2
-
2
2
Page:
8
of 1
3
WESTERSTRAND URFABRIK AB
P O Box 133 Tel [phone] Internet:: http://www westerstrand se
SE-545 23 TÖREBODA Fax [phone] E-mail: info@westerstrand se
Connection 230V
NOTE! When connecting 30V, the following applies:
- For fixed connection: connection to the mains supply must be made via an easily accessible
separate control switch ( -pin, 3mm contact gap)
- For plug connection: The wall socket must be close to the control box and be easily accessible.
Connecting speakers
The speaker, which is packed separately, comes with a fixed connection cable of 0.6 meters. Use this if the
speaker is mounted near the control box. If a longer distance is needed between the box and the speaker, the
cable can be spliced. Up to 50 meters is allowed with a cable dimension of 1.5 mm .
The speaker has an impedance of 4 Ohm and can, if necessary, be connected in series with another speaker. The
series connection can either be made directly in the internal connection terminal, see below, or in an external
connection box. Parallel connection is not allowed because the impedance will be too low.
Connection of one speaker Connection of two, series-connected speakers

QWTIME
Document:
DOK1
1093
en
0
1
Author:
PM
Date:
20
21
-
1
2
-
2
2
Page:
9
of 1
3
WESTERSTRAND URFABRIK AB
P O Box 133 Tel [phone] Internet:: http://www westerstrand se
SE-545 23 TÖREBODA Fax [phone] E-mail: info@westerstrand se
SD memory card
The enclosed SD memory card contains16 pre-programmed sounds including bells, ringtones and melodies.
The audio files are in mp3 format.
New sounds/melodies can be added by the user.
On the SD memory the sounds/melodies are numbered in the following way:
Melody no. 1: 00001.mp3
Melody no. : 0000 .mp3
Melody no. 3: 00003.mp3
Etc..
To create a new melody, do the following:
1) Rename the file to the wished melody number.
) Save the file on the SD memory card.
Example:
Assume that you have an audio file you want to use. The name is School Bell.mp3 and you want to use it as
melody no. 10.
- Rename the file to 00010.mp3
- Save the file on the SD card.
Default melodies
00001.mp3 = 1 Melody 1_4 sec.mp3
0000 .mp3 = Melody 1_8 sec.mp3
00003.mp3 = 3 Melody _4 sec.mp3
00004.mp3 = 4 Melody _8 sec.mp3
00005.mp3 = 5 Melody 3_8 sec.mp3
00006.mp3 = 6 Melody 4_4 sec.mp3
00007.mp3 = 7 Melody 4_8 sec.mp3
00008.mp3 = 8 Melody 5_3 sec.mp3
00009.mp3 = 9 Melody 5_7 sec.mp3
00010.mp3 = 10 Melody 6_3 sec.mp3
00011.mp3 = 11 Melody 6_7 sec.mp3
0001 .mp3 = 1 Melody 7_3 sec.mp3
00013.mp3 = 13 Melody 7_8 sec.mp3
00014.mp3 = 14 Melody 8_6 sec.mp3
00015.mp3 = 15 Melody 9_4 sec.mp3
00016.mp3 = 16 Melody 9_8 sec.mp3

QWTIME
Document:
DOK1
1093
en
0
1
Author:
PM
Date:
20
21
-
1
2
-
2
2
Page:
10
of 1
3
WESTERSTRAND URFABRIK AB
P O Box 133 Tel [phone] Internet:: http://www westerstrand se
SE-545 23 TÖREBODA Fax [phone] E-mail: info@westerstrand se
Technical data
Article number: 1 3393-00
Control box
MP3 player
Number of selectable melodies: 16
Volume setting: 31 levels
Number of selectable zones: 8
Memory card: SDHC micro 8GB (included)
UHF-receiver
Frequency: 869.5 5 MHz
Sensitivity: 1µV (-107 dBm)
Modulation: FSK +/- 5 kHz
Power supply
Option 1: Via internal mains adapter
Option : Via extern 1 – 35V DC
Connection:
30V: Via enclosed mains plug or fixed installation
Speaker: -pole screw-connector
Mechanical dimensions control box: (H x B x D) 55 mm x 180 mm x 75 mm
Weight: 0,7 kg
Color: Grey
Temperatur range: - 0 to +55 °C
Protection class: IP66
Speaker
Max. power: 5 W
Rated power (RMS): 1 W
Nominal impedance: 4 Ω
Frequency range: 700-15000 Hz
Sensitivity: 107 dB/W/m
Radiation angle, horizontal: 90°
Radiation angle, vertical: 90°
Protection class: IP66, weatherproof
Admiss. ambient temp: - 0 to +50 °C
Dimensions: 106 x 106 x 88 mm
Weight: 1,1 kg
Included, fixed connection cable: 0,6 m. Can be extended up to 50 m if needed.
Extension cable: x 1,5 mm

QWTIME
Document:
DOK1
1093
en
0
1
Author:
PM
Date:
20
21
-
1
2
-
2
2
Page:
11
of 1
3
WESTERSTRAND URFABRIK AB
P O Box 133 Tel [phone] Internet:: http://www westerstrand se
SE-545 23 TÖREBODA Fax [phone] E-mail: info@westerstrand se
Master Clock
Configuration
To activate the wireless play function in a QWTIMEIII Master Clock the protocol PLAY must be selected in the
serial port setup menu. The Master Clock must also have software version QW3-A308 or later.
Procedure
Select function using  .
Accept with YES.
Press NO until wished function is shown.
Accept with YES.
Press NO until wished input/output is shown.
Accept with YES.
Choose, by using the arrows, protocol PLAY, baudrate 9600 and data format
8N1. Accept with YES.
Return to running mode press .


MON 1 MAR 018
09:07:00 LTw
SPEC.-FUNCTIONS
SPEC.-FUNCTIONS
SETUP
SETUP
SERIAL PORT
MON 1 MAR 018
09:07:00 LTw
RS 3 PLAY LT
9600 8N1
SETUP
SERIAL PORT
SPEC.-FUNCTIONS
SETUP
SPEC.-FUNCTIONS

QWTIME
Document:
DOK1
1093
en
0
1
Author:
PM
Date:
20
21
-
1
2
-
2
2
Page:
12
of 1
3
WESTERSTRAND URFABRIK AB
P O Box 133 Tel [phone] Internet:: http://www westerstrand se
SE-545 23 TÖREBODA Fax [phone] E-mail: info@westerstrand se
Week Program, example 1
Example: Melody no. 1 shall be played in zone 1, Monday – Friday at 09.00.
Select function using .
Enter programming mode using YES.
Select new program using YES.
Select group of programs using , accept using YES.
Select Zone using . Move to the right using .
Choose melody number using .
State the days the program shall function using .
Move to the right using .
State the time of the program using .
Move to the right using .
Accept using YES.
If the program is approved the text “Program saved” is displayed quickly.
Continue with the next program or leave programming by pressing 
several times.
MON 12 MAR 2018
09:07:00 LTw
WEEK PROGRAM
WEEK PROGRAM
NEW GROUP A
ZONE 1 MEL 01
------- 08:00:00
ZONE 1 MEL 01
MTWTF-- 08:00:00
WEEK PROGRAM
NEW GROUP A
ZONE 1 MEL 01
------- 08:00:00
ZONE 1 MEL 01
MTWTF-- 09:00:00
WEEK PROGRAM
MON 12 MAR 2018
09:07:00 LTw
ZONE 1 MEL 01
MTWTF-- 09:00:00

QWTIME
Document:
DOK1
1093
en
0
1
Author:
PM
Date:
20
21
-
1
2
-
2
2
Page:
13
of 1
3
WESTERSTRAND URFABRIK AB
P O Box 133 Tel [phone] Internet:: http://www westerstrand se
SE-545 23 TÖREBODA Fax [phone] E-mail: info@westerstrand se
Week Program, example 2
Example: Melody no. 1 shall be played in all zones, Monday – Friday at 09.00.
Select function using .
Enter programming mode using YES.
Select new program using YES.
Select group of programs using , accept using YES.
Select Zone ALL using . Move to the right using .
Choose melody number using .
State the days the program shall function using .
Move to the right using .
State the time of the program using .
Move to the right using .
Accept using YES.
If the program is approved the text “Program saved” is displayed quickly.
Continue with the next program or leave programming by pressing 
several times.
MON 12 MAR 2018
09:07:00 LTw
WEEK PROGRAM
WEEK PROGRAM
NEW GROUP A
ZONE ALL MEL 01
------- 08:00:00
ZONE ALL MEL 01
MTWTF-- 08:00:00
WEEK PROGRAM
NEW GROUP A
ZONE ALL MEL 01
------- 08:00:00
ZONE ALL MEL 01
MTWTF-- 09:00:00
WEEK PROGRAM
MON 12 MAR 2018
09:07:00 LTw
ZONE ALL MEL 01
MTWTF-- 09:00:00
