Wharfedale Pro WLA-210XF User manual

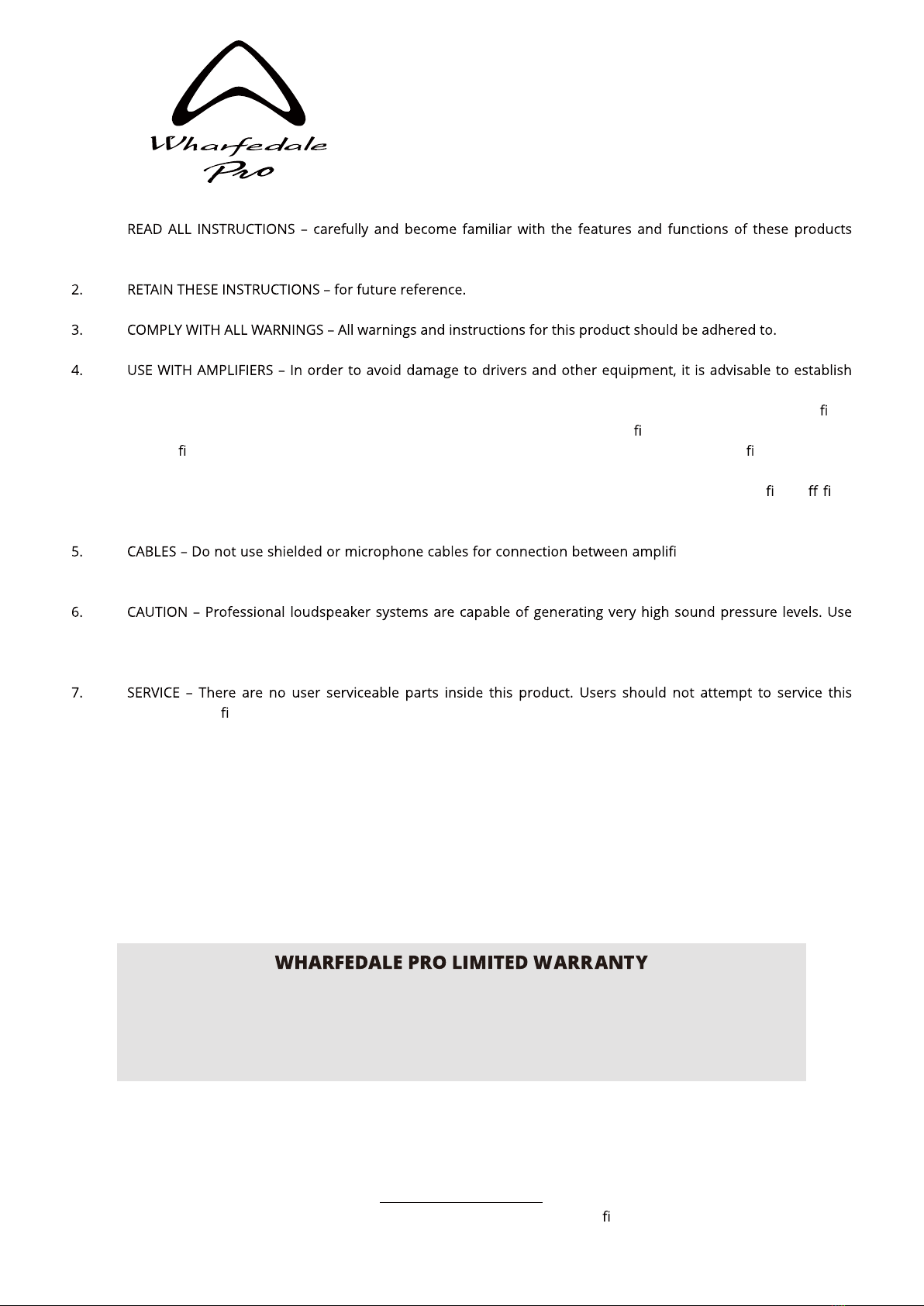

1.
before operating them.
and follow a routine for powering up and powering down a sound system. With all system components connected, turn
on source equipment (mixers, signal processors, record and playback units, etc.) BEFORE powering up ampli ers.
Transient voltages from powering up source equipment can damage speakers if ampli ers are already turned on. Make
sure that ampli er volumes are set to their minimum settings and power up any system ampli ers LAST. It is
recommended that all system components be allowed to stabilize for several seconds before any source signals are
introduced or level setting adjustments are made. Similarly, when shutting systems down, turn all ampli ers o rst,
before powering down any other system components.
ers and speakers. Use only
approved speaker cables with proper connectors.
care with placement and operation to avoid exposure to excessive volume levels. Permanent hearing damage can result
when operated to extreme levels.
product. Warranty nulli cation could result if this is attempted.
8. RIGGING - SUSPENDING - MOUNTING - Rigging suspending or mounting of speaker systems can expose
members of the public to serious health risks and even death.
UNDER NO CIRCUMSTANCES ATTEMPT TO RIG, SUSPEND OR OTHERWISE MOUNT THESE SPEAKERS UNLESS YOU
ARE FULLY QUALIFIED AND CERTIFIED TO DO SO BY RELEVANT LOCAL, STATE AND NATIONAL AUTHORITIES. ALL
RELEVANT SAFETY REGULATIONS MUST BE FOLLOWED. IF YOU ARE NOT PROPERLY QUALIFIED OR DO NOT KNOW
OF PERTINENT REGULATIONS, CONSULT QUALIFIED PERSONNEL FOR ADVICE.
WHARFEDALE PROFESSIONAL
IAG House, 13/14 Glebe Road, Huntingdon, Cambridgeshire, PE29 7DL, UK
www.wharfedalepro.com
Wharfedale Professional reserves the right to alter or improve speci cations without notice.
All rights reserved © 2022 Wharfedale Pro. Wharfedale Pro is a member of the IAG Group.
IMPORTANT SAFETY INSTRUCTIONS
For your full PDF User manual, please visit
www.wharfedalepro.com
Wharfedale Pro products are warranted of manufacturing or material defects for a period of
three years from the original date of purchase. In the event of malfunction, contact your
authorised Wharfedale Pro dealer or distributor for information.
Please be aware that the warranty details may differ from country to country. Contact your dealer or distributor for
information (available at www.wharfedalepro.com). These terms do not infringe your statutory rights.

OVERVIEW
For your full PDF User manual, please visit www.wharfedalepro.com
WLA-210XF
Wharfedale Pro also manufacture a wide range of power amplifiers and signal processors.
For recommended accessories, amplifiers and system diagrams please visit www.wharfedalepro.com
May 2022
• Dual 10 ” Passive line array
• IPX6 Waterproof Certification
• Wax wrapped components
• Anti-corrosion stainless steel hardware
• Waterproof input connectors
• System Continuous Power LF: 800 W HF: 90 W
• System Programme Power LF: 1600 W HF: 180 W
• System Peak Power LF: 3200 W HF: 360 W
• Impedance 16 Ω
• 15 mm / 18 mm Plywood construction / 3.0 mm Aluminium
SPECIFICATIONS
Model Name
System Type
Configuration
Frequency Response (+/-3 dB)
Frequency Range (-10 dB)
Sensitivity (2.83 v / 1 m)
Calculated Maximum SPL @1 m
System Rated Impedance
Low Frequency Transducer 
Size
Voice Coil Size
Rated Impedance
LF Power (re:AES2-2012)
High Frequency Transducer
HF Driver Type
Voice Coil Size
Exit Size
Diaphragm Material
Rated Impedance
HF Power (re:AES2-2012)
Nominal Coverage (H x V)
Power   
System Continuous Power
System Programme Power
System Peak Power
Input Connector
Hardware
WLA-210XF
Passive IPX6 waterproof
Two-way 2 x 10”
65 Hz - 20 KHz
60 Hz - 20 KHz
102 dB
138 dB
16 Ω
65 mm / 2.5''
2 x 260 mm / 2 x 10''
2 x 400 W
35.6 mm / 1.4”
Compression Driver - Neo
75 mm / 3.0"
Titanium
8 Ω
100°x 10°
LF:800 W HF:90 W
2 x WY-24K4Z (waterproof)
Integral side plate adjustable
rigging 0°-10°
LF:1600 W HF:180 W
LF:3200 W HF:360 W
90 W
2 x 8 Ω
Enclosure Material 15 mm,18 mm Plywood
3.0 mm Aluminium
Width Front
Finish
Grille Material & Finish
Dimensions - (Unpacked)
Height Front / Height Rear
Width Rear
Depth
Dimensions - (Packed)
Height
Width Front
Width Rear
Weight
Depth
845 mm / 33.3"
Waterproof Black Paint
3.0 mm Black Aluminium
333.3 mm / 13.1" 256.3 mm / 10.0"
845 mm / 33.3"
443 mm / 17.4"
953 mm / 37.5"
424 mm / 16.7"
424 mm / 16.7"
513 mm / 20.2"
Net Weight (kg / lbs)
Gross Weight (kg / lbs)
46.0 kg / 101.2 lbs
50.0 kg / 110.0 lbs
Crossover frequency
Operational Modes:
1.5 KHz
No
443.0
845.0
333.3
443.0
256.3
