Whip Mix VeriWash User manual

USER MANUAL
3D PRINTED PARTS CLEANER
Whip Mix Corporation 361 Farmington Avenue Louisville, KY USA 40209
800- 626 -5651 502-637-1451 www.whipmix.com
VeriWash

VERIWASH User Manual Whip Mix Corporation
2
CONTENTS
1. Introduction .................................................2
1.1 Declaration of CE conformity ..............................2
1.2 Transport of the unit ......................................3
2. Components ................................................3
3. Technical Specications .......................................5
4. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
5. Operation...................................................7
6. Cautions ....................................................8
7. Cleaning, Maintenance, and Care ..............................9
7.1 Cleaning.................................................9
7.2 Maintenance and Care ....................................9
8. Troubleshooting and Repair ..................................10
9. Environmental Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
10. Packaging ..................................................11
11. Warranty ..................................................11

VERIWASH User Manual Whip Mix Corporation
3
1. INTRODUCTION
Thank you for purchasing the VERIWASH automated cleaning unit. VERIWASH eciently
cleans uncured resin from 3D printed parts using isopropyl alcohol (Isopropanol). To ensure
that your VERIWASH gives you the highest level of performance, review and follow the
guidelines outlined in this User Manual and keep it for future reference.
Das Benutzerhandbuch ist auf www.whipmix.com in deutscher Sprache verfügbar.
Le manuel d'utilisation est disponible en français sur le site www.whipmix.com.
El manual del usuario se encuentra disponible en español en www.whipmix.com.
Il manuale utente è disponibile in italiano sul sitohttps://www.whipmix.com.
1.1 DECLARATION OF CE CONFORMITY
VERIWASH has been tested for CE marking according to the following European
Directive and standards:
Electromagnetic Compatibility Directive 2014/30/EU
EN 61326-1:2013, Class A (Basic Immunity)
EN 55011:2016 +A1:2017
EN 61000-3-2:2014
EN 61000-3-3:2013
EN 61010-1:2010 (Third Edition)
RoHS
EN 50581:2012
IEC 62321-3-1:2013
IEC 62321-8: 2017
1.2 TRANSPORT OF THE UNIT
Upon receipt of the VERIWASH, examine the shipment to determine whether
any items in the shipment are missing, defective or damaged. Notify Whip Mix
of any shortages, defects, or damage within 1 day of receipt of the shipment.
Within 10 days after the receipt of such notice, the company will take action
based on the ndings. Whip Mix will repair or replace any part proven defective
in material or workmanship at no charge.

VERIWASH User Manual Whip Mix Corporation
4
2. COMPONENTS
AC to DC Adapter with cable:
Provides power to the VERIWASH.
Main body (Base): Touch screen
displays the control interface with
the MODE, TIME, START and
STOP buttons. MODE button
selects which wash container to
use. Indicator lights shows which
wash container is selected.
Mesh Basket: The removable
basket is used to wash parts that are
unattached to the build platform.
The basket is inserted and secured
into the Wash Container to clean
the parts.
Universal Build Plate Jig /
Metal Rods: To clean printed
parts while they are attached to
the printer build plate, place the
Metal Rods (two of them) into the
appropriate slots of the Universal
Jig (adjustable positioning to t
build plate size up to 180mm ×
90mm) (7.08” × 3.54”).

VERIWASH User Manual Whip Mix Corporation
5

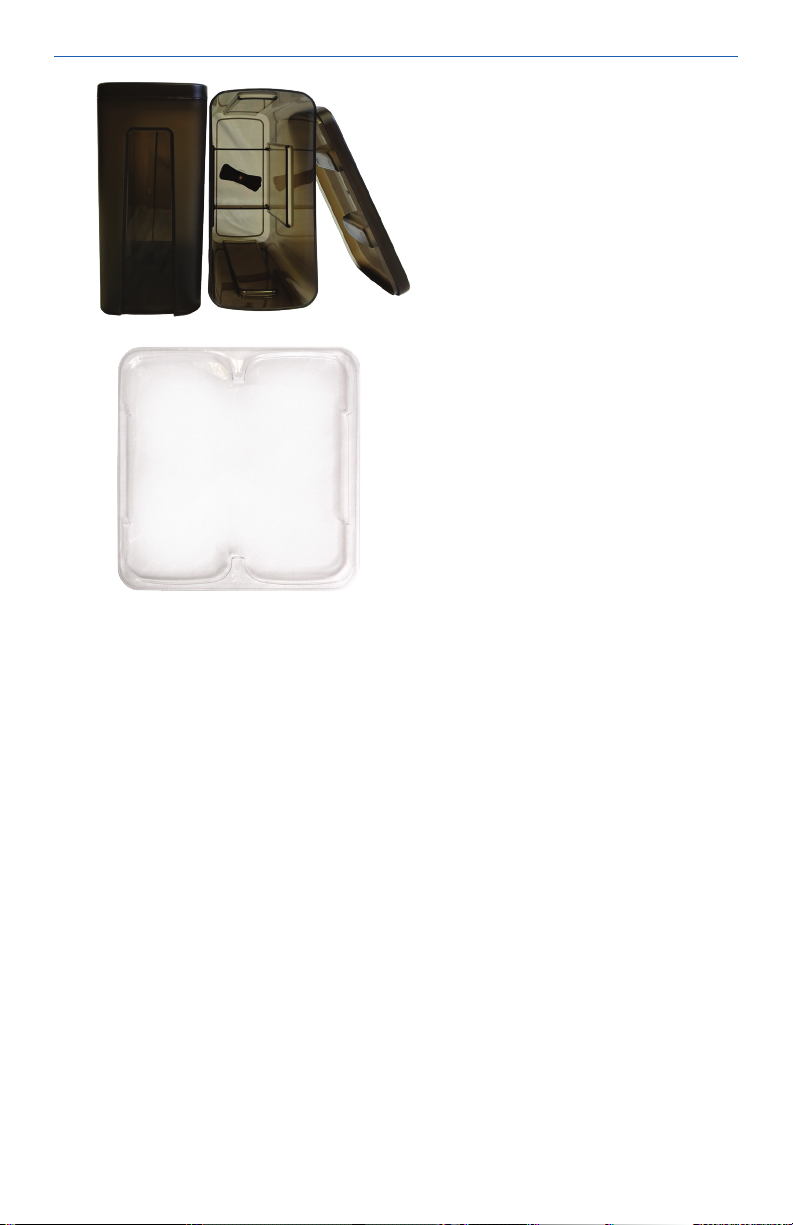

Wash Containers/Lids: There
are two separate removable
containers, each holding up to 3
liters of isopropanol. One is used for
the rst bath, and the second for a
second (fresh) bath. Each has its own
lid. A rotating impeller at the bottom
circulates the solvent.
Disposable Main Body Cover
(PET): Clear plastic cover is made
out of alcohol resistant material to
protect the main body of the unit
from spilled alcohol or resin.
3. TECHNICAL SPECIFICATIONS
MODEL: VERIWASH 3D PRINTED PARTS CLEANER
Product Dimensions: 24(L) × 24(W) × 35(H) cm (9.45” × 9.45” × 13.8”)
Package Dimensions: 29(L) × 29(W) × 52(H) cm (11.4” × 11.4” × 20.5”)
Product Weight: 3 kg (6.6 Ib)
Shipping Weight: 4.4kg (9.7 Ib)
Rated Power: 48W
Voltage: AC 100~240 V, ~50 / 60 Hz
Transient overvoltage: 2,500 V

VERIWASH User Manual Whip Mix Corporation
6
4. INSTALLATION
4.1 Place the Main Body (Base) on at surface.
NOTE: The disposable clear plastic cover is already in place.
This is a disposable item and can be changed if it becomes
soiled with spilled resin or alcohol.
4.2 Place each Wash Container on the Main Body. Be sure each ts well.
4.3 CAREFULLY ll the Wash Container with 2.5 - 3.0 liter of Isopropanol.
NOTE: It is recommended to dedicate one container as the
rst bath for the parts coming directly from the printer, and
the other container as a second bath, lled with fresh IPA
(ISOPROPANOL).
NOTE: Keep the Lid closed when the VERIWASH is not in use to
minimize the evaporation rate of the alcohol.
4.4 Use the Mesh Basket only to wash 3D printed parts not attached to the
printer build plate.
NOTE: To clean small 3D printed parts such as dies or single
crowns, there are two options as follows:
Put them into a 3” stainless steel tea ball infuser (not sold by
Whip Mix, can be purchased online), then insert into the mesh basket
as shown below.
For a 3D printer with a build plate size up to 180 mm x 90 mm (7.08”
x 3.54”), when not using the stainless steel tea ball infuser, keep the
printed parts attached to the build plate and use the Universal Build
Plate Jig as instructed in 4.5.

VERIWASH User Manual Whip Mix Corporation
7
4.5 Use the Universal Build Plate Jig and the Metal Rods to wash the printed
parts while they are attached to the build plate and the build plate size is up
to 180 mm x 90 mm (7.08” x 3.54”).
4.5.1 Position the Metal Rods in the slots of the Universal Jig based on the
size of your printer build plate.
NOTE: Check and adjust the position of the two Metal
Rods several times until the build plate is placed over
them securely.
4.5.2 Check the proper position of the build plate over the two Metal Rods,
set aside.
4.5.3 Insert the Universal Jig with the positioned Metal Rods inside the
Wash Container.
4.5.4 Secure the printer build plate over the positioned Metal Rods.
NOTE: Ensure printed parts are fully secured to the build
plate. Washing loose parts directly in the wash container
may damage printed parts, create noise, and interfere
with the impeller at the bottom.
4.6 Insert either the Mesh basket or the Universal Jig into the Wash Container
as instructed in 4.4 or 4.5.
4.7 Insert the AC cable into the receptacle in the back of the unit.
5. OPERATION
5.1. To turn on the unit, select and press the MODE button depending on which
Wash Container you want to operate - left, right, or both. LED (Blue) light
indicates which container is selected.
Left Right Both
5.2 Select the TIME (3 min, 5 min, or 10 min).
NOTE: Time cannot be changed while the cleaning cycle is in
progress.
5.3 Do not start the unit until the Containers, the Lid/Mesh Basket, and the
Universal Jig are all secured in their proper position.

VERIWASH User Manual Whip Mix Corporation
8
5.4 Press the START button to begin the wash cycle. The cleaning cycle will
operate for the length of time selected in the control interface. The impeller
reverses direction every 30 seconds.
NOTE: The speed at which the isopropyl alcohol is stirred is the
same for both Wash Containers and any cleaning duration
(3, 5, or 10 minutes).
5.5 To adjust the speed of BOTH containers, unit must be in OFF mode. Press
and hold the START and STOP button simultaneously for 5 – 7 seconds.
This will move you to the speed control mode.
To increase the speed: Press the START button repeatedly.
To decrease the speed: Press the STOP button repeatedly.
To save the speed: Press the MODE button.
NOTE: You cannot adjust the speed while the cleaning cycle is in
progress.
NOTE: To end the cleaning cycle before it is nished, press the
STOP button.
NOTE: When you press the STOP Button, it cancels the
remaining time of the wash cycle.
6. CAUTIONS
Before operating, read the VERIWASH USER MANUAL carefully. Follow the
instructions to avoid errors, equipment damage, or injury to the user.
Do not change the position of the Wash Container during operation.
Do not allow water or alcohol to get into the main body of the VERIWASH.
Ensure that no isopropyl alcohol spills when you ll the wash container at any time.
Spilled alcohol may damage the electronics or the base material.
Use only authorized accessories (power cord with appropriate rating).
Refer to the alcohol supplier safety data sheet (SDS) as the primary source of
information on the storage and handling of the alcohol.
Alcohol is flammable and should be stored away from sources of ignition.
Wear gloves and handle alcohol in well-ventilated areas.
Alcohol evaporates quickly, so keep the lid(s) closed whenever possible.
Do not modify the unit. VERIWASH is intended to be used as directed only.
Keep away from children.
Do not operate with a damaged cord or plug. A damaged cord may only be replaced
by a power cord of the same type.
Only use well-maintained equipment.
Operate on a clear and at surface.
Always use the equipment in the safest possible manner.
Ensure that the Wash Containers, lids, and the mesh basket are all secured in their
proper positions before starting a cleaning cycle.

VERIWASH User Manual Whip Mix Corporation
9
7. CLEANING, MAINTENANCE, AND CARE
7.1 CLEANING
Always keep the main body clean from alcohol or resin. Keeping the
disposable cover on the main body at all times will protect the main
body from spilled alcohol
Always disconnect the power cable before cleaning/maintenance.
Remove the Wash Container from the base.
Remove the Universal Build Plate Jig, Mesh Basket, and Metal Rods
from the Wash Container.
Remove all alcohol from the Wash Containers.
Clean the inside of the Wash Containers with water, and wipe with
smooth clean cloth.
NOTE: Ensure that all water completely dries before
relling the container and operating.
Wipe the outer surface of the VERIWASH with Isopropyl alcohol or
water using a smooth clean cloth.
7.2 MAINTENANCE AND CARE
Isopropyl Alcohol
The Isopropyl alcohol should be changed periodically. Use up to
99% isopropyl alcohol.
The Isopropyl alcohol can be used for multiple cleaning cycles, but
the cleaning eectiveness of reused alcohol will decrease with each
cleaning cycle, depending upon the resin used and the printed part
geometry. In case of settling of solid polymerization residues, the
used alcohol must be changed immediately.
As Alcohol decreases over time due to use or evaporation, add
fresh alcohol to keep the right level of alcohol inside the wash
container.
Replace the alcohol when the wash is no longer eective and when
printed parts are tacky even after washing.
It is solely up to the operator to determine when the alcohol needs
to be changed.
Dispose of used Isopropyl alcohol per local and national
regulations.
Accessories can be replaced if needed. For purchasing accessories and
spare parts, visit WhipMix at shop.whipmix.com or www.whipmix.com.

VERIWASH User Manual Whip Mix Corporation
10
8. TROUBLESHOOTING AND REPAIR
VERIWASH has been designed to enable the user to replace parts or x the unit without
sending it anywhere. Replacement parts are readily available at www.shop.whipmix.com.
If problems do occur, consult the chart below. If additional information is needed, watch the
appropriate videos on the Whip Mix channel at www.youtube.com.
If still not satised, refer to the warranty agreement to determine your course of action. If
the unit is out of warranty, contact Whip Mix at [phone].
Error Cause Solution
Loud noise High concentration of resin
in alcohol (viscosity change)
aects rotation speed
Adjust the speed – refer to the
operation process.
Unusual noise Obstruction in the Wash
Container
Check for loose parts or debris
on the bottom of the bucket.
Check that the impeller rotates
properly.
The Display doesn’t turn o Software issue Disconnect and reconnect the
power (restart).
The Display doesn’t turn on Software issue Disconnect and reconnect the
power after 1-2 min (restart).
Faulty electrical connection Check the power supply. Try
another outlet.
Disconnect and reconnect the
power.
Motor Jammed Misaligned impeller or debris
stuck around it
Check for loose printed parts
or debris stuck under the
impeller and remove it.
Check the impeller alignment
and proper rotation. Contact
Whip Mix for instruction.
9. ENVIRONMENTAL CONDITIONS
Installation: Indoor use
Altitude: up to 2,000 m
Operating temperature/humidity: 5–40°C / 20–80 %
Pollution degree: 2
Degree of protection: 1

VERIWASH User Manual Whip Mix Corporation
11
10. PACKAGING
Take care when opening.
Keep your packaging.
Use the original box when sending for service.
11. WARRANTY
Whip Mix Corporation oers a one-year warranty for VERIWASH, starting from the date
of purchase. Whip Mix Corporation warrants the VERIWASH free of all defects in material
and workmanship. Refer to separate warranty agreement at www.whipmix.com for
warranty coverage and service details.

Whip Mix Corporation 361 Farmington Avenue Louisville, KY USA 40209
800- 626 -5651 502-637-1451 www.whipmix.com
01/21 REV D
