Whirlpool ACH082 User manual

Ttkl 01
2
Use&d;e %uick
Removable Control panel
I
I
Adjustable air discharge
AIRCONDITIONERS
ACH082 ACH102 ACH122 ACH184

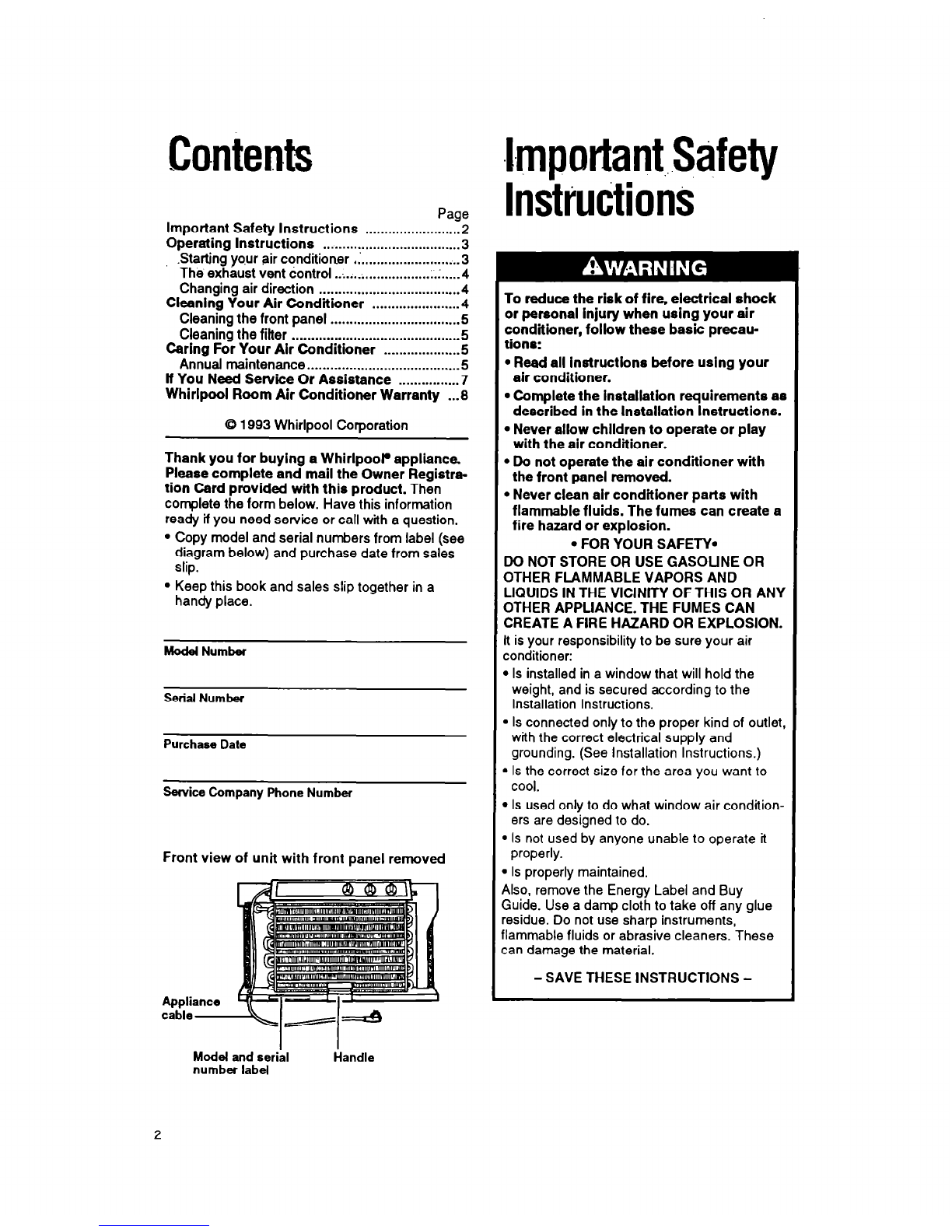

Contents
Page
Important Safety Instructions .........................2
Operating Instructions ..................._................ 3
Starting yo.ur air conditioner .;..........................3
The exhaust vent control ..-.......................1.:.....4
Changing air direction .....................................4
Cleaning Your Air Conditioner .......................4
Cleaning the front panel ..................................5
Cleaning the filter ............................................5
tiring For Your Air Conditioner ....................5
Annual maintenance ........................................5
tf You Need Service Or Assistance ................7
Whirlpool Room Air Conditioner Warranty ...8
8 1883 Whirlpool Corporation
Thank you for buying a Whirlpoor appliance.
Please complete and mail the Owner Registre
tion Card provided with this product. Then
complete the form below. Have this information
ready if you need service or call with a question.
l Copy model and serial numbers from label (see
diagram below) and purchase date from sales
slip.
l Keep this book and sales slip together in a
handy place.
Model Number
Serial Number
Purchase Date
Service Company phone Number
Front view of unit with front panel removed
Appli
cable
hynportant..Safety
InstiuCtionS
To reduce the risk of fire, electrical shock
or personal fnjury when using your air
conditioner, follow these basic precau-
tions:
l Read all Instructions before using your
air conditioner.
l Complete the Installation requirements as
described in the Installation Instructions.
l Never allow children to operate or play
with the air conditioner.
l Do not operate the air conditioner with
the front panel removed.
l Never clean air conditioner parts with
flammable fluids. The fumes can create a
fire hazard or explosion.
l FOR YOUR SAFETY*
DO NOT STORE OR USE GASOUNE OR
OTHER FLAMMABLE VAPORS AND
LIQUIDS IN THE VlClNlTY OF THIS OR ANY
OTHER APPLIANCE. THE FUMES CAN
CREATE A FIRE HAZARD OR EXPLOSION.
It is your responsibility to be sure your air
conditioner:
l Is installed in a window that will hold the
weight, and is secured according to the
Installation Instructions.
l Is connected only to the proper kind of outlet,
with the correct electrical supply and
grounding. (See Installation Instructions.)
l Is the correct size for the area you want to
cool.
l Is used only to do what window air condition-
ers are designed to do.
l Is not used by anyone unable to operate it
properly.
. Is properly maintained.
Also, remove the Energy Label and Buy
Guide. Use a damp cloth to take off any glue
residue. Do not use sharp instruments,
flammable fluids or abrasive cleaners. These
can damage the material.
-SAVE THESE INSTRUCTIONS -
Model and eerie1
number label Handle

Operating.lnstructions
Starting your air conditioner
Electrical Shock Hazard
l Plug unit only into grounded electrical
outlet.
l Do not use an extension cord.
l Do not operate unit with front removed.
Failure to follow the above precautions
could result in electrical shock or personal
injury.
1.
2.
Set Exhaust Vent Control to CLOSED for
maximum cooling or heating.
Set Fan Speed Control to the desired setting.
For cooling, use one of the COOL settings.
For heating, use one of the HEAT settings.
HI ................_.for maximum cooling or heating
MED ............
.......for normal cooling or heating
LO ...................................for sleeping comfort
FAN ONLY ..................for circulating room air
when no cooling or
heating is desired
NOTE: This product is not designed to be
used as a primary heat source. It is intended
for supplemental heating only. HEAT mode
operation is not recommended when the
outdoor temperature is below 45°F.
Turn the Thermostat Control to desired
setting. You can adjust the air conditioner’s
cooling or heating performance by resetting
the Thermostat Control toward COLDER for
more cooling. Turn toward WARMER for more
heating. You will need to experiment to find
the setting which suits you best.
NOTE: If you turn your air conditioner off, wait at
least 3 minutes before turning it back on or you
may blow a fuse or trip a circuit breaker.
3

Operating Instructions
Continued
The exhaust vent control
The Exhaust Vent Control setting draws stale or
smoky air from the room.
.l. To exhatist room air.
Set Exhaust Vent Control to OPEN. For cooling,
set Fan Speed Control to one of the COOL
settings. For heating, set Fan Speed Control to
one of the HEAT settings. ff no cooling or heating
is desired, use the FAN ONLY setting.
2. To circulate rcom air:
Set Exhaust Vent Control to CLOSED. For
cooling, set Fan Speed Control to one of the
COOL settings. For heating, set Fan Speed
Control to one of the HEAT settings. lf no cooling
or heating is desired, use the FAN ONLY setting.
NOTE: For maximum performance, the Exhaust
Vent Control must be in the CLOSED position
when cooling, heating or room air circulation is
desired.
Changing air direction
The air direction cartridges on both sides of the
unit control the direction of the cooled or heated
air. The air direction cartridges may be rotated to
direct the air straight ahead or to the side of the
unit.
The louvers in each air direction cartridge are
operated by a tab. The tab may be used to direct
the air up, down or straight ahead.
CleaningYourAirConditioner
Proper use and care of your air conditioner will
help ensure longer life of the unit and lower
operating costs. Follow these instructions
carefully. Call your Whirlpool servicing dealer for
an annual checkup.
Electrical Shock and Fire Hazard
l Unplug power cord from receptacle
before cleaning unit. Failure to do so
could result in electrical shock or per-
sonal injury.
l Do not use flammable fluids, solvents,
abrasive cleaners, or strong detergents.
Fire or product damage could result.

Cleaning the front panel
1. Unplug power cord.
2. Remove the front panel from unit when
cleaning. Remove two screws from bottom
edge of front panel.
3. Lii the front panel up and toward you.
4. Remove slideout filter and clean separately.
(See “Cleaning the filter” below.)
NOTE: Front does not have to be removed to
clean fifter.
5. Clean front panel with warm water and mild
soap or detergent. Use a soft cloth. Rinse and
dry. Replace front panel.
6. wipe control panel clean with a soft, dry cloth.
’ Cleaning the filter
The filter is cleanable. A clean filter helps remove
dust, lint and other particles from the air. Check
every two weeks to see if fitter needs cleaning.
1. Remove fitter by sliding the filter up and out
the top of front panel.
2. Clean filter, using a vacuum cleaner.
OR
If very dirty, wash filter with warm water and
mild detergent. Air dry thoroughly before
replacing.
3. Replace filter by sliding it back down into
opening at the top of front panel.
Screw
CaringForYourAirConditioner
Annual maintenance
Your air conditioner needs annual maintenance
to help ensure steady, top performance through-
out the year.
Call the service company recommended by
your dealer to:
l Inspect and clean the coils and condensate
water passages.
l Check fan and fan motor.
The compressor and fan motor are sealed and
need no oiling. Expense of annual inspection is
customer’s responsibility.
OR
If you are familiar with electrical appliances, you
can do the cleaning and maintenance yourself. If
you choose to do so, follow the steps on page 6.
5

C&ii:: Your Air Conditioner
Electrical Shock, Product Damage and
Personal Injury Hazard
l Unplug Power cord from receptacle
before performing any maintenance. Be
sure no liquid gets into the motor,
electrical control box or compressor
electrical terminals.
l Do not lift, push or pull any white beaded
foam (expanded polystyrene) parts.
l Because your air conditioner weighs from
80 to 200 pounds, ft Is recommended that
you have someone help you when you
remove and re-install your unit and that
you both use proper lifting techniques.
l Handle the air conditioner with care.
Watch out for the sharp metal fins on the
front and rear coils.
l Do not use the collected water for
drinking purposes. lt is not sanitary.
Failure to follow the above precautions
could result in electrical shock, product
damage or personal injury.
1. Unplug power cord.
2. Remove front panel. (See page 5.)
3. Slide unit out of cabinet by using the handle in
the center of the base flange.
4. Wrap the motor, connector plug, electrical
control box and compressor terminal box in
plastic film and make sure no water or other
liquid gets inside any of these parts. It could
damage the insulation and cause serious
mechanical problems.
Handle
5. Carefully clean and hose out the base,
condenser coil and condensate pans. Clean at
least once a year or more often if the con-
denser coil and pan collect din, sand, leaves,
insects or algae. Also, clean if you detect an
odor coming from the air conditioner.
6. Remove plastic film from motor and electrical
parts.
7. Replace unit in cabinet.
6. Replace front panel.
9. Reconnect power supply.
NOTE: It is a good idea to wait 24 hours before
starting the unit again. This allows time for all
areas to dry out. The water from rainfall or from
normal operation does not harm these
components.

IfYouNeedServiceOrAssistance
Wesuggest you follow
these steps:
1. Before celling for assistance ...
Performance problems often resutt from little things you
can find end fix yourself without tools of any kind.
If you prefer, write to:
Mr. William Clark
Director of Consumer Relations
Whirlpool Corporatin
2oooM63
Air conditfonW won’t run:
l Is unit plugged into a live cirurit with proper voltage?
l Is switch turned on?
Benton Ha&r, MI 49022
Please indude a daytime phone number in your
wnesporlderlw.
3. fl you nasd service*...
l Is Thermostat Control set correctly?
l Has a household fuse blown or a circuit breaker
tlippd?
l Has the local power failed?
Unit blows fuses or trips circuit breaker:
l Are time-delay fuses being used?
l Is an extension cord being used? (Do not use an
extension cord to run your air conditioner.)
. Are you waiting three minutes after turning cooling
circuit off before trying to restart unit?
Whi@ool has a nalionwide network of authorized
WhirlpooP service companies. Whirlpool service
technicians are trained to fulfill the product warranty and
provide after-warranty service, anywhere in the United
states. To locate the authorized Whirlpod service
company in your area, call our Consumer Assistanca
Center telephone number (see Step 2) or look in your
telephone drectory Yellow Pages under:
APlwANcEs - HousEHoLo -
YUOR -SERVICE I REPNR ELECWCK APPuANcEs-
YkloR - REPAlWNa k PAmn
OR
WASHING MACHINES, DRYEf4S
6IRWRs-sERvlw.la
Unit turns on and off, or does not cool room:
WWRLPOOL AFPUANCES
l Is filter clean?
AUlliORlZED WHIRLPOOL SERVICE
l Are coils clean (both evaporator [inside] and
condenser [outside])?
SERVICE COMPANIES
XYZ SERVICE CO
123 Mapb .._........... BBB-Qew
l Is there excessive moisture or heat (open vessel
cmking, showers, etc.)?
l Try setting fan to higher speed.
l Try setting Thermostat Control to a cooler setting.
Unit horns on and off, or doee not heat room:
l Is filter clean?
l Are coils clean (both evaporator [inside] and
condenser [outside])?
l Is there excessive moisture or heat (open vessel
cooking, showers, etc.)?
l Try setting fan to higher speed.
l Try setting Thermostat Control to a warmer setting.
l Is the outside temperature below 45”F?
4. If you need FSW replacement parts’...
FSP is a registered trademark of Whirlpool Corporation
for quality parts. Look for this symbol of quality whenever
you need a replacement part for your Whirlpool
appliance. FSP replacement parts will fit right and work
right, because they are made to the Same exacting
specificabons used to build every new Whirlpool
appliance.
To locate FSP replacement parts in your area, refer to
Step 3 above or call the Whirlpool Consumer Assistance
Center number in Step 2.
Operating sounds:
l When your room air conditioner is operating
normally, you will hear sounds such as:
-Droplets of water hitting the condenser, causing a
“pinging” or “clicking” sound. Water droplets help to
cool the condenser.
-Air movement from the fan, especially on high fan
speed setting.
-Clicks from the thermostat cycle.
l Sounds also may be caused by house construction-
such as vibration of the unit due to wall construction
or unsteady window mounting area.
5. If you are not satisfied with how the
problem was solved*...
l Contact tile Major Appliance Consumer Action Panel
(MACAP). MACAP is a group of independent
consumer experts that voices consumer views at the
highest levels of the major appliance industry.
l Contact MACAP only when the deafer, authorized
servicer and Whirlpool have failed to resolve your
problem.
Major Appliance Consumer Action Panel
20 North Wacker Drive
Chicago, IL 60606
l MACAP WIIIin turn inform us of your action.
2. If you need assistance*...
Call Whirlpool Consumer Assistance Center telephone
number. Dial toll-free from anywhere in the U.S.A.: tion is needed to better respond to your request.
1-800-253-1301
and talk with one of our trained consultants. The
consultant can instruct you in how to obtain satisfactory
operation from your appliance or, if service is neces-
sary, recommend a qualified service company in your
area. 7

WHIRLPOOL”
RoomAirConditionerWarranty
LENGTH OF WARRANTY
FULL ONE-YEAR WARRANTY
From Date of Purchase
FULL FIVE-YEAR WARRANTY
From Date of Purchase
WHIRLPOOL WILL PAY FOR
FSP replacement parts and repair labor to correct defects in
materials or workmanship.
FSP replacement parts and repair labor to correct defects in
materials or workmanship in the sealed refrigeration system
These parts are:
1. Compressor 4. Drier-Strainer
2. Evaporator 5. Connecting Tubing
3. Condenser
WHIRLPOOL WLL NOT PAY FOR
A Service calls to:
1. Correct the installation of your air conditioner.
2. Instruct you how to use your air conditioner.
3. Replace house fuses or correct house wiring.
4. Clean or replace air filter.
B. Pickup and delivery. Your air conditioner is designed to be repaired in the home.
C. Damage to your air conditioner caused by accident, misuse, fire, flood, acts of God or use of
products not approved by Whirlpool.
D. The removal and reinstallation of your air conditioner if it is installed in an overhead or other
inaccessible location or not installed in accordance with published installation instructions.
E. Repairs to parts or systems caused by unauthorized modifications made to the appliance. 519:
Service under the full warranties must be provided by an authorized Whirlpool service corrpany.
WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES. Some states do not allow the exclusion or limitation of incidental or consequential damages so
this limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and YOU may
also have other rights which vary from state to state.
Outside the United States, a different warranty may apply. For details, please contact your authorized
Whirlpool distributor or military exchange.
If you need service, first see the “Service and Assistance” section of this book. After checking “Service and
Assistance,” additional help can be found by calling our Consumer Assistance Center telephone number,
1-800-253-l 301, from anywhere in the U.S.A.
@ Registered Trademark of Whirlpool Corporation
Part No. 1159922 Rev. B
01993 Whirlpool Corporation Printed in U.S.A.
