INTRODUCTION
BEFORE USING THE COOKTOP
1. Clean the cooktop.
2. Switch on the hotplates to remove fumes and smells coming from the protective greases.
EVERYDAY USE
1. Turn the control knob to the position required.
2. To switch off, turn the knob back to “0”.
Please read the instructions for use carefully, to become familiar with your coo top.
22
22

NC
MY
CONTENTS GB
FEATURES Pages 24-25-26
BEFORE USING THE COOKTOP Page 27
TIPS FOR SAFEGUARDING THE ENVIRONMENT Page 27
WARNINGS FOR THE USE OF ELECTRICAL APPLIANCES Page 28
PRECAUTIONS AND GENERAL SUGGESTIONS Page 28
2 ELECTRIC HOTPLATE COOKTOP Page 29
GLASS CERAMIC COOKTOP Page 31
CLEANING AND MAINTENANCE Page 34
TROUBLE-SHOOTING GUIDE Page 35
AFTER-SALES SERVICE Page 35
INSTALLATION Page 36
2
2

NC
MY
FEATURES

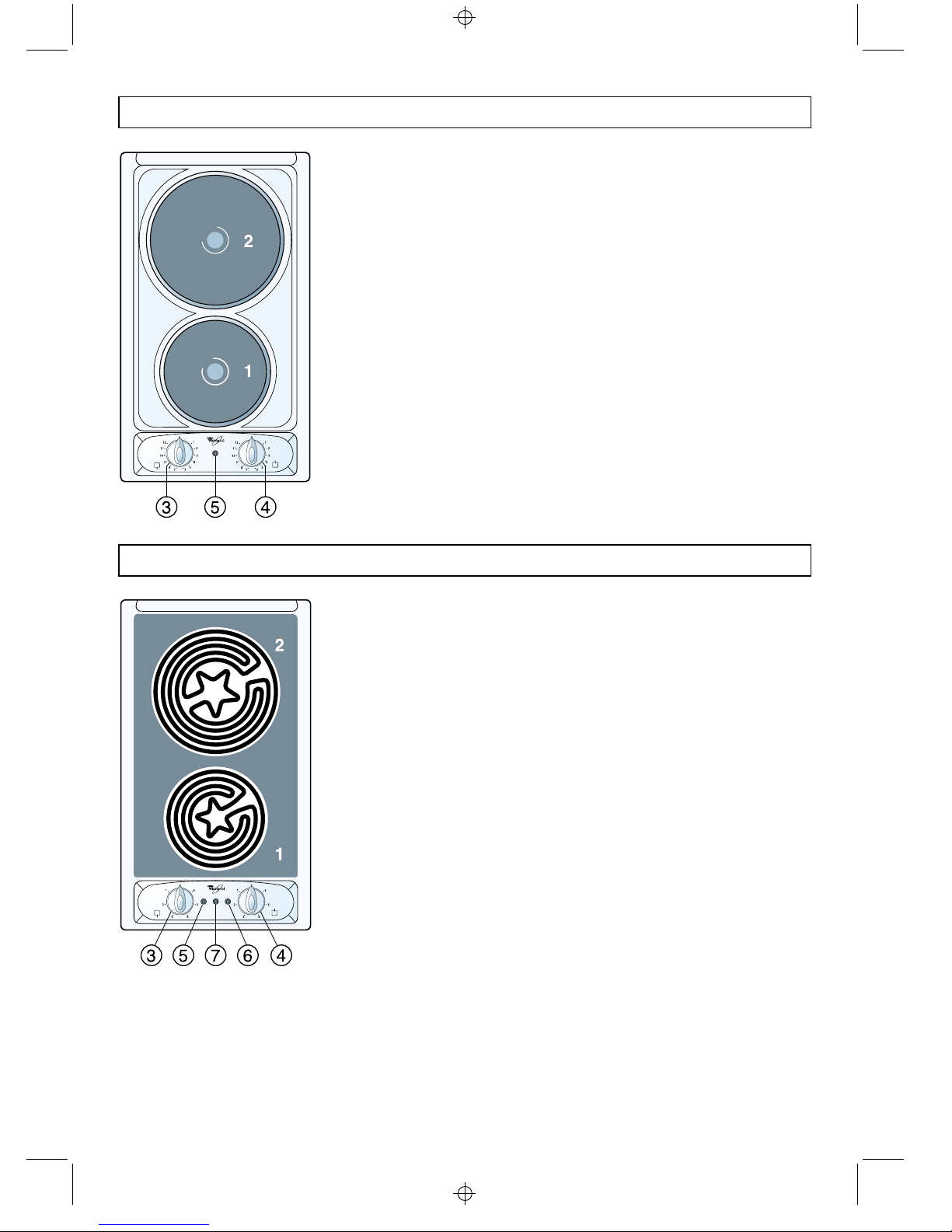

AKR 024
2 ELECTRIC HOTPLATE COOKTOP
- Electrical insulation Class I.
- Protection against overheating of adjacent
surfaces Type Y.
ELECTRIC HOTPLATES
1. High-speed electric hotplate Ø 145 – 1500 W
2. High-speed electric hotplate Ø 180 – 2000 W
CONTROL PANEL
3. Front hotplate (1 – 6) control knob (1)
4. Rear hotplate (1 – 6) control knob (2)
5. Hotplates ON indicator light
AKR 010
2 ELECTRIC HOTPLATE COOKTOP
- Electrical insulation Class I.
- Protection against overheating of adjacent
surfaces Type Y.
ELECTRIC HOTPLATES
1. High-speed electric hotplate Ø 145 – 1500 W
2. High-speed electric hotplate Ø 180 – 2000 W
CONTROL PANEL
3. Front hotplate (1 – 6) control knob (1)
4. Rear hotplate (1 – 6) control knob (2)
5. Hotplate ON indicator light
24
24

NC
MY
AKR 012
2 ELECTRIC HOTPLATE COOKTOP
- Electrical insulation Class I.
- Protection against overheating of adjacent
surfaces Type Y.
ELECTRIC HOTPLATES
1. High-speed electric hotplate Ø 145 – 1500 W
2. High-speed electric hotplate Ø 180 – 2000 W
CONTROL PANEL
3. Front hotplate (1 – 12) control knob (1)
4. Rear hotplate (1 – 12) control knob (2)
5. Hotplate ON indicator light
AKR 028
GLASS CERAMIC COOKTOP
- Electrical insulation Class I.
- Protection against overheating of adjacent
surfaces Type Y.
COOKING ZONES
1. “Quick light star” cooking zone Ø 145 – 1200W
2. “Quick light star” cooking zone Ø 180 – 1700W
CONTROL PANEL
3. Front zone control knob (1)
4. Rear zone control knob (2)
5. Front zone residual heat indicator light (1)
6. Rear zone residual heat indicator light (2)
7. Cooking zone ON indicator light
25
25

NC
MY
AKR 011
GLASS CERAMIC COOKTOP
- Electrical insulation Class I.
- Protection against overheating of adjacent
surfaces Type Y.
COOKING ZONES
1. “Quick light star” cooking zone Ø 145 – 1200W
2. “Halogen” cooking zone Ø 180 – 1800W
CONTROL PANEL
3. Frontzone1–6controlknob(1)
4. Rearzone1–12controlknob(2)
5. Front zone residual heat indicator light (1)
6. Rear zone residual heat indicator light (2)
7. Cooking zone ON indicator light
AKR 014
GLASS CERAMIC COOKTOP
- Electrical insulation Class I.
-Protection against overheating of adjacent surfaces
Type Y.
COOKING ZONES
1. “hilight” cooking zone Ø 145 – 1200W
2. “hilight” cooking zone Ø 180 – 1800W
CONTROL PANEL
3. Front zone control knob (1)
4. Rear zone control knob (2)
5. Front zone residual heat indicator light (1)
6. Rear zone residual heat indicator light (2)
7. Cooking zone ON indicator light
26
26

NC
MY
BEFORE USING THE COOKTOP
x For best use of your coo top, read the
instructions for use carefully and eep them in
asafeplace.
x This appliance must only be used for the
purpose for which it was designed, i.e. for
coo ing foods.
Any other use should be considered incorrect
and therefore dangerous.
x The manufacturer declines all responsibility for
damage caused by unreasonable, incorrect or
rash use of the appliance.
x Do not try to alter the technical features of
the appliance, because this could be very
dangerous.
x Packaging materials (plastic bags, polystyrene pieces,
etc...) must be stored out of the reach of children as
they are potentially dangerous.
x Check that the cooktop has not been damaged
during transport. If in doubt, consult a specialised
engineer.
x Ma e sure that the installation and electrical
connections are made by a qualified electrician
following the manufacturer’s instructions and
in compliance with local regulations in force.
TIPS FOR SAFEGUARDING THE ENVIRONMENT
1. Pac aging
The packaging material is 100% recyclable and is
marked with the recycling symbol
Ù
to identify the
type of material which must be taken to the local
collection centres.
2. Product
The cooktop has been manufactured with recyclable
material. Dispose of it following the local regulations
for the disposal of waste.
Before disposing of it make it unusable by cutting
off the supply cable.
27
27

NC
MY
WARNINGS FOR THE USE OF ELECTRICAL APPLIANCES
When using electrical appliances some
important rules must always be followed. In
particular:
x Never touch the appliance with wet or damp hands
or feet.
x Never use the appliance with bare feet.
x Keep children away from the hob when it is in use.
x Before any cleaning or maintenance, switch off the
electricity to the cooktop.
PRECAUTIONS AND GENERAL SUGGESTIONS
x Ris of fire!
Do not leave inflammable material on the cooktop.
x Make sure that the electrical cables of other
appliances installed nearby cannot come into
contact with the cooktop.
x Keep children away from the appliance, especially
when it is being used.
x During and immediately after use some parts of the
cooktop reach very high temperatures.
Do not touch them.
x Never cook the food directly on the electric
hotplates or on the glass ceramic cooktop, but in
special pans or containers.
If the coo top is fitted with a
glass cover:
x Do not close the glass cover when the electric
hotplates are still hot. If there is an oven under the
cooktop, do not close the cover when the oven is
switched on or still hot.
x Do not put pans or heavy objects on the cover.
x Dry off any liquid which may have spilt on the cover
before opening it.
EC Declaration of conformity n
x This cooktop is intended to come into contact with
food products and conforms with European
Directive 89/109/EEC.
x This cooktop has been designed for use only as a
cooking appliance. Any other use (e.g. heating
rooms) should be considered incorrect and therefore
dangerous.
x This cooktop has been designed, constructed and
put on to the market in conformity with:
- Safety requirements of the “Low Voltage”
Directive 7 /2 /EEC and amendments;
- Protection requirements of the “EMC” Directive
89/ 6/EEC and amendments;
- Requirements of Directive 9 /68/EEC.
28
28

NC
MY
2 ELECTRIC HOTPLATE COOKTOP
Switch on the electric hotplates by turning the knob to
the position required.
Once the food is boiling turn down the power
accordingtotheheatingintensityrequired.
The hotplate will continue to give out heat for 5
minutes after it has been switched off.
The features of these electric hotplates, which are fitted
with a heating limiter, allow:
− rapid reaching of the temperature
− maximum use of the power with flat-bottomed pans
− limitation of the power if the pan is unsuitable.
AKR 024 – AKR 010

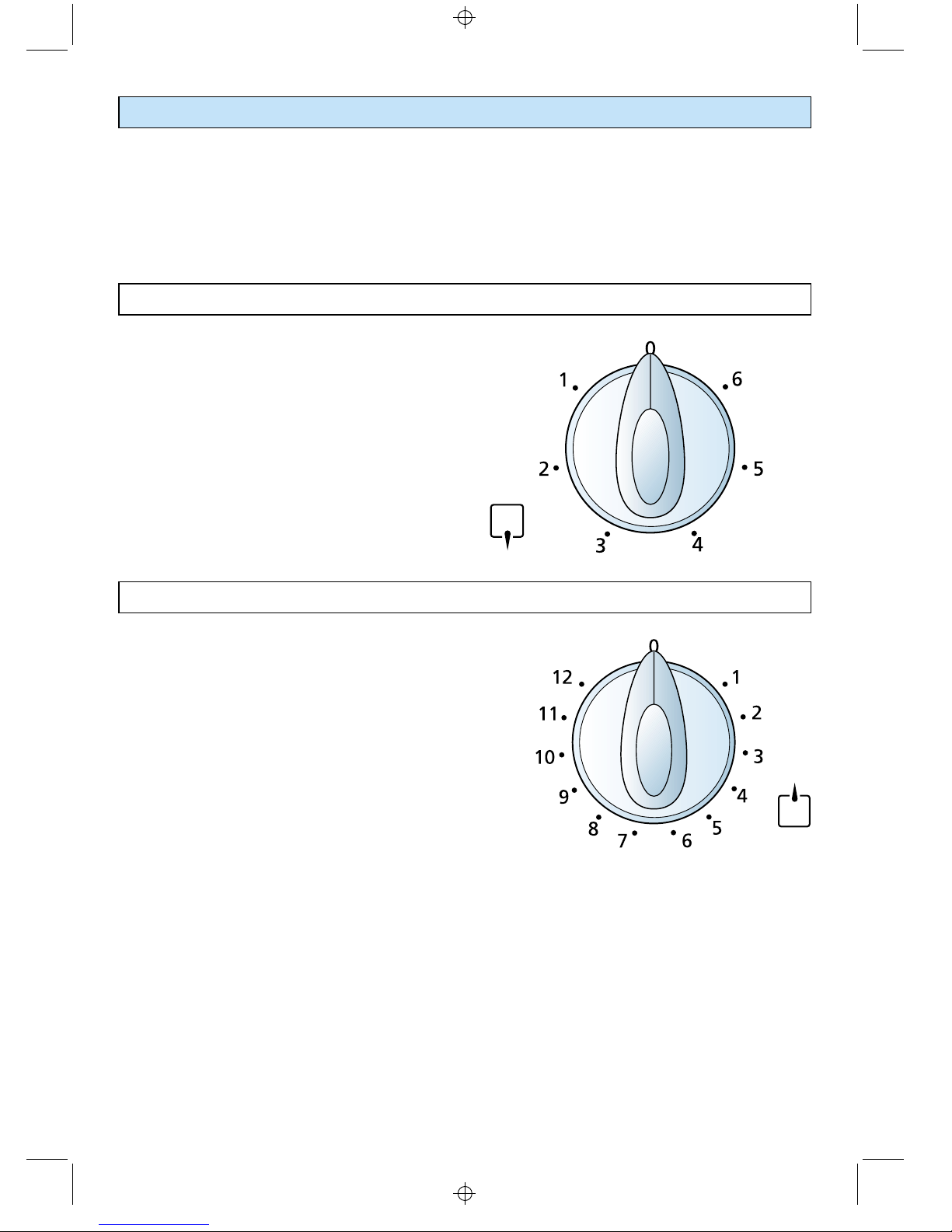

The hotplate temperature is adjusted by a 7-position
changeover switch.
The numbers from 1 to 6 indicate the operating
positions with temperature increasing with the number.
AKR 012
A power regulator allows continuous adjustment of the
temperature of the electric hotplates from position 1
(minimum temperature) to 12 (maximum temperature.
29
29

NC
MY
2 ELECTRIC HOTPLATE COOKTOP
nob TABLE FOR USE OF THE nob
1-6 COOKING ZONES 1-12
1-2 1-2 For melting (butter, chocolate).
2 2-3-4
To keep food warm and to
heat small quantities of liquids.
3 4-5-6
To heat larger quantities, whip
creams and sauces.
3-4 6-7
Slow boiling, e.g.: boiled
vegetables, spaghetti, soups,
continuing steam cooking of
roasts, stews.
47-8
For all types of fried foods,
chops, steaks, cooking without
lid, e.g. risotto.
4-5 8-9-10
Browning meats, roast
potatoes, fried fish and to boil
large quantities of water.
6 11-12
Quick frying, steaks in steak
pan, etc.

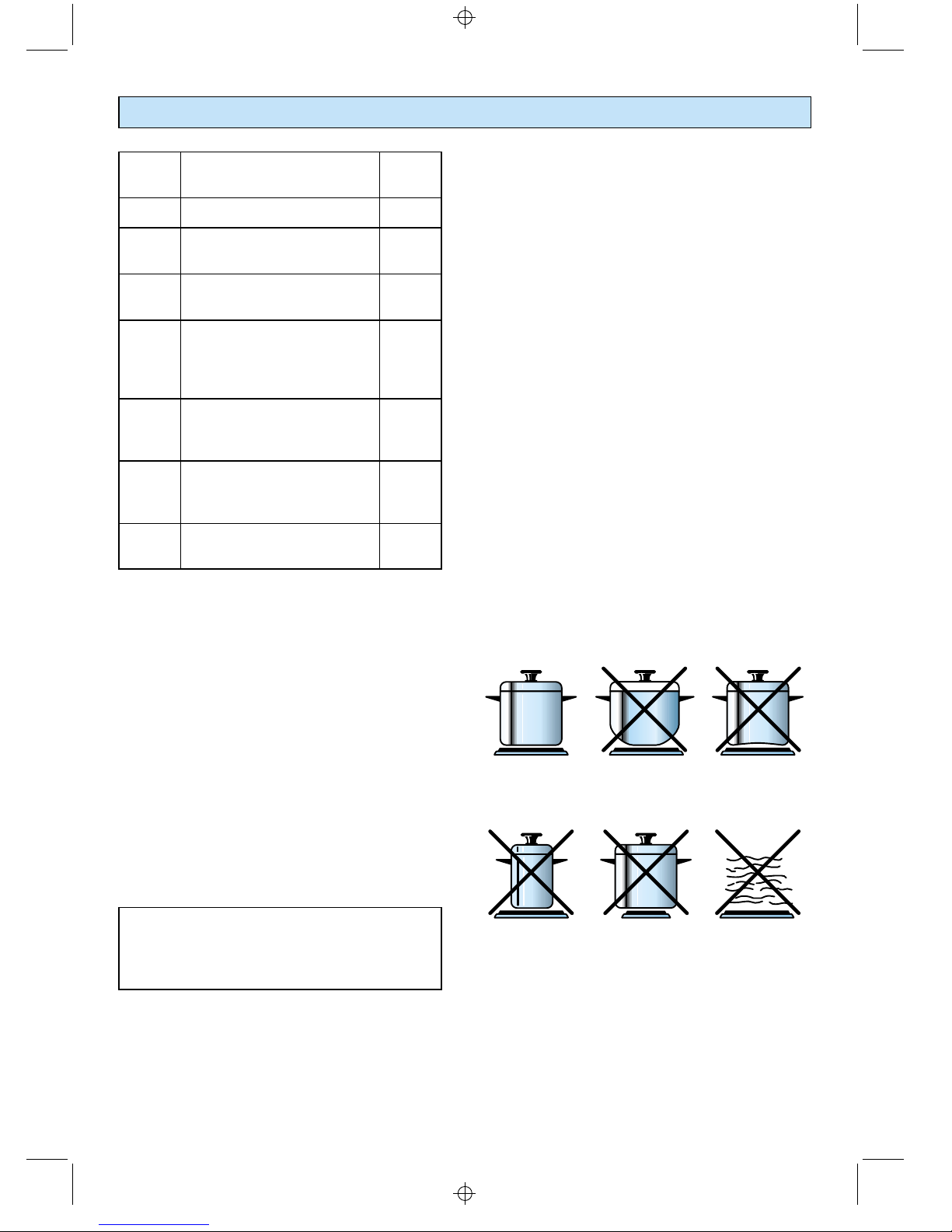

CORRECT USE OF THE ELECTRIC
HOTPLATES
When using the electric hotplate:
− absolutely avoid idle operation (without pans)
− try not to spill liquids on the hotplates when they
are hot
− only use pans with flat bottoms (electric type)
− to save electricity use lids when possible
− always use pans which cover the hotplate surface
completely.
Operation of the electric hotplates is signalled by an
indicator light.
ATTENTION
During and after use of the electric hotplates
the coo top becomes hot.
Keep children away.
0
0

NC
MY
GLASS CERAMIC COOKTOP
The cooktop’s glass ceramic surface allows rapid
vertical heat transmission from the heating elements
under the cooktop to the pans on it.
The heat does not propagate horizontally and thus the
cooktop remains “cold” just a few centimetres away
from the cooking zone.
The two cooking zones are indicated by two circles
drawn on the glass ceramic surface.
Before switching on the cooktop make sure that it is
clean.
ATTENTION
During and after use of the electric hotplates
the coo top becomes hot.
Keep children away.
nob TABLE FOR USE OF THE nob
1-6 COOKING ZONES 1-12
1-2 1-2 For melting (butter, chocolate).
22-3-4
To keep food warm and to
heat small quantities of liquids.
34-5-6
To heat larger quantities, whip
creams and sauces.
3-4 6-7
Slow boiling, e.g.: boiled
vegetables, spaghetti, soups,
continuing steam cooking of
roasts, stews.
47-8
For all types of fried foods,
chops, steaks, cooking without
lid, e.g. risotto.
4-5 8-9-10
Browning meats, roast potatoes,
fried fish and to boil large
quantities of water.
6 11-12
Quick frying, steaks in steak
pan, etc.
AKR 028

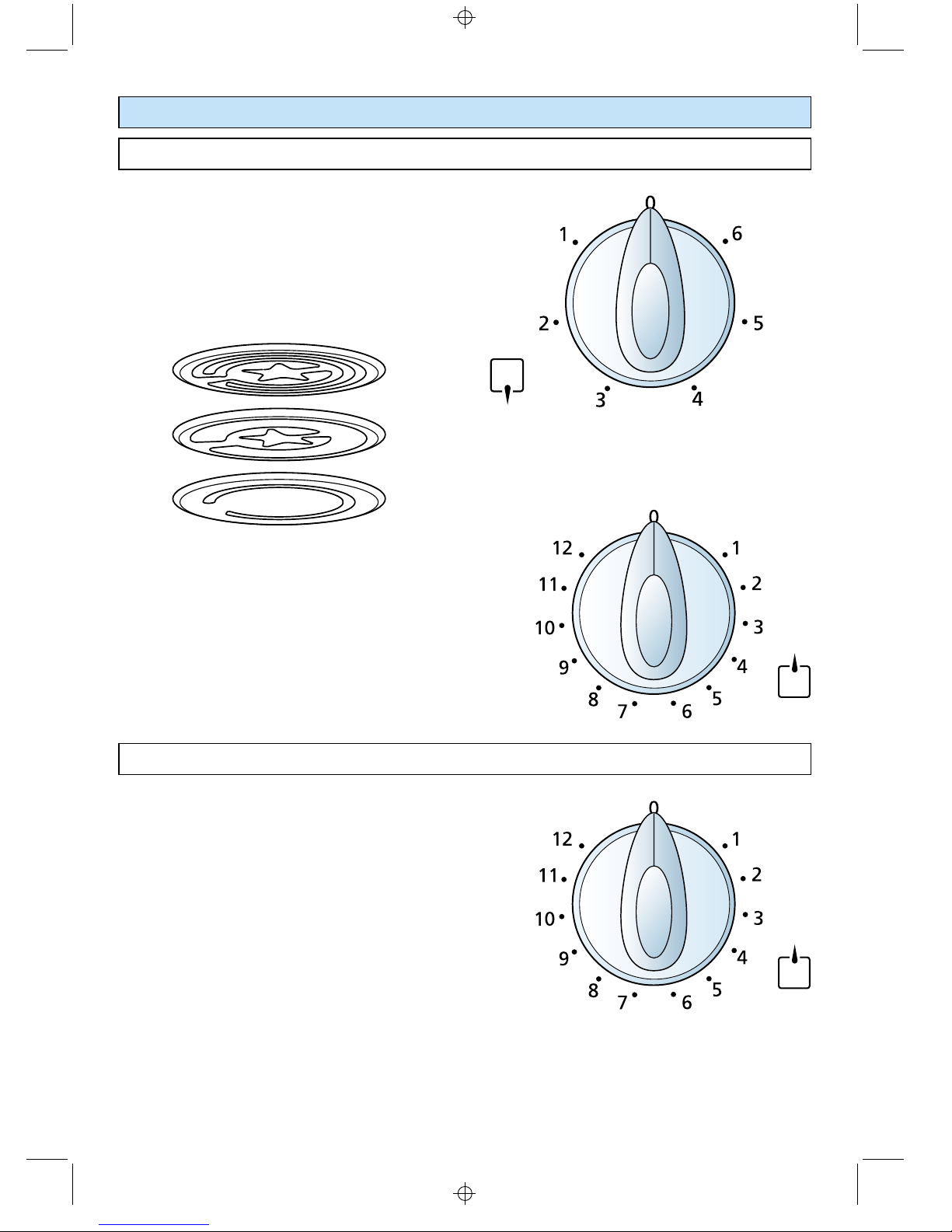

“Quic light star” RADIANT ZONES
The heating element is formed of electrical
resistances which can work together or separately
depending on the position of the 7-position
changeover switch.
It reaches the working temperature quickly.
The figure below shows the ways in which the
heating elements can work.
1
1

NC
MY
GLASS CERAMIC COOKTOP
AKR 011
“Quic light star” RADIANT ZONES
The heating element is formed of electrical
resistances which can work together or separately
depending on the position of the 7-position
changeover switch.
It reaches the working temperature quickly.
The figure below shows the ways in which the
heating elements can work.
HALOGEN ZONE
The heating element is formed of 2 halogen lamps and
an electrical resistance.
It reaches the working temperature immediately.
Operation of the cooking zone is controlled by a
continuous energy regulator from 1 (minimum position)
to 12 (maximum temperature).
Warning for eyes: Do not stare at the lamp when it
is on.
AKR 014
“HILIGHT” RADIANT ZONES
The heating element is formed of a coil of resistant
material which reaches the working temperature
quickly.
Operation of the cooking zone is controlled by a
continuous energy regulator from 1 (minimum position)
to 12 (maximum temperature).
2
2

NC
MY
GLASS CERAMIC COOKTOP
AKR 028 – AKR 011 – AKR 014
RESIDUAL HEAT INDICATOR LIGHTS
When the cooking zone temperature is higher than
60oC, the corresponding indicator light comes on to
signal that the zone is hot.
This light remains on even after the cooking zone has
been switched off, to signal that the zone itself is still
hot.
The cooking zones remain hot for some time after they
are switched off. During this time do not touch the
cooking zone and make sure that children do not touch
them.
The light goes out automatically when the cooking
zone temperature drops below 60oC.
TIPS FOR QUICK AND CORRECT
COOKING:
− To shorten the cooking time, when switching on the
cooktop turn the knob to maximum. After a short
time, turn the knob to the position required for
cooking.
− Use flat-bottomed cookware.
For best energy use the bottom of the pan should
be of the same diameter as (or slightly larger than)
the cooking zone.
− As the cooking zone remains hot for some time
after the cooktop is switched off, turn the zone off
a few minutes before the end of cooking.
The residual heat will complete the cooking.
ADVICEFORSAFEUSEOFTHE
COOKTOP
− Before switching on make sure that you have the
correct knob for the hotplate chosen. It is advisable
to put the pan on the hotplate before switching on
andtotakeitawayafterswitchingoff.
− Use cookware with flat and even bottoms (be
careful when using cast iron vessels). Uneven
bottoms can scratch the glass ceramic surfaces. Be
careful that the bottom is clean and dry.
− Make sure that the handles of cookware do not
stick out over the edge of the cooker, to avoid them
being knocked over by accident. This also makes it
more difficult for children to reach the cooking
vessels.
− Do not lean over the cooking zones when they are
switched on.
− Do not leave objects of any type on the surfaces
made of ceramic, glass or similar fragile material.
− Do not drop heavy or sharp objects on the glass
ceramic cooktop. If the surface is broken or
damaged unplug the cooktop and contact the after-
sales service.
− Do not put aluminium foil or plastic objects on the
cooking zones when they are hot.
− Remember that the cooking zones remain hot for
some time after they are switched off (about 0
min.).
− Follow the cleaning instructions carefully.
− If the cooktop has halogen lamps, do not stare at
them.
− If you note a crack in the cooktop, switch the
appliance off immediately and call the After-Sales
Service.
Do not scratch the coo top with cutting or
sharp objects.
Do not use the glass ceramic coo top as a
wor surface.

NC
MY
CLEANING AND MAINTENANCE
CLEANING THE COOKTOP AND
CONTROL PANEL
x Before cleaning the cooktop switch it off and wait
forittocooldown.
x Cleanwithaclothwettedwithhotwaterandsoap
or water and liquid detergent.
x Do not use steel pads or products which are
abrasive, corrosive or chlorine based.
x Do not leave acid or alkaline substances (vinegar,
salt, lemon juice etc.) on the cooktop.
ENAMEL COOKTOP
x Enamel parts must be washed with a sponge and
soapy water or other non-abrasive products. Dry
withasoftcloth.Ifacidsubstancessuchaslemon
juice, tomato sauce and vinegar are left on the
enamel for a long time it will become stained.
STAINLESS STEEL COOKTOP
x Clean with special products which are available on
the market.
Note: regular use could cause discolouring around the
electric hotplates, because of the high temperature.
ELECTRIC HOTPLATES
x Clean when the hotplate is lukewarm.
x Cleanwithaclothwettedwithwaterandsaltand
finish by rubbing with a rag dampened with oil.
x Do not use water, to avoid the formation of rust.
CLEANING THE GLASS CERAMIC
COOKTOP
Ma e sure that the coo top is switched off before
cleaning it.

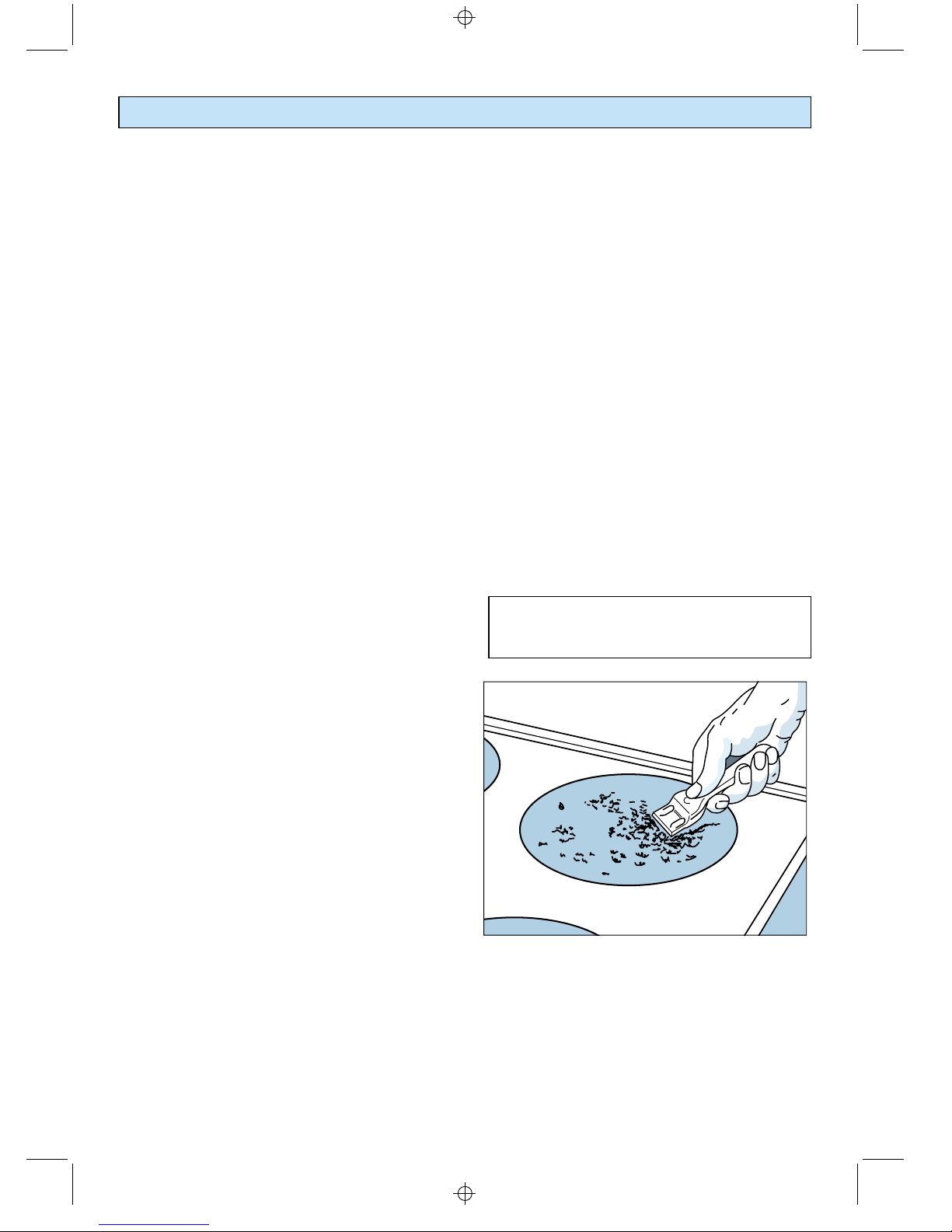

Remove any encrustation using a special scraper which
can be bought.
Remove dust with a damp cloth.
Detergents can be used, but they must not be abrasive
or corrosive.
Any remaining detergent must be completely removed
with a damp cloth.
Do not put any objects on the cooktop which can melt
with heat, such as plastic objects, aluminium foil, sugar
or sugar products.
If any object melts on the cooktop, remove it
immediately (while the cooktop is still hot) using a
special scraper, to prevent any irreversible damage to
the glass ceramic surface.
Do not use knives or sharp objects which could
damage the cooktop surface.
Do not use abrasive sponges or pads which could
irreversibly damage the glass ceramic surface.
Do not use steam jet cleaners because the
humidity could infiltrate into the appliance
ma ing it dangerous.
4
4

NC
MY
TROUBLE-SHOOTING GUIDE
The electric hotplates or the coo ing zones do not
heat up.
Check whether:
x the corresponding regulating knob has been turned
to the correct power?
x there is a power cut?
AFTER-SALES SERVICE
Before contacting the After-Sales Service:
1. Check whether you can deal with the problem
yourself (See “Trouble- Shooting Guide”).
2. Switch on the appliance again to check whether the
problem has been solved.
3. If it is still not working properly, call the After-Sales
Service.
Give:
x Thetypeoffault
x The model
x The Service number (the number after the word
SERVICE on the rating plate underneath the cooktop,
on the guarantee and on this instruction manual).
x Your full address and post code
x Your telephone number
x When you can be contacted.
l
5
5

NC
MY
INSTALLATION
Technical information for the installer
The appliance must be installed by a qualified
electrician following the manufacturer’s instructions and
in compliance with local regulations in force.
To fit the cooktop into the unit make an opening of
the dimensions given in the figure, remembering that:
− inside the unit there must be a space of at least 0
mm between the bottom of the cooktop and the
topofanapplianceorbracket.
− any wall to the side and above the cooktop must
be at least 50 mm away.
− the wall behind the cooktop must be at least 50
mm away.
− when there is a wall unit or hood above the
cooktop there must be at least 650 mm between
the cooktop and the unit or hood.
− the coatings of the walls of the unit or appliances
nearthecooktopmustbeheatresistant(“Y”
protection against heating in compliance with
standards EN 60 5-2 6). The cooktop can then be
putneartowallswhicharehigherthanitis(min.
50 mm).
Do not install the coo top near inflammable
materials (e.g. curtains).
6
6

NC
MY
INSTALLATION
AKR 024 – AKR 010 – AKR 012
Before installing the cooktop, remove the protective
film.
This cooktop can be built into a working surface 20 to
40 mm thick and 600 mm deep.
To fit the cooktop into the unit make a hole of the
dimensions given in the figures below and respect the
indications given in the previous section “Technical
information for the installer”.
AKR 028 – AKR 011 – AKR 014
Before installing the cooktop, remove the protective
film.
This cooktop can be built into a working surface 0 to
40 mm thick and 600 mm deep.
To fit the cooktop into the unit make a hole of the
dimensions given in the figures below and respect the
indications given in the previous section “Technical
information for the installer”.
7
7

NC
MY
INSTALLATION
FASTENING THE COOKTOP
Eachcooktopissuppliedwithasetoftabsandscrews
to fasten it on units.
− Cut the unit (as shown in the figure on the previous
page).
− Stretch gasket “D” over the edge of the hole made,
being careful to overlay the junction edges.
− Turn the cooktop over and put tabs “A” into the
mountings; only tighten screws “B” a few turns.
Make sure that the tabs are mounted correctly as
shown in the figures at the side. Turn the tabs so
that the cooktop can be put into the hole.
− Put the cooktop into the hole cut into the unit and
position it correctly.
− Put tabs “A” into place; tooth “C” of the tabs should
go into the hole.
− Tighten screws “B” until the cooktop is completely
secured.
− Usingasharptoolcutoffthepartofgasket“D”
which protrudes from the cooktop.
AKR 024 – AKR 010 – AKR 012
20 mm min.
40 mm max.
AB
C D
AKR 028 – AKR 011 – AKR 014
30 mm min. 40 mm max.
B A
C D
AA
A
A
8
8

NC
MY
INSTALLATION
ELECTRICAL PART
IMPORTANT: Install the coo top following the
manufacturer’s instructions.
Incorrect installation can cause damage to people,
animals or things, for which the manufacturer
cannot be held responsible.
− The appliance must be connected to the mains by a
competent electrician and according to the
regulations in force.
− The appliance must be connected to the mains,
checking first of all that the voltage corresponds to
the value given on the rating plate and that the
section of the electrical cables can take the load
indicated on the rating plate.
− Fit a standard plug which is suitable for the power
absorbed by the appliance.
− The plug must be put into a socket connected to
the earth system in compliance with safety rules.
− For the United Kingdom:
As the colours of the wire of the supply cable of
this appliance may not correspond with the colours
which identify the terminals of your plug, proceed as
follows:
- the yellow/green wire must be connected to the
plug terminal marked with the letter E or with the
earth symbol or coloured green or yellow/green;
- the blue wire must be connected to the terminal
marked with the letter N or coloured black;
- the brown wire must be connected to the
terminal marked with the letter L or coloured red;
− The connection can be made directly to the mains
by putting an all-pole switch with minimum opening
between the contacts of mm between the
appliance and the mains.
− The supply cable must not touch hot parts and must
be so positioned that it does not exceed the
temperature of 75oC at any point.
− When the appliance is installed the switch or socket
must always be accessible.
− The appliance must have its own supply; any other
appliances installed near it must be supplied
separately.
N.B. For connection to the mains do not use adapters,
reductions or shunts because these can cause
overheating or burning.
If the installation requires modifications to the domestic
electrical system or if the socket and the appliance plug
are not compatible, contact a professional electrician.
He must, in particular, also make sure that the section
of the socket cables is suitable for the power absorbed
by the appliance.
The appliance must be connected to the earth.
The manufacturer declines all responsibility for
any problem caused by failure to observe this
instruction.
9
9

NC
MY
INSTALLATION
REPAIRS
Replacing the supply cable
Turn the cooktop over and unhook the terminal board
cover by inserting a screwdriver into the two hooks “A”.
Open the cable gland by unscrewing screw “F”,
unscrew the terminal screws and remove the cable.
The new supply cable, of suitable type and section, is
connected to the terminal board following the
diagrams shown below.
SECTION OF THE SUPPLY CABLES AND
CONNECTION DIAGRAM
Use H05RR-F cables.
Thediameterofthesupplycablemustnotbegreater
than 9 mm.
AKR 024, AKR 010
220/2 0 V Ù 50/60 Hz x 1,5 mm2
AKR 028, AKR 011, AKR 012, AKR 014
2 0 V Ù 50/60 Hz x 1,5 mm2
A
F
40
40
