UseAndCare
A Note To You 2
Important Safety
Instructions 3
Parts And Features 5
Using Your Cook-top 6
Carin For
Your ooktopt! 10
If You Need
Assistance
or Service 13
Warranty 16
1-800-253-I 301
In the U.S.A., call us with questions
or comments.
DESIGNERSTYLE” ELECTRIC CERAMIC COOKTOP
MODELS RC8600XB RC864OXB IBC430
WBC430 WBC441 IBC441
PART NO. 3189270
1’ /w

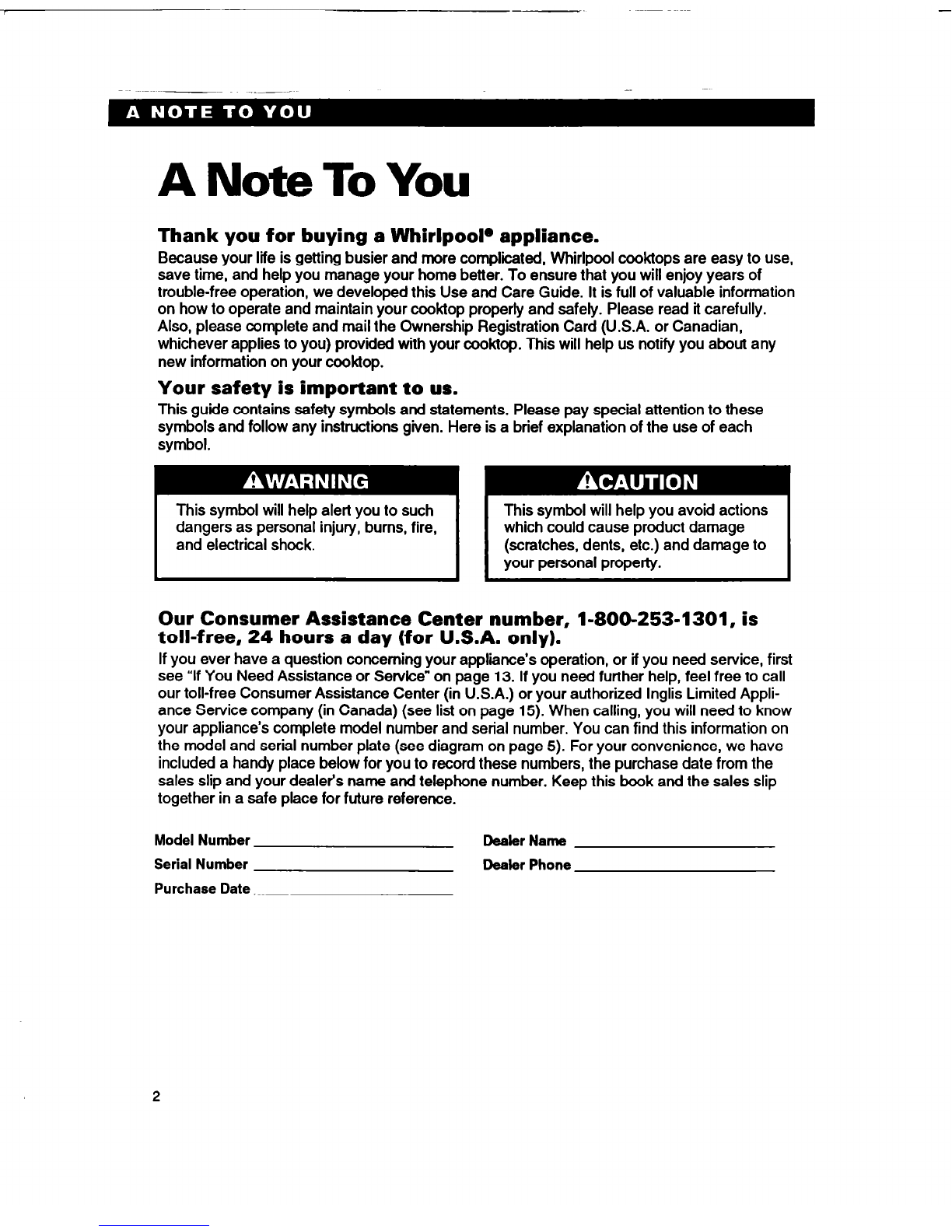

A Note To You
Thank you for buying a WhirlpooP appliance.
Because your life is getting busier and more complicated, Whirlpool cook-tops are easy to use,
save time, and help you manage your home better. To ensure that you will enjoy years of
trouble-free operation, we developed this Use and Care Guide. It is full of valuable information
on how to operate and maintain your cooktop properly and safely. Please read it carefully.
Also, please complete and mail the Ownership Registration Card (U.S.A. or Canadian,
whichever applies to you) provided with your cooktop. This will help us notify you about any
new information on your cook-top.
Your safety is important to us.
This guide contains safety symbols and statements. Please pay special attention to these
symbols and follow any instructions given. Here is a brief explanation of the use of each
symbol.
This symbol will help alert you to such
dangers as personal injury, burns, fire,
and electrical shock.
This symbol will help you avoid actions
which could cause product damage
(scratches, dents, etc.) and damage to
your personal property.
Our Consumer Assistance Center number, l-800-253-1301, is
toll-free, 24 hours a day (for U.S.A. only).
If you ever have a question concerning your appliance’s operation, or if you need service, first
see “If You Need Assistance or Service” on page 13. If you need further help, feel free to call
our toll-free Consumer Assistance Center (in U.S.A.) or your authorized lnglis Limited Appli-
ance Service company (in Canada) (see list on page 15). When calling, you will need to know
your appliance’s complete model number and serial number. You can find this information on
the model and serial number plate (see diagram on page 5). For your convenience, we have
included a handy place below for you to record these numbers, the purchase date from the
sales slip and your dealer’s name and telephone number. Keep this book and the sales slip
together in a safe place for future reference.
Model Number
Serial Number
Purchase Date
Dealer Name
Dealer Phone
2

~___~

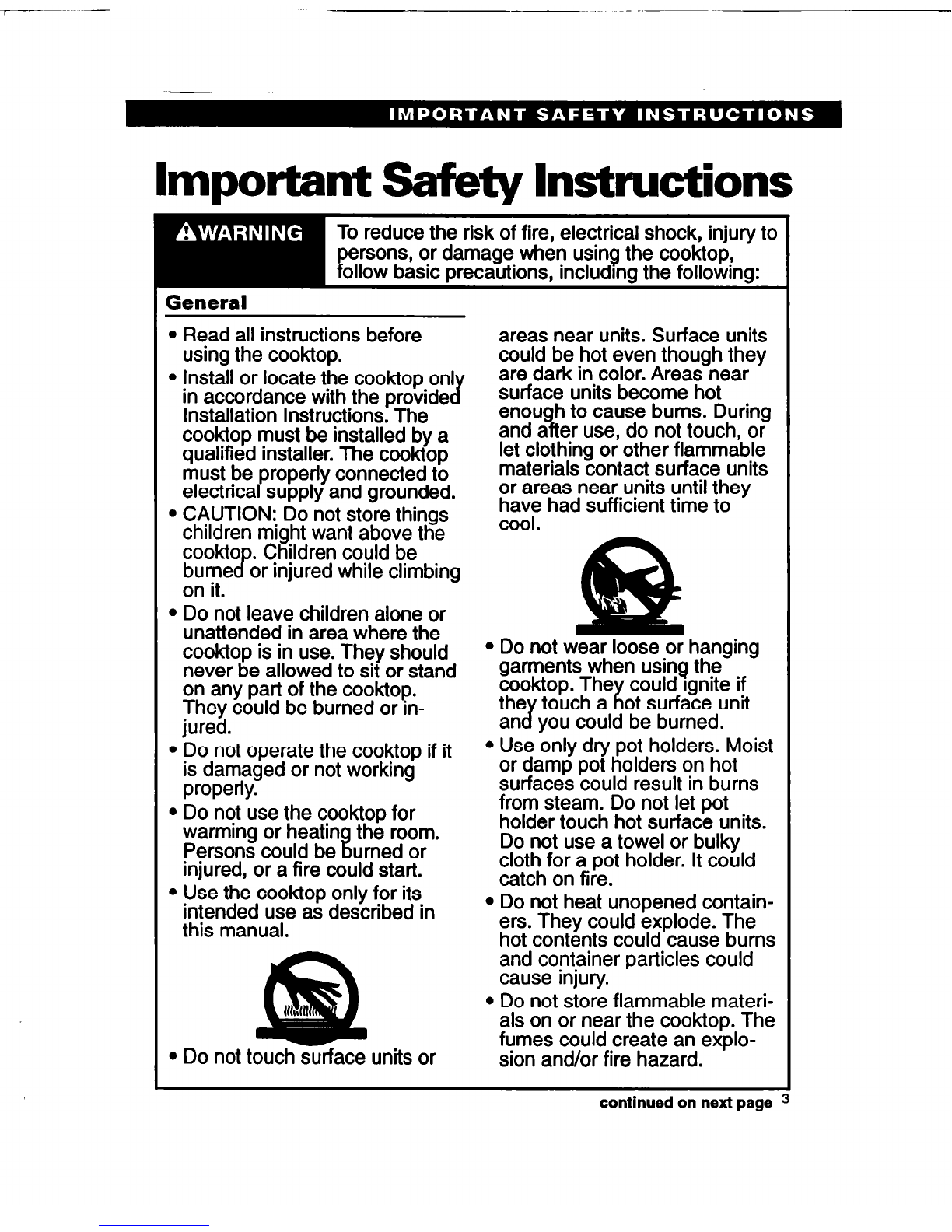

Important Safety Instructions
To reduce the risk of fire, electrical shock, injury to
persons, or damage when using the cooktop,
follow basic precautions, including the following:
General
l Read all instructions before
using the cooktop.
l Install or locate the cooktop onl
in accordance with the providecy
Installation Instructions. The
cooktop must be installed by a
qualified installer. The cooktop
must be properly connected to
electrical supply and grounded.
l CAUTION: Do not store things
children might want above the
cookto . Children could be
burnecf
on it. or injured while climbing
l Do not leave children alone or
unattended in area where the
cooktop is in use. They should
never be allowed to sit or stand
on any part of the cooktop.
They could be burned or in-
jured.
l Do not operate the cooktop if it
is damaged or not working
properly.
l Do not use the cooktop for
warming or heatin the room.
Persons could be umed or%
injured, or a fire could start.
l Use the cooktop only for its
intended use as described in
this manual.
l Do not touch &ace units or
areas near units. Surface units
could be hot even though they
are dark in color. Areas near
surface units become hot
enough to cause burns. During
and after use, do not touch, or
let clothing or other flammable
materials contact surface units
or areas near units until they
have had sufficient time to
cool.
l Do not wear loose or hanging
gam?ents when using the
cooktop. The
the touch a could Ignite if
anJ itot surface unit you could be burned.
l Use only dry pot holders. Moist
or damp pot holders on hot
surfaces could result in burns
from steam. Do not let pot
holder touch hot surface units.
Do not use a towel or bulky
cloth for a pot holder. It could
catch on fire.
l Do not heat unopened contain-
ers. They could explode. The
hot contents could cause burns
and container particles could
cause injury.
l Do not store flammable materi-
als on or near the cooktop. The
fumes could create an explo-
sion and/or fire hazard.
continued on next page

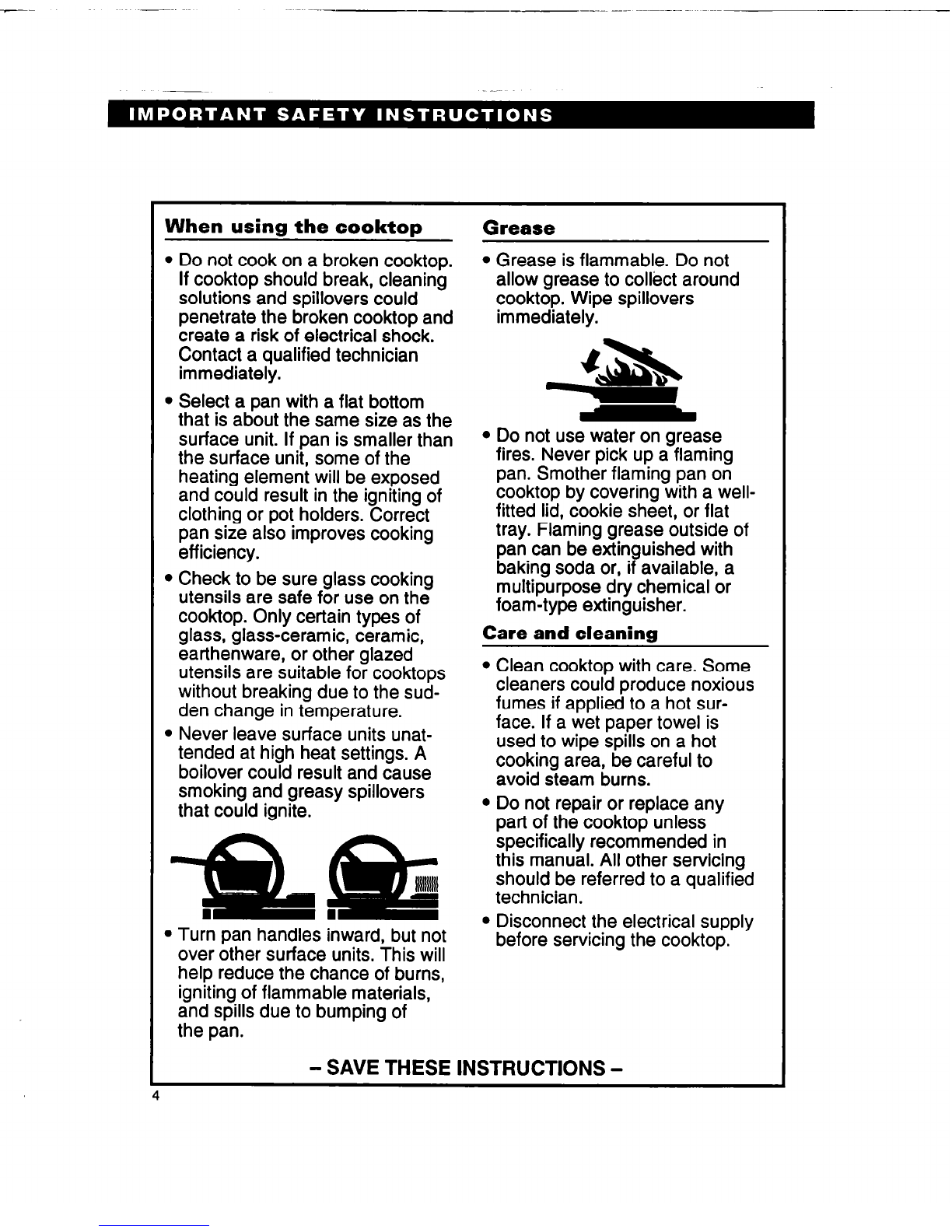

When using the cooktop Grease
l Do not cook on a broken cooktop.
If cooktop should break, cleaning
solutions and spillovers could
penetrate the broken cooktop and
create a risk of electrical shock.
Contact a qualified technician
immediately.
l Select a pan with a flat bottom
that is about the same size as the
surface unit. If pan is smaller than
the surface unit, some of the
heating element will be exposed
and could result in the igniting of
clothing or pot holders. Correct
pan size also improves cooking
efficiency.
l Check to be sure glass cooking
utensils are safe for use on the
cooktop. Only certain types of
glass, glass-ceramic, ceramic,
earthenware, or other glazed
utensils are suitable for cooktops
without breaking due to the sud-
den change in temperature.
l Never leave surface units unat-
tended at high heat settings. A
boilover could result and cause
smoking and greasy spillovers
that could ignite.
l Disconnect the electrical supply
before servicina the cooktoo.
l Turn pan handles inward, but not
over other surface units. This will
help reduce the chance of burns,
igniting of flammable materials,
and spills due to bumping of
the pan.
l Grease is flammable. Do not
allow grease to collect around
cooktop. Wipe spillovers
immediately.
l Do not use water on grease
fires. Never pick up a flaming
pan. Smother flaming pan on
cooktop by covering with a well-
fitted lid, cookie sheet, or flat
tray. Flaming grease outside of
pan can be extinguished with
baking soda or, if available, a
multipurpose dry chemical or
foam-type extinguisher.
Care and cleaning
l Clean cooktop with care. Some
cleaners could produce noxious
fumes if applied to a hot sur-
face. If a wet paper towel is
used to wipe spills on a hot
cooking area, be careful to
avoid steam burns.
l Do not repair or replace any
part of the cooktop unless
specifically recommended in
this manual. All other servicing
should be referred to a qualified
technician.
- SAVE THESE INSTRUCTIONS -
4

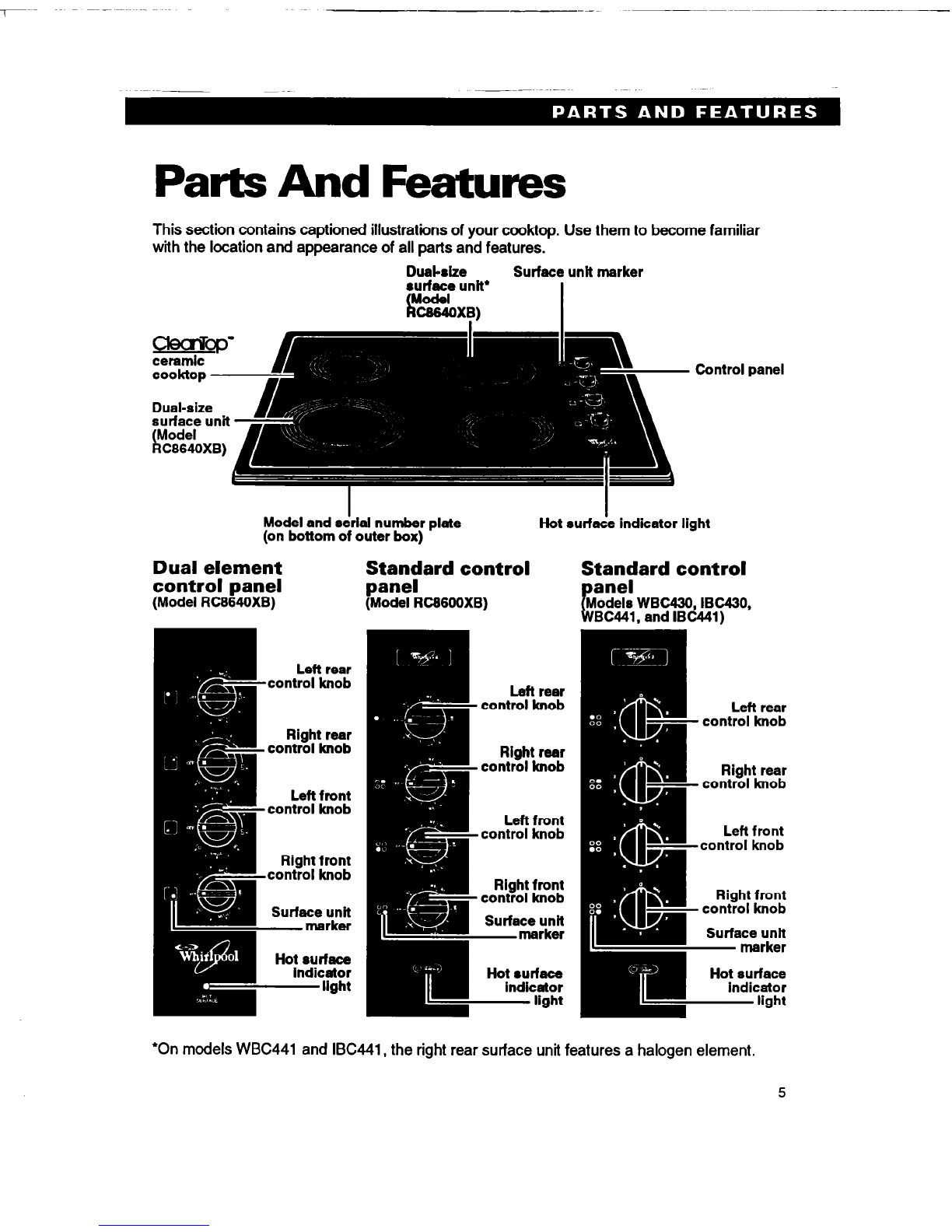

Parts And Features
This section contains captioned illustrations of your cooktop. Use them to become familiar
with the location and appearance of all parts and features.
Dual-size Surface unlt marker
rurface unft*
Model
k I
Model and s&al number plate
(on bottom of outer box) Hot surf& Indicator light
Dual element Standard control
control panel panel
(Model RC864OXB) (Model RC86OOXB)
Standard control
panel
iv
Models WBC430, IBC430,
BC441, and lBC441)
Left rear
vzontrol knob
Right rear
control knob
Left front
‘control knob
Right front
.control knob
Surface unit
- marker
Hot rurfaca
Indicator
light
Left rear
control knob
Right rear
control knob
Left front
control knob
Right front
control knob
Surface unit
-marker
Hotsurface
indicator
- light
Left rear
control knob
Right rear
control knob
Left front
control knob
Right front
control knob
Surface unit
marker
Hot surface
indicator
light
*On models WBC441 and IBC441, the right rear surface unit features a halogen element.
5

Using Your Cooktop
In This Section
Page Page
Using the surface units .....................6 Energy saving tips ............................. 9
To obtain the best cooking results possible, you must operate your cooktop properly. This
section gives you important information for eff Cent and safe use of your cooktop.
Using the surface units
Push In control knobs before turning
them to a setting. You can set them any
where between HI and OFF (or MAX.
and 0).
Surface unit markers
The solid dot in the surface unit marker
shows which surface unit is turned on by
that knob.
Hot surface indicator light
The Hot Surface Indicator Light on the
cooktop surface will glow when the surface
units are turned on. The Indicator Light will
continue to glow as long as a surface unit is
too hot to touch, even after all control knobs
are turned off.
Fire Hazard
Be sure all control knobs are turned to
OFF and the Hot Surface Indicator
Light is OFF when you are not cooking.
Someone could be burned or a fire
could start if a surface unit is acciden-
tally left ON.
Models RC8640XB
and RCWOOXB
6

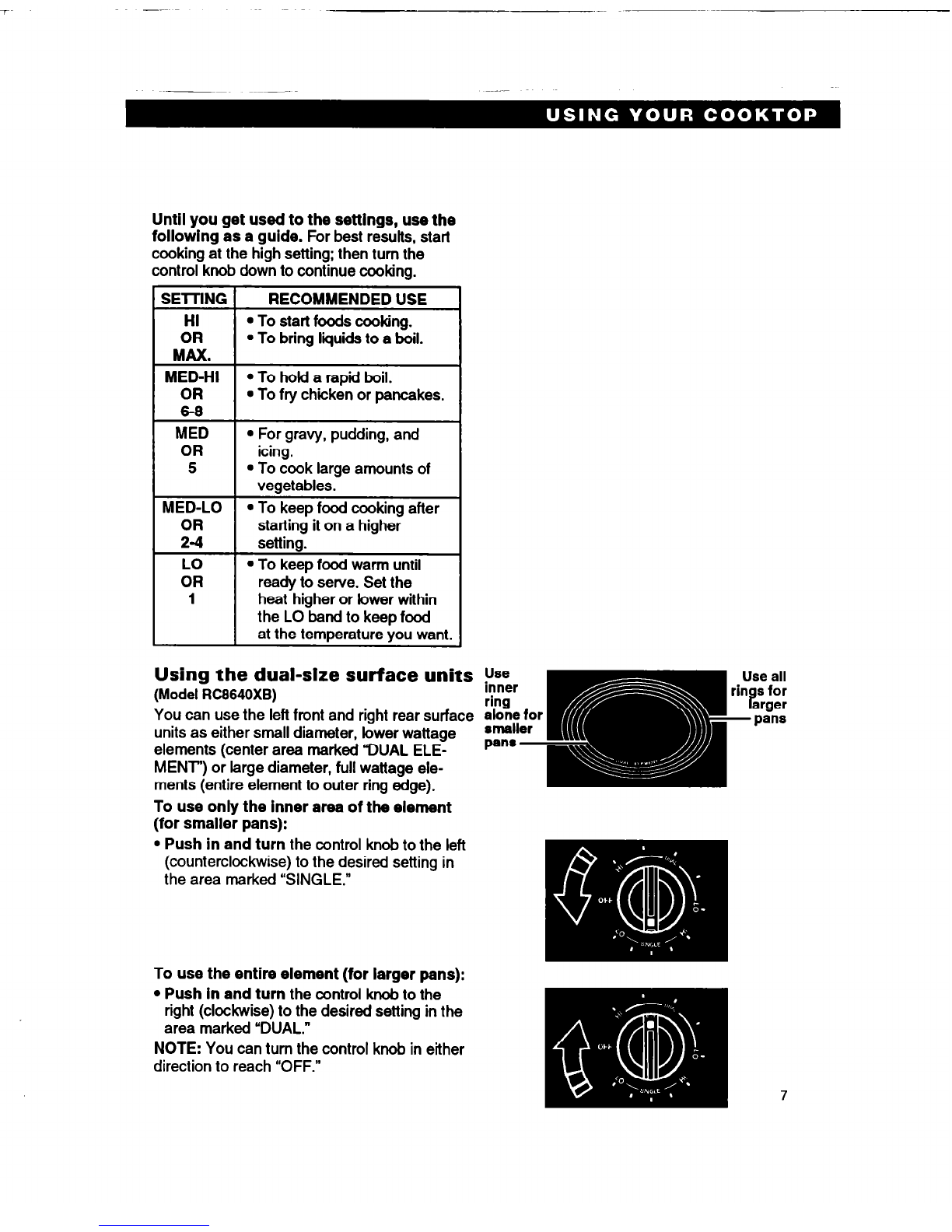

Until you get used to the settings, use the
following as a guide. For best results, starl
cooking at the high setting; then turn the
control knob down to continue cooking.
1SElTlNG 1 RECOMMENdED USE
HI
OR
MAX.
l To start foods cooking.
l To bring liquids to a boil.
MED-HI
OR
8-8
MED
OR
5
MED-LO
OR
2-4
LO
OR
1
l To hokf a rapid boil.
l To fry chicken or pancakes.
l For gravy, pudding, and
icing.
l To cook large amounts of
vegetables.
l To keep food cooking after
starting it on a higher
setting.
l To keep food warm until
ready to sewe. Set the
heat higher or lower within
the LO band to keep food
at the temperature you want.
Using the dual-size surface units
(Model RC6640XB)
You can use the left front and right rear surface
units as either small diameter, lower wattage
elements (center area marked “DUAL ELE-
MENT’) or large diameter, full wattage ele-
ments (entire element to outer ring edge).
To use only the inner area of the element
(for smaller pans):
Use
inner
ring
alone for
smaller
pans -
l Push in and turn the control knob to the left
(counterclockwise) to the desired setting in
the area marked “SINGLE.”
To use the entire element (for larger Pans):
l Push in and turn the control knob to the
right (clockwise) to the desired setting in the
area marked “DUAL.”
NOTE: You can turn the control knob in either
direction to reach “OFF.”
Use all
rin sfor
Barger
- pans

Using the ceramic glass
cooktop
Cooking on the ceramic glass cooktop is
almost the same as cooking on coil surface
units, There are, however, a few differences:
l The portion of the surface unit In use
will glow red when it is turned on. You will
see the element cycling on (glowing red)
and off - even on HI setting -to maintain
the proper temperature setting you have
chosen.
l Models WBC441 and IBC441: The right
rear surface unit features a halogen
element. This element lights up as soon as
you turn it on, and is brighter than conven-
tional coil elements.
l Sliding metal pans on ceramic glass
cook-top surface could leave marks. Wiping
off the cooktop before and after each use
will help keep the surface free from stains
and provide the most even heating. See
pages 1 O-l 2 for care and cleaning
suggestions.
Cookware tips
l Select a pan that is about the same size
as the surface unit.
l NOTE: For best results and greater
energy efficiency, use only flat-bottomed
cookware that makes good contact with the
surface units. Cookware with rounded,
warped, ribbed (such as some porcelain
enamelware), or dented bottoms could
cause uneven heating and poor cooking
results.
You can, however, use the newer cook-
ware available with slightly indented
bottoms or very small expansion channels.
This cookware is specially designed to
provide the good contact needed for best
cooking results.
Also, woks, canners, and teakettles with
flat bottoms suitable for use on your
cook-top are now available in most stores
that sell housewares.
l The pan should have straight sides and a
tight-fitting lid.
l Choose medium to heavy gauge (thick-
ness) pans that are fairly lightweight.
8
l The pan material (metal or glass) affects
how fast heat transfers from the surface
unit through the pan material and how
evenly heat spreads over the pan bottom.
Choose pans that provide the best cooking
results.
l Handles should be made of sturdy, heat-
resistant material and be securely attached
to the pan.
l With your hand, feel the bottom of your
pans while they are cool for nicks and
scratches. Nicks and scratches on pan
bottoms will scratch the ceramic glass
cooktop.
l Make sure bottoms of pans are clean and
dry before using on cooktop.
l Avold spillovers on cooktop. Use pans
with tall sides.
l Do not cook food directly on cooktop.
NOTE: Do not leave an empty utensil, or
one which has boiled dry, on a hot surface
unit. The utensil could overheat and could
damage the utensil or surface unit.
Home canning information
l Use the entire surface (“DUAL” setting) of
the left front surface unit for best results.
l Start with hot water. This reduces the
time the control is set on high. Reduce
heat setting to lowest position needed to
keep water boiling.
l Refer to your canner manual for specific
instructions.

Energy saving tips
Although the energy used for cooking is
usually a very small percentage of the total
energy used in the home, cooking energy
can be used efficiently. Here are some tips
to help you save energy when using your
cooking product:
l Use pans with flat bottoms, straight sides,
and tight-fitting lids.
l Match the pan to the surface unit size.
l Cook with a minimum of liquid or fat to
help shorten cooking time.
l Preheat pans only when recommended
and for the shortest time possible.
l Start food on higher heat settings, then set
surface unit control on low or off to finish
cooking. Use retained heat for cooking
when possible.
l Turn on the surface unit only after placing
filled pan on the unit.
l Plan your meals for the most efficient use
of the cooktop.
9

Caring For Your Cooktop
In This Section
Page Page
Cleanlng the cooktop and Cleaning the control knobs ............. 12
control panel .................................... 10
Your cooktop is designed for easy care. You
can do most cleaning with items found
around your home. Cleaning your cooktop
whenever spills or soiling occurs will help to
keep it looking and operating like new.
Electrical Shock Hazard
Make sure all controls are off and the
cooktop is cool before cleaning or
servicing.
Failure to do so could result in burns or
electriil shock.
Cleaning the cooktop and control panel
This cooktop is designed for easy care.
However, ceramic cooktops need to be
maintained differently than standard electric
open-coil elements. Foods spilled directly on
the cooktop will not bum off as on open-coil
elements. Because of this, the surface
should be dust free and soil free before
heating.
Your cooktop has been prepolished at the
factory for improved protection and
cleanability. The Cooktop Polishing Creme
(included with your cooktop), paper towels or
a sponge, and the razor scraper included
with your cooktop is all you need to clean
your cook-top. For proper cleaning methods,
please review “Cleaning tips” on page 11.
Follow them after each use to ensure top
performance and to preserve that uniquely
elegant look.
10

Personal Injury Hazard
l When removing heavy or sugary spills
from the hot cooktop, wear oven mitts to
prevent burns.
@Do not use cooktop cleaner on a hot
cooktop. The cleaner could produce
hazardous fumes or damage the
cooktop.
l Do not use the cooktop if it is cracked
or broken.
Failure to follow these instructions could
result in personal injury.
To avoid damaging the cooktop, follow
these instructions:
l Remove sugary spills before cooktop
cools to prevent pitting.
l Do not use the cooktop as a cutting
board.
l Do not allow anything that couM melt
(such as plastic or aluminum foil) to come
in contact with the surface while it is hot.
l Do not use the ceramic cooktop to cook
popcorn that comes in prepackaged
aluminum containers. The container could
leave aluminum marks on the cooktop that
cannot be removed completely.
l Do not use steel wool, plastic cleaning
pads, abrasive powdered cleansers,
chlorine bleach, rust remover, ammo-
nia, or glass cleaning products with
ammonia. These could damage the
cooktop surface.
l Dropping heavy or hard objects on the
cooktop could crack it. Be careful with
heavy skillets. Do not store jars or cans
above the cooktop.

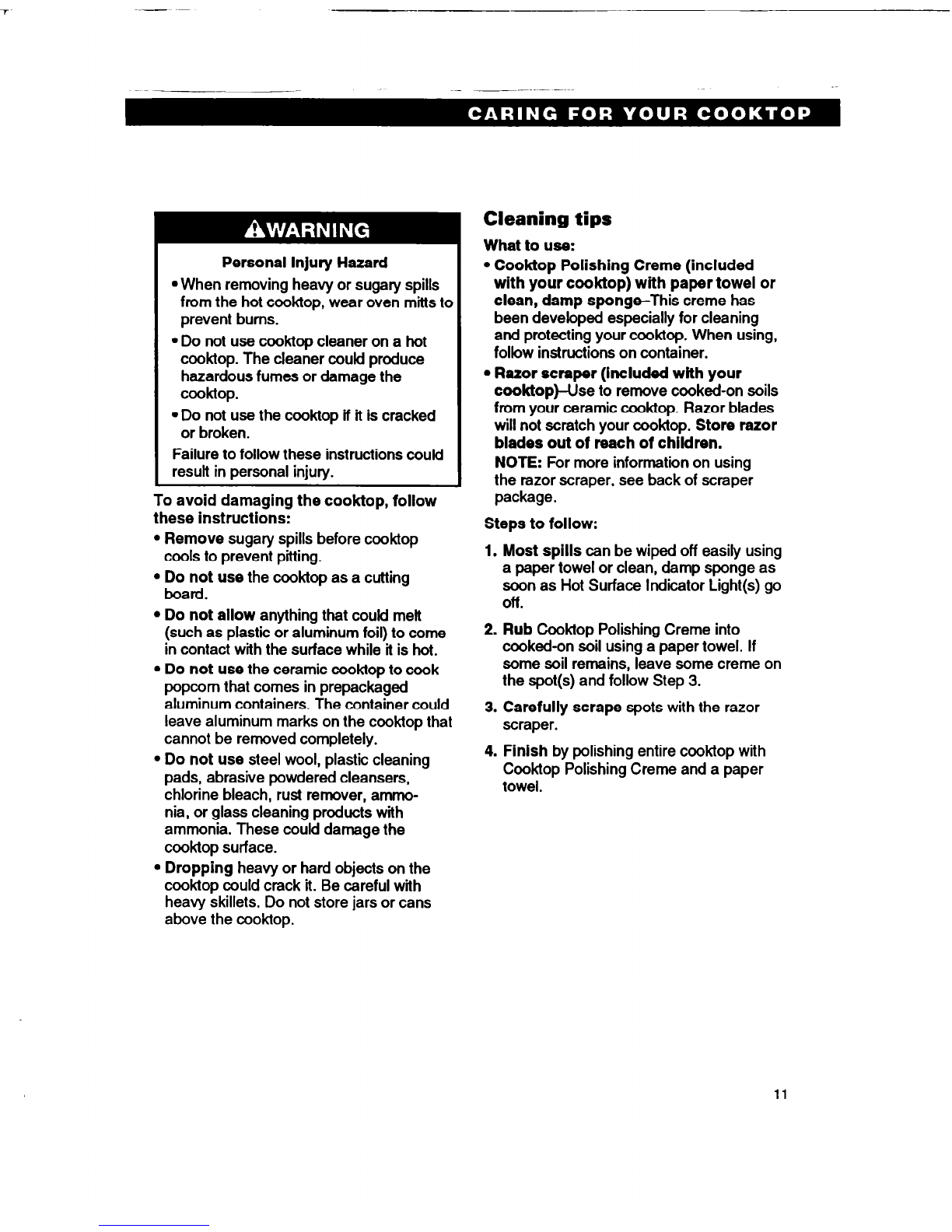

Cleaning tips
What to use:
l Cooktop Polishing Creme (included
with your cooktop) with paper towel or
clean, damp sponge-This creme has
been developed especially for cleaning
and protecting your cooktop. When using,
follow instructions on container.
l Razor scraper (included with your
cooktop)-Use to remove cooked-on soils
from your ceramic cooktop. Razor blades
will not scratch your cooktop. Store razor
blades out of reach of children.
NOTE: For more information on using
the razor scraper, see back of scraper
package.
Steps to follow:
1. Most spills can be wiped off easily using
a paper towel or clean, damp sponge as
soon as Hot Surface Indicator Light(s) go
Off.
2. Rub Cooktop Polishing Creme into
cooked-on soil using a paper towel. If
some soil remains, leave some creme on
the spot(s) and follow Step 3.
3. Carefully scrape spots with the razor
scraper.
4. Finish by polishing entire cooktop with
Cooktop Polishing Creme and a paper
towel.
11

Additional tips:
l Sugar spills and soils (such as jellies and
candy syrups) can cause pitting on the
cooktop if not removed while the ceramic
surface is still warm. Remove as soon as
possible after the spill occurs.
l Remove dark streaks, specks, and
discoloration with Cooktop Polishing
Creme.
l Remove metal marks (from copper or
aluminum pans) with Cooktop Polishing
Creme before heating the cooktop again.
If heated before cleaning, metal marks
may not come off.
l Tiny scratches or abrasions do not
affect cooking. In time, these will become
less visible as a result of cleaning. To
prevent scratches and abrasions, use
Cooktop Polishing Creme regularly.
l Nonabrasive cleanser with damp paper
towel or sponge can be used as an
alternative method for removing cooked-on
soils. Always rinse and dry your cooktop
thoroughly after using cleanser to prevent
streaking or staining.
To obtain order information for Cooktop
Polishing Creme (Part No. 3184477) or
razor scraper (Part No. 3183488), wrfte to:
Whirlpool Corporation
Attention: Customer Service Dept.
1900 Whirlpool Drive
LaPorte, IN 46350
OR
Call l-800-253-1301 (in U.S.A.) to order. You
must have a major credit card to order by
phone.
Cleaning the control knobs
1. Make sure all control knobs are turned to
OFF.
2. Pull the control knobs straight off. Do not
remove seals under knobs. They keep
moisture and soils out of cooktop.
3. Wash control knobs with sponge and
warm, soapy water. Rinse well and dry
with a soft cloth. Do not soak.
4. Replace control knobs by pushing them
firmly into place. Make sure all knobs
point to OFF.
NOTE: When cleaning, never use steel
wool, abrasives, or commercial oven clean-
ers, which may damage the finish.
Models RC664OXB
and RC66OOXB Models WBC430,
IBC430, WBC441,
and IBC441
12

If You Need Assistance
or Service
This section is designed to help you save the cost of a service call. However, you may still
need assistance or service. When calling our Consumer Assistance Center (in U.S.A.) or your
authorized lnglis Limited Appliance Service company (in Canada) for help or calling for
service, please provide a detailed description of the problem, your appliance’s complete
model and serial numbers, and the purchase date. (See page 2.) This information will help us
respond properly to your request.
Before calling for assistance ...
Performance problems often result from little things you can find and fix without tools of any
kind. Please check the chart below for problems you can fix. It could save you the cost of a
service call.
PROBLEM
Nothing will
operate
POSSIBLE CAUSE
The unit is not wired into a
live circuit with proper
voltage.
A household fuse has blown
or a circuit breaker has
tripped.
SOLUTION
Wire the unit into a live circuit with
proper voltage. (See Installation
Instructions.)
Replace household fuse or reset
circuit breaker.
The surface
A household fuse has blown Replace household fuse or reset
units will not
or a circuit breaker has circuit breaker.
operate
tripped.
You are not setting the Push control knobs in before turning
control knobs correctly. to a setting.
Control knob(s)
You are not pushing in Push control knob(s) in before
will not turn
before turning. turning to a setting.
Cooking results
The cooktop is not level. Level cooktop. (See Installation
are not what
Instructions.)
you expected
The recipe has never been Use onty tested recipes from a
tested or is not from a reliable source.
reliable source.
The pan used is not the type
or size recommended in the
recipe.
Refer to a reliable cookbook for
recommended pan type and size.
Cooking utensil does not fit
the surface unit being used. Pan should be the same size or
slightly larger than surface unit being
used.
13

In U.S.A.:
If you need assistance ...
Call Whirlpool Consumer Assistance
Center telephone number. Dial toil-free
from anywhere in the U.S.A.:
l-800-253-1301
and talk with one of our trained consultants.
The consultant can instruct you in how to
obtain satisfactory operation from your
appliance or, if service is necessary, recom-
mend a qualified service company in your
area.
If you prefer, write to:
Mr. William Clark
Consumer Assistance Representative
Whirlpool Corporation
2000 North M-63
Benton Harbor, Ml 49022-2692
Please include a daytime phone number in
your correspondence.
If you need service ...
-.
9
or Whirlpool has a nation-
wide network of autho-
SERVICErized Whirlpool service
companies. Whirlpool
service technicians are trained to fulfill the
product warranty and provide after-warranty
service, anywhere in the United States. To
locate the authorized Whirlpool service
company in your area, call our Consumer
Assistance Center telephone number (see
above) or look in your telephone directory
Yellow Pages under:
If you need FSP replace-
ment parts ...
FSP is a registered trademark of Whirlpool
Corporation for quality parts. Look for this
symbol of quality whenever you need a
replacement part for your Whirlpool@ appli-
ance. FSP replacement parts will fii right
and work right, because they are made to
the same exacting specifications used to
build every new Whirlpool appliance.
To locate FSP replacement parts in your
area, refer to “If you need service” or call the
Whirlpool Consumer Assistance Center
number under “If you need assistance.”
If you are not satisfied with
how the problem was
solved ...
l Contact the Major Appliance Consumer
Action Panel (MACAP). MACAP is a group
of independent consumer experts that
voices consumer views at the highest
levels of the major appliance industry.
l Contact MACAP only when the dealer,
authorized servicer, and Whirlpool have
failed to resolve your problem.
Major Appliance Consumer Action Panel
20 North Wacker Drive
Chicago, IL 60606
l MACAP will in turn inform us of your
action.
. APPUANCE-HOUSEHOLD- l WASHIND MACHINES L
MAJOR. SERVICE 6 REPAIR DFlYEF& SERYlCE A REPAJR
- Sea Whlripwl Appliances or . Sew WhIrlpool Appliemes or
Authorized WhIrlpool Setvloe Authorized Whirlpool SetvIa
Examle: XYZ Sel-ulce CO.) IExamrrk: XYZ Service CO.)
14

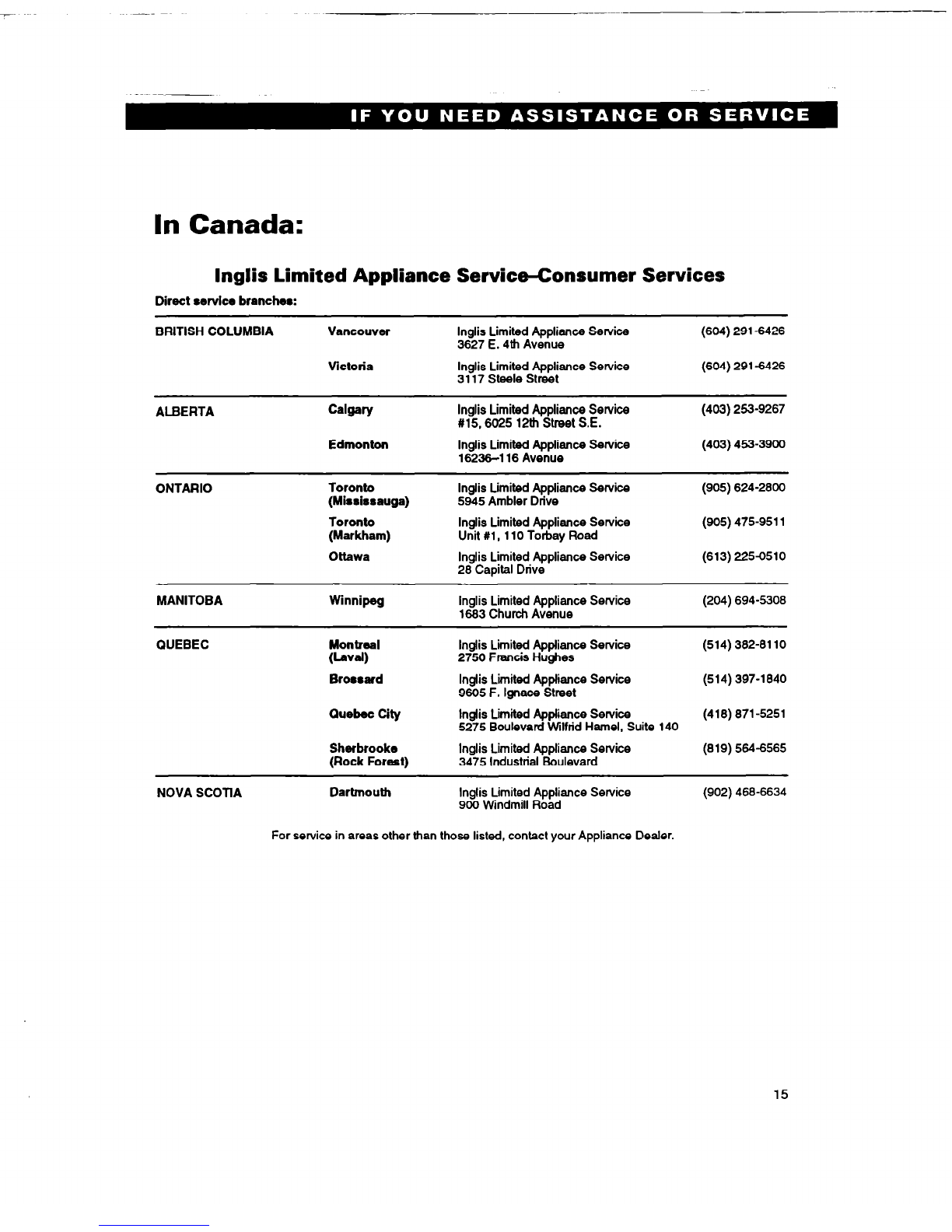

In Canada:
lnglis Limited Appliance Servictionsumer Services
Direct service brenchasz
BRITISH COLUMBIA Vancouver
lnglis Limited Appliance Service
3627 E. 4th Avenue (604) 2916426
Victoria
lnglis Limited Appliance Service
3117 Steele street (604) 2916426
ALBERTA
lnglis Limited Appliance Service
#15,6025 12th Street BE. [phone]
Edmonton
lnglis Limited Appliance Service
16236-l 16 Avenue [phone]
ONTARIO Toronto
(Mississauga)
Toronto
(Markham)
lnglis Limited Appliance Service
5945 Ambler Drive
lnglis Limited Appliance Service
Unit Ul, 110 Torbay Road
[phone]
[phone]
Ottawa
lnglis Limited Appliance Service
26 Capital Drive (613) 2254510
MANITOBA Winnipeg
lnglis Limited Appliance Service
1663 Church Avenue [phone]
QUEBEC Montreal
WV4
Brossard
lnglis Limited Appksnce Service
2750 Francis Hughes
lnglis Limited Appliance Service
9605 F. lgnace Street
[phone]
[phone]
Quebec City
Sherbrooke
(Rock Forest)
lnglis Limited Appliance Service [phone]
5275 Boulevard Wrlfrid Hamel, Suite 140
lnglis Limited Appliance Service (619) 5646565
3475 Industrial Boulevard
NOVA SCOTtA Dartmouth
lnglis Limited Appliance Service
900 Windmill Road [phone]
For service in areas other than those listed, contact your Appliance Dealer.
15

WHIRLPOOL@’
CleanTop’” Electric Cooktop
Warranty
LENGTH OF WARRANTY WHIRLPOOL WILL PAY FOR
FULL ONE-YEAR
FSP@replacement parts and repair labor to correct defects in
WARRANTY
materials or workmanship. Service must be provided by an
From Date of Purchase authorized Whirlpool service company.
FULL FIVE-YEAR
FSP replacement parts and repair labor for CleanTop ceramic
WARRANTY
cooktop to the original purchaser of this product. Whirlpool
From Date of Purchase warrants that:
-The ceramic cooktop will not discolor
-The ceramic cooktop pattern will not wear off
-The ceramic cooktop will not crack due to thermal shock
-The surface units will not bum out
WHIRLPOOL WILL NOT PAY FOR
A. Service calls to:
1. Correct the installation of your cooktop.
2. Instruct you how to use your cooktop.
3. Replace house fuses or correct house wiring.
B. Repairs when your cooktop is used in other than normal, single-family household use.
C. Pickup and delivery. Your cooktop is designed to be repaired in the home.
D. Damage to your cooktop caused by accident, misuse, fire, flood, acts of God, or use of
products not approved by Whirlpool.
E. Repairs to CleanTop ceramic cooktop if it has not been cared for as recommended in
this Use and Care Guide.
F. Repairs to parts or systems caused by unauthorized modifications made to the appli-
ance.
l/B4
WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSE-
QUENTIAL DAMAGES. Some states or provinces do not allow the exclusion or limitation of
incidental or consequential damages, so this limitation or exclusion may not apply to you. This
warranty gives you specific legal rights, and you may also have other rights which vary from
state to state or province to province.
Outside the United States, a different warranty may apply. For details, please contact your
authorized Whirlpool distributor or military exchange.
If you need service, first see the “If You Need Assistance or Service” section of this book.
After checking “If You Need Assistance or Service,” additional help can be found by calling
our Consumer Assistance Center telephone number, l-800-253-1301, from anywhere in the
U.S.A. In Canada, contact your authorized lnglis Limited Appliance Service company.
* Registered TrademaMTh4 Trademark d Whirlpool. USA. Prlnled In U.S.A.

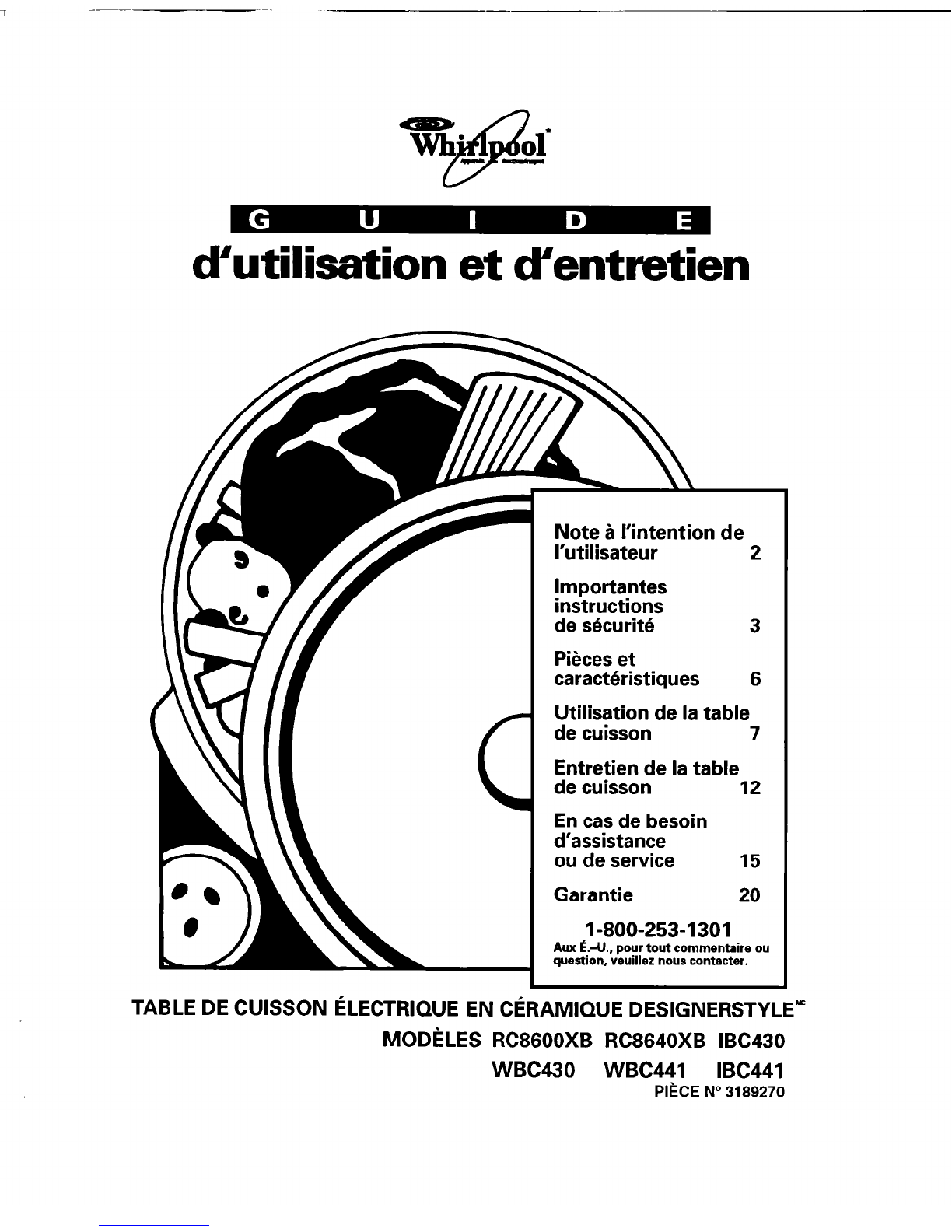

d’utilisation et d’entretien
Note 5 I’intention de
I’utilisateur
2
Importantes
instructions
de skuritk
3
Pikes et
caracthristiques 6
Utilisation de la table
de cuisson 7
Entretien de la table
de cuisson
12
En cas de besoin
d’assistance
ou de service 15
Garantie
20
1-800-253-I 301
Aux k-U., pour tout commentaire ou
question, veuillez nous contacter.
TABLE DE CUISSON ~LECTRI~UE EN CERAMIQUE DESIGNERSTYLE”
MODkLES RC8600XB RC8640XB IBC430
WBC430 WBC441 IBC441
PIECE N” 3189270

--

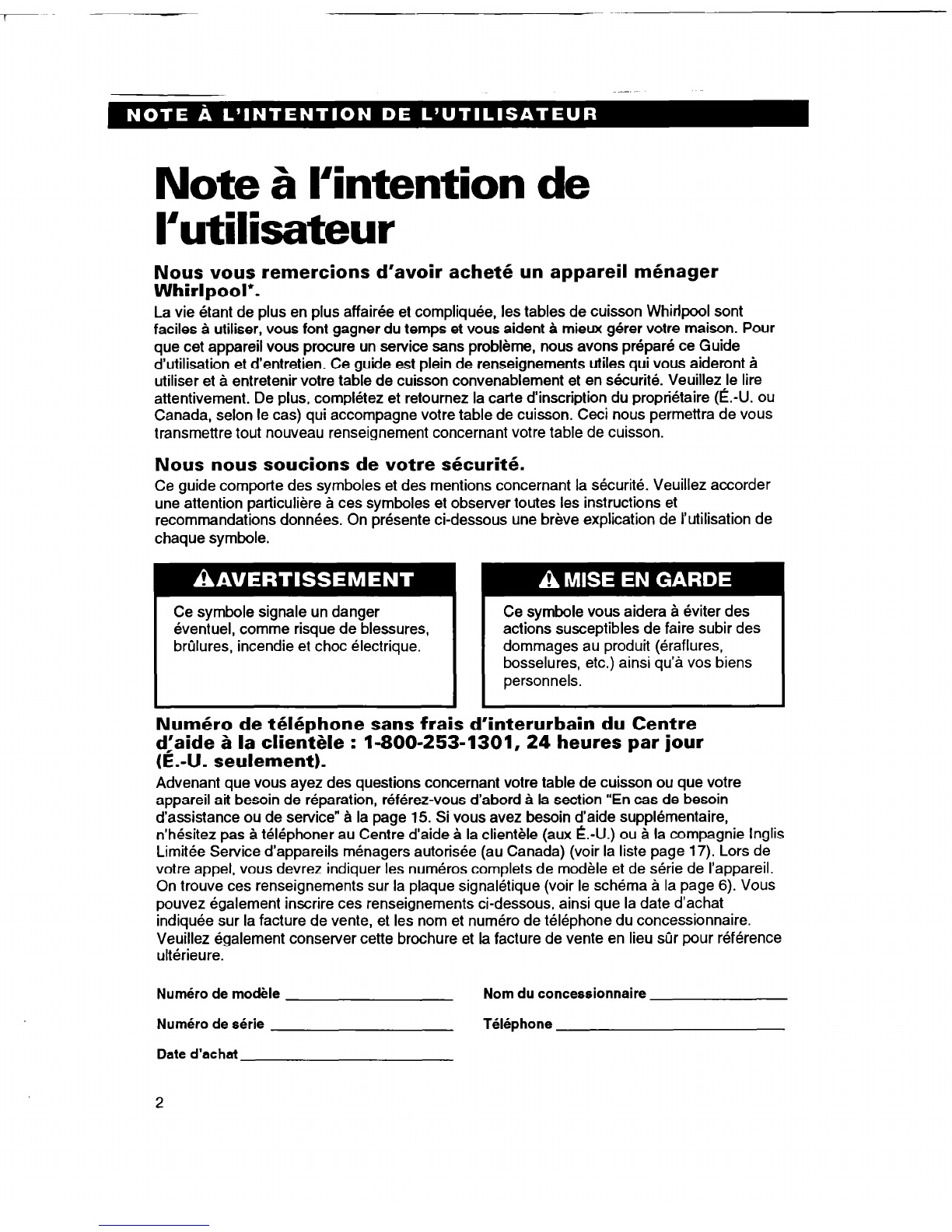

Note 6 l’intention de
I’utilisateur
Nous vous remercions d’avoir achet6 un appareil m6nager
Whirlpool*.
La vie etant de plus en plus affairee et compliquee, les tables de cuisson Whirlpool sont
faciles a utiliser, vous font gagner du temps et vous aident B mieux gerer votre maison. Pour
que cet appareil vous procure un service sans probleme, nous avons prepare ce Guide
d’utilisation et d’entretien. Ce guide est plein de renseignements utiles qui vous aideront a
utiliser et a entretenir votre table de cuisson convenablement et en securite. Veuillez le lire
attentivement. De plus, completez et retournez la carte d’inscription du proprietaire (E.-U. ou
Canada, selon le cas) qui accompagne votre table de cuisson. Ceci nous permettra de vous
transmettre tout nouveau renseignement concernant votre table de cuisson.
Nous nous soucions de votre skcurit6.
Ce guide comporte des symboles et des mentions concernant la securite. Veuillez accorder
une attention particuliere a ces symboles et observer toutes les instructions et
recommandations donnees. On presente ci-dessous une breve explication de I’utilisation de
chaque symbole.
I
Ce symbole signale un danger
Bventuel. comme risaue de blessures.
brulures,‘incendie et ihoc electrique.
1
vous aidera a Bviter des
susceptibles de faire subir des
produit (eraflures,
etc.) ainsi qu’a vos biens
Num6ro de tMphone sans frais d’interurbain du Centre
d_‘aide B la clientGle : 1-800-253-1301, 24 heures par jour
(E.-U. seulement).
Advenant que vous ayez des questions concernant votre table de cuisson ou que votre
appareil ait besoin de reparation, referez-vous d’abord a la section “En cas de besoin
d’assistance ou de service” a la page 15. Si vous avez besoin d’aide supplementaire,
n’hesitez pas a telephoner au Centre d’aide a la clientele (aux E.-U.) ou a la compagnie lnglis
Limitee Service d’appareils menagers autorisee (au Canada) (voir la liste page 17). Lors de
votre appel, vous devrez indiquer les numeros complets de modele et de serie de I’appareil.
On trouve ces renseignements sur la plaque signaletique (voir le schema a la page 6). Vous
pouvez egalement inscrire ces renseignements ci-dessous, ainsi que la date d’achat
indiquee sur la facture de vente, et les nom et numero de telephone du concessionnaire.
Veuillez egalement consewer cette brochure et la facture de vente en lieu sQr pour reference
ulterieure.
Numiro de module
Numdro de s&ie
Date d’achat
Nom du concessionnaire
T&phone
2

Importantes instructions
de skurit6
Pour reduire le risque d’incendie, de choc
electrique, de blessures ou de dommages
lors de I’utilisation de la table de cuisson, il
convient d’obsewer certaines prhcautions
elementaires dont les suivantes :
Ght%alit&k
l Lire toutes les instructions avant cuisson pour rechauffer ou
d’utiliser la table de cuisson. chauffer la piece. Des personnes
l Choisir I’emplacement et installer pourraient se blesser ou se
la table de cuisson uniquement brfiler, ou un incendie pourrait se
selon les instructions d’installation declencher.
fournies. La table de cuisson doit
l Utiliser la table de cuisson
etre installee par un installateur uniquement pour les applications
qualifie. Elle doit etre conven- d&rites dans ce manuel.
ablement raccordee au circuit
d’alimentation electrique et reliee
a la terre.
l MISE EN GARDE : Ne pas Illdlf
remiser au-dessus de la table de
cuisson des objets que des @
enfants pourraient vouloir
l Ne pas toucher les elements
atteindre. Les enfants pourraient chauffants ou les zones
se brOler ou se blesser en avoisinantes. Les elements
grimpant sur la table de cuisson. chauffants peuvent etre tres
chauds, meme lorsqu’ils ont une
l Ne pas laisser des enfants seuls teinte fonche. Les surfaces
ou sans surveillance dans la avoisinantes des elements
piece oti la table de cuisson est chauffants peuvent etre
en service. Ne jamais laisser les suff isamment chaudes pour
enfants s’asseoir ou se tenir sur provoquer des brfilures. Pendant
une partie quelconque de la table et apres I’utilisation de la table
de cuisson. Ils pourraient se de cuisson, ne pas toucher ou
blesser ou se bridler. laisser des vetements ou autres
l Ne pas faire fonctionner la table materiaux inflammables entrer
de cuisson si elle est en contact avec les elements
endommagbe ou ne fonctionne chauffants ou les surfaces
pas correctement. avoisinantes avant qu’ils aient pu
suff isamment refroidir.
l Ne pas utiliser la table de
suite 5 la page suivante
3

l Veiller a ne pas porter de
vetements amples lors de
I’utilisation de la table de cuisson;
ils pourraient s’enflammer s’ils
venaient en contact avec un
element chaud, et I’utilisateur
pourrait se bruler.
l Utiliser uniquement des maniques
seches. De la vapeur pourrait etre
emise lors du contact de
maniques humides ou mouillees
avec les surfaces chaudes, et
provoquer des brfilures. Ne pas
laisser les maniques entrer en
contact avec les elements
chauffants. Ne pas utiliser une
serviette ou un morceau de tissu
volumineux comme manique. Ces
articles pourraient s’enflammer.
l Ne pas faire chauffer des
contenants fermes. Ils pourraient
exploser. Le contenu chaud
pourrait provoquer des brfilures et
les debris du contenant pourraient
provoquer des blessures.
l Ne pas remiser des produits
inflammables sur la table de
cuisson ou a proximite. Les
vapeurs emises pourraient
susciter un risque d’explosion
et/au d’incendie.
Utilisation de la table
de cuisson
que la table de cuisson soit
brisee, les solutions de nettoyage
et liquides renverses peuvent
s’introduire dans les fissures et
susciter un risque de choc
electrique. Contacter
immediatement un technicien
qualifie.
l Choisir un recipient a fond plat
dont la taille est approximative-
ment identique a celle de I’element
chauffant utilise. Si le recipient
est plus petit que I’element
chauffant, une partie de I’element
chauffant sera exposee, ce qui
pourrait susciter I’inflammation
des vetements ou des maniques.
L’utilisation d’un recipient de taille
correcte ameliore egalement
I’efficacite de la cuisson.
l Verifier que les recipients de
cuisson en verre peuvent etre
utilises en securite sur la table
de cuisson. Seulement certains
types de verre, vitroceramique,
ceramique, fai’ence ou autres
recipients a surface vitrifiee
peuvent resister sans bris a
I’exposition 9 la chaleur de la table
de cuisson et aux brusques varia-
tions de temperature.
l Ne jamais laisser les elements
chauffants sans surveillance alors
qu’ils chauffent a la puissance
maximale. II pourrait y avoir
ebullition, renversement et produc-
tion de fumee et de graisse
renversee susceptible
de s’enflammer.
l Ne pas cuisiner sur une table de
cuisson brisee. Advenant
4
