Whirlpool AZA-HP 9781 User manual

1
MACHINE OPERATION
Additional information (including troubleshooting and service) can be found in the individual chapters of the
Instructions for use.
Sort laundry by:
Material thickness: whenever there is greater load than the dryer can handle,
separate laundry according to weight (e.g. dry towels and thin underwear separately).
Ty p e o f m a t e r i a l : cotton (linen); synthetic textiles (easy care).
Degree of drying: cupboard dry, iron dry, etc.
Do not tumble dry: nylon stockings, delicate embroidery, fabrics with metallic
decorations, bulky items such as pillows.
Check that all fastenings are closed and that pockets are empty.
Please ensure that there are no lighters in the laundry. Turn laundry inside out.
Place laundry loosely in the drum to achieve equal drying throughout.
Then close the door.
Select the drying programme required by turning the programme selector knob (for
information, refer to programme table).
Select the option required by pressing the corresponding button. The indicator lamp
above the relevant button lights up to confirm your selection. A fast blinking led
indicates a wrong selection is made (incompatible options). Press the button again to
cancel the option.
The drying programme is started by pressing the “Start (Pause)” button. The
relevant indicator lamp lights up.
Changing programme selection: if the programme selected is changed during
drying, the dryer stops. The “Start (Pause)” indicator lamp flashes. To operate the
new programme, again press the “Start (Pause)” button.
Interrupting programme: to interrupt a drying cycle, press the “Start (Pause)”
button and open the door. Wait at least 5 minutes, to allow the laundry to cool down,
before you unload the dryer. For your safety the drying cycle stops automatically if
you open the door. To restart, after door opening, close the door and press the
“Start (Pause)” button again.
Warning: never stop a tumble dryer before the end of the drying cycle, unless all
items are quickly removed and spread out so that the heat is dissipated.
The final part of a drying cycle occurs without heat (cool down cycle) to ensure that
the items reach a lower temperature to avoid wrinkling.
Anticrease: if the laundry is not removed at the end of the drying cycle, an automatic
anticrease cycle will operate for maximum 15 min (by choosing the option
“Anticrease” this time can be extended up to 12 hours). The drum rotates to prevent
the laundry from creasing.
End: take the laundry out of the dryer. The drying process is complete and the anti-
crease phase has been reached (active).
Set the programme selector knob to “Off” (“O”).
Cleaning the door filter after every cycle: open door, pull door filter up and out of machine and open it. Brush lint using a soft
brush or your fingertips. Close door filter and push firmly back into place.
Emptying water container: pull container out by the handle and empty. Replace the container when empty by pushing it
completely back into place.
Please note: only use additives/plastic items specified as dryer safe. Rinse items that have been treated with stain remover
thoroughly in plenty of water before drying. Never dry rubber objects or objects stained with vegetable oils in the dryer.
The Manufacturer is not liable for any damage to laundry resulting from inadequate or incorrect fabric care instructions which
have been provided with the garment or article.
Sort laundry according to
care symbols
Do not tumble dry
Suitable for tumble drying -
at low temperatures
Suitable for tumble drying
Preparing laundry
Loading dryer
Selecting programme
Selecting options
(if available)
Starting dryer
Programme end -
unloading dryer
Switching dryer off

* Test programmes according to EN 61121, tested with maximum rated load capacity.
2

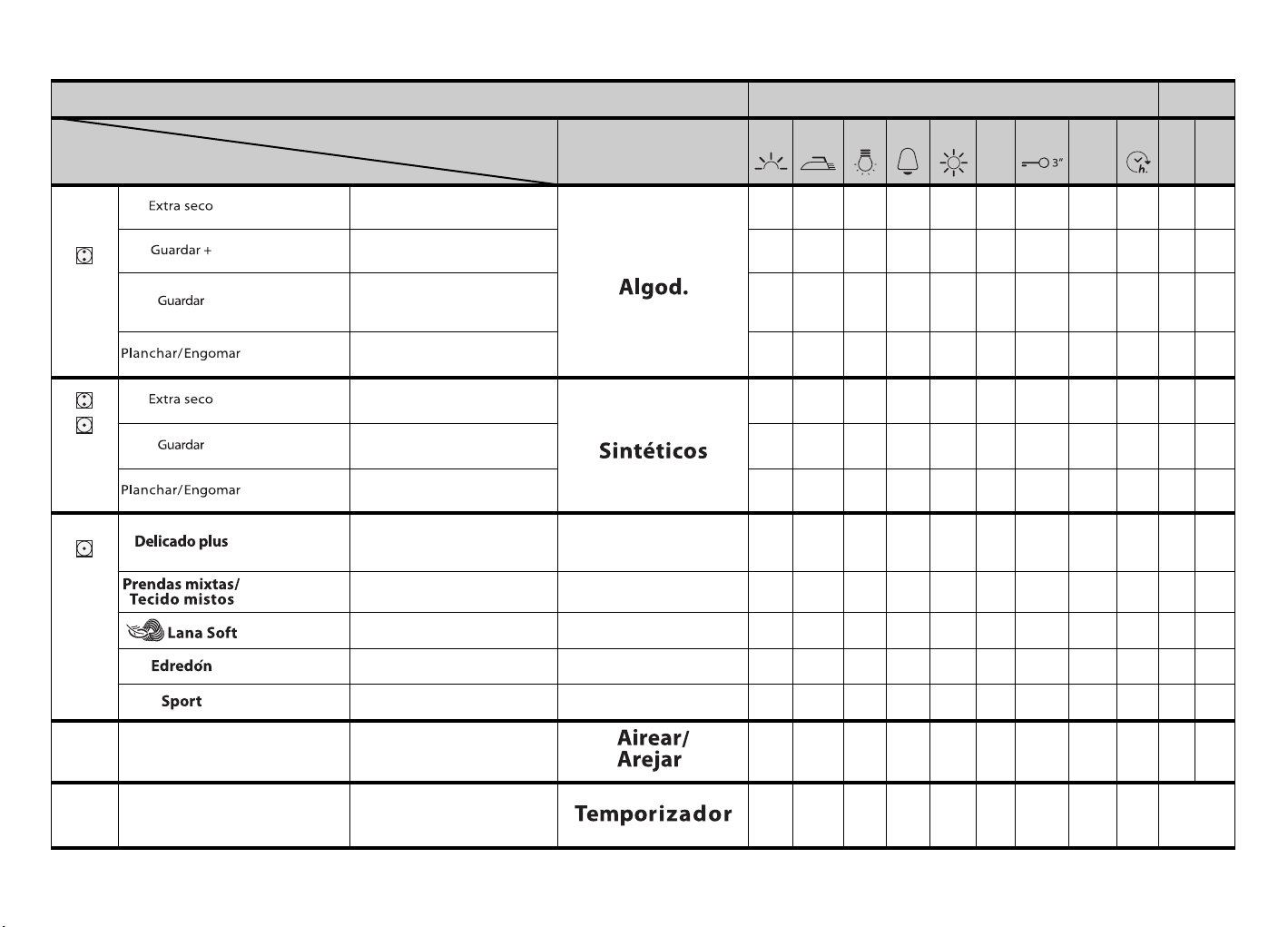

Overview of programmes Options Approximate
drying times
Programmes / Drying levels
Type of textile
Fabrics
Gentle Anti-
crease
Drum
light
Buzzer Dryness
level
Pause
Pausa
Key
lock
Reset
Cancelar
Start
delay Ver y
wet
load
Wet
load
Extra dry Multi-layered, thick laundry such as: terry
towels, terry towelling bath robes.
Cotton or linen hot wash/
coloured laundry
Max. 9 kg
X X X X X X X X X 225 140
Cupboard dry + Terry towels, dry towels, bed linen,
underwear. X X X X X X X X X 210 125
Cupboard dry *
Similar types of laundry which do not
require ironing such as: dry towels, bed
linen, underwear, baby clothes,
T-shirts, cotton socks.
X X X X X X X X X 195 110
Iron dry *
Laundry which requires ironing such as:
bed and table linen, dry towels, T-shirts,
polo shirts, work clothes.
X X X X X X X X X 175 90
Extra dry
Laundry with thick, multi-layered areas
such as: bed and table linen, track suits,
anoraks, blankets. Synthetic, mixed fibre or cotton easy
care (ironing not required) laundry
Max. 4.5 kg
X X X X X X X X X 105 70
Cupboard dry *
Laundry which does not require ironing
such as: shirts, blouses, T-shirts,
sportswear.
X X X X X X X X X 85 60
Iron dry Laundry which requires ironing such as:
trousers, dresses, skirts, shirts, blouses. X X X X X X X X X 70 50
Delicate plus
Low drying intensity for delicates and
items such as: trousers, dresses, shirts,
blouses.
Laundry made from synthetic fibres,
such as polyamide, nylon,
polyacrylic, etc.
Max. 2.5 kg
X X X X X X X X X 80 60
Mixed load T-shirts, blouses, towels, underwear,
sportswear.
Cotton - Synthetic blend
Max. 4.5 kg X X X X X X X X X 150 100
Wool finish Hats, sweaters, scarfs, gloves. Textiles made of wool
Max. 1 kg X X X X X X X X X 6 6
Down Sleeping bags, trousers, vests. Laundry that contains downs
Max. 3 kg X X X X X X X X X 120 120
Sport Sport clothes, functional underwear,
running tights.
Synthetic
Max. 2.5 kg X X X X X X X X X 80 60
Laundry is aired, refreshed and loosen
up for 30 minutes without heating. All textiles. — — — — — — — — — — —
Completes drying (suitable for all
fabrics). X X X X X X X X X
10’ 20’ 30’
40’ 50’ 60’
70’ 80’ 90’
100’ 110’ 120’
Cotton
Synthetics
Special programmes
Airing
Drying
times

3
HOW TO PROCEED IF...
...you want to check the dryer yourself first: (If your machine is not functioning correctly, please
check the following points before calling the customer service - also refer to relevant chapter in the
instructions for use)
Drying takes too long/
Laundry is not dry enough
• Has the correct drying programme been selected?
• Was the inserted laundry too wet (washing machine spin speed less than
1000 rpm)?
• Is the door filter dirty (filter indicator light on)?
• Is the bottom filter dirty (for more information, refer to the instructions for use)?
• Is the room temperature too high?
• Are the “End” and “Anticrease” indicator lamps lighting up? The drying cycle
is complete and the laundry can be taken out.
• If the drying result does not meet your expectation, select a drier
programme. You can use the dryness adjustment option (if available) to
optimize the drying results.
The dryer does not
operate (after a power
failure, always press the
“Start (Pause)” button)
• Is the plug properly inserted into the mains electricity socket?
• Is there a power failure?
•Hasthefuseblown?
• Is the door properly closed?
• Has a drying programme been selected?
•Hasthe“Start (Pause)” button been pressed?
• Has the start delay option been selected?
• Is the dryer overloaded? Please remove a part of the load.
Door filter, water
container or bottom filter
indicator lamp on
• Is the door filter clean?
• Is the water container empty?
• Has the water container been inserted correctly?
• Is the bottom filter clean and inserted correctly?
Water droplets
underneath the dryer
• Has the bottom filter been inserted correctly?
• Have all lint on the bottom filter seal and the door seal been wiped away?
• Has the water container been inserted correctly?
• If the direct drain connection is used, is it tight?
• Is the dryer levelled?
...you want to care of and clean your dryer:
Clean the filter at the end
of every cycle
• Brush lint using a soft brush or your fingertips.
• Close the filter.
• Push the filter back into place.
Empty the water container
at the end of every drying
cycle
• Pull the handle to remove the water container.
• Empty the water container.
• Replace the water container when empty by pushing it completely back in place.
Clean the bottom filter
every fifth cycle
• Clean the bottom filter under running water.
• Remove all fluffs from the seals.
• Clean the bottom filter housing (for further information see chapter
“Cleaning the Bottom Filter” in the Instructions for Use).
• See the instruction for use for further information how to clean the bottom
filter.

4
FAILURE CODES
In case of a malfunction of the dryer, one the following failure codes could be
displayed:
FAILURE CODE You can check yourself before calling the After-Sales
Service.
F01 – F04 Please call the After-Sales Service.
F05
Turn the dryer OFF and unplug it. Make sure that the room
temperature is between 5°C and 35°C. Wait for 1 hour. Plug the
dryer back in and restart it. If the failure reoccurs, please call the
After-Sales Service.
F06
Turn the dryer OFF and unplug it. Make sure that the room
temperature is between 5°C and 35°C. Wait for 1 hour. Plug the
dryer back in and restart it. If the failure reoccurs, please call the
After-Sales Service.
F07
Turn the dryer OFF and unplug it. Make sure that the room
temperature is between 5°C and 35°C. Unload approximately one
half of the laundry from the dryer. Wait for 1 hour. Plug the dryer
back in and restart it. If the failure reoccurs, please call the
After-Sales Service.
F10 – F24
Turn the dryer OFF and unplug it. Wait for 30 minutes. Plug the
dryer back in and restart it. If the failure reoccurs, please call the
After-Sales Service.
Start LED blinks 2
times per second
when pressed
Make sure that the door is correctly closed and the bottom filter
correctly positioned.
If the failure reoccurs, please call the After-Sales Service.
Bottom filter LED
is blinking, Start
LED blinks 2 times
per second when
pressed
Make sure that the bottom filter is correctly positioned.
If the failure reoccurs, please call the After-Sales Service.

GB AZA-HP 9781 Quick Reference Guide
Before using the machine, please also read the Instructions For Use carefully!
5
Indicator lamps
Programme selector knob
The drying programme is selected by
turning this knob. The “Start
(Pause)” indicator lamp flashes.
“Start (Pause)” button
The drying programme is started by
pressing this button. The indicator lamp
lights up.
Door filter
The indicator lamp lights up when the
door filter needs to be cleaned.
Clean the door filter at the end of
every drying cycle.
Bottom filter
This indicator lamp lights up when the
bottom filter needs to be cleaned.
This indicator lamp is blinking, when the
bottom filter is not correctly positioned.
Please take care that the bottom filter is
correctly inserted and the handle is fully
engaged.
Water container
The indicator lamp lights up when the
water container needs to be emptied.
The drying cycle is automatically
interrupted. Empty the container and
restart the drying program.
Empty the water container after
every drying cycle.
“Remaining time” display
Depending on the programme selected
a default drying time is displayed. After
start of cycle the time displayed is
corrected depending on the volume,
type and moisture of the laundry.
The drying time specified is a
calculated value which will be
updated during the drying cycle.
The flashing lines indicate that the
calculation is running. The remaining
time will be updated.
End
The drying programme is finished.
Please unload the dryer.
Overdry protection / 6th Sense
The indicator lights up when a humidity
controlled programme is selected, to
indicate the activated protection function.
Dryness level
By selecting this option you can adjust
the dryness level of the laundry. After
the selection of the desired programme
you can choose the dryness level by
pressing the button.
Pressing 1 time you select a more dry
level
or
Pressing 2 times you select a less dry
level
or
Pressing 3 times you select again normal
dry level.
Once chosen this option together with
a certain program, it's automatically
selected when you use again this
program. Changing or deselecting this
option is possible according the
description above.

6
5019 307 01501
(Subject to technical modifications)
Reset
During the selection phase of the
program, pressing this button will switch
off all settings of selected options.
During running drying cycle the pressing
of the button will stop the cycle and set
the dryer back in selection mode.
The button needs to be pressed for 3
seconds.
Dry time adjustment
Turn the programme selector knob to
“Time” position. Press the button “Drying
time” to select the duration of cycle in ten
minutes steps up to 90 minutes.
Gentle
Selecting this option will reduce the
drying temperature at the end of the
drying cycle and thus the thermal strain
on delicate laundry. Due to the lower
temperature, the laundry will not be as
dry as after a drying cycle without this
option.
Anticrease
This option can be chosen to reduce
wrinkling, when the laundry is not
unloaded directly after end of the cycle.
The drum turns from time to time for
maximum 12 hours. It can be
interrupted at any time by switching off
the dryer. This option deactivates the
“Buzzer” function, if it is activated.
Drum light
The drum light can be switched on and off.
Buzzer
Pressing this option, an acoustic signal is
indicating the end of the drying cycle.
This option deactivates the Anticrease
function, if it is activated.
Key lock
For child protection reasons, this
option can be used to lock all functions
of the user interface.
To activate/deactivate this option, the
button needs to be pressed for 3 seconds.
The only remaining function is the “Off”
position at the programme selector knob.
The key lock function is still active even
when the selector knob is turned to
“Off” position or the door is opened.
The function has to be deactivated.
Start delay
Delays the start of the drying cycle by
1 to 12 hours. Each time the button is
pressed, the start time is delayed by
1hour.Pressthe“Start (Pause)”
button to confirm the final selection and
to start the dryer. The “Start delay”
icon flashes and the time is counted
down in 1-hour intervals. During the
countdown, the drum will turn from
time to time to redistribute the laundry.
To cancel or change the previously set
time delay, set the index of the
programme selector knob to “Off”
position, or open the door.
