Whirlpool LE6090XT User manual

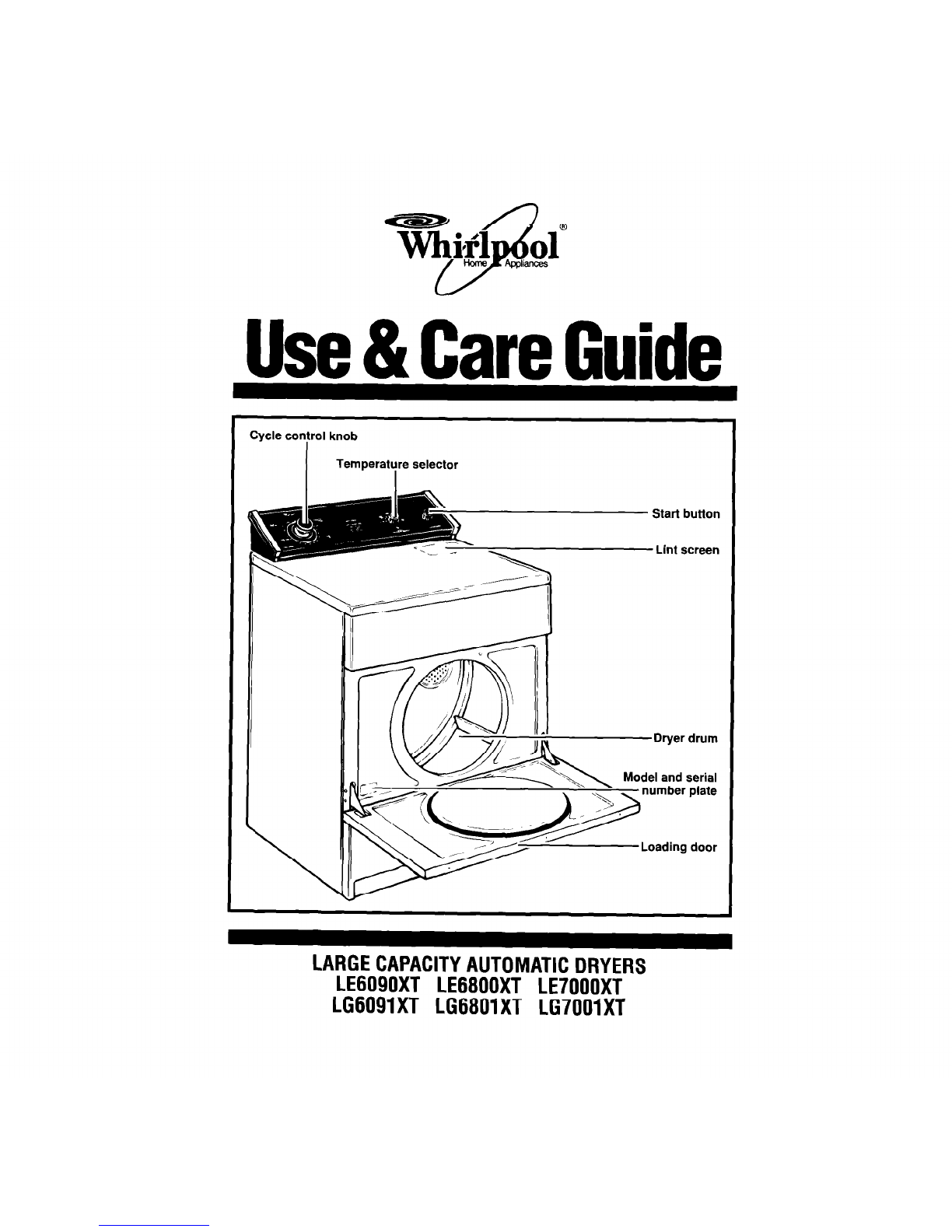

Use&CareGuide
Cycle control knob
Temperature selector
I
Start button
Model and serial
LARGECAPACITYAUTOMATICDRYERS
LE6090XT LE6800XT LE7000XT
LG6091XT LG6801XT LG7001XT

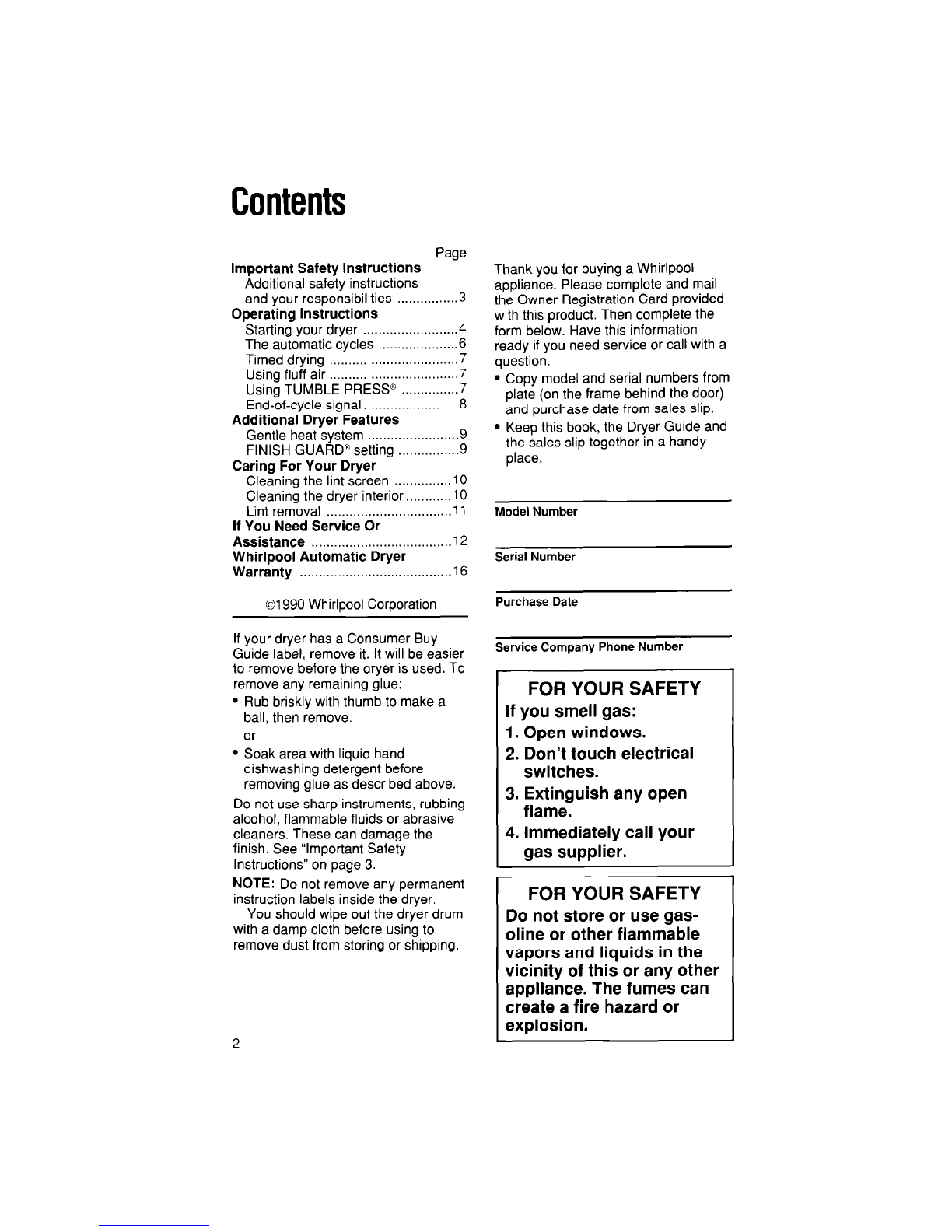

Contents
Page
Important Safety Instructions
Additional safety instructions
and your responsibilities ................3
Operating Instructions
Starting your dryer .........................4
The automatic cycles ............... .....6
Timed drying ,....,............................ 7
Using fluff air ..__.............................. 7
Using TUMBLE PRESS@ ...............7
End-of-cycle signal .........................8
Additional Dryer Features
Gentle heat system ............. .... . ...9
FINISH GUARD@ setting ... ...... .....9
Caring For Your Dryer
Cleaning the lint screen ........... ...10
Cleaning the dryer interior ... ...... .10
Lint removal .................................11
If You Need Service Or
Assistance ._._.__._............................ 12

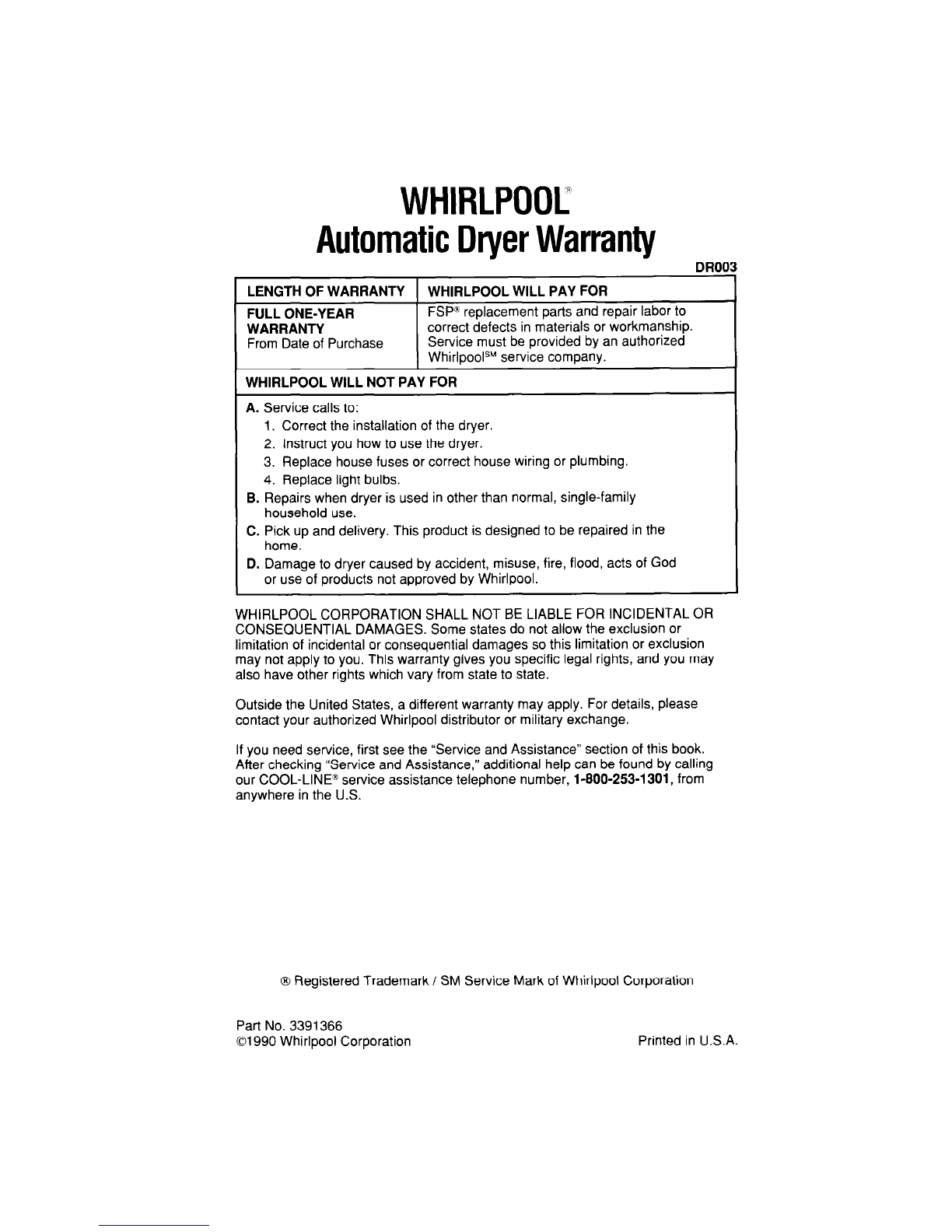

Whirlpool Automatic Dryer
Warranty ... .._.____............................ 16
Thank you for buying a Whirlpool
appliance. Please complete and mail
the Owner Registration Card provided
with this product. Then complete the
form below. Have this information
ready if you need service or call with a
question.
l Copy model and serial numbers from
plate (on the frame behind the door)
and purchase date from sales slip.
l Keep this book, the Dryer Guide and
the sales slip together in a handy
place.
Model Number
Serial Number
01990 Whirlpool Corporation
Purchase Date
If your dryer has a Consumer Buy
Guide label, remove it. It will be easier
to remove before the dryer is used. To
remove any remaining glue:
l Rub briskly with thumb to make a
ball, then remove.
or
Service Company Phone Number
l Soak area with liquid hand
dishwashing detergent before
removing glue as described above.
Do not use sharp instruments, rubbing
alcohol, flammable fluids or abrasive
cleaners. These can damage the
finish. See “Important Safety
Instructions” on page 3.
NOTE: Do not remove any permanent
instruction labels inside the dryer.
You should wipe out the dryer drum
with a damp cloth before using to
remove dust from storing or shipping.
FOR YOUR SAFETY
If you smell gas:
1. Open windows.
2. Don’t touch electrical
switches.
3. Extinguish any open
flame.
4. Immediately call your
gas supplier.
FOR YOUR SAFETY
Do not store or use gas-
oline or other flammable
vapors and liquids in the
vicinity of this or any other
appliance. The fumes can
create a fire hazard or
explosion.

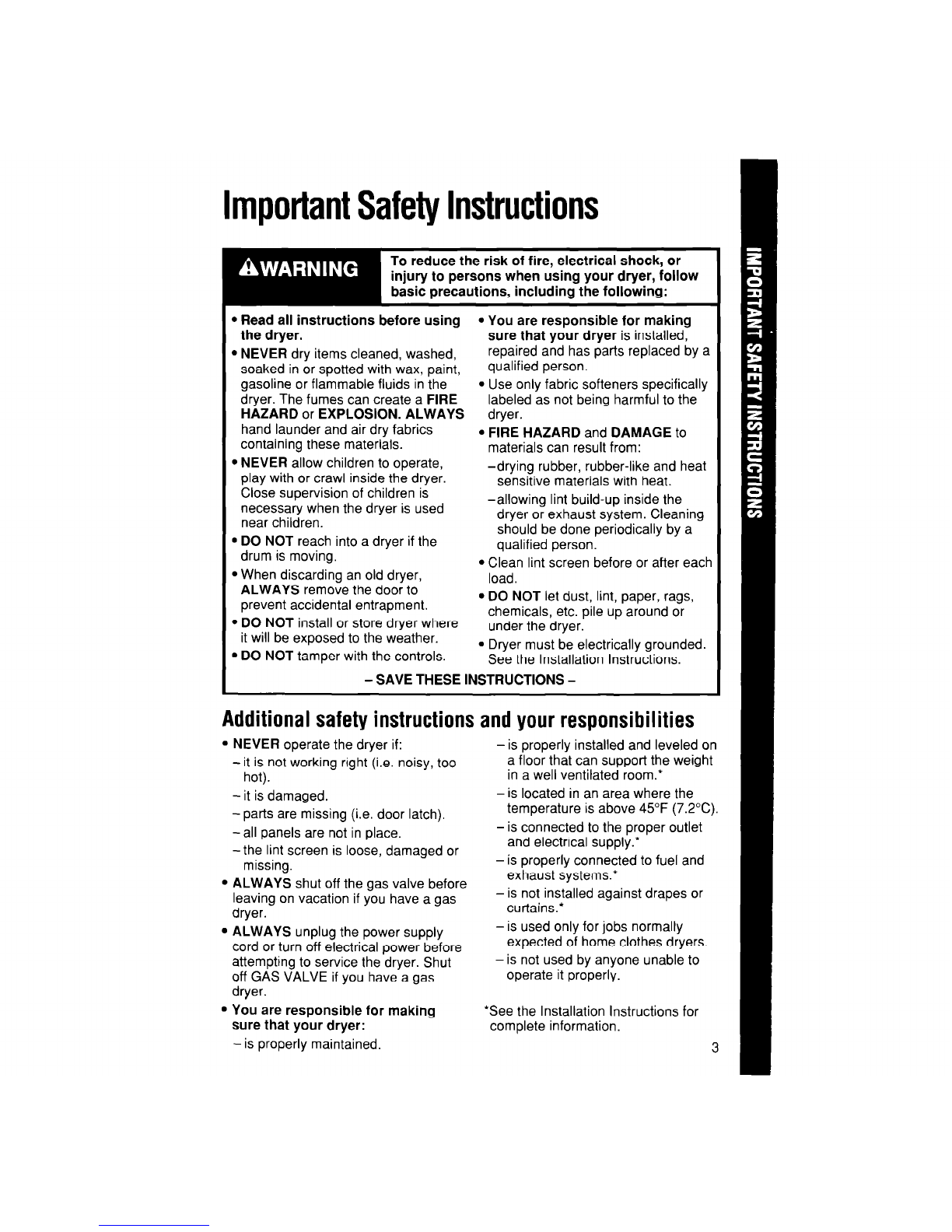

ImportantSafetyInstructions
To reduce the risk of fire, electrical shock, or
injury to persons when using your dryer, follow
basic precautions, including the following:
l Read all instructions before using
l You are responsible for making
the dryer. sure that your dryer is installed,
l NEVER dry items cleaned, washed, repaired and has parts replaced by a
soaked in or spotted with wax, paint, qualified person.
gasoline or flammable fluids in the
l Use only fabric softeners specifically
dryer. The fumes can create a FIRE labeled as not being harmful to the
HAZARD or EXPLOSION. ALWAYS dryer.
hand launder and air dry fabrics
l FIRE HAZARD and DAMAGE to
containing these materials. materials can result from:
l NEVER allow children to operate,
play with or crawl inside the dryer. -drying rubber, rubber-like and heat
sensitive materials with heat.
Close supervision of children is
necessary when the dryer is used -allowing lint build-up inside the
near children. dryer or exhaust system. Cleaning
l DO NOT reach into a dryer if the should be done periodically by a
drum is moving. qualified person.
l Clean lint screen before or after each
l When discarding an old dryer, load.
ALWAYS remove the door to
prevent accidental entrapment.
l DO NOT let dust, lint, paper, rags,
l DO NOT install or store dryer where chemicals, etc. pile up around or
it will be exposed to the weather. under the dryer.
l DO NOT tamper with the controls.
l Dryer must be electrically grounded.
See the Installation Instructions.
- SAVE THESE INSTRUCTIONS -
Additional safety instructions and your responsibilities
l NEVER operate the dryer if:
-it is not working right (i.e. noisy, too
hot).
-it is damaged.
-parts are missing (i.e. door latch).
-all panels are not in place.
-the lint screen is loose, damaged or
missing.
l ALWAYS shut off the gas valve before
leaving on vacation if you have a gas
dryer.
l ALWAYS unplug the power supply
cord or turn off electrical power before
attempting to service the dryer. Shut
off GAS VALVE if you have a gas
dryer.
l You are responsible for making
sure that your dryer:
- is properly maintained.
- is properly installed and leveled on
a floor that can support the weight
in a well ventilated room.’
- is located in an area where the
temperature is above 45°F (7.2%).
- is connected to the proper outlet
and electrical supply.’
- is properly connected to fuel and
exhaust systems.*
- is not installed against drapes or
curtains.*
- is used only for jobs normally
expected of home clothes dryers.
- is not used by anyone unable to
operate it properly.
‘See the Installation Instructions for
complete information. 3

OperatingInstructions

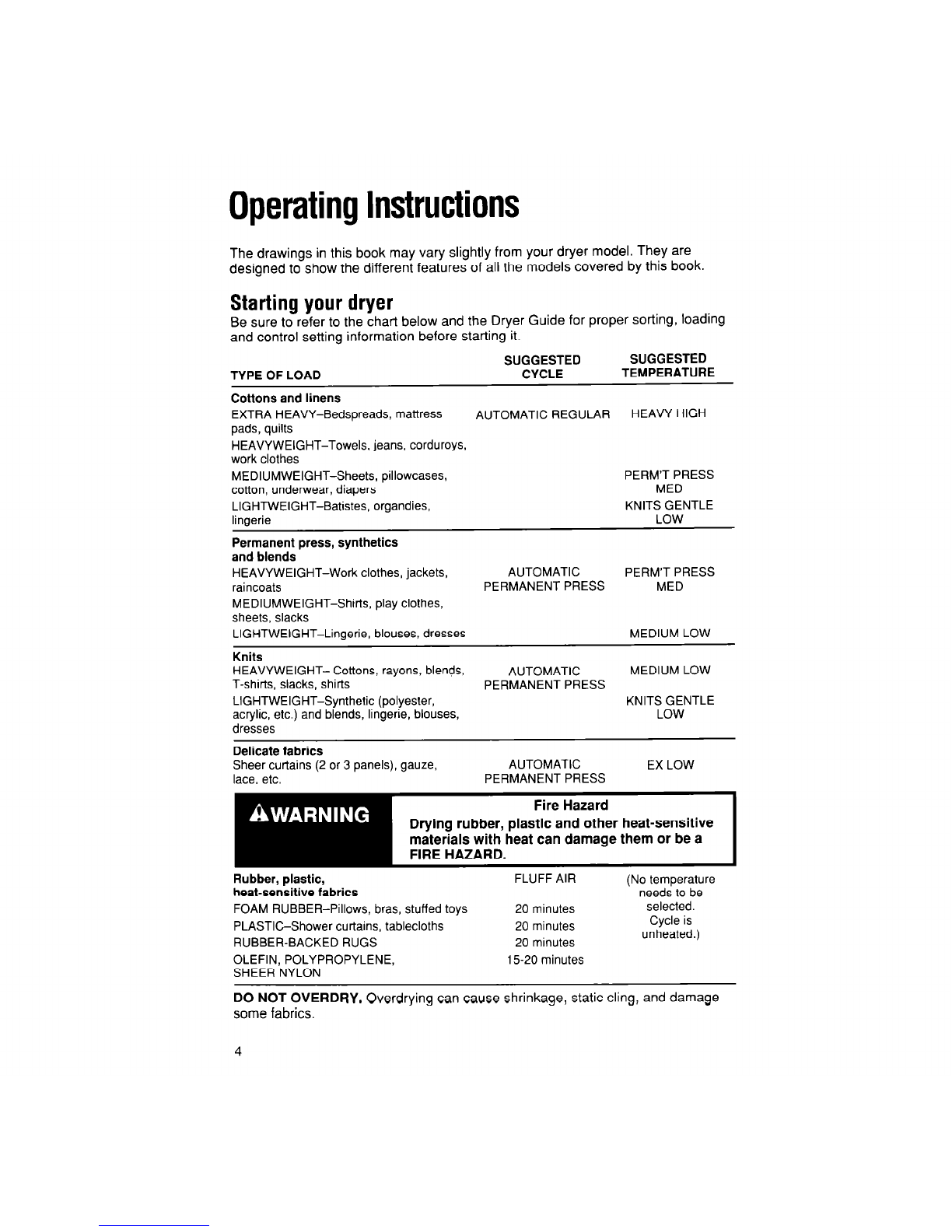

The drawings in this book may vary slightly from your dryer model. They are
designed to show the different features of all the models covered by this book.
Starting your dryer
Be sure to refer to the chart below and the Dryer Guide for proper sorting, loading
and control setting information before starting it.
SUGGESTED SUGGESTED
TYPE OF LOAD CYCLE TEMPERATURE
Cottons and linens
EXTRA HEAVY-Bedspreads, mattress AUTOMATIC REGULAR HEAVY HIGH
pads, quilts
HEAVYWEIGHT-Towels, jeans, corduroys,
work clothes
MEDIUMWEIGHT-Sheets, pillowcases, PERM’T PRESS
cotton, underwear, diapers MED
LIGHTWEIGHT-Batistes, organdies, KNITS GENTLE
lingerie LOW
Permanent press, synthetics
and blends
HEAVYWEIGHT-Work clothes, jackets, AUTOMATIC PERM’T PRESS
raincoats PERMANENT PRESS MED
MEDIUMWEIGHT-Shirts, play clothes,
sheets, slacks
LIGHTWEIGHT-Linaerie. blouses, dresses MEDIUM LOW
Knits
HEAVYWEIGHT- Cottons, rayons, blends, AUTOMATIC MEDIUM LOW
T-shirts, slacks, shirts PERMANENT PRESS
LIGHTWEIGHT-Synthetic (polyester, KNITS GENTLE
acrylic, etc.) and blends, lingerie, blouses, LOW
dresses
Delicate fabrics
Sheer curtains (2 or 3 panels), gauze,
lace, etc. AUTOMATIC EX LOW
PERMANENT PRESS
Rubber, plastic,
heat-sensitive fabrics
FOAM RUBBER-Pillows, bras, stuffed toys
PLASTIC-Shower curtains, tablecloths
RUBBER-BACKED RUGS
OLEFIN, POLYPROPYLENE,
SHEER NYLON
FLUFF AIR
20 minutes
20 minutes
20 minutes
15-20 minutes
(No temperature
needs to be
selected.
Cycle is
unheated.)
DO NOT OVERDRY. Overdrying can cause shrinkage, static cling, and damage
some fabrics.
4

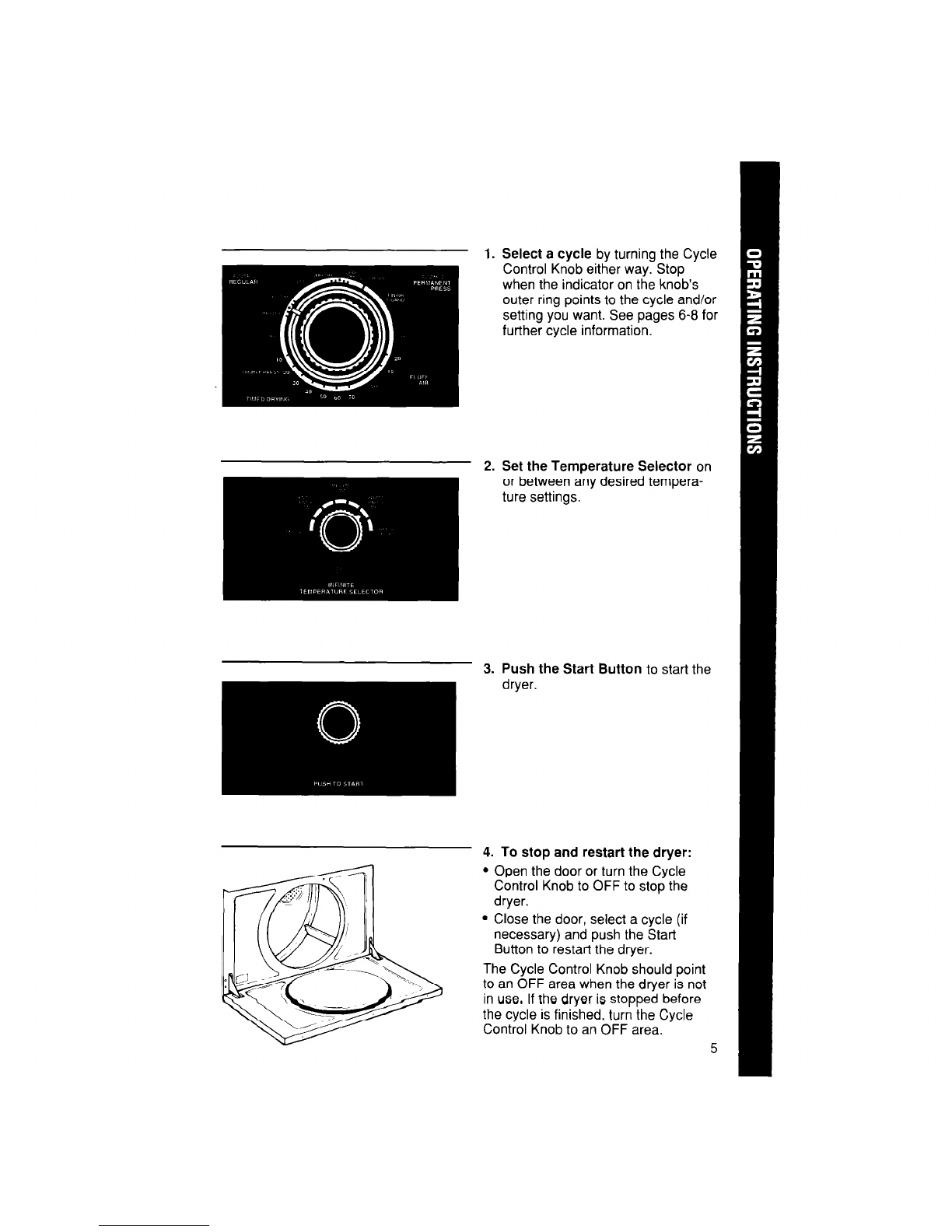

3. Push the Start Button to start the
4. To stop and restart the dryer:
. Open the door or turn the Cycle
Control Knob to OFF to stop the
dryer.
9 Close the door, select a cycle (if
necessary) and push the Start
Button to restart the dryer.
The Cycle Control Knob should point
to an OFF area when the dryer is not
in use, If the dryer is stopped before
the cycle is finished, turn the Cycle
Control Knob to an OFF area. 5

Operating Instructions
Continued

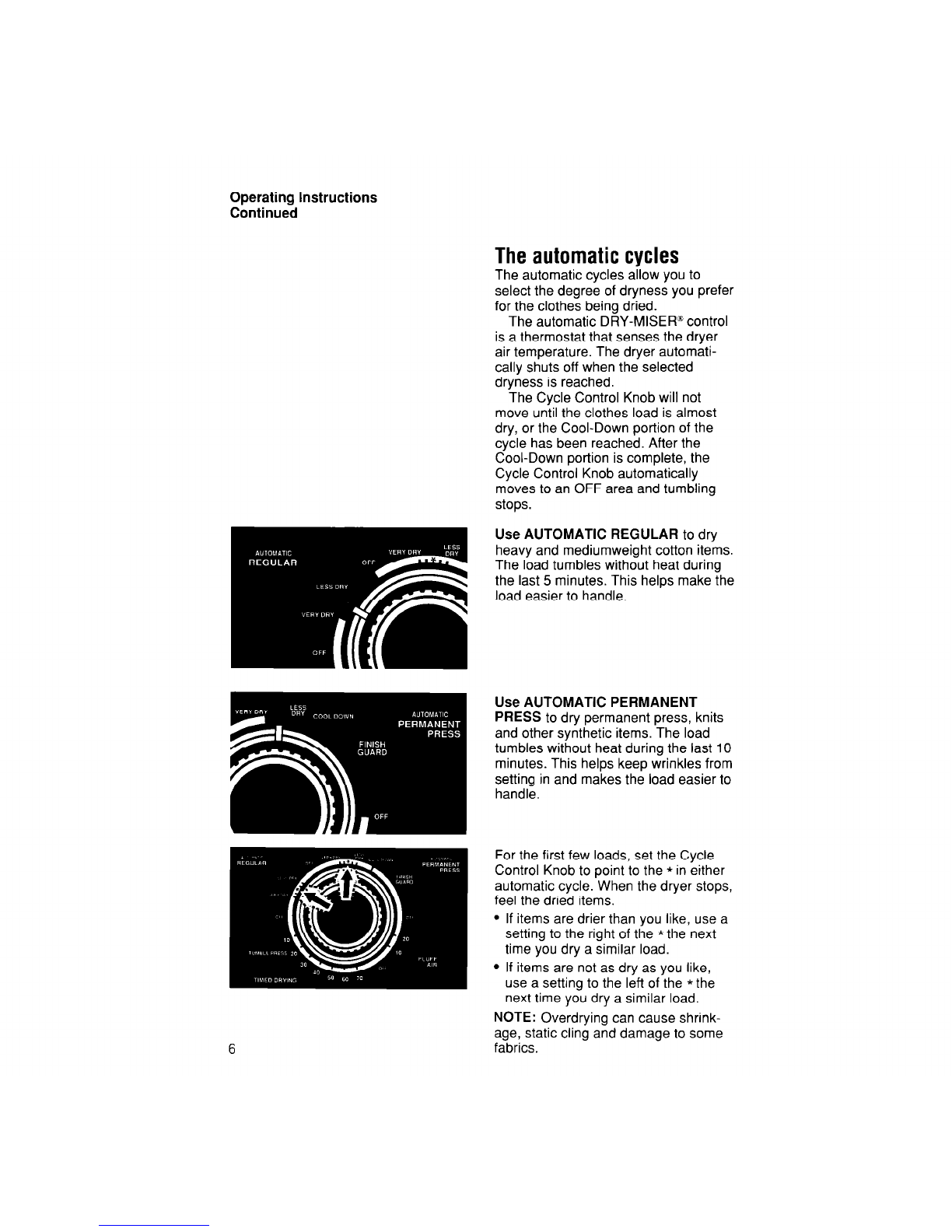

The automatic cycles
The automatic cycles allow you to
select the degree of dryness you prefer
for the clothes being dried.
The automatic DRY-MISER@ control
is a thermostat that senses the dryer
air temperature. The dryer automati-
cally shuts off when the selected
dryness is reached.
The Cycle Control Knob will not
move until the clothes load is almost
dry, or the Cool-Down portion of the
cycle has been reached. After the
Cool-Down portion is complete, the
Cycle Control Knob automatically
moves to an OFF area and tumbling
stops.
6
NOTE: Overdrying can cause shrink-
age, static cling and damage to some
fabrics.

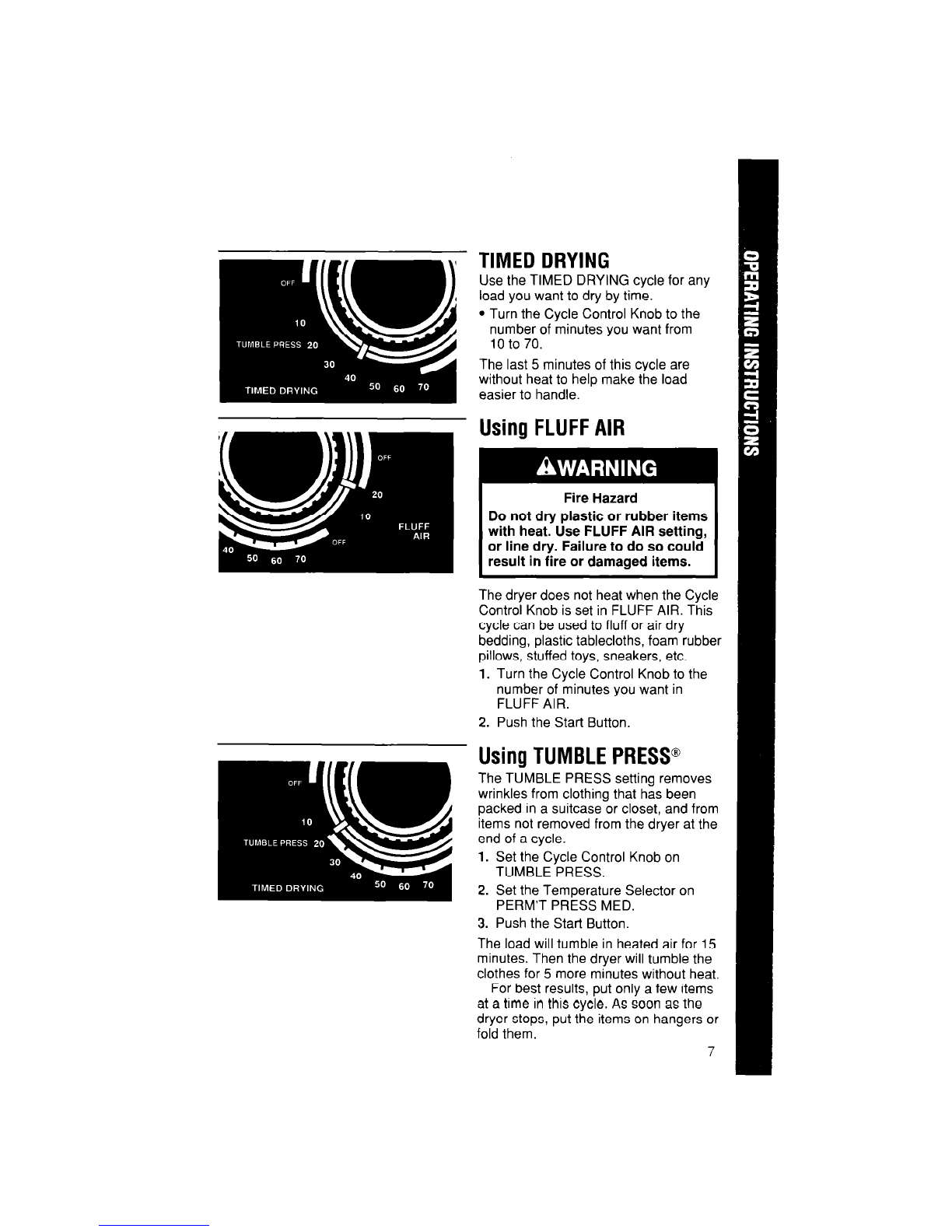

TIMED DRYING
Use the TIMED DRYING cycle for any
load you want to dry by time.
l Turn the Cycle Control Knob to the
number of minutes you want from
10 to 70.
The last 5 minutes of this cycle are
without heat to help make the load
easier to handle.
Using FLUFFAIR
Fire Hazard
Do not dry plastic or rubber items
with heat. Use FLUFF AIR setting,
or line dry. Failure to do so could
result in fire or damaged items.
The dryer does not heat when the Cycle
Control Knob is set in FLUFF AIR. This
cycle can be used to fluff or air dry
bedding, plastic tablecloths, foam rubber
pillows, stuffed toys, sneakers, etc.
1. Turn the Cycle Control Knob to the
number of minutes you want in
FLUFF AIR.
2. Push the Start Button.
Using TUMBLE PRESS@
The TUMBLE PRESS setting removes
wrinkles from clothing that has been
packed in a suitcase or closet, and from
items not removed from the dryer at the
end of a cycle.
1. Set the Cycle Control Knob on
TUMBLE PRESS.
2. Set the Temperature Selector on
PERM’T PRESS MED.
3. Push the Start Button.
The load will tumble in heated air for 15
minutes. Then the dryer will tumble the
clothes for 5 more minutes without heat,
For best results, put only a few items
at a time in this cycle. As soon as the
dryer stops, put the items on hangers or
fold them.
7

Operating Instructions
Continued
‘/
3
P-
/ ’
\
\

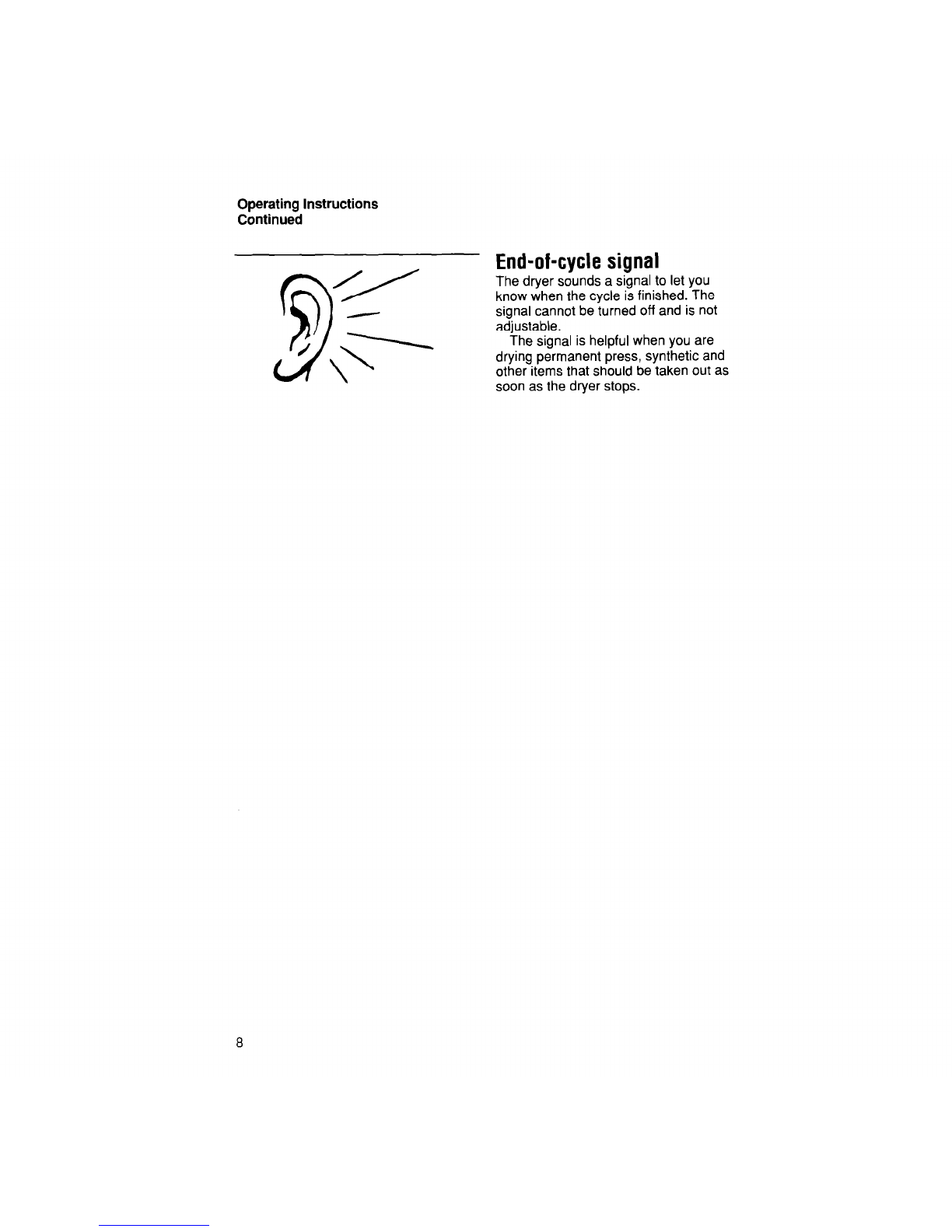

End-of-cycle signal
The dryer sounds a signal to let you
know when the cycle is finished. The
signal cannot be turned ofi and is not
adjustable.
The signal is helpful when you are
drying permanent press, synthetic and
other items that should be taken out as
soon as the dryer stops.

AdditionalDryerFeatures

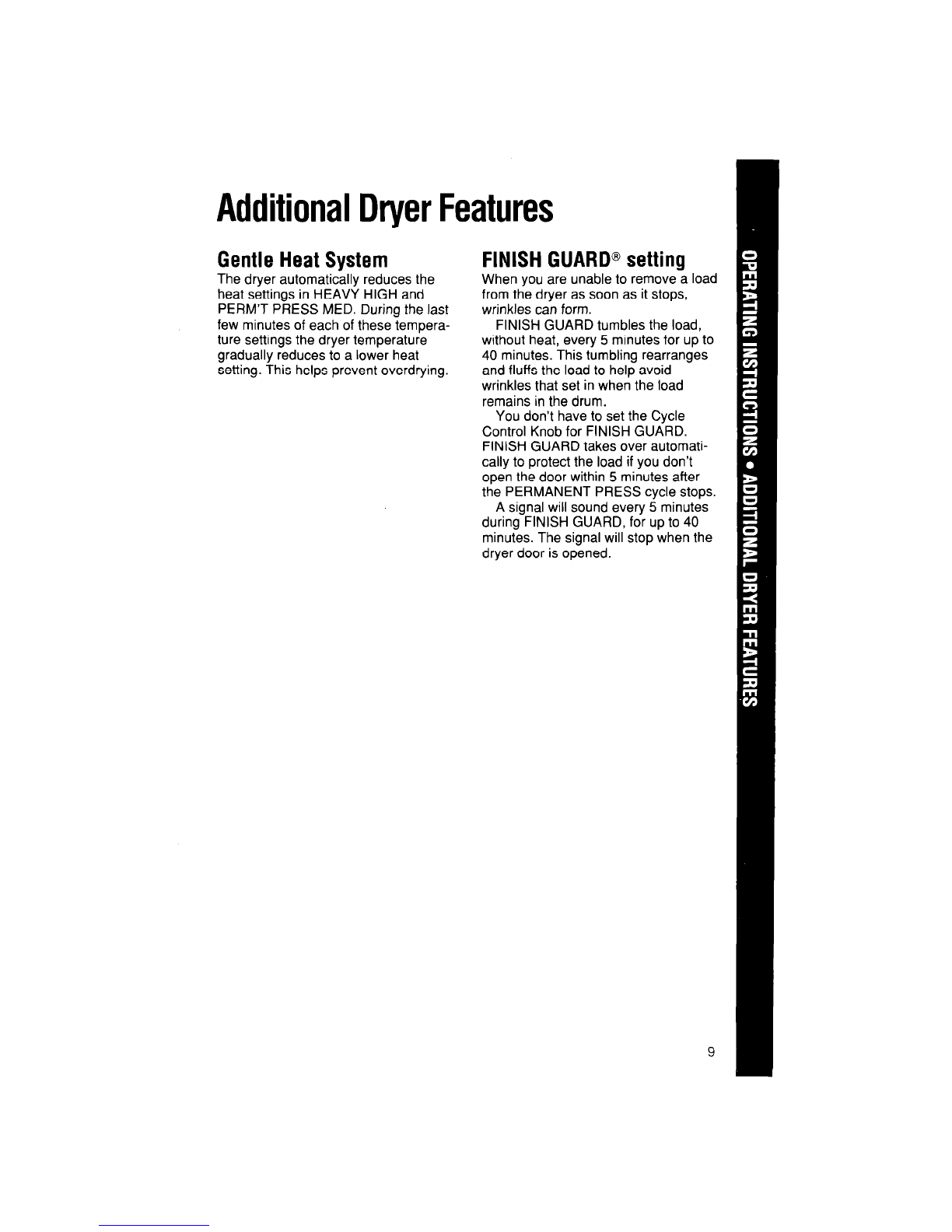

Gentle Heat System
The dryer automatically reduces the
heat settings in HEAVY HIGH and
PERM’T PRESS MED. During the last
few minutes of each of these tempera-
ture settings the dryer temperature
gradually reduces to a lower heat
setting. This helps prevent overdrying.
FINISH GUARD@setting
When you are unable to remove a load
from the dryer as soon as it stops,
wrinkles can form.
FINISH GUARD tumbles the load,
without heat, every 5 minutes for up to
40 minutes. This tumbling rearranges
and fluffs the load to help avoid
wrinkles that set in when the load
remains in the drum.
You don’t have to set the Cycle
Control Knob for FINISH GUARD.
FINISH GUARD takes over automati-
cally to protect the load if you don’t
open the door within 5 minutes after
the PERMANENT PRESS cycle stops.
A signal will sound every 5 minutes
during FINISH GUARD, for up to 40
minutes. The signal will stop when the
dryer door is opened.

CaringForYourDryer

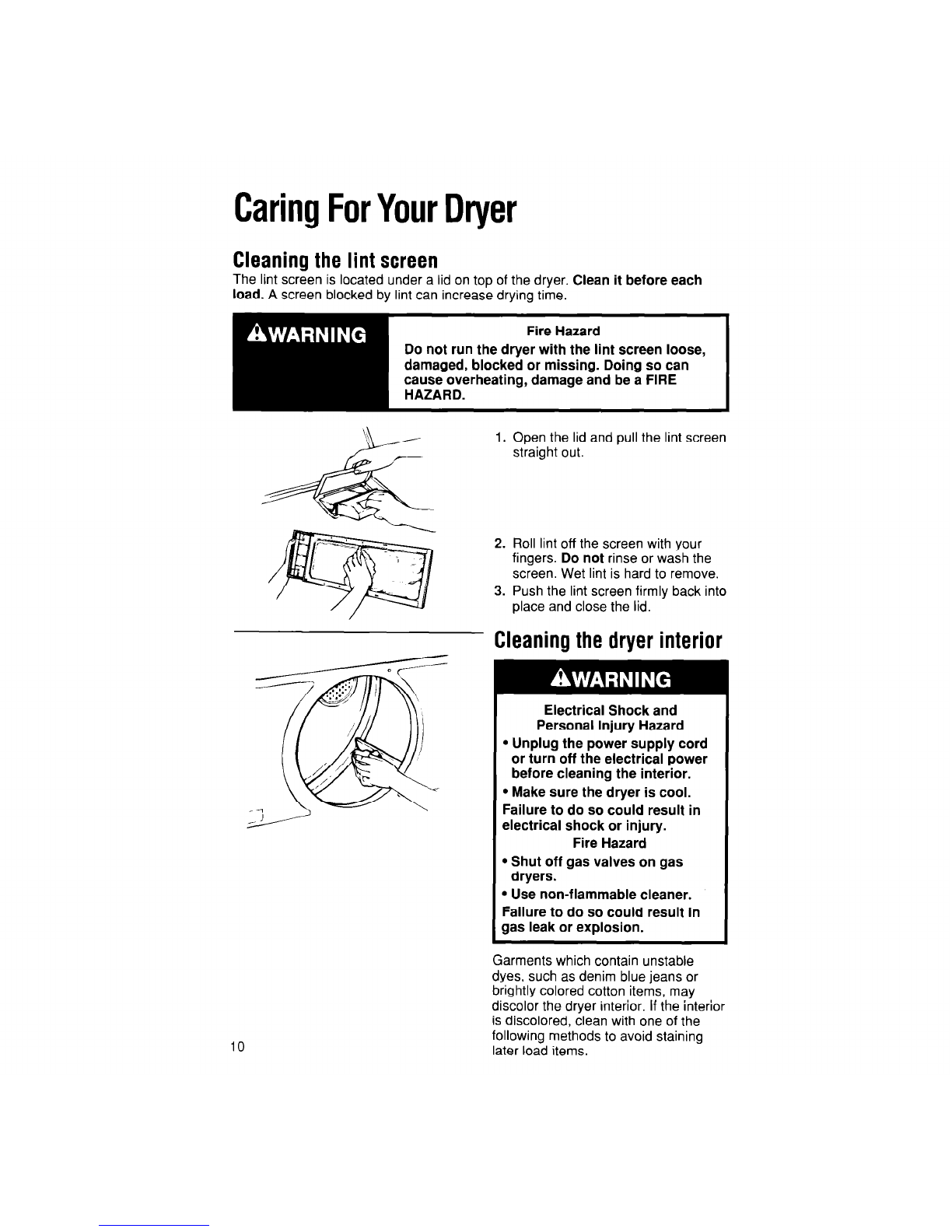

Cleaning the lint screen
The lint screen is located under a lid on top of the dryer. Clean it before each
load. A screen blocked by lint can increase drying time.
1. Open the lid and pull the lint screen
straight out.
2. Roll lint off the screen with your
fingers. Do not rinse or wash the
screen. Wet lint is hard to remove.
3. Push the lint screen firmly back into
place and close the lid.
Cleaning the dryer interior
10
Electrical Shock and
Personal Injury Hazard
l Unplug the power supply cord
or turn off the electrical power
before cleaning the interior.
l Make sure the dryer is cool.
Failure to do so could result in
electrical shock or injury.
Fire Hazard
l Shut off gas valves on gas
dryers.
l Use non-flammable cleaner.
Failure to do so could result in
gas leak or explosion.
Garments which contain unstable
dyes, such as denim blue jeans or
brightly colored cotton items, may
discolor the dryer interior. If the interior
is discolored, clean with one of the
following methods to avoid staining
later load items.

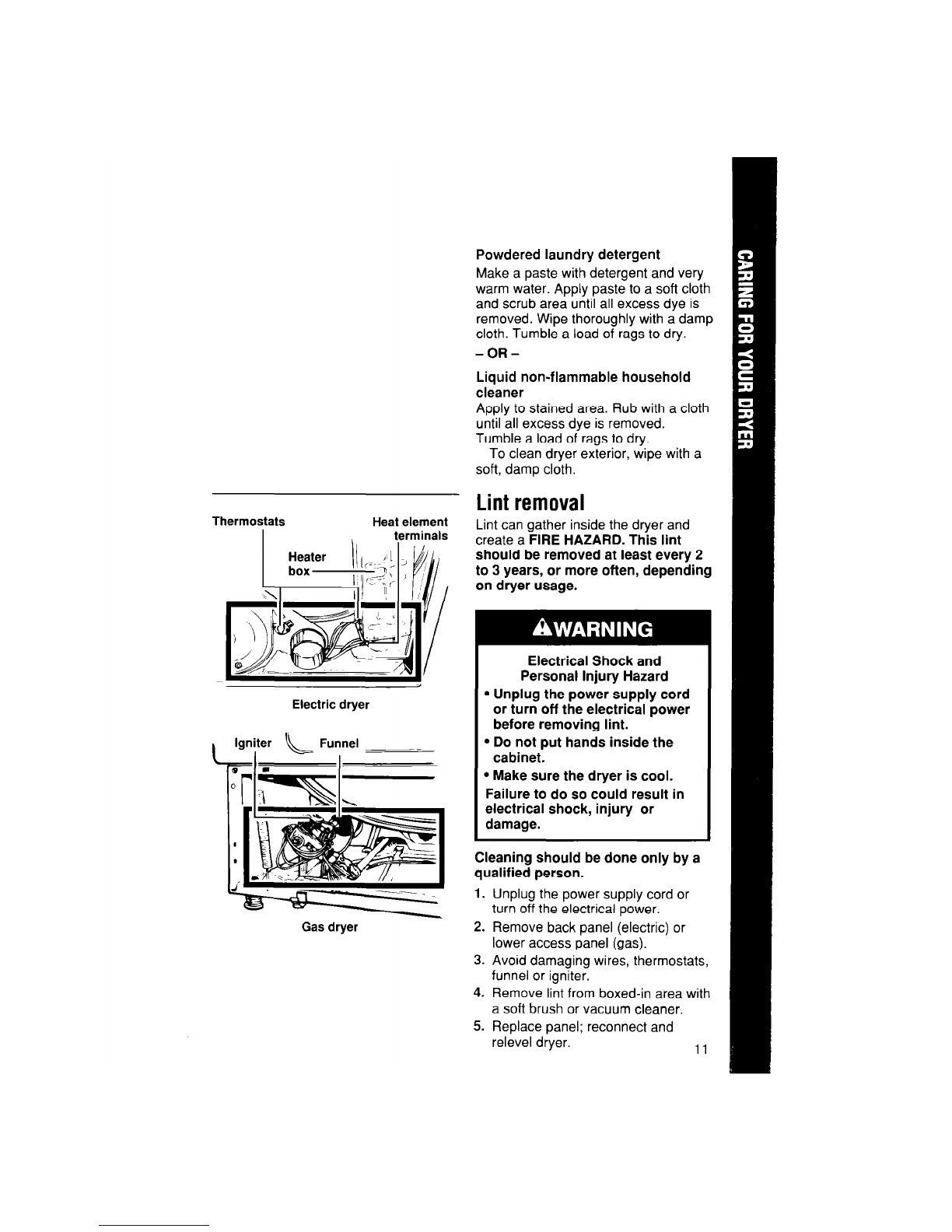

Thermostats Heat element
I terminals
Electric dryer
Gas dryer
Powdered laundry detergent
Make a paste with detergent and very
warm water. Apply paste to a soft cloth
and scrub area until all excess dye is
removed. Wipe thoroughly with a damp
cloth. Tumble a load of rags to dry.
-OFl-
Liquid non-flammable household
cleaner
Apply to stained area. Rub with a cloth
until all excess dye is removed.
Tumble a load of rags to dry.
To clean dryer exterior, wipe with a
soft, damp cloth.
Lint removal
Lint can gather inside the dryer and
create a FIRE HAZARD. This lint
should be removed at least every 2
to 3 years, or more often, depending
on dryer usage.
Electrical Shock and
Personal Injury Hazard
l Unplug the power supply cord
or turn off the electrical power
before removing lint.
l Do not put hands inside the
cabinet.
l Make sure the dryer is cool.
Failure to do so could result in
electrical shock, injury or
damage.
Cleaning should be done only by a
qualified person.
1. Unplug the power supply cord or
turn off the electrical power.
2. Remove back panel (electric) or
lower access panel (gas).
3. Avoid damaging wires, thermostats,
funnel or igniter.
4. Remove lint from boxed-in area with
a soft brush or vacuum cleaner.
5. Replace panel; reconnect and
relevel dryer.
11

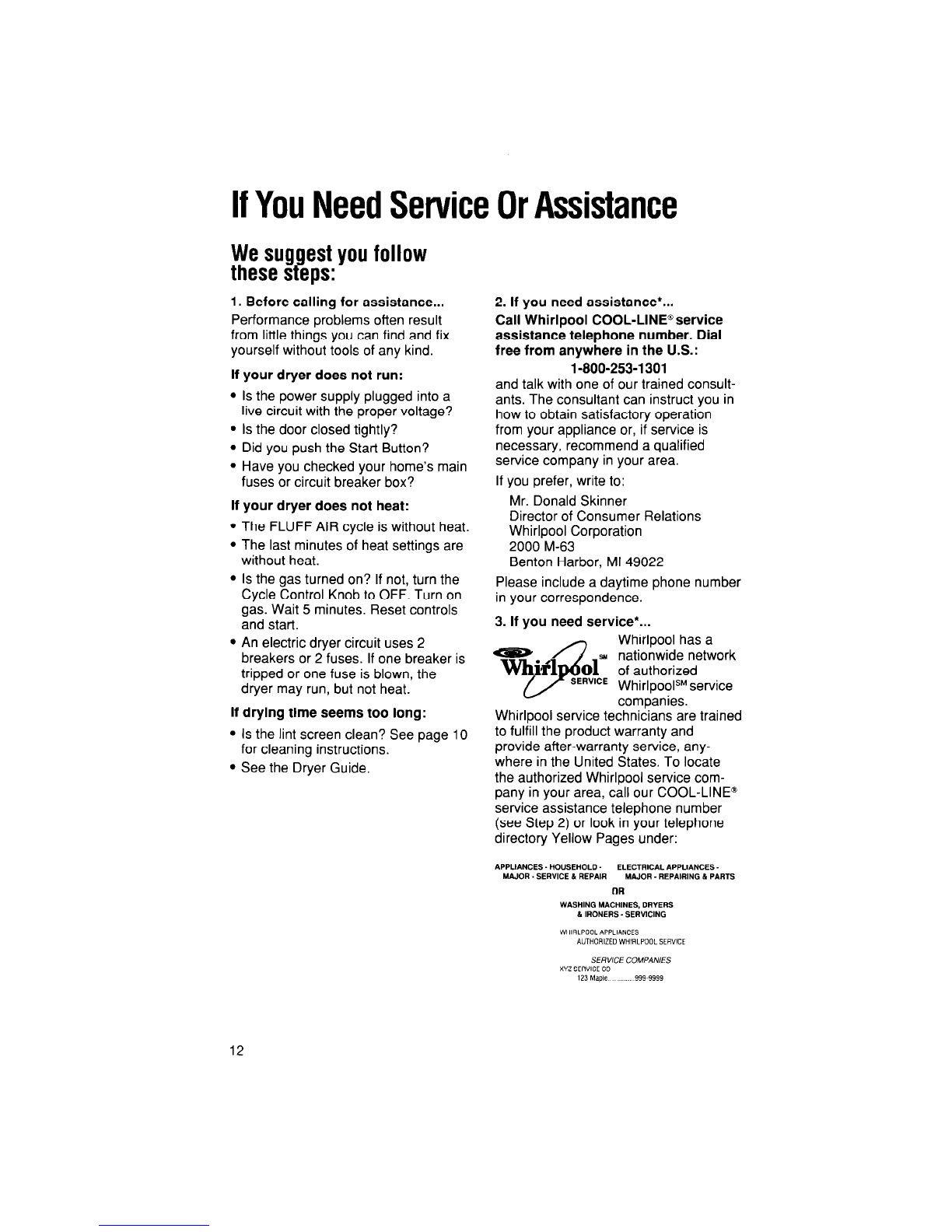

IfYouNeedServiceOrAssistance
We suggest you follow
these steps:
1. Before calling for assistance...
Performance problems often result
from little things you can find and fix
yourself without tools of any kind.
If your dryer does not run:
l Is the power supply plugged into a
live circuit with the proper voltage?
. Is the door closed tightly?
l Did you push the Start Button?
l Have you checked your home’s main
fuses or circuit breaker box?
If your dryer does not heat:
l The FLUFF AIR cycle is without heat.
l The last minutes of heat settings are
without heat.
l Is the gas turned on? If not, turn the
Cycle Control Knob to OFF. Turn on
gas. Wait 5 minutes. Reset controls
and start.
l An electric dryer circuit uses 2
breakers or 2 fuses. If one breaker is
tripped or one fuse is blown, the
dryer may run, but not heat.
If drying time seems too long:
l Is the lint screen clean? See page 10
for cleaning instructions.
l See the Dryer Guide.
2. If you need assistance*...
Call Whirlpool COOL-LINEmservice
assistance telephone number. Dial
free from anywhere in the U.S.:
1-800-253-l 301
and talk with one of our trained consult-
ants. The consultant can instruct you in
how to obtain satisfactory operation
from your appliance or, if service is
necessary, recommend a qualified
service company in your area.
If you prefer, write to:
Mr. Donald Skinner
Director of Consumer Relations
Whirlpool Corporation
2000 M-63
Benton Harbor, Ml 49022
Please include a daytime phone number
in your correspondence.
3. If you need service*...
+!iY
Whirlpool has a
i#fl 01 su nationwide network
of authorized
SERV’CEWhirlpoolSM service
companies.
Whirlpool service technicians are trained
to fulfill the product warranty and
provide after-warranty service, any-
where in the United States. To locate
the authorized Whirlpool service com-
pany in your area, call our COOL-LINE@
service assistance telephone number
(see Step 2) or look in your telephone
directory Yellow Pages under:
12

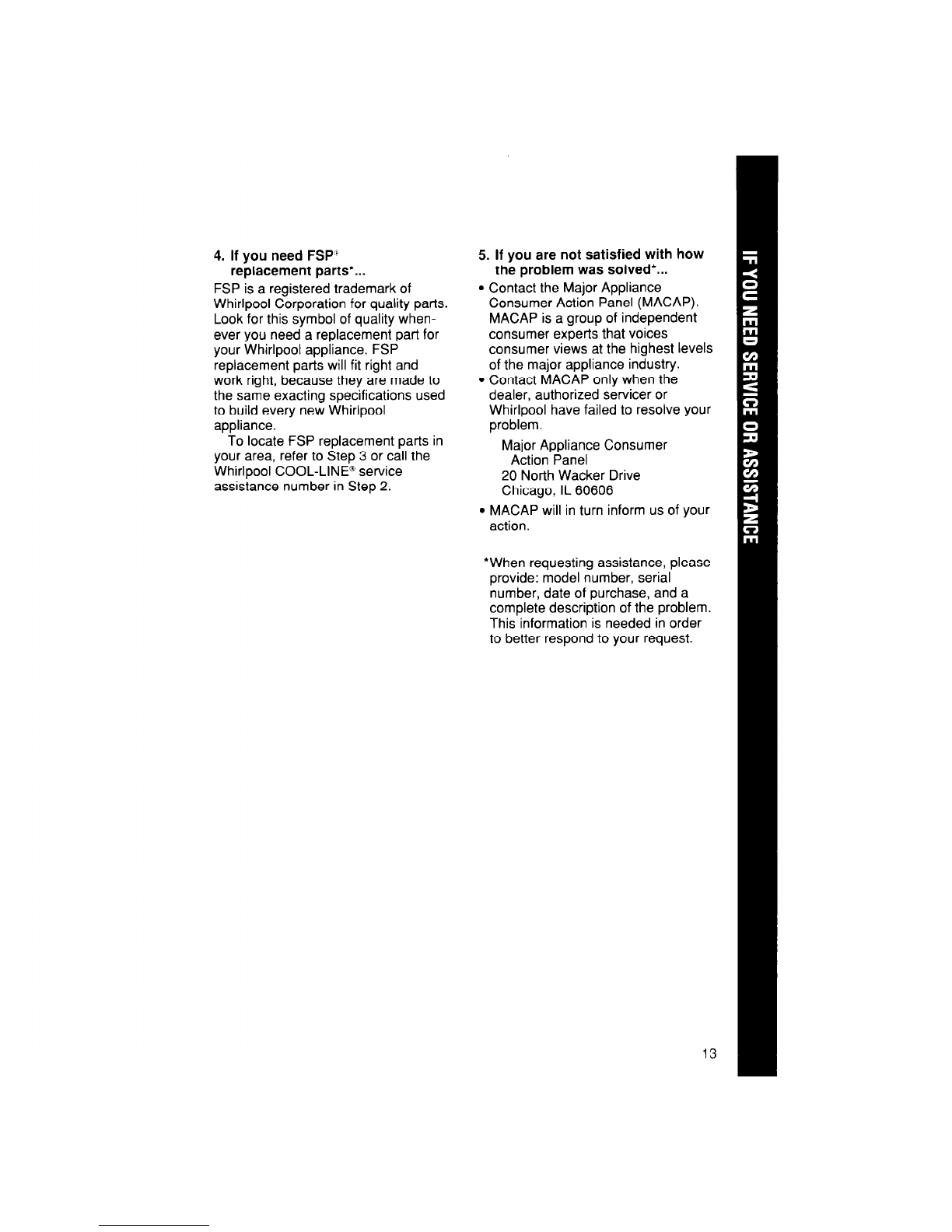

4. If you need FSP’”
replacement parts*...
FSP is a registered trademark of
Whirlpool Corporation for quality parts.
Look for this symbol of quality when-
ever you need a replacement part for
your Whirlpool appliance. FSP
replacement parts will fit right and
work right, because they are made to
the same exacting specifications used
to build every new Whirlpool
appliance.
To locate FSP replacement parts in
your area, refer to Step 3 or call the
Whirlpool COOL-LINE@ service
assistance number in Step 2.
5. If you are not satisfied with how
the problem was solved*...
. Contact the Major Appliance
Consumer Action Panel (MACAP).
MACAP is a group of independent
consumer experts that voices
consumer views at the highest levels
of the major appliance industry.
l Contact MACAP only when the
dealer, authorized servicer or
Whirlpool have failed to resolve your
problem.
Major Appliance Consumer
Action Panel
20 North Wacker Drive
Chicago, IL 60606
. MACAP will in turn inform us of your
action.
*When requesting assistance, please
provide: model number, serial
number, date of purchase, and a
complete description of the problem.
This information is needed in order
to better respond to your request.

Notes
14

Notes
15

WHIRLPOOL
AutomaticDryerWarranty
DR003
LENGTH OF WARRANTY WHIRLPOOL WILL PAY FOR
FULL ONE-YEAR FSP@replacement parts and repair labor to
WARRANTY correct defects in materials or workmanship.
From Date of Purchase Service must be provided by an authorized
WhirlpoolSM service company.
WHIRLPOOL WILL NOT PAY FOR
A. Service calls to:
1. Correct the installation of the dryer.
2. Instruct you how to use the dryer.
3. Replace house fuses or correct house wiring or plumbing.
4. Replace light bulbs.
B. Repairs when dryer is used in other than normal, single-family
household use.
C. Pick up and delivery. This product is designed to be repaired in the
home.
D. Damage to dryer caused by accident, misuse, fire, flood, acts of God
or use of products not approved by Whirlpool.
WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES. Some states do not allow the exclusion or
limitation of incidental or consequential damages so this limitation or exclusion
may not apply to you. This warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.
Outside the United States, a different warranty may apply. For details, please
contact your authorized Whirlpool distributor or military exchange.
If you need service, first see the “Service and Assistance” section of this book.
After checking “Service and Assistance,” additional help can be found by calling
our COOL-LINE@ service assistance telephone number, l-800-253-1301, from
anywhere in the U.S.
8 Registered Trademark / SM Service Mark of Whirlpool Corporation
Part No. 3391366
01990 Whirlpool Corporation Printed in U.S.A.
