INSTRUCTION FOR USE
IMPORTANT SAFETY INSTRUCTIONS
BEFORE USING THE GLASS CERAMIC
HOB
INSTALLATION
ELECTRICAL CONNECTIONS
ENERGY SAVING TIPS
SAFEGUARDING THE ENVIRONMENT
CARE AND MAINTENANCE OF THE
GLASS-CERAMIC HOB
TROUBLESHOOTING GUIDE
AFTER SALES SERVICE

82
IMPORTANT SAFETY INSTRUCTIONS
YOUR SAFETY AND
THAT OF OTHERS IS
VERY IMPORTANT
This manual and the appliance
itself provide important safety
messages, to be read and always
observed.
WARNING:
All messages relevant to safety
specify the potential risk to which
they refer and indicate how to
reduce the risk of injury, damage
and electric shocks due to incorrect
use of the appliance. Make sure to
comply with the following:
•The appliance must be
disconnected from the power
supply before carrying out any
installation operation.
•Installation and maintenance
must be carried out by a
specialised technician, in
compliance with the
manufacturer’s instructions
and the local safety regulations
in force. Do not repair or
replace any part of the
appliance unless specifically
stated in the user manual.
•The appliance must be
earthed.
•The power cable must be long
enough for connecting the
appliance, fitted in the cabinet,
to the power supply.
•For installation to comply with
the current safety regulations,
an omnipolar switch with
minimum contact gap of 3 mm
is required.
•Do not use multi-sockets or
extension cords.
•Do not pull the appliance’s
power cable.
•The electrical parts must not
be accessible to the user after
installation.
•The appliance is designed
solely for domestic use for
cooking food. No other use is
permitted (e.g. heating
rooms). The Manufacturer
declines any liability for
inappropriate use or incorrect
setting of the controls.
•The appliance and its
accessible parts become hot
during use. Care should be
taken to avoid touching
heating elements. Children
less than 8 years old shall be
kept away unless continuously
supervised.

83
•The accessible parts can
become very hot during use.
Children must be kept away
from the appliance and
watched over to ensure they
do not play with it.
•Do not touch the appliance
heating elements during and
after use. Do not allow the
appliance to come into
contact with cloths or other
flammable materials until all
the components have cooled
sufficiently.
•Do not place flammable
materials on or near the
appliance.
•Overheated oils and fats catch
fire easily. Pay attention when
cooking food products rich in
fat and oil.
•This appliance can be used by
children aged from 8 years and
above and persons with
reduced physical, sensory or
mental capabilities or lack of
experience and knowledge if
they have been given
supervision or instruction
concerning use of the
appliance in a safe way and
understand hazards involved.
Cleaning and user
maintenance shall not be
made by children without
supervision.
•If the surface is cracked,
switch off the appliance to
avoid the possibility of electric
shock.
•The appliance is not intended
to be operated by means of an
external timer or separate
remote control system.
•Unattended cooking on a hob
with fat or oil can be
dangerous and may result in
fire. NEVER try to extinguish a
fire with water, but switch off
the appliance and then cover
flame e.g. with a lid or a fire
blanket.
Danger of fire: do not store
items on the cooking surfaces.
•Do not use steam cleaners.
•Metallic objects such as knives,
forks, spoons and lids should
not be placed on the hob
surface since they can get hot.

84
BEFORE USING THE GLASS CERAMIC HOB
•To make the most of your new appliance,
please read the user instructions carefully and
keep them handy for future consultation.

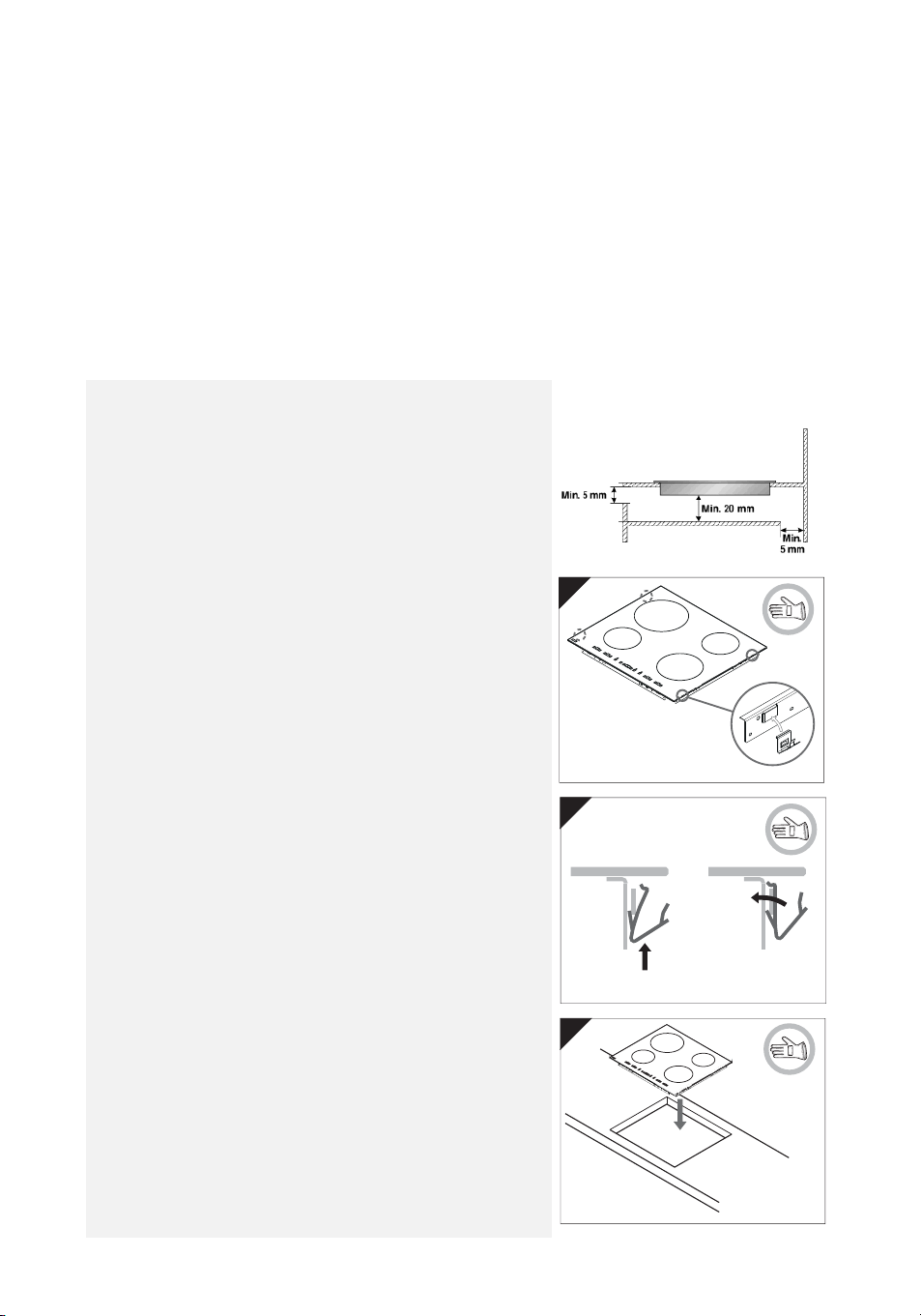

INSTALLATION
Cooktop
• The cooktop must be set into a worktop between
20 mm and 50 mm deep
• There must be nothing between the cooktop and the
oven (cross rails, brackets, etc.).
• The distance between the lower face of the glass
ceramic hob and the cupboard or separating panel
must be at least 20 mm.
• If the cooktop is to be installed next to a column unit,
leave a distance of at least 100 mm from the edge of the
cooktop to the side of the column unit.
•Make an opening in the worktop, respecting the dimensions
indicated in the enclosed product description sheet.
•Apply the supplied gasket to the cooktop (unless it has already
been fitted), after having cleaned its surface.
Important
In order to prevent the electronic circuits from overheating, and
therefore from being damaged, we recommend the following:
• Do not install the cooktop near a dishwasher or
washing machine, so that the electronic circuits do not
come into contact with steam or moisture, which could
damage them.
If an oven (from our range of ovens) is installed beneath the
cooktop, make sure that it is equipped with a cooling system.
If the temperature of the electronic circuits exceeds the
maximum permitted temperature, the cooktop will switch off
automatically; in this case, wait for a few minutes until the
internal temperature of the electronic circuits reaches a tolerable
level, at which point it will be possible to switch the hob on again.
• Switch the hob off after use.
Rear wall
Front
1
2
3

85
ELECTRICAL CONNECTIONS
Electrical connection must be made before connecting the
appliance to the electricity supply. The appliance must be
installed by a qualified electrician who is fully aware of current
safety and installation regulations. Specifically, installation must be
carried out in compliance with the regulations of the local
electricity supply company. Make sure that the voltage shown on
the rating plate is the same as the power supply voltage in your
home. Regulations require that the appliance be earthed: use
conductors (including the earth conductor) of the appropriate
size only. The manufacturer declines all liability for injury to
persons or animals and for damage to property resulting from
failure to observe the above regulations. For the electrical
connection use a H05RR-F type cable as indicated in the table
below:
Power supply voltage.
The appliance must be connected to the electricity supply
by means of an all-pole disconnect switch with minimum
contact gap of 3 mm.
Attention: the power supply cable must be long enough to allow
the cooktop to be removed from the worktop and must be
positioned so as to avoid damage or overheating caused by
contact with the base.

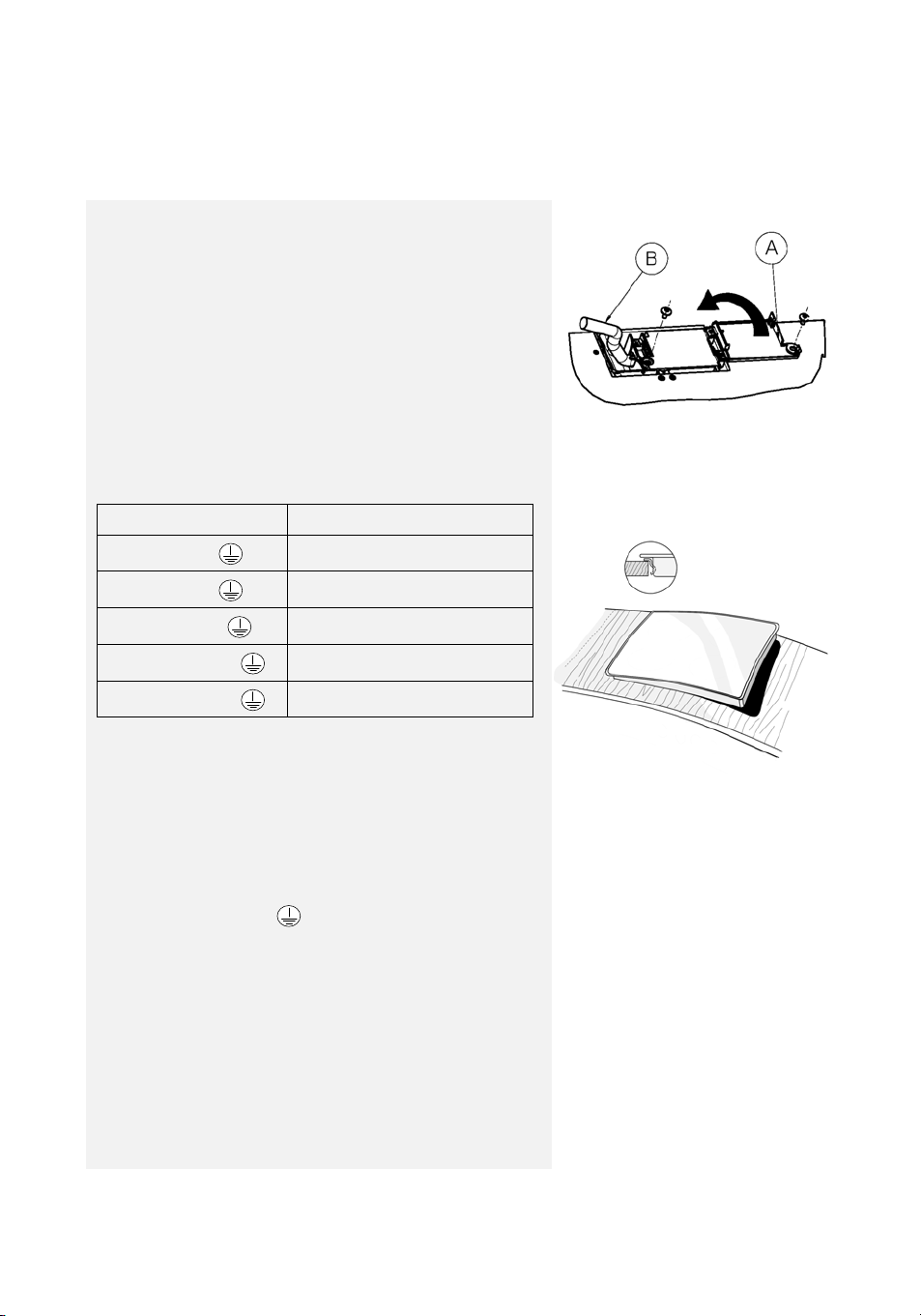

Connecting to the terminal board
Note: the yellow/green earth wire must be connected to the
terminal with the symbol and must be longer than the other
wires.
•Remove approx. 70 mm of the cable sheath from the power
supply cable (B).
•Strip approx. 10 mm of sheath from the wires. Then insert the
power supply cable into the cable clamp and connect the
wires to the terminal block as indicated in the connection
diagram placed close to the terminal block itself.
•Secure the power supply cable (B) by means of the cable
clamp.
•Close the terminal board with the cover (A) securing it with
the screw provided.
•After the electrical connection, fit the hob from the top and
hook it to the support springs, according to the illustration.
Conductors Amount x size
220-240V ~ +3 X 4 mm2
230-240V ~ +3 X 4 mm2 (Australia only)
220-240V 3~ +4 X 1.5 mm2
380-415V 3N ~ +5 X 1.5 mm2
380-415V 2N ~ +4 X 1.5 mm2

86
ENERGY SAVING TIPS
SAFEGUARDING THE ENVIRONMENT
1. Packing
•The packaging material can be 100% recycled, as
confirmed by the recycling symbol ( ).
2. Products
This appliance is marked according to the
European directive 2012/19/EU on Waste
Electrical and Electronic Equipment (WEEE). By
ensuring this product is disposed of correctly, you
will help prevent potential negative consequences
for the environment and human health.
The symbol on the product, or on the
documents accompanying the product, indicates
that this appliance may not be treated as household
waste. Instead it shall be handed over to the
applicable collection point for the recycling of
electrical and electronic equipment.
Disposal must be carried out in accordance with
local environmental regulations for waste disposal.
For more detailed information about treatment,
recovery and recycling of this product, please
contact your local authority, the household waste
disposal service or the shop where you purchased
the product.
Declaration of conformity CE
•This cooktop is suitable for contact with foodstuffs
and complies with EEC (CE) Regulation n. 1935/
2004.
•The appliances are designed solely for use as
cooking appliances. Any other use of the appliances
(e.g. for room heating) is considered as improper
use and potentially dangerous.
•The appliances are designed, built and sold in
compliance with:
•safety objectives of the “Low Voltage” Directive
2006/95/EC (which replaces
73/23/EEC and subsequent amendments);
•the protection requirements of Directive
“EMC” 2004/108/EC;
•Use pots and pans whose bottom diameter is equal to that of
the cooking zone or slightly larger.
•Only use flat-bottomed pots and pans.
•If possible, keep pot lids on when cooking.
•Cook vegetables, potatoes, et. with little water in order to cut
down cooking time.
•A pressure cooker allows you to save even more energy and
time.
NO!

87
CARE AND MAINTENANCE OF THE
GLASS-CERAMIC HOB
TROUBLESHOOTING GUIDE
Cooktop not working
• When pressing the control buttons, did you follow
the instructions in the section “Using the hob” in
the enclosed “Product Description Sheet”?
• Is there perhaps a power failure?
• Did you dry the hob carefully after cleaning it?
1. If a cooking zone has been selected and an “F” or an
“ER” appear on the display followed by a
number, contact the After Sales Service and
inform them.
- With the exception of the message “F03” or
“ER03” that identifies the incorrect
cleaning of the controls area.
- To solve the problem follow the instruction in
the “Cleaning and maintenance of the glass-
ceramic hob” paragraph.
2. If the hob does not work following intensive use,
the hob internal temperature is too high. Wait a
few minutes until the hob cools down.
AFTER SALES SERVICE
Before contacting After Sales Service
1. Try to solve the problem (see “Troubleshooting
Guide”).
2. Turn off the appliance and restart it to see if the
fault is repeated.
If after the above checks the fault still occurs, get
in touch with the nearest After Sales Service.
Please give: a short description of the fault,
•the precise type and model of the appliances,
•the service number (the number after the word
“Service” on the data plate), located under the hob or
on the Product Description Sheet.
•your complete address and phone number.
If any repairs are required, please contact an
authorized After-sales Service as indicated in the
warranty.
In the unlikely event that an operation or repair is
carried out by an unauthorised technician, always
request a certification of the job carried out and insist
on the use of original spare parts.
Failure to comply with these instructions may
compromise the safety and quality of the
product.
Clean the cooktop, when it is cool, after each use. This will
prevent the build-up of dirt and make cleaning easier.
Important: avoid the use of high pressure water or steam
cleaning equipment.
•Use a clean cloth, absorbent kitchen wipes and washing up
liquid or a specific glass ceramic cleaner.
•Remove baked-on dirt with the special scraper tool
(if provided) and specific cleaning products.
•Food spills should be cleaned off before they bake onto the
glass ceramic surface.
•Foods with high sugar content (toffee, fruit juice, jam, etc.)
that boil over while cooking, or spattered sugar stains must be
immediately removed using a scraper.
•Do not use abrasive products, bleach, oven-cleaner spray or
pan scourers.
The cooktop should be treated periodically with a proprietary
brand of protective wax for glass-ceramic hobs.
