2EN
INDEX
INSTALLATION
Installation --------------------------------------------------------------------------------------------- 3
SAFETY
Important safety instructions ----------------------------------------------------------------------- 4
Trouble shooting guide ------------------------------------------------------------------------------ 5
Precautions ---------------------------------------------------------------------------------------------- 6
ACCESSORIES AND MAINTENANCE
Accessories --------------------------------------------------------------------------------------------- 7
Maintenance & Cleaning ----------------------------------------------------------------------------- 8
CONTROL PANEL
Control panel ---------------------------------------------------------------------------------------- 9
Display Description ---------------------------------------------------------------------------------- 10
GENERAL USE
Stand-by mode ----------------------------------------------------------------------------------------- 11
Start Protection / Child Lock ---------------------------------------------------------------------- 11
Pause or Stop cooking ------------------------------------------------------------------------------- 11
Add / Stir /Turn food ---------------------------------------------------------------------------------- 11
Clock ------------------------------------------------------------------------------------------------------ 12
COOKING FUNCTIONS
Jet Start ---------------------------------------------------------------------------------------------------13
Microwave ----------------------------------------------------------------------------------------------14
Keep Warm ----------------------------------------------------------------------------------------------15
Soft/Melt -------------------------------------------------------------------------------------------------16
Reheat ----------------------------------------------------------------------------------------------------17
Chef Menu------------------------------------------------------------------------------------------------18
Manual Defrost ----------------------------------------------------------------------------------------20
Defrost Menu --------------------------------------------------------------------------------------------21
Auto Clean------------------------------------------------------------------------------------------------22
Volume:Silence mode ---------------------------------------------------------------------------------23
ENVIRONMENTAL HINTS
Environmental Hints-----------------------------------------------------------------------------------23
Technical Specications----------------------------------------------------------------- 24

3
EN
Position the microwave oven at a distance from other
heating sources. For sufficient ventilation, there must
be a space of at least 30 cm above the microwave
oven.
The microwave oven should not be placed in a cabi-
net. This microwave oven is not intended to be pla-
ced or used on a working surface lower than 850 mm
above the floor.
PRIOR TO CONNECTING
* Check that the voltage on the rating plate corresponds to the voltage in your home.
*Place the microwave oven on a stable and even surface that is strong enough to hold
the microwave oven and the food utensils you put in it. Use carefully when handling.
*Ensure that the space underneath, above and around the microwave oven is empty to
allow for proper airflow.
*Ensure that the appliance is not damaged. Check that the microwave oven door is clo-
sed firmly against the door support and the internal door seal is not damaged. Empty
the microwave oven and clean the interior with a soft, damp cloth.
*Do not operate this appliance if it has a damaged mains cord or plug, if it is not working
properly, or if it has been damaged or dropped. Do not immerse the mains cord or plug
in water. Keep the cord away from hot surfaces. Electrical shock, fire or other hazards
may result.
*Do not use an extension cord: If the power supply cord is too short, have a qualified
electrician or serviceman install an outlet near the appliance.
*Do not remove the microwave inlet protection plates located on the side of the oven
cavity wall.They prevent grease and food particles from entering the microwave inlet
channel.
*Improper use of the grounding plug can result in a risk of electric shock.
*Consult a qualified electrician or serviceman if the grounding instructions are not
completely understood, or if you have doubts as to whether the microwave oven
is properly grounded.
Prior to using the microwave for the first time, it is recommended to remove the protec-
tive film from the control panel and the cable tie from the power cord.
INSTALLATION
850mm
30cm
WARNING:
NOTE:
AFTER CONNECTING
* The microwave oven can be operated only if the microwave oven door is firmly closed.
*Poor television reception and radio interference may result if the microwave oven is
located close to a TV, radio or aerial.
*The grounding of this appliance is compulsory. The manufacturer will accept no respon-
sibility for injury to persons, animals or damage to objects arising from the non-obser-
vance of this requirement.
*The manufacturers are not liable for any problems caused by the user's failure to obser-
ve these instructions.

4EN
SAFETY
IMPORTANT SAFETY INSTRUCTIONS
Read Carefully And Keep For Future Reference
*If material inside / outside the microwave oven ignite or smoke is emitted, keep
microwave oven door closed and turn the microwave oven off. Disconnect the po-
wer or shut off power at the fuse or circuit breaker panel.
*Do not leave the microwave oven unattended, especially when using paper, pla-
stic or other combustible materials in the cooking process. Paper can char or burn
and some plastics can melt if used when heating foods.
*The appliance and its accessible parts become hot during use. Care should be ta-
ken to avoid touching heating elements inside the microwave oven.
*Children shall be kept away unless continuously supervised.
*The microwave oven is intended for heating foodsand beverages. Drying of food
or clothing and heating of warming pads, slippers, sponges, damp cloth and simi-
lar may lead to risk of injury, ignition or fire.
*This appliance can be used by children and persons with reduced physical, senso-
ry or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved.
*Cleaning and user maintenance shall not be made by children unless they are su-
pervised. Children should be supervised to ensure that they do not play with the
appliance. Keep the appliance and its cord out of reach of children.
*Do not use your microwave oven for cooking or reheating whole eggs with or wi-
thout shell since they may explode even after microwave heating has ended.
WARNING:
WARNING:
* If the door or door seals are damaged, the oven must not be operated until it has
been repaired by a competent person.
WARNING:
* It is hazardous for anyone other than a competent person to carry out any service
or repair operation that involves the removal of a cover which provides protection
against exposure to microwave energy.
WARNING:
* Liquids and other foods must not be heated in sealed containers since they are
liable to explode.
WARNING:
* When the appliance is operated in the combination mode, children should only
use the oven under adult supervision due to the temperatures generated.

5
EN
NOTE:
The appliances are not intended to be operated by means of an external timer or
separate remote-control system.
*Do not leave the microwave oven unattended if you are using a lot of fat or oil since they
can overheat and cause a fire!
*Do not heat, or use flammable materials in or near the microwave oven. Fumes can cre-
ate a fire hazard or explosion.
*Do not use your microwave oven for drying textiles, paper, spices, herbs, wood, flowers
or other combustible materials. Fire could result.
*Do not use corrosive chemicals or vapors in this appliance. This type of microwave oven
is specifically designed to heat or cook food. It is not designed for industrial or labora-
tory use.
*Do not hang or place heavy items on the door as this can damage the microwave oven
opening and hinges. The door handle should not be used for hanging things on.
TROUBLE SHOOTING GUIDE
If the microwave oven does not work, do not make a service call until you have made
the following checks:
*The Plug is properly inserted in the wall socket.
*The Door is properly closed.
*Check your Fuses and ensure that there is power available.
*Check that the microwave oven has ample ventilation.
*Wait for 10 minutes, then try to operate the microwave oven once more.
*Open and then close the door before you try again.
*The turntable and turntable support is in place.
This is to avoid unnecessary calls for which you will be charged.
When calling for Service, please give the serial number and type number of the microwa-
ve oven (see Service label).
Consult your warranty booklet for further advice.
If the mains cord needs replacing it should be replaced by the original mains cord, which is
available via our service organization. The mains cord must only be replaced by a trained
service technician.
NOTE:
WARNING:
* Service only to be carried out by a trained service technician.
*Do not remove any cover.

6EN
PRECAUTIONS
GENERAL
This appliance is intended to be used in household and similar applications such as:
*Staff kitchen areas in shops,offices and other working environments;
*Farm houses;
*By clients in hotels, motels and other residential environments;
*Bed and breakfast type environments.
No other use is permitted (e.g.heating rooms).
*The appliance should not be operated without food in the microwave oven when using
microwaves. Operation in this manner is likely to damage the appliance.
*The ventilation openings on the microwave oven must not be covered. Blocking the air
intake or exhaust vents may cause damage to the microwave oven and poor cooking
results.
*If you practice operating the microwave oven, put a glass of water inside. The water will
absorb the microwave energy and the microwave oven will not be damaged.Note:plea-
se refer to below section“Liquids“.
*Do not store or use this appliance outdoors.
*Do not use this product near a kitchen sink, in a wet basement, or near a swimming
pool, or similar area.
*Do not use the cavity for any storage purposes.
*Remove wire twist-ties from paper or plastic bags before placing bag in the microwave
oven.
*Do not use your microwave oven for deep-frying, because the oil temperature cannot
be controlled.
*Use hot pads or microwave oven mitts to prevent burns, when touching containers,
microwave oven parts, and pans after cooking.
LIQUIDS
E.g. beverages or water. Overheating the liquid beyond boiling point can occur wi-
thout evidence of bubbling. This could result in a sudden boil over of the hot liquid.
To prevent this possibility the following steps should be taken:
*Avoid using straight-sided containers with narrow necks.
*Stir the liquid before placing the container in the microwave oven.
*After heating, allow standing for a short time, stirring again before carefully removing
the container from the microwave oven.
After heating baby food or liquids in a baby bottle or in a baby food jar, always stir
and check the temperature before serving.This will ensure that the heat is evenly dis-
tributed and the risk of scalding or burns can be avoided.
Always refer to a microwave cookbook for detail.Especially, if cooking or reheating
food that contains alcohol.Ensure the lid and the teat is removed before heating.
CAREFUL
NOTE:

7
EN
ACCESSORIES AND MAINTENANCE
ACCESSORIES
* There are a number of accessories available on the market. Before you buy, ensure they
are suitable for microwave use.
*Ensure that the utensils you use are microwave oven proof and allow microwaves to
pass through them before cooking.
*When you put food and accessories in the microwave oven, ensure that they do not
come in contact with the interior of the microwave oven.
*This is especially important with accessories made of metal or metal parts.If accesso-
ries containing metal come into contact with the microwave oven interior, while the
microwave oven is in operation, sparking can occur and the microwave oven could be
damaged.
*Metallic containers for food and beverage are not allowed during microwave cooking.
*For better cooking performance, it is suggested that you need to put the accessories in
the middle of the inner full flat cavity.

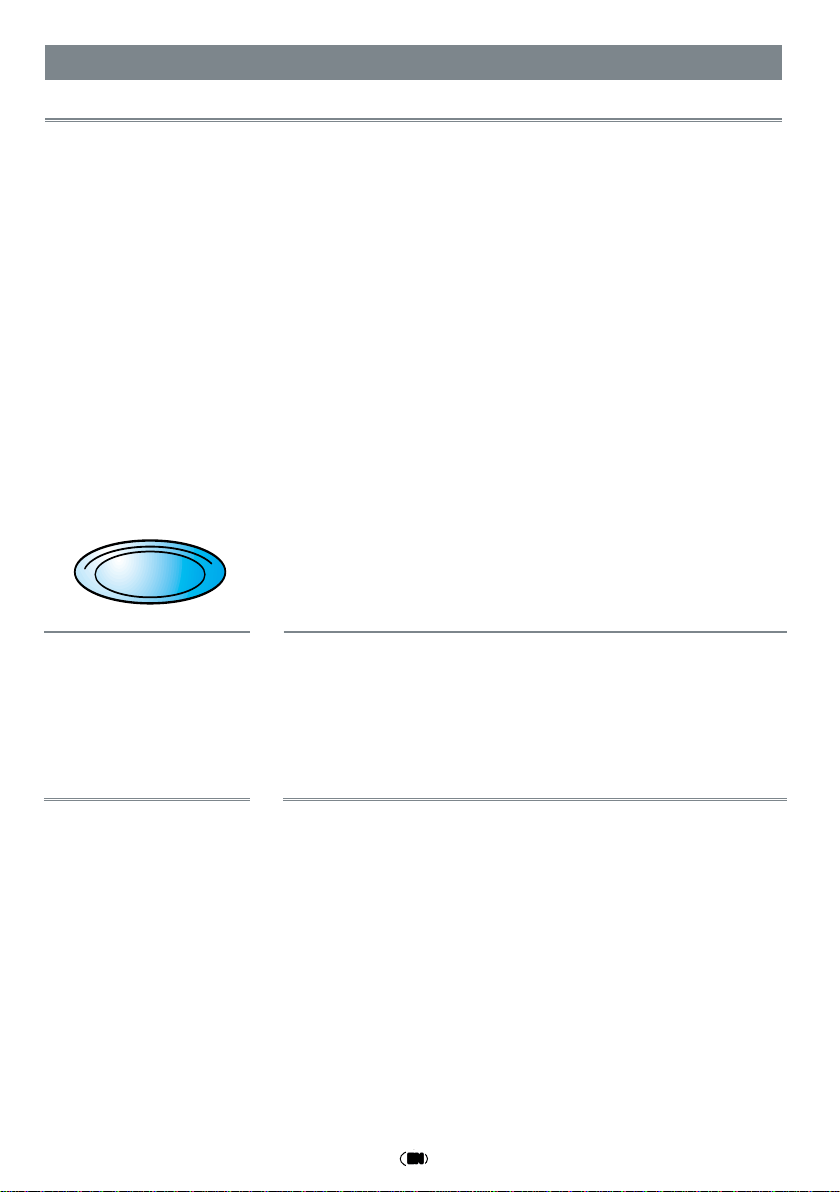

GLASS TURNTABLE
Use the Glass Turntable with all cooking methods. It
collects the dripping juices and food particles that
otherwise would stain and soil the interior of the oven.
• Place the Glass Turntable on the Turntable Support.
TURNTABLE SUPPORT
Use the Turntable Support under the Glass Turntable. Never
put any other utensils on the Turntable Support.
• Fit the Turntable Support in the oven.

8EN
* Failure to maintain the microwave oven in a clean condition could lead to deterioration
of the surface that could adversely affect the life of the appliance and possibly result in
a hazardous situation.
*Do not use metal scouring pads, abrasive cleansers, steel-wool pads, gritty washcloths,
etc. which can damage the control panel, and the interior and exterior microwave oven
surfaces. Use a cloth with a mild detergent or a paper towel with spray glass cleaner.
Apply spray glass cleaner to a paper towel.
*Use a soft and damp cloth with mild detergent to clean the interior surfaces, front and
rear of the door and the door opening.
*Do not use steam cleaning appliances when cleaning your microwave oven.
*The microwave oven should be cleaned regularly and any food deposits removed.
*Cleaning is the only maintenance normally required. It must be carried out with the
microwave oven disconnected.
*Do not spray directly on the microwave oven.
*This microwave oven is designed to operate cooking cycles with a proper container in
a fully flat cavity directly.
*Do not allow grease or food particles to build up around the door,and inlet protection
plates located on the side of the oven cavity wall.
*This product offers an AUTO CLEAN function, which allows for easy cleaning of the
microwave cavity. For more details, please refer to the AUTO CLEAN section on page 22.
MAINTENANCE & CLEANING

9
EN
CONTROL PANEL DESCRIPTION
qMicro
Use to set power level.
wKeep Warm
Touch to set Keep Warm program.
eSoft/Melt
Press this button to access Soft/
Melt cooking mode.
rReheat
tChef Menu
Use to access the automatic reci-
pes menu.
yManual Defrost
To defrost manually.
uioMeat/Poultry/Vegetables
To set defrost menu.
aAuto Clean
Use to clean cavity.
sClock
Use to set the time of day.
dVolume
Use to activate/deactivate beep si-
gnal.
f+/-
Use to input food menu code, clock
time, cook time, cook weight.
gSTOP
Use to pause, stop or cancel cook-
ing.
hJET START
Use to start the cooking.
Use to set quick start program.
Keep Warm
Manual Defr ost
Reheat
FUNCTIONS
Micro
Soft/Melt
Chef Menu
DEFROST
Meat
Poultr y
Vegetables
Auto Clean
Clock
Volume
STOP
JET START
功能
微波
保溫
軟化/溶化
翻熱
食譜
解凍
手動解凍
肉類
家禽
蔬菜
自動清洗
時鐘
音量
停止
極速啟動
q
w
e
r
t
y
i
o
a
s
d
f
u
h
g
f

10 EN
qFood type selection
wMute Icon
eMicrowave power (watt)
rWeight (grams)
tReheat Icon
ySoft/Melt Icon
uChef Menu Icon
iInsert weight
oKeep Warm Icon
aInsert time
sDough Rising Icon
dAuto clean Icon
fDefrost Icon
gMicrowave Icon
we
r
t
y
i
o
a
g
f
d
s
q
u
DISPLAY DESCRIPTION
