INSTALLATION
PRIOR TO CONNECTING
ENSURE THAT THE APPLIANCE IS NOT DAMAGED. Check
that the oven door closes firmly against the
door support and that the internal door seal is
not damaged. Empty the oven and clean the
interior with a soft, damp cloth.
AFTER CONNECTING
THE FIRST TIME THE OVEN IS SWITCHED ON, you will be
asked to set the language and current time.
Follow the instructions under the headline
“Changing settings” in this instructions for use.
The appliance is ready to use after these two
steps have been taken.
The manufacturers are not liable for any
problems caused by the user’s failure to ob-
serve these instructions.
DONOT OPERATE THIS APPLIANCE if it has a damaged
mains cord or plug, if it is not working proper-
ly, or if it has been damaged or dropped. Do
not immerse the mains cord or plug in water.
Keep the cord away from hot surfaces. Electri-
cal shock, fire or other hazards may result.
ENSURE the oven cavity is empty before mount-
ing.
CHECK THAT THE VOLTAGE on the rating plate corre-
sponds to the voltage in your home.
THE OVEN CAN BE OPERATED ONLY if the oven door is
firmly closed.
THE EARTHING OF THIS APPLIANCE is compulsory. The
manufacturer will accept no responsibility for
injury to persons, animals or damage to ob-
jects arising from the non-observance of this
requirement.
MOUNTING THE APPLIANCE
FOLLOW THE SUPPLIED separate mounting in-
structions when installing the appliance.
DONOT USE EXTENSION CORD:
IFTHE POWER SUPPLY CORD IS TOO SHORT, have
a qualified electrician or serviceman in-
stall an outlet near the appliance.

3

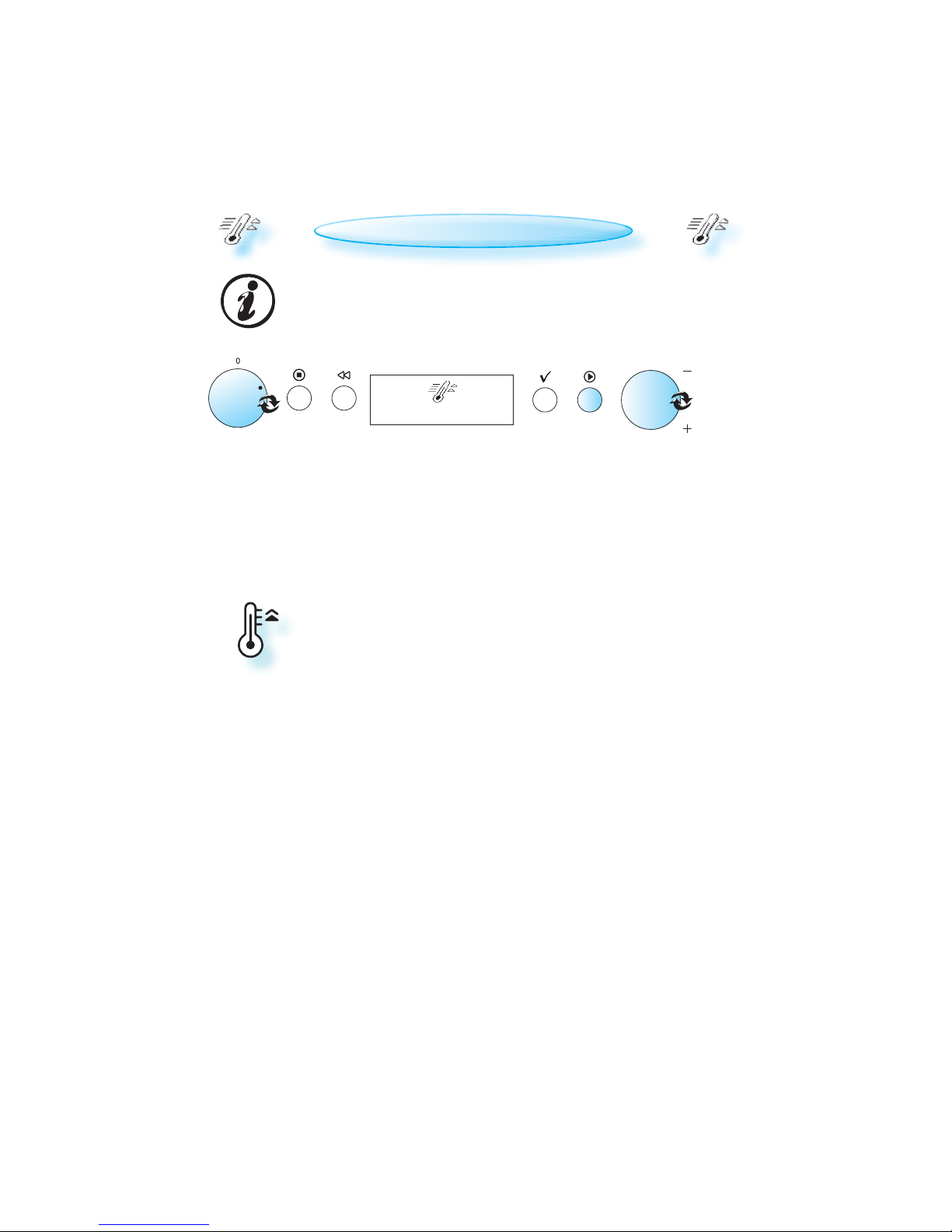

Quick Heat

BEFORE FIRST USE
TURN THE MULTIFUNCTION KNOB until you find the Quick Heat func-
tion.
TURN THE ADJUST KNOB to set the temperature to 250°C.
PRESS THE START BUTTON.
THE OVEN NEEDS TO BE FULLY HEATED (250 °C)BEFORE FIRST USE (cooking food).
PLEASE USE THE FOLLOWING STEPS to carry out this proceedure.
WHEN THE TEMPERATURE IS REACHED the oven keeps the set temperature
for 10 minutes before switching off.
LET THE OVEN COOL TO ROOM TEMPERATURE.
WIPE AND CLEAN THE OVEN cavity with a damp kitchen paper.

4
4
IMPORTANT SAFETY INSTRUCTIONS
DONOT HEAT, OR USE FLAMMABLE MATERIALS in or
near the oven. Fumes can create a fire hazard
or explosion.
DONOT USE YOUR MICROWAVE oven for drying
textiles, paper, spices, herbs, wood, flowers,
fruit or other combustible materials. Fire could
result.
DONOT OVER-COOK FOOD. Fire could result.
DONOT LEAVE THE OVEN UNATTENDED, especially
when using paper, plastic or other combustible
materials in the cooking process. Paper can
char or burn and some plastics can melt if used
when heating foods.
IFMATERIAL INSIDE / OUTSIDE THE OVEN SHOULD IGNITE
OR SMOKE IS OBSERVED, keep oven door closed and
turn the oven off. Disconnect the power cord
or shut off power at the fuse or circuit breaker
panel.
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
DONOT USE YOUR MICROWAVE oven
for heating anything in airtight
sealed containers. The
pressure increases and may
cause damage when opening or may explode.
EGGS
DONOT USE YOUR MICROWAVE oven for cooking
or reheating whole eggs with or
without shell since they may
explode even after microwave
heating has ended.
IFTHE MAINS CORD NEEDS REPLACING it should be
replaced by the original mains cord, which is
available via our service organization.
The mains cord may only be replaced
by a trained service technician.
DONOT USE corrosive chemicals or vapors in
this appliance. This type of oven is specifically
designed to heat or cook food. It is not
designed for industrial or laboratory use.
THE APPLIANCE AND ITS ACCESSIBLE PARTS MAY BECOME
HOT during use.
CARE SHOULD BE TAKEN to avoid touching heating
elements.
CHILDREN LESS THAN 8 YEARS OF AGE shall be kept
away unless continuosly supervised. SERVICE ONLY TO BE CARRIED OUT BY ATRAINED
SERVICE TECHNICIAN. It is hazardous for
anyone other than a trained person to
carry out any service or repair operation,
which involves the removal of any cover,
which gives protection against exposure to
microwave energy.
DONOT REMOVE ANY COVER.
WARNING!
THE DOOR SEALS AND THE DOOR SEAL AREAS must
be regularly inspected for damage. If these
areas are damaged the appliance should not
be operated until it has been repaired by a
trained service technician.
THIS APPLIANCE CAN BE USED by children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities or
lack of experience and knowledge if they
have been given supervision or instruction
concerning use of the appliance in a safe way
and understand the hazards involved.
USE, CLEANING AND USER MAINTENANCE shall not be
made by children unless they are aged from 8
years and above and supervised.
CHILDREN SHALL NOT PLAY with the appliance.

5
THE APPLIANCE SHOULD NOT BE OPERATED without food
in the oven when using microwaves. Operation in
this manner is likely to damage the appliance.
IFYOU PRACTICE OPERATING the oven, put a glass
of water inside. The water will absorb the mi-
crowave energy and the oven will not be dam-
aged.
REMOVE WIRE TWIST-TIES from paper or
plastic bags before placing bag in
the oven.
DEEPFRYING
DONOT USE YOUR MICROWAVE oven for deep-frying,
because the oil temperature cannot be
controlled.
LIQUIDS
E.G. BEVERAGES OR WATER. Overheating the liquid
beyond boiling point can occur
without evidence of bubbling.
This could result in a sudden
boil over of the hot liquid.
To prevent this possibility the
following steps should be taken:
1. Avoid using straight-sided containers with
narrow necks.
2. Stir the liquid before placing the container
in the oven and let the teaspoon remain
in the container.
3. After heating, allow standing for a short
time, stirring again before carefully re-
moving the container from the oven.
CAREFUL
ALWAYS REFER to a microwave cookbook for de-
tails. Especially, if cooking or reheating food
that contains alcohol.
AFTER HEATING BABY FOOD or liquids in a
baby bottle or in a baby food
jar, always stir and check the
temperature before serving.
This will ensure that the heat is evenly distributed
and the risk of scalding or burns can be avoided.
Ensure the Lid and the Teat is removed be-
fore heating!
USE HOT PADS OR OVEN MITTS to prevent burns,
when touching containers, oven parts, and
pan after cooking.
DONOT USE THE CAVITY for any storage purposes.
PUSH  PUSH KNOBS
THE KNOBS OF THIS OVEN are aligned
with the buttons on the pan-
el, at delivery.
The knobs will slide out if pushed
and their various functions can be
accessed. It is not necessary to have
them petruding from the panel
during operation.
Simply push them back into the
panel when you are done with the
setting and continue to operate the oven.
TILT PROTECTION
THE WIRE SHELF has a small hump which is to
always be facing upwards. It is used
for tilt protection when using the
Wire shelf alone.
ENSURE that the
Tilt protection
hump is always
facing backwards when the Wire shelf is
pushed in.
LIFT THE FRONT OF THE SHELF lightly upwards when
it is stopped by the tilt protection and gently
pull to release it.
TI
TI
LT
LT
P
P
RO
RO
T
TE
CTION
GENERAL
THIS APPLIANCE IS DESIGNED FOR DOMESTIC USE ONLY!
IMPORTANT PRECAUTIONS
THIS APPLIANCE IS INTENDED for heating food and
beverages. Drying of food or clothing and
heating of warming pads, slippers, sponges,
damp cloth and similar may lead to risk of
injury, ignition or fire.
THIS APPLIANCE IS INTENDED to be used built-in. Do
not use it freestanding.

6
ACCESSORIES
GENERAL
ENSURE THAT THE UTENSILS YOU USE are oven proof
and allow microwaves to
pass through them before
cooking.
THERE ARE a number of accessories available on
the market. Before you buy, ensure they are
suitable for microwave use.
BAKING PLATE
USE THE BAKING PLATE when
cooking or baking
with Convection Bake.
NEVER USE IT in combination with
microwaves.
GLASS DRIP TRAY
USE THE GLASS DRIP TRAY beneath the wire shelf
when using the Grill or Grill
and Microwaves in
combination. It may
also be used as a cooking
utensil or as a bak-
ing plate when
using Convection
Bake combined with Micro-
waves.
THE GLASS DRIP TRAY
is used to collect the
dripping juices and
food particles that
otherwise would stain and soil the interior of
the oven.
ALWAYS USE THE GLASS DRIP TRAY when using mi-
crowaves. It shall be placed on shelf level 1.
Avoid placing vessels directly on the oven bot-
tom.
WIRE SHELF
USE THE WIRE SHELF with all cooking methods,
except when using the Microwave function
only. The Wire shelf allows hot air circulation
around the food.
When you put food directly on the Wire shelf,
place the Glass drip tray under it.
ENSURE the tilt protection hump
is facing outwards when you
push the glass driptray & Wire
shelf combination into the
oven.
The Wire shelf may be used
with Convection Bake . It may also be used
when you combine these functions with Mi-
crowaves.
LEVEL INDICATOR
WHEN SOME FUNCTIONS ARE SELECTED, the level in-
dicators will flash and lit. First the levels possi-
ble to use with this function flashes briefly and
then the recommended lev-
el to use with the function
is lit. In this example the lev-
el 1 & 3 would flash briefly
leaving the recommended
level 2 lit.




7
Safety Lock is activated
close door and press
Key Lock
has been activated
Key Lock
has been deactivated
19:30
START PROTECTION
THE START PROTECTION FUNCTION IS ACTIVATED ONE
MINUTE AFTER the oven has returned to
“stand by mode“.
THE DOOR MUST BE OPENED AND CLOSED e.g. putting
food into it, before the safety lock is released.
KEY LOCK
PRESS THE BACK AND OK buttons simultaneously and keep pressed until two beeps are heard
(3 seconds).
USE THIS FUNCTION to hinder children from using the oven unattended.
A CONFIRMATION MESSAGE is displayed for 3 seconds be-
fore returning to the previous view.
WHEN THE LOCK IS ACTIVE, all buttons and knobs except
the off button are non-responsive.
THE KEY LOCK ID DEACTIVATED by pressing the off button
or opening the door.



8
DONENESS
WEIGHT
END TIME
COOK TIME
Normal
Steamed Fillets
30:00300g
19:30
DONENESS
WEIGHT
Light
Fruit Pie
400g
DONENESS
Extra
Rolls
AMOUNT
8
Please add milk
Press when done
Cooking nearly finished
Please check on food
Please use
baking plate
Please use
high wire rack
Please stir food
Please turn food
Temperature reached
Insert food and press
DONENESS (AUTO FUNCTIONS ONLY)
DONENESS IS AVAILABLE in most of the auto func-
tions. You have the possibility to personally
control the end result through the Adjust do-
neness feature. This feature enables you to
achieve higher or lower end temperature com-
pared to the default standard setting.
WHEN USING one of these functions the oven
chooses the default standard setting. This set-
ting normally gives you the best result. But if
the food you heated became too warm to eat
at once, you can easily adjust this before you
use that function the next time.
WHEN USING SOME OF THE FUNCTIONS the oven may
stop and prompt you to perform an action or
simply advice on which accsessoire to use.
MESSAGES
THIS IS DONE BY SELECTING ADONENESS LEVEL with the
Up & Down buttons before pressing the Start
button.
WHEN AMESSAGE APPEAR:
Open the door (if needed).
Perform the action (if needed).
Close the door and restart by pressing the
Start button.
DONENESS
LEVEL EFFECT
EXTRA YIELDS HIGHEST END TEMPERATURE
NORMAL DEFAULT STANDARD SETTING
LIGHT YIELDS LOWEST END TEMPERATURE

9
Shortcut
Your most used cooking functions
French Fries
Shortcut
Shortcut
Shortcut
Your most used cooking functions
Pan Pizza
Lasagna
French Fries
Your most used cooking functions
Residual Heat
168°C
Active Cooling
168°C
TEMPERATURE
END TIME
COOK TIME
180°c 35:00
--:--
Oven is Hot!
Pan Pizza
Lasagna
French Fries
Your most used cooking functions
COOLING DOWN
WHEN AFUNCTION IS FINISHED, the oven may carry
out a cooling procedure. This is normal.
After this procedure the oven switches off au-
tomatically.
IFTHE TEMPERATURE IS HIGHER THAN 100°C, the cur-
rent cavity temperature is displayed. Be careful
not to touch the cavity inside when removing
food. Use oven mittens.
IFTHE TEMPERATURE IS LESS THAN 50°C, the 24 hour
clock is displayed.
SHORTCUTS
TOFAVOR THE EASE OF USE, the oven automatical-
ly compiles a list of your favorite shortcuts for
you to use.
WHEN YOU BEGIN using your oven, the list con-
sists of 10 empty positions marked “shortcut”.
As you use the oven over time, it will automat-
ically fill in the list with shortcuts to your most
frequently used functions.
WHEN YOU ENTER THE SHORTCUT MENU, the function
you have been using mostly, will be pre-select-
ed and positioned as shortcut #1.
NOTE: the order of functions presented in the
shortcut menu will automatically change ac-
cording to your cooking habits.
TURN THE MULTIFUNCTION KNOB until Shortcut is displayed
.
TURN THE ADJUST KNOB to choose your favorite shortcut. The most frequently used function is
pre-selected.
PRESS THE OK BUTTON to confirm your selection.
TURN THE ADJUST KNOB / OK BUTTON to make the needed adjustments.
PRESS THE START BUTTON.




10
Settings
Language
Time
Eco Mode
Appliance and display settings
English
Français
Turkçe
Please select language
Language
has been set
WHEN THE APPLIANCE IS FIRST PLUGGED IN it will ask you to set the Lan-
guage and 24 hour Clock.
AFTER APOWER FAILURE the Clock will flash and needs to be reset.
YOUR OVEN HAS a number of functions which can be adjusted to your
personal taste.
CHANGING SETTINGS
TURN THE MULTIFUNCTION KNOB until Settings is shown.
TURN THE ADJUST KNOB to choose one of the settings to adjust.
LANGUAGE
PRESS THE OK BUTTON.
TURN THE ADJUST KNOB to choose one of the available lan-
guages.
PRESS THE OK BUTTON again to confirm the change.
THE APPLIANCE IS TURNED ON OR OFF
using the On/Off button or simply
by turning the Multifunction Knob.
ON/OFF
WHEN THE APPLIANCE IS TURNED OFF. The 24 hour
clock is displayed.
WHEN THE APPLIANCE IS TURNED ON, all
buttons & knobs function normal-
ly and the 24 hour clock is not dis-
played.
NOTE: The oven behavior may differ from the
above described, depending on the ECO func-
tion being turned ON or OFF (see ECO for more
information).
THE DESCRIPTIONS IN THIS IFU assume that the
oven is turned ON .



