Use&CareGuide
number plale
(behind oven
door)
Grease fllterr
(not shown)
Oven vent
Surface burners w I7
\.. _-. -_-. - r--
Inslde)
Removable
rlcrege drawer
llilaratlrra ME
Upper vent
UPPW
mlcrowave
oven conlrols
Automatic
Mealtlme~~
controls
Cooktop
- light
‘I \
Surface burner
and ..-
I
NOTE: Use and care instructions I
for the upper microwave oven ai;
provided in a separate manual. I
GASCOOKTOPAND
SELF-CLEANINGLOWEROVEN
SM988PES

Contents
Page
Important Safety Instructions ........3
Using Your Cooktop And Lower
Oven ................................................ .6
Using the surface burners ............. .6
Dual-level exhaust vent system ..... .
Setting the clock.. .......................... -8
Using the Minute Timer ................. .8
Using the lower oven controls ....... .9
Baking/roasting .......................... .9
Broiling.. .................................... 10
Using the automatic
MEALTIMEFF control ............ .13
The oven vent .............................. 16
The storage drawer ..................... .16
Carlng For Your Cooktop And
Lower Oven ................................... 18
Control panel and knobs ............. .18
Surface burner grates and
reflector pans.. .......................... 19
Surface burners.. ......................... .20
Removable cooktop .................... .21
Using the Self-Cleaning cycle ......2 2
Cleaning tips ............................... .27
Caring for the filters.. ................... .28
Using and replacing
the light bulbs .......................... .30
If You Need Servlca
Or Asslstanca ............................... .33
Whlrlpool Mlcrowave Oven/
Range Product Warranty ..............36
01991 Whirlpool Corporation
Thark you for buylng a Whirlpool
appllanca. Please complete and mall
the Owner Ffeglstratlon Card pr*
vkled wfth this product. Then
complete the form below. Have this
information ready if you need service or
call with a question.
l Copy model and serial numbers from
plate (located as shown) and pur-
chase date from sales slip.
l Keep this book, the Cooking Guide
and sales slip together in the Liiera-
ture Pac.
Model Number
Serial Number
Purchase Date
--
Servlca Company Phone Number
You are responsible for:
l Installing and leveling the range on a
floor strong enough to support its
weight, and where it is protected from
the elements. (See the Installation
Instructions.)
l Making sure the range is not used by
anyone unable to operate it properly.
l Properly maintaining the range.
l Using the range only for jobs ex-
pected of a home range.
l Making sure the range is secured by
properly installed anti-tip bracket(s),
with rear leveling leg(s) positioned
under bracket(s).

ImportantSafetyInstructions
Gas ranges have been thoroughly tested for safe and efficient operation. However,
as with any appliance, there are specifii installation and safety precautions which
must ba folbwed to ensure safe and satisfactory operation.
To reduce the rlsk of fire, electrlcal shock, injury
to persons, or damage when using the range,
follow basic precautions, lncludlng the following:
l FOR YOUR SAFETY.
DO NOT STORE OR USE GASOLINE OR OTHER
FLAMMABLE VAPORS AND LIQUIDS IN THE
VICINITY OF THIS OR ANY OTHER APPLIANCE.
THE FUMES CAN CREATE A FlRE HAZARD OR
EXPLOSION.
l FOR YOUR SAFETY.
IF YOU SMELL GAS:
1. OPEN WINDOWS.
2. DON’T TOUCH ELECTRICAL SWITCHES.
3. EXTINGUISH ANY OPEN FLAMES.
4. IMMEDIATELY CALL YOUR GAS SUPPLIER.
IMPROPER INSTALLATION, ADJUSTMENT,
ALTERATION, SERVICE OR MAINTENANCE CAN
CAUSE INJURY OR PROPERTY DAMAGE. REFER
TO THIS MANUAL. FOR ASSISTANCE OR
ADDITIONAL INFORMATlON CONSULT A
QUALIFIED INSTALLER, SERVICE AGENCY,
MANUFACTURER (DEALER) OR THE GAS
SUPPLIER. - IMPORTANT -
TO THE INSTALLER: PLEASE LEAVE THIS
INSTRUCTION BOOK WITH THE UNIT.
TO THE CONSUMER: PLEASE READ AND KEEP
THIS BOOK FOR FUTURE REFERENCE.
3

EtoFunASafety Instructions
l Install or locate the range only in
accordance with the provided
Installation Instructions. lt is
recommended that the range be
installed by a qualified installer.
The range must be properly
connected to the proper gas
supply and checked for leaks. The
range must also be properly
connected to electrical supply and
grounded.
l To reduce the risk of tipping of the
appliance, the appliance must be
secured by properly installed anti-
tip bra&et(s). To ched< if the
bracket(s) is installed property,
remove the storage drawer (see
page 16) and verify that the anti-tip
bracket(s) is engaged.
l Gas fuets and their usa in appli-
ances can cause minor exposures
to benzene, formaldehyde, carbon
monoxide and soot, primarily from
incomplete combustion. Significant
exposure to these substances can
cause cancer or reproductive
harm. Properly adjusted burners
with a blue, rather than a yellow,
flame will minimize incomplete
combustion. Venting with a hood
or an open window will further
minimize exposure.
l Do not operate the range if it is not
working properly, or il it has been
damaged.
l Do not use the range for warming
or heating the room. Persons
could be burned or injured, or a
fire could start.
l Do hot attempt to light the oven
burner during a power failure.
Personal injury could result.
l Use the range only for its intended
use as described in this manual.
l Do not wear loose or hanging
garments when using the range.
They could ignite if they touch a hot
surface burner and you could be
burned.
l Do not touch surface burners,
areas near burners or interior
surfaces of oven. Areas near
surface burners and interior
surfaces of an oven become hot
enough to cause burns. During
use, do not touch, or let clothing or
other flammable materials contact
surface burners, areas near
surface burners or interior surfaces
of oven. Other surfaces of the
range may become hot enough to
cause burns; such as, the oven
vent opening, the surface near the
vent opening, the cc&top, the
oven door and window.
l Make sure the utensils you use are
large enough to contain food and
avoid boilovers and spill-avers.
Heavy splattering or spillovers left
on a range can ignite and burn
you. Pan size is especially
important in deep fat frying.
l Turn pan handles inward, but not
over other surface burners. This
will help reduce the chance of
burns, igniting of flammable
materials, and spills due to
bumping of the pan.
l Use only dry potholders. Moist or
damp potholders on surface
burners may result in burns from
steari. Do not let potholder touch
surface burners. Dc not use a
towel or bulky cloth for a potholder.
lt could catch on fire.

l Check to be sure glass cooking
l Do not store things children might
utensils are safe for use on the want above the range. Children
range. Only certain types of glass, could be burned or injured while
glassceramic, ceramic, earthen- dimbing on it.
ware or other glazed utensils are
l Do not’leave children abne or
suitable for ranges without breaking unattended in area where the
due to the sudden change in range is in use. They should never
temperature. be allowed to sit or stand on any
l Do not use decorative covers or part of the range. They could be
trivets over the surface burners. burned or injured.
l Do not heat unopened containers.
l Never use a match or other flame
They could explode. The hot to look for a gas leak. Explosion
contents could cause bums and and injury could result.
container particles could cause
l Know where your main gas shut off
injury. valve is located.
l Grease is flammable and shouM be
handled carefully. Let fat cool before
l Keep range vents unobstructed.
attempting to handle it. Do not allow . Clean your range regularfy. See
grease to collect around cooktop or care and deaning instructions in
in vents. Wipe spill-avers immedi- this manual.
ately.
l Be sure all range parts are cool
l Do not use water on grease fires. before deaning.
Never pick up a flaming pan.
l Do not dean door heat seal. lt is
Smother flaming pan on range by essential for a gc0d seal. Care
covering with a well-fiied Iii, codcie should be taken not to rub,
sheet or flat tray. Flaming grease damage,,or move the seal. Clean
outside of pan can be extinguished only parts recommended in this
with baking soda or, if available, a Use and Care Guide.
multipurpose dry chemical or foam- * Do not use oven deaners. No
type extinguisher. commercial oven cleaner or oven
l Never leave surface burners liner protective coating of any kind
unattended at high heat settings. should be used in or around any
A boilover could result and cause part of the oven.
smoking and greasy spillovers that
l Before selfcleaning the oven,
may ignite. remove broiler pan, broiler grid,
l Make sure surface burners are off oven racks and other utensils. Do
when you are finished, and when not use your oven to clean
you are not watching. miscellaneous parts.
l Use care when opening oven door.
l Do not repair or replace any part of
Let hot air or steam escape before the range unless specifiilly
removing or replacing food. recommended in this manual. All
l Always position oven rack(s) in other servicing should be referred
desired location while oven is cool. to a qualified technician.
l Do not store flammable materials on
l Disconnect the electrical supply
or near the range. They could before servicing the range.
explode or burn. -
- SAVE THESE INSTRUCTt;OLVS -
5

UsingYourCooktop
Andlower Oven
Surface burner/
market
Usingthesurfaceburners
Control knobs must be pushed In,
then turned to the LlTE position. The
diddng sound is the ignition sparking.
To stop the dicking sound after the
burner lights. turn the control knob back
to a desired setting. The a~ntrol knob
has stops for HI, medium and low,
however, ii can be set anywhere
between HI and OFF.
Surface burner markers
The solid dot in the surfaca burner
marker shows whii surface burner is
turned on by that knob.
Until you get used to the settlngs,
use the followlng as a gulde. For besl
results, start cookirg at the high
settings; then turn the control knob
down to continue cooking.
Use LITE to light the burner. After Ihe
burner lights, turn control back to a
desired setting to stop the clicking of the
ignition.
Use HI to start foods ding; to
bring iic~ids to a boil.
Usa a medlum setting to continue
making or to fry chicken or pancakes;
for gravy, pudding and icing; to a&
large amounts of vegetables.
Use a low setting to keep food warm
until ready to serve.
NOTE: Do not cook with the control in
the LE position.

In case of a prolonged power fallure:
Surface burners can be manually
lighted. t-fold a lighted match near a
burner and turn the control to the LlTE
position. After the burner lights, turn the
control to the desired setting.
Bum, Fire and Exploslon Hazard
l Burn& flame should not extend
beyond the edge of the cooklng
utensfl. The flame can burn you
and cause poor cooklng results.
l Be sure all control knobs are
turned to OFF when you are not
cooklng. Someone could be
burned or a flre could start lf a
burner ls acckfentally left ON.
l If the flame should go out while
cooklng, or If there Is a strong
gas odor, turn the burners OFF.
Walt flve mlnutes for the gas
odor to dlsappear, before
rellghtlng burner. If gas odor Is
still present, see safety note on
page 3. Fallure to follow these
precautions could result In
explosion or fire.
l Do not attempt to light the oven
burnar gurlng a power fallure.
Perscqal Injury could result.
Dual-level exhaustvent
system
Your Flange/Microwave Combination
has a dual-level exhaust vent system
for removal of steam, grease and
cooking odors. You may use the lower
vent alone or add the top vent for
maximum venting.
The lower vents are located above
the cooktop (underneath the micro-
wave oven). The top vent is located
above the microwave oven (behind the
Upper Vent Door).
7

Uslng Your Cooktop And Lower Oven
Contlnued
To use the lower vents:
l Push the Exhaust Switch down to
the right for HIGH fan speed.
l Push the Exhaust Switch down to
the left for LOW fan speed.
l Center the Exhaust Switch to turn
the vent system off.
To use both vents:
l Raise the Upper Vent Door above
the microwave oven.
l Turn on desired fan speed by
following directions above.
NOTE: If the temperature gets too hot
around the microwave oven when it is
in use, the exhaust fan will automatl-
tally turn on, at the HIGH setting. lf
the exhaust fan has already been
manually switched on at the LOW
setting, excessively hot temperatures
will cause the fan to change to the
HIGH setting. During automatic
operation. the exhaust fan cannot be
turned off with the Exhaust Switch.
The fan will stay on until the area cools
down or until the microwave oven
shuts off. This protects the oven.
Settingthe clock
The Clock is located at the top of the
upper microwave oven control panel.
To set the Clock, follow the instruc-
tions found in the Upper Microwave
Oven Use and Care Guide.
Usingthe MinuteTimer
The Minute Timer on the upper
microwave oven control panel can be
use&for any timed cooking. To us8
the Mlnute Timer, follow the instruc-
tions found in the Upper Microwave
Oven Use and Care Guide.

Usingthe lower oven
controls
The lower oven is always set with two
knobs:
- The Oven Selector
- The Oven Temperature Control
Both must be on a setting for the
lower oven to heat.
Baklnglrosstlng
1.
Positbn’the rack(s) properly before
turning on the oven. To change rack
posltlon, pull rack out to stop, raise
front edge and lift out.
When using one rack, the rack
should be placed so the top of the
food will be centered in the oven.
Always leave at least 1 1R to 2
inches (4-5 cm) between the sides of
the pan and the oven walls and other
oans. For more information. see the
&oking Guide.
Set tha Gven Selector to BAKE.
Push’in and turn the Oven Tem-
perature Control to the temperature
you want. The oven burner will
automatically light in SO-60
seconds.
When baking, preheat the oven for
10 minutes. (Preheating is not
needed when roasting.) The oven is
preheated when the Oven Indicator
Light first goes off. Put the food in
the oven.
NOTE: Do not place food directly on
the oven bottom.

Uslng Your Cooktop and Lower Oven
Continued
5. During baking/roasting, the oven
burner will turn on and off to
maintain the temperature setting.
The Oven Indicator Light will turn
ori and off with the burner.
(cVhen baking/roasting is done,
turn both the Oven Selector and
the Oven Temperature Control to
OFF.
Brolllng
Refer to the Cooking Guide for
additional broiling information. The
Blanket-O-Flame” Broiler uses
infrared rays to cook the food. Infrared
rays create fast, searing heat and
consume most smoke and spatters.
Always broil wlth the oven door
closed.
1.
2.
3.
4.
5.
Position the rack before turning the
oven on. Refer lo “Broiling rack
position chart” on page 12 for
recommended rack positions.
Put the broiler pan and food on the
rack.
Completely close the oven door to
ensure proper broiling tempera-
tures.
Set the Oven Selector to BROIL.
Push in and turn the Oven Tem-
perature Control to BROIL. The
broiler will automatically light in
50-60 seconds.
When broiling is done, turn both the
Oven Selector and the Oven
Temperature Control to OFF.
NOTE: Do not preheat the broiler
before using.
10

Brolllng tlps
l Use the broiler pan and grid for
broiling. They are designed to drain
excess liquid and faf away from the
cooking surface to help prevent
spatter, smoke or fire.
l lf you broil small quantities, you may
want to use a small broiler pan. They
are available in the housewares
section of many departmenf stores.
l Rack position determines how
infrared rays cook your food. The
lower the position, the more broiler
grid area covered by the rays. See
“Broiling rack position chart’ on page
12 for more information.
l To sear meat, place broiler pan at
one of the higher rack positions so
that meat is very near the flame.
l Small steaks, hamburger patties,
etc., may be broiled in the higher
rack positions.
l To cook large steaks and other thick
cuts of meat well done, move them
to a lower rack position after searing.
l Refer to a broiling chart in a reliable
cookbook for correct broiling times.
l After broiling, remove the broiler pan
from the oven when you remove the
food. Drippings will bake on the pan
il it is left in the heated oven.
11

Uslng Your Cooktop And Lower Oven
Continued
Flre Hazard
l Place meat the correct distance
from the burner. Meat placed
too close to the burner may
spatter, smoke, burn or catch
flre durlng brolllng.
l To ensure adequate grease
drelnage, do not use wokle
sheets or slmllar pans for
brolllng. Also, wverlng the
broiler grld wlth foll Is not
recommended. Poor dralnage
of grease may resutt In fire. If
fo!l ls used, cut slits In foll to
correspond wlth all openlngs In
broller grld. Grease can then
draln away and cool In Pan.
Brolllng rack posltlon chart
’RACK POSlllON
FROM BOlTOM FOOD
5
Rare steaks and
hamburgers
4 Medium steaks
and fish
Well-done foods
3 such as chicken,
lobster, ham
slices and pork
chops
12

Usin theautomatic
MEA~TIMER”control
The automatic MEALTIMER” control is
designed to turn the bwer oven on and
off al times you set, even when you are
not around.
Automatic baking/roasting is ideal for
foods which do nof require a preheated
oven such as meats and casseroles.
Do not use the automatic cycle for
cakes, cookies, etc. _ underwoklng
will result.
To delay start and stop
automatkally:
1. Position the oven r&(s) properly,
and place the food in the oven.
2. Make sure the clock on the
mlcrowave oven display ls set to
the correct tlme of day. (See the
Upper Microwave Oven Use and
Care Guide for instructions.)
13

Uslng Your Cooktop And Lower Oven
Contlnued

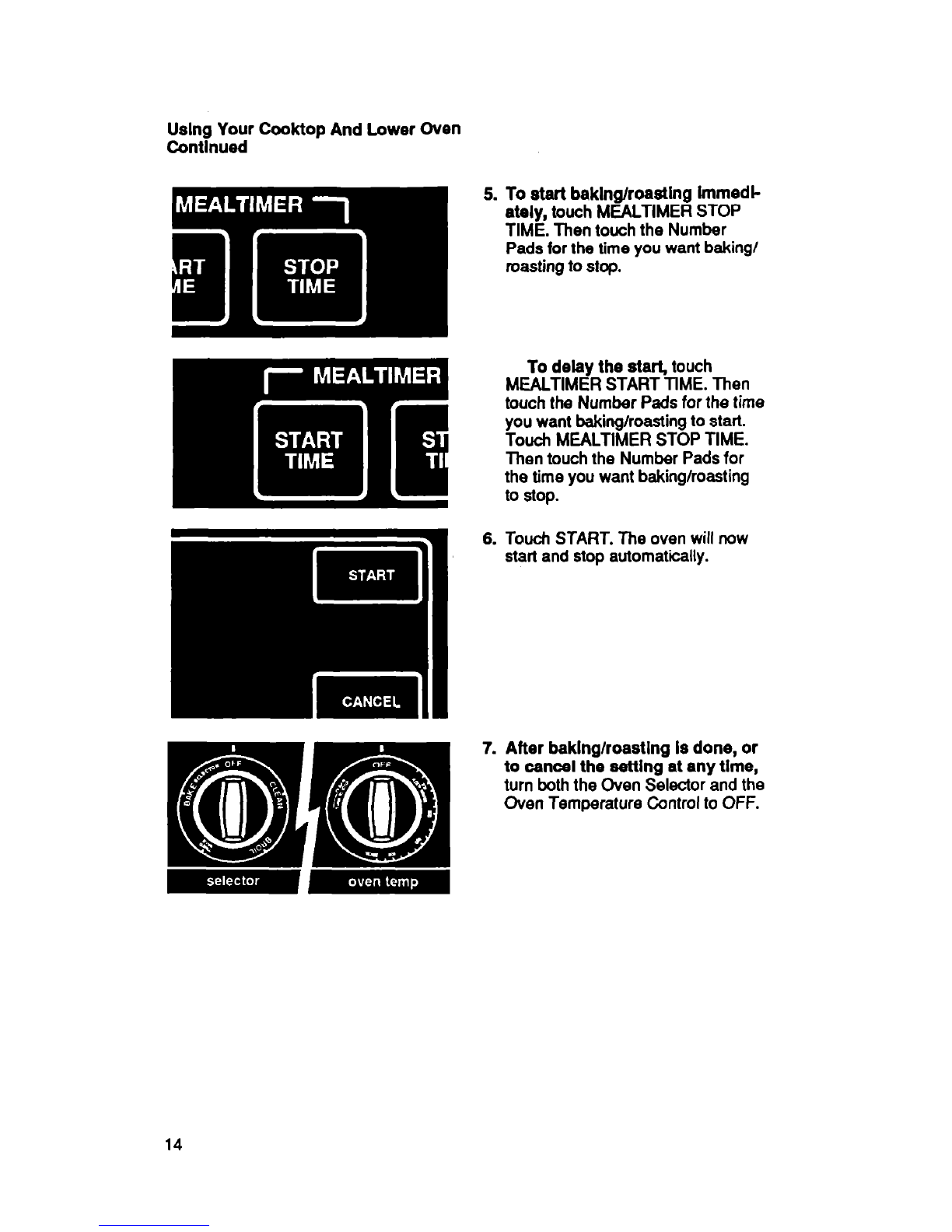

m
\
5. To start baklng/roastlng lmmedl-
atsly, touch MEALTIMER STOP
TIME. Then touch the Number
Pads for the time you want baking/
0’ roasting to stop.
To delay the start, touch
MEALTIMER START TIME. Then
touch the Number Pads for the time
you want baking/roasting to start.
Touch MEALTIMER STOP TIME.
Then touch the Number Pads for
the time you want baking/roasting
to stop.
14

To cancel the MEALTIMER”
control wttlng:
1. Touch MEALTIMER STOP TIME.
2. Touch CANCEL.
3. Turn the Oven Selector and Oven
Temperature Control to OFF.
To avold sickness and food waste
when uslng the MEALTIMElY
wntrol:
l Do not use foods that will spoil
while waltlng for woklng to
start, such as dishes wlth milk
or eggs, cream soups, and
cooked meats or flsh. Any food
that has to watt for cooklng to
start should be very cold or
frozen before It Is put In the
oven. MOST UNFROZEN FOODS
SHOULD NEVER STAND MORE
THAN TWO HOURS BEFORE
COO@G STARTS.
l Do not use foods contalnlng
baklng powder or yeast when
uslng delay start. They will not
rise properly.
l Do not allow food to remaln In
oven for more than two hours
after end of cooklng cycle.
15

Uslng Your Cooktop And Lower Oven
Continued
Theovenvent
Hot air and moisture escape from the
lower oven through a vent just under
the cooktop light. The vent is needed
for air circulation. Do not block the
vent. Poor baking/roasting will result.
Oven vent /
Burn Hazard
When the oven Is ON, pans and
pan handles left near the oven
vent can become hot enough to
burn the user and to melt plastics.
Use potholders to move pans.
Never store plastics, paper or
other ltems that could melt or
burn near the oven vent., or any of
the surface burners.
Thestoragedrawer
The storage drawer is for storing pots
and pans. The drawer can be removed
to make it easier to clean under the
range, and to check for installation of
the anti-tip bracket(s). Use care when
handllng the drawer.
Removlng the storage drawer:
1. Empty drawer of any pots and pans
before removing drawer. Pull drawer
straight out to the stop.
2 Push up black plastic lever on both
sides of drawer.
16

Ball
beatings
Lltetatute
pa=
3. Pull drawer out a little farther until
levers stay in “up” positiin. Pull
drawer the rest of the way out.
Replaclng the storage drawer:
1. Make sure ball bearings on oven
slide rail are positioned toward the
front of the opening.
2 Fii ends of drawer slide rails info the
oven slide rails on both sides of
opening.
3. Slide drawer closed.
Use and care guide storage
Store this booklet, abng with your
Cooking Guide and sales slip in the
Liierature Pat, inside the strorage
drawer.
To verlfy that the ant&tlp bracket(s)
Is engaged:
l Remove storage drawer.
l Look to see ii the anti-tip bracket(s) is
attached to floor with screws.
l Make sure rear leveling leg(s) is
positioned under bracket(s).
l See “Important Safety Instructions” on
page 4 2,nd Installation Instructions for
further details.
NOTE: The range will not tip during
normal use. Tipping can occur if
excessive force or weight is applied to
open door without anti-tip bracket(s)
properly secured.
17

CaringForYourCooktop
AndLowerOven
Bum, ElectrIcal shook, Flre and
Explosion Hazard
l Make sure all controls are OFF
and the range Is wol before
cleaning.
l Do not USAoven cleaners,
bleach or rust removers.
l Do not use gasoline or other
flammable llqulds or vapors to
clean thls or any other appll-
ante.
l Keep the appliance area clear
and free from wmbustlble
materlals, gasollne and other
flammable vapors and liquids.
l Do not obstruct the flow of
combustion and ventllatlon alr.
Fallure to follow these gukfellnes
could result In burns, electrlcal
shock* flre or exploslon .
Controlpanelandknobs
1. Make sure all control knobs are
turned to OFF.
2 Pull control knobs straight off.
3. Use warm, soapy water or spray
glass deaner and a soft cbth to wipe
the control panels. Rinse and wipe
dry with a soft cloth.

4. Wash control knobs in warm, soapy
water. Rinse well and dry with a soft
cloth. Qo not soak.
5. Replace control knobs by pushing
them firmly into place.
NOTE: When deaning, never use steel
wool, abrasives, or commercial oven
cleaners which may damage the finish.
After cleaning, make sure all control
knobs point to the OFF position.
Surfaceburnergratesand
reflector pans
2. Lift off the burner grates and
remove the reflector pans.
pan 19

Carlng For Your Cooktop And Lower Oven
Contlnued
3. Wash the grates and reflector pans
with warm, soapy water or in a
dishwasher. Use a nonabrasive
plastic scouring pad for heavily
soiled areas. Rinse and dry well.
4. Replace reflector pans and burner
grates.
Typical surface burner flame
Surfaceburners
To remove the cooktop, follow the
instructions in “Removable cooktop” on
next page.
Wipe off surface burners wfth warm,
soapy water and a soft cloth after each
use.
Occasionally check the burner flames
for proper size and shape as shown. tf
flames Iii off ports, are yellow, or are
noisy when turned off, you may need to
clean the burners (see “Cleaning tips”
on page 27). or call a qualified techni-
cian for adjustment.
Replace cooktop.
20
