Whirlpool RF385PCV User manual

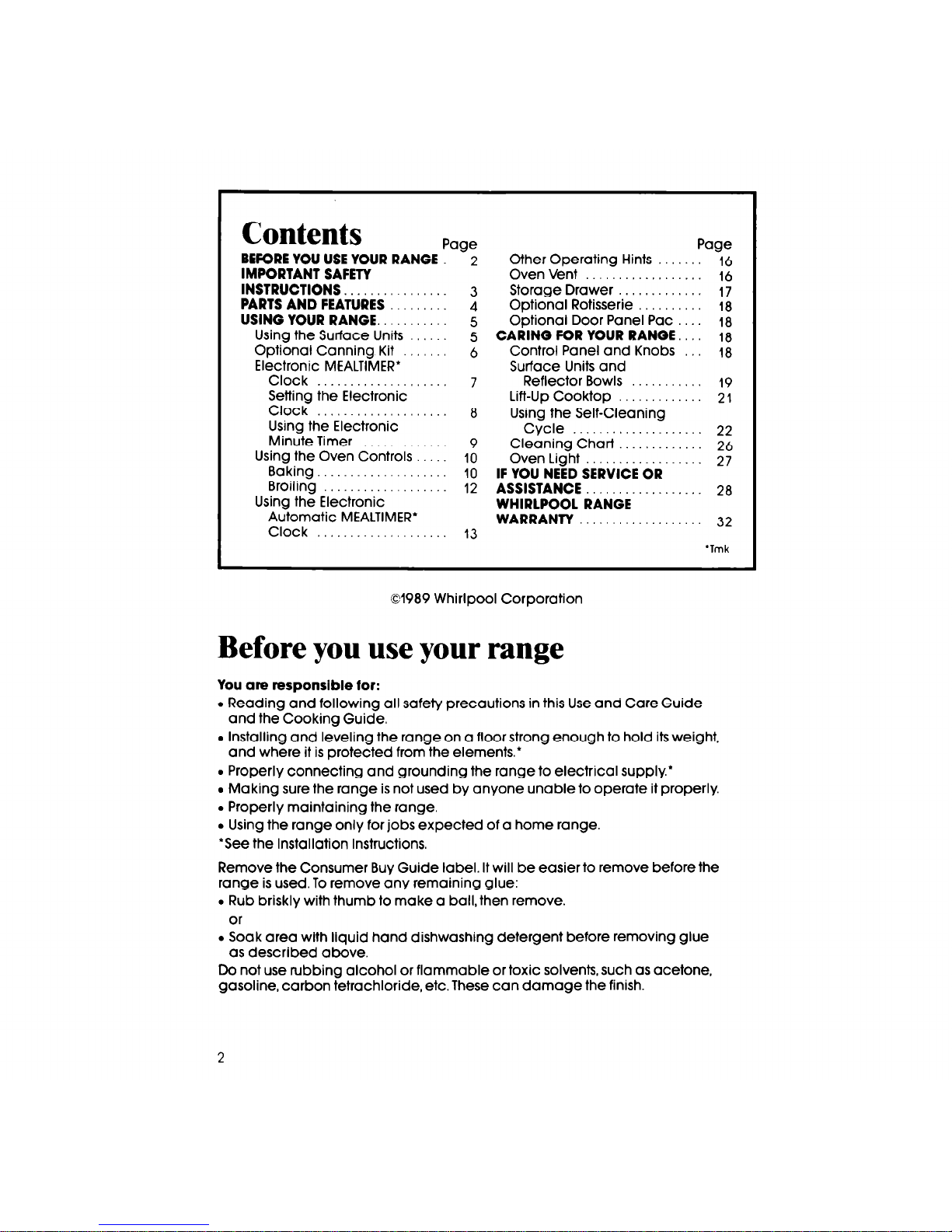

Contents
Paae
BEFOREYOU USEYOUR RANGE - 2
IMPORTANT SAFETY
INSTRUCTIONS. 3
PARTSAND FEATURES 4
USING YOUR RANGE. 5
Using the Surface Units 5
OptiOnal Canning Kit 6
Electronic MEALTIMER’
Clock 7
Setting the Electronic
Clock 8
Using the Electronic
Minute Timer 9
Using the Oven Controls IO
Baking.. _, _. _. 10
Broiling 12

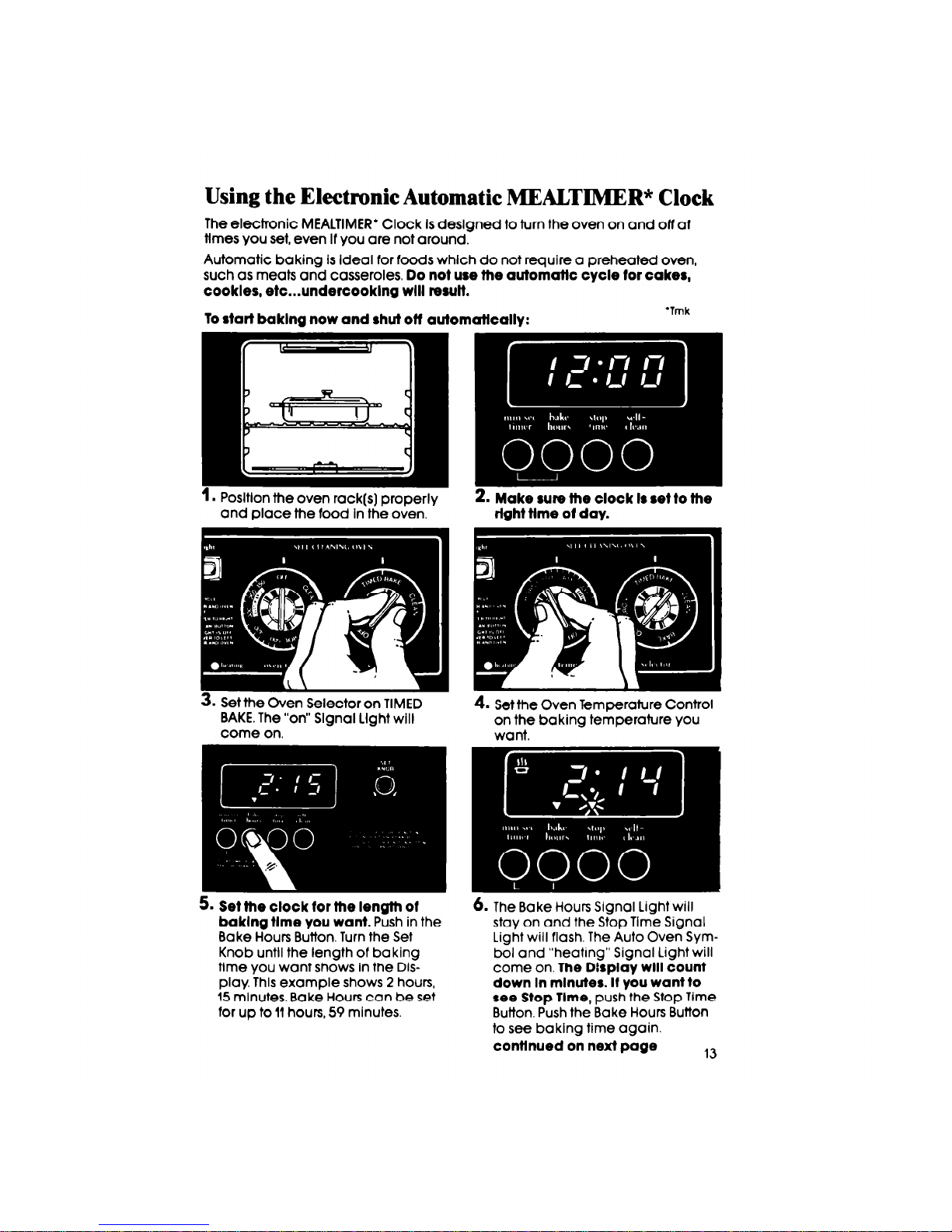

Using the Electronic
Automatic MEALTIMER’
Clock 13
Other Operating Hints
Oven Vent
Storage Drawer .
Optional Rotisserie
Optional Door Panel Pat
CARING FOR YOUR RANGE.
Control Panel and Knobs
Surface Units and
Reflector Bowls
Lift-Up Cooktop
Using the Self-Cleaning
Cycle . . . . . . . .._...
Cleaning Chart
Oven Light
IF YOU NEEDSERVICEOR
ASSISTANCE
WHIRLPOOL RANGE
WARRANTY
Page
16
16
17
18
18
18
18
19
21
22
26
27
28
32
61989 Whirlpool Corporation
Before you useyour range
You are responsible for:
l Reading and following all safety precautions in this Use and Care Guide
and the Cooking Guide.
l Installing and leveling the range on a floor strong enough to hold its weight,
and where it is protected from the elements.’
. Properly connecting and grounding the range to electrical supply.’
. Making sure the range is not used by anyone unable to operate it properly.
. Properly maintaining the range.
l Using the range only for jobs expected of a home range.
‘See the Installation Instructions.
Remove the Consumer Buy Guide label. It will be easier to remove before the
range is used. To remove any remaining glue:
. Rub briskly with thumb to make a ball, then remove.
or
. Soak area wtth liquid hand dishwashing detergent before removing glue
as described above.
Do not use rubbing alcohol or flammable or toxic solvents, such as acetone,
gasoline, carbon tetrachloride, etc. These can damage the finish.
2

IMPORTANT
SAFETY INSTRUCTIONS
To reduce lhe risk ot ihe, electrical shock, Injury
to persons, or damage when using the range,
follow basic precautions, lncludlng the followlng:
1. DO NOT allow children to use or 6. KEEP pan handles turned in, but
ploy with any part of the range, not over another surface unit to
or leave them unattended near it. avoid burns, injury and to help
They could be burned or injured. prevent the utensil from being
2. DO NOTStOre things children pushed off the surface units.
might want above the range. 7.
DO NOT use water on grease
Children could be burned or fires. The fire will spread. Cover
injured while climbing on it. fire with large lid or smother with
3. DO NOT allow anyone to touch baking soda or salt.
hot surface units or heating 8.
DO NOT Wear loose or hanging
elements. Dark colored units and garments when using the range.
elements can still be hot enough They could ignite if they touch a
to burn severely. hot surface unit or heating ele-
4. KEEP children away from the ment and you could be burned.
range when it is on..The cooktop 9.
DO NOT heat unopened con-
and oven walls, racks and tainers. They could explode. The
door can get hot enough to hot contents could burn and
cause burns. container particles could
5. DO NOT use the range to heat a cause injury.
room. Persons in the room could 10. When adding or removing food,
be burned or injured, or a fire
MAKE SURE t0 open the oven
could start. door all the way to prevent burns.
. FOR YOUR SAM l
DO NOT STORE OR USE QASOLINE OR OTHER FLAMMABLE VAPORS AND
LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.
THEYCOULDIGNITECAUSINGEXPLOSION AND/OR FIRE.
- SAW THESE INSTRUCTIONS -
Thank you for buylng a Whlrlpool appliance. Please complete and mall
the Owner Reglstratlon Card provlded with this product. Then complete
the form below. Have this informatlon ready if you need service or call with
a questlon.
l Copy model and serlal numbers
from plate (behlnd the oven door
Model Number
on the oven frame) and purchase
date from sales slip.
Serial Number
l Keep this book, the Cooking Guide
and sales slip together in the Llter-
Purchase Date
ature Pac.
I
Service Comwnv Phone Number

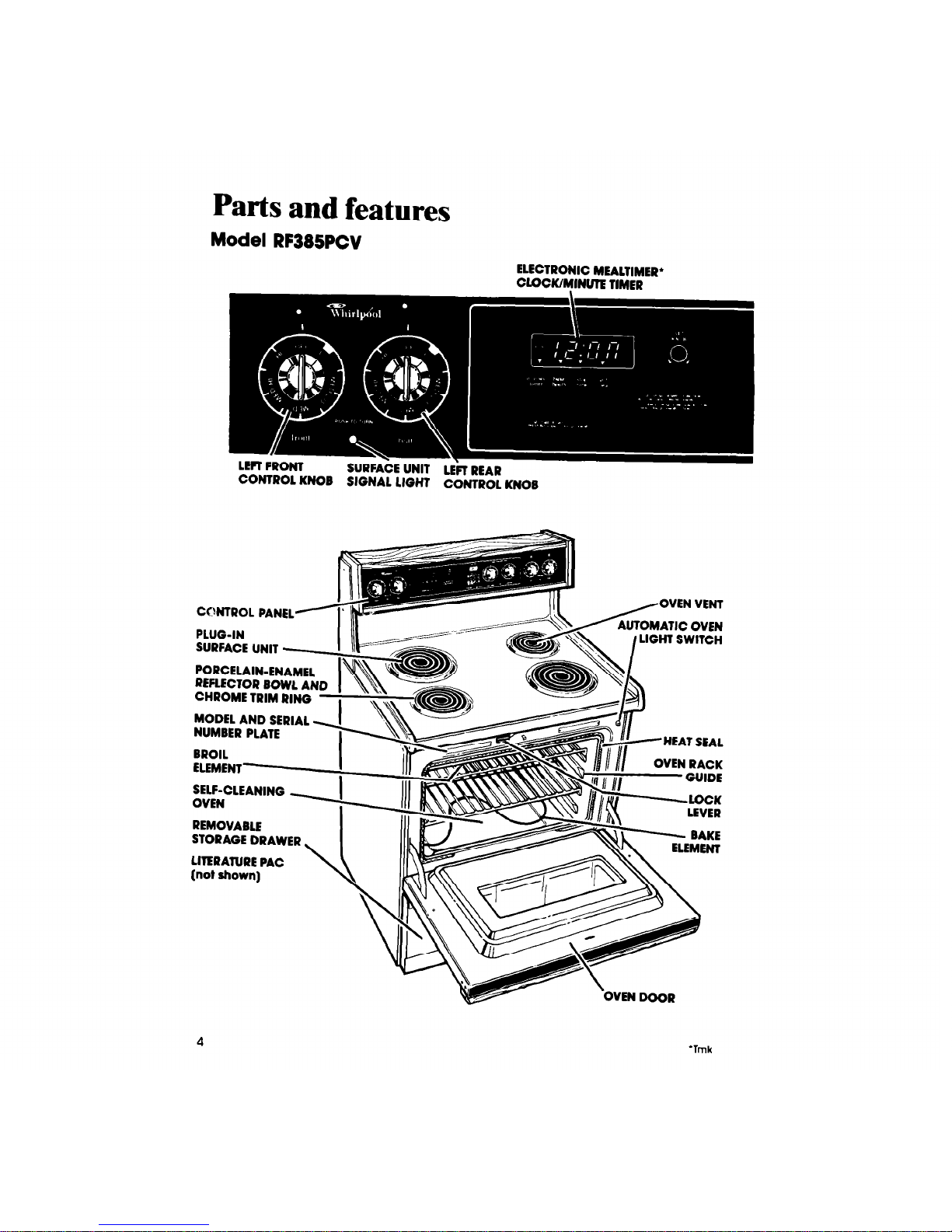

Parts and features
Model RF385PCV
ELECTRONIC MEALTIMER’
C~CKIMINUTE TlMER
L KNOB SIGNAL LIGHT CoNT
CONTROL PANEL
PLUG-IN
SURFACE UNIT
PORCELAIN-ENAMEL
----EmTAm ma..,. . ..-
BROIL
=’ -1cbsT-
CLCIVL.. ,
SELF-CLEANING
OVEN
REMOVABLE
STORAGE DRAWER
LITERATURE PAC
(not shown)
4
‘Tmk

OVEN LIGHT OVEN TEMPERATURE OVEN SURFACE UNIT
SWITCH / CONTROL SELECTOR INDICATOR
LOCKED IHEATING -OVEN ON RiGHT REAR RiGNl FRONT
SIGNAL LIGHT SIGNAL LIGHT SIGNAL LIGHT CONTROL KNOB CONTROl. KNOB
Using your range
Using the Surface Units
Control knobs must be pushed In
before tumlng them to a setting. They
can be set anywhere between HI
and OFF.
Surface Unit Indicators
The solid dot in the surface unit
indicator shows which surface unit
is turned on by that knob.
Signal lights
One of the surface unit signal lights
on the control panel will glow when
a surface unit is on.
Bum or Fire Hazard
Be sure all control knobs are
turned to OFFand all signal
Ilghts are OFFwhen you are not
cooklng. Someone could be
burned or a tire could start If a
surface unlt Is accldentally
lefl ON.
coniinued on next page
5

Until you get used to the settings, use the followlng as a gulde. For best results,
start cooking at the high settings; then turn the control knob down to continue
cooking.
Use Hi to start
Use MED-Hi Use MED Use MED-LO Use LOto
foods cook- to hold a fof gravy, to keep food keep food
ing; to bring rapid boil; to puddings
liquids to a fry chicken and icing; to cooking after raLy ;Jtil
starting it
boil. or pancakes. cook large on a higher serve. Set the
amounts of setting. heat higher
vegetables. or lower
within the LO
band to keep
food at the
temperature
you want.
Use only flat-bottomed utensils for best cooking results and to prevent damage
to the cooktop. Specialty items with rounded or ridged bottoms (woks, ridged
bottom canners or tea kettles) are not recommended.
Burn Hazard
l If the pan Is too small for the surface unit, you could be burned by the heat
from the exposed sectlon of the surface unlt. Use correctly sized cooking
utensils to prevent injury.
; If a surface unlt stays red for a long tlme, the Mom of the pan is not flat
f enolryh or is too small : :r
the surface unit. Pri;,onged usage of incorrect
’ utensils for long periods of time can result in uamage to the surface unit,
cooktop, wiring and surrounding areas. To prevent damage, use correct
utensils, start cooklng on Hi and turn control down to continue cooking.
See the Cooking Guide for additional utensil information.
Optional Canning Kit (Part NO. 242905)
The large diameter of most water-bath or pressure canners combined with
high heat settings for long periods of time can shorten the life of regular surface
units and cause damage to the cook-top.
If you plan to use the cooktop for canning, we recommend the installation
of a Canning Kit. Order the kit from your Whirlpool Dealer or Tech-Care@ Service
Company.
See the Cooking Guide for additional canning information.

The Electronic MEALTIMER* Clock
The electronic MEALTIMER’ Clock handles many different types of functions.
The following operating hints may be helpful when using the clock:
l The numbers on the Display change rapidly when turning the Set Knob.
l When setting the Time-of-Day Clock, the Display shows hours and minutes.
‘lmk
Twenty-five minutes past Forty-five minutes past
six o’clock. twelve o’clock.
l When using the Min/Sec Timer, the Display shows minutes and seconds in
the following sequence.
- For settings from I-10 minutes, the Display will increase in 10 second
increments.
- For settings from lo-99 minutes, the Display will increase in 1minute
increments.
l When using the Bake Hours and/or Stop Time, the Display shows hours and
minutes.
Two-hours and fifteen Eleven-hours and fifty-nine
minutes. minutes.
Other operatlng hints may be found on page 16.

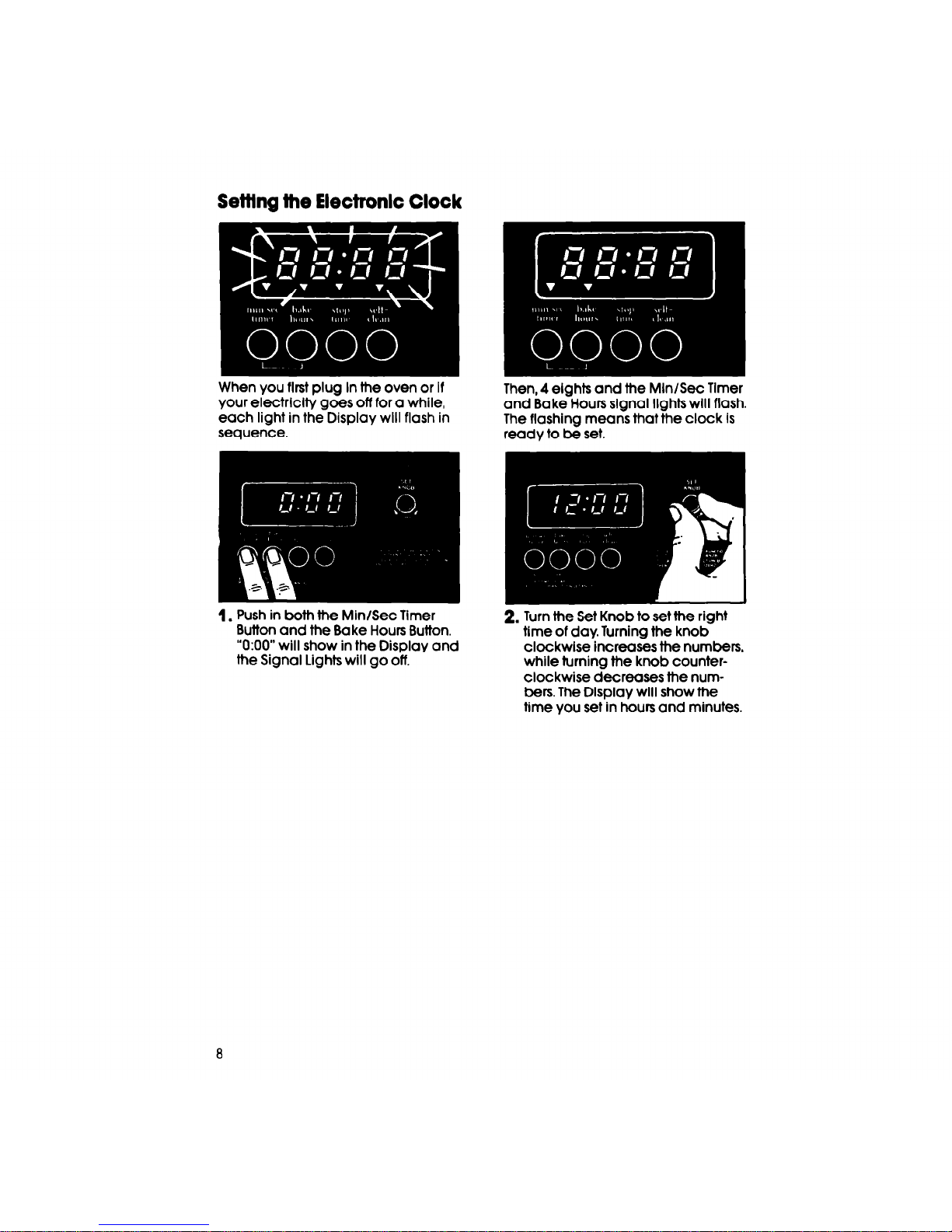

Sefflng ltm Electronic Clock
When you first plug In the oven or If
your electrlclty goes off for a while,
each light in the Display will flash in
sequence.
Then, 4 elghts and the Mln/Sec Tlmer
and Bake Hours slgnal lights will flash.
The flashing means that the clock Is
ready to be set.
1. Push in both the MinlSec Timer
Button and the Bake Hours Button.
“0:OO” will show in the Display and
the Signal Lights will go off.
2. Turn the Set Knob to set the right
time of day. Turning the knob
clockwise increases the numbers,
while turning the knob counter-
clockwise decreases the num-
bers. The Display will show the
time you set in hours and minutes.
8

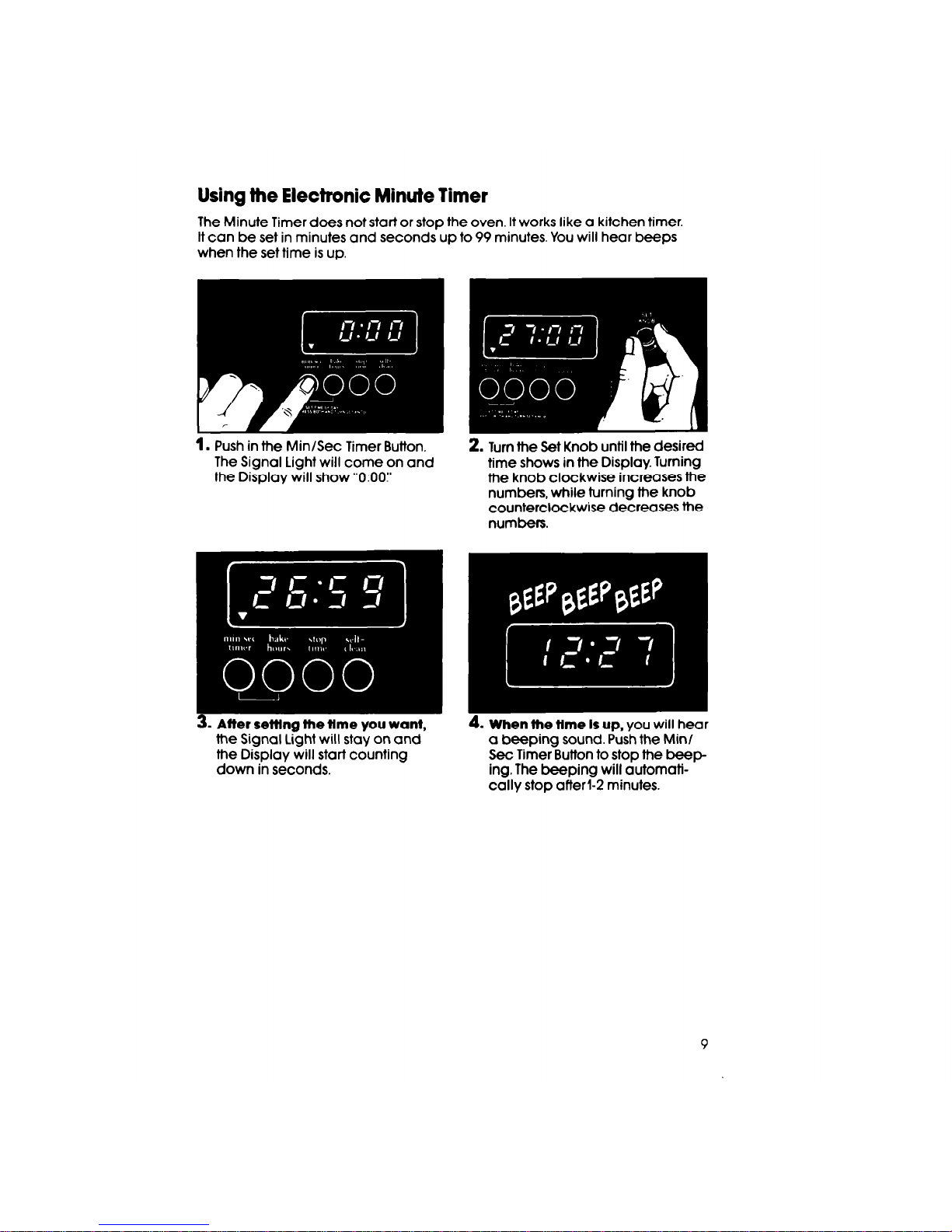

Using the Electronic Minute Timer
The Minute Timer does not start or stop the oven. It works like a kitchen timer.
It can be set in minutes and seconds up to 99 minutes. You will hear beeps
when the set time is up.
1. Push in the Min/Sec Timer Button. 2. Turn the Set Knob until the desired
The Signal Light will come on and time shows in the Display Turning
the Display will show “0:OO:’ the knob clockwise increases the
numbers, while turning the knob
counterclockwise decreases the
numbers.
I want,
the Signal Light will stay on and
the Display will start counting
A-..- i.. -----A-
4. When the ttme Is up, you will hear
a beeping sound. Push the Min/
Set Timer Button to stop the beep
ing. The beeping will automatt-
tally stop afterl-2 minutes.

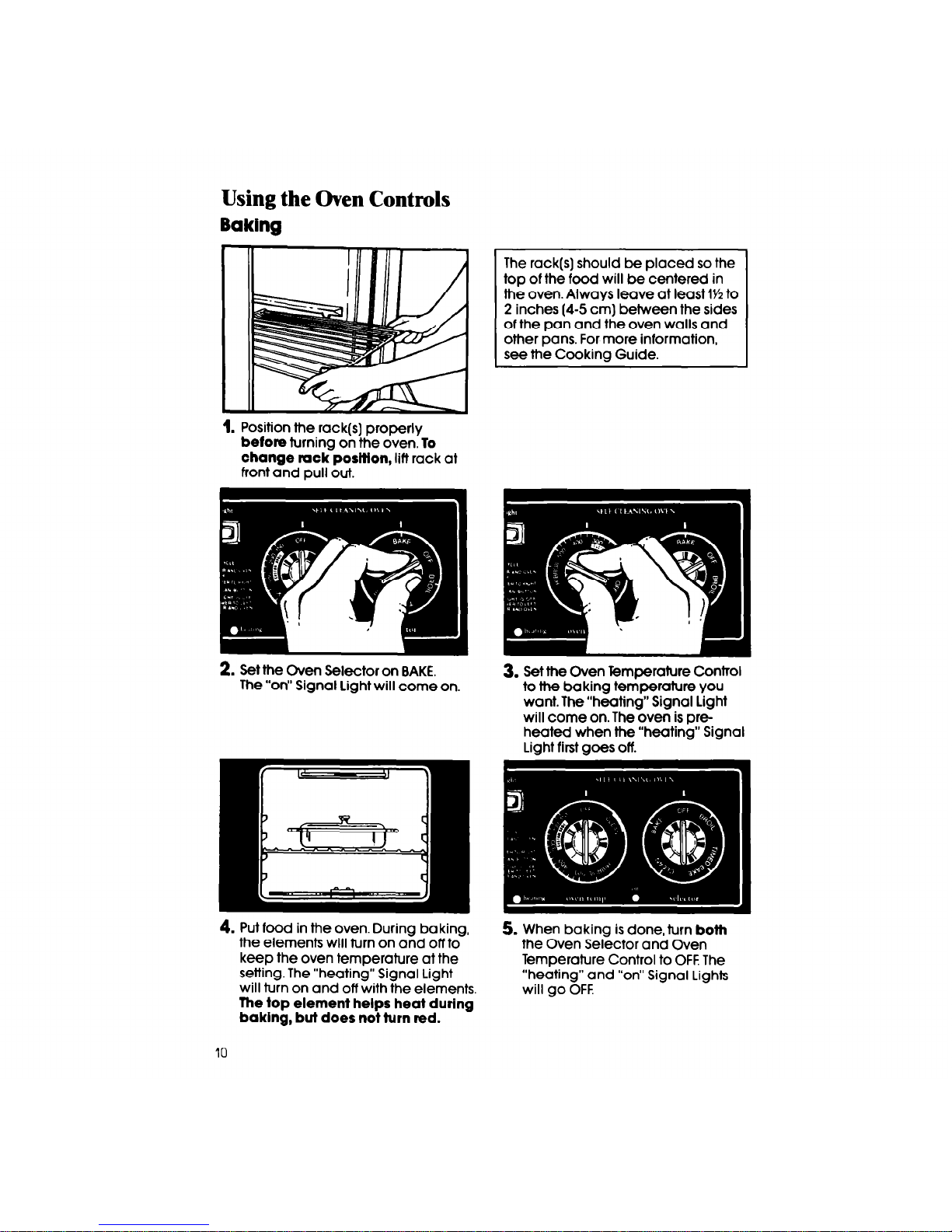

Using the Oven Controls
Baking
The rack(s) should be placed so the
top of the food will be centered in
the oven. Always leave at least lY2to
2 inches (4-5 cm) between the sides
of the pan and the oven walls and
other pans. For more information,
see the Cooking Guide.
1. Position the rack(s) properly
before turning on the oven. To
change rack position, lift rack at
front and pull out.
2. Set the Oven Selector on BAKE.
The “on” Signal Light will come on. 3. Set the Oven Temperature Control to the baking temperature you
want. The “heating” Signal Light
will come on. The oven is pre-
heated when the “heating” Signal
4. Put food in the oven. During baking,
the elements will turn on and off to
keep the oven temperature at the
setting. The “heating” Signal Light
will turn on and off with the elements
The top element helps heat during
baking, but does not turn red.
10
5. When baking is done, turn both
the Oven Selector and Oven
Temperature Control to OFF The
“heating” and “on” Signal Lights
will go OFF

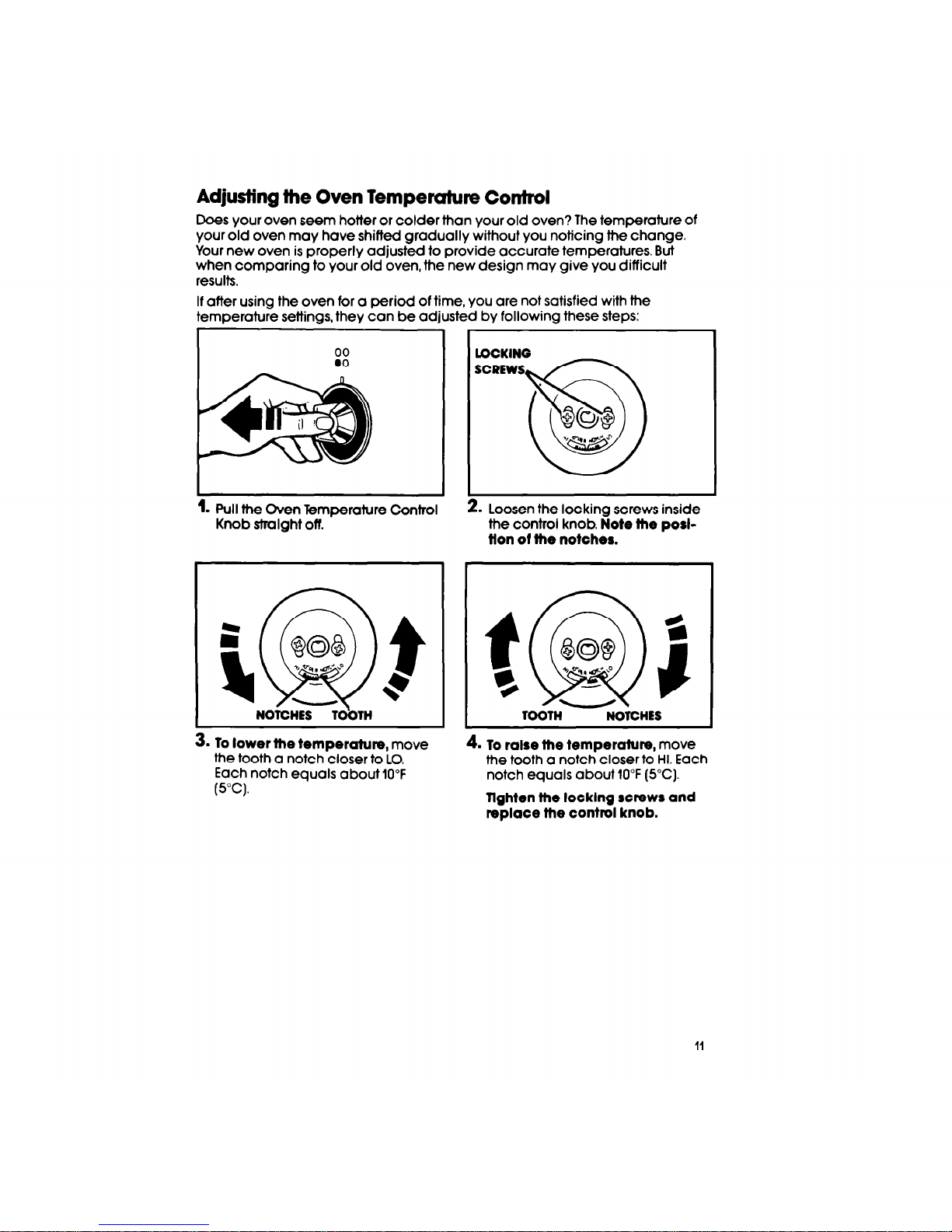

Adjusting the Oven Temperature Control
Does your oven seem hotter or colder than your old oven? The temperature of
your old oven may have shifted gradually without you noticing the change.
Your new oven is properly adjusted to provide accurate temperatures. But
when comparing to your old oven, the new design may give you difficult
results.
If after using the oven for a period of time, you are not satisfied with the
temperature settings, they can be adjusted by following these steps:
LOCKING
I* Pull the Oven Temperature Control
Knob straight off. 2. Loosen the locking screws inside
the control knob. Note the posl-
tlon of the notches.
TOOTH NOTCHES
3. To lower the temperature, move
the tooth a notch closer to LO.
Each notch equals about 10°F
(5°C).
4. To raise the temperature, move
the tooth a notch closer to HI. Each
notch equals about 10°F(5°C).
Tlghten the locking screws and
replace the control knob.

1, Position the rack before turning
the oven on. See “Broil Chart” in
the Cooking Guide or a reliable
cookbook for recommended
rack positions.
3. Close the door to the Broil Stop
position (open about 4 inches,
10.2 cm). The door will stay open
by itself.
1
2. Put the broiler pan and food on
the rack.
4. Set the Oven Selector and Oven
Temperature Control to BROIL. The
“on” and “heating” Signal Lights
will come on.
5. When broiling is done, turn both
the Oven Selector and Oven
Temperature Control to OFF.The
“on” and “heating” Signal Lights
will go off.
Custom Broil
l If food is cooking too fast, turn the Oven Temperature Control counterclock-
wlse until the “heating” Signal Light goes off.
l If you want the food to broil slower from the start, set the Oven Temperature
Control between 150” and 325°F (65.5” and 162.7”C). The lower the tempera-
ture, the slower the cooking.
The Oven Selector must be on BROIL for all brolling temperatures.
NOTE:The door must be partly open whenever the oven is set to BROIL.
Leaving the door open allows the oven to malntaln proper temperatures.
12

Using the Electronic Automatic MEALTIMER* Clock
The electronic MEALTIMER’ Clock Is deslgned to turn the oven on and off at
tlmes you set, even If you are not around.
Automatic baking Is Ideal for foods which do not require a preheated oven,
such as meats and casseroles. Do not use the automatic cycle for cakes,
cookies, etc...undercooklng will result.
To start baklng now and shut off automatlcally:
‘Tmk
1. Posltlon the oven rack(s) properly
2. Make sure the clock Is set to the
and place the food in the oven.
rlght time of day.
3. Set the Oven Selector on TIMED
BAKE. The “on” Slgnal Llght will
come on.
4. Set the Oven Temperature Control
on the baking temperature you
want.
5. Set the clock for the length of
baklng tlme you want. Push in the
Bake Hours Button. Turn the Set
Knob until the length of baking
tlme you want shows in the Dis-
play. Thls example shows 2 hours,
15 minutes. Bake Hours con be set
for up to 11hours, 59 mlnutes.
6. The Bake Hours Signal Light will
stay on and the Stop Time Signal
Light will flash. The Auto Oven Sym-
bol and “heating” Signal Light will
come on. The Display will count
down in minutes. if you want to
see Stop Time, push the Stop Time
Button. Push the Bake Hours Button
to see baklng time again.
continued on next page
13

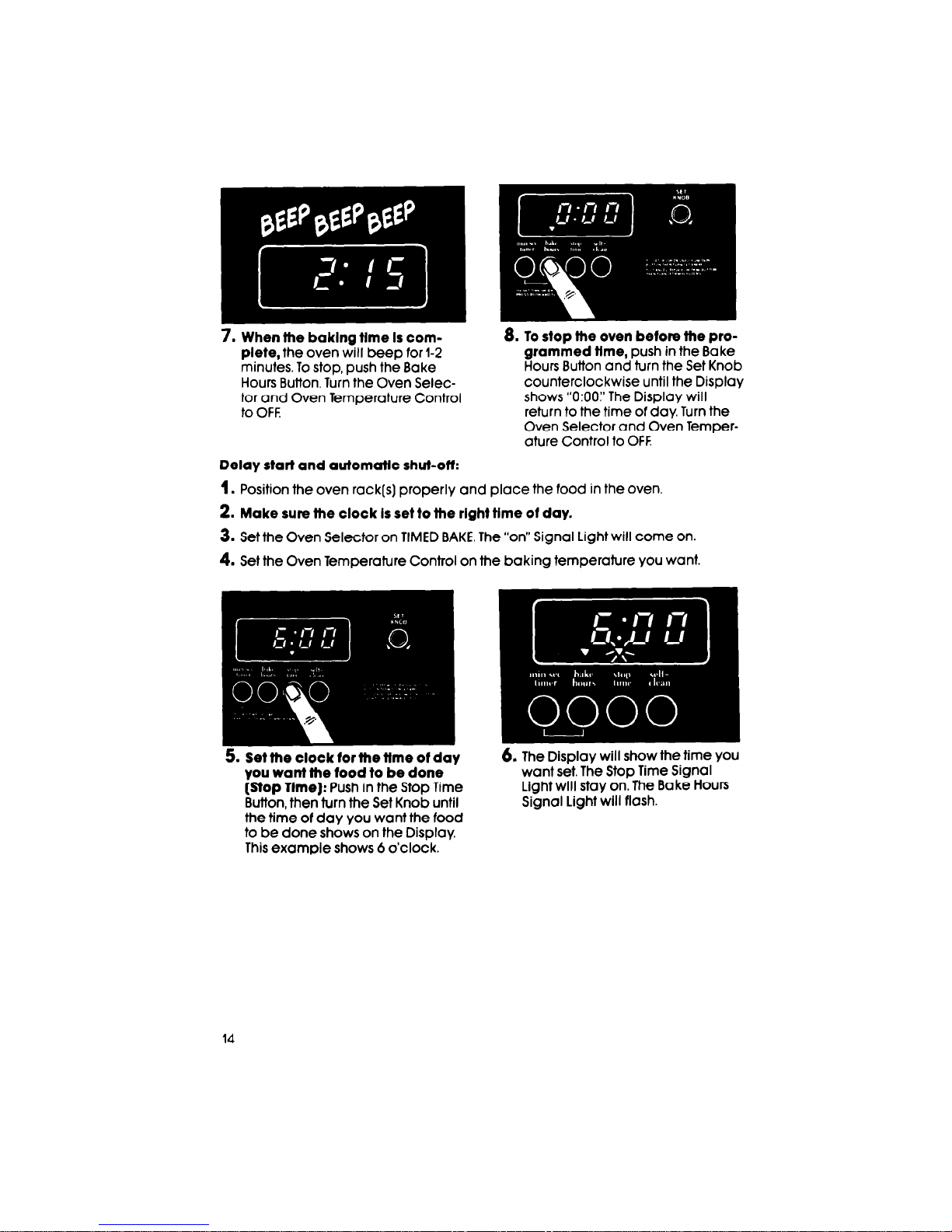

7. When ihe baking tlme Is com-
plete, the oven will beep for l-2
minutes. To stop, push the Bake
Hours Button. Turn the Oven Selec-
tor and Oven Temperature Control
to OFF
8. TOstop the oven before the pro-
grammed time, push in the Bake
Hours Button and turn the Set Knob
counterclockwise until the Display
shows “0:OO:’ The Display will
return to the time of day. Turn the
Oven Selector and Oven Temper-
ature Control to OFF
Delay start and automatic shut-off:
1. Position the oven rack(s) properly and place the food in the oven.
2. Make sure lhe clock Is set to lhe right time of day.
3. Set the Oven Selector on TIMED BAKE. The “on” Signal Light will come on.
4. Set the Oven Temperature Control on the baking temperature you want.
5. Set the clock for the tlme of day
you want the food to be done
(Stop Time): Push in the Stop Time
Button, then turn the Set Knob until
the time of day you want the food
to be done shows on the Display.
This example shows 6 o’clock.
6. The Display will show the time YOU
want set. The Stop Time Signal
Light will stay on. The Bake Hours
Signal Light will flash.
14

7. Set the clock for the length of
baking time you want: Push in
the Bake Hours Button, then turn
the Set Knob until the length of
baking time you want shows in
the Display. This example shows
2 hours, 15 minutes. Bake Hours
can be set for up to 11hours, 59
minutes.
8. The Sake Hours Signal Light will
stay on and the Stop Time Signal
Light will Hash. If you want to see
the Stop Time, push the Stop
Time Button. Push the Bake Hours
Button to see baking time again.
9. The clock automatically calcu-
lates the time to turn the oven on.
At the time, the Auto Oven Symbol
and “heating” Signal Light will
come on and the oven will heat.
This example shows the oven on
at 45 minutes past 3 o’clock.
10. When baking is complete the
oven will shut off and beep for
l-2 minutes. To stop, push the
Bake Hours Button.
Turn the Oven Selector and
Oven Temperature Control to
OFF
11. To stop the oven before the
preset time: Push in the Bake
Hours Button and turn the Set
Knob counterclockwise until the
Display shows “0:OO:’ Turn the
Oven Selector and Oven Tem-
perature Control to OFF.
15

To avoid sickness and food waste when using the MEALTiMER* control:
l Do not use foods that will spoil while waiting tor cooking to starl, such as
dishes with milk or eggs, cream soups, and cooked meats or fish. Any
food that has to wait for cooking to start should be very cold or frozen
before it is put in me oven. MOST UNFROZENFOODS SHOULD NEVERSTAND
MORE THAN TWO HOURS BEFORECOOKING STARTS.
l Do not use foods containing baking powder or yeast when using delay
start. They will not rise properly.
l Do not allow food to remain in oven for more man two hours after end of
cooking cycle.
l lmk
Other Operating Hints
l If you want to check what you have programmed, press the button for the
function you want to check. The Display will show what you have
programmed for that function.
l If you want to check the time of day, press the Min/Sec Timer and Bake Hours
Buttons. The Display will show the time of day.
l A rapidly flashing signal light indicates an error in programming. Cancel
any entries and begin again.
The Oven Vent
l!ot air and moisture escape from the
oven through a vent under the right
rear surface unit. You can cook on the
unit, or keep food warm on it while
the oven is on.
Burn Hazard
if you leave a utensil on the right
rear surface unit, use potholders
when moving it. Pan handles
can become hot enough to burn.
Plastic utensils left over me
vent can melt.
The vent is needed for air circulation.
I
Do not block me vent. Poor baking
I can result.
16

The Storage Drawer
The storage drawer is for storing pots and pans.
Use care when handling the drawer.
Removing the storage drawer
1. Pull drawer straight out to the
first stop. Lift front and pull out to
the second stop.
2. Lifl back slightly and slide drawer
all the way out.
Replacing the stomge dmwer
1. Fit ends of drawer slide rails into
the drawer guides on both sides
of opening.
2. Lift drawer front and push in until
metal stops on drawer slide
rails clear white stops on drawer
guides, Lifl drawer front again
to clear second stop and slide
drawer closed
Use & Care Guide storage
Store this booklet, along with your
Cooking Guide and sales slip in the
Literature Pac. inside the storage
drawer.
17

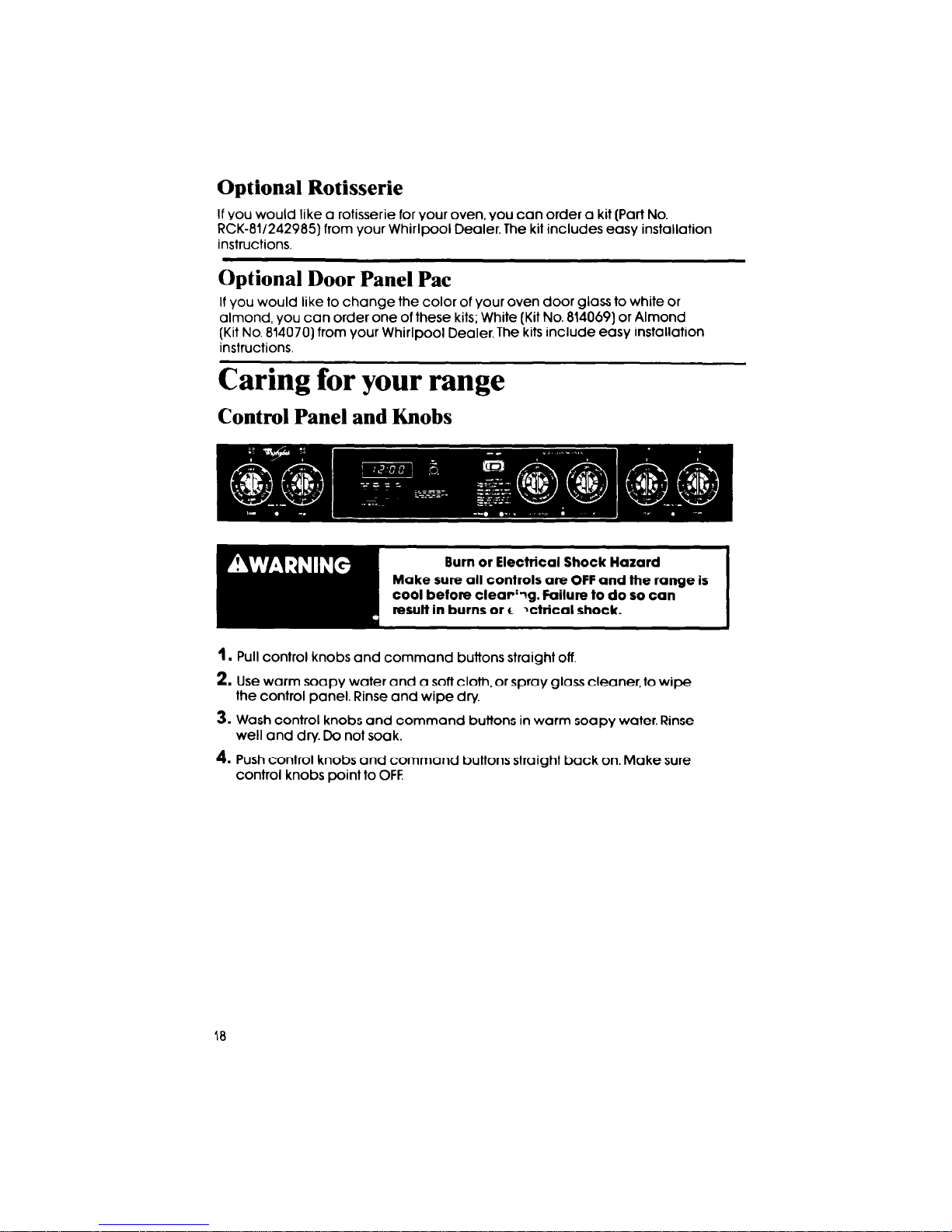

Optional Rotisserie
If you would like a rotisserie for your oven, you can order a kit (Part No.
RCK-81/242985) from your Whirlpool Dealer. The kit includes easy installation
instructions.
Optional Door Panel Pat
It you would like to change the color of your oven door glass to white or
almond, you can order one of these kits; White (Kit No. 814069) or Almond
(Kit No. 814070) from your Whirlpool Dealer.The kits include easy installation
instructions.
Caring for your range
Control Panel and Knobs
Burn or Electrical Shock Hazard
Make sure all controls are OFFand me range is
cool before ciear9g. Failure to do so can
remit in burns or c 4tical shock.
1. Pull control knobs and command buttons straight off
2. Use warm soapy water and a soft cloth, or spray glass cleaner, to wipe
the control panel. Rinse and wipe dry.
3. Wash control knobs and command buttons in warm soapy water. Rinse
well and dry. Do not soak.
4. Push control knobs and command buttons straight back on. Make sure
control knobs point to OFF.
18

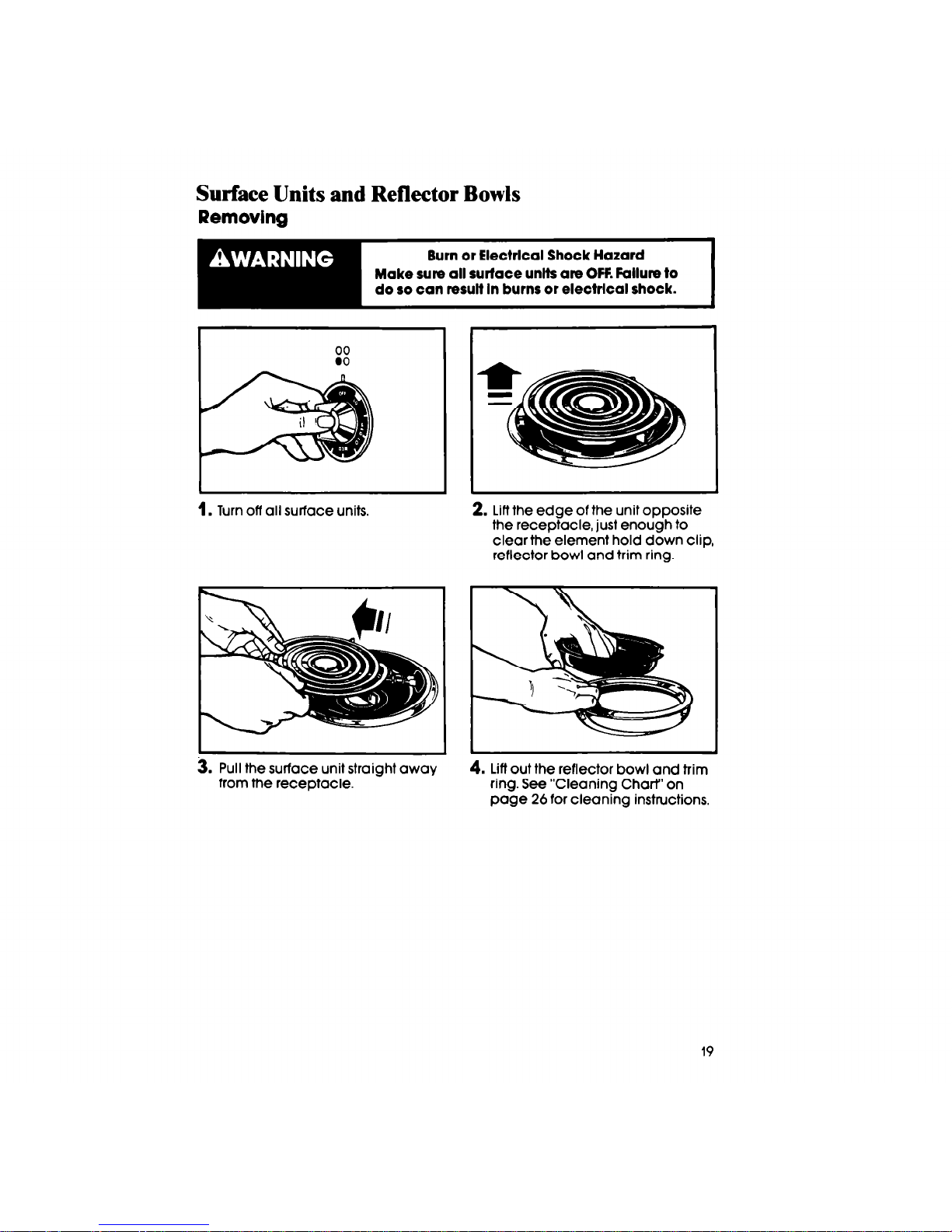

Surface Units and Reflector Bowls
Removing
1. Turn off all surface units.
clear the element hold down clip,
reflector bowl and trim ring.
3. Pull the surface unit straight away
from the receptacle. 4. Lift out the reflector bowl and trim
ring. See “Cleaning Chart” on
page 26 for cleaning instructions.
19

Replacing
Make sure ail surtace units are OFF.Failure to do
1 l Turn off att surface units.
. Hold the surface unit as level as
possible with the termlnal just
started into the receptacle. Push
the surface unlt terminal Into the
receptacle.
2. Line up openings in the reflector
bowl and notch in the trim ring
with the surface unit receptacle
and the element hold down clip
4. When terminal is pushed Into the
receptacle as far as it will go, push
down the edge of the SurfaCe Unit
opposite the receptacle. The ele-
ment hold down clip will keep the
surface unit from moving around.
NOTE: Retiector bowls reflect heat back to the utensils on me surface
units. They also help catch spliis. When they are kept clean, they reflect
heat better and look new longer.
it a trim rlng gets discolored, some ot the utensils may not be flat enough,
or some may be too large for me surface unit. in either case, some ot the
heat that’s meant to go into or around a utensil goes down and heats the
trim ring. This extra heat can discolor it. See Cooking Guide tor tutiher
intormation.
