Whirlpool RS676PXL User manual

Whirlpool
304Ncti SET-N ELECTRICRIANGE
WITHCONVERTIBLE COOKTOP
Model RS676PXL
One-Piece Chrome
Reflector Bowls
Control Panel
Model and Serial
Number Plate
Broil Element
Oven Front Frame Bake Element
M-Flow
ven Door
Copy Your Model and Serial Numbers Here
If you have a question, or need service, have this infor-
mation ready:
1. Complete Model and Serial Numbers (from the plate
just behind the oven door].
2. Purchase or installation date from your sales slip.
Model Number
Serial Number
Copy this Information in these spaces. Keep this book,
Purchase Installation Dole
your warranty and the sales slip together in a handy
place.
Service Company and Phone Number
See the “Cooking Guide”for important safety information.

Your responsibflhs.. .
Proper installation and safe use of the range are your personal
responsibilities. Read this “Use and Care Guide” and the “Cooking
Guide”carefully for important use and safety information.
Installation
You mud be sure your range Is...
l installed and leveled in a cabi-
l installed in a well-ventilated
l properly connected to the
net and on a floor that will hold area protected from the correct electric supply and
the weight; weather: groundtng. (See “Installation
Instructions.“)
Proper use
You mud be sure your range Is ,a..
l us sedol ily for jobs expected
.
used only
bv
of home ranges; operate it properly;
l property matntalned.

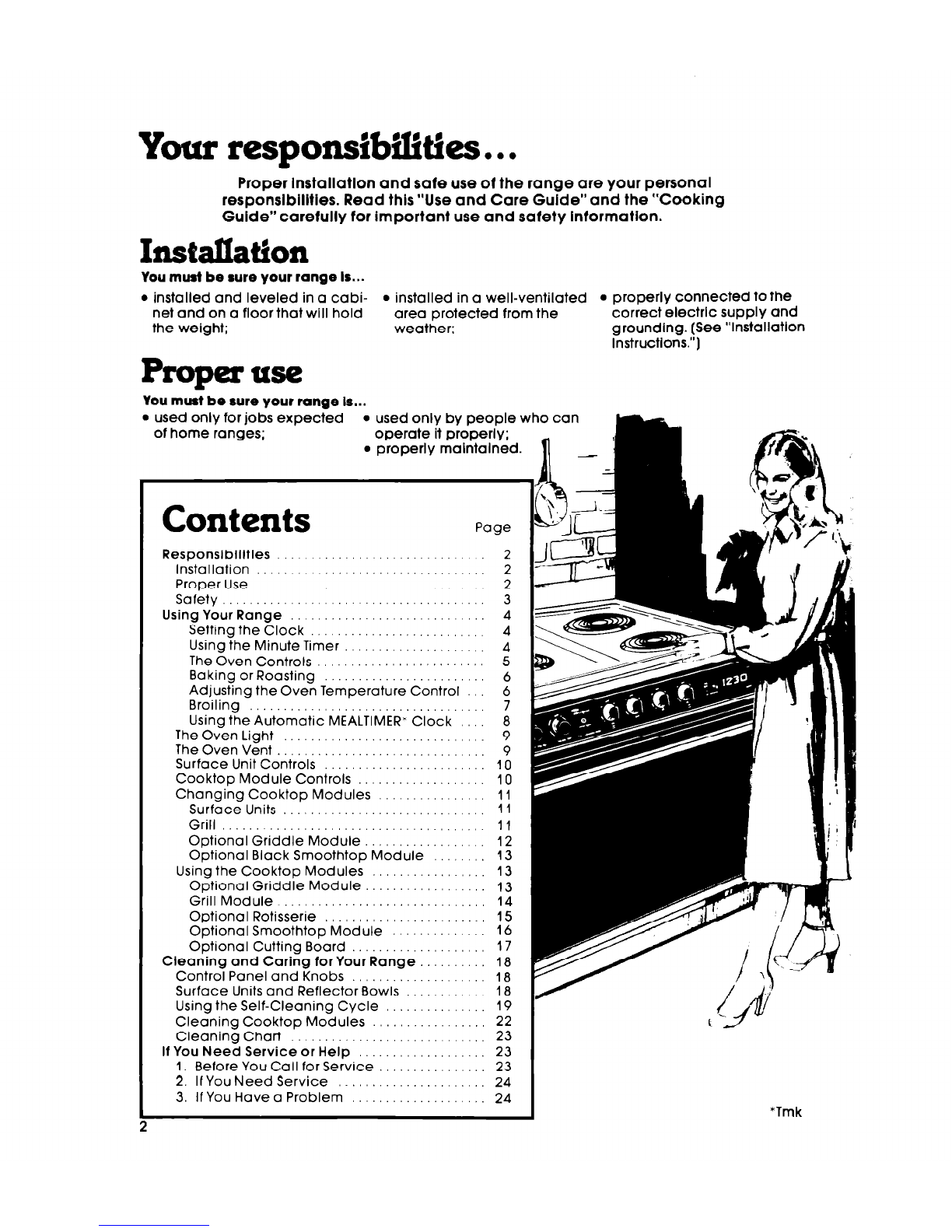

Contents
Responsibilities ..........................
Installation ..............................
ProperUse ..............................
Safety.. ................................
Using Your Range .........................
Setting the Clock ......................
Using the Minute Timer .................
The Oven Controls .....................
Baking or Roasting ....................
Adjusting the Oven Temperature Control
Broiling ...............................
Using the Automatic MEALTIMER’ Clock
The Oven Light ..........................
The Oven Vent ...........................
Surface Unit Controls ....................
Cooktop Module Controls ...............
Changing Cooktop Modules ............
Surface Units ..........................
Grill
Optidnal’cri’db;k’Mdb’ule : 1: 1: : 1: 1: 1: 1:
Optional Black Smoothtop Module ....
Using the Cooktop Modules .............
Optional Griddle Module ..............
Grill Module ..........................
Optional Rotisserie ....................
Optional Smoothtop Module ..........
Optional Cutting Board ................
Cleaning and Caring for Your Range ......
Control Panel and Knobs
................
Surface Units and Reflector Bowls ........
Using the Self-Cleaning Cycle ...........
Cleaning Cooktop Modules .............
Cleaning Chart .........................
If You Need Service or Help ...............
1. Before You Call for Service ............
2. If You Need Service ..................
3. If You Have a Problem ................
Page
2
2
2
3
4
4
2
6
6
7
8
9
9
IO
10
11
11
12
13
13
13
14
15
16
17
18
188
19
;:
23
23
24
24 *Tmk

3

Using your range
Manual Oven
Light Switch
/
/ I \
Adjustable Oven Oven Signal Light Oven Selector Surface Unit
Temperature Control Signal Light
Clean Left Cooktop Module Right Cooktop Module Lock
8 Q B 8
CLEAN LEFT MODULE RIGHT MODULE LOCK
Slgnal Llghtr
SETTING THE CLOCK
1. Push In Minute Timer Knob and turn 2. let the Minute Timer Knob pop out. Turn
clockwlse until clock digits show the right counterclockwise until the Minute Timer
time of day. dial is on OFF. If you push in on the knob, you
will change the time of day
USING THE MINUTE TIMER
1. Wlthout pushlng It in, turn the Minute Timer 2. Turn the knob back so the setting you
Knob until the setting showing in the want shows in the window.
window is longer than the one you want. 3. When the set time is up, a buzzer will sound.
4. Turn the dial to OFF to stop the buzzing
4

Surtace Unit
Control Knob Minute Timer
\ Stop Time Knob \
/
Surface Unit/
Cooktop Module
Indicator
/
Start Time Knob

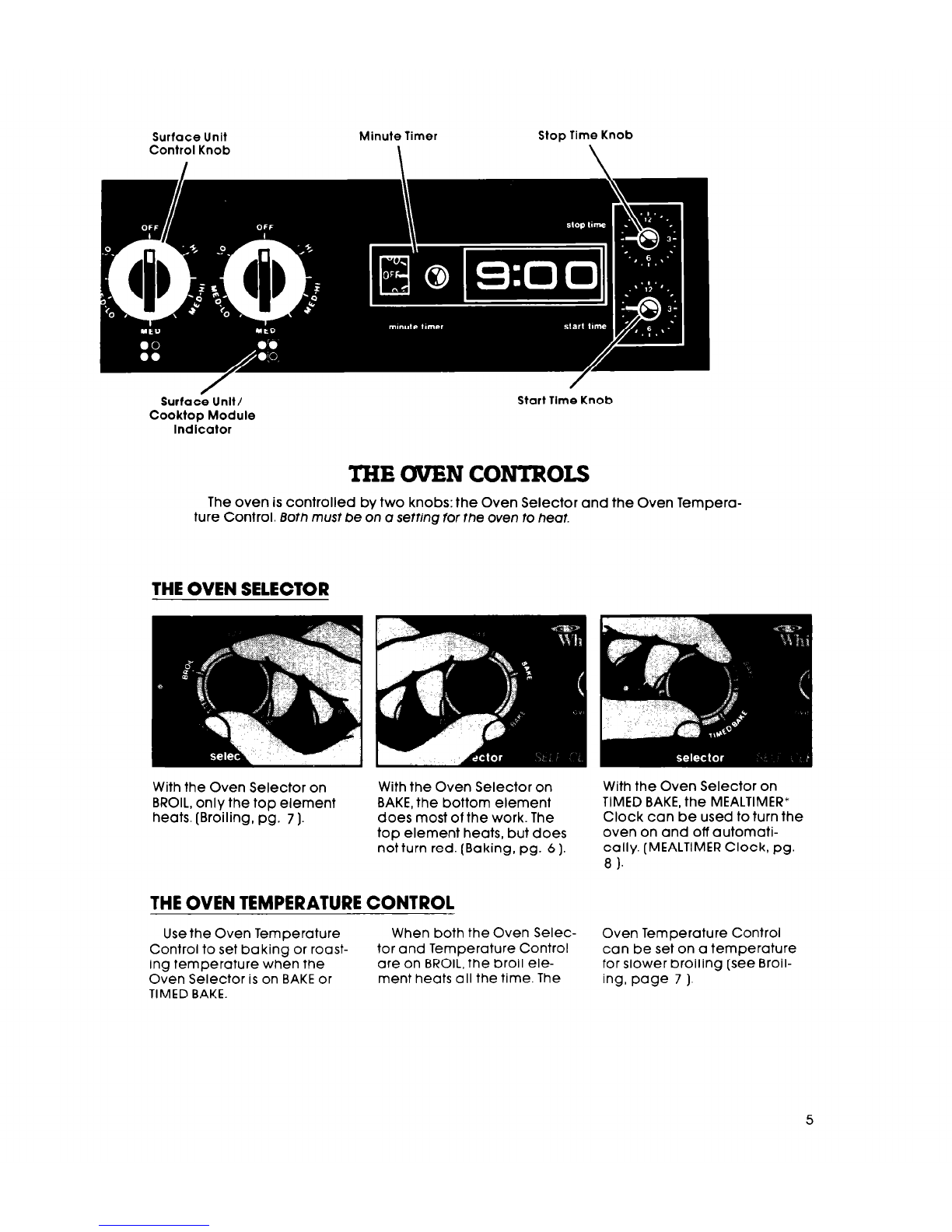

THE OVEN CONTROLS
The oven is controlled by two knobs: the Oven Selector and the Oven Tempera-
ture Control. Both must be on a setting for the oven to heof.
With the Oven Selector on
BROIL, only the top element
heats. (Broiling, pg. 7 ).
With the Oven Selector on
BAKE, the bottom element
does most of the work. The
top element heats, but does
not turn red. [Baking, pg. 6 1.
With the Oven Selector on
TIMED BAKE, the MEALTIMER’
Clock can be used to turn the
oven on and off automati-
cally. (MEALTIMER Clock, pg.
8 1.
Use the Oven Temperature When both the Oven Selec-
Control to set baking or roast- tor and Temperature Control
ing temperature when the are on BROIL, the broil ele-
Oven Selector is on BAKE or ment heats all the time. The
TIMED BAKE.
Oven Temperature Control
can be set on a temperature
for slower broiling (see Broil-
ing, page 7 ).
5

Lilt rack at front and pull out.
Put the rack(s) where you
want them before turning on
the oven.
Rack(s) should be placed
so food can be centered in
the oven. Always leave at
least 1’ 2to 2 inches (4-5 Cm)
between the sides of the pan
and the oven walls and pans.
For more information, see the
“Cooking Guide.”
Set the Oven Selector on
BAKE.
Put food in the oven. Oven
rock walls ond door will be hot
Set the Oven Temperature
Control to the baking
temperature you want.
6
Let the oven preheat until the
Signal Light goes off
During baking, the elements
will turn on and off to help
keep the oven temperature
at the setting. The Signal Light
will turn on and off with the
elements.
The top element helps heat
during baking, but does not
turn red. When baking is done, turn
both knobs to OFF.
ADJUSTING THE OVEN TEMPERATURE CONTROL
Does your new oven seem to be hotter or colder than your old oven at the
same settings? The temperature setting in your old oven may have changed
gradually over the years. The accurate setting of your new oven can seem differ-
ent. If you think the oven temperature needs adjusting, follow these steps:
1. Pull the Oven
Temperature
Control
straight off
Locking Screw
2. Loosen the lock- 3. To lower the tem- 4. To raise the tem-
ing screw; perature, move perature, move
NOTICE position black part of black part of
of notches. knob closer to LO. knob closer to HI.
Each notch Each notch
equals about IO’F equals about 10°F
(5°C). (5°C).
Tlghten the locking screw. Replace the knob.

BROILING
1. Place the rack where you
want it for broiling. 2. Put the broiler pan and food on the rack.
4. Set the Oven Temperoture
Control on BROIL (or on a
lower temperature for
slower broiling).
5. During broiling, the oven
door must be partly
open. A built-in stop will
hold it there.
3. Set the Oven Selector on
BROIL.
6. When broiling is done,
turn both knobs to OFF.
For slower brolllng, set the Oven Temperature Control on a temperature
instead of BROIL. The broil element will then turn on and off instead of staying on.
The lower the temperature setting, the slower the broiling.
The Oven Selector must be on BROIL and the door partly open for all brolllng temperatures.
Suggested oven-rack positions and broiling times
Approxlmate Minutes -
inches (cm) from top Temperature set to BROIL
Food Description of food to Broil Element 1st side 2nd side
Beef Steaks
Rare I ” (2.5 cm) 3” (8 cm) 7-9 3-5
Medium I" (2.5 cm) 3” [8 cm) 9-l 1 4-7
Well done I" (2.5 cm] 3" (8 cm] II-13 5-7
Beef Steaks
Rare I W' (4 cm) 4"-5" (I O-l 3 cm] 13-15 6-8
Medium 1l/2" (4 cm) 4"-5"(10-13 cm) 17-19 B-IO
Well Done 1
l/2” (4 cm] 4"-5"(10-13 cm) 19-21 14-16
Hamburgers
l/2” [1 cm) 3" (8 cm) 6-8 4-5
Lamb Chops
Medium l”(2.5 cm] 3" (8 cm) 6-8 4-5
Ham slice, precooked l/2”-1”
or tendered [I -2.5 cm) 3" (8 cm] 6-8 4-5
Canadian Bacon 1/2”(1 cm] 3" (8 cm] 6 4
Pork Rib or Loin Chop
3/4”-1 ”
Well done (2-2.5 cm) 4”-5” (1O-l 3 cm) 15 10
\ Chicken 2-3 lb.
(l-l .5 kg)
cut in half 7"-9"(lB-23 cm] 25-30 IO-12
Fish whole 3" [8 cm) II-16 9-14
fillets 3" [8 cm) 7-8 5-7
Liver 1/2”-3/4”
(l-2 cm) 3" (8 cm) 3 3
Frankfurters 4"-5"(10-13 cm) 6-7 4-5
7

USING THE AUTOMAIIC MEALTIMER” CLOCK
The Automatic MEALTIMER Clock is designed to turn the oven on and off at times
you set...even when you are not around. IMPORTANT: Follow these steps In order.
To start and stop baking automatically:
1. Put the racks where you 2. Set the Oven Selector on 3. Set the Oven Temperature
want them and place the TIMED BAKE. Control on the baking
food in the oven. temperature you want.
4. Make sure the clock is set 5. Push in and turn the Start 6. Push in and turn the Stop
to the right time of day. Time Knob clockwlre Trme Knob clockwlse
to the time you want bak- to the time you want the
ing to start. oven to shut off.
7. After baking is done, turn 8. To stop the oven before
both knobs to OFF. the preset time, turn both
knobs to OFF.
To stop baklng automatlcally:
1. Put the racks where you want them and 5. Push in and turn the Stop Time Knob clock-
place the food in the oven. wise to the time you want the oven to shut
2. Set the Oven Selector on TIMED BAKE.
Off.
3. Set the Oven Temperature Control on the 6. After baking is done, turn both knobs to
baking temperature you want. OFF.
4. Make sure the clock is set to the right time 7. To stop the oven before the preset time,
of day. turn both knobs to OFF.
SPECIAL CAUlION:
Use foods that will not go bad or spoil a covered baking dish with about a half-
while waiting for cooking to start. Avoid cup (118 ml) of water for 1 to 1% hours.
using dishes with milk or eggs, cream Any food that has to wait for cooking to
soups, cooked meats or fish, or any item start should be very cold or frozen before
with baking powder or yeast. it is put in the oven. MOST UNFROZEN
Smoked or frozen meats may be used; FOODS SHOULD NEVER STAND MORE THAN
so can vegetables. fruits and casserole- TWO HOURS BEFORE COOKING STARTS.
type foods. Vegetables can be cooked in
8 *Tmk

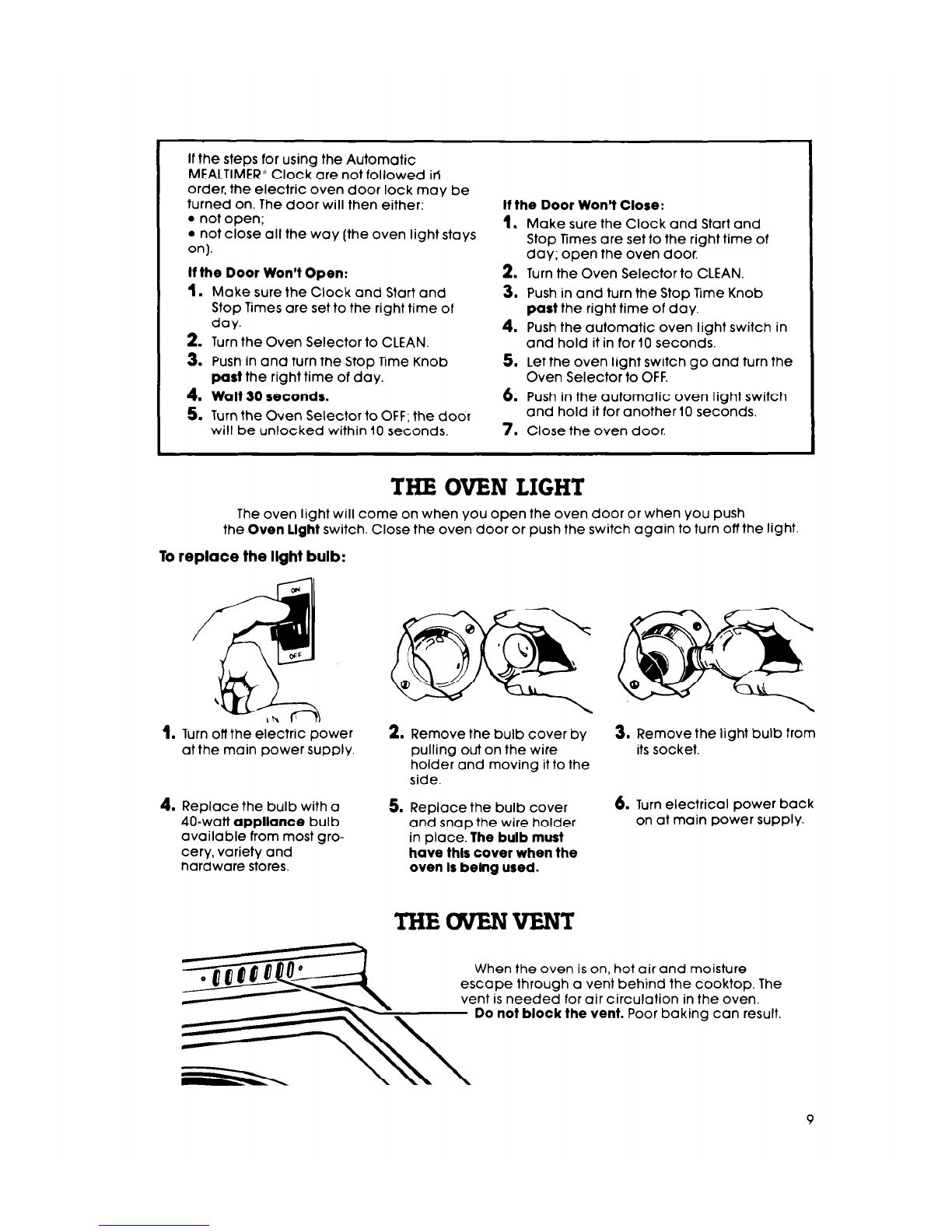

If the steps for using the Automatic
MEALTIMER- Clock are not followed in
order, the electric oven door lock may be
turned on. The door will then either:
l not open; If the Door Won’t Close:
l not close all the way (the oven light stays
1. Make sure the Clock and Start and
on). Stop Times are set to the right time of
day; open the oven door.
If the Door Won’t Open: 2. Turn the Oven Selector to CLEAN.
1. Make sure the Clock and Start and 3. Push in and turn the Stop Time Knob
Stop Times are set to the right time of past the right time of day.
day.
2. Turn the Oven Selector to CLEAN. 4. Push the automatic oven light switch in
and hold it in for 10 seconds.
3. Push in and turn the Stop Time Knob 5. Let the oven light switch go and turn the
past the right time of day. Oven Selector to OFF.
4. Walt 30 seconds. 6. Push in the automatic oven light switch
5. Turn the Oven Selector to OFF; the door and hold it for another 10 seconds.
will be unlocked within 10 seconds, 7. Close the oven door.
THE OVEN LIGHT
The oven light will come on when you open the oven door or when you push
the Oven Light switch. Close the oven door or push the switch again to turn off the light.
To replace the light bulb:
1. Turn off the electric power
at the main power supply.
4. Replace the bulb with a 5. Replace the bulb cover
40-watt appliance bulb and snap the wire holder
available from most gro- in place. The bulb must
cery, variety and have thls cover when the
hardware stores. oven Is belng used.
2. Remove the bulb cover by 3. Remove the light bulb from
pulling out on the wire its socket.
holder and moving it to the
side.
6. Turn electrical power back
on at main power supply.
THE-VENT
When the oven is on, hot air and moisture
escape through a vent behind the cooktop. The
for air circulation in the oven.
the vent. Poor baking can result.
9

SURFACE UNIT CONTROLS
m--L-- I I.- -L j must
efore
k\
LWIIIIWI KrlOD:
;-
be pushed In bi
lurnlng them to Q set-
ting. They can be set
anywhere between HI
i and OFF.
Turn to setting
The slgnal light will
glow when a surface
unlt Is on. Be sure
the light Is off when
you are not cooklng.
Until you get used to the settlngs, use the followlng as a gulde.
Use HI to start
foods cooking or
to brlng liquids
to o boll. Surface
unit will not turn
red if good con-
tact is made with
boffom of pan.
r;o
Use MED-HI to
hold a rapid boil
or to fry chicken
or pancakes.
& u;o Ml0
Use MED for Use MED-LO to
Use LO to keep
gravy, puddings keep food food warm until
and icings or to
cooking after
ready to serve.
cook large starting it on a Set the heat
amounts of higher setting.
higher or lower
vegetables.
within the LO
band lo keep
food at the
temperature you
wont
COOKTOP MODULE CONTROLS
The following Optlonal Accessories are available through your Whirlpool Dealer or
Parts Distributor: Griddle Cooktop 2-6” Surface Units
Rotisserie Cooktop l-6” & l-8” Surface Units
Grill Black Smoothtop
Cutting Board
Use Surface Unit Controls to turn on cooktop modules. For the Optlonal Grlddle only,
surface unit indicators with boxes show which control to use:
Grlddle on the Left Islo
Push In and turn the
Surface Unit Control
the settlng you want
(see page 13 for
suggestlons).
Grlddle on the Right
to
The Right or Left Mod-
ule Slgnal Llght will
glow to show which
module Is on.

For the Grill Module, use front or buck controls as you would for surface units. Use both
controls if you want both the front and buck of the grill to heat.
Grill on Left Grill on the Rlaht
Left Front Rlght Rear
The Optlonal Black Smoothtop Module works the some as Surface Unit Modules
CHANGING COOKIOP MODULES
The Cooktop Modules will work on either side of the cooktop. Make sure all
controls are OFF and modules are cool before removlng them.
SURFACE UNIT MODULES
1. To remove, lift slightly by
the handle.
1. To replace, use both
hands to line up the termi-
nal with the receptacle.
Frame and Basket wlth
Grease Well Ceramic Rocks
2. With both hands, pull
module toward you to
unplug it.
2. Plug terminal into
receptacle.
3. Lift out and set aside.
3. Lower the front with the
handle.
Terminal \
Heating Element Grllls

1. To remove, lift
off grills.
2. Lift front end of 3. Lift out basket 4. Lift slightly at
heating of ceramic the back and
element and rocks. remove the
pull toward you. grease well,
being careful
not to spill
Receptacle fat drippings.
1. To replace, 2. Put in basket 3. Plug heating
4. Place grills
lower grease of ceramic element over heating
well into rocks. terminal into element.
opening. receptacle.
All parts must be cleaned after each use to avoid fat spollage and odors. See page 22.
OPTIONAL
GRIDDLE MODULE
1. To remove, lift
and remove
griddle cover.
2. Lift front slightly
by the handle. 3. With both
hands, pull
griddle toward
you to unplug it.
4. Lift out and set
aside.
Receptacle
1. To replace, use
both hands to
line up the
terminal with
the receptacle.
12
2. Push griddle
into place until
its plugged in.
3. Slide so tabs on 4. Replace cover
the griddle fit only over clean,
into the notches cool griddle.
on each side.

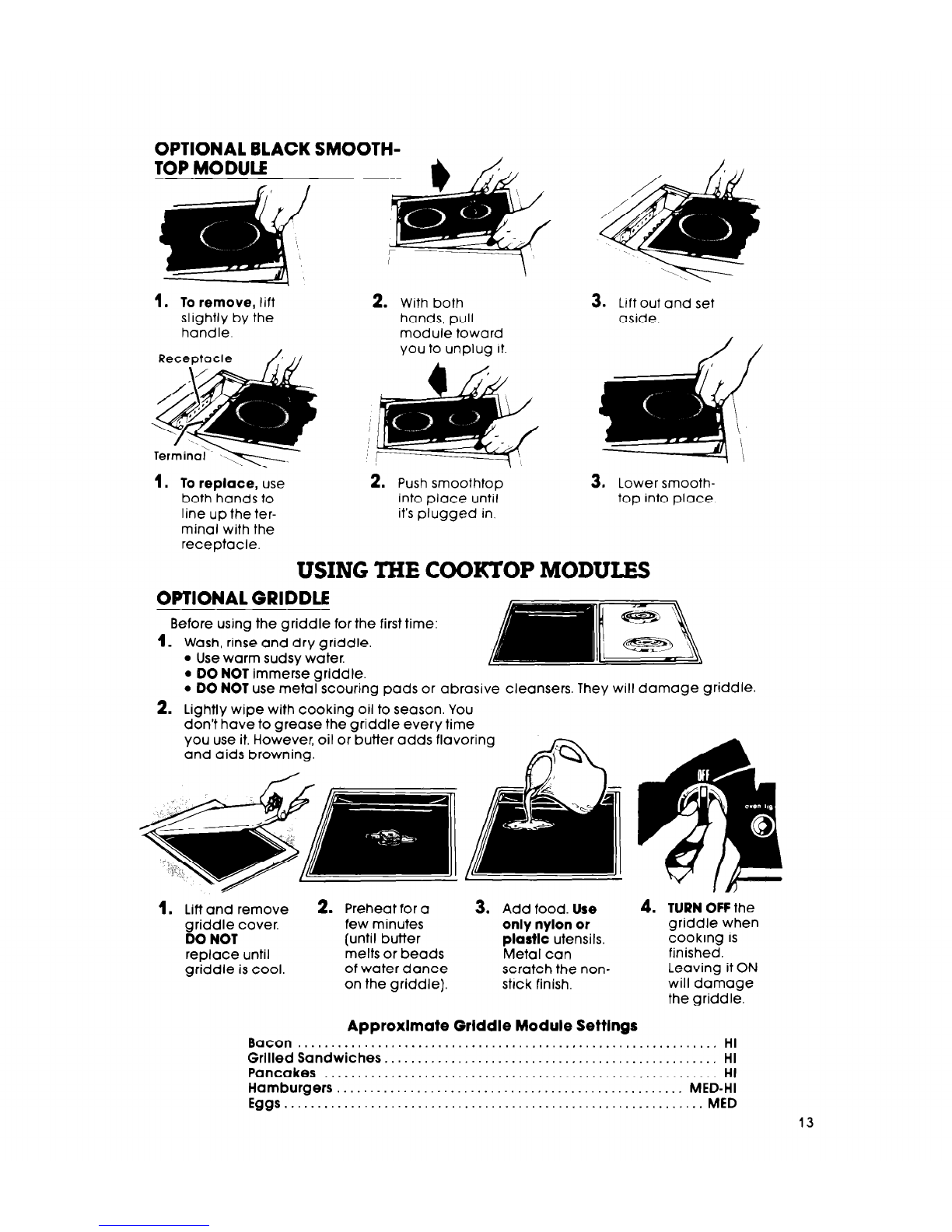

OPTIONAL BLACK SMOOTH-
TOP MODULE
-
1. To remove, lift 2. With both
slightly by the hands, pull
handle. module toward
3. Lift out and set
aside.
you to unplug it.
1. To replace, use
both hands to
line up the ter-
minal with the
receptacle.
2. Push smoothtop
into place until
it’s plugged in.
3. Lower smooth-
topinto place
USING THE COOKIOP MODULES
OPTIONAL GRIDDLE
Before using the griddle for the first time:
1. Wash, rinse and dry griddle.
l Use warm sudsy water.
l DO NOT immerse griddle.
l DO NOT use metal scouring pads or abrasive cleansers. They will damage griddle.
2. Lightly wipe with cooking oil to season. You
don’t have to grease the griddle every time
you use it. However, oil or butter adds flavoring
1. Lift and remove
griddle cover.
DO NOT
replace until
griddle is cool.
2. Preheat for a 3. Add food. Use 4. TURN OFF the
few minutes only nylon or griddle when
(until butter plastic utensils. cooking is
melts or beads Metal can finished.
of water dance scratch the non- Leaving it ON
on the griddle). strck finish. will damage
the griddle.
Approxlmate Grlddle Module Settlngr
Bacon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . HI
Grllled Sandwiches.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . HI
Pancakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . HI
Hamburgers.................................................... MED-HI
Eggs............................................................... MED 13

A range hood (Whirlpool Model No’sRGH8330 or RGH8336) should be used to
help get rid of smoke while using the Grill Module.

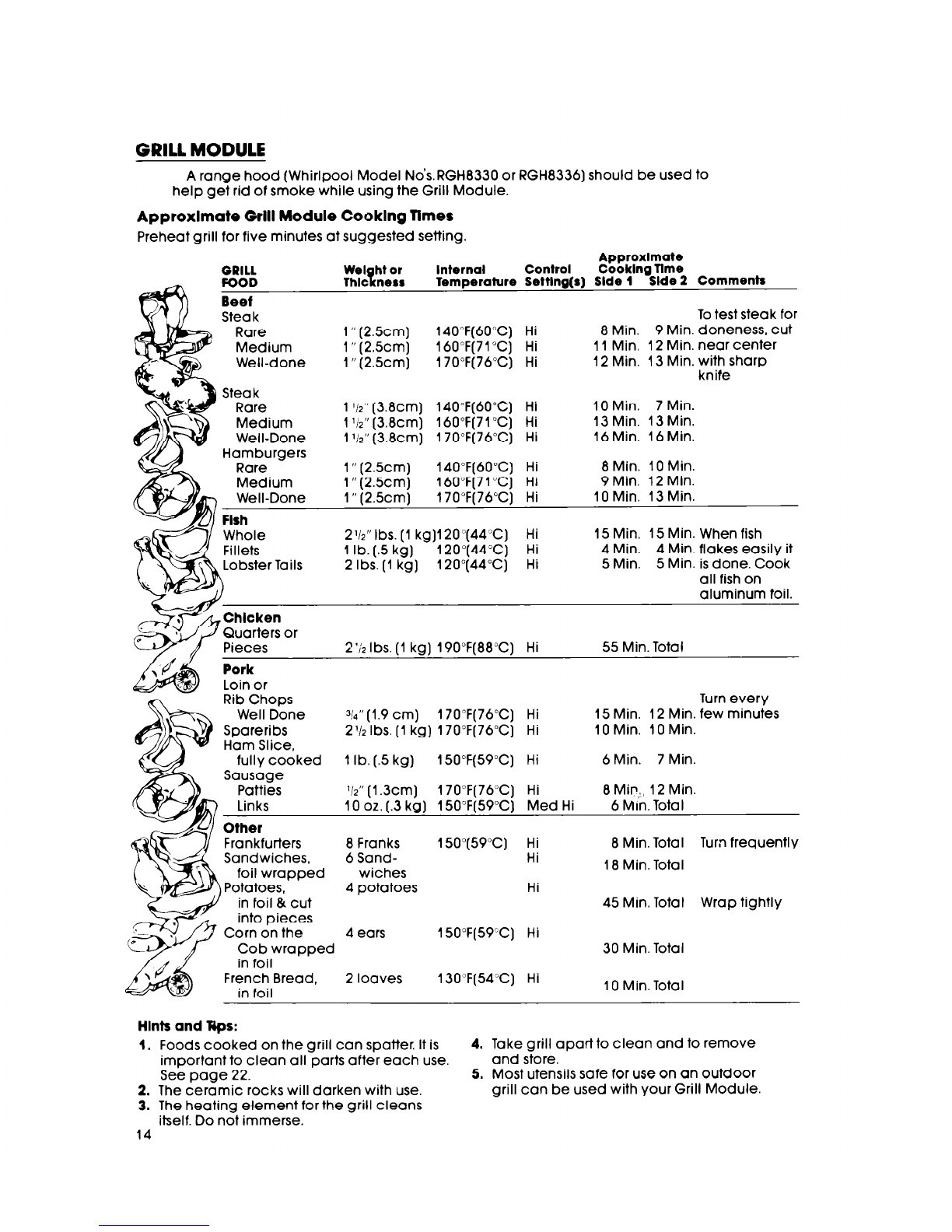

Approxlmate Grill Module Cooklng Times
Preheat grill for five minutes at suggested setting.
Approxlmate
Cooklng l’lme
Temperature Setting(s) Side 1 Side 2 COmmenh
To test steak for
140°F(600C) Hi 8 Min. 9 Min. doneness. cut
16O”F(71 “C] Hi 11 Min. 12 Min. near center
170°F(76C) Hi 12 Min. 13 Min. with sharp
knife
1lh” (3.8cm) 14O”F(6O”C) Hi
11/2”(3.8cm) 16O”F(71”C) Hi
1lh” (3.8cm) 17O”F(76”C) Hi
14O”F(6O”C) Hi
160°F(71”C) Hi
170°F(76”C) Hi
2%” Ibs. (1 kg)l20”(44C) Hi
1 lb. (.5 kg] 120”(44”C) Hi
2 Ibs. (1 kg) 120”(44”C) Hi
10 Min. 7 Min.
13 Min. 13 Min.
16 Min. 16 Min.
8 Min. IO Min.
9 Min. 12 Min.
10 Min. 13 Min.
15 Min. 15 Min. When fish
4 Min. 4 Min. flakes easily it
5 Min. 5 Min. is done. Cook
all fish on
aluminum foil.
Turn every
%“(I.9 cm) 17O”F(76”C) Hi 15 Min. 12 Min. few minutes
21/z Ibs. (1 kg) 17O”F(76”C) Hi 10 Min. 10 Min.
fully cooked 1 lb. (.5 kg) 150°F(59”C) Hi 6 Min. 7 Min.
170”F(76”C) Hi 8 Min,, 12 Min.
6 Min. Total
150”(59”C) Hi 8 Min. Total Turn frequently
18 Min. Total
45 Min. Total Wrap tightly
150°F(59”C) Hi
Cob wrapped 30 Min. Total
French Bread, 2 loaves 1JO”F(54”C) Hi 10 Min. Total
Hints and Tips:
1. Foods cooked on the grill can spatter. It is 4. Take grill apart to clean and to remove
important to clean all parts after each use. and store.
See page 22. 5. Most utensils safe for use on an outdoor
2. The ceramic rocks will darken with use. grill can be used with your Grill Module.
3. The heating element for the grill cleans
itself. Do not immerse.
14

OPTIONAL ROTISSERIE
The Rotisserie has 4 parts. It
used with the Grill Module. is
Rem Support
I I n”Q II
1. Remove the
grills from the
Grill Module.
2. Insert rear sup-
port tabs into
slots at rear
of the Grill
Module.
3. Slide forward to
lock. Tilt top to
level.
4. Insert front sup
port tabs into
slots at front of
the Grill
Module.
LowsPosItIon
5. Slide back to
lock. Tilt top
to level.
6. Put motor socket and pins through holes
in Rear Support at the high or low position.
1.
2.
3.
4.
Put one fork on the spit pointing away from 5.
the handle.
Push spit through meat so the weight is
balanced around the center.
Put the second fork on the spit pointing
toward the meat.
Push both forks into the meat and tighten
the thumbscrews.
6.
7.
Push the pointed end of the spit all the way
into the motor socket.
Put the handle end of the spit into the high
or low slot (to match the motor socket posi-
tion] of the Front Support.
Plug in the Rotisserie motor and turn on the
Grill Module. See page 16 for suggested
cooking times. 15

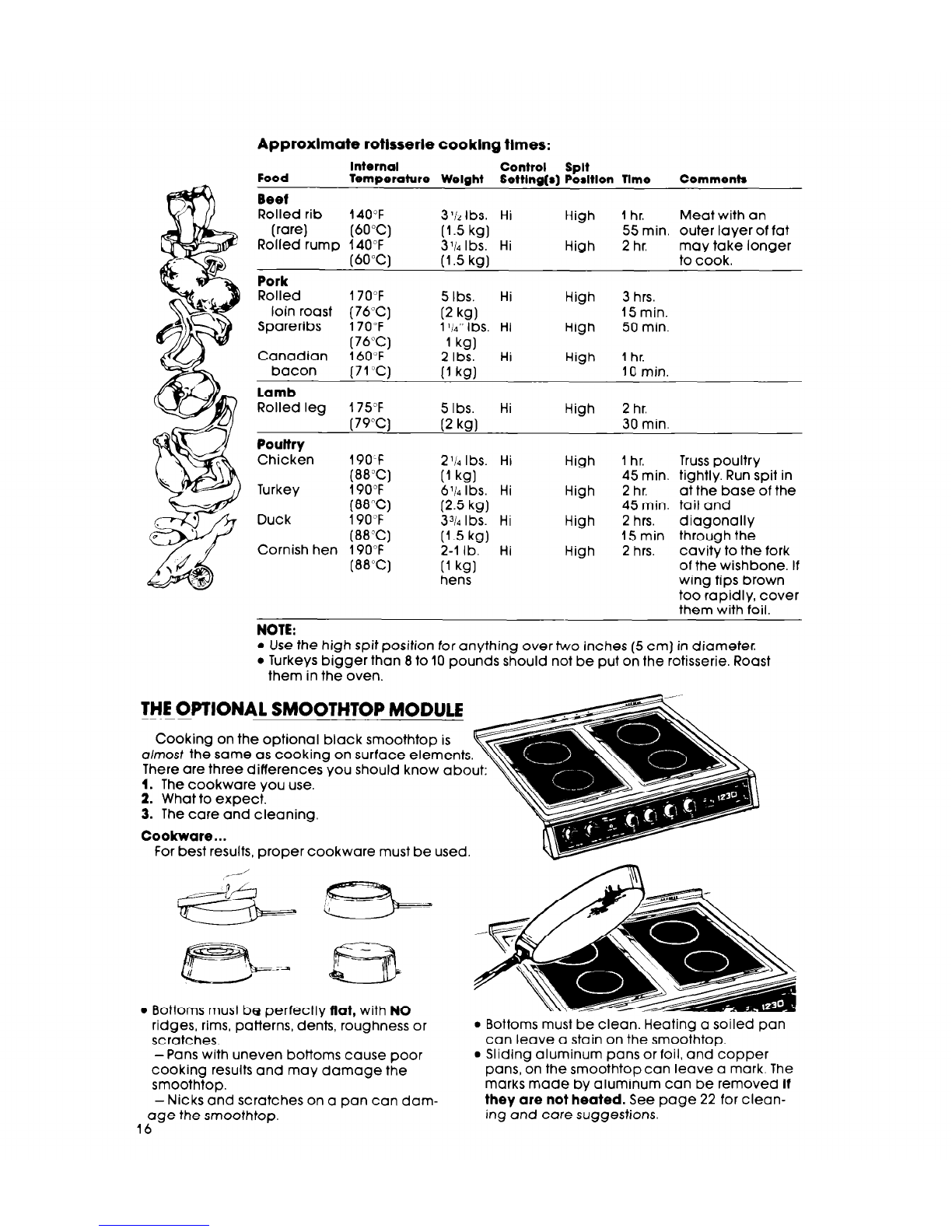

Approxlmate rotlsserle cooklng tlmes:
Internal Control
Food Spit
Temperature Welght Setting(s) Posltlon Time Comments
Beef
Rolled rib 140°F 3% Ibs. Hi High 1hr. Meat with an
(rare) (60°C) (I.5 kg1 55 min. outer layer of fat
Rolled rump 140°F 3’/4 Ibs. Hi High 2 hr. may take longer
(60°C) (1.5 kg1 to cook.
Pork
Rolled 170°F 5 Ibs. Hi High 3 hrs.
loin roast (76°C)
(2 kg1
15 min.
Spareribs 170°F ll/4” Ibs. Hi High 50 min.
(76°C) 1 kg1
Canadian 160°F 2 Ibs. Hi High 1hr.
bacon (71 “C) (1 kg) IO min.
lamb
Rolled leg 175°F 5 Ibs. Hi High 2 hr.
[79°C)
(2 kg)
30 min.
Pouttry
Chicken 190-F 2’1.1Ibs. Hi High 1hr. Truss poultry
(88°C) (1 kg1 45 min. tightly. Run spit in
Turkey 190°F 61/dIbs. Hi High 2 hr. at the base of the
(88C) (2.5 kg) 45 min. tail and
Duck A90°F 3% Ibs. Hi High 2 hrs. diagonally
(88°C) [I .5 kg) 15 min. through the
Cornish hen 190°F 2-1 lb. Hi High 2 hrs. cavity to the fork
(88C) (1 kg1 of the wishbone. If
hens wing tips brown
too rapidly, cover
them with foil.
NOTE:
l Use the high spit position for anything over two inches (5 cm] in diameter.
l Turkeys bigger than 8 to 10 pounds should not be put on the rotisserie. Roast
them in the oven.
THE OPTIONAL SMOOTHTOP MODULE
Cooking on the optional black smoothtop is
o/most the same as cooking on surface elements.
There are three differences you should know about:
1. The cookware you use.
2. What to expect.
3. The care and cleaning.
Cookware...
For best results, proper cookware must be used.
l Bottoms must be perfectly flat, with NO
ridges, rims, patterns, dents, roughness or
scratches.
-Pans with uneven bottoms cause poor
cooking results and may damage the
smoothtop.
-Nicks and scratches on a pan can dam-
age the smoothtop.
16
l Bottoms must be clean. Heating a soiled pan
can leave a stain on the smoothtop.
l Sliding aluminum pans or foil, and copper
pans, on the smoothtop can leave a mark. The
marks made by aluminum can be removed If
they are not heated. See page 22 for clean-
ing and care suggestions.

Cooklng...
The glass will take longer to heat up than a
regular surface unit. It will also take longer
to cool down. Turn off the unit a few minutes
before you are finished cookrng.
The Care and Cleaning...
Always clean the smoothtop after cooking.
Use a special smoothtop cleaner/conditioner
available from your appliance dealer, gro-
cery, hardware or variety stores.
Avoldlng stalns
l Use a special smoothtop cleanericondi-
tioner every time you use the Smoothtop
Module. Follow the package directions
carefully.
l Wipe the smoothtop with a clean, damp
paper towel before you use the smooth-
top. (Do not use a sponge or cloth. A little
leftover soap or soil can stain the smooth-
top when heated.)
l Use only clean cookware.
l Avoid spillovers. Use pans with tall sides.
l Don’t let covers drip on the smoothtop.
l Wipe up any spill when the unit is cool
enough not to steam when a wet cloth
touches it. The longer you cook wlth a splll-
over on the unit, the harder It will be to
remove that spill.
l Clean off metal marks (from copper or
aluminum) right away. If heated, they may
never come off
Avoiding Damage
l Rough cookware, jewelry, salt, sand,
knives, etc....can scratch the surface. Use
only smooth cookware; wipe the surface
before using. DO NOT use the smoothtop as
a cutting board.
l Sugary spills can cause pitting on the sur-
face. Wipe a spill when the surface is cool.
l Pans that aren’t flat can cause hot spots
that can crack the surface.
l Spilling ice-cold water on a hot surface
may crack it.
l Dropping heavy or hard objects on the
cooktop can crack it. Be careful with heavy
skillets. Don’t store jars or cans above the
smoothtop.
See the special “Smoothtop Cleanlng Chart”
on page 22.
OPTIONAL CUTTING BOARD
Before using the Cutting Board...
1. Wipe with damp sudsy cloth to remove
dust.
2. Rinse and wipe dry.
3. Season it by coating with colorless minera
oil.
4. Let oil stand a few hours; wipe off excess.
To keep the Cutting Board looking new, sand
the surface with fine sandpaper to remove
cutting marks and stains. Clean and re-season.
To sterilize the board, use a mixture of one
teaspoon chlorine bleach to one quart water.
Wipe cutting board. Clean and re-season.
t7

Cleaning and caring
for your range
CONTROL PANEL AND KNOBS
1. First make sure knobs are set on OFF then
pull knob rtralght off.
2. Use warm soapy water and a soft cloth to
wipe the panel. Rinse and wipe dry.
3. Wash knobs in warm soapy water. Rinse
well and dry.
4. Push the knobs straight back on. Make sure
they point to OFF.
18
SURFACE UNITS AND
REFLECTOR BOWLS
REMOVING
1. Be sure surface units are OFF and COOL.
\ ‘;\
I - \
*es
\
2. Lift the edge of the unit opposite the recep
tacle just enough to clearthe reflector bowl.
3. Pull the surface unit straight away from the
receptacle.
4. Lift out the reflector bowl.
REPLACING
1. Be sure surface unit controls are OFF.
Bowl
1 Opening
2
I
h Receptacle
2. Line up opening in the reflector bowl with
the surface unit receptacle.

Terminal
3. Hold the surface unit as level as possible
with the terminal just started into the
receptacle.
4. While pushing the surface unit terminal into
the receptacle, lift a little on the edge of
the unit nearest the receptacle.
5. When the terminal is pushed into the re-
ceptacle as far as it will go, the surface unit
will fit into the reflector bowl.
Reflector bowls reflect heat back to the
utensils on the surface units. They also help
catch spills. When they are kept clean, they
reflect heat better and look new longer
If a reflector bowl gets discolored, some
of the utensils used may not be flat enough.
Or some may be too large for the surface
unit. In either case, some of the heat that is
meant to go into or around a utensil goes
down and heats the reflector bowl. This ex-
tra heat can discolor it.
USING THE SELF-CLEANING CYCLE
The self-cleaning cycle uses very hlgh heat to burn awcy soil. Before
you start, make sure you understand exactly how to use the cycle
safely.
BEFORE YOU START
1. Clean areas that may not be cleaned
during the cycle. Use hot water and deter-
gent or a soapy steel-wool pad on...
l the frame around the oven
l the inside of the door, especially the part
outside the oven seal.
DO NOT try to clean the flberglass seal. DO
NOT move It or bend It.
2. Remove any pots or pans you may have
stored in the oven. They can’t stand the
ny loose soil or grease. This will
help reduce smoke during the cleaning
Clean Door
19

SPECIAL TIPS
1. Keep the kitchen well
ventilated during the
cleaning cycle to help
get rid of normal heat
odors and smoke.
2. Clean the oven before 3. Ifthe cleaning cycle
it gets heavily soiled. doesn’t get the oven as
Cleaning a very soiled clean as you
oven takes longer and expected, the cycle
results in more smoke may not have been set
than usual. long enough. Set the
cleaning time longer
for heavier soil.
4. Oven racks lose their shine, discolor 5.
and become harder to slide on their
guides when they are left in the oven
during the cleaning cycle. To make
them slide easier, polish the edges of
the racks and rack guides with a soapy
steel-wool pad, rinse well, and wipe
on a thin coat of salad oil.
To stop the cleaning cycle after it has
started:
l Turn the Stop Trme Knob clockwise
until the hand points to the right time
of day.
l Turn the Oven Selector and Oven
Temperature Control to OFF.
l When the oven cools, you can
open the door. Wait until the oven is cool.
SPECIAL CAlllIONS
DO NOT touch the range
during the cleaning cycle
...it can burn you.
DO NOT use foil or other DO NOT use commercial
liners in the oven. During oven cleaners in your oven.
the cleaning cycle, they Damage to the porcelain
can burn or melt. finish may occur.
DO NOT block the vent
during the cleaning cycle.
Air must move freely for
best results.
SETTING THE CONTROLS
1. Make sure the clock 2. Push in the Stop Time
and start and stop Knob and turn the
time dials all have the hand clockwise
right time of day. about two or three
hours. (Two hours for
light soil; three or
more for heavier soil.]
20
3. Set the Oven Selector
to CLEAN. The Clean
Light will come on
and the door will lock
automatically.
