Whirlpool TGR61W2B Installation instructions

UseAndCare
A Note To You 2
pgzF”;afeh/ 3
Parts And Features 6
Using Your Range 7
h& For Your 16
If You Need
Assistance
Or Service 24
Warranty 28
1-800-253-1301
Call us with questions or comments.

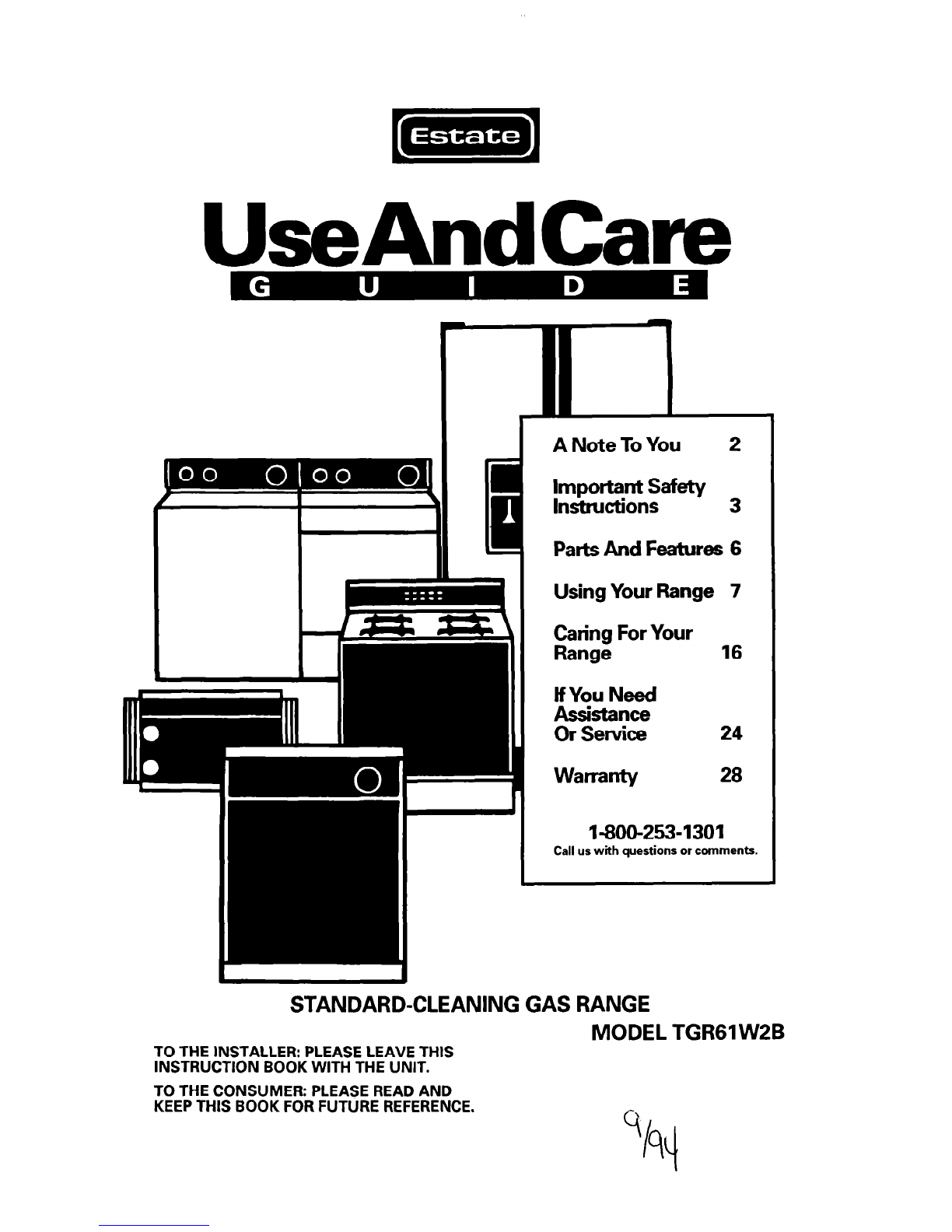

STANDARD-CLEANING GAS RANGE
MODEL TGRGI WZB
TO THE INSTALLER: PLEASE LEAVE THIS
INSTRUCTION BOOK WITH THE UNIT.
TO THE CONSUMER: PLEASE READ AND
KEEP THIS BOOK FOR FUTURE REFERENCE.

A Note To You
Thank you for buying an Estate0 appliance.
Your Estate’ range gives you all the functionality of name brand appliances at a value price.
To ensure that you enjoy years of trouble-free operation, we developed this Use and Care
Guide. It is full of valuable information about how to operate and maintain your appliance
properly and safely. Please read it carefully. Also, please complete and mail the Ownership
Registration Card provided with your appliance. This will help us notify you about any new
information on your appliance.
Your safety is important to us.
This guide contains safety symbols and statements. Please pay special attention to these
symbols and follow any instructions given. Here is a brief explanation of the use of each
symbol.
This symbol will help alert you to such
dangers as personal injury, burns, fire
and electrical shock.
This symbol will help you avoid actions
which could cause product damage
(scratches, dents, etc.) and damage to
your personal property.
For further information, see ‘The anti-tip brackets” on page 15.
Our Consumer Assistance Center number, l-800-253-1301,
is toll-free, 24 hours a day.
If you ever have a question concerning your appliance’s operation, or if you need service, first
see “If You Need Assistance Or Service” on page 24. If you need further help, feel free to call
our Consumer Assistance Center. When calling, you will need to know your appliance’s
complete model number and serial number. You can find this information on the model and
serial number plate (see diagram on page 6). For your convenience, we have included a
handy place below for you to record these numbers, the purchase date from the sales slip
and your dealer’s name and telephone number. Keep this book and the sales slip together in
a safe place for future reference.
Model Number Dealer Name
Serial Number
Dealer Phone
l ALL RANGES CAN TIP.
l INJURY TO PERSONS
I
COULD RESULT.
l INSTALL ANTI-TIP
DEVICES PACKED
WITH RANGE.
l SEE INSTALLATION
INSTRUCTIONS.
Purchase Date
2

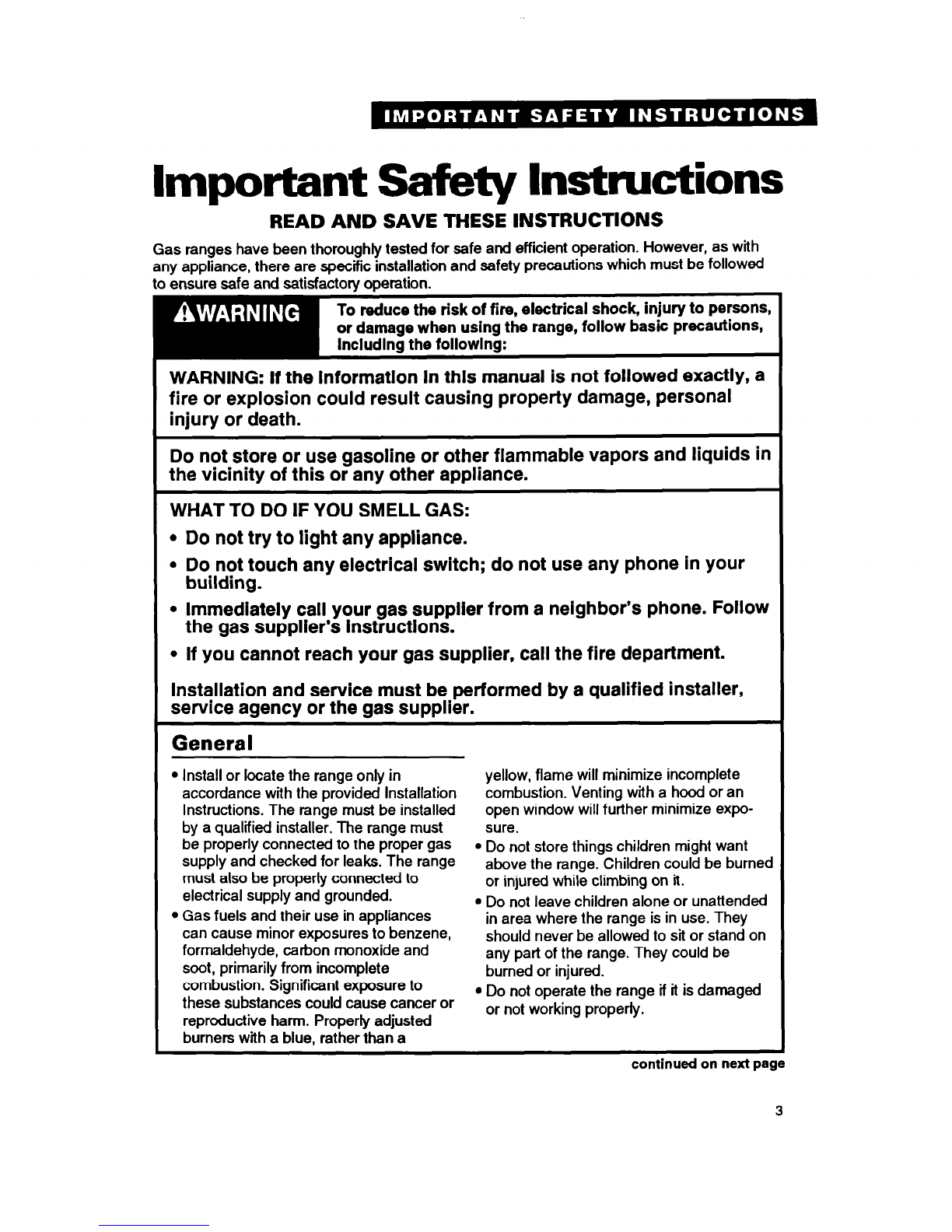

Important safety Instructions
READ AND SAVE THESE INSTRUCTIONS
Gas ranges have been thoroughly tested for safe and efficient operation. However, as with
any appliance, there are specific installation and safety precautions which must be followed
to ensure safe and satisfactory operation.
WARNING: If the information in this manual is not followed exactly, a
fire or explosion could result causing property damage, personal
injury or death.
Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
l Do not try to light any appliance.
l Do not touch any electrical switch; do not use any phone in your
building.
l Immediately call your gas supplier from a neighbor’s phone. Follow
the gas supplier’s lnstructlons.
l If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer,
service agency or the gas supplier.
General
l Install or locate the range only in
accordance with the provided Installation
Instructions. The range must be installed
by a qualified installer. The range must
be properly connected to the proper gas
supply and checked for leaks. The range
must also be properly connected to
electrical supply and grounded.
l Gas fuels and their use in appliances
can cause minor exposures to benzene,
formaldehyde, carbon monoxide and
soot, primarily from incomplete
combustion. Significant exposure to
these substances could cause cancer or
reproductive harm. Properfy adjusted
burners with a blue, rather than a
yellow, flame will minimize incomplete
combustion. Venting with a hood or an
open window will further minimize expo-
sure.
l Do not store things children might want
above the range. Children could be burned
or injured while climbing on it.
l Do not leave children alone or unattended
in area where the range is in use. They
should never be allowed to sit or stand on
any part of the range. They could be
burned or injured.
. Do not operate the range if it is damaged
or not working properly.
continued on next page
3

l Do not use the range for warming or
heating the room. Persons could be
burned or injured, or a fire could start.
l Do not attempt to light the oven burner
during a power failure. Personal injury
could result. Reset oven controls to the
off position in the event of a power
failure.
l Use the range only for its intended use
as described in this manual.
l Do not touch surface burners, areas
near surface burners or interior surfaces
of oven. Areas near surface burners and
interior surfaces of an oven become hot
enough to cause burns. During and after
use, do not touch, or let clothing or other
flammable materials contact surface
burners, areas near surface burners or
interior surfaces of oven until they have
had suffiiient time to cool. Other sur-
faces of the range, such as the oven
vent opening, the surface near the vent
opening, the cooktop, the oven door and
window, could also become hot enough
to cause burns.
l Do not wear loose or hanging garments
when using the range. They could ignite
if they touch an open flame and you
could be burned.
l Use only dry potholders. Moist or damp
potholders on hot surfaces could result in
burns from steam. Do not let pothoMer
touch an open flame. Do not use a towel
or bulky cloth for a potholder. It could
catch on fire.
l Keep range vents unobstructed.
l Do not heat unopened containers. They
coukl explode. The hot contents could
cause burns and container particles
could cause injury.
l Do not store flammable materials on or
near the range. The fumes could create
an explosion and/or fire hazard.
l Do not use the oven for storage.
l Do not use aluminum foil to line surface
burner well area, oven bottom, or any
other part of the range. Use aluminum
foil only as recommended in this manual.
l Never use a match or other flame to look
for a gas leak. Explosion and injury could
result.
l Know where your main gas shutoff valve
is located.
When using the cooktop
l Make sure the utensils you use are large
enough to contain food and avoid
boilovers and spillovers. Heavy splatter-
ing or spillovers left on a range coukl
ignite and bum you. Pan size is
especially important in deep fat frying.
l Check to be sure glass cooking utensils
are safe for use on the range. Only
certain types of glass, glass-ceramic,
ceramic, earthenware or other glazed
utensils are suitable for cooktops without
breaking due to the sudden change in
temperature.
l Never leave surface burners unattended
at high heat settings. A boilover could
result and cause smoking and greasy
spillovers that could ignite.
4

l Turn pan handles inward, but not over
other surface burners. This will help
reduce the chance of burns, igniting of
flammable materials, and spills due to
bumping of the pan.
l Do not use decorative covers or trivets
over the surface burners.
When using the oven
l Always position the oven rack(s) in
desired location while oven is cool.
l Use care when opening oven door. Let
hot air or steam escape before removing
or replacing food.
Grease
l Grease is flammable. Do not allow
grease to collect around cooktop or in
vents. Wipe spillovers immediately.
l Do not use water on grease fires. Never
pick up a flaming pan. Smother flaming
pan by covering with a well-fitted lid,
cookie sheet or flat tray. Flaming grease
outside of pan can be extinguished with
baking soda or, if available, a multipur-
pose dry chemical or foam-type extin-
guisher.
Care and cleaning
l Do not clean door heat seal. It is essential
for a good seal. Care should be taken not
to rub, damage or move the seal. Clean
only parts recommended in this Use and
Care Guide.
l Do not repair or replace any part of the
range unless specifically recommended in
this manual. All other servicing should be
referred to a qualified technician.
l Any additions, changes or conversions
required in order for this appliance to
satisfactorily meet the application needs
must be made by a Whirlpool@ Service
Company or Qualified Agency.
l Disconnect the electrical supply and the
gas supply at the shutoff valve near the
range before servicing the range.
- READ AND SAVE THESE INSTRUCTIONS -

Parts And Features
This section contains captioned illustrations of your range. Use them to become familiar with
the location and appearance of all parts and features.
Oven
linht
Oven vent
Surface burners
and arates
Anti-tip brackets
Broiler drawer
Model and ser
number date.
..-...--. r.-‘-
(behind right
nide nf hrnilar
-.-- -. -.-..-.
drawer)
Control
- panel
Oven burner
(not shown)
Control panels
Surface burner
markers
I
Right rear Right front
control knqb
covtrol knob
Left froplt Lefl
rear I
control knob control knob 0v;nt;Bmperature
Hour and minute buttons Clock and timer buttons
6

In This Section
Page Page
Using the surface burners ................ .7 N$;Jpg the oven temperature
........... ......... ........................... 13
Positioning racks and pans.. ............ .9
For best air circulation .I0 Broiling .............................................. 13
.................... Energy saving tips ............................ 14
Setting the clock ............................... 11 .................................. .15
Using the Minute Timer.. ................. .I1 The oven vent
The anti-tip brackets ....................... .15
Baking/roasting ................................ 12

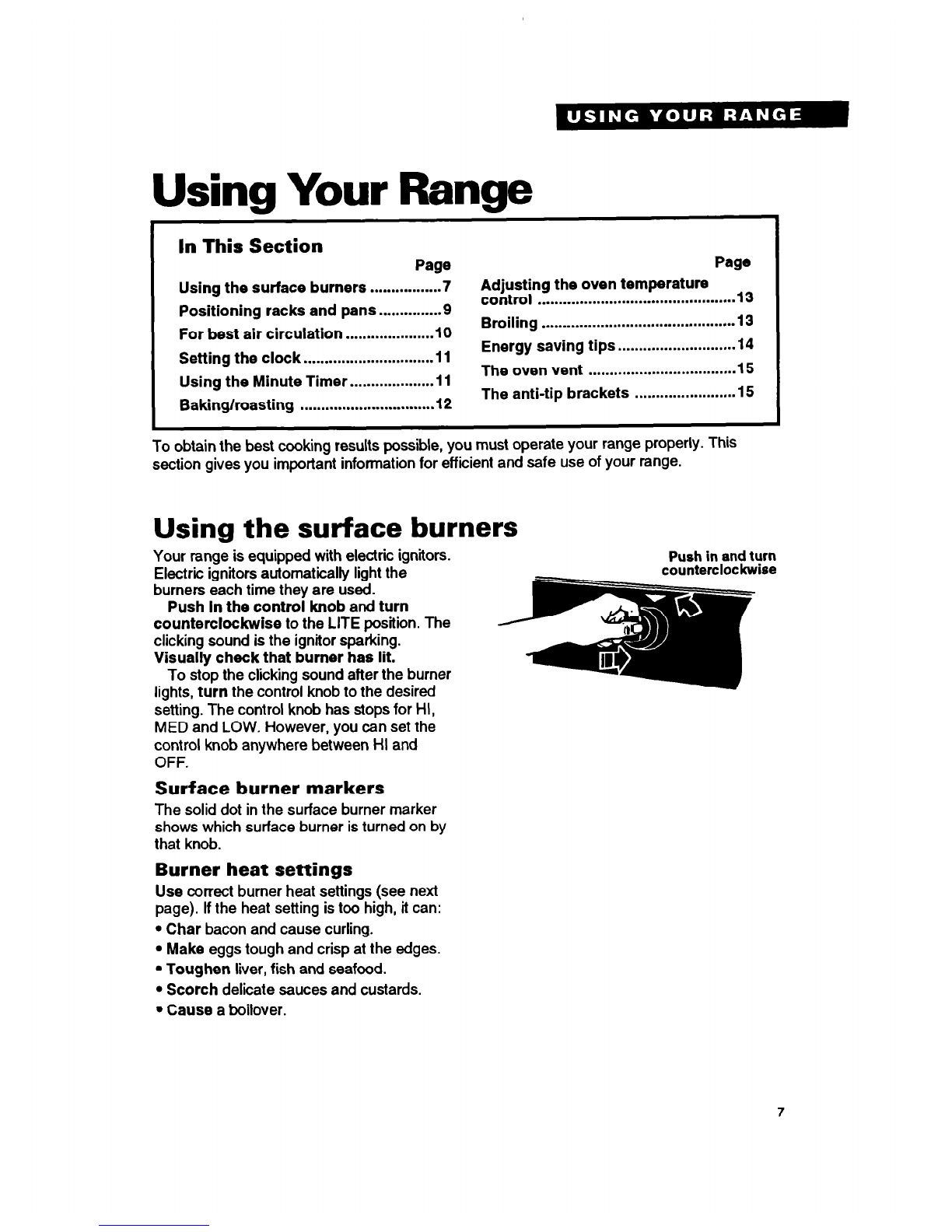

Using Your Range
To obtain the best cooking results possible, you must operate your range properly. This
section gives you important information for efficient and safe use of your range.
Using the surface burners
Your range is equipped with electric ignitors.
Electric ignitors automatically light the
burners each time they are used.
Push In the control knob and turn
counterclockwise to the LITE position. The
clicking sound is the ignitor sparking.
Visually check that burner has lit.
To stop the clicking sound after the burner
lights, turn the control knob to the desired
setting. The control knob has stops for HI,
MED and LOW. However, you can set the
control knob anywhere between HI and
OFF.
Surface burner markers
The solid dot in the surface burner marker
shows which surface burner is turned on by
that knob.
Burner heat settings
Use comxt burner heat settings (see next
page). If the heat setting is too high, it can:
l Char bacon and cause curling.
l Make eggs tough and crisp at the edges.
l Toughen liver, fish and seafood.
l Scorch delicate sauces and custards.
l Cause a boilover.
Push in and turn
counterclockwise
7

Until you get used to the settings, use
the following as a guide. For best results,
start cooking at the high setting; then turn
the control knob down to continue cooking.
r
SElTlNG
LITE
HI
MED
LOW
RECOMMENDED USE
l To light the burner. After the
burner lights, turn control
back to a desired setting.
l To start foods cooking.
l To bring liquids to a boil.
l To hold a rapid boil.
l To fry chicken or pancakes.
l For gravy, pudding and
~ icing.
l To cook large amounts of
1 vegetables.
l To keep food warm until
I ready to serve.
NOTE: Do not cook with the control in the
LITE position.
In case of a prolonged power
failure
Surface burners can be manually lighted.
Hold a lit match near a burner and turn the
control knob to the LITE position. After the
burner lights, turn the control knob to the
desired setting.
6
Burn, Fire and Explosion Hazard
l Burner flame should not extend
beyond the edge of the cooking
utensil. The flame could burn you and
cause poor cooking results.
l Be sure all control knobs are turned to
OFF when you are not cooking.
Someone could be burned or a fire
could start if a burner is accidentally
lefl ON.
l If the flame should go out while
cooking, or if there is a strong gas
odor, turn the burners OFF. Wait five
minutes for the gas odor to disappear
before relighting burner. If gas odor is
still present, see safety note on page 3.
Failure to follow these precautions
could result in explosion or fire.
Product Damage Hazard
Do not leave an empty utensil, or one
which has boiled dry, on a hot surface
burner.
The utensil coukl overheat and could
damage the utensil or cooking product.
Cookware tips
No one brand of cookware is best for all
people. Knowing something about pan
materials and construction will help you
select the correct cooking utensils for your
needs.
l NOTE: For best results and greater fuel
efficiency, use only flat-bottomed cook-
ware in good condition.
l The pan should have straight sides and a
tight-fitting lid.
l Choose medium to heavy gauge (thick-
ness) pans that are fairly lightweight.
l The pan material (metal or glass) affects
how fast heat transfers from the surface
burners through the pan material and how
evenly heat spreads over the pan bottom.
Choose pans that provide the best cooking
results.
l Handles should be made of a sturdy, heat-
resistant material and be securely attached
to the pan.

l Pans shouM be easy to clean. Check to be
sure there are no crevices, rough edges or
areas where food might collect.
l Be sure pans do not tip, whether they are
full or empty.
l Use cookware only as it was intended to
be used. Follow pan instructions. This is
very important for glass cookware because
some should be used only in the oven.
Other pans are marked as flameware and
may be used on the surface burners.
Home canning information
The large diameter of most water-bath or
pressure canners combined with high heat
settings for long periods of time can cause
damage to the cooktop.
To protect your range:
l For best results, use a canner which can
be centered over the surface burner.
l Do not place canner on two surface
burners at the same time. Too much heat
will build up and will damage the cooktop.
l Start with hot water. This reduces the
time the control is set on high. Reduce
heat setting to lowest position needed to
keep water boiling.
l Refer to your canner manual for specific
instructions.
Positioning racks and pans
For baking/roasting with one rack, place
the rack so the top of the food will be
centered in the oven.
Rack placement for specific foods:
When baking on two racks, arrange racks
on first and third rack guides from bottom.
FOOD RACK POSITION
Frozen pies, large 1st or 2nd rack
roasts, turkeys guide from bottom
Angel and bundt cakes, 2nd rack guide
most quick breads, from bottom
yeast breads, casse-
roles, meats
Cookies, biscuits,
muffins, cakes,
nonfrozen pies
2nd or 3rd rack
guide from bottom
Personal Injury Hazard
l Always position oven rack(s) in
desired location before turning oven
on. Be sure the rack(s) is level.
l If rack(s) must be moved while oven
is hot, use potholders or oven mitts to
protect hands.
*Do not place items on the open oven
door.
*Be careful when installing and remov-
ing large food items from extra roast-
ing rack position. Food will be close to
hot surfaces, including oven bottom
and sides.
Failure to follow the above precautions
could result in personal injury.
9

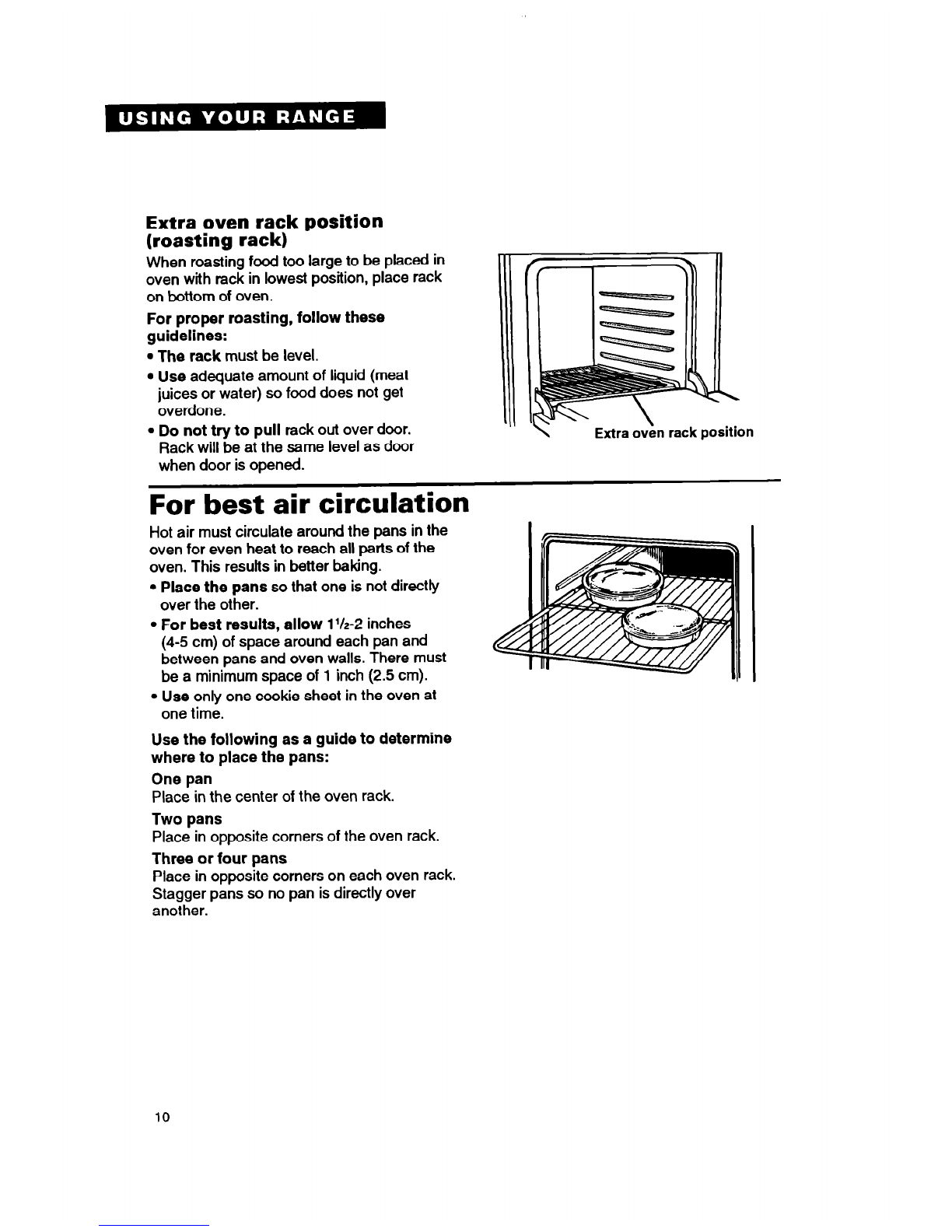

Extra oven rack position
(roasting rack)
When roasting food too large to be placed in
oven with rack in lowest position, place rack
on bottom of oven.
For proper roasting, follow these
guidelines:
l The rack must be level.
l Use adequate amount of liquid (meat
juices or water) so food does not get
overdone.
l Do not try to pull rack out over door.
Rack will be at the same level as door
when door is opened.
\
Extra oven rack position
For best air circulation
Hot air must circulate around the pans in the
oven for even heat to reach all parts of the
oven. This results in better baking.
l Place the pans so that one is not directly
over the other.
l For best results, allow 1%2 inches
(4-5 cm) of space around each pan and
between pans and oven walls. There must
be a minimum space of 1 inch (2.5 cm).
l Use only one cookie sheet in the oven at
one time.
Use the following as a guide to determine
where to place the pans:
One pan
Place in the center of the oven rack.
Two pans
Place in opposite corners of the oven rack.
Three or four pans
Place in opposite corners on each oven rack.
Stagger pans so no pan is directly over
another.
10

Setting the clock
When the range is first plugged in, or
following a power outage, “12:OO” will flash
in the display.
1. Push the Clock button.
2. Push in and hold the Hour button until
the correct hour appears in the display.
(The numbers will only count forward.)
3. Push in and hold the Minute button until
the correct minutes appear in the display.
CLOCK
HOUR
MINUTE
Using the Minute Timer
The Minute Timer does not start or stop the
oven. It works like a kitchen timer. Set it in
minutes up to 1 hour, 59 minutes. The
control will beep when the set time is up.
1. Push the Timer button. The display will
show “0:59” (59 minutes).
2. To set a time more than 59 minutes,
push in and release the Hour button.
The display will show “1:59”. The time can
now be adjusted down by pushing in and
holding the Minute button until the correct
time shows in the display.
To set a time less than 59 minutes,
push In and hold the Minute button until
the correct time shows in the display.
The Minute Timer will automatically start
when the Minute button is released.
3. When the set time has passed, the
display will show “0:OO” and the control
will beep continuously. Push the Clock
button to cancel the Minute Timer and
return to the clock mode.
CLOCK
HOUR TIMER
LYNUTE
CLOCK

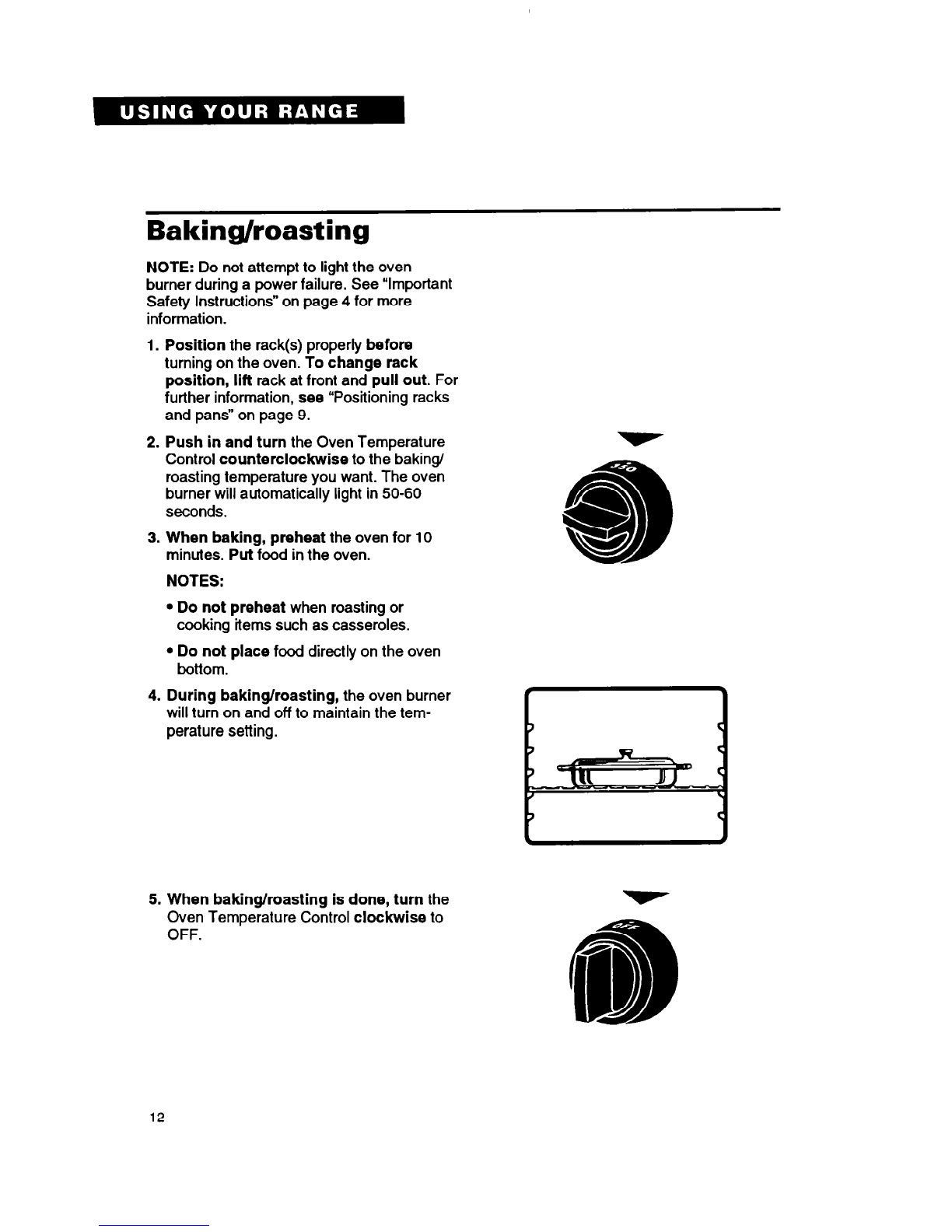

Baking/roasting
NOTE: Do not attempt to light the oven
burner during a power failure. See “Important
Safety Instructions” on page 4 for more
information.
1. Position the rack(s) properly before
turning on the oven. To change rack
position, lift rack at front and pull out. For
further information, see “Positioning racks
and pans” on page 9.
2. Push in and turn the Oven Temperature
Control counterclockwise to the baking/
roasting temperature you want. The oven
burner will automatically light in 50-60
seconds.
3. When baking, preheat the oven for 10
minutes. Put food in the oven.
NOTES:
l Do not preheat when roasting or
cooking items such as casseroles.
l Do not place food directly on the oven
bottom.
4. During baking/roasting, the oven burner
will turn on and off to maintain the tem-
perature setting.
5. When baking/roasting is done, turn the
Oven Temperature Control clockwise to
OFF.
12

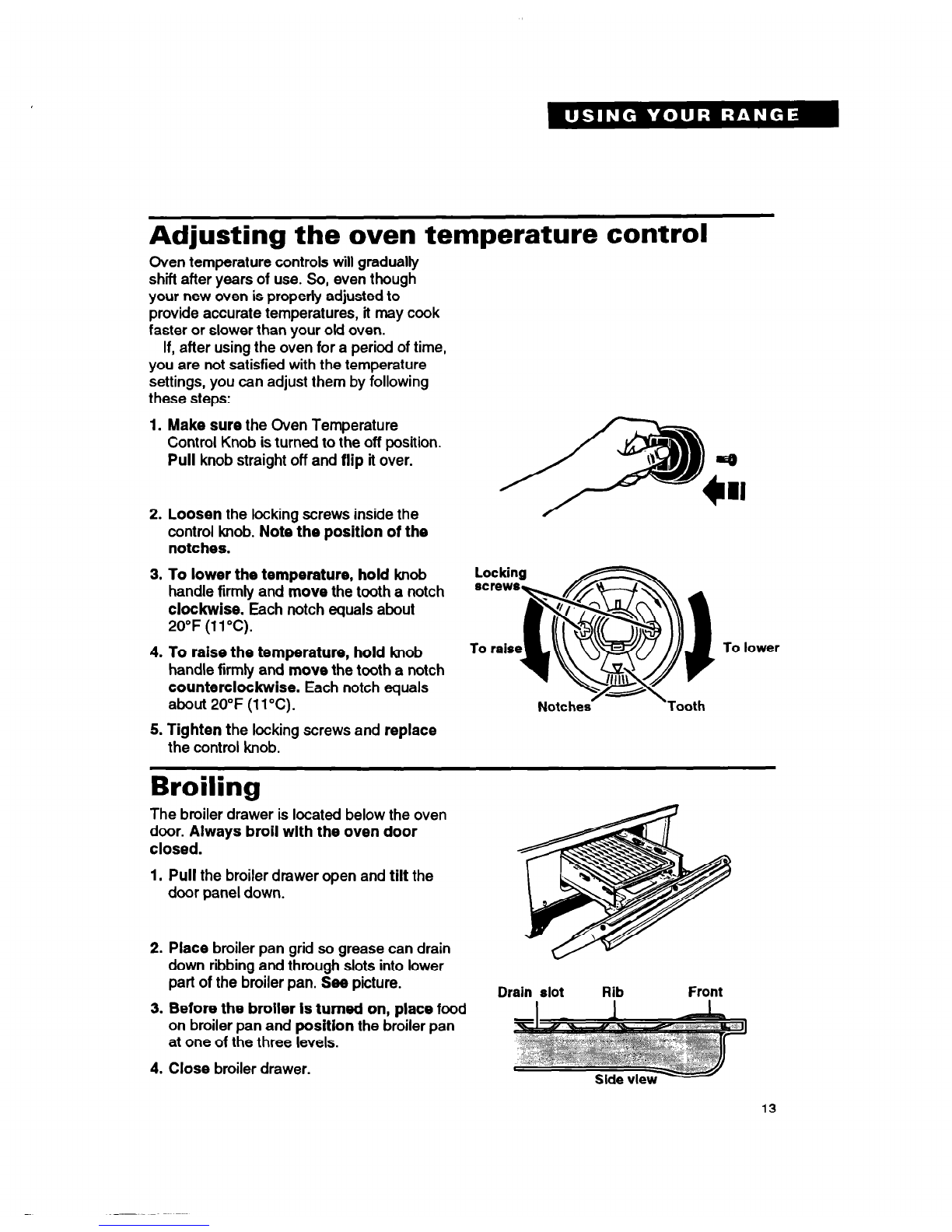

Adjusting the oven temperature control
Oven temperature controls will gradually
shift after years of use. So, even though
your new oven is properly adjusted to
provide accurate temperatures, it may cook
faster or slower than your old oven.
If, after using the oven for a period of time,
you are not satisfied with the temperature
settings, you can adjust them by following
these steps:
1.
2.
3.
4.
5.
Make sure the Oven Temperature
Control Knob is turned to the off position.
Pull knob straight off and flip it over.
Loosen the locking screws inside the
control knob. Note the position of the
notches.
To lower the temperature, hold knob
handle firmly and move the tooth a notch
clockwise. Each notch equals about
20°F (11%).
To raise the temperature, hold knob
handle firmly and move the tooth a notch
counterclockwise. Each notch equals
about 20°F (11 “C).
Tighten the locking screws and replace
the control knob.
To lower
Broiling
The broiler drawer is located below the oven
door. Always broil with the oven door
closed.
1. Pull the broiler drawer open and tilt the
door panel down.
2. Place broiler pan grid so grease can drain
down ribbing and through slots into lower
part of the broiler pan. See picture.
3. Before the broiler is turned on, place food
on broiler pan and position the broiler pan
at one of the three levels.
4. Close broiler drawer.
Drain slot Rib Front

5. Push in and turn the Oven Temperature
Control counterclockwise to BROIL.
The broiler will automatically light in
50-60 seconds.
6. When broiling is done, turn the Oven
Temperature Control clockwise to OFF.
NOTE: Do not preheat the broiler before
using. Completely close the broiler drawer
during broiling.
Energy saving tips
Although the energy used for cooking is
usually a very small percentage of the total
energy used in the home, cooking energy
can be used efficiently. Here are some tips
to help you save energy when using your
cooking product:
l Use pans with flat bottoms, straight sides
and tight-fitting lids.
l Cook with a minimum of liquid or fat to
help shorten cooking time.
l Preheat pans only when recommended
and for the shortest time possible.
l Start food on higher heat settings, then
set surface burner control on low to finish
cooking.
l Use the more efficient surface burners in-
stead of the oven when possible.
l Turn on the surface burner only after
placing filled pan on the burner grate.
l “Oven Peeking” may cause heat loss,
longer cooking times and unsatisfactory
baking results. Rely on your timer to keep
track of the cooking time.
l Bake cakes, pies or cookies when oven is
warm. Best time to bake is right after a
meal has been cooked in oven.
l Preheat the oven no longer than
necessary.
l Plan your meals for the most efficient use
of the range. When using the oven to cook
one food, try to cook the rest of the meal in
it also.
l Do not preheat when broiling, roasting or
cooking items such as casseroles.
14

The oven vent
Hot air and moisture escape from the oven
through a vent located in lower part of
backguard. The vent is needed for air
circulation. Do not block the vent. Poor
baking/roasting will result.
NOTE: Never store plastics, paper or other
items that could melt or burn near the oven
vent, or any of the surface burners.
Burn Hazard
When the oven is ON, pans and pan
handles left near the oven vent could
become hot enough to burn the user
and to melt plastics. Use potholders to
move pans.
The anti-tip brackets
Oven vent
The range will not tip during normal use. However, tipping can occur if you apply too much
force or weight to the open door without the anti-tip brackets properly secured.
Personal Injury Hazard
.To reduce risk of range tipping over, secure range with properly
installed anti-tip brackets supplied with range.
l If range is moved for cleaning or service, check that anti-tip devices
are engaged before using range.
Failure to follow the above precautions could result in personal injury.
To verify the anti-tip brackets
are engaged:
l Grasp rear of range and carefully try to tilt
forward. If anti-tip brackets are attached to
floor with screws and rear leveling legs are
positioned under brackets (one for each
rear leveling leg), range should not tilt
forward.
l Sea installation Instructions for further
details.
15

Caring For Your Range
In This Section
Page Page
Surface burner grates ......................16 Removing the oven bottom .............20
Surface burners and cooktop ..........17 Cleaning chart ...................................21
Removing the oven door .................19 The oven light ...................................23
Your range is designed for easy care. You
can do most cleaning with items found
around your home. Cleaning your range
whenever spills or soiling occurs will help to
keep it looking and operating like new. Burn, Electrical Shock, Fire and
Explosion Hazard
l Make sure all controls are OFF and the
range is cool before cleaning.
l Do not use oven cleaners, bleach or
rust removers.
l Do not obstruct the flow of combustion
and ventilation air.
l Keep appliance area clear and free of
combustible materials, gasoline and
other flammable vapors and liquids.
Failure to follow these guidelines could
result in burns, electrical shock, fire or
explosion.

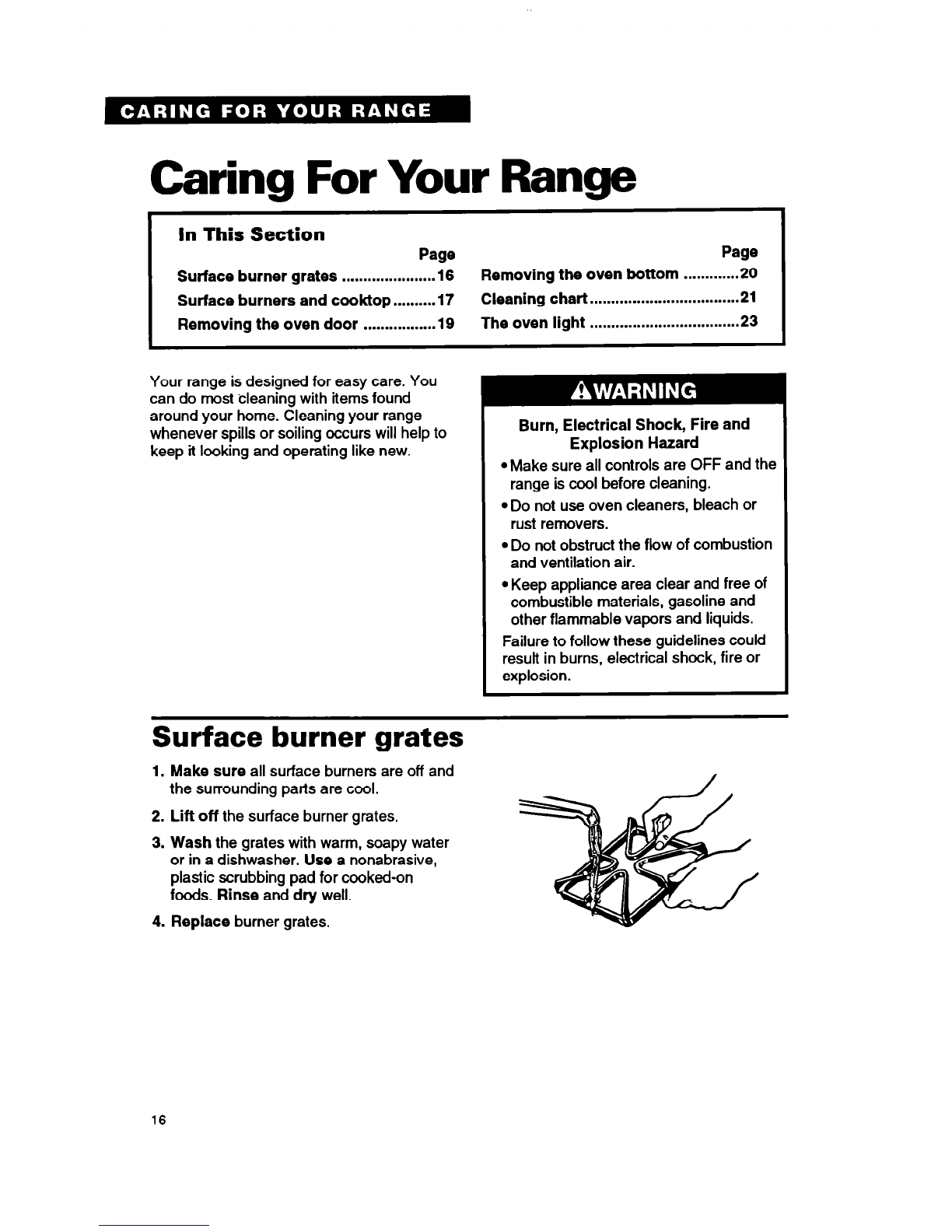

Surface burner grates
1. Make sure all surface burners are off and
the surrounding parts are cool.
2. Lift off the surface burner grates.
3. Wash the grates with warm, soapy water
or in a dishwasher. Use a nonabrasive,
plastic scrubbing pad for cooked-on
foods. Rinse and dry well.
4. Replace burner grates.
16

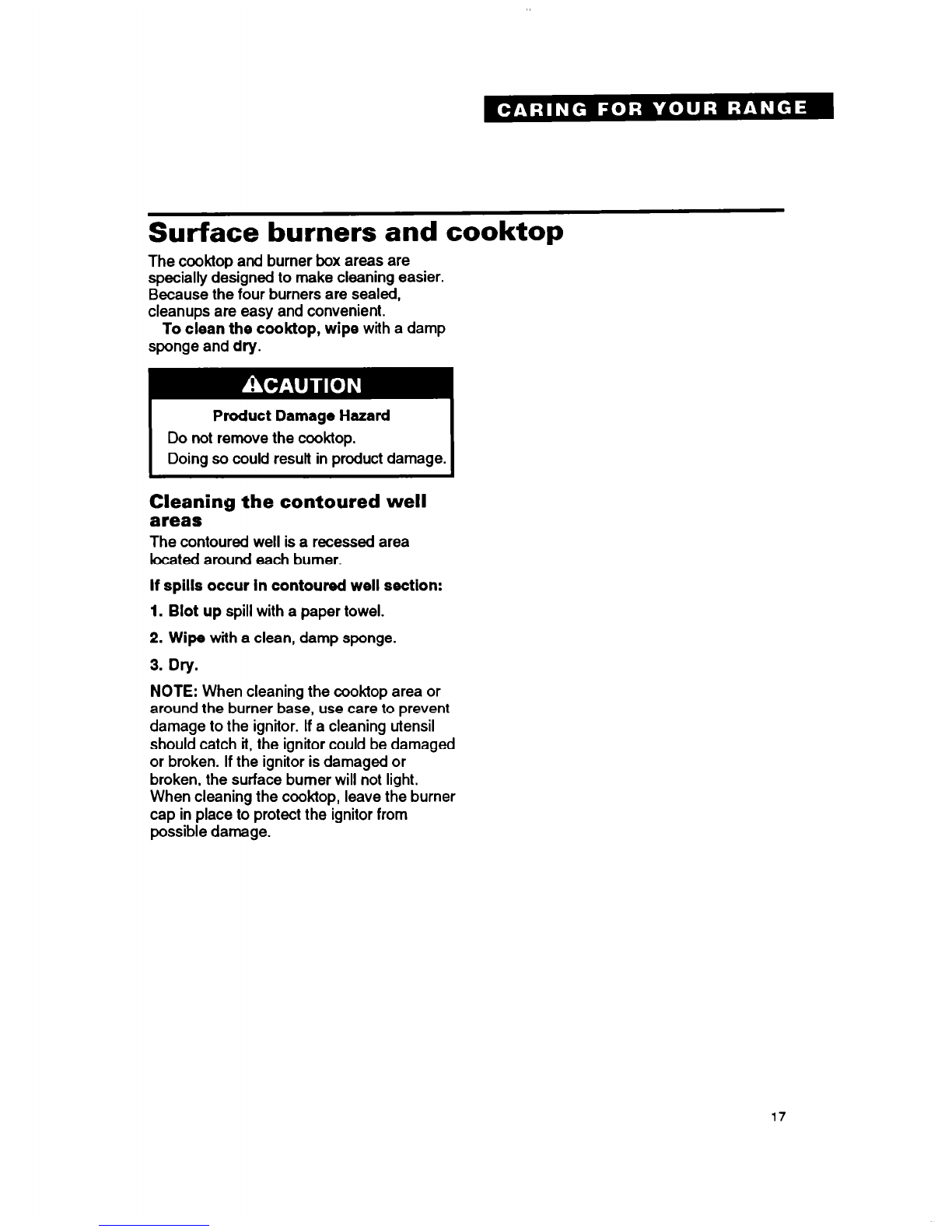

Surface burners and cooktop
The cooktop and burner box areas are
specialty designed to make cleaning easier.
Because the four burners are sealed,
cleanups are easy and convenient.
To clean the cooktop, wipe with a damp
sponge and dry.
Mrd
Doing so could result in product damage.
Cleaning the contoured well
areas
The contoured well is a recessed area
located around each burner.
if spills occur in contoured well section:
1. Blot up spill with a paper towel.
2. Wipe with a clean, damp sponge.
3. Dry.
NOTE: When cleaning the cooktop area or
around the burner base, use care to prevent
damage to the ignitor. If a cleaning utensil
should catch it, the ignitor could be damaged
or broken. If the ignitor is damaged or
broken, the surface burner will not light.
When cleaning the cooktop, leave the burner
cap in place to protect the ignitor from
possible damage.
17

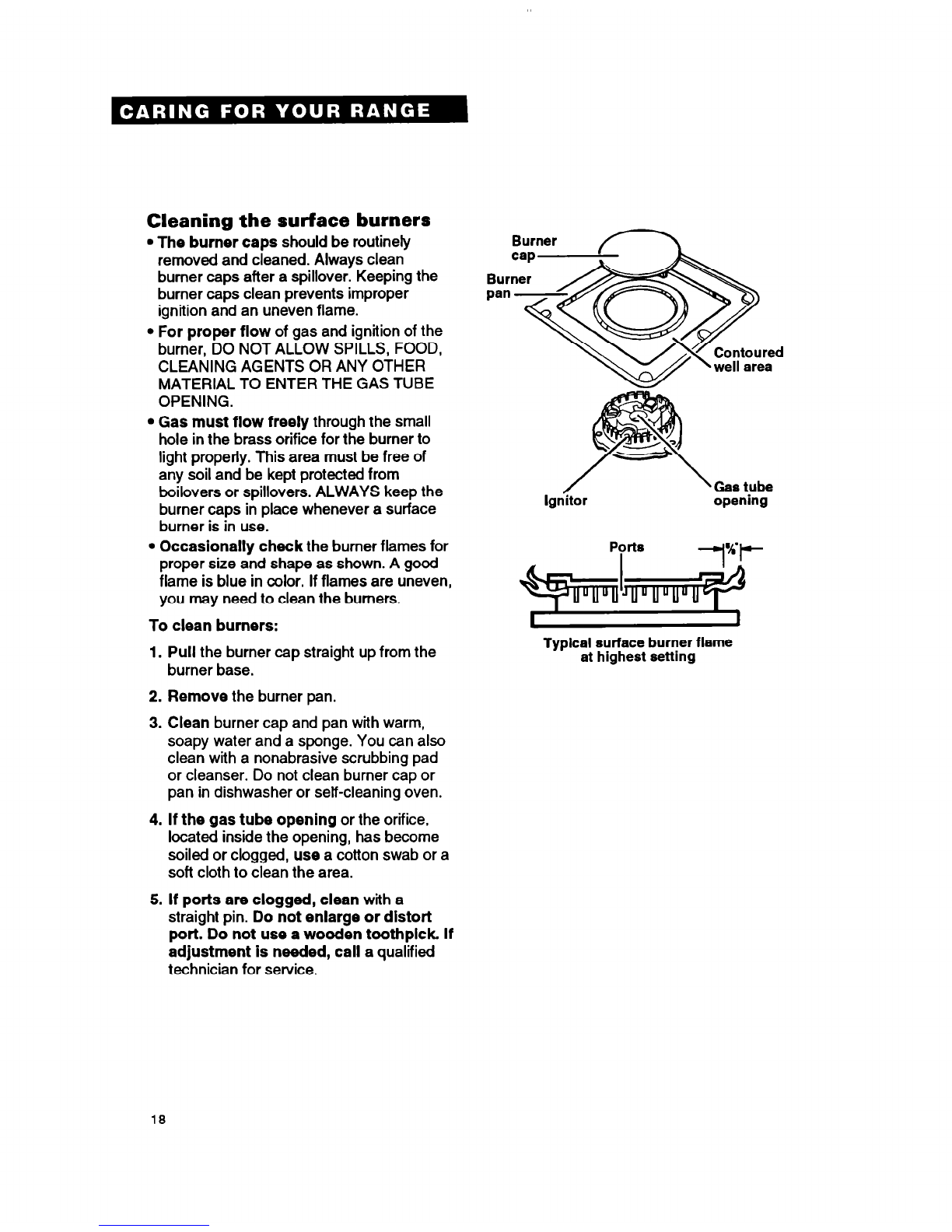

Cleaning the surface burners
l The burner caps should be routinely
removed and cleaned. Always clean
burner caps after a spillover. Keeping the
burner caps clean prevents improper
ignition and an uneven flame.
l For proper flow of gas and ignition of the
burner, DO NOT ALLOW SPILLS, FOOD,
CLEANING AGENTS OR ANY OTHER
MATERIAL TO ENTER THE GAS TUBE
OPENING.
l Gas must flow freely through the small
hole in the brass orifice for the burner to
light properly. This area must be free of
any soil and be kept protected from
boilovers or spillovers. ALWAYS keep the
burner caps in place whenever a surface
burner is in use.
l Occasionally check the burner flames for
proper size and shape as shown. A good
flame is blue in color. if flames are uneven,
you may need to clean the burners.
To clean burners:
1. Pull the burner cap straight up from the
burner base.
2. Remove the burner pan.
3. Clean burner cap and pan with warm,
soapy water and a sponge. You can also
clean with a nonabrasive scrubbing pad
or cleanser. Do not clean burner cap or
pan in dishwasher or self-cleaning oven.
4. If the gas tube opening or the oriiice,
located inside the opening, has become
soiled or clogged, use a cotton swab or a
soft cloth to clean the area.
5. if ports are clogged, clean with a
straight pin. Do not enlarge or distort
port. Do not use a wooden toothplck. If
adjustment is needed, call a qualified
technician for service.
Burner
/
‘Gas tube
lgnitor opening
Pplts
Typical surface burner flame
at highest setting
18

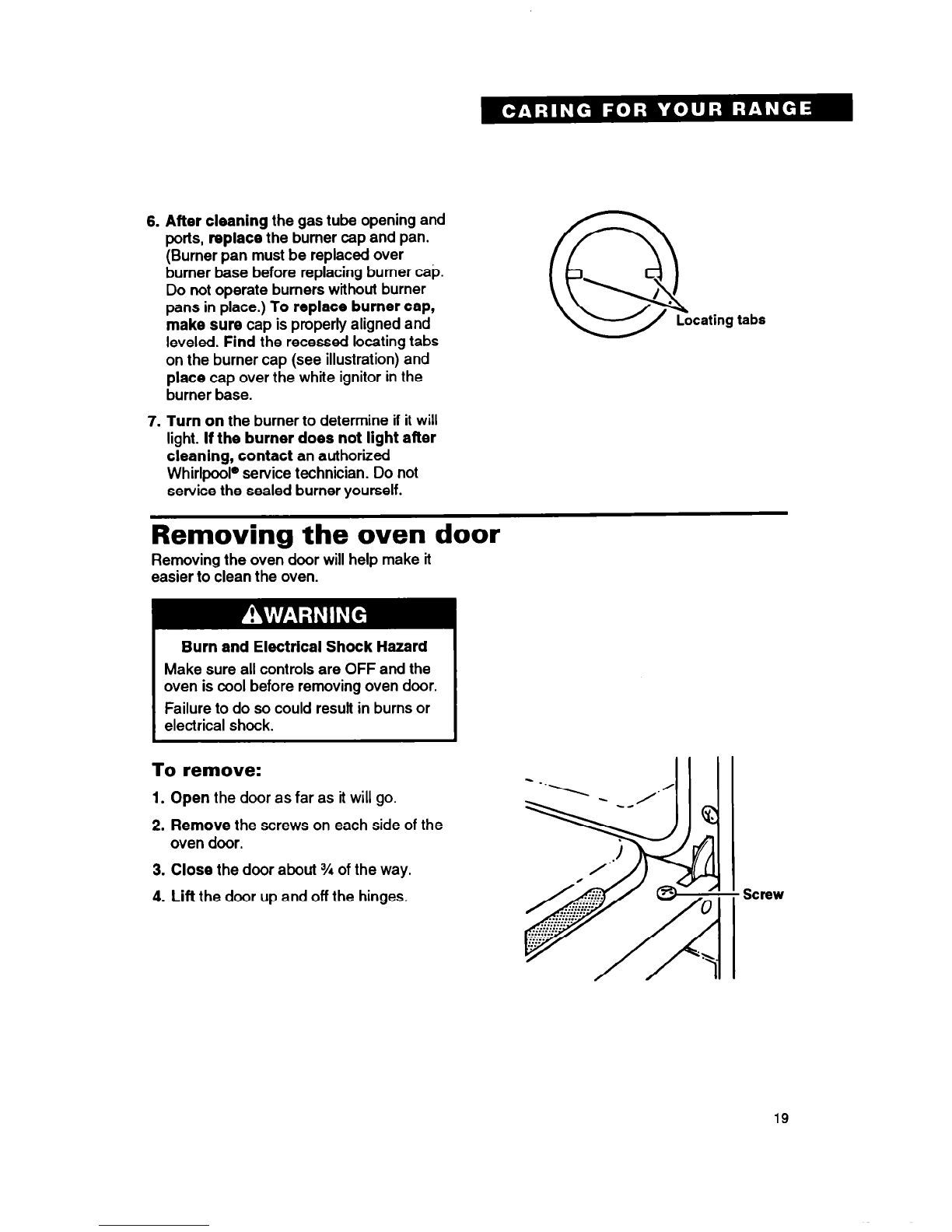

6. After cleaning the gas tube opening and
ports, replace the burner cap and pan.
(Burner pan must be replaced over
burner base before replacing burner cap.
Do not operate burners without burner
pans in place.) To replace burner cap,
make sure cap is properly aligned and
leveled. Find the recessed locating tabs
on the burner cap (see illustration) and
place cap over the white ignitor in the
burner base.
7. Turn on the burner to determine if it will
light. If the burner does not light after
cleaning, contact an authoriied
Whirlpool’ service technician. Do not
service the sealed burner yourself.
Removing the oven door
Removing the oven door will help make it
easier to clean the oven.
Burn and Electrical Shock Hazard
Make sure all controls are OFF and the
oven is cool before removing oven door.
Failure to do so could result in burns or
electrical shock.
To remove:
1. Open the door as far as it will go.
2. Remove the screws on each side of the
oven door.
3. Close the door about ?4of the way.
4. Lift the door up and off the hinges.
4Q
--.\ _ -/’ .
i
/.’
/ m
&
/ .:::
...... ’ screw
.......
........
........
........
........
0
........
.........
.........
........
........
........
........
.......
.....
:.Y ‘A
7
19

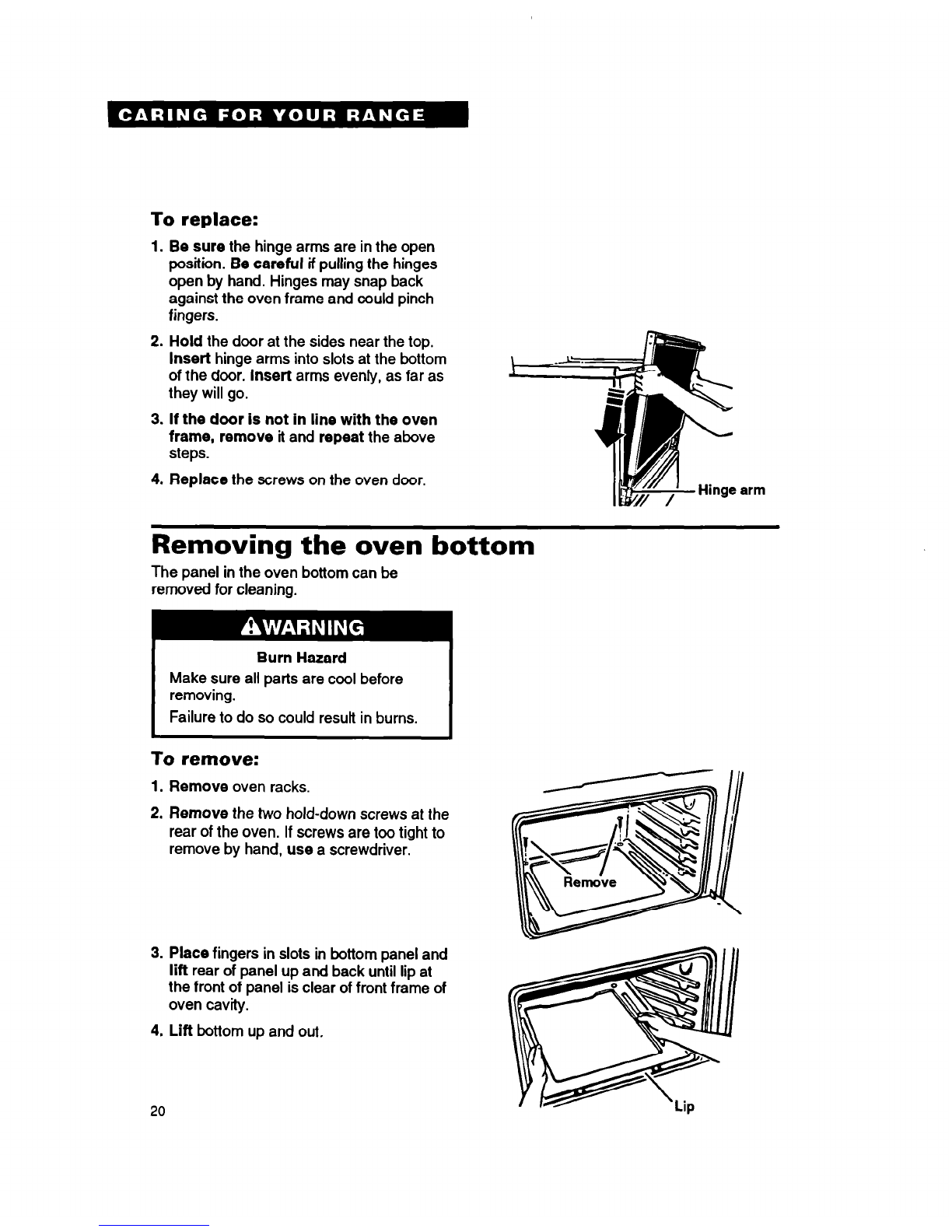

To replace:
1. Be sure the hinge arms are in the open
position. Be careful if pulling the hinges
open by hand. Hinges may snap back
against the oven frame and could pinch
fingers.
2. Hold the door at the sides near the top.
Insert hinge arms into slots at the bottom
of the door. Insert arms evenly, as far as
they will go.
3. If the door is not in line with the oven
frame, remove ii and repeat the above
steps.
4. Replace the screws on the oven door.
Removing the oven bottom
The panel in the oven bottom can be
removed for cleaning.
Burn Hazard
Make sure all parts are cool before
removing.
Failure to do so could result in burns.
To remove:
1. Remove oven racks.
2. Remove the two hold-down screws at the
rear of the oven. If screws are too tight to
remove by hand, use a screwdriver.
3. Place fingers in slots in bottom panel and
lift rear of panel up and back until lip at
the front of panel is clear of front frame of
oven cavity.
4. Lift bottom up and out.
20
