Whirlpool TRASH MASHER User manual

Installation Instructions
for your new
TRASH MASHER* COMPACTOR
BEFORE YOU USE YOUR COMPACTOR
Be sure your compactor is properly installed in an appropriate level area and a place suitable for the size, function and prolec-
tion of the compactor.
ELECTRICALREQUIREMENTS
Observe All Governing Codes and Ordinances
A 120-Volt, 60-H& AC only, 15-Ampere, fused electrical supply is required. (Time delay fuse or circuit breaker is
recommended.) It is recommended that a separate circuit serving only this appliance be provided. DO NOT use an
extension cord: - .
RECOMMENDED GROUNDING METHOD
DO NOT, UNDER ANY CIRCUMSTANCES,
REMOVE THE POWER SUPPLY CORD
GROUNDING PRONG.
3-PRONG
GROUNDING TYPE
For your personal safety, this appliance must be grounded.
This appliance is equipped with a power supply cord having a
3-prong grounding plug. To minimize possible shock hazard,
the cord must be plugged into a mating 3-prong grounding type
wall receptacle, grounded in accordance with local codes and
ordinances. If a mating wall receptacle is not available, it is the
personal responsibility and obligation of the customer to have
a properly grounded, 3-prong wall receptacle installed by a
qualified electrician. See figure 7.
WALL RECEPTACLE
- POWER SUPPLY
CORD
FIGURE1
’ Trademarks in Canada Used by Authority of Canadian Trademark Owner, WHIRLPOOL CORPORATION, U.S.A.
- IMPORTANT-
00 NOTREMOVETHISlNSTt?UCTlolvSHEETUNTILREADYFORINSTALLATION.
AFTER COMPLETING THEINSTALLATION, SAVE THESEINSTRUCTIONS FOR FUTURE USE.
1 Part No. 4152819

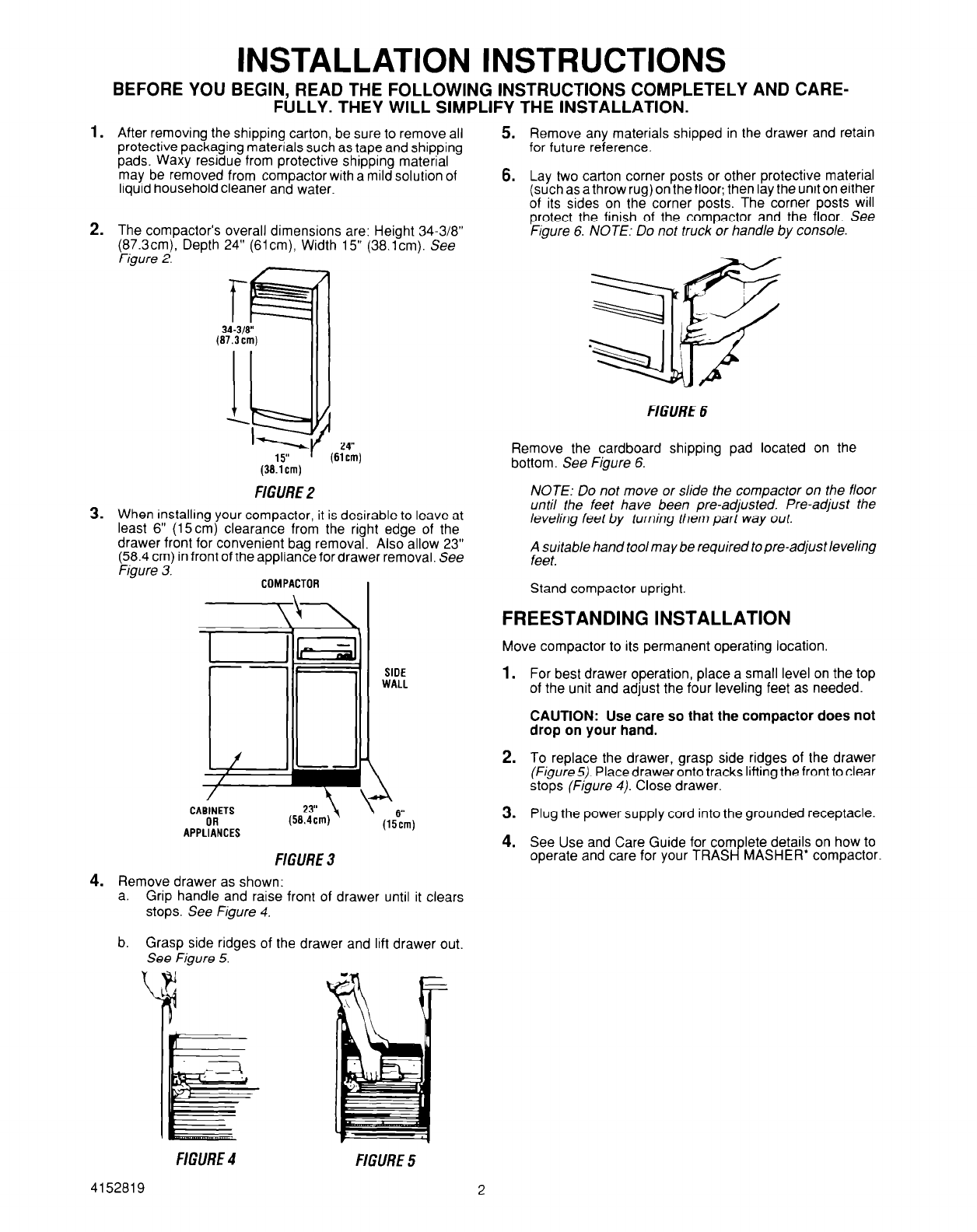

INSTALLATION INSTRUCTIONS
BEFORE YOU BEGIN, READ THE FOLLOWING INSTRUCTIONS COMPLETELY AND CARE-
FULLY. THEY WILL SIMPLIFY THE INSTALLATION.
1.
After removing the shipping carton, be sure to remove all
protective packaging materials such as tape and shipping
pads. Waxy residue from protective shipping material
may be removed from compactor with a mild solution of
liquid household cleaner and water.
2.
The compactor’s overall dimensions are: Height 34.3/8”The compactor’s overall dimensions are: Height 34.3/8”
(87.3cm), Depth 24” (6lcm), Width 15” (38.lcm). See(87.3cm), Depth 24” (6lcm), Width 15” (38.lcm). See
Figure 2.Figure 2.
(38.1 cm)(38.1 cm)
FIGURE2
3. When installing your compactor, it is desirable to leave at
least 6” (15cm) clearance from the right edge of the
drawer front for convenient bag removal. Also allow 23”
(58.4 cm) in front of the appliance for drawer removal. See
Figure 3.
COMPACTOR
I
CABINETS
APPLttNCES
23”\ \‘6”
(58.4cm) (15cm)
FIGURE3
4. Remove drawer as shown:
a. Grip handle and raise front of drawer until it clears
stops. See Figure 4.
b. Grasp side ridges of the drawer and lift drawer out.
See Figure 5.
5. Remove any materials shipped in the drawer and retain
for future reference.
6.
Lay two carton corner posts or other protective material
(such as a throw rug) on the floor; then lay the unit on either
of its sides on the corner posts. The corner posts will
protect the finish of the compactor and the floor. See
Figure 6. NOTE: Do not truck or handle by console.
FIGURE6
Remove the cardboard shipping pad located on the
bottom. See Figure 6.
NOTE: Do not move or slide the compactor on the floor
until the feet have been pre-adjusted. Pre-adjust the
leveling feet by turning them part way out.
A suitable hand toolmay be required topre-adjust leveling
feet.
Stand compactor upright.
FREESTANDING INSTALLATION
Move compactor to its permanent operating location.
1.
For best drawer operation, place a small level on the top
of the unit and adjust the four leveling feet as needed.
CAUTION: Use care so that the compactor does not
drop on your hand.
2. To replace the drawer, grasp side ridges of the drawer
(Figure5). Place drawer onto tracks lifting the front to clear
stops (Figure 4). Close drawer.
3. Plug the power supply cord into the grounded receptacle.
4. See Use and Care Guide for complete details on how to
operate and care for your TRASH MASHER* compactor
FlGlJRE4 FIGURE5
4152819
USING A FREESTANDING COMPACTOR
IN A RECESSED AREA
1.
Measure the recessed area into which you wish
to install the compactor. It must be at least 34-112”
(87.6cm) high, 24” (61 cm) deep, and 15118”
(38.4 cm) wide.
See
Figure 7.
3
FIGURE7
2. The recess must have a grounded outlet 18” min. (45cm)
above the floor as shown in Figure 8.
I
1
El
4
18” (45cm)
t
-
i
FIGURE8
3. Be sure the cord clip on the cord is attached to the clip on
the rear of the cabinet as shown in Figure 9.
CORD CLIP
P
FIGURE9
4. To prevent the power supply cord from being pinched, or
the power supply cord plug from being crushed, install a
stop block at the lower rear corners of the recessed
opening. The blocks should be at least 314” (I,9 cm)
deep by 2” (5.1 cm) wide, by 2” (5.lcm) high. See
Figure 10 for details.
NOTE: Measure the front-toback distance of the opening.
To have the front of the compactor cabinet align with the
adjacent cabinets, the stop block may need to be more
than 3/4” (1.9cm) deep. Subtract 23” (58.4cm) from the
depth of the opening. This is the depth dimension of the
FIGURE10
stop block.
5. After the opening has been prepared, level the compactor
by adjusting the four leveling screws. Level unit left to right
and front to back. See Figure 11.
FIGURE11
Plug the power supply cord into the grounded outlet.
6.
Slide the compactor back into the recess until Ihe compactor
is against the stop blocks.
ADJUSTABLE TOE PLATE
In some installations, the toe plate may rub the floor covering.
If this occurs, the toe plate clearance may be changed as
follows:
1.
Determine the amount of interference of the toe plate with
the floor covering.
2. Remove the drawer from the unit. Refer to Step 4, Page
2 of the Installation Instructions.)
3. Protect the floor. Lay drawer so the front panel
faces upward.
4. Witharulerandapencilorchalk,drawalinewherethetoe
plate interferes with the floor covering.
5. Use a pair of scissors and cut toe plate along this line. (See
Figure 12.)
6.
Replace drawer in unit.
CHANGING FRONT PANEL COLOUR
?rslble
Wont
During installation, or in the future, you may wish to change the
front panel colour. Your compactor has one revs ” .
panel which offers two colour options. See detail of assembly
in Figure 13.
3
FIGURE13
4152819
CAUTION: The panels have cut metal edges. Handle care-
fully to avoid cuts to hands and scratches on panels.
To change the front panel colour:
1.
Remove the drawer from the unit. (See Step 4 of Ihe
Installation Instructions.)
2. Remove handle by removing the screws at the top inside
of the drawer.
3. Remove one spacer.
4. Remove outside front panel by carefully pulling it up.
5. Select the colour you wish to have showing and carefully
push the panel in the drawer trim.
6.
Replace the spacer.
7. Replace the handle with the screws removed in Step 2
above.
8.
Replace the drawer.
I
CAUTION:
REPLACE HANDLE BEFORE OPERATING
COMPACTOR TO AVOID INJURY FROM MOVING PARTS. I
CUSTOM DECORATING
In place of the panel back, you may use a l/4” (64 mm) thick
wood panel to match your cabinets or other suitable decorative
material. See Figure 74.
To do so:
1.
Follow Steps 1 through 6 under Changing Panel Colour.
Also remove all cardboard.
2. Slide decorative panel between trim pieces.
3. Remount handle with the screws previously removed
4. Slide the drawer into the unit
5. Paint, wallpaper, fabric, etc., can be applied directly to one
of the panels.
I
r
22-15’16”
(58.3
cm)
I
14-518” (37.1 cm)
FIGURE14
BEFORE YOU CALL FOR SERVICE
If your compactor does not seem to be operating properly, check the following before calling for service.
If the compactor won’t operate:
. Is the electric cord securely plugged in?
. Have you checked the main fuse or circuit breaker box?
. Is the drawer completely closed?
. Is the key-knob turned all the way to START before it is released?
If compactor stops during operation:
. Push drawer in while turning key-knob to start. Repeat if necessary. Rearrange trash load-do not load rigid items at
front Of
drawer.
Trash not compacted:
. Drawer must be at least 113full to see compactron
Not enough compaction or force:
. Compacting works best when only a few items are loaded. Use the compacting cycle frequently.
Bottles don’t break:
. Not all bottles will break every time, depending upon trash load below it.
Drawer won’t open:
. Drawer will open only when ram is all the way up. To raise the ram, push drawer in firmly; turn key-knob to START; release
key-knob. Open drawer; lay cans and bottles flat in center of drawer. Start compactor again.
FOR SERVICE OR PARTS INFORMATION, CALL YOUR NEARESTINGLIS
FACTORY
DIRECT SERVICE BRANCH OR THE NEAREST SERVICE ORGANIZATION
AUTHORIZED BY INGLIS TO SERVICE WHIRLPOOL PRODUCTS.
4152819
