Whirlpool AKR 551 JA Operating instructions

Us r and maint nanc manual
GB

GB1
IMPORTANT SAFETY INSTRUCTIONS
These instructions shall also be available on website: docs.whirlpool.eu.
YOU SAFETY AND THAT OF OTHE S IS HIGHLY IMPO TANT.
This manual and the appliance itself provide important safety warnings, to be read and observed at all
times.
This is the attention symbol, pertaining to safety, which alerts users to potential risks to themselves
and others.
All safety warnings are preceded by the attention symbol and the following terms:
indicates a hazardous situation which, if not avoided, will cause
serious injury.
indicates a hazardous situation which, if not avoided, could cause
serious injury.
All safety warnings specify the potential danger/warning to which they refer and indicate how to reduce
the risk of injury, damage and electrical shock resulting from incorrect use of the appliance. Comply with
the following instructions:
• Installation or maintenance must be carried out by a specialized technician, in compliance with the
manufacturer’s instructions and local safety regulations. Do not repair or replace any part of the
appliance unless specifically requested in the user manual.
• The appliance must be disconnected from the power supply before carrying out any installation work.
• Earthing of the appliance is compulsory. (Not necessary for class II hoods identified by the symbol
on the specifications label).
• The power supply cable must be long enough to permit connecting the appliance to the mains socket
outlet.
• Do not pull the power supply cable in order to unplug the appliance.
• The electrical components must no longer be accessible to the user after installation.
• Do not touch the appliance with any wet part of the body and do not operate it when barefoot.
• This appliance may be used by children older than 8 years of age and by persons with reduced physical,
sensory or mental capacities or with inadequate experience and knowledge only if they are supervised
or if they have been taught how to use the appliance in conditions of safety and if they are aware of the
dangers involved. Children must not play with the appliance. Cleaning and maintenance must not be
carried out by children, unless they are supervised by adults.
• Do not repair or replace any part of the appliance unless specifically indicated in the manual. Defective
parts must be replaced using genuine parts. All other maintenance services must be carried out by a
specialized technician.
• Children must be supervised to ensure they do not play with the appliance.
WARNING:
DANGER:

GB2
• When drilling through a wall or the ceiling, pay attention not to damage electric connections and/or
pipes.
• The ventilation ducts must always discharge to the outside.
• Exhaust air must not be vented through a flue used for removal of fumes produced by appliances
burning gas or other fuels, but must have a separate outlet. All national regulations governing
extraction of fumes must be observed.
• If the hood is used together with other appliances operating on gas or other fuels, the negative
pressure in the room must not exceed 4 Pa (4 x 10-5 bar). For this reason, make sure the room is
adequately ventilated.
• The Manufacturer declines any liability for improper use or incorrect setting of the controls.
• Regular cleaning and maintenance is essential to correct functioning and good performance of the
appliance. Frequently clean all encrustations from dirty surfaces to prevent the accumulation of grease.
Regularly clean or replace the filters.
• Never flame cook food (flambé) under the appliance. Using free flames might cause fire.
• Do not leave frying pans unattended when frying, as the frying oil may catch fire.
• Failure to observe the instructions for cleaning the hood and replacing the filters may result in a fire.
• The fume extractor hood must never be opened without the grease filters installed and it should be
kept under constant supervision.
• Gas appliances must be used under the extractor hood only with pans resting.
• When using more than three gas cooking points, the hood should be operating at power level 2 or
greater. This will eliminate heat congestion in the appliance.
• Before touching the bulbs, first ensure that they are cold.
• Do not use or leave the hood without its lamps correctly installed - risk of electric shock.
• Wear work gloves for all installation and maintenance operations.
• The product is not suitable for outdoor use.
• When the hob is in use, accessible parts of the hood may become hot.
• For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this
manual.
KEEP THIS BOOKLET FO FUTU E CONSULTATION.

GB3GB3
After unpacking the appliance, check for any transport damage. In the event of problems, contact the dealer or your nearest After-sales Service. To prevent any
damage, only remove the appliance from its polystyrene foam packaging at the time of installation.
P EPA ING FO INSTALLATION
this is a heavy product; the hood should only be lifted and installed by two or more people.
The minimum distance between the support of the cooking pans on top of the cooker and the bottom of the hood must not be less than 50 cm for electric
cookers and 65 cm for gas or mixed cookers. Before installation also check the minimum distances stated in the manual of the cooker.
If the installation instructions for the cooker specify a greater distance between cooker and hood, this distance must be observed.
ELECT ICAL CONNECTION
Make sure the power voltage specified on the appliance rating plate is the same as the mains voltage.
This information may be found on the inside of the hood, under the grease filter.
Power cable replacement (type H05 VV-F 3 x 0,75 mm²) must be carried out by a qualified electrician. Contact an authorized service centre.
If the hood is fitted with an electric plug, connect the plug to a socket complying with current regulations, located in an accessible place after installation. If no
plug is fitted (direct wiring to the mains), or if the socket is not located in an accessible place, install a standardised double pole power switch that will enable
complete isolation from the mains in case of category III overvoltage conditions, in accordance with installation rules.
If the cable is not fitted with a plug, connect the wires according to the following table:
WARNING:

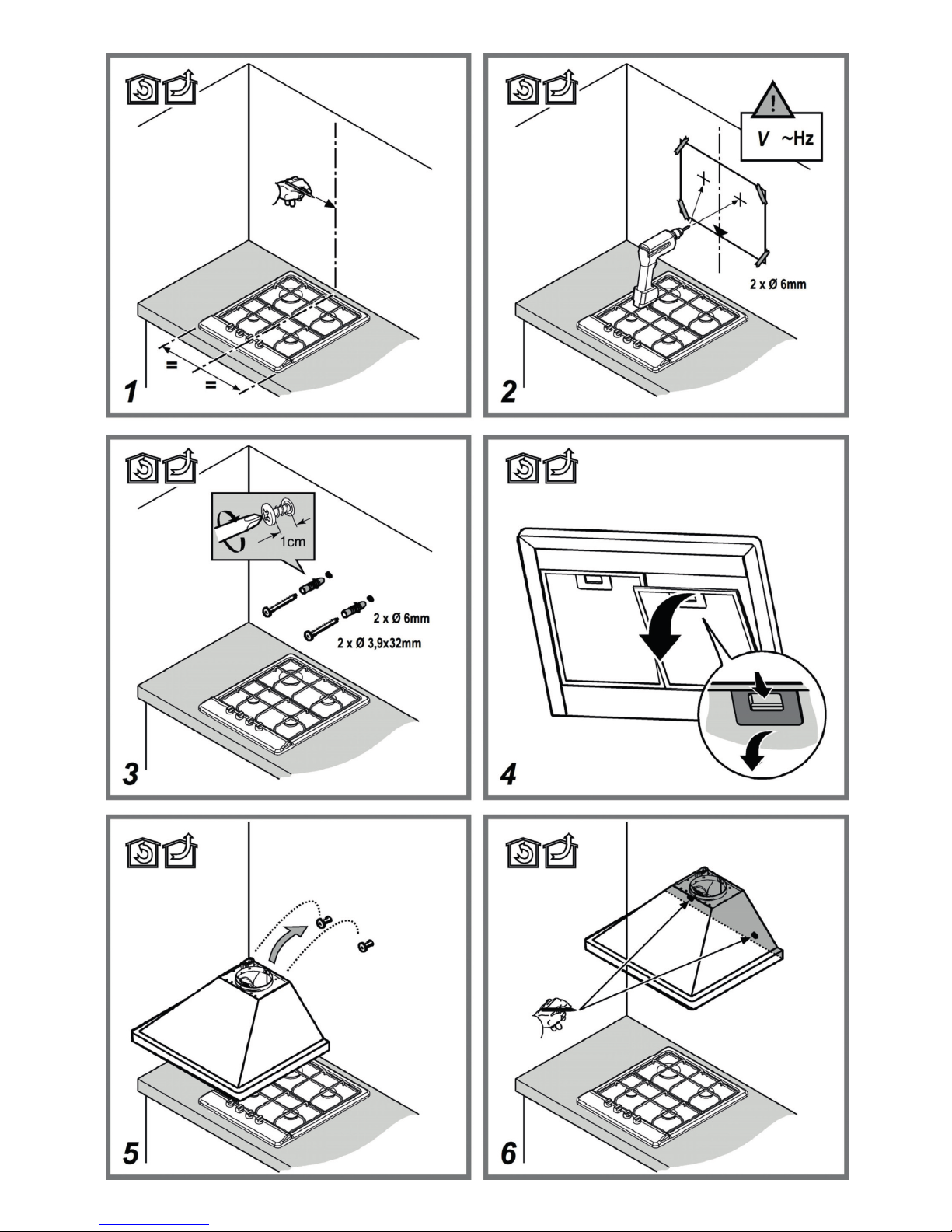

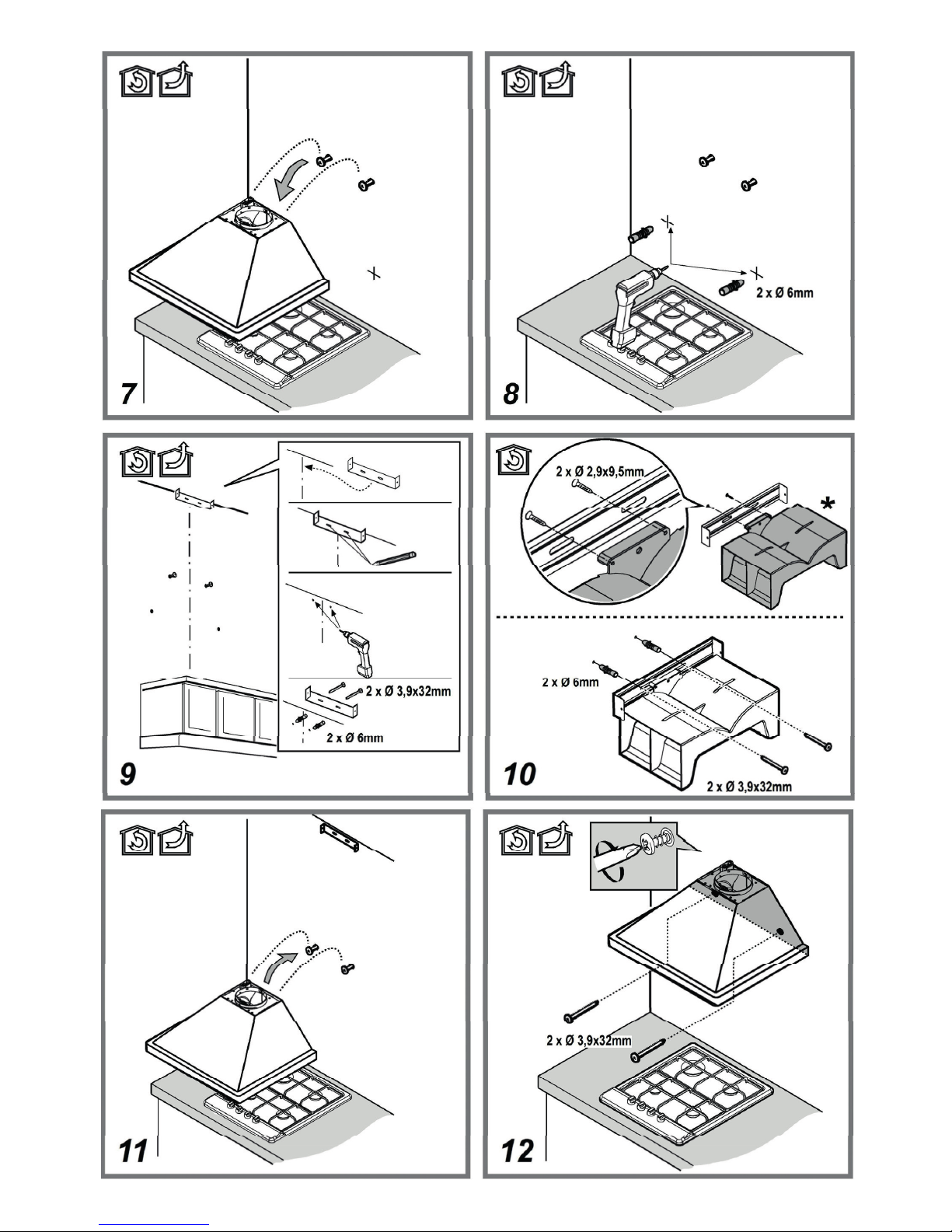

INSTALLATION
Declaration of conformity
• This appliance has been designed, manufactured and marketed in compliance with:
- safety objectives of the “Low Voltage” Directive 2014/35/EU;
- the ecodesign requirements of european regulations n. 66/2014, n. 327/2011, n. 244/2009, n. 245/2009, n.1194/2012, n. 2015/1428;
- the protection requirements of Directive “EMC” 2014/30/EU.
Electrical safety of the appliance can only be guaranteed if it is correctly connected to an approved earthing system.
Energy saving tips
• Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished.
• Increase the speed only in case of large amount of smoke and vapour and use boost speed(s) only in extreme situations.
• Replace the charcoal filter(s) when necessary to maintain a good odour reduction efficiency.
• Clean the grease filter(s) when necessary to maintain a good grease filter efficiency.
• Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.
AI VENT (for the suction versions)
Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange).
Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise.
Any responsibility in the matter is therefore declined.
!Use a duct of the minimum indispensible length.
!Use a duct with as few elbows as possible (maximum elbow angle: 90°).
!Avoid drastic changes in the duct cross-section.
!The company declines any responsibility whenever these regulations are not respected.
Mains voltage and frequency Wire connection
220-240 V
50/60Hz
: yellow/green
N: blue
L: brown

GB4
Disposal of packing
The packing material is 100% recyclable and is marked with the recycle symbol . The various parts of the packing must therefore be disposed of responsibly
and in full compliance with local authority regulations governing waste disposal.
Scrapping the product
- This appliance is marked in compliance with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE).
- By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which
could otherwise be caused by inappropriate waste handling of this product.
- The symbol on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an
appropriate collection centre for the recycling of electrical and electronic equipment.
Scrapping of household appliances
• This appliance is manufactured with recyclable or reusable materials. Dispose of it in accordance with local waste disposal regulations. Before scrapping, cut
off the power supply cable.
• For further information on the treatment, recovery and recycling of household electrical appliances, contact your competent local authority, the collection
service for household waste or the store where you purchased the appliance.
SAFEGUARDING THE ENVIRONMENT
FILTE ING O DUCTING ?
!Your cooker hood is ready to be used in suction version.
To use the hood in filtering version the special ACCESSORY IT must be installed.
Check on the first pages of this manual if the ACCESSORY IT is furnished or must be bought separately.
Note: If furnished, in certain cases, the additional activated carbon filtering system may be installed on the hood.
Information about the conversion of the hood from suction version to filtering version is present in this manual.

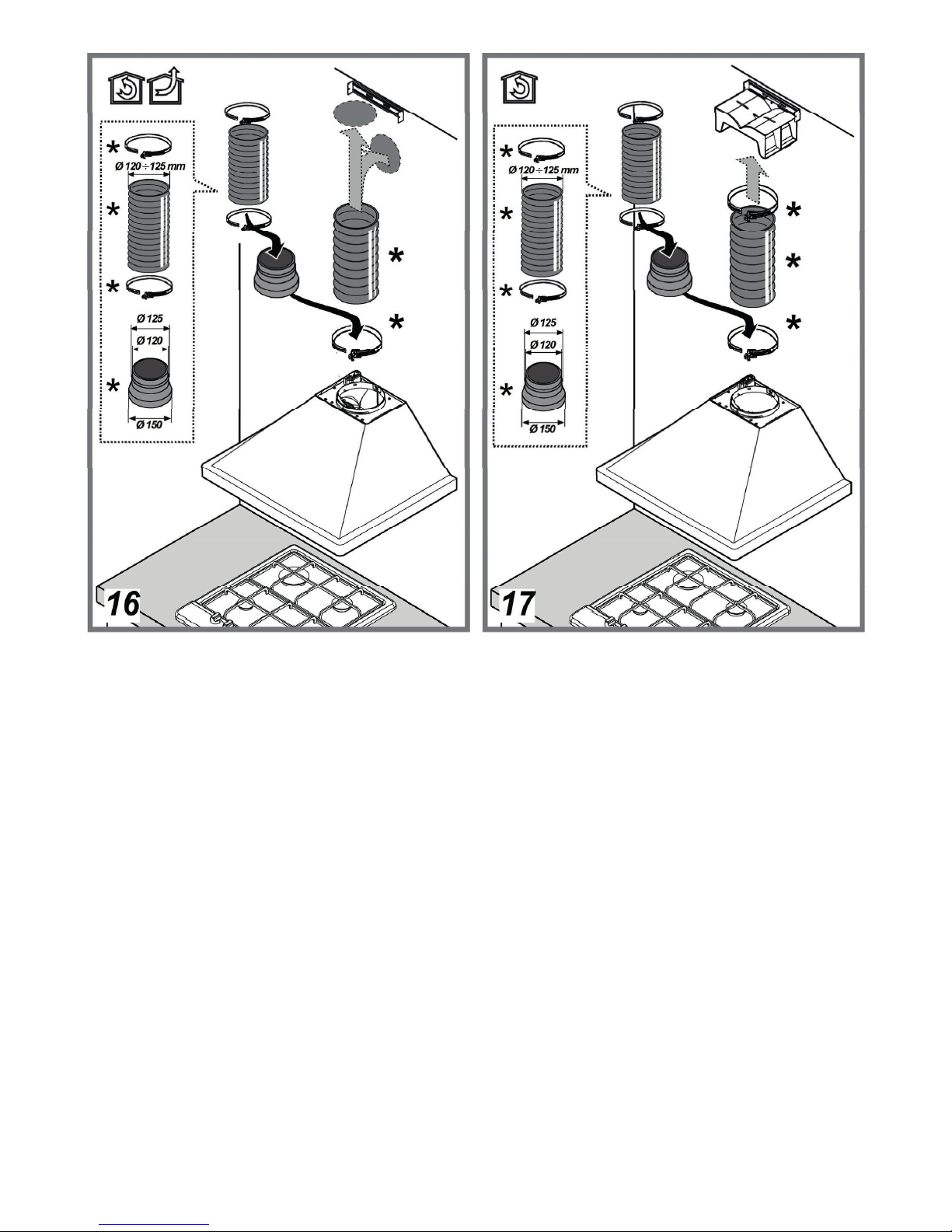

Ducting version
In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood.
Attention! The exhausting pipe is not supplied and must be purchased apart.
Diameter of the exhausting pipe must be equal to that of the connection ring.
Attention! If the hood is supplied with active charcoal filter, then it must be removed.
Filter version
The aspirated air will be degreased and deodorised before being fed back into the room.
In order to use the hood in this version, you have to install a system of additional filtering based on activated charcoal.
GENE AL ECOMMENDATIONS
Before use
Remove cardboard protection pieces, protective film and adhesive labels from accessories. Check the appliance for any transport damage.
Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type. Use the correct length for the screws
which are identified in the Installation Guide.
In case of doubt, consult an authorised service assistance centre or similar qualified person.
The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, maintenance and installation,
however, remain the same.
!Do not carry out electrical or mechanical variations on the product or on the discharge conduits.
During use
To avoid any damage do not place any weights on the appliance. Do not expose the appliance to atmospheric agents.

GB5
The appliance does not work:
• Check for the presence of mains electrical power and if the appliance is connected to the electrical supply;
• Turn off the appliance and restart it to see if the fault persists.
The hood's suction level is not sufficient:
• Check the suction speed and adjust as necessary;
• Check that the filters are clean;
• Check the air vents for any obstructions.
The light does not work;
• Check the light bulb and replace if necessary;
• Check that the light bulb has been correctly fitted.
Before calling the After-Sales Service:
1. See if you can solve the problem yourself with the help of the suggestions given in the "Troubleshooting guide".
2. Switch the appliance off and back on again it to see if the fault persists.
If after the above checks the fault still occurs, get in touch with the nearest After-Sales Service.
Always specify:
• A brief description of the fault;
• The exact type and model of the appliance;
• The service number (number after the word "Service" on the rating plate), located on the inside of the appliance. The service number is also indicated on
the guarantee booklet;
• Your full address;
• Your telephone number.
If any repairs are required, please contact an authorised After-sales Service (to guarantee that original spare parts will be used and repairs carried out correctly).
TROUBLESHOOTING GUIDE
AFTER-SALES SERVICE
•Never use steam cleaning equipment.
•Disconnect the appliance from the power supply.
IMPO TANT: do not use corrosive or abrasive detergents. If any of these products accidentally comes into contact with the appliance, clean
immediately with a damp cloth.
• Clean the surfaces with a damp cloth. If it is very dirty, add a few drops of washing up detergent to the water. Finish off with a dry cloth.
IMPO TANT: do not use abrasive sponges or metallic scrapers or scourers. Over time, these can ruin the enamel surface.
• Use detergents specifically designed for cleaning the appliance and follow the manufacturer instructions.
IMPO TANT: clean the filters at least monthly to remove any oil or grease residuals.
WARNING:
CLEANING
Light :
move the switch to the right or press the button to switch on.
Extraction speed :
Move the switch to the right or press the next button to increase extraction speed (or open the electric shutter )
CONTROLS

GB6
MAINTENANCE
Maintenance of the anti-grease filters
Traps cooking grease particles.
This must be cleaned once a month (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity) using
non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle.
When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.
To remove the grease filter, pull the spring release handle.

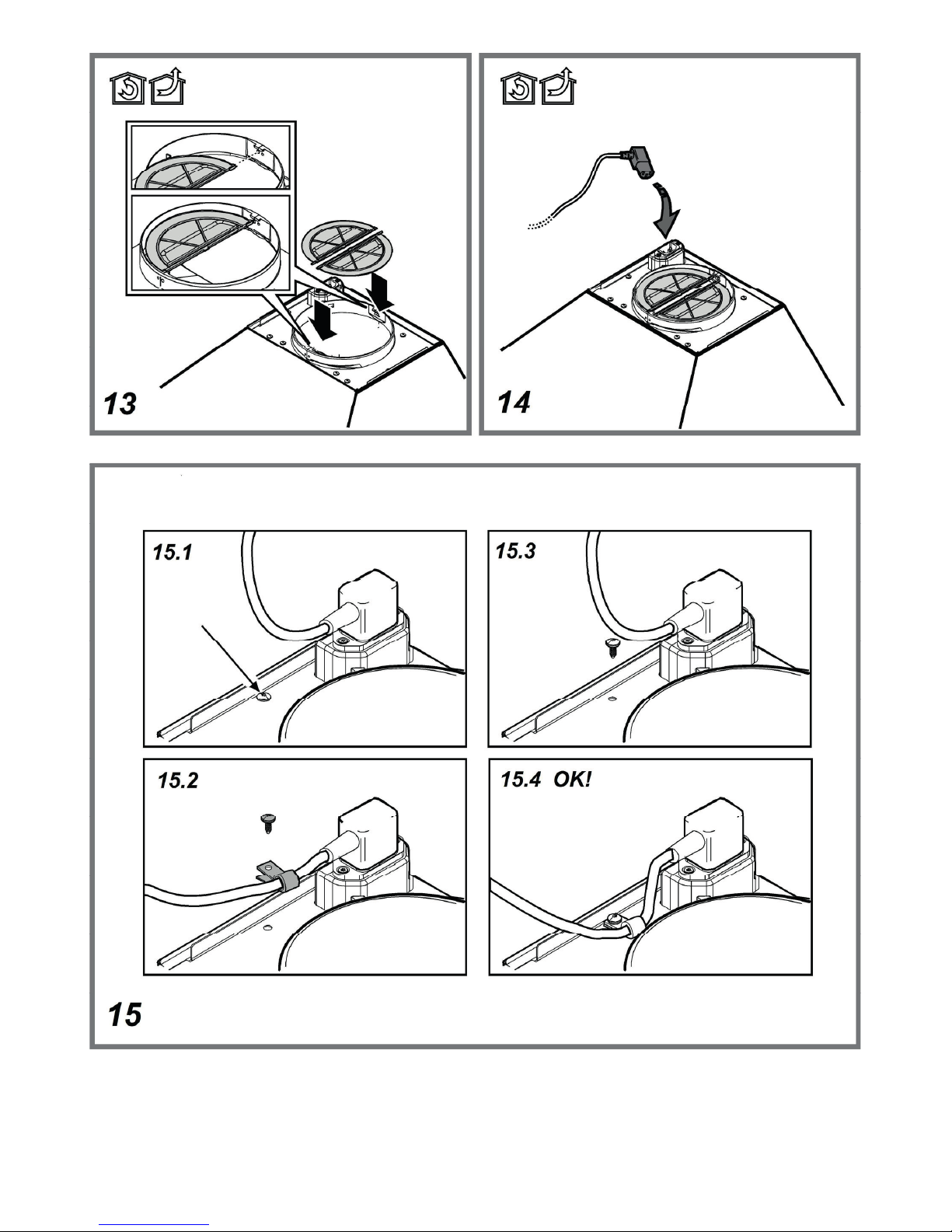

Maintenance of the charcoal filter
It absorbs unpleasant odours caused by cooking.
The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.
In any case it is necessary to replace the cartridge at least every six mounths (or when the filter saturation indication system – if envisaged on the model in
possession – indicates this necessity).The charcoal filter may NOT be washed or regenerated.
1. Remove the grease filters.
2. Fit the filter/s to cover the motor according to the model:
• Align the pins on the cowl with the slots S, then turn the filter clockwise until it locks in place
• Turn the central handle clockwise.
3. Reverse the above procedure to remove the carbon filter.
4. Refit the grease filters.

GB7
TECHNICAL DATA
Model Height (cm) Depth (cm) Ø of exhaust tube (cm)
WIDTH 60 cm 70.1 -112
81 - 112
50 15-12,5-12
WIDTH 90 cm 70.1 -112
81 - 112
50 15-12,5-12
Please check the plate in order to verify the total absorption and the light absorption.

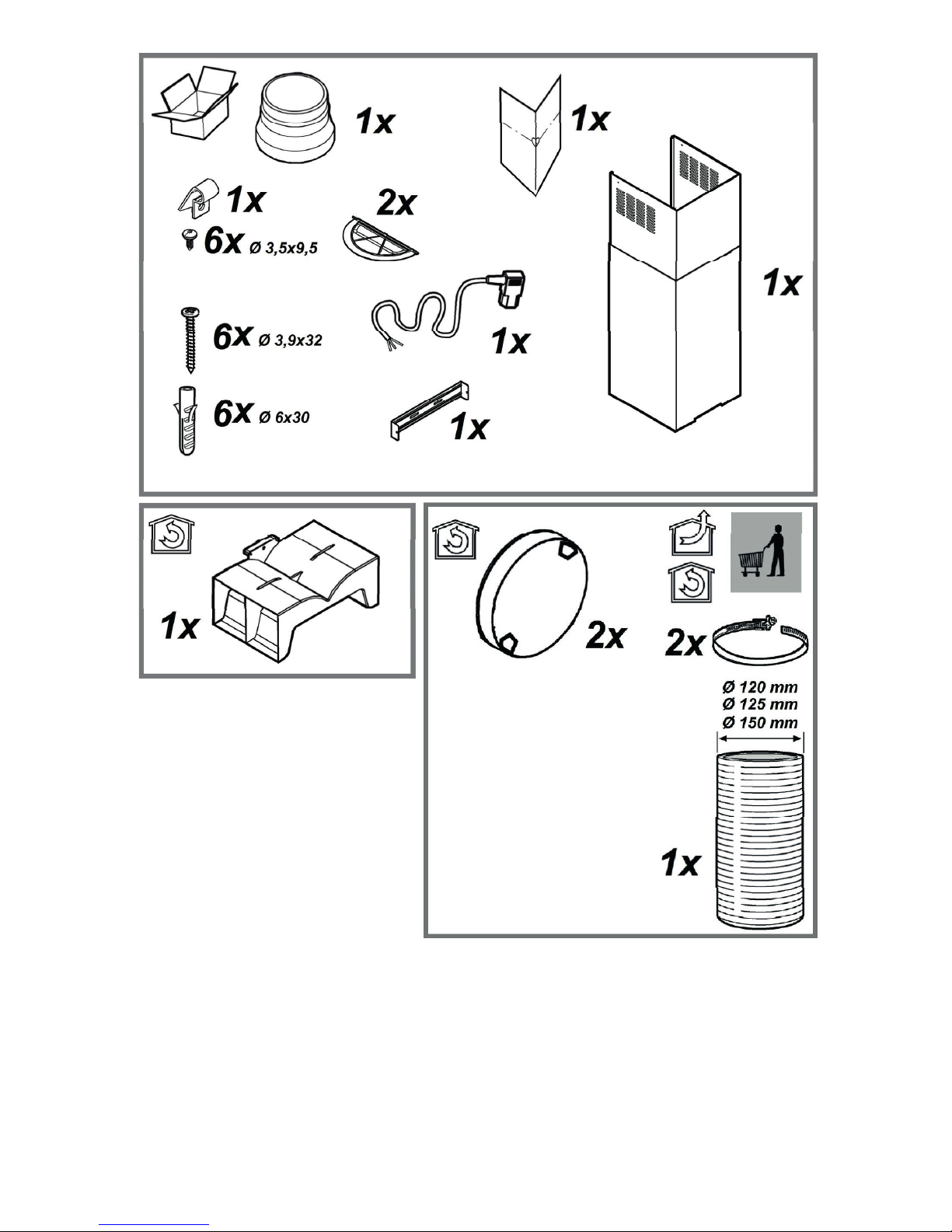

Components not provided with the product
LampPower
(W)
SocketVoltage
(V)
Dimension
(mm)
ILCOS D Code
(according IEC 61231)
28E1423067
( Light Center Length)
HSGSB/C/UB-28-230-
E14-67
eplacing lamps
Remove the filters and remove the burnt-out bulb.
Refit the filters.

GB15

400011101916 GB
Printed in Italy
03/2017
