INSTRUCTION MANUAL
CURVED GLASS HOOD
AKR914CIXM

1
Dear Customer,
If you follow the recommendations contained in this Instruction
Manual, our appliance will give you constant high performance and
will remain efficient for many years to come.
CONTENTS
RECOMMENDATIONS AND SUGGESTIONS
CHARACTERISTICS
INSTALLATION & USE
MAINTENANCE
Product Specification & Technica Parameters
Model AKR914CIXM
Rated Voltage 220 240V ～
Rated Power Frequency 50Hz
Light Power 2x1.5W
Motor Power 310W
Total Power 313W
Maximum suction 1300m3/hr
Diameter of Exhaust Pipe 170mm
Product Dimension (mm) AKR914IXM L 980 x W 630 x H 560
Net Weight AKR914IXM 25kg
Gross Weight AKR914IXM 30kg
RECOMMENDATIONS AND SUGGESTIONS
INSTALLATION
* The manufacturer will not be held liable for any damages
resulted from incorrect or improper installation.
* Please read this instruction manual before installing and using
this cooker hood. Properly keep this instruction manual in a safe
place for future reference.
* This cooker hood designed to be used in the Ducted Mode or
inner recirculation mode. You can find the charcoal filter in the
carton box.

2
* Only a qualified and trained service technician can undertake the
work of installation and servicing.
* This appliance can not use extend cord.
* Check that the mains voltage corresponds to the one indicated
on the rating plate fixed inside the hood.
* Check that the domestic power supply guarantees adequate
earthing.
* Do not connect the hood to exhaust ducts carrying combustion
fumes (boilers, fireplaces, etc.)
* If the hood is used in conjunction with non electrical appliances
(e. g. gas burning appliances), a sufficient degree of ventilation
must be guaranteed in the room in order to prevent the backflow
of exhaust gas. The kitchen must have an opening directly with the
open air in order to guarantee the entry of clean air.
* The minimum distance is 750mm from the cooker hood to a gas
hob, and is 650mm to an electric hob. If the installation
instructions for gas/electric hobs specify a greater distance the
same must be taken into account.
NOTICE: Considering excessive weight, two or more people are
required to install or move this appliance. Failure to do so can
cause physical injuries and damage to the product.
USE
* The cooker hood has been designed only for domestic use to
eliminate kitchen fumes.
* Never use the hood for purposes other than what it has been
designed for.
* Never leave high naked flames under the hood when it is in
operation.
* Adjust the flame intensity to direct it onto the bottom of the pan
only make sure that it does not engulf the pan sides.
* Deep fat fryer must be continuously monitored during use:
overheated oil can burst into flame.

3
* The hood should not be used by children or person not instructed
on its correct usage.
MAINTENANCE
* Proper maintenance of the Range Hood will assure proper
performance of the unit.
* Disconnect the hood from the main supply before carrying out
any maintenance work.
* Clean and/or replace grease filters after specified period of time.
* Clean the hood using a damp cloth and a neutral liquid detergent.
* DISPOSAL: Do not dispose this product as unsorted municipal
waste. Collection of such waste separately for special treatment is
necessary.
WARNING!!
In certain circumstances electrical appliances may be a danger
hazard.
* Do not check the status of the filters while the cooker hood is
operating.
* Do not touch the light bulbs During/ immediately after appliance
use.
* Do not disconnect the appliance with wet hands.
* Avoid naked flame, as it may damage the filters and a fire
hazard.
* Constantly check a frying food to avoid that the overheated oil
may become a fire hazard.
* Disconnect the electrical plug prior to any maintenance.
* Children don’t recognize the risks of electrical appliances.
Therefore use or keep the appliance only under supervision of
adults and out of the reach from children.
* Don’t use this product outdoor.
* This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given

4
supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised
to ensure that they do not play with the appliance.
* There shall be adequate ventilation of the room when the range
hood is used at the same time as appliances burning gas or other
fuels.
* There is a fire risk if cleaning is not carried out in accordance
with instructions.
* Do not leave bare flames under the range hood.
* The discharge air must not be discharged into a flue which is
used for exhausting fumes from appliances burning gas or other
fuels.
CHARACTERISTICS

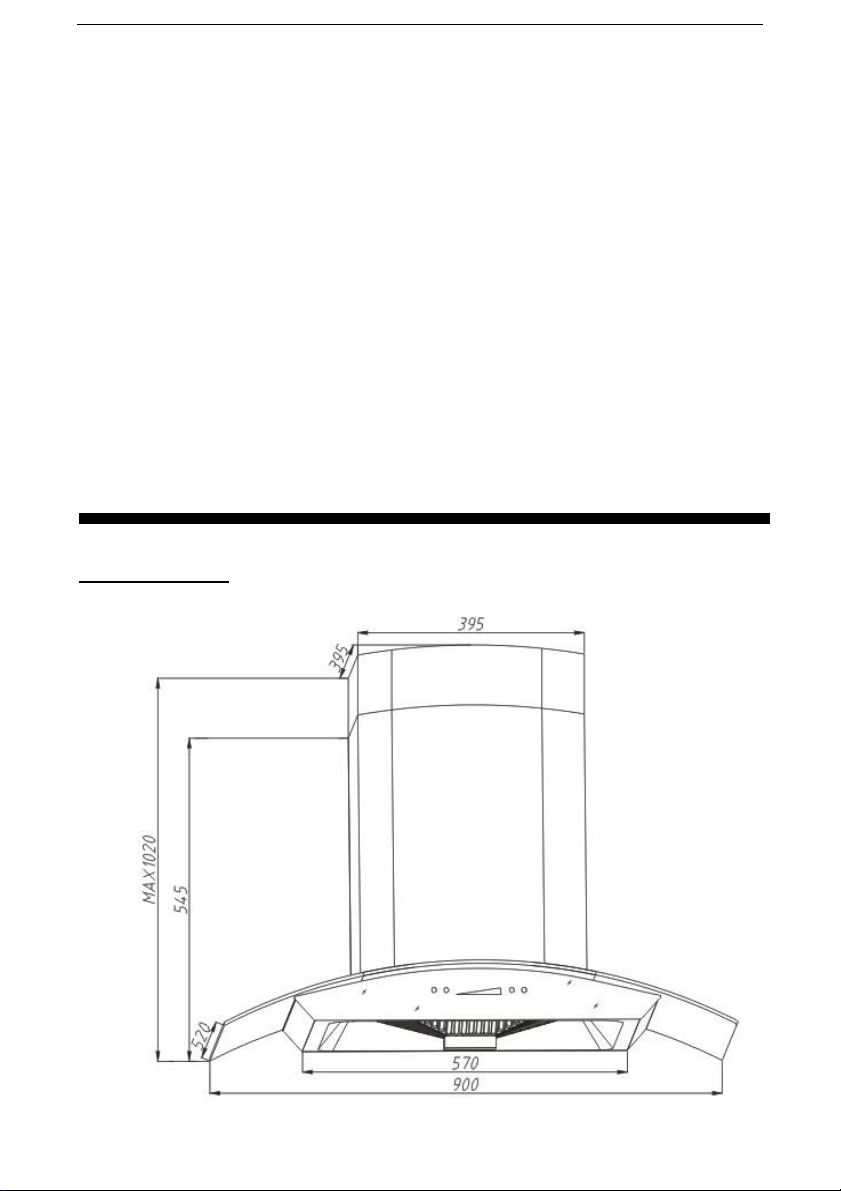

DIMENSIONS

5

6

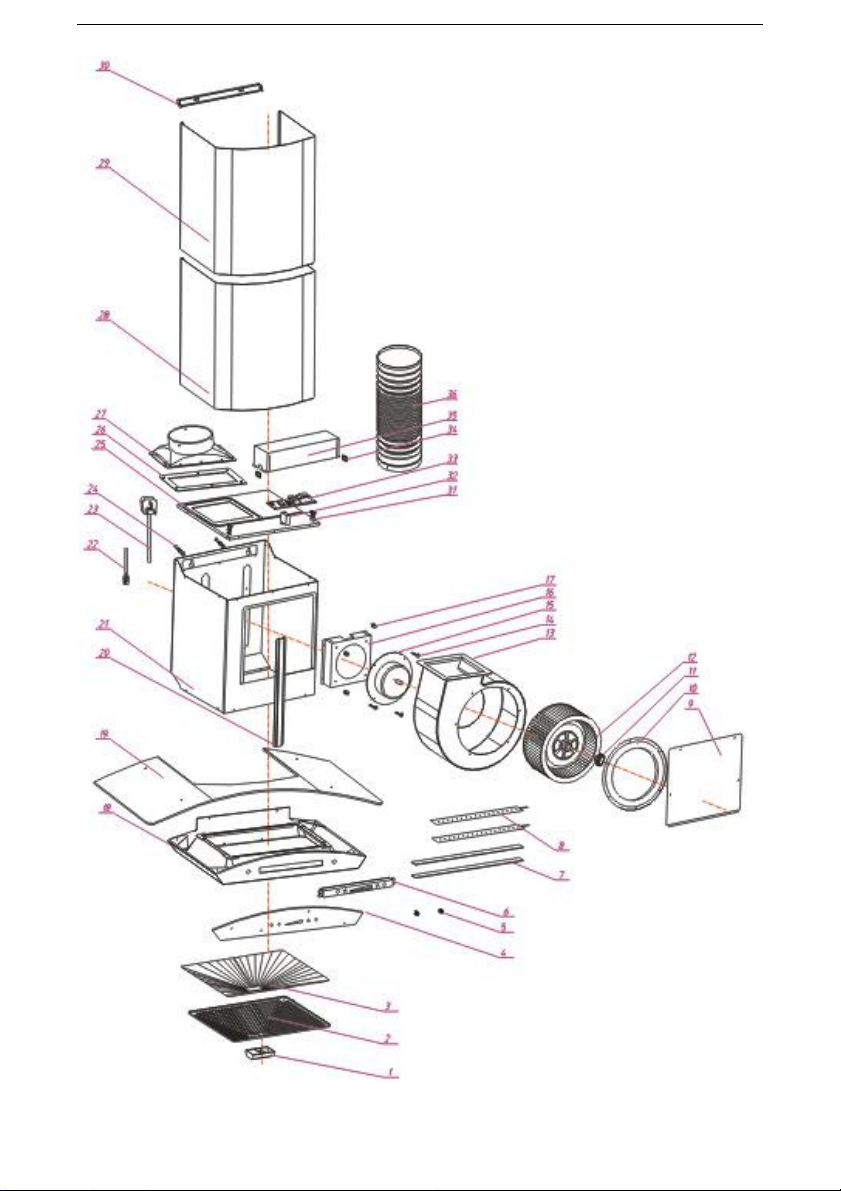

COMPONENTS
Ref Qty Components
1 1pcs grease filter
2 1pcs Charcoal filter
3 1pcs Hood body
4 2pcs steel bolt
5 3pcs Cross self drill bolt
6 1pcs Exhaust
7 1pcs Exterior chimney
8 1pcs Inner chimney
9 2pcs Cross discal thread bolt
10 1pcs Fixing frame
11 2pcs Cross discal bolt big head
12 2pcs Flat rubber band
13 2pcs Plastic distensible sleeve
Ref Qty Documentations
14 1pc Instruction Manual
INSTALLATION & USE
Note 1: Carefully remove the protective film from chimney and
front panel prior to final installation.
Note 2: At least two people will be required to mount the hood.

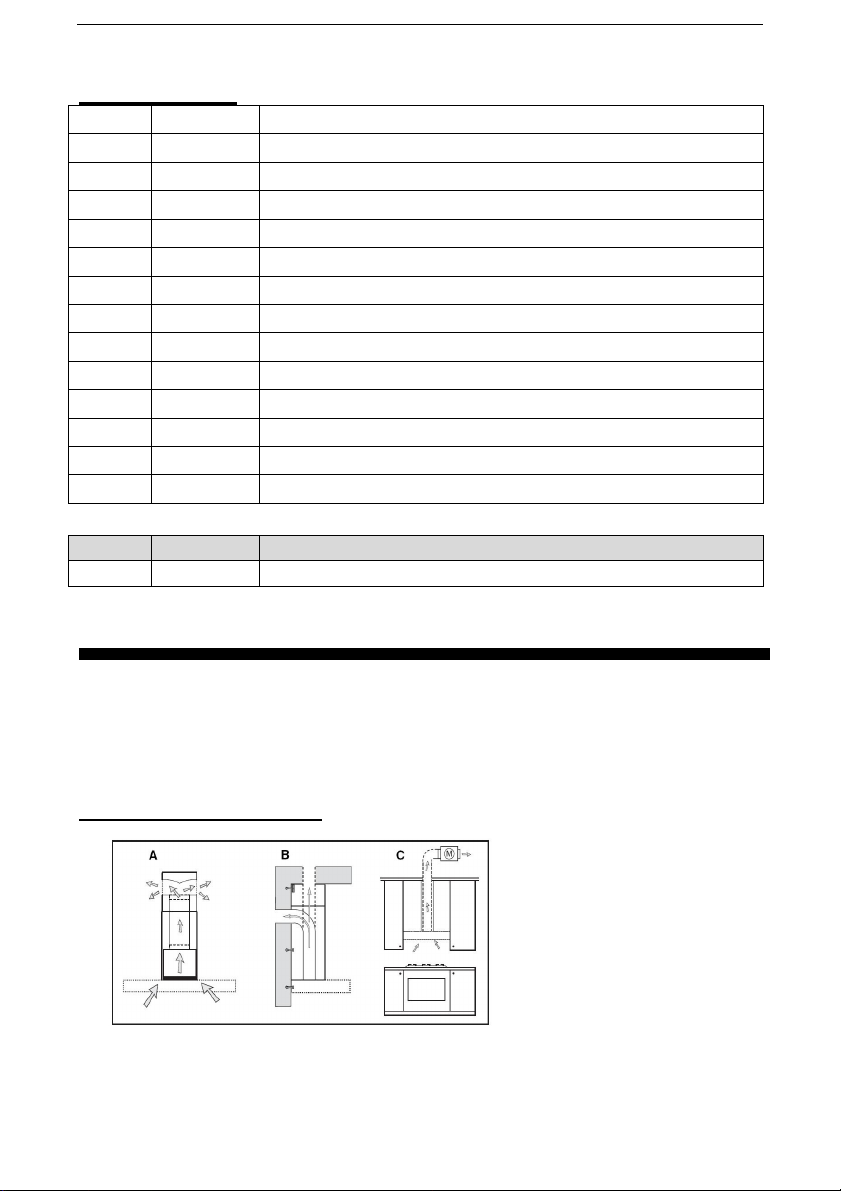

FIXING TO THE WALL
Fig.1
1. Drill the holes according to the distances indicated (Fig.2).
2. Fix the appliance to the wall and align it in horizontal position to
the wall units.

7
3. When the appliance has been adjusted, fix the hood using the
screws A. For the various installations use screws and screw
anchors suited to the type of wall (e.g. reinforced concrete,
plasterboard, etc.). If the screws and screw anchors are provided
with the product, kindly check the screws are suitable for the type
of wall in which the hood is to be fixed.

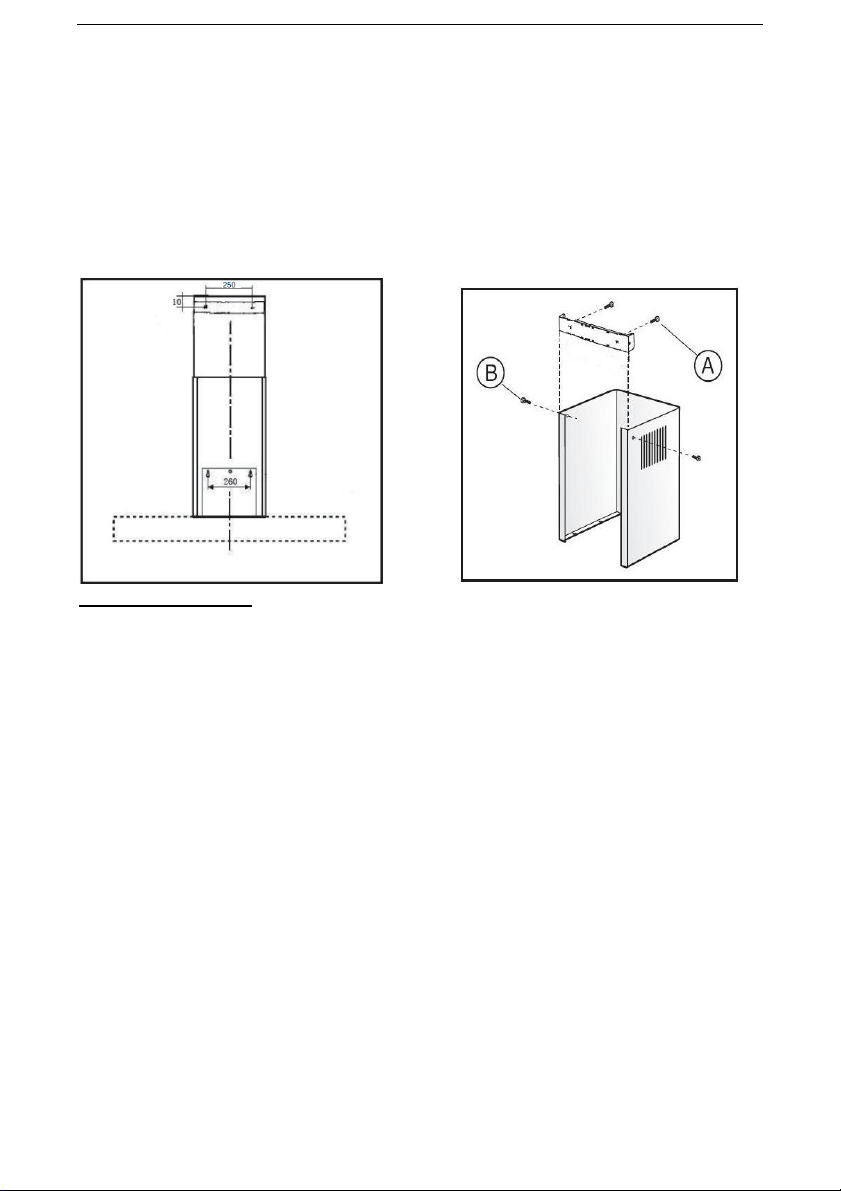

Fig.2 Fig.3
Fixing Chimney
1. Arrange the electrical power supply within the dimensions of the
chimney. If your appliance is to be installed in the ducting version
or in the version with external motor, prepare the air exhaust
opening.
2. Adjust the width of the support bracket of the exterior chimney
(Fig.3). Then fix it to the ceiling using the screws A (Fig.2) make
sure that it is in line with your hood and respecting the distance
from the ceiling indicated in Fig.2. Connect the flange C to the air
exhaust hole using a connection pipe (Fig.4).

8

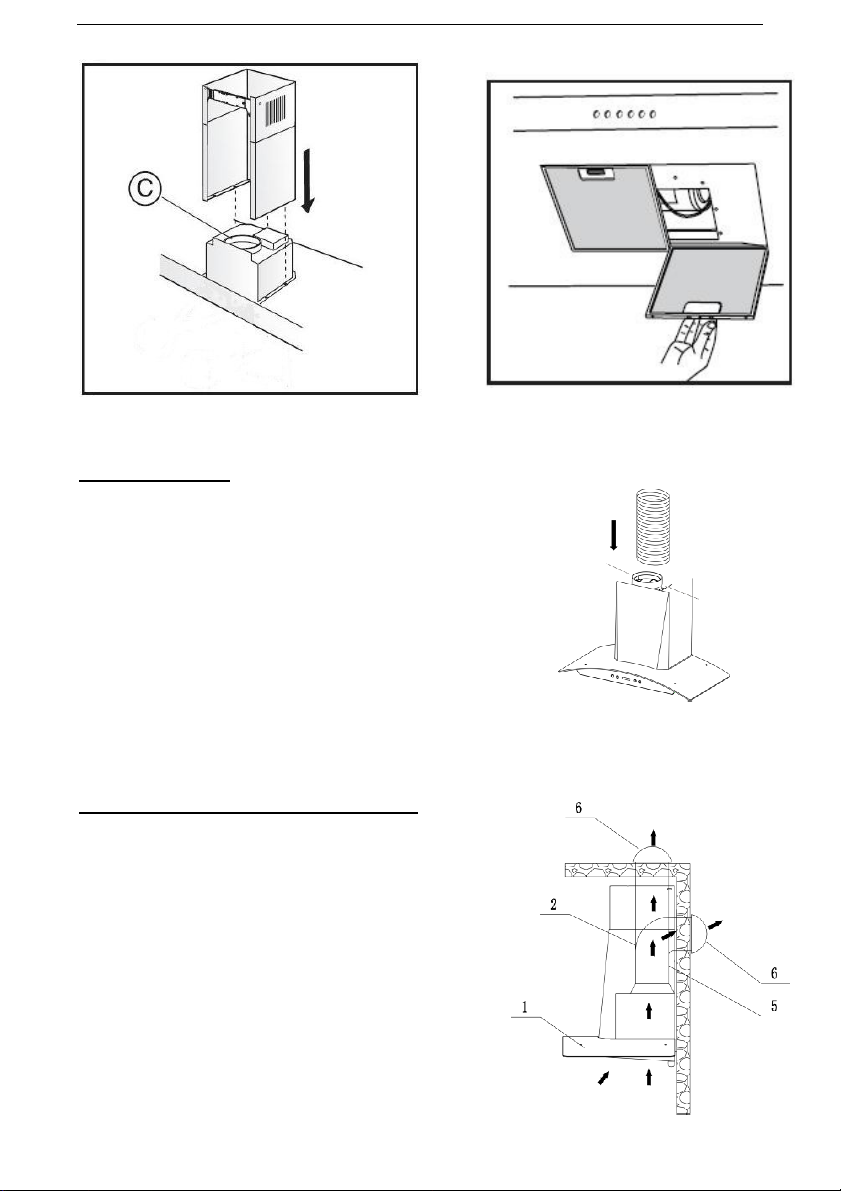

Fig.4 Fig.5
DUCT FIXING
Caution: To reduce the risk of fire,
recommend use aluminum ductwork.
1. Attach an adequate length of φ150mm
round duct into the recessed area of the
air outlet adapter.
2. The duct has to be secured using two
screws from two sides of the air outlet
adapter. Make sure the duct is fixed well
on.
DESCRIPTION/CONNECTIONS
Ducted mode air exhaust system
The hood draws the cooking fumes
saturated with fumes and odor through
the grease filters and expels it to the
outside through an outlet pipe.
Caution: To reduce the risk of fire, use
metal ductwork only.
1. Decide where the ductwork will run
between the hood and the outside.

9
2. A straight, short duct run will allow the hood to perform most
efficiently.
3. Long duct runs, elbows, and transitions will reduce the
performance of the hood. Use as few of them as possible.
Larger ducting may be required for best performance with
longer duct runs.
4. Attach an adequate length of φ160mm round duct to the air
outlet adapter. Let the exhaust run for a minimum of 1 meter in
Straight line in between bends / elbows for better efficiency.
5. The air must not be discharge into a flue that is used for
exhausting fumes from appliances burning gas or other fuels"
"Regulations concerning the discharge of air have to be
fulfilled.
6. Install a roof/wall cap. Connect round metal ductwork to cap
and work back towards hood location. Use duct tape to seal the
joints between ductwork sections.
E ectrica Connection
* Electrical wiring must be done by a qualified person(s) in
accordance with all applicable codes and standards. Turn off
e ectrica power at service entrance before wiring.
* If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
* Do not use the plug and an extension cord other than the ones
initially supplied with the hood.
* The earthing of this hood is compulsory. Do not remove ground
prong of the plug.

10
OPERATION OF CONTROLS
Commands pattern:
A = ON/ OFF
B = TIMER
C = DIGITAL DISPLAY
D = SLIDER BAR SENSOR TOUCH SWITCH
E = FAN ON/ OFF
F = LIGHT
SPEED SETTING
When activate key A, the light will go on, key C will be flashing
from max to min. Then key C will automatic switch off.
Press key E, the light will switch on and the symbol is automatic
set for minimum speed.
Slide key D to choose the desire fan speed from lower to upper
level which is indicated on key C.
TIMER SETTING (Note : key B only function after key E is on.)
Press key B, set the time within 3 seconds before the key B
flashing. If after 3 seconds without
setting the key D, it will flash back to the level according to the fan
speed setting. Key B flashing
indicated timer is on and the chimney hood will run for 5 minutes,
then automatic switch off.
Minimum cut off time for timer is 5 minutes and maximum cut off
time for timer is 50 minutes.

11
MAINTENANCE
Switch off or unp ug the app iance from the mains supp y
before carrying out any maintenance work.
GREASE FILTER
* The grease filters should be cleaned frequently (every two
months of operation, or more frequently for heavy use). Use a
warm detergent solution.
* Grease filters are washable.
1. Remove the grease filter by pressing the latch on the filter
(Fig5). This will disengage the filter from the hood. Tilt the
filter downward and remove.
2. Wash the filters, taking care not to bend them. Allow them to
be dry before refitting.
3. To install the grease filter, press the latch on the filter again.
Make sure the filter is securely engaged after assembly.
WARNING:
1. Always switch off the electrical supply before carrying out any
operation on the appliance.
2. Only a qualified and trained service technician can undertake
the work of blubs replacement and servicing.
CAUTION:
1. The surface and the cover of the lamp may be hot. TAKE CARE
while replacing.
2. Bulbs may be hot. Take care while replacing.
We recommend on y using amps of the same specification
as the one being rep aced.
GREASE FILTER CLEANING
* Remove the filters from the cooker hood and wash them in a
solution of water and neutral liquid detergent, leaving to soak.
*Rinse thoroughly with warm water and leave to dry.

12
*The filters may also be washed in the dishwasher.
* Please take note that the aluminum panels may alter in color
after several washes.
HOOD CLEANING
Glass and aluminum are two of the easiest materials to keep clean.
Occasional care will help preserve its fine appearance.
Cleaning tips:
* Hot water with soap or detergent is all that is usually needed.
* Follow all cleaning by rinsing with clear water. Wipe dry with a
clean, soft cloth to avoid water marks.
* For discolorations or deposits that persist, use a non scratching
household cleanser or stainless steel polishing powder with a little
water and a soft cloth.
* For stubborn cases use a plastic scouring pad or soft bristle
brush together with cleanser and water. Rub lightly in direction of
polishing lines or “grind” of the aluminum finish. Avoid using too
much pressure that may mar the surface.
* Do not allow deposits to remain for long periods of time.
* Do not use ordinary steel wool or steel brushes. Small bits of
steel may adhere to the surface causing rust.
* Do not allow salt solutions, disinfectants, bleaches, or cleaning
compounds to remain in contact with aluminum finish for extended
periods. Many of these compounds contain chemicals that may be
harmful. Rinse with water after exposure and wipe dry with a clean
cloth.
* Painted surfaces should be cleaned with warm water and mild
detergent only.
TROUBLE SHOOTING
In case if the Cooker Hood is not working or working improperly,
before calling the after sales service, switch off the appliance,
unplug the power supply and refer to the guide below to determine

13
the problem
S.No. Status Reasons So utions
Power supply not
connected
Check if the power
cord is properly
connected or not
1 Lamp doesn’t
work
Lamp is damaged
Call consumer
service for support
Filter not
properly fitted
Remove and refit
the filters in its
place
2 Hood gives out
loud noise
Hood is not
installed properly
Call consumer
service for support
Distance
between Hood
and Hob is too
high
Call consumer
service for support
Filter is choked Clean filter and
refit in its place
3 The air exhaust
performance is
bad
Duct is damaged Call consumer
service for support

14
s
